USER MANUAL Ultimate Experience CF9620 ROWENTA

Simple line drawing of a cylindrical object with a flanged top and side edges, enclosed in a rounded square frame (no text or symbols)

1

Diagram of a mechanical component with arrows indicating direction (no text or symbols)

2

Diagram showing a mechanical assembly with a downward arrow indicating motion or force (no text or symbols present)

13

Click!

14

Illustration of a mechanical component with motion arrows and control buttons (no text or symbols)

15

Diagram of a battery with arrows indicating flow or movement, no text or symbols present

16

Illustration of a person brushing hair with a comb, showing hair length and direction (no text or symbols)

17

Illustration of a person with long hair holding a folded garment (no text or symbols)

18

Line drawing of a person brushing her hair with a comb (no text or symbols)

19

Line drawing of a hand using a hairdryer to brush the needle (no text or symbols)

|10

Illustration of a hand using a hairdryer to brush the hair (no text or symbols present)

11 12

Illustration of a hand holding a syringe with internal components and a black arrow pointing to it (no text or symbols)

|

Illustration of a hand holding a hairdryer with a brush, showing texture and pattern (no text or symbols)

ALCOOL 70° 50° 1413

15

OK

Diagram of a cable being inserted into a connector, with a black arrow indicating the cable's direction (no text or symbols present)

Illustration of a hand using a tool to press a circular object into a pipe, with a faucet nearby (no text or symbols)

16 17 18

1. DESCRIPTION GENERALE

ACCESSOIRES DE COIFFURE

Read the instructions carefully as well as the safety guidelines before use.

1. GENERAL DESCRIPTION

A - Left/right rotation button
B - STYLE ASSIST: program selection
C - Small brush
D - Big brush without plastic bristles
E - Big brush with plastic bristles
F - Cool tip: No risk of burns
G - Removable rear grid
H - Brush Protector

2. SAFETY INSTRUCTIONS

• For your safety, this appliance complies with the applicable standards and regulations (Low Voltage Directive, Electromagnetic Compatibility, Environmental...).

• The appliance's accessories become very hot during use. Avoid contact with the skin. Make sure that the supply cord never comes into contact with the hot parts of the appliance.

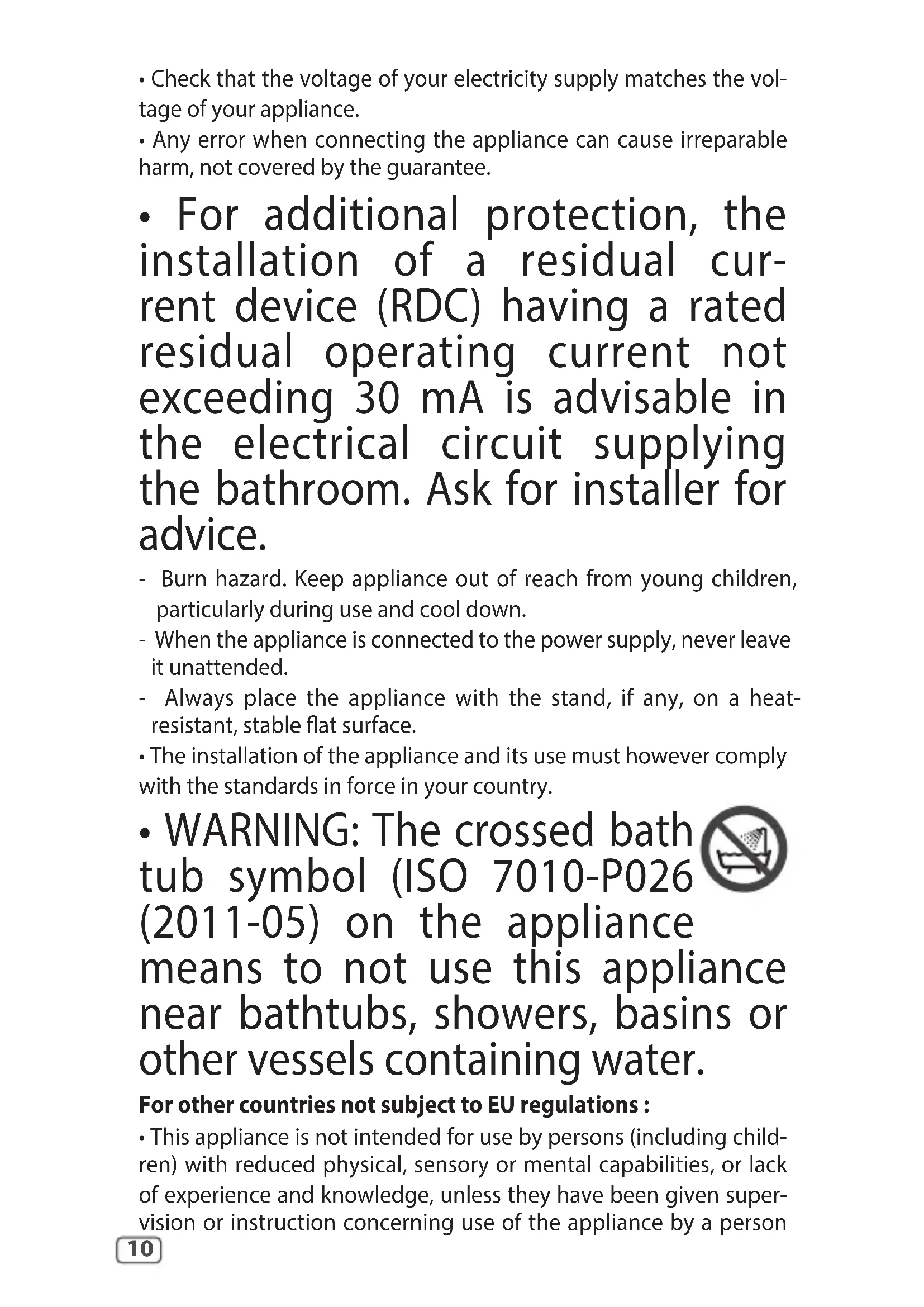

• Check that the voltage of your electricity supply matches the voltage of your appliance.

• Any error when connecting the appliance can cause irreparable harm, not covered by the guarantee.

- For additional protection, the installation of a residual current device (RDC) having a rated residual operating current not exceeding 30 mA is advisable in the electrical circuit supplying the bathroom. Ask for installer for advice.

• Burn hazard. Keep appliance out of reach from young children, particularly during use and cool down.
• When the appliance is connected to the power supply, never leave it unattended.
• Always place the appliance with the stand, if any, on a heat-resistant, stable flat surface.
• The installation of the appliance and its use must however comply with the standards in force in your country.

- WARNING: The crossed bathtub symbol (ISO 7010-P026 (2011-05) on the appliance means to not use this appliance near bathtubs, showers, basins or other vessels containing water.

For other countries not subject to EU regulations :

- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person

responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

- When the appliance is used in a bathroom, unplug it after use since the proximity of water presents a hazard even when the appliance is switched off.

For countries subject to EU regulations € €

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

• Stop using your appliance and contact an Authorised Service Centre if:
• your appliance has fallen.
• it does not work correctly.
• The appliance is equipped with a heat-sensitive safety device. In the event of overheating (for example if the rear grill is blocked), the dryer will stop automatically: contact the After-Sales Service.
  • The appliance must be unplugged:
• before cleaning and maintenance procedures.
• if it is not working correctly.
• as soon as you have finished using it.
• if you leave the room, even momentarily.
• Do not use if the cord is damaged.
• Do not immerse or put under running water, even for cleaning purposes.
• Do not hold with damp hands.
• Do not hold the appliance by the casing, which is hot, but by the handle.
• Do not unplug by pulling on the cord, rather pull out by the plug.
• Do not use an electrical extension lead.

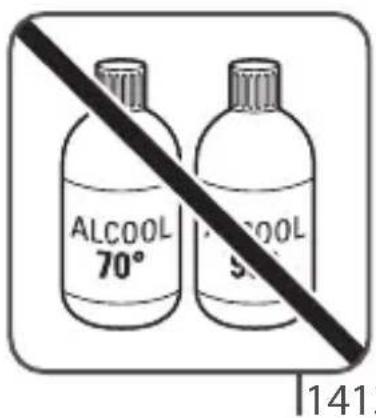

• Do not clean with abrasive or corrosive products.
• Do not use at temperatures below 0^ and above 35^ .

GUARANTEE

Your appliance is designed for use in the home only.

It should not be used for professional purposes.

The guarantee becomes null and void in the case of improper usage.

3. INSTRUCTIONS FOR USE

It is normally necessary to practise using the appliance 2 or 3 times before being able to master the technique for use perfectly.

BRUSHES ATTACHMENTS

3 brushes specially tailored made for each hair type: flat/thin hair, unruly hair, fringe and short hair.

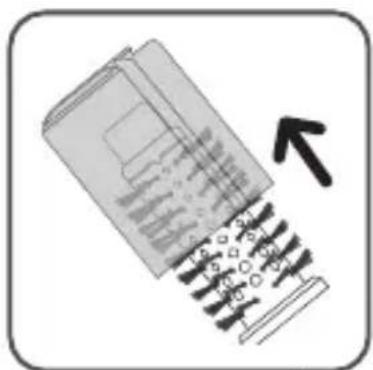

To keep the brushes effective, always return them to their protectors (H) after use.

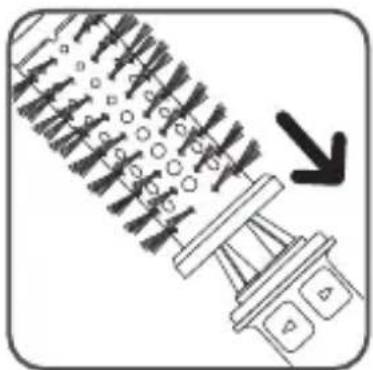

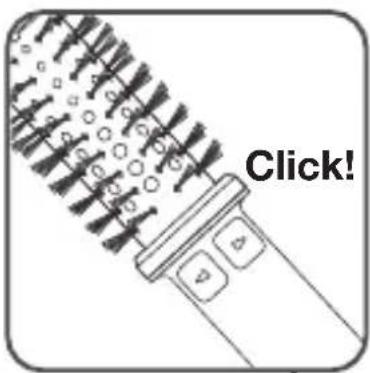

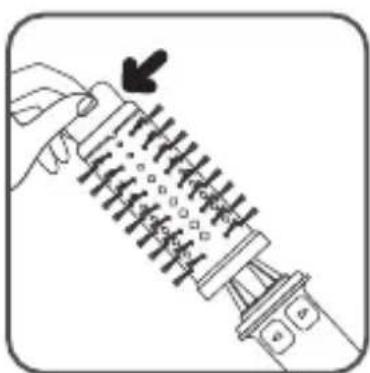

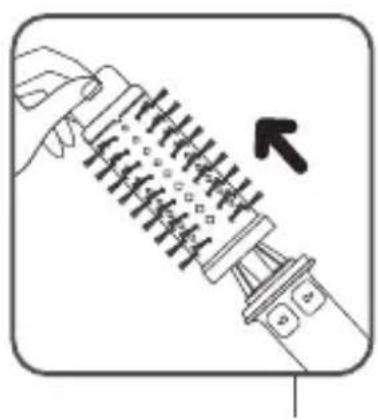

FITTING THE BRUSHES AND REMOVING THEM FROM THE APPLIANCE (3, 4, 5, 6):

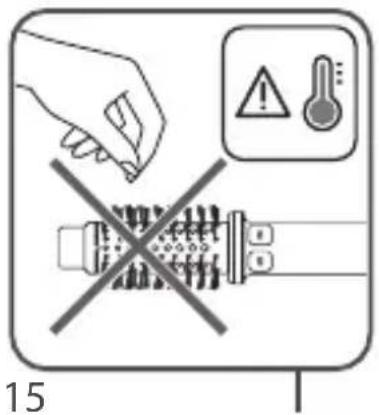

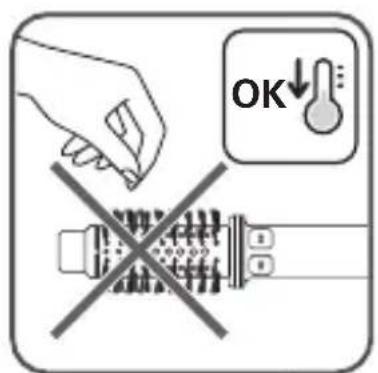

REMINDER: The brush accessories (C,D,E) are very hot when in use. Be careful when removing it.

AIR TEMPERATURE / SPEED (B):

3 programs according to your hair result you want:

• Silky smoothed hair: high temperature and slow speed rotation
• Volume from the root : low temperature and high speed rotation
  ★ - Shine and fixation: lower temperature to fix your hair style

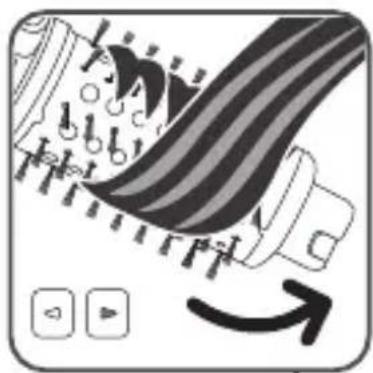

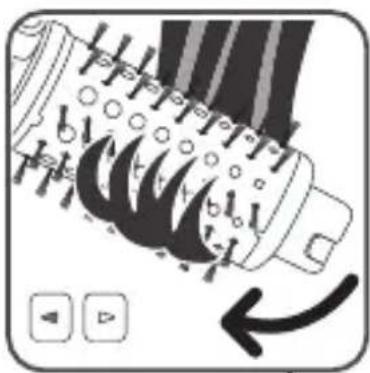

DIRECTION OF ROTATION (D):

This function enables you to automatically wind the section of hair around the brush to blow dry your hair effortlessly.

• To start rotation, press the selector switch (A) in the desired direction of rotation (right or left).
• Keep pressing the switch while blow drying.
• To stop rotation, release the switch.

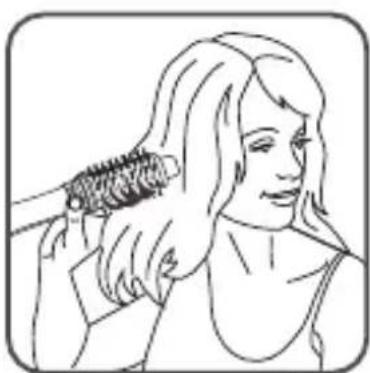

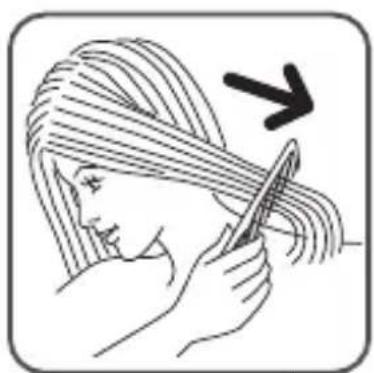

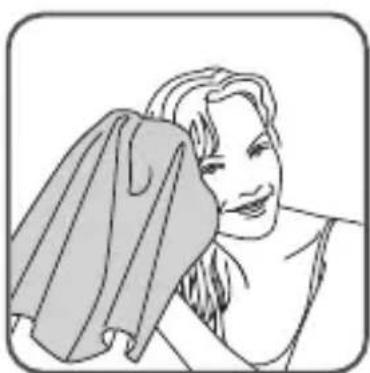

DRYING AND STYLING IN ONE GO! (7, 8, 9, 10)

ENVIRONMENT PROTECTION FIRST!

Your appliance contains valuable materials which can be recovered or recycled.

Leave it at a local civic waste collection point.

These instructions are also available on our website www.rowenta.com.
