GME 36 LB - Multitools Güde - Free user manual and instructions

Brand	Güde
Model	GME 36 LB
Product type	Leaf blower attachment for GME 36 power unit
Category	Multifunction tools
Max blowing volume	260 m³/h
Air speed	180 km/h
Weight	1.4 kg
Sound pressure level (LpA)	77.2 dB(A)
Measured sound power level (LWA)	89.1 dB(A)
Guaranteed sound power level (LWA)	92 dB(A)
Vibration emission value (ah)	2.32 m/s²
Vibration measurement uncertainty (K)	1.5 m/s²
Power supply	Battery (accu) – compatible with GME 36 power unit
Intended use	Blowing dry leaves, dry grass, small twigs, spruce/pine needles
Included accessories	Blower nozzle (tube)
Minimum safety distance	5 m from persons
Recommended hearing protection	Yes
Recommended safety glasses	Yes
Warranty (end consumer)	24 months
Maintenance	Clean ventilation openings, no water or solvents
Order number	95708

Frequently Asked Questions - GME 36 LB Güde

Which power unit is the GME 36 LB attachment compatible with?

The GME 36 LB blowing attachment is designed exclusively for the GME 36 power unit (ref. 95700).

What types of debris can be blown with this device?

It is suitable for dry leaves, dry grass, small twigs, and spruce or pine needles. Do not use for wet or heavy debris.

What are the essential safety precautions?

Always wear safety glasses and hearing protection. Keep people and animals at least 5 meters away. Never point the blower at people, windows, or flames.

How to maintain the leaf blower?

Before any maintenance, remove the battery. Clean the ventilation openings with a damp cloth. Never use water or solvents. Only use original spare parts.

What is the warranty period?

The warranty is 24 months for domestic use (end consumer) and 12 months for professional use. Keep the receipt.

Can I use this attachment with other brands of multifunction tools?

No, the GME 36 LB attachment is specially designed for the Güde GME 36 power unit. Using it with other tools could be dangerous.

Is the noise level high?

The sound pressure level is 77.2 dB(A) and the guaranteed sound power level is 92 dB(A). It is strongly recommended to wear hearing protection.

How to reduce vibrations during use?

Take regular breaks, keep your hands warm, and ensure the device is properly maintained. The measured vibrations are 2.32 m/s².

What to do in case of a technical problem?

Contact Güde service at [e-mail] or +49 (0)79 04 / 700-360. Have the serial number and order number ready.

Can I use the blower in the rain?

No, the device must not be exposed to moisture or rain. Protect it from water to avoid risk of electrocution and damage.

USER MANUAL GME 36 LB Güde

Translation of the original instructions - Leaf blowing attachment

3D rendering of a metallic mechanical component with a curved shaft and black base (no text or symbols visible)

GÜDE GmbH & Co. KG

Birkichstrasse 6

74549 Wolpertshausen

Deutschland

CE

ENGLISH Please read the instructions carefully before starting the machine.

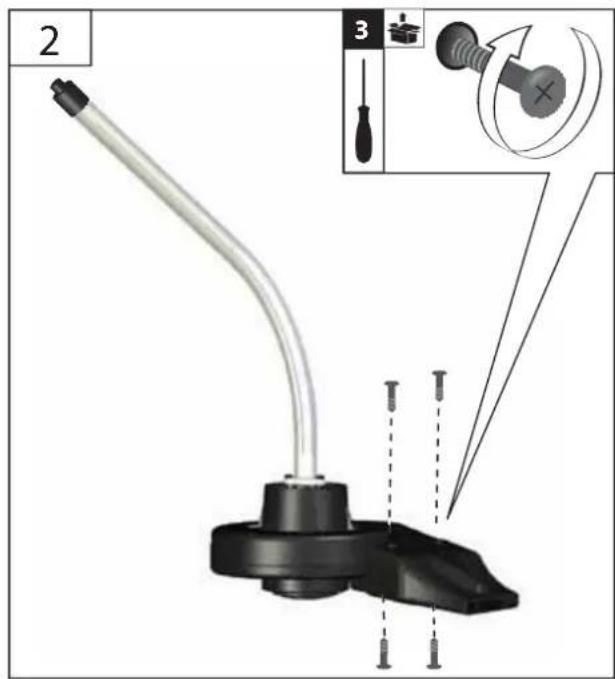

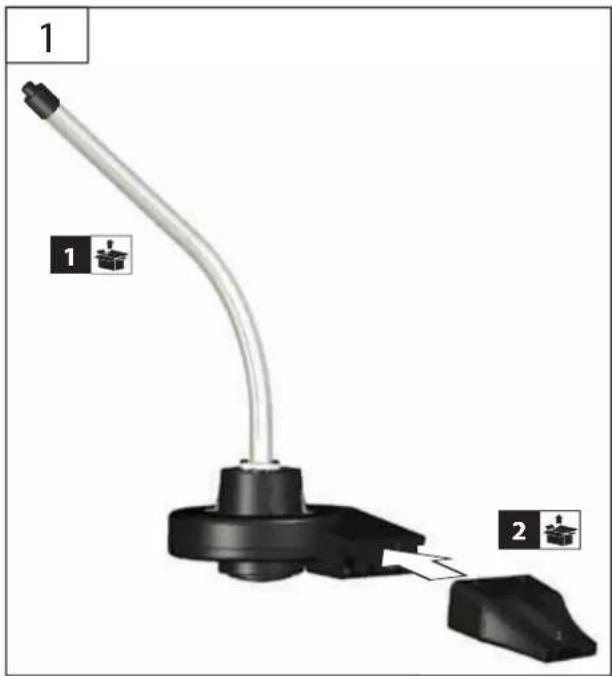

Illustration of a mechanical device with three labeled parts: a curved pipe, a black connector, and screwdriver (no text or symbols present)

D	Montage	SLO	Montaža
GB	Assembly	HR	Montaža
F	Assemblage	BG	Монтаж
I	Montaggio	RO	Montaj
NL	Montage	BIH	Montaža
CZ	Montáž
SK	Montáž
H	Szerelés

1

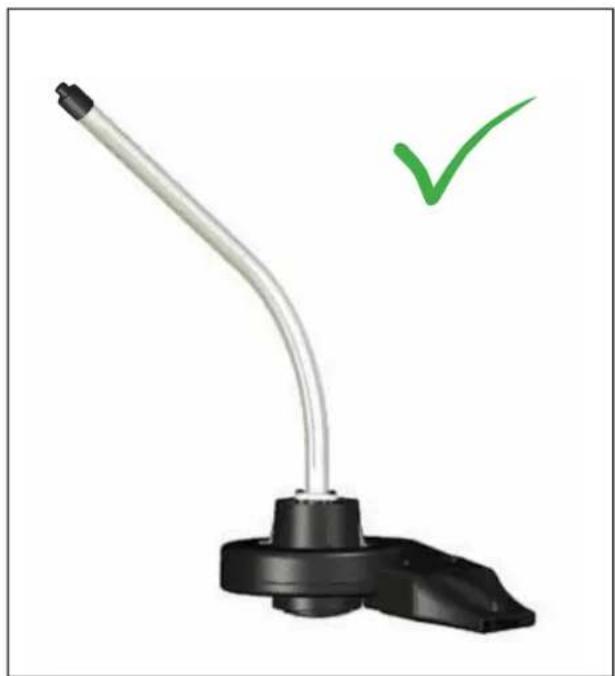

Illustration of a black and white tool with a curved handle and a green checkmark (no text or symbols)

Illustration of a person using a street cleaner to clean autumn leaves, with a green checkmark indicating approval (no text or symbols)

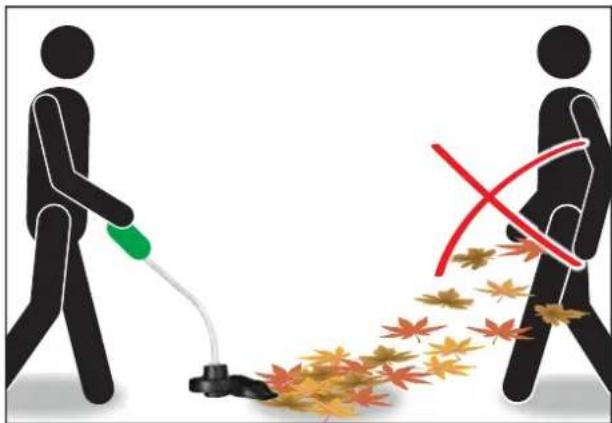

Illustration of two figures sweeping autumn leaves, one using a power tool and the other with a red X mark (no text or symbols)

Silhouette of a person sweeping autumn leaves with a green checkmark (no text or symbols)

Silhouette of a person using a street cleaning tool to clean leaf litter (no text or symbols)

TIP

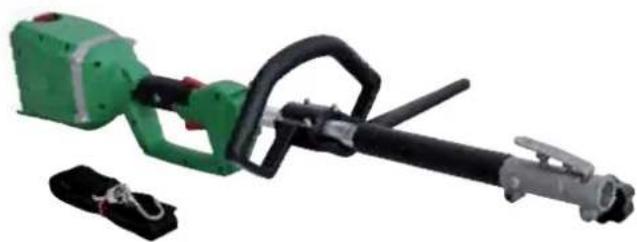

GME 36

Art.-Nr. 95700

Green industrial fuel pump tool with black handle and attached components (no visible text or symbols)

[Non-Text]

www.guede.com

[Non-Text]

Technische Daten

Leaf blowing attachment GME 36 LB

	Art. No 95708
	Max. blowing volume 260 m	^3/h
	Air speed 180 km/h
	Weight 1,4 kg
The following details apply to a motor unit with mounted devices.GME 36 - 95700 + GME 36 LB - 95708
Noise details
	Sound pressure level L_pA^1)	77,2 dB (A)
	Measured sound power level L_WA^1)	89,1 dB (A)
	Guaranteed sound power level L_WA^2)	92 dB (A)
	Measured according to ^1) EN 60745; ^2) 2000/14/EG; Uncertainty K = 3 dB (A)
	Wear ear protectors!
Vibration details
Total vibration values (triaxial vector sum) Determined properly EN 60745
	Vibration emission value a_h	2,32 m/s ^2
	Uncertainty K = 1,5 m/s ^2

WARNING: The vibration emission level will vary because of the ways in which a power tool can be used and may increase above the level given in this information sheet.

The vibration emission level may be used to compare one tool with another.

It may be used for a preliminary assessment of exposure.

An accurate estimate of the vibratory load should also take into account the times when the tool is shut down or when it is running but not actually in use. This may significantly reduce the vibratory load over the total working period.

Identify additional safety measures to protect the operator from the effects of vibration such as: maintain the tool and the accessories, keep the hands warm, organisation of work patterns.

Read and understand the operating instructions before using the appliance. Familiarise with the

control elements and how to use the appliance properly. Abide by all the safety measures stated in the service manual. Act responsibly toward third parties.

The operator is responsible for accidents or risks to third parties.

In case of any doubts about connection and operation refer please to our customer center

This appliance is not intended for use by children.

The machine may not be used by persons with reduced physical, sensory or mental capabilities or persons with a lack of knowledge or experience unless they are supervised by a person responsible.

Children must be supervised in order not to play with the machine.

WARNING!

Please follow the safety instructions given in the instruction manuals of the GME 36 motor unit.

Specified Conditions Of Use

The leaf blowing attachment may only be used with the GME 36 motor unit. The garden appliance has been designed to blow dry leaves and light garden waste such as dry grass, small branches and dry spruce and pine needles.

Do not use this product in any other way as stated for normal use. Not observing general regulations in force and instructions from this manual does not make the manufacturer liable for damages.

Leaf blower to be operated only when the zzzle is fitted.

Residual risks

Even when the device is used properly and all safety regulations are complied with, there still may be some residual risks.

⚠ Hearing damage

A longer stay in the immediate vicinity of the running unit may cause hearing damage. Wear ear protectors!

Despite the observance of the operating instructions there still may be some hidden residual risks.

Symbols

WARNING/Caution!

Read the operating instructions to reduce the risk of injury.

Wear eye protective goggles!

Wear ear protectors!

Take the replaceable battery from the appliance before any extension, cleaning and servicing works.

Risk of injury by thrown-off items! Keep bystanders out the dangerous area (5 m).

Risk of injury by rotating impeller. Keep your hands in safe distance.

Keep a safe distance of at least 5 m from third persons.

Protect against humidity. Never expose tool to rain.

CE marking

Any damaged or disposed electric or electronic devices must be delivered to appropriate collection centres.

Protect against humidity

This side up

Safety instructions for Leaf Blower

Check the work area before using the appliance. Remove any hard objects such as stones, shards of glass, wires, etc. that could be thrown off, knocked back or that could otherwise cause injury or damage during appliance operation.

Never use the appliance when the proper equipment is not fitted. A lance must always be fitted. For your protection, use only the recommended adjustable devices to avoid injuries.

Do not use this leaf blower near fire places or BBQ places and open fire, ash pits, etc. A proper use of the leaf blower contributes to fire spread avoidance.

Do not put any objects on the lance blow openings. Make sure the blown material is not being blown at persons, animals, glass sheets or solid objects such as trees, cars, walls, etc. Strong air flow could throw off stones, dirt or rods or they could be bounced off the ground and injure persons, animals, break glass sheets or cause other damage.

Never use the appliance to disperse chemicals, fertilisers or other substances. By this, you will avoid toxic material spread.

We recommend wearing a respirator as dust is produced.

Do not race when working with the appliance. Walk slowly and cautiously.

Provide a safe posture, especially on slopes.

Do not use the leaf blower near open windows.

Do not use the appliance in bad weather, especially when there is a risk of storm.

Never point the leaf blower at persons, animals or yourself.

Work instructions

Use the appliance only at reasonable times. Not too early in the morning or late at night when people could be disturbed. Observe local regulations.

Heavy dirt to be cleaned off at first and then removed by a rake or broom.

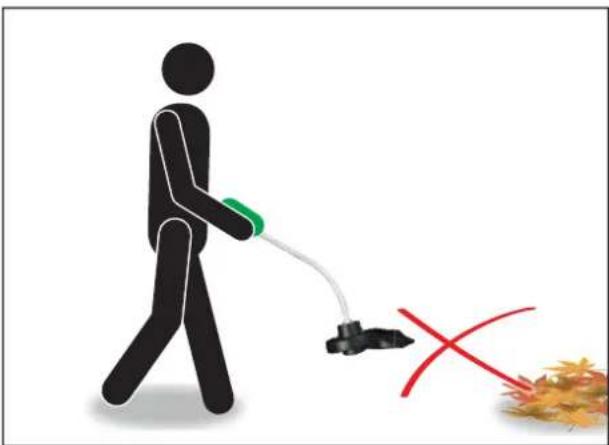

Use the complete nozzle so that the air flow could reach close to the ground.

Switch the appliance off when it starts abnormally vibrating.

Maintenance

Take the replaceable battery from the appliance before any extension, cleaning and servicing works.

Repairs and works specified in these Instructions may only be performed by qualified authorised staff.

Use only original accessories and original spare parts.

Keep the device, in particular the air vents, clean at all times. Never spray water on the device body!

Never clean the machine and its components with solvents, flammable or toxic liquids. Us only a damp cloth making.

Only a regularly maintained and treated appliance can serve as a satisfactory aid. Insufficient maintenance and care can lead to unforeseen accidents and injuries.

If necessary, a list of spare parts can be found at www.guede.com.

Disposal

The disposal instructions are based on the icons placed on the appliance or its package.

Any damaged or disposed devices must be delivered to appropriate collection centres.

Transport packaging disposal

The packaging protects the machine against damage during transport. Packaging materials are usually chosen based on environment aspects and waste treatment principles and are therefore recyclable. Returning the packaging into material circulation saves raw materials and reduces waste production. Parts of packagings (e.g. foils, styropor®) can be dangerous for children.

Risk of suffocation!

Keep parts of the packagings out of reach of children and dispose them as soon as possible.

Guarantee

Warranty period of 12 months applies to commercial use and 24 months applies to private use and commences on the day of purchase of the device.

The guarantee solely covers inadequacies caused by material defect or manufacturing defect. Original payment voucher with the sales date needs to be submitted for any claim in the guarantee period.

The guarantee does not cover any unauthorised use such as appliance overloading, use of violence, damage as a result of any unauthorised interference or caused by foreign items. Failing to follow the operating and assembly instructions and common wear are also not included in the guarantee.

Important information for the customer

Please be sure to know that returning the product in or after the warranty period must be made in the original packaging.

Service

Do you have any technical questions? Any claim? Do you need any spare parts or operating instructions? We will quickly help you and without needles bureaucracy at our web pages at www.guede.com in the Servicing part. Please help us be able to help you. In order to identify your device in case of claim we need the serial No., product No. and year of production. All this data can be found on the type label. Please enter it here for future reference:

Serial No.:

Art. No:

Year of production:

Tel.: [phone] / 700-360

Fax: [phone]

E-Mail: [e-mail]

WAARSCHUWING/Opgelet!

Translation of the EC-Declaration of Conformity

We, hereby declare the conception and construction of the below mentioned appliances correspond - at the type of construction being launched - to appropriate basic safety and hygienic requirements of EC Directives.

In case of any change to the appliance not discussed with us the Declaration expires.

2006/95/EC 2004/108/EC

2009/105/EC 1907/2006/EC

2011/65/EC ROHS 2009/142/EC

89/686/EEC (PPE) 1935/2004/EC

2006/42/EC

Annex IV

Notified Body: No: Name: Adress:

Type Ex. Cert.-No.:

□ 97/68/EC_

Emission No.:

2000/14/EC_2005/88/EC
