Product Type	Inverter Generator
Brand	Güde
Model	ISG 3200-2 (ref. 40721)
Maximum Power	3.5 kW
Continuous Power	3.2 kW
Rated Voltage	230 V ~ / 12 V =
Rated Current	13.9 A / 8.3 A
Frequency	50 Hz
Power Factor	1.0
Engine Type	4-stroke engine, 224 cm³
Engine Power	4.5 kW (6.1 hp)
Starting System	Reverse start (recoil)
Runtime (full load)	4 hours
Fuel Consumption	1.5 L/h
Fuel Tank Capacity	7.8 L (E10/Super/+)
Engine Oil Capacity	0.6 L (5W30 / 10W30)
Dimensions (L × W × H)	600 × 310 × 565 mm
Net Weight	31.8 kg
Sound Pressure Level (LpA)	71 dB(A)
Guaranteed Sound Power Level (LwA)	92 dB(A)
Protection Rating	IP 23 M
Ambient Temperature Range	-10 °C to +40 °C
Safety	Low oil level protection, overload protection
Usage	Outdoor only, flat and dry surface

Frequently Asked Questions - ISG 32002 Güde

What type of fuel should I use for the Güde ISG 32002 generator?

Use unleaded gasoline E10, Super or Super+ (octane rating 95 or higher). Do not use gasoline containing more than 10% ethanol.

What engine oil is recommended?

The recommended engine oil is a 4-stroke oil with viscosity 5W30 or 10W30. The capacity is 0.6 liters.

How to start the generator?

First check the oil and fuel levels. Place the generator on a flat surface. Turn the ignition on, close the choke if the engine is cold, then slowly pull the starter cord until you feel resistance, then pull sharply.

What are the maximum and continuous power of the generator?

The maximum power is 3.5 kW and the continuous (rated) power is 3.2 kW. Do not exceed these values to avoid damage.

Can the generator be used indoors?

No, the generator must be used only outdoors in a well-ventilated area. Exhaust gases contain toxic carbon monoxide which can be fatal in enclosed spaces.

What is the noise level of the generator?

The sound pressure level is 71 dB(A) and the guaranteed sound power level is 92 dB(A). It is recommended to wear hearing protection.

How to maintain the generator?

Before each use, check the oil and fuel levels. After the first 10 hours, change the oil. Every 50 hours, clean the air filter and check the spark plug. Refer to the manual for the detailed maintenance schedule.

What to do if the generator does not start?

Check the oil level (low oil protection), fuel, and make sure the generator is on a flat surface. If the problem persists, purge the air from the fuel system or contact customer service.

Does the generator have overload protection?

Yes, the generator is equipped with overload protection that automatically cuts off the outlets if the rated power is exceeded. Reduce the load or disconnect faulty devices.

How to store the generator after use?

Let the generator cool down for at least 10 minutes, then drain the fuel tank (outdoors). Store it in a dry and clean place. Also drain the oil if storage is prolonged.

USER MANUAL ISG 32002 Güde

ENGLISH Please read the instructions carefully before starting the machine.

Illustration of a funnel-shaped tool with labeled parts (no text or symbols present)

English Technical Data / Device description / Safety Warnings / Specified Conditions of Use / Emergency procedure / Symbols / Maintenance / Disposal / Guarantee / Service ____28

EN starting-up the device FR Mise en service IT Messa in funzione

ES Puesta en marcha NL Toestel in gebruik nemen CZ Uvedení do provozu

Illustration of a water purifier under an umbrella with raindrops, next to a green checkmark (no text or symbols)

3D illustration of a blue and gray robotic device with a red X-shaped cross mark, placed on a diagonal line (no text or symbols)

Silhouette of a person pushing a blue and silver portable device with motion lines (no text or symbols)

Illustration of a blue gas washing machine connected to a green cable with a downward arrow, above a surface with two circular symbols (no text or labels)

5W30 / 10W30

Illustration of a blue industrial robot with a green checkmark above it, no text or symbols present

Illustration of a blue industrial robot with control panel and sensor, showing a close-up view of the engine (no text or symbols present)

Illustration of a hand holding a small object with a golden tip, no text or symbols present

Illustration of a golden tool interacting with a gray surface and a white arrow symbol (no text or labels)

Diagram showing a yellow mechanical component with a zigzag arrow indicating direction, next to a gray Y-shaped structure (no text or symbols)

Illustration of a hand pressing down on a device with a green checkmark (no text or symbols)

	DE EN FR IT ES
1	Display-Anzeige (V/Hz/Laufzeit)	Display information (V/Hz/runtime)	Affichage (V/Hz/temps de fonctionnement)	Visualizzazione sullo schermo (V/Hz/tempo di funziona-mento)	Pantalla (V/Hz/duración)
2 Öko-Modus Eco-Mode Mode éco Modalità ECO Modo Eco
3 USB-Anschlüsse USB ports Ports USB Connettori USB Conexiones USB
4	2 x 230 V Steckdose	2x Single Phase	2 x prises 230 V	Presa di corrente 2 x 230 V	2 x enchufe de 230 V
5	Absicherung 230 V Ausgang 1PH breaker		Protection par fusible 230 V Sortie	Protezione uscita 230 V	Protección por fusible Salida de 230 V
6	Anschluss 12 V	DC 12V out	Raccordement 12 V	Attacco 12 V	Conexión 12 V
7	Absicherung 12 V Ausgang	DC reset	Protection par fusible 12 V Sortie	Protezione uscita 12 V	Protección por fusible Salida de 12 V
8	Parallel Terminal zur Verbindung mit einem weiteren Stromerzeuger	Parallel terminal for connection to another power generator	Terminal parallele pour raccordement à un autre groupe électrogène	Terminale parallelo per la connessione a un altro generatore elettrico	Terminal paralelo para conectar con un generador eléctrico adicional
9	Erdung Motor Ground before use		Mettre à la terre avant utilisation	Prima dell'uso, eseguire la messa a terra	Poniendo a tierra el motor

	NL CZ SK PL HU
1	Display-weergave(V/Hz/looptijd)	Zobrazení na displeji(V / Hz / doba chodu)	Ukazovatel'na displeji(V/Hz/Doba chodu)	Ekran(V/Hz/Czas trwania)	Kijelző jelzése(V/Hz/üzemidő)
2	Eco-modus Eko režim Ekologický režim Tryb eko Ōko üzemmód
3	USB-aansluiting USB prípojky USB prípojky Złącza USB USB-csatlakozók
4	2 x 230 V stopcontact	Zásuvka 2 x 230 V	2 x 230 V zásuvka	2 x 230 V gniazdko wtykowe	2 x 230 V-os dugaszolóaljzat
5	Zekering 230 V uitgang	Jištění 230 V výstup	Poistka 230 V výstup	Zabezpieczenie 230 W - wyjście	Biztosíték, 230 V-os kimenet
6	Aansluiting 12 V	Připojka 12 V	Pripojenie 12 V	Podłączenie 12 V	12 V-os csatlakozás
7	Zekering 12 V uitgang	Jištění 12 V výstup	Poistka 12 V výstup	Zabezpieczenie 12 V - wyjście	Biztosíték, 12 V-os kimenet
8	Parallelle terminal voor de verbindung met een extra generator	Paralelní terminál pro prípojení k dalšimu generátoru	Paralelný terminál na spojenie s dalsou elektrocentrálou	Równoległy terminal do podłączenia do kolejnego agregatu prądotwórczego	Párhuzamos csatlakozó egy másik áramfejlesztővel történő összekapcsoláshoz
9	Voor gebruik aarden	Před použitim uzemnête	Pred používaním uzemnite	Uziemić przed użyciem	Használat elött földelje le

	DE EN FR IT ES
1 Auslastung Capacity utilisation Remplissage Carico Carga
2	Anzeige Tankinhalt	Tank capacity display	Affichage capacité du réservoir	Visualizzazione contenuto del serbatoio	Indicador Capacidad del depósito
3	Anzeige Störung	Fault display	Affichage dysfonctionnement	Visualizzazione anomalia	Indicador Fallo
4	Anzeige Überlastung	Overload display	Affichage surcharge	Visualizzazione sovraccarico	Indicador Sobrecarga
5	Anzeige Ölmangel	Insufficient oil display	Affichage manque d'huile	Visualizzazione livello di olio insufficiente	Indicador Falta de aceite
6	Wechsel der Display-Anzeige (Volt/Frequenz/Zeit)	Changing the display information (Volt/Frequency/Time)	Changement de l'affichage (Volts/fréquence/temps)	Modifica della visualizzazione sullo schermo(Volt/frequenza/tempo)	Cambio del indicador de pantalla(Voltios/Frecuencia/Tiempo)
7	Display-Anzeige	Display information	Affichage	Visualizzazione sullo schermo	Pantalla

Blue industrial machine with circular dial and control panel, shown with a magnified inset showing the dial's rotation (no text or symbols visible)

2

Blue and black industrial gas generator with visible wheels and control panel (no text or symbols)

Blue and black industrial gas generator with visible wheels and control panel (no text or symbols)

STOP

1

Blue and black industrial gas generator with visible wheels and control panel (no text or symbols)

2

3

Blue gas generator with mechanical components and a close-up inset showing the wheel assembly (no text or symbols visible)

230 V

USB

12 V

Three black-and-white warning symbols: a yellow triangular warning triangle with an exclamation mark, a mechanical device with a tool, and an open book with a pencil (no text or labels)

4

Illustration of a wooden brush and a spark plug, both without any text or symbols

5

6

3D rendering of a blue industrial machine or vehicle with mounting bracket and wheel (no visible text or symbols)

7

Close-up of a mechanical device component with a cable inserted, showing internal wiring and a directional arrow (no text or symbols)

Close-up of a car's front wheel and dashboard with a small circular component inserted, no visible text or symbols

Illustration of a hand holding a piece of paper with a golden object above it (no text or symbols)

Illustration of a golden tool with a zigzag handle and a white arrow symbol (no text or labels)

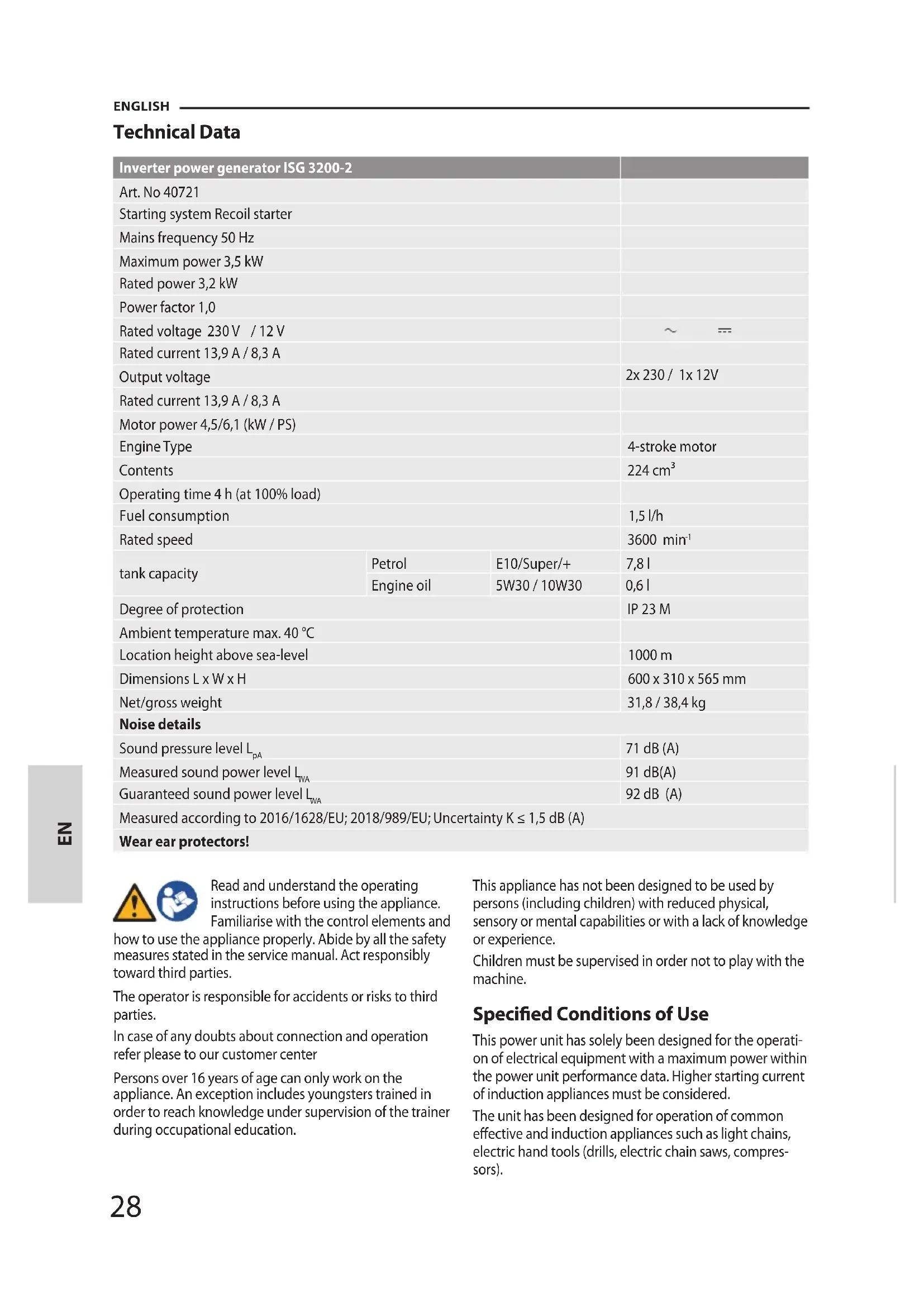

Technische Daten

Inverter power generator ISG 3200-2
Art. No 40721
Starting system Recoil starter
Mains frequency 50 Hz
Maximum power 3,5 kW
Rated power 3,2 kW
Power factor 1,0
Rated voltage 230 V / 12 V			~ =
Rated current 13,9 A / 8,3 A
Output voltage			2x 230 / 1x 12V
Rated current 13,9 A / 8,3 A
Motor power 4,5/6,1 (kW / PS)
Engine Type			4-stroke motor
Contents			224 cm3
Operating time 4 h (at 100% load)
Fuel consumption			1,5 l/h
Rated speed			3600 min-1
tank capacity	Petrol	E10/Super/+	7,8 l
	Engine oil	5W30 / 10W30	0,6 l
Degree of protection			IP 23 M
Ambient temperature max. 40 °C
Location height above sea-level			1000 m
Dimensions L x W x H			600 x 310 x 565 mm
Net/gross weight			31,8 / 38,4 kg
Noise details
Sound pressure level LpA			71 dB (A)
Measured sound power level LWA			91 dB(A)
Guaranteed sound power level LWA			92 dB (A)
Measured according to 2016/1628/EU; 2018/989/EU; Uncertainty K ≤ 1,5 dB (A)
Wear ear protectors!

Read and understand the operating instructions before using the appliance. Familiarise with the control elements an

how to use the appliance properly. Abide by all the safety measures stated in the service manual. Act responsibly toward third parties.

The operator is responsible for accidents or risks to third parties.

In case of any doubts about connection and operation refer please to our customer center

Persons over 16 years of age can only work on the appliance. An exception includes youngsters trained in order to reach knowledge under supervision of the trainer during occupational education.

This appliance has not been designed to be used by persons (including children) with reduced physical, sensory or mental capabilities or with a lack of knowledge or experience.

Children must be supervised in order not to play with the machine.

Specified Conditions of Use

This power unit has solely been designed for the operation of electrical equipment with a maximum power within the power unit performance data. Higher starting current of induction appliances must be considered.

The unit has been designed for operation of common effective and induction appliances such as light chains, electric hand tools (drills, electric chain saws, compressors).

When connected to a stationary device such as heating, electrical power, air conditioning equipment or for the supply of mobile homes, it is necessary to contact a professional electrician and heating manufacturer as far as connection and grounding is concerned.

Not observing general regulations in force and instructions from this manual does not make the manufacturer liable for damages.

Protective equipment „Protective separation with potential balancing“ is provided and integrated by the producer.

Ensuring that the housing is earthed is necessary to discharge static charges

Please note that our equipment has not been designed for commercial, craft or industrial use. If the equipment is used in commercial, craft or industrial operation or for similar activities, we cannot assume any liability.

The machine may only be used in a technically perfect condition and taking into account all safety information.

The load must not exceed the power marked on the rating label of the generator. Overloading may result in damage to, or a shorter life of the appliance.

CAUTION: Misuse of this generator can damage it or shorten its life!

Use generator only for its intended purposes.

Operate only on dry, level surfaces; do not operate the generator underground. Do not operate the generator in enclosed spaces.

Residual Risk

Even when the device is used properly and all safety regulations are complied with, there still may be some residual risks.

Risk of fire!

Never operate the unit near highly flammable materials.

Fuel is highly flammable.

Keep the fuel in suitable containers only.

The appliance may only be refuelled outdoors and not near open fire or burning cigarettes.

Emergency procedure

After use, let the unit cool down for at least 10 minutes before refuelling.

Make sure the fuel does not overflow. If the fuel overflows, the engine must not be started. Remove any dirt from the appliance and prevent any attempt at ignition until fuel fumes have evaporated..

Replace all fuel tank and container caps securely.

Fuel tank to be emptied outdoors only.

Risk of poisoning!

Exhaust gases, fuel and lubricants are toxic. Inhaling exhaust gases may be fatal!

Do not operate the unit in closed spaces where dangerous carbon monoxide gases may accumulate.

Danger of burns!

Some parts of the appliance get too hot when the appliance is operated. Do not touch any hot parts, e.g. engine and muffler.

Contacting hot parts of the unit may cause burns. Do not touch any hot parts, e.g. engine and muffler. Let the unit cool down after its operation is over.

Risk of electric shock.

Direct electrical contact may cause electric shock. Never touch the unit with wet hands.

Hearing damage

A longer stay in the immediate vicinity of the running unit may cause hearing damage. Wear ear protectors!

Emergency procedure

Conduct a first-aid procedure adequate to the injury and summon qualified medical attendance as quickly as possible. Protect the injured person from further harm and calm them down. If you seek help, state the following pieces of information:

1. Accident site,
2. Accident type,
3. Number of injured persons
4. Injury type(s)

Connection, installation and operation

Caution: Before using the product it is essential to check whether the appliance is suitable to be operated with the unit. Specifications of the appliance must always match the details and safety instructions of the unit.

Do not connect the appliance before the unit is running at full speed. Disconnect the appliance before turning the unit off.

General Safety Rules

WARNING

Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and

instructions for future reference.

Keep children and bystanders away while operating a power tool. Minimum safe distance is 5 m.

Never let children work with the appliance. Never let adults work with the appliance unless they have been properly trained.

Wear personal protective equipment.

No change can be made in respect of engine and unit setting.

⚠ It is strictly prohibited to disassemble, modify and purposely remove the protective equipment on the unit and fit other protective equipment instead.

The appliance must not be used if damaged or safety equipment is defective. Replace any worn-out and damaged parts.

Fuel is highly flammable. Refuel the engine only when switched off. The appliance may only be refuelled outdoors and not near open fire or burning cigarettes. Make sure the fuel does not overflow. If the fuel overflows, the engine must not be started. Remove any dirt from the appliance and prevent any attempt at ignition until fuel fumes have evaporated. Store fuel in containers specifically designed for this purpose;

Oil products must not come into contact with skin, eyes and clothing.

Some parts of the appliance get too hot when the appliance is operated. Do not touch any hot parts, e.g. engine and muffler. Contacting hot parts of the unit may cause burns. Pay attention to the warnings on the advice.

Exhaust gases, fuel and lubricants are toxic. Do not operate the unit in closed spaces where dangers carbon monoxide gases may accumulate.

When operating the generator in rooms with good ventilation, the exhaust gases must be channeled directly outdoors through an exhaust hose.

WARNING! Toxic exhaust gases can escape despite the exhaust hose. Due to the fire hazard, never direct the exhaust hose towards inflammable materials.

The motor must not be operated with excessive rotary speed. The operation of the motor with excessive rotary speed raises the risk of injury. Parts which affect the rotary speed must not be altered or replaced.

Electrical safety

Check the device and its electrical components (including cables and plug connections) before use to make sure that there are no defects present.

The power generator may not be connected to other power sources, such as the power supply of the public grid. In specific cases, where a back-up connection to existing electrical systems is provided for, this may be done only by a qualified electrician, who takes into account the differences between the equipment operated on the public grid and the operation of the power generator.

Do not connect the unit with other energy sources. Do not connect the unit to home network.

Electric supply cables and connected equipment must be in perfect condition.

Protection against electrical shock depends on circuit breakers specially matched to the generating set. If the circuit breakers require replacement they must be replaced with a circuit breaker having identical ratings and performance characteristics.

Due to the high mechanical loads, use only hard-wearing rubber-cased cables (according to IEC 60245-4) or equivalent. Extension cables (H07RN...) approved to be used outdoors and properly marked to be used outdoors only.

The resistance value of 1.5 may not be exceeded if extension cables or portable distributor systems are used.

When using extension cables, their total length may not exceed 50 m in respect of 1.5 mm2 and 100 m in respect of 2.5 mm2. Protective equipment „Protective separation with potential balancing“ is provided and integrated by the producer. Ensuring that the housing is earthed is necessary to discharge static charges

WARNING! Local regulations for electrical safety must be observed

WARNING! When resupplying a facility, observe requirements and precautions with respect to the safety measures of this facility and the applicable guidelines.

Do not use in rainyor wet conditions.

Do not touch bare wires or receptacles (outlets). Electrical equipment (including lines and plug connections) should not be defective.

Due to high mechanical stresses onlytough rubber-sheathed flexible cable or the equivalent should be used.

The user that he shall conform to regulations of electrical safety applicable to the place where the generating sets are used.

Before using the ground terminal, consult a qualified electrician or electrical inspector for local applicable regulations.

The connection must isolate the generator power from utility power, and must comply with all applicable laws and electrical codes. A transfer switch, which isolates the generator power from utility power is available through qualified equipment following local laws and regulations.

Before start-up

Safe operation requires sufficient operator knowledge of the functions and positions of the controls and indicators or meters. Pay attention to the illustrated pages in the front section of the manual.

The appliance should only be used when in a perfect state. Carry out a visual inspection before switching the appliance on. Check especially the safety equipment, electrical control elements, power lines and screw couplings for any damage and if they are tightened appropriately. Replace any damaged parts before the appliance is put into operation if necessary.

The unit may only be operated in the operating position (flat surface) as fuel or oil may leak or lubrication will no longer be provided.

Starting the engine

The unit is protected against low oil level. When the oil level is too low, the unit cannot be started (oil indicator turns on in case of attempted starting).

WARNING: When starting with the reserve starter, the motor may recoil suddenly as it starts up, resulting in hand injuries. Wear gloves!

Operation

Generating sets may only be loaded up to their rated power under the rated ambient conditions.

The equipment must not get exposed to moisture or dust. The allowed ambient temperature is from -10^ to +40^ , height: 1,000 m above the sea level, relative air humidity: 90% (non-condensing) If these values are not kept, power losses may result.

Allow generator to run for several minutes before connecting electrical devices.

Shut off and disconnect any malfunctioning devices from generator.

Do not exceed the load capacity of the generator by plugging in more electrical devices than the unit can handle.

Do not turn on electrical devices until after they are connected to the generator.

Turn off all connected electrical devices before stopping the generator.

Do not operate the generator in potential explosive condition.

Stopping the Engine

• unplug all the connected electrical devices;
• turn channel to stop position
• turn the valve to off position on the fuel cap

Overload protection

The generator is fitted with an overload cut-out. This isolates the relevant sockets if an overload occurs. Important. If this happens, reduce the electric power you are taking from the generator or remove any defective connected appliances.

Always place the unit on a firm and flat surface! No turning or tilting or moving during operation.

The unit must never be uncovered.

Turn the unit immediately off in the following cases:

• When the engine is running restlessly or unstably
• When the electrical power output has decreased
• When the connected appliance gets overheated
  • Excessive vibrations of the unit
• Sparking
• When there is smoke or fire
  • Abnormal vibrations or noise
• When the engine seems to be overloaded or is about to fail

Transportation and Storage

Secure the device against shifting and toppling during transport.

Take care to prevent from fuel and oil leakage during transport.

Handling equipment to be used only when handling the machine. Machine to be stored in a dry place.

Do not store the appliance in enclosed places just after being switched off but let it cool down outdoors instead.

Do not operate or store the appliance in wet or humid surroundings or on highly conductive surfaces such as metal coatings or steel constructions.

Symbols

	Caution!
	Warning against hot surfaces!Danger of burns!
	Warning against dangerous voltage
	Read the operating instructions to reduce the risk of injury.
	Wear ear protectors.!Wear goggles.!
	Ground before use
	Keep bystanders out the dangerous area (5 m)
	Switch the engine off and remove the socket plug before any work on the engine.
	Risk of explosion!
	Refuel the engine only when switched off.

Risk of poisoning!

Risk of poisoning!

Use the appliance only outside, never use it in confined and bad ventilated areas.

Prohibited smoking and open fire using.

Keep dry at all times. Never expose tool to rain.

Always keep children and unauthorised persons out of reach of the appliance.

Slow charging

Fast charging

AC Current

Direct Current

Any damaged or disposed devices must be delivered to appropriate collection centres. Dispose of old oil in an environmentally friendly manner.

Make sure the oil products do not enter the soil.

CE marking

TÜV / GS conformity mark

Maintenance

Switch the engine off and remove the socket plug before any work on the engine. Wait until the unit has cooled down.

Carry out a visual inspection before switching the appliance on.

Check especially the safety equipment, electrical control elements, power lines and screw couplings for any damage and if they are tightened appropriately.

Keep the device, in particular the air vents, clean at all times. Never spray water on the device body!

Do not clean the plastics with solvents, flammable or toxic fluids. For cleaning, use a damp cloth only.

Repairs and works specified in these Instructions may only be performed by qualified authorised staff.

Use only original accessories and original spare parts.

Only a regularly maintained and treated appliance can serve as a satisfactory aid. Insufficient maintenance and care can lead to unforeseen accidents and injuries.

If necessary, a list of spare parts can be found at www.guede.com.

Disposal

Any damaged or disposed devices must be delivered to appropriate collection centres.

Petrol, oil and similar substances must not be released into the environment.

Make sure the oil products do not enter the soil.

Guarantee

Warranty period of 12 months applies to commercial use and 24 months applies to private use and commences on the day of purchase of the device.

The guarantee solely covers inadequacies caused by material defect or manufacturing defect. Original payment voucher with the sales date needs to be submitted for any claim in the guarantee period.

The guarantee does not cover any unauthorised use such as appliance overloading, use of violence, damage as a result of any unauthorised interference or caused by foreign items. Failing to follow the operating and assembly instructions and common wear are also not included in the guarantee.

Important information for the customer

Please note that returns within or outside the warranty period should always be in the original packaging. This measure effectively avoids unnecessary transport damage and any associated disputed ruling. Your equipment is optimally protected only in the original box, and keeping it in that box will ensure smooth processing.

Service

Do you have any technical questions? Any claim? Do you need any spare parts or operating instructions? We will quickly help you and without needles bureaucracy at our web pages at www.guede.com in the Servicing part. Please help us be able to help you. In order to identify your

device in case of claim we need the serial No., product No.

and year of production. All this data can be found on the type label.

Fax: [phone]

E-Mail: [e-mail]

Tel.: [phone] / 700-360

Inspection and maintenance plan

Repairs and works specified in these Instructions may only be performed by qualified authorised staff. Use only original accessories and original spare parts.

Regular servicing period Before any		start-up	After the first 10 operating hours	Every 3 months, or after every 50 operating hours	After 6 months
Engine oil(5W30 / 10W30)	Inspection	√
	Change		√	√
Petrol hoseExhaust systemChokeCable starter	Inspection	√
Air filter	Clean			√
	Change				√
Spark plug	InspectionClean			√

Tip: To ensure reliable operation of the electric generator, we strongly recommend using fuel additives and performing 2-3 test operations after a longer time of not using the unit.

Failure removal

Failures	Causes	Removal
The motor does not start	Lack of fuel Add some fuel
	Bad fuel,Storage without first emptying the petrol tank	Drain the fuel tank and carburettor. Add fresh petrol.
	Little oil in the engine Add oil
	Unit is not in a horizontal position. Lack of oil being signalled	Place the device horizontally.
Engine running irregularly Air in the fuel line Vent generators
	Wrong fuel (propellant) Make sure proper fuel has been used.
Unit not producing any current.	Short circuit Broken cable Loose cable	An error that you can remove yourself. Contact the GÜDE service centre.
Engine stopping.	The Starting current is too big.	Reduce the appliance
	Too long cable Shorten the cable

Translation of the EC-Declaration of Conformity

We, hereby declare the conception and construction of the below mentioned appliances correspond - at the type of construction being launched - to appropriate basic safety and hygienic requirements of EC Directives.

In case of any change to the appliance not discussed with us the Declaration expires.
