Product type	Tumble dryer
Brand	ASKO
Model	HSS105T
Load capacity	8 kg
Dimensions (H x W x D)	85 x 60 x 60 cm
Net weight	50 kg
Power supply	230 V ~ 50 Hz
Energy class	A++
Drying type	Condensation with heat pump
Moisture sensor	Yes, automatically adjusts drying time
Noise level	65 dB(A)
Main functions	Delayed start, delayed end, specific programs (cotton, synthetics, wool, etc.)
Stackable installation	Yes, with supplied spacers and anti-tip device
Included accessories	Integrated ironing board, trouser press support
Regular maintenance	Clean the lint filter after each cycle, empty the water tank
Child safety	Yes, control lock
Anti-tip device	Included and mandatory for stacked installation
Repairability	Spare parts available via ASKO, interventions by authorized technician
Warranty	2 years (depending on country)

Frequently Asked Questions - HSS105T ASKO

How to install the ASKO HSS105T tumble dryer stacked on top of a washing machine?

Use the supplied spacers and anti-tip device. Follow the steps in the manual: remove the feet, place the dryer on the spacers, attach the anti-tip device with the washing machine's screws. Make sure the edges of the spacers are aligned with the edges of the machines.

What to do if the dryer does not start?

Check that the appliance is plugged in and the circuit breaker is on. Make sure the door is properly closed. If the problem persists, contact an authorized technician.

How to clean the lint filter?

Open the filter hatch, remove the filter, remove lint by hand or with a vacuum cleaner, then replace it. Clean the filter after each cycle for optimal performance.

Where is the condensation water tank located?

The tank is located at the bottom right of the appliance. Pull the tank outward, empty it into a sink, then replace it correctly.

How to adjust the integrated ironing board?

Press the hatch to open, then open the drawer and unfold the board. To adjust the height, remove the board by pushing the side locking pieces, adjust the slide stops, then put the board back in place.

Can I install the dryer alone without stacking?

Yes, you can install the dryer on the floor or on a stable base. Make sure it is level and the feet are properly adjusted. The anti-tip device is only necessary for stacking.

What is the maximum load capacity?

The load capacity is 8 kg for cotton. For other fabrics, reduce the load according to the program indications.

How to install the trouser press (accessory)?

Attach the support to the right or left side of the ironing board with the two provided screws. Unfold the trouser press bars and insert them into the support. To store it, pull it upward then outward.

Is the dryer noisy during operation?

The noise level is about 65 dB(A). Make sure the appliance is installed on a flat, stable surface to reduce vibrations. If the noise increases, check the filters and drum for foreign objects.

How to activate child safety?

Press and hold the lock button (often symbolized by a padlock) for 3 to 5 seconds until an indicator lights up. To deactivate, repeat the operation.

USER MANUAL HSS105T ASKO

Close-up of a textured, layered surface with no visible text or symbols

Stack of knitted sweater sheets with visible bedding and stitching (no text or symbols)

Bruksanvisning

Operating Instruction

Käyttöohje

Fitting and countersink instructions for integrated door.

Exterior view of a white stainless steel kitchen cabinet with two doors and ventilation grilles (no text or symbols visible)

Tippskydd

Appliance wallmounting kit instructions

When installing your Hidden Helper® as the pic-ture shows, you must use tip guards on the washer and dryer. These can be required from your local dealer.

Including this kit you will find. I pc. Paper template

6 pcs. Screws
6 pcs. Plugs
2 pcs. Tip guards

To reduce the risk of fire, electric shock, or injury to persons when using your appliance, follow basic precautions, including the following:

• Read all instructions before using the appliance.
• Do not allow children to play on or in the appliance. Close supervision of children is necessary when the appliance is used near children.
• Do not install or store this appliance where it will be exposed to weather.
• Do not repair or replace any part of the appliance or attempt any servicing unless specifically recommended in the user-maintenance instructions or in publiced user-repair instructions that you understand and have the skills to carry out.
• Save these instructions for future reference

Grounding instructions

• This appliance must be grounded.
- In the event of malfunction or breakdown, grounding will reduce the risk of electric shock by providing a path of least resistance for electric current.
This appliance is equipped with a cord having an equipment-grounding conductor and a grounding plug. The plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances.

Warning!

• Improper connection of the equipment-grounding conductor can result in a risk of electric shock.
• Check with a qualified electrician or serviceman if you are in doubt as to whether the appliance is properly grounded.
• Do not modify the plug provided with the appliance - if it will not fit the outlet, have a proper outlet installed by a qualified electrician.
  Connect to individual branch circuit

CALIFORNIA PROPOSITION 65

Warning!

This product may contain chemicals known to the state of California to cause cancer or reproductive harm.

Avertissement!

Installation of spacer in new machines

Note: The spacers must only be used with washing machines and tumble dryers manufactured by Asko Appliances, Sweden.

Instruction Picture
1. Put the spacers on the washing machine. Make sure that the edges of the spacers are lined up carefully with the edge of the washing machine panel.

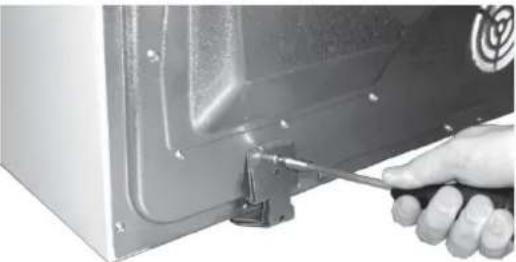

2. Remove the anti-tilt device from the tumble dryer.This is no longer needed.
3. Open the knockout hole on the back of the dryer using a hammer and screwdriver. (You must not remove it completely, just open it.)

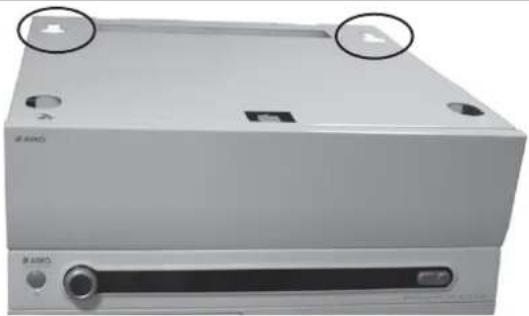

4. Screw out the feet of the tumble dryer 3 turns from their fully screwed-in position.Then lift up the tumble dryer. Put the back feet of the tumble dryer in the "keyholes" in the spacer and slide the tumble dryer backwards. Put the front feet down in the holes.

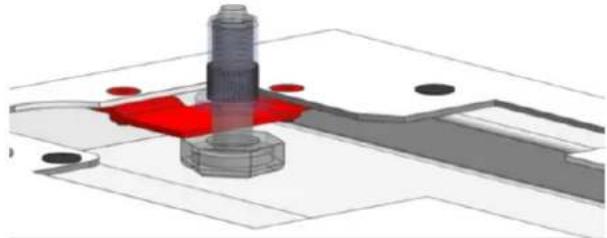

5. In the case of dryers with metal foot attach the left and right holder with two Bolts (enclosed) on each to prevent the dryer tipping over.
6. Remove the two outer screws on the back of the washing machine so that you can fit the anti-tilt device.
7.A. Stacked installation. Attach the enclosed anti-tilt protection to the washing machine and the dryer. Push the upper part of the anti-tilt protection into the dryer until it hooks into place. Screw the lower part into place with the screws you removed from the washing machine (A).If the machines are set right against the wall, the dryer cable must be routed through the cutout on the middle section (B).
7.B. Installation on washing machine or tumble dryer. Attach the enclosed anti-tilt protection as illustrated. Screw them into place with the screws you removed from the washing machine (A).
Note!Check that the edges of the spacers are lined up carefully with the edges of the washing machine and tumble dryer before you screw the anti-tilt device in place.

Installation of spacer on machines that have been stacked

Note: The spacers must only be used with washing machines and tumble dryers manufactured by Asko Appliances, Sweden.

Instruction Picture
1. Remove the anti-tilt device, which is no longer needed. Lift the tumble dryer down.
2. Put the spacers on the washing machine. Make sure that the edges of the spacers are lined up carefully with the edge of the washing machine panel.

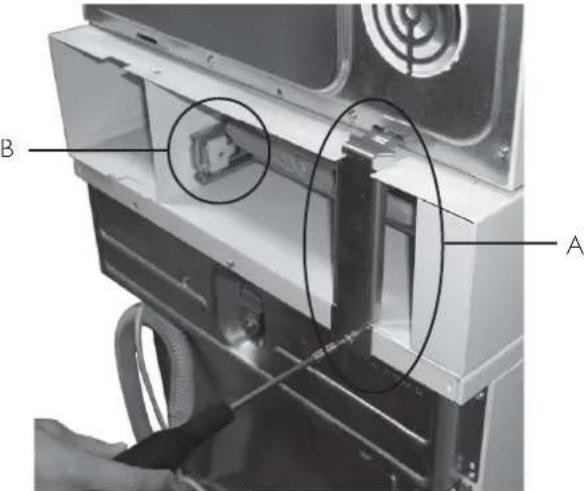

3. Screw out the feet of the tumble dryer 3 turns from their fully screwed-in position.Then lift up the tumble dryer. Put the back feet of the tumble dryer in the "keyholes" in the spacer and slide the tumble dryer backwards. Put the front feet down in the holes.

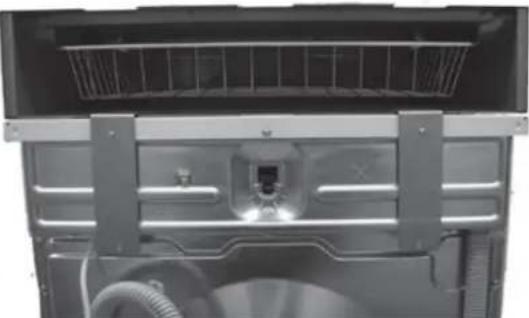

4.A. Stacked installation. Attach the enclosed anti-tilt protection to the washing machine and the dryer. Push the upper part of the anti-tilt protection into the dryer until it hooks into place. Screw the lower part into place with the screws you removed from the washing machine (A).If the machines are set right against the wall, the dryer cable must be routed through the cutout on the middle section (B).
4.B. Installation on washing machine or tumble dryer. Attach the enclosed anti-tilt protection as illustrated. Screw them into place with the screws you removed from the washing machine.

Adjusting the ironing board

Instruction Picture
1. Press the door to open it.
2. Take hold of the handle and pull it out until it is fully extended. Fold up the ironing board.
3. To ensure that it is stable, it is important that the back edge of ironing board is pushed firmly against the tumble dryer when it is in the locked position.
4. If necessary, you can adjust the ironing board. Carefully bend out the two plastic latches (one on each side) using a screwdriver. Pull out the ironing board.
5. Adjust the extension length by undoing the screws on the two stops A(one on each side). Check that the plastic pins are locked B. Replace the ironing board. A sleeve board is available as an accessory for the ironing board.

Installing the sleeve board (accessorie)

Instruction Picture
1. Assemble the enclosed holder on right or left side of the Ironing Board with the two screws.
2. Fold out the bars on the Sleeve Board and put these in the holder.
3. To loosen the Sleeve Board:Push up and pull out.Keep the board under the Ironing Board when it's not in use.
