Brand	Fulgor Milano
Model	QLO 6007 MT
Product type	Built-in oven
Dimensions (W x H x D)	595 x 595 x 545 mm (standard built-in 60 cm)
Net weight	Approx 35 kg
Power supply	220-240 V ~ 50/60 Hz
Total power	Approx 2.8 kW
Capacity	Approx 60 L
Temperature range	50 °C to 250 °C
Cooking modes	Conventional (top and bottom heat), fan-assisted (convection), grill (large surface), double grill, defrost
Panel functions	Light (illumination), bottom element, top element, circular element, fan, grill, combinations with fan
Timer / Programming	Electronic with 6 touch keys: clock, duration, end of cooking, automatic programming, independent timer
Self-cleaning	Microporous catalytic panels on inner walls (fat oxidation at >200 °C)
Interior lighting	25 W bulb, E14 socket, resistant to 300 °C
Door	Removable (lever hinges) for cleaning
Cooling fan	Tangential, automatic, activates at ~60 °C external
Safety	Automatic shutdown at end of programming; overheating protection
Installation	Built-in, dimensions per diagram; fixings supplied; electrical connection with cable H05RR-F 3x1.5 mm² or equivalent
Spare parts / Repairability	Rating label inside door; user-replaceable bulb; other parts via after-sales service
Environmental compliance	Documentation on chlorine-free bleached paper; recyclable packaging

Frequently Asked Questions - QLO 6007 MT Fulgor Milano

How to clean the oven for first use?

Wash the inside of the oven carefully with soap and water, then rinse thoroughly. For smooth walls, remove the side frames as indicated in the manual. Preheat empty to eliminate manufacturing odors.

How do the self-cleaning panels work?

The catalytic panels cover the walls. They oxidize and evaporate oil and grease splashes when the temperature exceeds 200 °C. If the oven remains dirty after fatty cooking, run it empty at maximum temperature for up to 60 minutes. Do not wash them with abrasive or acidic products.

How to set the oven clock?

Press the duration and end of cooking keys simultaneously. Use the + and - keys to set the time. Release. For touch key models, press the central key for more than 3 seconds until the symbol appears, then adjust with +/-.

How to program automatic cooking?

Press the duration key (or central more than 3 s then press again for 'dur'), set the duration with +/-, confirm. Press end of cooking (or central twice for 'End'), set the end time. The oven calculates the start automatically. Example: duration 10 min, end 2:00 PM → start at 1:50 PM.

How to change the oven bulb?

Unplug the appliance. Place a cloth at the bottom of the oven. Unscrew the glass cover, replace the old bulb with a new one (25 W, E14 socket, resistant to 300 °C). Screw the cover back on and remove the cloth. Plug in again.

How to remove the oven door?

Open the door fully. Lift the two levers on the hinges. Close the door to the first stop. Lift the door upwards and outwards. To reassemble, insert the hinges into their slots and lower the levers.

What is the grill function and how to use it?

The grill is used for grilling or browning food. Use the 'top element' or 'double top element' position. Place the shelf on the 1st or 2nd position from the top. Preheat for 5 minutes. Set the thermostat between 50 and 200 °C.

How to defrost food in this oven?

Select a fan cooking function (e.g. circular element with fan) and set the thermostat to 0 °C. The fan will circulate cold air to defrost quickly.

What to do if a persistent beep sounds after cooking?

The beep indicates the end of programming. Press any panel key to stop it. Turn the thermostat and switch knobs back to 0. If the 'AUTO' symbol flashes, press the Manual key to return to manual mode.

What are the electrical precautions for installation?

Ensure the installation has a proper earth connection. The cable must not exceed 50 °C above ambient temperature. Use a cable type H05RR-F 3x1.5 mm² or equivalent. The appliance must be connected to an easily accessible all-pole disconnection device.

USER MANUAL QLO 6007 MT Fulgor Milano

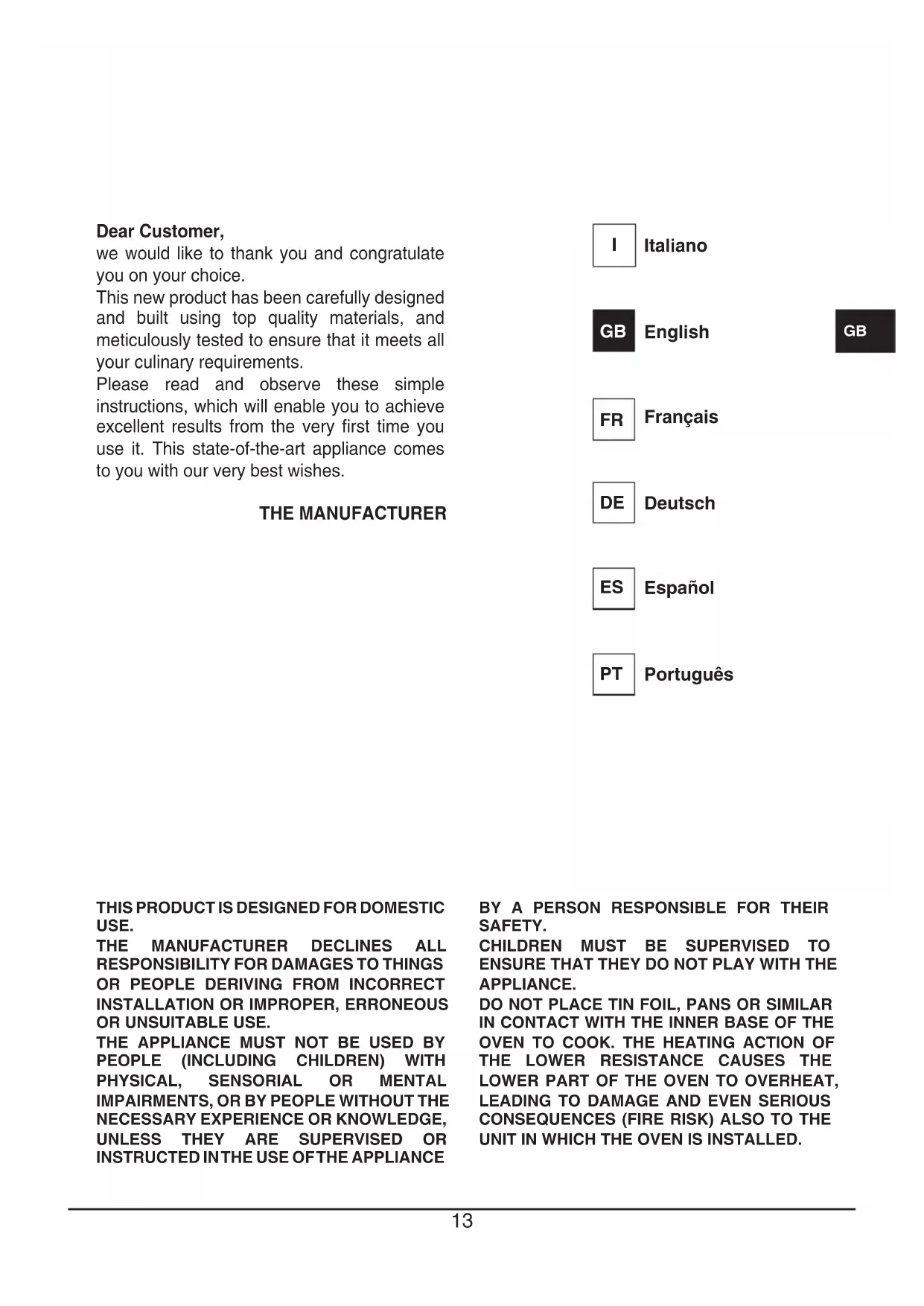

we would like to thank you and congratulate you on your choice.

This new product has been carefully designed and built using top quality materials, and meticulously tested to ensure that it meets all your culinary requirements.

Please read and observe these simple instructions, which will enable you to achieve excellent results from the very first time you use it. This state-of-the-art appliance comes to you with our very best wishes.

THE MANUFACTURER

Italiano

GB

English

FR

Français

DE

Deutsch

ES

Espanol

PT

Portugues

THIS PRODUCT IS DESIGNED FOR DOMESTIC USE.

THE MANUFACTURER DECLINES ALL RESPONSIBILITY FOR DAMAGES TO THINGS OR PEOPLE DERIVING FROM INCORRECT INSTALLATION OR IMPROPER, ERRONEOUS OR UNSUITABLE USE.

THE APPLIANCE MUST NOT BE USED BY PEOPLE (INCLUDING CHILDREN) WITH PHYSICAL, SENSORIAL OR MENTAL IMPAIRMENTS, OR BY PEOPLE WITHOUT THE NECESSARY EXPERIENCE OR KNOWLEDGE, UNLESS THEY ARE SUPERVISED OR INSTRUCTED IN THE USE OF THE APPLIANCE

BY A PERSON RESPONSIBLE FOR THEIR SAFETY.

CHILDREN MUST BE SUPERVISED TO ENSURE THAT THEY DO NOT PLAY WITH THE APPLIANCE.

DO NOT PLACE TIN FOIL, PANS OR SIMILAR IN CONTACT WITH THE INNER BASE OF THE OVEN TO COOK. THE HEATING ACTION OF THE LOWER RESISTANCE CAUSES THE LOWER PART OF THE OVEN TO OVERHEAT, LEADING TO DAMAGE AND EVEN SERIOUS CONSEQUENCES (FIRE RISK) ALSO TO THE UNIT IN WHICH THE OVEN IS INSTALLED.

Contents

User instructions, 15

First use, 15

Self-cleaning panel, 15

Respect for the environment, 15

Control panel, 16

Instructions for use:

• conventional cooking, 16
  -fan cooking,16
• grill cooking, 17

Thermostat, 17

Electronic timer, 17

Setting the clock, 18

Setting the clock, 18

Minute counter, 18

Cooking time, 18

End of cooking time, 18

Programming automatic cooking, 19

Adjustingbeep volume,19

Light replacement, 19

Removing the oven door, 20

Installation instructions, 21

Flush fitting, 21

Electrical connections, 22

IMPORTANT

The oven's data plate is accessible even with the oven fully installed. The plate is visible simply by opening the door. Always quote the details from it to identify the appliance when ordering spare parts.

User instructions

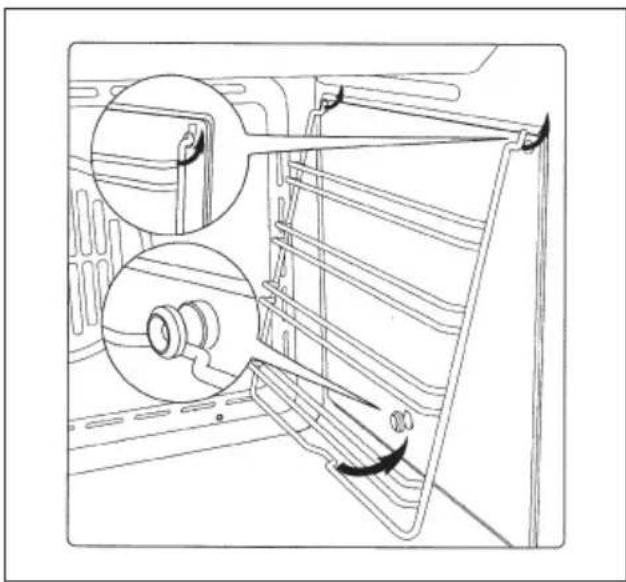

The first time you use the oven

Clean the oven thoroughly with soapy water and rinse well. To remove the lateral frames from smooth-walled ovens, proceed as shown in the figure.

Operate the oven for about 30 minutes at maximum temperature to burn off all traces of grease which might otherwise create unpleasant smells when cooking.

Important:

As a safety precaution, before cleaning the oven, always disconnect the plug from the power socket or the power cable from the oven. Do not use acid or alkaline substances to clean the oven (lemon juice, vinegar, salt, tomatoes etc.). Do not use chlorine based products, acids or abrasive products to clean the painted surfaces of the oven.

DO NOT USE STEAM CLEANERS

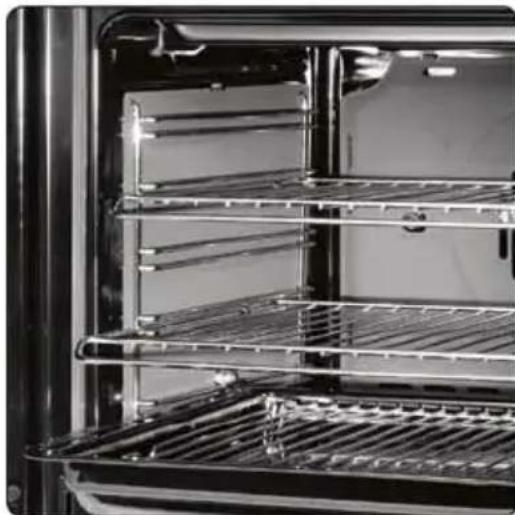

Self-cleaning catalytic panels

SELF-CLEANING PANELS

The CLEAN function activates the reaction that causes cleaning

Our smooth walled ovens can be fitted with selfcleaning panels to cover the inside walls.

These special panels are simply hooked on to the walls before the side frames are fitted. They are coated in a special, micro-porous catalytic enamel which oxidises and gradually vaporises splashes of grease and oil at cooking temperatures above 200^ C.

If the oven is not clean after cooking fatty foods, operate the empty oven for 60 minutes (max.) at maximum temperature.

Never wash or clean selfcleaning panels with abrasive, acid, or alkaline products.

Respect for the environment

Control panel functions

Function symbols on the selector

Oven light (stays on while oven is in use).

Top and bottom heating elements. Thermostat setting from 50^ to MAX.

Top heating element (small, low power grill). Thermostat setting from 50^ to 200^ .

Bottom heating element. Thermostat setting from 50^ to MAX.

Top heating element (small, low)

Double top heating element (large area grill). Thermostat setting from 50^ to 200^

Double top heating element with fan (large area grill). Thermostat setting from 50^ to 200^ .

Top and bottom heating elements with fan. Thermostat setting from 50^ to MAX.

Circular heating element with fan. Thermostat setting from 50^ to MAX.

Bottom heating element + Circular heating element with fan. Thermostat setting from 50^ to MAX.

Fan for defrosting. Thermostat setting at 0^

Double top heating element (large area grill). Thermostat setting from 50^ to 200^ . Bottom heating element. Thermostat setting from 50^ to MAX.

Instructions for use

Conventional cooking

Conventional cooking uses top and bottom heat to cook a single dish.

Place the food in the oven only once cooking temperature has been reached, i.e. when the heating indicator goes out.

If you want to increase top or bottom temperature towards the end of the cooking cycle, set the temperature control to the right position. It is advisable to open the oven door as little as possible during cooking.

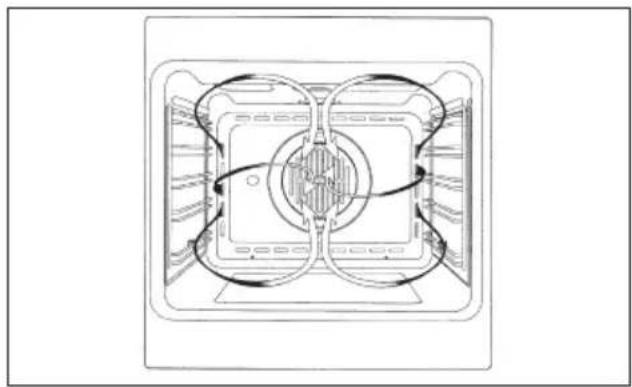

Fan cooking

For this type of cooking a fan positioned at the back allows the circulation of hot air inside the oven, creating uniform heat. In this way cooking is more rapid than conventional cooking. It is a suitable method for cooking dishes on more than one shelf, especially when the food is of different types (fish, meat etc.).

Defrosting

By selecting one of the fan cooking functions and setting the thermostat to zero, the fan allows cold air to circulate inside the oven. In this way frozen food can be rapidly defrosted.

It is not essential to preheat the oven, but you are advised to do so when cooking pastries.

Grill cooking

Use the grill to grill or brown foods. Some ovens may be equipped with an electric motor, spit and skewers for turning on the spit.

Place the shelf with the food to be cooked in the 1st or 2nd position from the top.

Pre-heat the oven for 5 minutes. Turn the thermostat to a temperature between 50^ and 200.

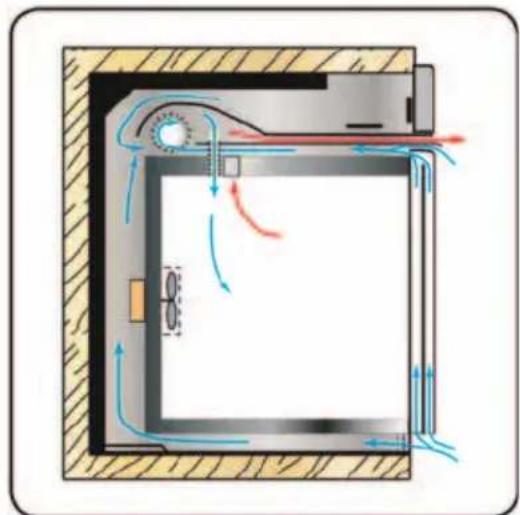

Cooling fan

TANGENTIAL COOLING

A forced air circulation system which contributes to reducing the heat exchange temperature in the front and lateral areas of the ovens.

The fan is positioned on the upper part of the oven and create a circle of cooling air on the inside of the furniture and through the door of the oven. It is turned on when the temperature of the outer shell of the oven reaches 60^ .

By switching on the oven with the thermostat at 200^

the fan starts working after approx.10 min.

It is turned off when the temperature of the outer shell of the oven descends under 60^ .

By switching off the oven with the thermostat at 200^ the fan stops working after approx. 30 min.

Thermostat

Use the thermostat to set the cooking temperature you need. The thermostat can be adjusted from 50^ to 250^ .

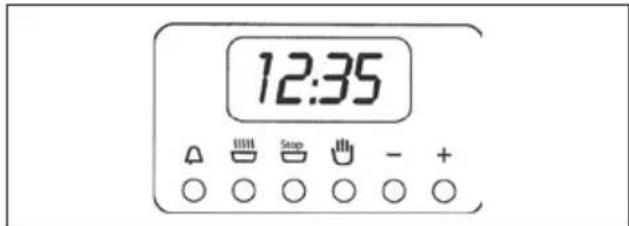

6 Key electronic timer

Setting the clock

Press the duration key and the end of cooking key simultaneously, then press the +/- keys to set the time.

Manual operation

To start cooking without setting end of cooking time, press the manual key

Setting only the duration of cooking in semi-automatic mode

To set the duration of cooking, press the duration key and press the +/- keys to set the duration of cooking. A buzzer sounds when the cooking period finishes, and the oven switches itself off. Turn the thermostat and selector knobs back to 0 position and press the manual key.

Setting only the end of cooking time in semi-automatic mode

To set the end of cooking time, press the end of cooking key and press the + / - keys to set the time at which you want the oven to switch off. A buzzer sounds when the clock reaches the set time, and the oven switches

itself off. Turn the thermostat and selector knobs back to 0 position and press the manual key.

Fully automatic operation

To set the end of cooking time, press the duration key and press the +/- keys to set the duration of cooking. Press the end of cooking key and press the +/- keys to set the time at which you want the oven to switch off.

When you finish setting these times, the AUTO symbol flashes and the buzzer sounds. Press any key to silence it.

Alarm timer

Press the alarm timer key and press the + / - keys to set the required duration of cooking. The buzzer sounds when the cooking time ends. Press any key to silence it.

Programming errors

You cannot program in a cooking period which starts earlier than the time displayed on the clock. If you try to do so, the buzzer sounds and the AUTO symbol flasher. Simply change the duration or cooking time to correct the error.

Cancelling a cooking programme

To cancel a cooking programme, simply press the manual key.

Timer touch control

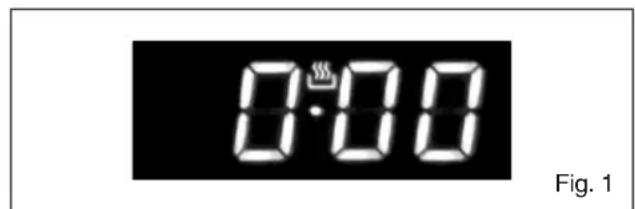

Setting the clock

"Auto" and "0:00" will start flashing when the unit is switched on for the first time. To set the clock, press the central button for about 3 seconds. When appears, press "+" or "- to set the correct time.

Wait until a beep tells you that the clock has been set (figure 1).

To set the time at a later stage, press "+" and "-" together for 3 seconds and then adjust the clock as described above.

Minute counter

As this minute counter does not control the oven, when it finishes counting the oven will continue to work.

To set, press the central button for 3 seconds until appears (figure 2). Press "+" and "-" to set the required time.

To set the minute counter at a later stage, press the central button for 3 seconds and adjust as described above.

The minute counter beeps when it finishes counting. To disable it, press any button.

Cooking time

This is a semi-automatic cooking function. It can be used to set cooking times.

Press the central button for 3 seconds. Then press it again until "dur" appears (figure 3). Press "+" and "-" to set the required cooking time.

End of cooking time

The end of cooking time can also be set.

Press the central button for 3 seconds. Press the central button twice consecutively and wait for "End" to appear (figure 4). Press "+" and "-" to set the required end of cooking time.

The oven will work in the set mode and at the set temperature until the end of cooking time.

Programming automatic cooking

Fig. 5

Cooking function with set times.

Press the central button for 3 seconds. Then press it again until "dur" appears. Press "+" and "-" to set the required cooking time. Wait a few seconds for the setting to be memorised.

Press the central button for 3 seconds. Press it another two times and wait for "End" to appear (figure 4). Press "+" and "-" to set the required end of cooking time.

E.g.:

Current time: 12.30

Cooking time: 10 minutes

End of cooking time: 14.00

The oven will start cooking at 13.50 (14.00 less 00.10) at the set temperature and in the set mode and will stop at 14.00.

The oven will beep when it stops cooking. To disable it, press any button.

Adjusting beep volume

Fig. 6

To adjust beep volume, press ^+ and - together. Then press the central button and wait for "ton1" (high volume) to flash. Press - to select "ton2" (medium volume) or "ton3" (low volume).

Press the central button to set the selected volume.

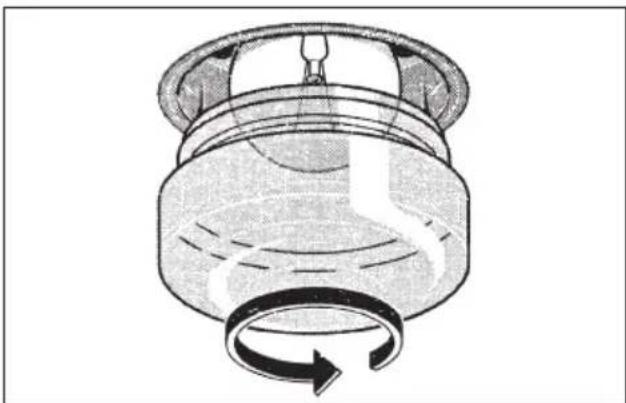

Replacing the oven light

IMPORTANT:

The oven light must have these precise features: a) it must be able to resist high temperatures (up to 300^ )

b) power supply: see V/Hz indicated on data plate.

c) power 25W.

d) E 14 connection. Before proceeding, disconnect the appliance from the main electricity supply.

• To prevent damage, place a tea cloth in the oven;
• unscrew the glass cover of the light;
• unscrew the old light bulb and replace it with the new one;
• put back the glass cover and remove the tea cloth;
• connect the appliance to the main electricity supply;

GB

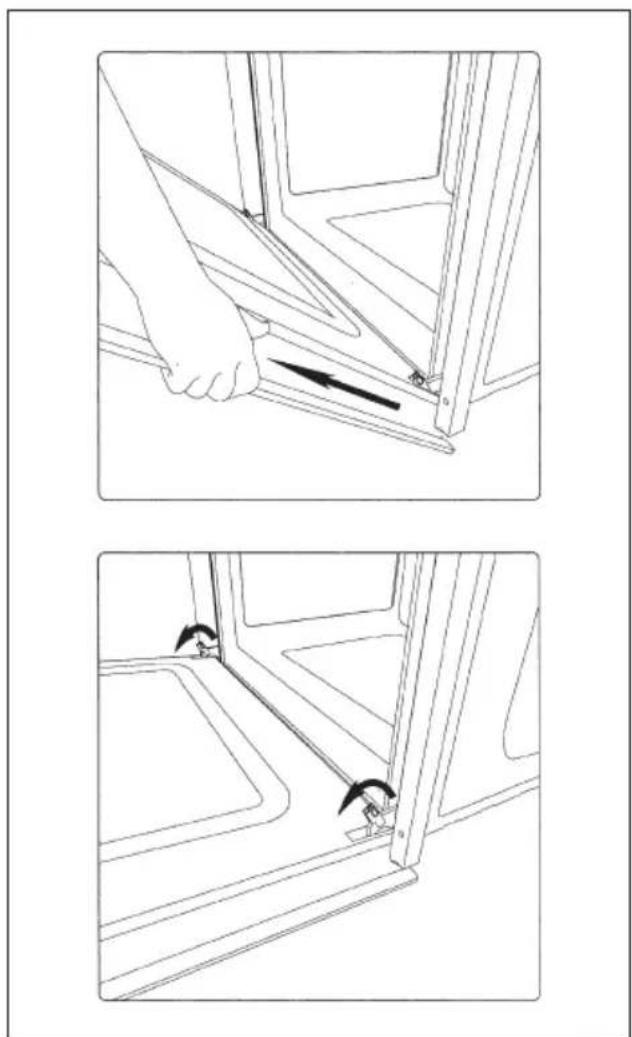

Removing the oven door

The oven door can be removed quickly and easily. To do so, proceed as follows:

• Open the door fully.
• Lift the two levers shown in fig.
• Close the door as far as the first stop (caused by the raised levers).
• Lift the door upwards and outwards to remove it from its mountings.

To replace fit the door, fit the hinges in their mountings and lower the two levers.

Installation instructions

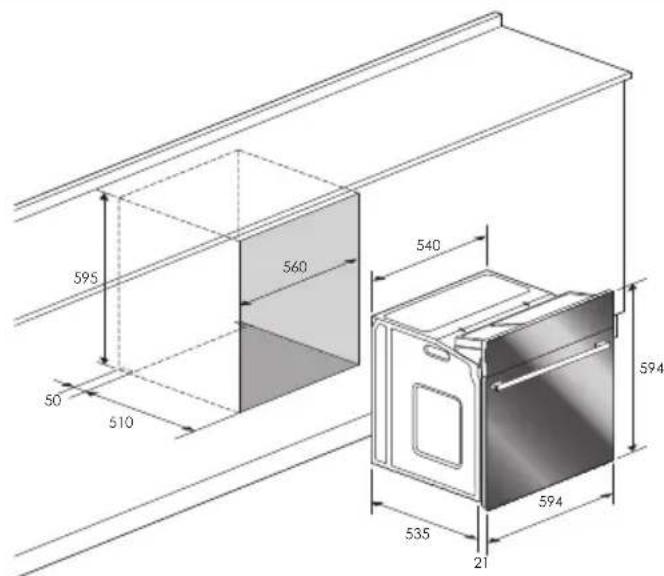

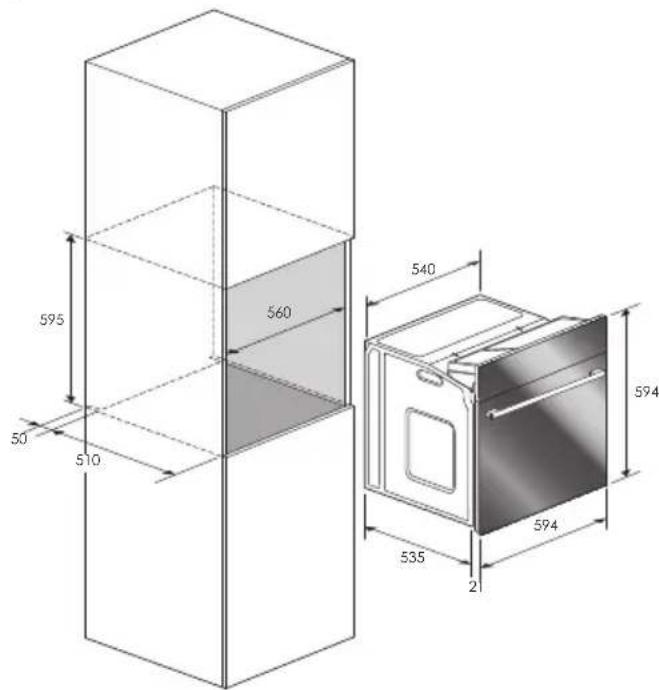

Flush fitting

The oven can be installed under a work top or in a cooking column. Figure shows the installation dimensions.

Make sure that surrounding materials are heat resistant.

Align the oven centrally with respect to the side walls of the units surrounding it and fix it in place with the screws and Allen screws provided.

See the accompanying instructions for combining the oven with multi-functional gas or gas-electric cookers.

GB

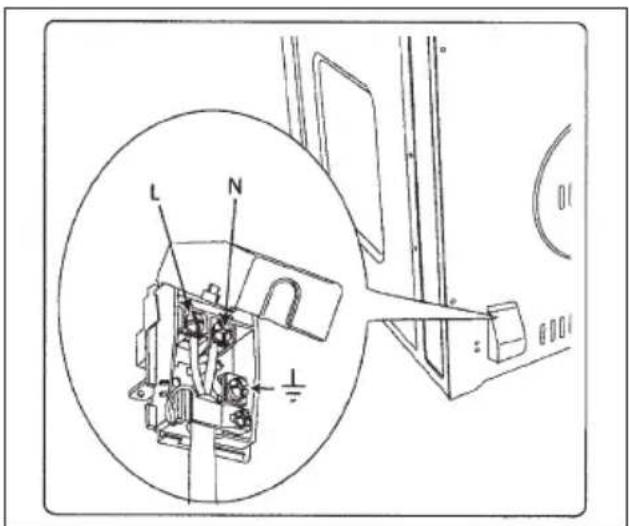

Electrical connections

Before connecting the oven to the mains power supply, make sure that:

• The supply voltage corresponds to the specifications on the data plate on the front of the oven.
• The mains supply has an efficient earth (ground) connection complying with all applicable laws and regulations. Correct earthing (grounding) is a legal requirement.

The power cable should never reach a temperature 50^ C above ambient temperature at any point along its length.

If a fixed appliance is not provided with a power cable and plug, or some other device permitting it to be disconnected from the mains electricity supply, with a gap between the contacts big enough to guarantee class III overvoltage protection, then such a device must be fitted to the power supply in compliance with the regulations governing electrical installations.

The socket or switch must be easily reachable with the oven fully installed.

N.B. The manufacturer declines all responsibility for damage or injury if the above instructionsninfortunistiche non vengano rispettate.

CABLE TYPES AND MINIMAL DIAMETERS
	SASO
H05RR-F 3x1,5 mm²	H05RR-F 3x2,5 mm²
H05VV-F 3x1,5 mm²	H05VV-F 3x2,5 mm²
H05RN-F 3x1,5 mm²	H05RN-F 3x2,5 mm²
H05V2V2-F 3x1,5 mm²	H05V2V2-F 3x2,5 mm²
