USER MANUAL 32LW300C LG

Safety and Reference

LED TV*

• LG LED TV applies LCD screen with LED backlights.

Please read this manual carefully before operating your set and retain it for future reference.

Safety instructions

Please read these safety precautions carefully before using the product.

WARNING

Do not place the TV and/or remote control in the following environments:

A location exposed to direct sunlight
An area with high humidity such as a bathroom
Near any heat source such as stoves and other devices that produce heat
Near kitchen counters or humidifiers where they can easily be exposed to steam or oil
An area exposed to rain or wind
Near containers of water such as vases

Otherwise, this may result in fire, electric shock, malfunction or product deformation.

Do not place the product where it might be exposed to dust. This may cause a fire hazard.

Mains Plug is the TV connecting/disconnecting device to AC mains electric supply. This plug must remain readily attached and operable when TV is in use.

Do not touch the power plug with wet hands. Additionally, if the cord pin is wet or covered with dust, dry the power plug completely or wipe dust off. You may be electrocuted due to excess moisture.

Make sure to connect Mains cable to compliant AC mains socket with Grounded earth pin. (Except for devices which are not grounded on earth.) Otherwise possibility you may be electrocuted or injured.

Insert power cable plug completely into wall socket otherwise if not secured completely into socket, fire ignition may break out.

Ensure the power cord does not come into contact with hot objects such as a heater. This may cause a fire or an electric shock hazard.

Do not place a heavy object, or the product itself, on power cables. Otherwise, this may result in fire or electric shock.

Bend antenna cable between inside and outside building to prevent rain from flowing in. This may cause water damaged inside the Product and could give an electric shock.

When mounting TV onto wall make sure to neatly install and isolate cabling from rear of TV as to not create possibility of electric shock / fire hazard.

Do not plug too many electrical devices into a single multiple electrical outlet. Otherwise, this may result in fire due to over-heating.

Do not drop the product or let it fall over when connecting external devices. Otherwise, this may result in injury or damage to the product.

Keep the anti-moisture packing material or vinyl packing out of the reach of children. Anti-moisture material is harmful if swallowed. If swallowed by mistake, force the patient to vomit and visit the nearest hospital. Additionally, vinyl packing can cause suffocation. Keep it out of the reach of children.

Do not let your children climb or cling onto the TV. Otherwise, the TV may fall over, which may cause serious injury.

Dispose of used batteries carefully to ensure that a small child does not consume them. Please seek Doctor- Medical Attention immediately if child consumes batteries.

Do not insert any metal objects/conductors (like a metal chopstick/ cutlery/screwdriver) between power cable plug and input Wall Socket while it is connected to the input terminal on the wall. Additionally, do not touch the power cable right after plugging into the wall input terminal. You may be electrocuted. (Depending on model)

Do not put or store inflammable substances near the product. There is a danger of combustion/explosion or fire due to careless handling of the inflammable substances.

Do not drop metallic objects such as coins, hair pins, chopsticks or wire into the product, or inflammable objects such as paper and matches. Children must pay particular attention. Electrical shock, fire or injury can occur. If a foreign object is dropped into the product, unplug the power cord and contact the service centre.

Do not spray water on the product or scrub with an inflammable substance (thinner or benzene). Fire or electric shock accident can occur.

Do not allow any impact, shock or any objects to fall into the unit, and do not drop anything onto the screen. You may be injured or the product can be damaged.

Never touch this product or antenna during a thunder or lighting storm. You may be electrocuted.

Never touch the wall outlet when there is leakage of gas, open the windows and ventilate. It may cause a fire or a burn by a spark.

Do not disassemble, repair or modify the product at your own discretion. Fire or electric shock accident can occur. Contact the service centre for check, calibration or repair.

If any of the following occur, unplug the product immediately and contact your local service centre.

The product has been impacted by shock
The product has been damaged
Foreign objects have entered the product
The product produced smoke or a strange smell

This may result in fire or electric shock.

Unplug the TV from AC mains wall socket if you do not intend to use the TV for a long period of time. Accumulated dust can cause fire hazard and insulation deterioration can cause electric leakage/shock/fire.

Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the apparatus.

Do not install this product on a wall if it could be exposed to oil or oil mist. This may damage the product and cause it to fall.

If water enters or comes into contact with TV, AC adapter or power cord please disconnect the power cord and contact service centre immediately. Otherwise, this may result in electric shock or fire.

Only use an authorized AC adapter and power cord approved by LG Electronics. Otherwise, this may result in fire, electric shock, malfunction or product deformation.

Never Disassemble the AC adapter or power cord. This may result in fire or electric shock.

Be careful in handling the adapter to prevent any external shocks to it. An external shock may cause damage to the adapter.

Make sure the power cord is connected securely to the power plug on the TV. (Depending on model)

CAUTION

Install the product where no radio wave occurs.

There should be enough distance between an outside antenna and power lines to keep the former from touching the latter even when the antenna falls. This may cause an electric shock.

Do not install the product on places such as unstable shelves or inclined surfaces. Also avoid places where there is vibration or where the product cannot be fully supported. Otherwise, the product may fall or flip over, which may cause injury or damage to the product.

If you install the TV on a stand, you need to take actions to prevent the product from overturning. Otherwise, the product may fall over, which may cause injury.

If you intend to mount the product to a wall, attach VESA standard mounting interface (optional parts) to the back of the product. When you install the set to use the wall mounting bracket (optional parts), fix it carefully so as not to drop.

Only use the attachments / accessories specified by the manufacturer.

When installing the antenna, consult with a qualified service technician. If not installed by a qualified technician, this may create a fire hazard or an electric shock hazard.

We recommend that you maintain a distance of at least 2 to 7 times the diagonal screen size when watching TV. If you watch TV for a long period of time, this may cause blurred vision.

Only use the specified type of battery. This could cause damage to the remote control.

Do not mix new batteries with old batteries. This may cause the batteries to overheat and leak.

Batteries should not be exposed to excessive heat. For example, keep away from direct Sunlight, open fireplace and electric heaters.

Do not place non-rechargeable batteries in charging device.

Make sure there are no objects between the remote control and its sensor.

Signal from Remote Control can be interrupted due to external/internal lighting eg Sunlight, fluorescent lighting. If this occurs turn off lighting or darken viewing area.

When connecting external devices such as video game consoles, make sure the connecting cables are long enough. Otherwise, the product may fall over, which may cause injury or damage the product.

Do not turn the product On/Off by plugging-in or unplugging the power plug to the wall outlet. (Do not use the power plug for switch.) It may cause mechanical failure or could give an electric shock.

Please follow the installation instructions below to prevent the product from overheating.

The distance between the product and the wall should be more than 10cm

• Do not install the product in a place with no ventilation (e.g., on a bookshelf or in a cupboard).

• Do not install the product on a carpet or cushion.

Make sure the air vent is not blocked by a tablecloth or curtain. Otherwise, this may result in fire.

Take care not to touch the ventilation openings when watching the TV for long periods as the ventilation openings may become hot. This does not affect the operation or performance of the product.

Periodically examine the cord of your appliance, and if its appearance indicates damage or deterioration, unplug it, discontinue use of the appliance, and have the cord replaced with an exact replacement part by an authorized servicer.

Prevent dust collecting on the power plug pins or outlet. This may cause a fire hazard.

Protect the power cord from physical or mechanical abuse, such as being twisted, kinked, pinched, closed in a door, or walked upon. Pay particular attention to plugs, wall outlets, and the point where the cord exits the appliance.

Do not press strongly upon the panel with a hand or sharp object such as nail, pencil or pen, or make a scratch on it, as it may cause damage to screen.

Avoid touching the screen or holding your finger(s) against it for long periods of time. Doing so may produce some temporary or permanent distortion/damage to screen.

When cleaning the product and its components, unplug the power first and wipe it with a soft cloth. Applying excessive force may cause scratches or discolouration. Do not spray with water or wipe with a wet cloth. Never use glass cleaner, car or industrial shiner, abrasives or wax, benzene, alcohol etc., which can damage the product and its panel. Otherwise, this may result in fire, electric shock or product damage (deformation, corrosion or breakage).

As long as this unit is connected to the AC wall outlet, it is not disconnected from the AC power source even if you turn off this unit by SWITCH.

When unplugging the cable, grab the plug and unplug it, by pulling at the plug.

Don't pull at the cord to unplug the power cord from the power board, as this could be hazardous.

When moving the product, make sure you turn the power off first. Then, unplug the power cables, antenna cables and all connecting cables. The TV set or power cord may be damaged, which may create a fire hazard or cause electric shock.

When moving or unpacking the product, work in pairs because the product is heavy. Otherwise, this may result in injury.

Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

If the product feels cold to the touch, there may be a small "flicker" when it is turned on. This is normal, there is nothing wrong with product.

This panel is an advanced product that contains millions of pixels. You may see tiny black dots and/or brightly coloured dots (red, blue or green) at a size of 1 ppm on the panel. This does not indicate a malfunction and does not affect the performance and reliability of the product.

This phenomenon also occurs in third-party products and is not subject to exchange or refund.

You may find different brightness and color of the panel depending on your viewing position(left/right/top/down).

This phenomenon occurs due to the characteristic of the panel. It is not related with the product performance, and it is not malfunction.

Displaying a still image for a prolonged period of time may cause image sticking. Avoid displaying a fixed image on the TV screen for a long period of time.

Generated Sound

"Cracking" noise: A cracking noise that occurs when watching or turning off the TV is generated by plastic thermal contraction due to temperature and humidity. This noise is common for products where thermal deformation is required. Electrical circuit humming/panel buzzing: A low level noise is generated from a high-speed switching circuit, which supplies a large amount of current to operate a product. It varies depending on the product.

This generated sound does not affect the performance and reliability of the product.

Do not use high voltage electrical goods near the TV (e.g. electric mosquito-swatter). This may result in product malfunction.

Preparing

NOTE

Image shown may differ from your TV.
- Your TV's OSD (On Screen Display) may differ slightly from that shown in this manual.
The available menus and options may differ from the input source or product model that you are using.
New features may be added to this TV in the future.
- The items supplied with your product may vary depending on the model.
Product specifications or contents of this manual may be changed without prior notice due to upgrade of product functions.
- For an optimal connection, HDMI cables and USB devices should have bezels less than 10mm thick and 18mm width. Use an extension cable that supports USB 2.0 if the USB cable or USB memory stick does not fit into your TV's USB port.

Use a certified cable with the HDMI logo attached.
If you do not use a certified HDMI cable, the screen may not display or a connection error may occur. (Recommended HDMI Cable Types) -High-Speed HDMI™ cable (3 m or less) -High-Speed HDMI™ cable with Ethernet (3 m or less)

CAUTION

• Do not use any unapproved items to ensure the safety and product life span.
• Any damage or injuries caused by using unapproved items are not covered by the warranty.
  Some models have a thin film attached on to the screen and this must not be removed.

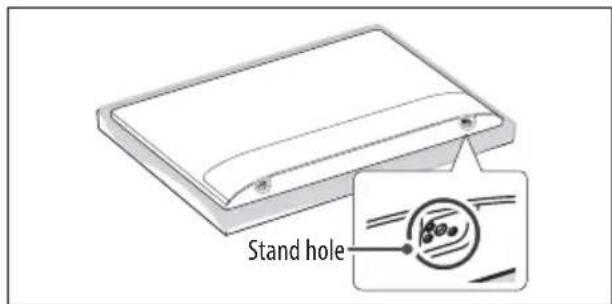

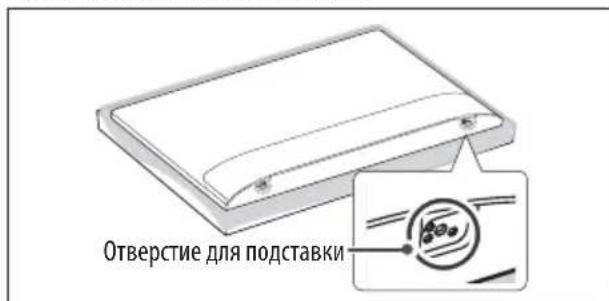

• When attaching the stand to the TV set, place the screen facing down on a cushioned table or flat surface to protect the screen from scratches.
  Make sure that the screws are fastened completely. (If they are not fastened securely enough, the TV may tilt forward after being installed.) Do not use too much force and over tighten the screws; otherwise screw may be damaged and not tighten correctly.

Separate purchase

Separate purchase items can be changed or modified for quality improvement without any notification. Contact your dealer to buy these items. These devices only work with certain models. The model name or design may be changed depending on the upgrade of product functions, manufacturer's circumstances or policies.

Depending on model)

LED Clock LEC-003

AN-WF500 Wi-Fi/Bluetooth Dongle

Lifting and moving the TV

Please note the following advice to prevent the TV from being scratched or damaged and for safe transportation regardless of its type and size.

It is recommended to move the TV in the box or packing material that the TV originally came in.
- Before moving or lifting the TV, disconnect the power cord and all cables.
- When holding the TV, the screen should face away from you to avoid damage.

• Hold the top and bottom of the TV frame firmly. Make sure not to hold the transparent part, speaker, or speaker grill area.

• When transporting a large TV, there should be at least 2 people.
• When transporting the TV by hand, hold the TV as shown in the following illustration.

• When transporting the TV, do not expose the TV to jolts or excessive vibration.
• When transporting the TV, keep the TV upright, never turn the TV on its side or tilt towards the left or right.
• Do not apply excessive pressure to cause flexing / bending of frame chassis as it may damage screen.
• When handling the TV, be careful not to damage the protruding buttons.

CAUTION

• Avoid touching the screen at all times, as this may result in damage to the screen.
• Do not move the TV by holding the cable holders, as the cable holders may break, and injuries and damage to the TV may occur.

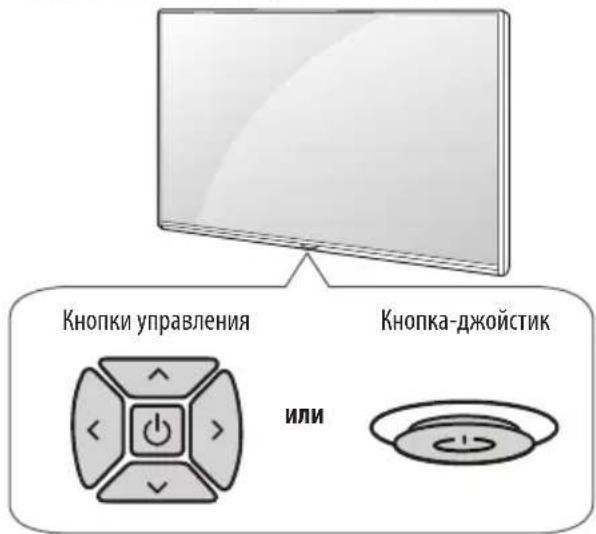

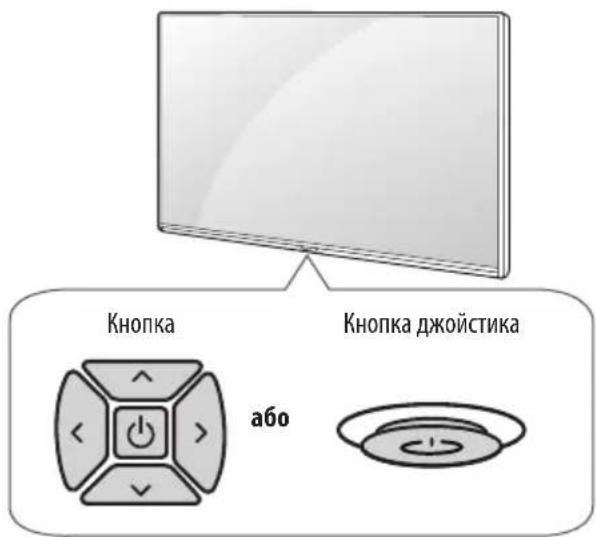

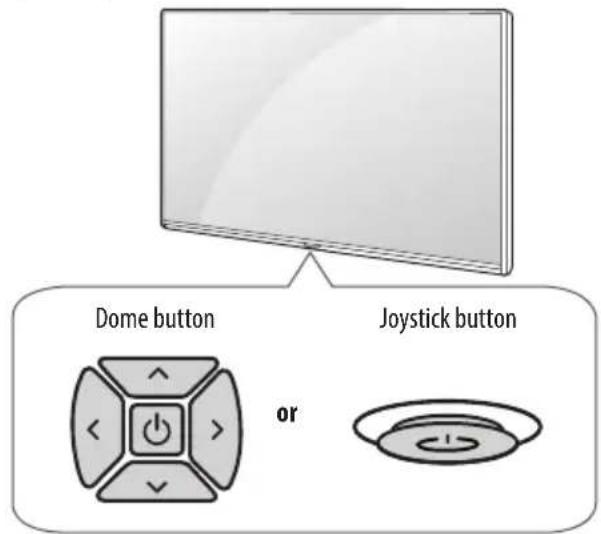

Using the button

Depending on model)

You can simply operate the TV functions, pressing or moving the button.

NOTE

• LW30 series does not have a Joystick functions but has only a power On/Off button.

Basic functions

		Power On (Press) Power Off (Press and hold)1
		Volume Control
		Programmes Control

1 If the Menu button is on the screen, pressing and holding the button will let you exit the Menu.

Adjusting the menu

When the TV is turned on, press the button one time. You can adjust the Menu items pressing or moving the buttons.

	Turns the power off.
×	Clears on-screen displays and returns to TV viewing.
	Changes the input source.
	Accesses the settings menu.

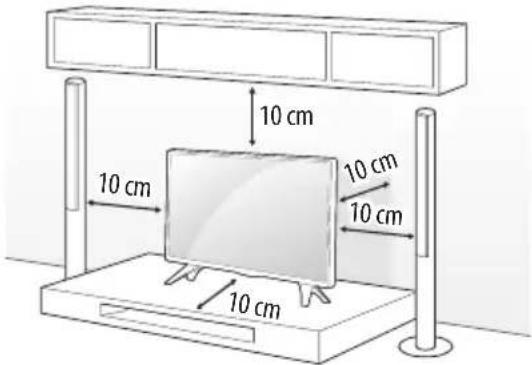

Mounting on a table

1 Lift and tilt the TV into its upright position on a table.

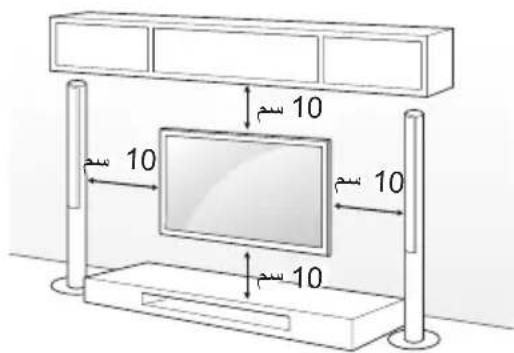

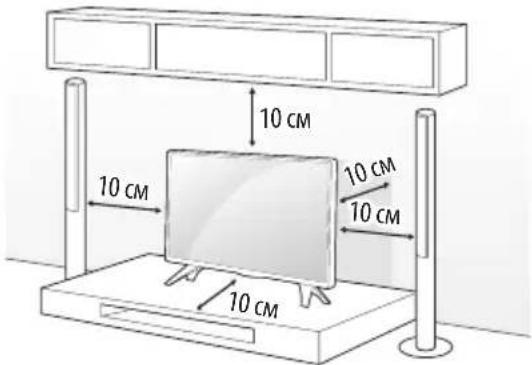

• Leave a 10cm (minimum) space from the wall for proper ventilation.

2 Connect the power cord to a wall outlet.

CAUTION

• Do not place the TV near or on sources of heat, as this may result in fire or other damage.

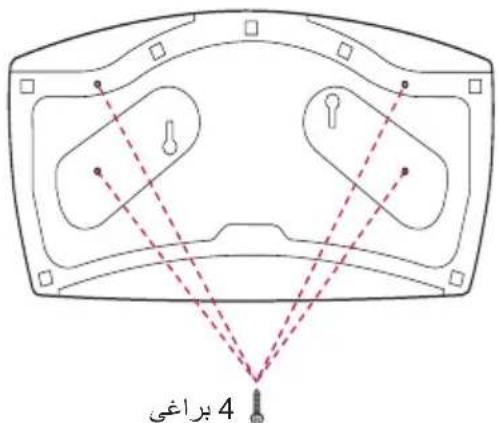

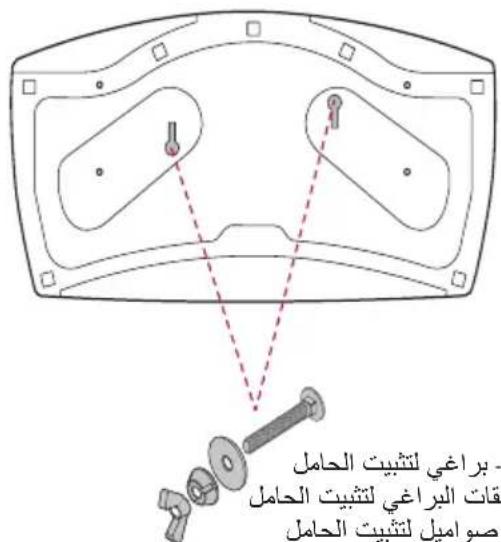

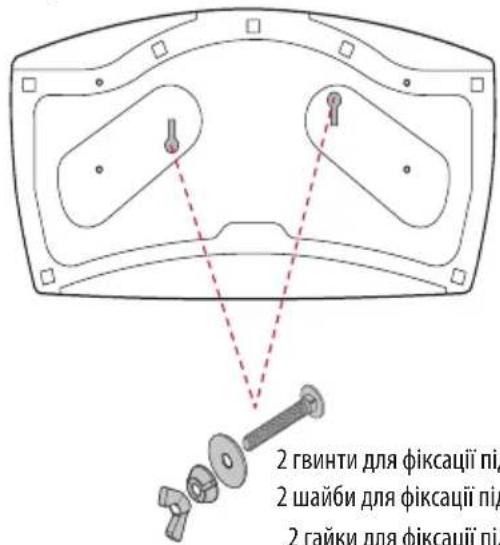

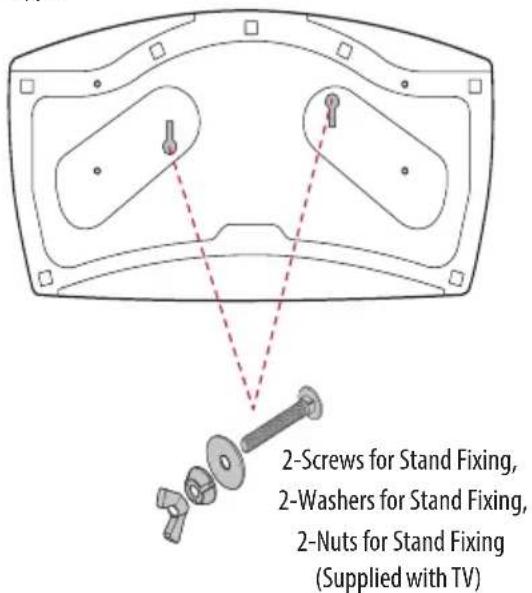

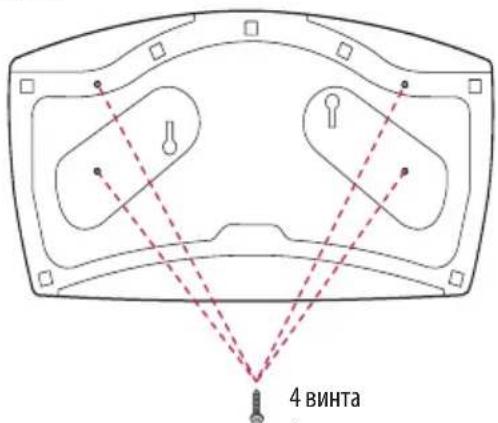

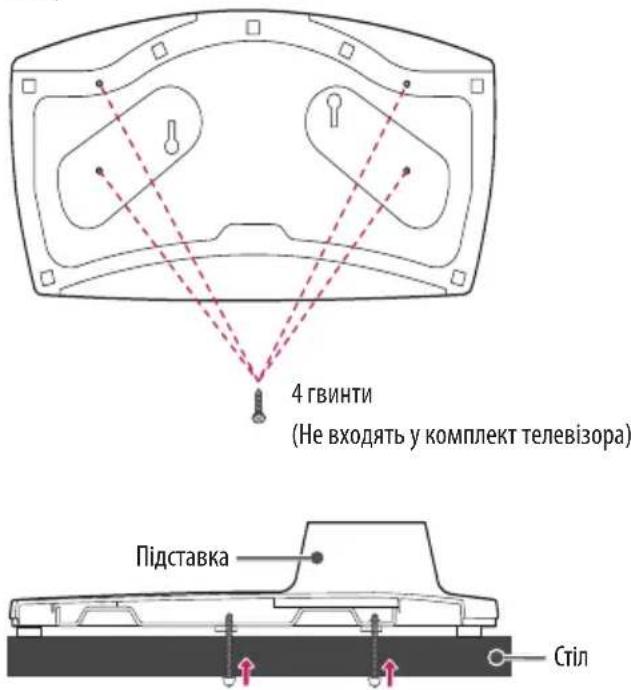

Attaching the TV to a desk

(This feature is not available for all models.)

The TV should be attached to a desk so it cannot be pulled in a forward/ backward direction, potentially causing injury or damaging the product.

A type)

NC

• Screw: M5 x L (*L: Table depth + 8~10 mm)
  ex) Table depth: 15 mm, Screw: M5 x L25

B type)

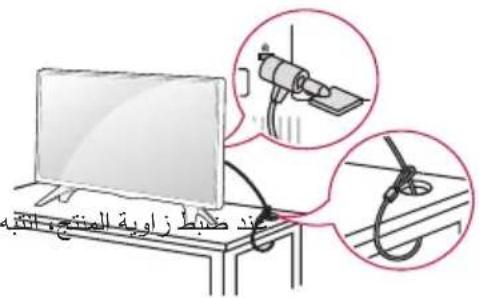

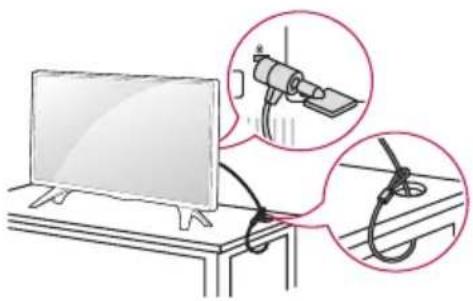

Using the kensington security system

(This feature is not available for all models.)

• Image shown may differ from your TV.

The Kensington security system connector is located at the rear of the TV. For more information of installation and using, refer to the manual provided with the Kensington security system or visit http://www.

kensington.com. Connect the Kensington security system cable between the TV and a table.

Securing the TV to a wall

(This feature is not available for all models.)

1 Insert and tighten the eye-bolts, or TV brackets and bolts on the back of the TV.
If there are bolts inserted at the eye-bolts position, remove the bolts first.
2 Mount the wall brackets with the bolts to the wall. Match the location of the wall bracket and the eye-bolts on the rear of the TV.
3 Connect the eye-bolts and wall brackets tightly with a sturdy rope. Make sure to keep the rope horizontal with the flat surface.

CAUTION

Make sure that children do not climb on or hang on the TV.

NOTE

Use a platform or cabinet that is strong and large enough to support the TV securely.
- Brackets, bolts and ropes are not provided. You can obtain additional accessories from your local dealer.

Adjusting the angle of the TV to suit view

(This feature is not available for all models.)

Swivel 20 degrees to the left or right and adjust the angle of the TV to suit your view.

CAUTION

• When adjusting the angle of the product, watch out for your fingers.

• Personal injury may occur if hands or fingers are pinched. If the product is tilted too much, it may fall, causing damage or injury.

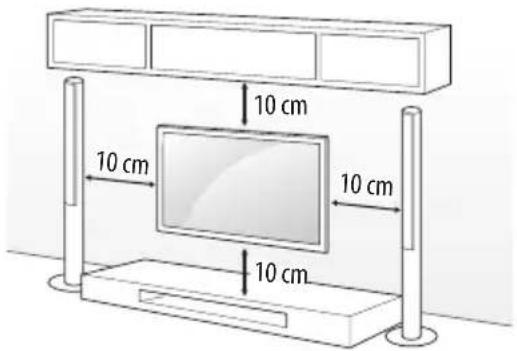

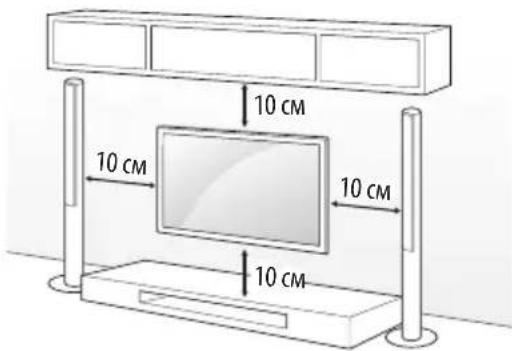

Mounting on a wall

Attach an optional wall mount bracket at the rear of the TV carefully and install the wall mount bracket on a solid wall perpendicular to the floor. When you attach the TV to other building materials, please contact qualified personnel. LG recommends that wall mounting be performed by a qualified professional installer. We recommend the use of LG's wall mount bracket. LG's wall mount bracket is easy to move with cables connected. When you do not use LG's wall mount bracket, please use a wall mount bracket where the device is adequately secured to the wall with enough space to allow connectivity to external devices. It is advised to connect all the cables before installing fixed wall mounts.

Make sure to use screws and wall mount bracket that meet the VESA standard. Standard dimensions for the wall mount kits are described in the following table.

Separate purchase(Wall Mounting Bracket)

Model	32LW30**43LW31**32/43LW34**32/43LW54**	49LW31**49/55LW34*49/55LW54**
VESA (A x B) (mm)	200 x 200 300 x 300
Standard screw M6	M6
Number of screws	4 4
Wall mount bracket	LSW240BMSW240	LSW350BMSW240

CAUTION

• Remove the stand before installing the TV on a wall mount by performing the stand attachment in reverse.

NOTE

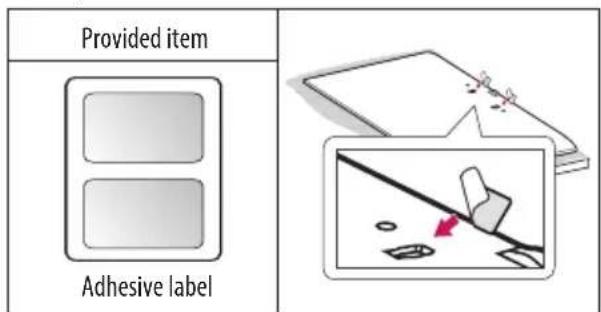

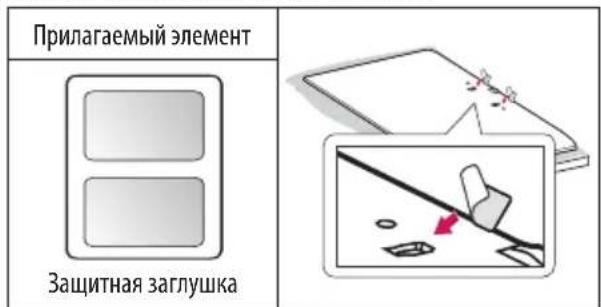

• When installing the wall mounting bracket, use the adhesive label provided. The adhesive label will protect the opening from accumulating dust and dirt. (Only when the item of the following form is provided)

• When installing the wall mounting bracket, it is recommended to cover the stand hole using tape, in order to prevent the influx of dust and insects. (Depending on model)

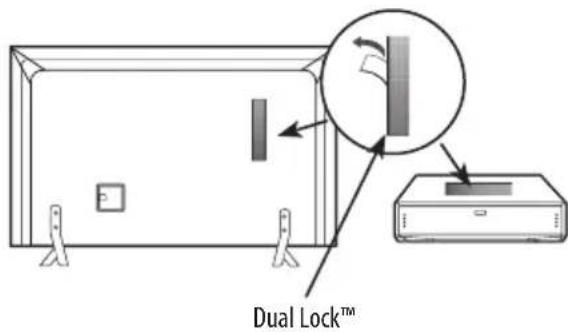

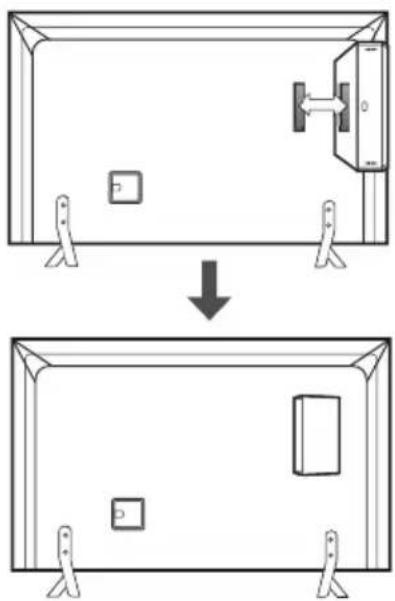

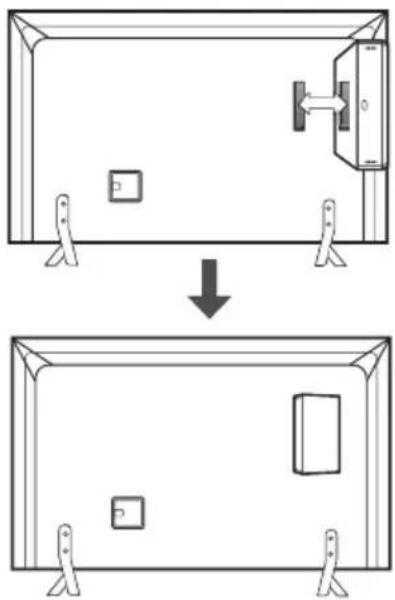

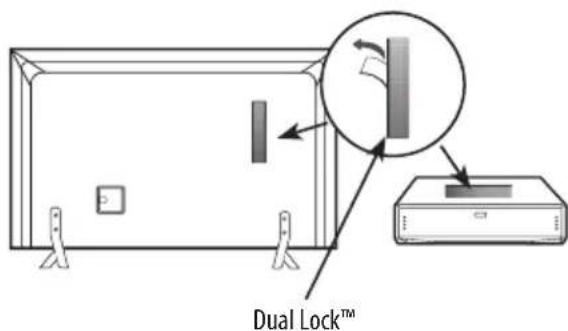

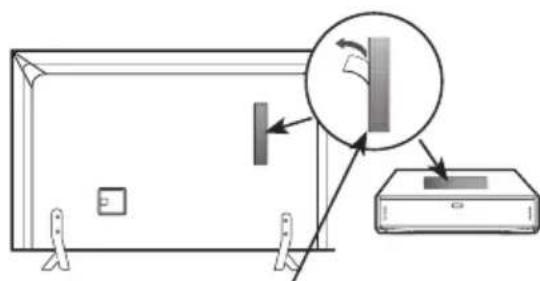

How to use Dual LockTM

(Only when the item of the following form is provided)

(Except for 32LW30**)

(This feature is not available for all models.)

Fix the set-top box to the TV and use it when you want to.

1 After removing the protection paper from the Dual Lock™, stick it to the TV and the set-top box as shown.

2 Attach the set-top box to the TV by pressing the Velcro strips together.

NOTE

Please make sure no foreign substances exist on the surface of the product, and then firmly attach the Dual LockTM.
Before attaching the set-top box to the TV set, let the attached Dual Lock™ dry for at least three days.

Connections (notifications)

Connect various external devices to the TV and switch input modes to select an external device. For more information of external device's connection, refer to the manual provided with each device.

Available external devices are: HD receivers, DVD players, VCRs, audio systems, USB storage devices, PC, gaming devices, and other external devices.

NOTE

The external device connection may differ from the model.
- Connect external devices to the TV regardless of the order of the TV port.
If you record a TV program on a DVD recorder or VCR, make sure to connect the TV signal input cable to the TV through a DVD recorder or VCR. For more information of recording, refer to the manual provided with the connected device.
Refer to the external equipment's manual for operating instructions.
If you connect a gaming device to the TV, use the cable supplied with the gaming device.
- In PC mode, there may be noise associated with the resolution, vertical pattern, contrast or brightness. If noise is present, change the PC output to another resolution, change the refresh rate to another rate or adjust the brightness and contrast on the PICTURE menu until the picture is clear.
- In PC mode, some resolution settings may not work properly depending on the graphics card.

Antenna connection

Connect the TV to a wall antenna socket with an RF cable (75) .

Use a signal splitter to use more than 2 TVs.
If the image quality is poor, install a signal amplifier properly to improve the image quality.
If the image quality is poor with an antenna connected, try to realign the antenna in the correct direction.
An antenna cable and converter are not supplied.
Supported DTV Audio: MPEG, Dolby Digital, Dolby Digital Plus, HE-AAC

Satellite dish connection

(Only satellite models)

Connect the TV to a satellite dish to a satellite socket with a satellite RF cable (75Ω).

Adapter connection

Depending on model)

CAUTION

• Please be sure to connect the TV to the AC-DC power adapter before connecting the TV's power plug to a wall power outlet.

CI module connection

Depending on model)

View the encrypted (pay) services in digital TV mode.

• Check if the CI module is inserted into the PCMCIA card slot in the right direction. If the module is not inserted properly, this can cause damage to the TV and the PCMCIA card slot.
  If the TV does not display any video and audio when Cl + CAM is connected, please contact to the Terrestrial/Cable/Satellite Service Operator.

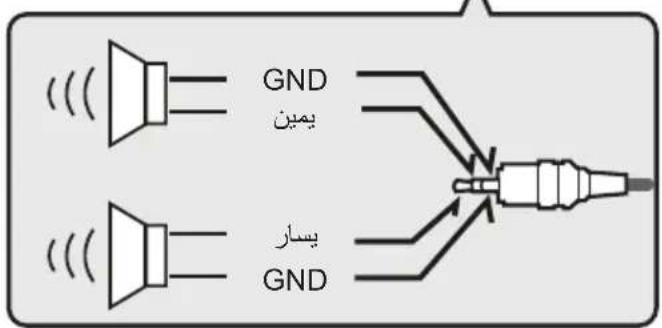

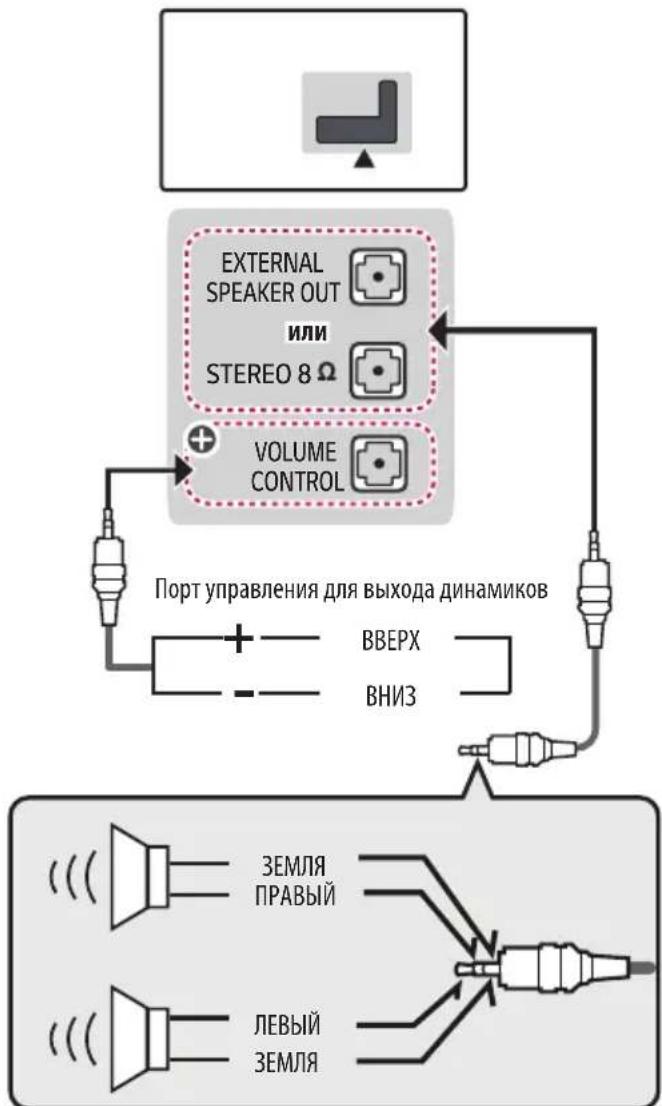

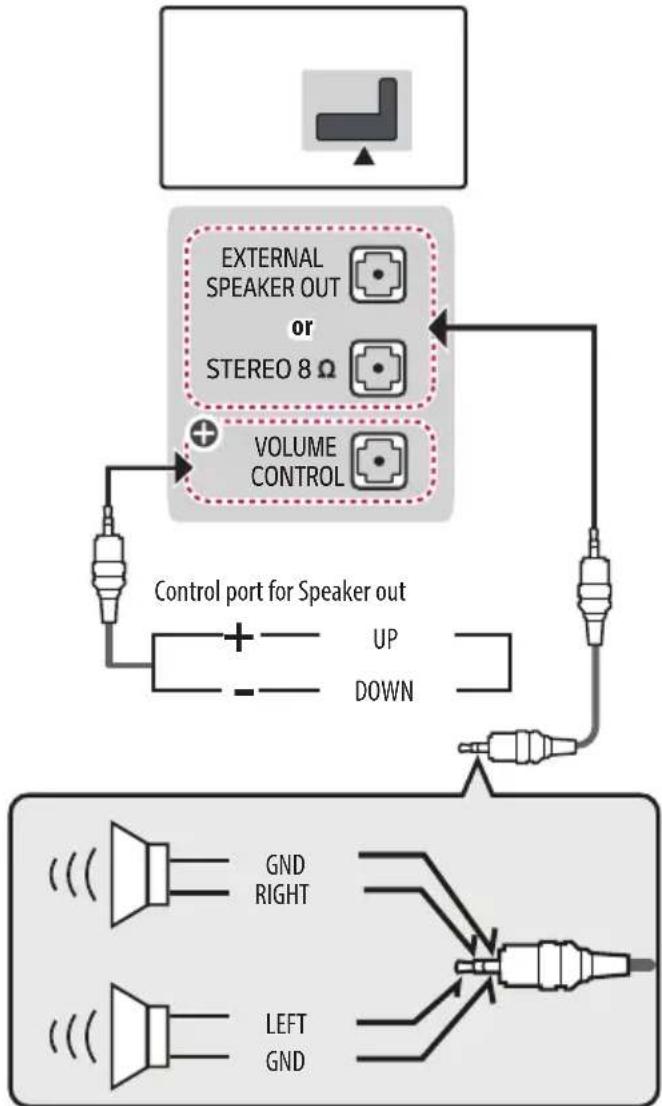

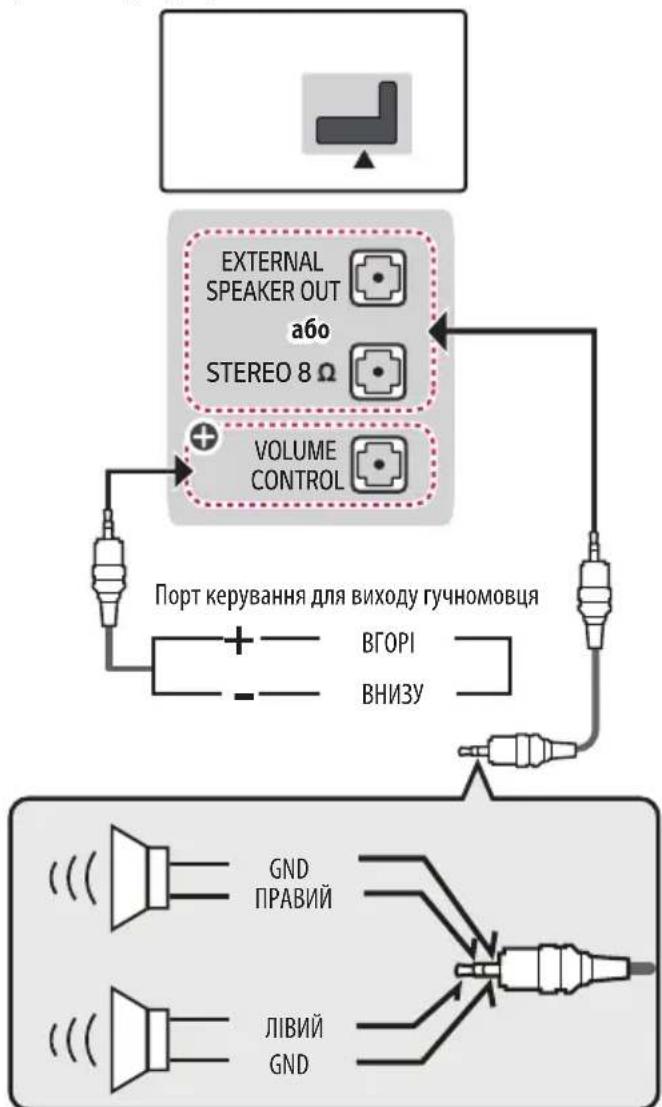

Speaker Output Setup

Depending on model)

: Depending on model

NOTE

Use only with the 3 Pole 3.5mm Stereo Jack.
- Do not connect your headphones or earphones to the port for connecting an external speaker.

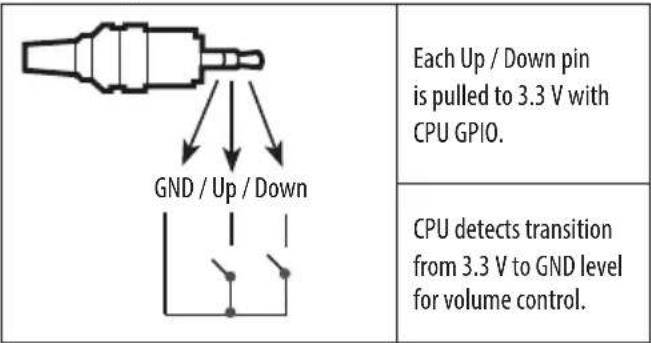

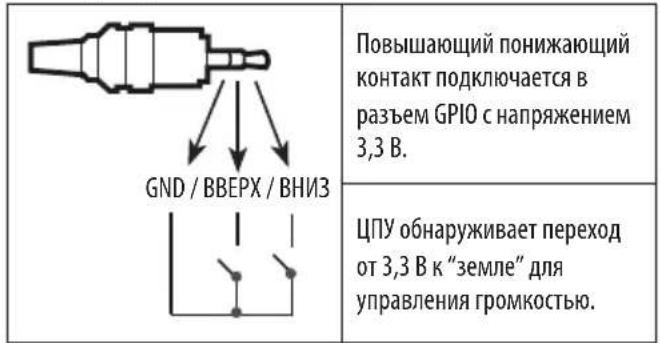

Method of Volume control port

Depending on model)

Cable Spec.

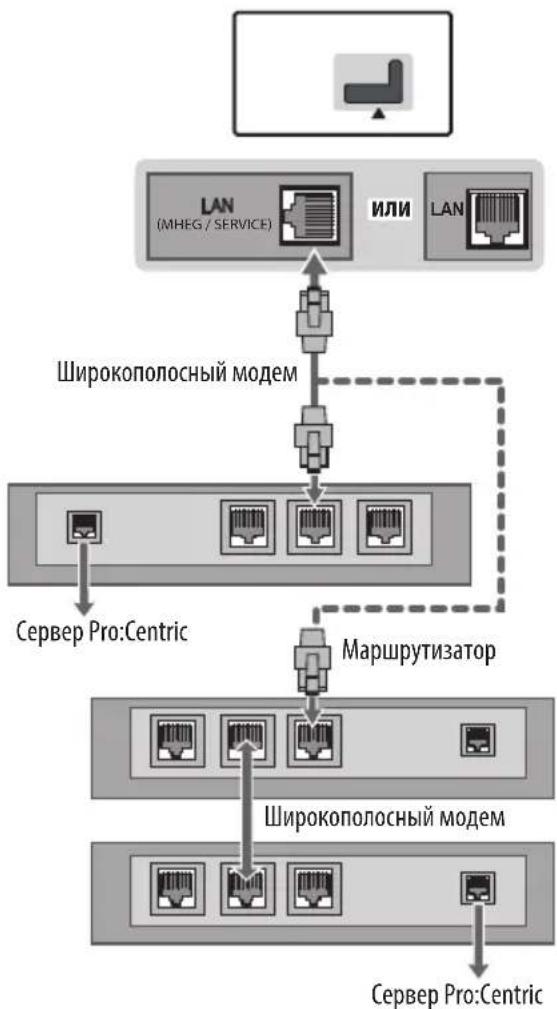

Network setup

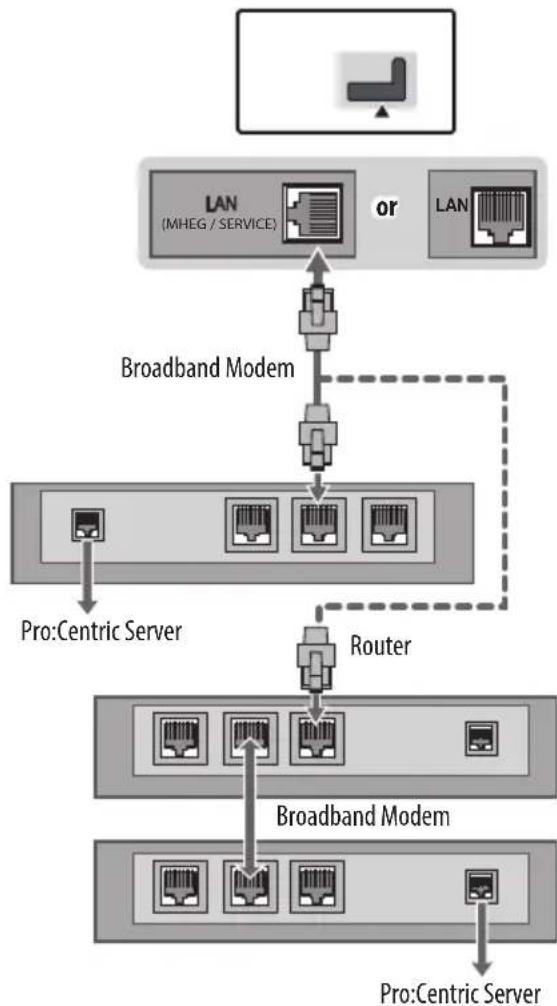

Wired network connection

Depending on model)

This TV can be connected to a Pro:Centric server via the LAN port. After making the physical connection, the TV needs to be set up for network communication. Connect the LAN port of the Modem or Router from Pro:Centric server to the LAN port on the TV.

CAUTION

• Do not connect a modular phone cable to the LAN port.
• Since there are various connection methods, please follow the specifications of your telecommunication carrier or internet service provider.

Other connections

Connect your TV to external devices. For the best picture and audio quality, connect the external device and the TV with the HDMI cable. Some separate cable is not provided.

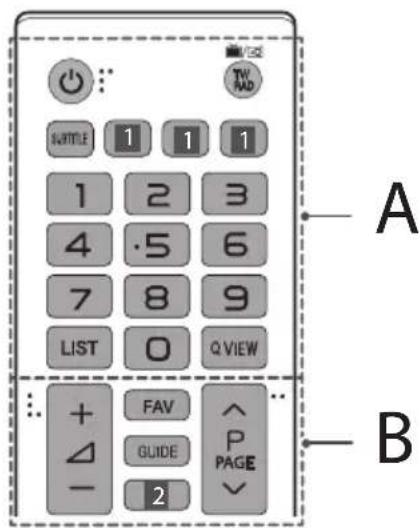

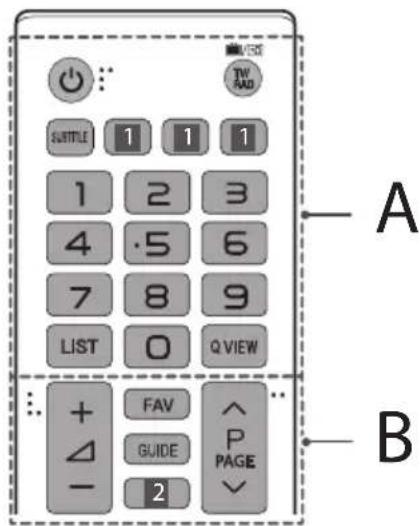

Remote control

The descriptions in this manual are based on the buttons on the remote control. Please read this manual carefully and use the TV correctly. To replace batteries, open the battery cover, replace batteries (1.5 V AAA) matching the and ends to the label inside the compartment, and close the battery cover. To remove the batteries, perform the installation actions in reverse.

Make sure to point the remote control toward the remote control sensor on the TV.

Depending on model)

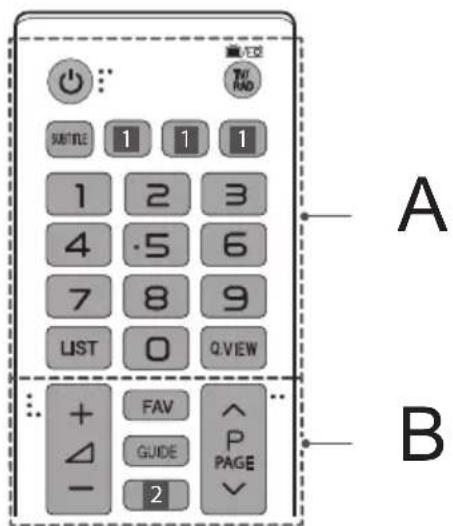

A

(POWER) Turns the TV on or off.

TV/RAD Radio, TV and DTV programme.

SUBTITLE Recalls your preferred subtitle in digital mode.

1 AB by pressing the AD button, audio descriptions function will be enabled. (Depending on model)

1 AV mode. (Depending on model)

1 RATESANRAGE. (Depending on model)

1 INPUT), the input source. (Depending on model)

Number buttons Enters numbers.

LIST Accesses the saved programme list.

Q.VIEW Returns to the previously viewed programme.

B

+Adjusts the volume level.

FAV Accesses your favourite programme list.

GUIDE Shows programme guide.

2 MUTE), MUEs sounds. (Depending on model)

Scrollsthroughethesavedprogrammes.

PAGE MOVesthepreviousor nextscreen.

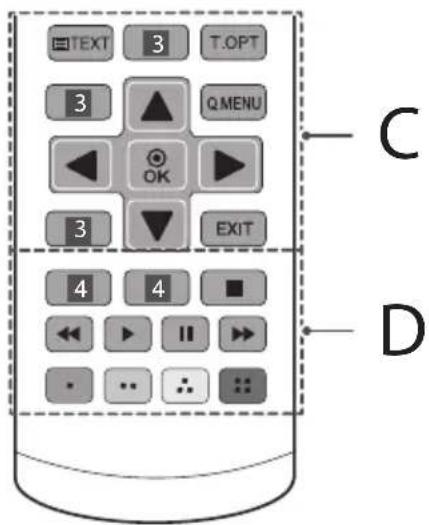

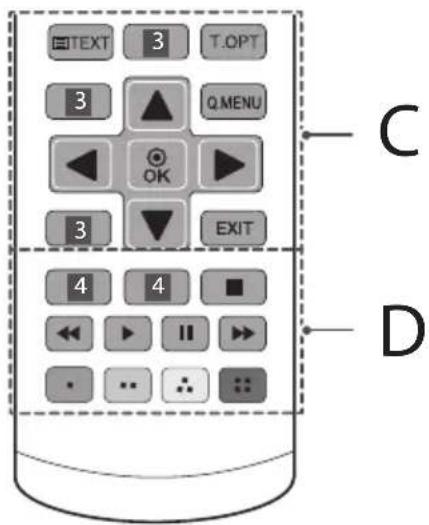

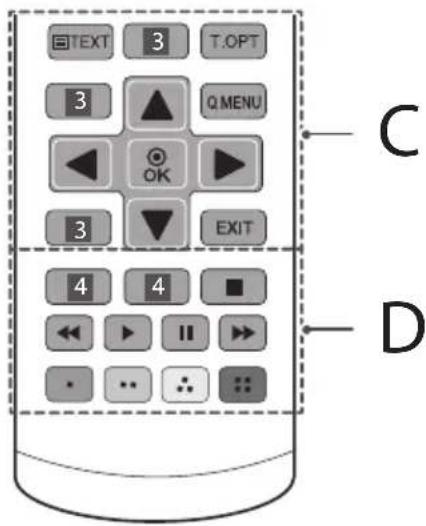

C

Teletext buttons TEXT, T. OPT These buttons are used for teletext.

3 (HOME) Accesses the Home menu. (Depending on model)

3 INFO ① Views the information of the current programme and screen. (Depending on model)

3 Settings), SETTING accesses the Settings menu. (Depending on model)

Q.MENU Accesses the Quick menus.

Navigation buttons (up/down/left/right) Scrol1s through menus or options.

0kselects menus or options and confirms your input.

3 BACK, BACK Returns to the previous level. (Depending on model)

EXIT Clears on-screen displays and returns to TV viewing.

D

4 INFO Views the information of the current programme and screen. (Depending on model)

4 SIMPLINK Accesses the AV devices connected with the HDMI cable through HDMI-CEC. Opens the SIMPLINK menu. (Depending on model)

4 REC/Starts to record and displays record menu. (Depending on model)

4 ABBy pressing the AD button, audio descriptions function will be enabled. (Depending on model)

Control buttons, , , , ,) Controls media contents.

Coloured buttons These access special functions in some menus.

Red,Green,Yellow,Blue)

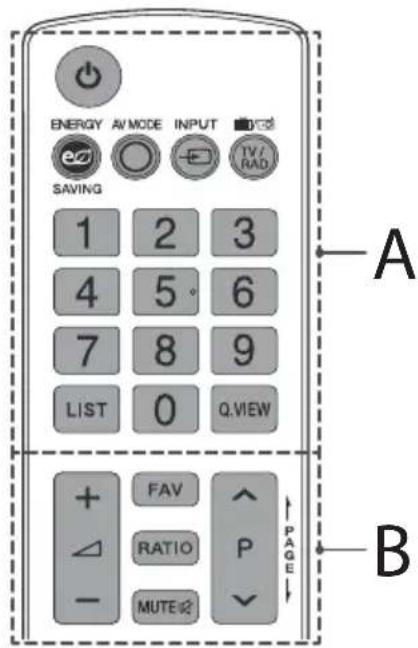

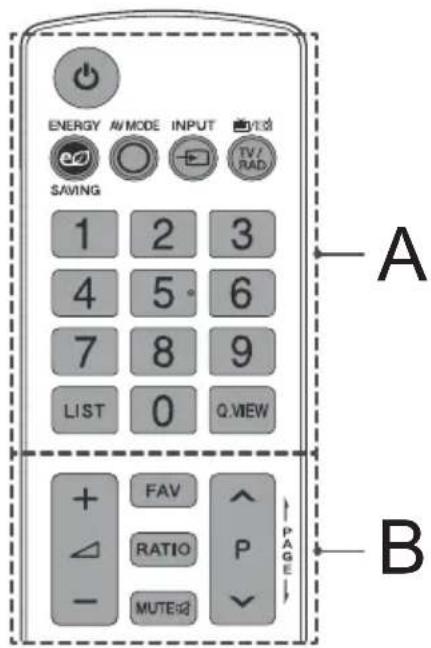

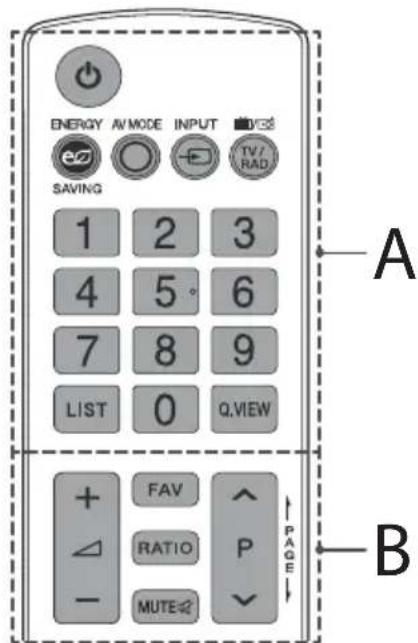

Depending on model)

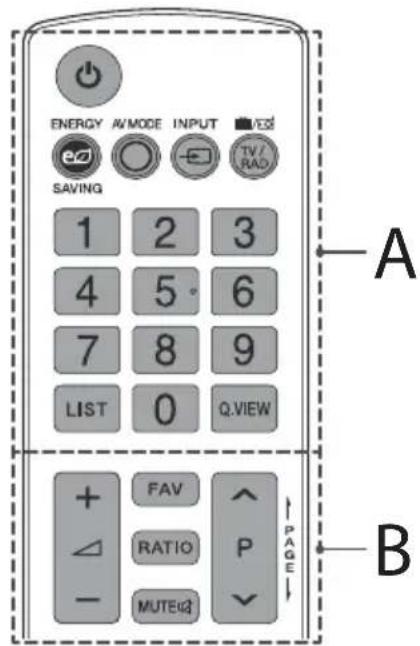

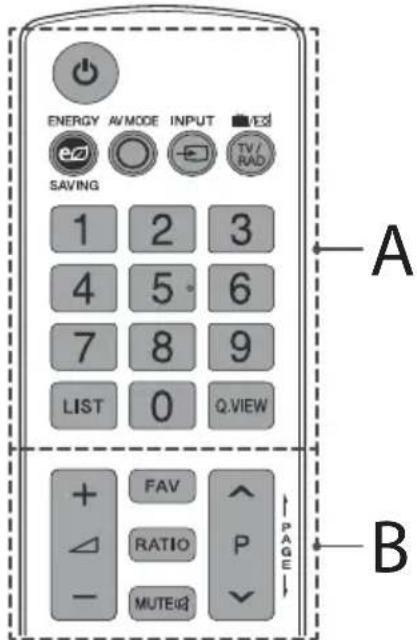

A

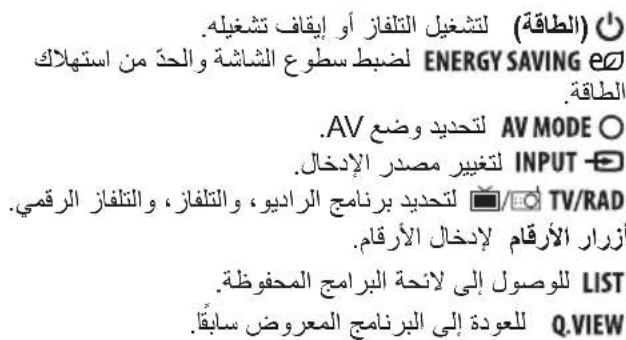

(POWER) Turns the TV on or off.

ENERGY SAVING Adjusts the brightness of the screen to reduce energy consumption.

AyeodinAVmode.

INATges the input source.

TV/RAD Effects Radio, TV and DTV programme.

Number buttons Enters numbers.

LIST Accesses the saved programme list.

Q.VIEW Returns to the previously viewed programme.

B

+Adjuststhevolumelevel.

FAV Accesses your favourite programme list.

RATIO Resizes an image.

MUTE Mutes all sounds.

Scrol1s through the saved programmes.

PAGE1 Moves to the previous or next screen.

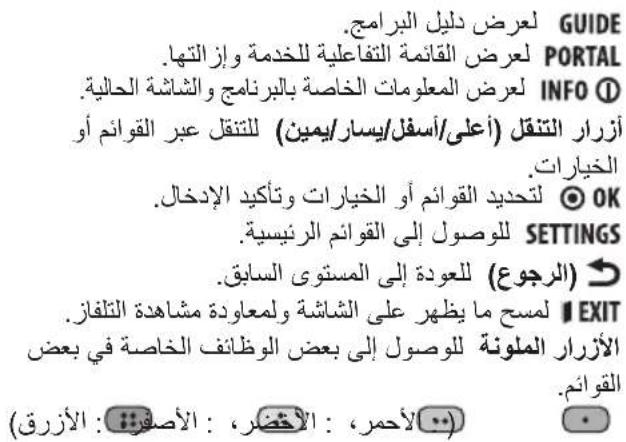

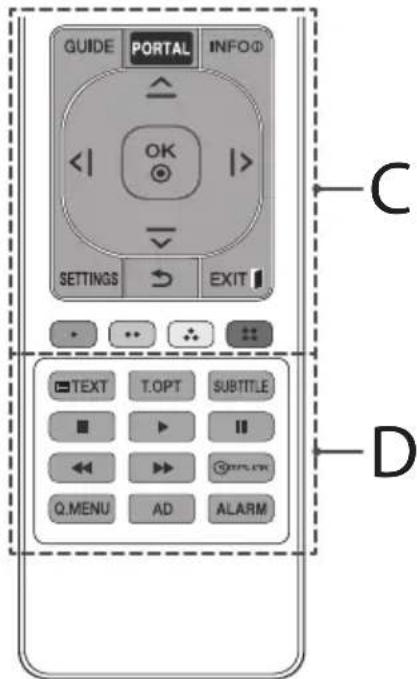

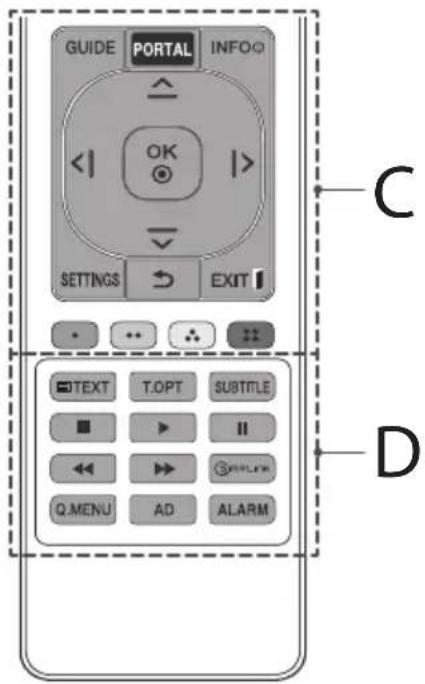

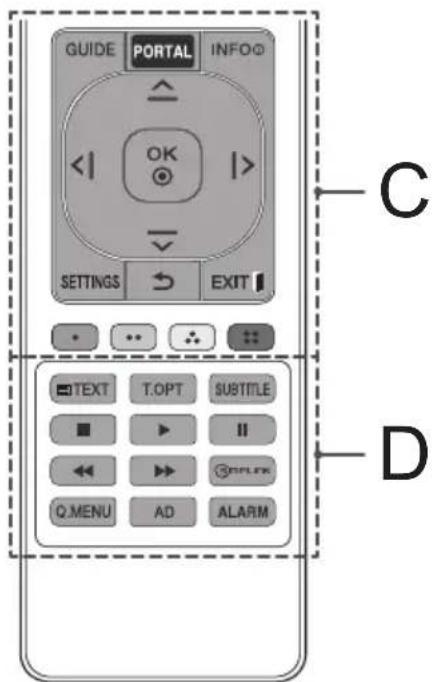

C

GUIDE Shows programme guide.

PORTAL Displays and removes hotel interactive menu.

INFO ① views the information of the current programme and screen.

Navigation buttons (up/down/left/right) Scrolls through menus or options.

OK Selects menus or options and confirms your input.

SETTINS Accesses the main menus.

(BACK) Returns to the previous level.

EXIT Clears on-screen displays and return to TV viewing.

Coloured buttons These access special functions in some menus.

Red,Green,Yellow,Blue

D

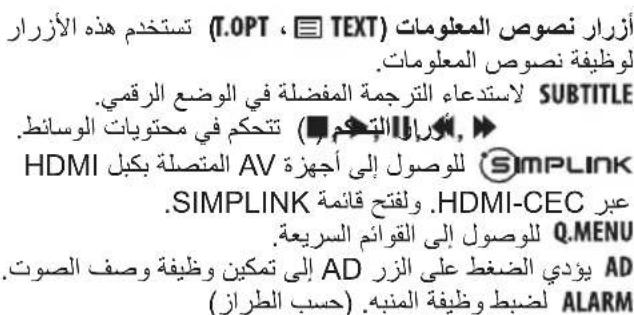

Teletext buttons (3) These buttons are used for teletext.

SUBTITLE Recalls your preferred subtitle in digital mode.

Control buttons ( , , , ,) Controls media contents.

SIMPLINK Accesses the AV devices connected with the HDMI cable through HDMI-CEC. Opens the SIMPLINK menu.

Q MENU Accesses the Quick menus.

AD By pressing the AD button, audio descriptions function will be enabled.

ALARM Sets the alarm function. (Depending on model)

Licenses

Supported licenses may differ by model. For more information about licenses, visit www.lg.com.

DOLBY.

DIGITALPLUS

Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.

The terms HDMI and HDMI High-Definition Multimedia interface, and the HDMI logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

This DivX Certified device has passed rigorous testing to ensure it plays DivX® video.

To play purchased DivX movies, first register your device at vod.divx.com. Find your registration code in the DivX VOD section of your device setup menu.

DivX Certified® to play DivX® video up to HD 1080p, including premium content.

DivX, DivX Certified and associated logos are trademarks of DivX, LLC and are used under license.

Covered by DivX Patents 7,295,673; 7,515,710; RE45,052; and others available at [www.divx.com/patents].

Open source software notice information

To obtain the source code under GPL, LGPL, MPL and other open source licenses, that is contained in this product, please visit http://opensource. lge.com.

In addition to the source code, all referred license terms, warranty disclaimers and copyright notices are available for download.

LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing such distribution (such as the cost of media, shipping, and handling) upon email request to [e-mail]. This offer is valid for three (3) years from the date on which you purchased the product.

Troubleshooting

The software version can be updated for improvement in performance. Customer needs to ensure the compatibility of customer's equipment with LGE software. If needed, please consult with LGE and upload revised software version according to the guidance provided by LGE.

Cannot control the TV with the remote control.

• Check the remote control sensor on the product and try again.
• Check if there is any obstacle between the product and the remote control.
• Check if the batteries are still working and properly installed to t .

No image display and no sound is produced.

• Check if the product is turned on.
• Check if the power cord is connected to a wall outlet.
• Check if there is a problem in the wall outlet by connecting other products.

The TV turns off suddenly.

• Check the power control settings. The power supply may be interrupted.
• Check if the Automatic Standby (Depending on model) / Sleep Timer / Off Time is activated in the TIME settings. (Depending on model)
• Check if the Auto Power Off (Depending on model) / Sleep Timer / Timer Power Off is activated in the Timers settings. (Depending on model)
  If there is no signal while the TV is on, the TV will turn off automatically after 15 minutes of inactivity.

When connecting to the PC (RGB/HDMI/DVI), 'No signal' or 'Invalid Format' is displayed.

• Turn the TV off/on using the remote control.
• Reconnect the RGB/HDMI cable.
• Restart the PC with the TV on.

Software download information

Use this information for LW540S series.
You can download the SuperSign Software and manual from LG Electronics website.
https://www.lgecommercial.com/digital-signage/support/download/supersign
Software:SuperSign W_Lite_Perver_vX.X.X_Setup.zip SuperSign C_vX.X.X_Setup.zip SuperSign W_Editor_vX.X.X_Setup.zip SuperSign WPLAYER_vX.X.X_Setup.zip
Manual:SuperSign W_LiteServer_vX.X.X_Manual.zip SuperSign C_vX.X.X_Manual.zip SuperSign W_Editor_vX.X.X_Manual.zip SuperSign WPLAYER_vX.X.X_Manual.zip

Specifications

CI Module (W x H x D) 100.0 mm x 55.0 mm		5.0 mm
Environment condition	Operating Temperature 0 °C	to 40 °C
	Operating Humidity Less than 80 %
	Storage Temperature -20 °C	to 60 °C
	Storage Humidity Less than 85 %

AC/DC Adapter	32LW30**
	Manufacturer: Lien Chang Model: LCAP16B-E, LCAP25B Manufacturer: Honor Model: ADS-45FSN-19 19040GPG, ADS-45SN-19-2 19040G
	Input: AC 100 - 240 V ~ 50/60 Hz Output: DC 19 V = = = 2.1 A

Depending on country)

	Digital TV Analogue TV
	Satellite Terrestrial Cable Terrestrial / Cable
Television system DVB-S/S2*	DVB-T DVB-T2*	DVB-C	PAL/SECAM B/G, D/K, I, SECAM L
Channel coverage (Band)	950 ~ 2150 Mhz	VHF III: 174 ~ 230 Mhz UHF IV: 470 ~ 606 Mhz UHF V: 606 ~ 862 Mhz S Band II: 230 ~ 300 Mhz S Band III: 300 ~ 470 Mhz	46 ~ 862 Mhz 46 ~ 862 Mhz
Maximum number of storable programmes	6,000	1,500 (Only LW54**, LW341*)2,000 (Only LW340*, LW31**, LW30**)
External antenna impedance 75 Ω

• Only DVB-T2/C/S2 support models.

HDMI/DVI-DTV supported mode
RGB-PC supported mode

Resolution	Horizontal Frequency (kHz)	Vertical Frequency (Hz)
640 x 480	31.46	59.94
	31.50	60.00
720 x 480	31.469	59.94
	31.50	60.00
720 x 576 31.250	50.00
1280 x 720	37.50	50.00
	45	60.00
	44.96	59.94
1920 x 1080	28.125	50.00
	33.75	60.00
	33.72	59.94
	56.250	50.00
	67.50	60.00
	67.432	59.94
	27.00	24.00
	26.973	23.976
	33.75	30.00
	33.716	29.976

(Only LW31**, LW340*, LW540*)

Resolution	Horizontal Frequency (kHz)	Vertical Frequency (Hz)
640 x 350 31.468	70.09
720 x 400 31.469	70.08
640 x 480 31.469	59.94
800 x 600 37.879	60.31
1024 x 768 48.363	60.00
1152 x 864 54.348	60.053
1360 x 768 47.712	60.015
1280 x 1024 63.981	60.020
1920 x 1080 66.587	59.934
1920 x 1080 67.50	60.00

HDMI/DVI-PC supported mode
(Use HDMI IN 1 for PC mode)
1:Only LW31,LW34,LW54**

Resolution	Horizontal Frequency (kHz)	Vertical Frequency (Hz)
640 x 350 31.468	70.09
720 x 400 31.469	70.08
640 x 480 31.469	59.94
800 x 600 37.879	60.31
1024 x 768 48.363	60.00
1152 x 864 54.348	60.053
1360 x 768 47.712	60.015
1280 x 1024 (FHD only)	63.981 60.020
1920 x 1080 (FHD only)	67.50 60.00

Component port connecting information

Component ports on the TV Y P		B	PR
Video output ports onDVD player	Y	PB	PR
	Y B-Y	R-Y
	YCb	Cr
	YPb	Pr
Signal	Component
480i / 576i	0
480p / 576p	0
720p / 1080i	0
1080p	0(Only 50 Hz / 60 Hz)

Supported video formats

(Only LW54*, LW341)

Maximum: 1920 x 1080 @ 30p (only Motion JPEG 640 x 480 @ 30p)
.asf.wmv

[Video] MPEG-2, MPEG-4 Part2, XViD, H.264/AVC, VC1(WMV3, WVC1), MP43

[Audio] WMA Standard, WMA9(Pro), MP3, AAC, AC3, 3D WMV Single Stream

. divx,avi

[Video] MPEG-2, MPEG-4 Part2, DivX3.11, DivX4, DivX5, DivX6, XVid, H.264/AVC

[Audio] HE-AAC, LPCM, ADPCM, MPEG-1 Layer I, MPEG-1 Layer II, Dolby Digital, MPEG-1 Layer III (MP3)

• .ts,trp,tp,mts.m2ts

[Video] H.264/AVC, MPEG-2, AVS, VC1

[Audio] MPEG-1 Layer I, MPEG-1 Layer II, MPEG-1 Layer III (MP3), Dolby Digital, Dolby Digital Plus, AAC, HE-AAC

.vob

[Video] MPEG-1, MPEG-2

[Audio] Dolby Digital, MPEG-1 Layer I, MPEG-1 Layer II, DVD-LPCM

. m p4,m4v,m o v

[Video] MPEG-2, MPEG-4 Part2, DivX3.11, DivX4, DivX5, DivX6, XVID, H.264/AVC

[Audio] AAC, MPEG-1 Layer III (MP3)

. mkv

[Video] MPEG-2, MPEG-4 Part2, XVID, H.264/AVC

[Audio] HE-AAC, Dolby Digital, MPEG-1 Layer III (MP3), LPCM

motion JPEG

[Video] MJPEG

[Audio] LPCM, ADPCM

.mpg, .mpeg, .mpe

[Video] MPEG-1, MPEG-2

[Audio] MPEG-1 Layer I, MPEG-1 Layer II, Dolby Digital, LPCM

.dat

[Video] MPEG-1, MPEG-2

[Audio] MP2

.

[Video] Sorenson H.263, H.264/AVC

[Audio] MP3, AAC, HE-AAC

.3gp, .3gp2

[Video] H.264/AVC, MPEG-4 Part2

[Audio] AAC, AMR(NB/WB)

(Only LW340, LW31, LW30*)

Maximum: 1920 × 1080 @ 30p (Only Motion JPEG 640 x 480 @ 30p)
.asf.,.wmv

[Video] MPEG-4 Part2, XViD, H.264/AVC, VC1(WMV3, WVC1), MP43 [Audio] WMA Standard, WMA9(Pro), MP3, AAC, AC3

. divx, .avi

[Video] MPEG-2, MPEG-4 Part2, DivX3.11, DivX4, DivX5, DivX6, XVid, H.264/AVC

[Audio] HE-AAC, LPCM, ADPCM, MPEG-1 Layer I, MPEG-1 Layer II, Dolby Digital, MPEG-1 Layer III (MP3)

• .ts, .trp, .tp, .mts, .m2ts

[Video] H.264/AVC, MPEG-2, H.265/HEVC

[Audio] MPEG-1 Layer I, MPEG-1 Layer II, MPEG-1 Layer III (MP3), Dolby Digital, Dolby Digital Plus, AAC, HE-AAC

.vob

[Video] MPEG-1, MPEG-2

[Audio] Dolby Digital, MPEG-1 Layer I, MPEG-1 Layer II, DVD-LPCM

. ^mp4 .m4v.,mov

[Video] MPEG-2, MPEG-4 Part2, DivX3.11, DivX4, DivX5, XVID, H.264/AVC

[Audio] AAC, MPEG-1 Layer III (MP3)

.mkv

[Video] MPEG-2, MPEG-4 Part2, XVID, H.264/AVC

[Audio] HE-AAC, Dolby Digital, MPEG-1 Layer III (MP3), LPCM

motion JPEG

[Video] MJPEG

[Audio] LPCM, ADPCM

.mpg, .mpeg, .mpe

[Video] MPEG-1, MPEG-2

[Audio] MPEG-1 Layer I, MPEG-1 Layer II, Dolby Digital, LPCM

.dat

[Video] MPEG-1, MPEG-2

[Audio] MP2

.

[Video] Sorenson H.263, H.264/AVC

[Audio] MP3, AAC, HE-AAC

.3gp, .3gp2

[Video] H.264/AVC, MPEG-4 Part2

[Audio] AAC, AMR(NB/WB)

Supported audio formats

File type:mp3

[Bit rate] 32 Kbps - 320 Kbps

[Sample freq.] 16kHz - 48kHz

[Support] MPEG1, MPEG2, Layer2, Layer3

File Type:AAC

[Bit rate] Free Format

[Sample freq.] 8kHz 48kHz

[Support] ADIF, ADTS

File Type:M4A

[Bit rate] Free Format

[Sample freq.] 8kHz 48kHz

[Support] MPEG-4

File Type:WMA

[Bit rate] 128 Kbps 320 Kbps

[Sample freq.] 8kHz 48kHz

[Support]WMA7,WMA8,WMA9 Standard

File Type:WMA 10 Pro

[Bit rate] 768 Kbps

[Channel / Sample freq.]

M0: up to 2 Channel @ 48 kHz (Except LBR mode),

M1: up to 5.1 Channel @ 48 kHz,

M2:up to 5.1 Channel @ 96 kHz

[Support] WMA 10 Pro

(Only LW54**, LW341*)

File Type:OGG

[Bit rate] Free Format

[Sample freq.] 48kHz

[Support] OGG Vorbis

(Only LW340, LW31, LW30*)

File Type:OGG

[Bit rate] Free Format

[Sample freq.] 8kHz 48kHz

[Support] OGG Vorbis

File Type:WAV

[Bit rate] 64 kbps 1.5 Mbps

[Sample freq.] 8kHz 48kHz

[Support] LPCM

[Bit depth] 8 bit / 16 bit / 24 bit

Supported photo formats

Category:2D (jpeg, jpg,jpe)

[Available file type]

SOFO:Baseline,

SOF1: Extend Sequential,

SOF2:Progressive

[Photo size]

Minimum: 64 × 64 ,

Maximum (Normal Type) : 15360 (W) x 8640 (H),

Maximum (Progressive Type) : 1920 (W) x 1440 (H)

Category:BMP

[Photo size] Minimum: 64 × 64 , Maximum: 9600 × 6400

Category:PNG

[Available file type] Interlace, Non-Interlace

[Photo size]

Minimum: 64 × 64 ,

Maximum (Interlace) : 1200 x 800,

Maximum (Non-Interlace) : 9600 x 6400

BMP and PNG format files may be slower to display than JPEG.
Non-standard photo/image file may not be displayed.

LG

Life's Good

Record the model number and serial number of the TV.

Refer to the label on the back cover and quote this information to your dealer when requiring any service.

MODEL

SERIAL

g j 111

Jooaol

a 1

ailll lll lll lal lal lal

jiesaiee elilg aellalll lssn bnn nssn 120 120 120 120 120 120 120

1 2

y 1

y1sll jgc gksal aaii i 5i jilal ljali ci
g2g jyj ygi gii gii jilill gii jll jie

J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J

Jaiy 1 aay yao ayaaay jg jiaall 1e alll Jy
a aaiy g jy baiy .(j jil) "jil" jalld

aalbll bgsg jglgall gell nnnn nn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn

1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

y 1

C 11111111111111111111111111111111111111111111

aill 11111111111111111111

• roolal (c)

a

J 15

g 1000000000000000000000000000000000000000000000000000

aaii iiai 15 15 15 15 15 15 15 15 15 15 15 15

222111111111111111111111111111111111 2222222222222222222222222222222222222222222222222222222

LG Jn nn nnnnnae aell, 2020. Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn J

1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

aalll Jus Jus jn 1111111111111111111111111111111

a 1

10 bilall jiall lal

（）

jol jolil oalioie aygill ciaa aoe pce 1e jol
clle lgl y g. aiLw aygill ciaa jaiy gl
gl

aillg aal 12 jla g k jall laa aal alal g jla g jall jiai i jai jai jai

1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

Jaa aai 1

yall yjly 1e jg g g ggl gll gll gll gll gll gll gll gll gll gll gll gll gll

L 10000000000000000000000000000000000000000000000000000000000000

iial 12al 1 jaiy jaiu cai yj g iial yj sic

Joc jss. Jgall aadll gglal all gaoill Joc Jg
jusis . jus jlgall lae lylaic aglloa yolll
le e ggs g jilw wkwl g alll 111
Kai aie pia c g aybll g bll jagl jg

aiee ie Iue "Lioy" 1aii aei ci 1j 1i 1i

Jusll 1200000000000000000000000000000000000000000000000000000000000000000000000000000

yolall yg no nlll lal ylae ylae y

jia jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jali jali jali jali jali jali jali jali jali jali jali jali

a aal aal aal aal aal aal aal aal aal aal aal aal aal aal aal aal aal aal aal aal aal aal aal aal aal aal aal aal aal aal aal aal aal aal aal aal aal aal aal aal aal aal aal aal aal aal aal aal aal aal aAL 1000000000000000000000000000000000000000000000000000000000000000000000000000000000000000

y blll g 22 jll jll jll aia oia oia cills laa
aii iia g iia ii jial l lal y juae ie laai ay

J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1

#

Jalil li jai jiu jia Lao Jiu

Aosissis ssll jIb

jlll llaa jaa jaa jla

18 10 USB HDMI USB 2.0 USB

10 ≥ A^

18 B*

a

aal 1
1

i
. jj jll 1
J 1

J 1 J 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

joll jab jll jaiia 1

i

algoaiai jiee iIyai! 1juiaiy

gaa jai aai ai 1a g. jalil Jalal Jai gi iie

jolalal jw gwh j peli olaiy oia jglg

.

（）

pa jai jali liy d cai kai pka lal

1 1

aaii 1

.

.

jai y jalil Jai sic
i g laiaa loa aai jalil Jai sic
jay jiy liy ay aiil
jail jai jll jgall prnniy
y bny glll lla sgy d jy

Jaaia Jaaia aagaaa

AN-WF500 LED 888888888888888888888888888888888888888888888888888888

aaiy jgaiy jay jalil yjllnly p 1

S OBC = S AOB + S_ BOC

S ACD = S COD + S_ DCE

aill i j

a1gla jalil

（）

j pl 1

iiilllllglal lllllllll

(A

（）

108+alglalgac:L)LxM5:gr L25xM5:15alglalgac(Jlll

(B

（）

(العربية)العربية العربية)العربية 1(العربية)
العربية
العربية

1 1

aaiiei b

j 1 j 1 1 1 1 1 1 1 1 1

12 + 8 = 19

a

aai j 1

Kensington

（）

（）

Jalil 20 jalil

Kensington 100

Kensington

http://www.kensington.com

Kensington

yI 11111111111111111111111111

bila 1e jalil l

bila

J 10000000000000000000000000000000000000000000000000000000000000000000000000000000000

（）

alolololololololololololololololololololololololololololololololololololololololololololololol

1

1. bilal glc

3 laal

15 1

a1511 jaii jia 8

1 1

.

4k = 3

42

J 1

S_ = 12 · BC · PD = 12 × CD × DE = 14

alall jolil no aolll

Dual LockTM

（）

(32LW30** 1jlll)

io 10i (set-top box) j

olil jio 15

Dual LockTM

Lio Velcro abjgl

ylaal ldd, blll 1ie cuiu uag yuaa oiai iie ojai

VESA

bila 1

e 1

(bil

(jjll) jjll plisly cjjll jll jll

3 13

Dual LockTM

1. jujil: jai jai jai jai jai

Dual LockTM

Jgai

（）

J 1

1

j 5

j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j

a111 a111 1 1

G

GJ 1

CI 1

(j)

jiall jai g a (aia) aiai

PCMCIA C

aallll klll lal lal

.PCMCA 1

Culipaii JiaJiaJiaJIaCl+ CAM

#

. jai jj
·

julilylilio

• jyLadie 1

4k + 3 = 0

1

.
j_4 = 12

-

#

(j)

EXTERNAL SPEAKER OUT
STEREO 8

VOLUME CONTROL

gall jso jjssill

Jai

jbjll

a 1

a

J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1

Jaa (s) PICTURE aiaa

aolglss

aaii

g

RF 15 15 15 15 15 15 15 15 15 15 15 15 15 15

（75）

·

.
·
S OBC = S BOC + S_ CBA
.

.

Dolby Digital, MPEG:

. HE-AAC , Dolby Digital Plus

#

(baa (eall)Satellite

aalal aalal, galiyll aalal lalal all jol INFO ① 3

(j)

3

(j)

Q.MENU

aalal aalal, galiyll alalil clogall jel ①INFO4

(j)

JcA AVs jL

）.SIMPLINKaHdMI-CEC HDMI

(1)

（j）.

AD 4

(j)all

150 1

J 1

21 gai

（）

a

sall sll jj l lal l 10 g ool g ool jss

1.5) 1

jgl 0 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

jolitt ic jgsall

(j)

A

A

TV/RAD

SUBTITLE

AD 1

(j)all

（j）AVMODE1

（）.00000000000000000000000000000000000000000000000

(1)

）JINI INPUT（J）

( j) j1j2

aasall aaiy

Q.VIEW

B

-4+

aalaeall aaiia Jaaag FAV

Guide

（j）

C

A

D

B

JL 15.15 LGE JnLg LGE 4L G

Jg Jgall. jlll aegdall jilll iis . WwW. gall 0j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j

j 1

DOLBY DIGITAL PLUS

j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j

.
Dolby 1. Dolby Jao
Dolby

（） ①

HAMI

. jolil juii jai
HDMl HighDefinitionHDMl
HDMI Multimedia interface HDMI Licensing LLC

.

4s j 5j 1J
. jilill J

Aautomatic Standby 10000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000 1) Sleep Timer / (jlrll) (jll) (jll) (jll) (jll) (jll) (jll) (jll) (jll) (jll) (jll) (jll) (jll) (jll) (jll) (jll) (jll) (jll) (jll) (jll) (jll) (jll) (jll) (jll) (jll) (jll) (

15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 20
blss s
s
s
s
s
s
s
s
s
s
s
s
s
s
s
s
s
s
s
s
s
s
s
s
s
s
s
s
s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s

AaBbIyIaOyI Jaaoo 100000000000000000000000000000000000000000000000000000000000000000000000

Jiaaii a Jiu divX Certified jie jiu .DivX 8

gall jglal 2j gls glj pDivX pDivX .vod.divx.com

jellil jyus, jllill juscl jul 2g pcc

DivX® DivX Certified. 1080p

Aull DivX Certified,Divx 1 x,LLC

RGB/HDM 1570295,673 DivX 12345678905.673 [www.divx.com/patents]

Jaua

MPL LGPL GPL jRjLgJ.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
. .

LW540S alul clogal oia

.LG Electronics SuperSign https://www.lgecommercial.com/digital-signage/support/download/supersign

SuperSign W_Lite Servers_vX.X.X_Setup.zip

SuperSign C_vX.X.X_Setup.zip

SuperSign W_Editor_vX.X.X_Setup.zip

SuperSign WPLAYER_vX.X.X_Setup.zip

SuperSign W_LiteServer_vX.X.X_Manual.zip

SuperSign C_vX.X.X_Manual.zip

SuperSign W_Editor_vX.X.X_Manual.zip

SuperSign WPLAYER_vX.X.X_Manual.zip

algal

\( 5.0 \times 55.0 \times 100.0 \)	\( (\text{العربية} \times \text{العربية} \times \text{العربية}) \) CI\( جماني بعس\dots \)
\( 40\text{ملاoverview} \)0 مان 0	\( رزامن ملاoverview \)
%80 مان 0	\( رزامن ملاoverview \)
60-20 مان 0	\( رزامن ملاoverview \)
%85 مان 0	\( رزامن ملاoverview \)

(LW540* ,LW340* ,LW31** )

(LW30** ,LW31** ,LW340*

Motion JPEG) 30p @ 1080 x 1920 :

(30p @ 480 x 640

.wmv.asf

.H.264/AVC XViD-MPEG-4 Part2 [

MP43 · (WVC1 · WMV3)VC1

MP3:(Pro)WMA9 WMA Standard [

AC3·AAC

avi,divx

DivX3.11-MPEG-4 Part2 MPEG-2 [

H.264/AVC · XVI · DivX6 · DivX5 · DivX4

MPEG-1 ADPCM LPCM HE-AAC [

-Dolby Digital MPEG-1 Layer II-Layer I

(MP3) MPEG-1 Layer III

.m2ts .mts .tp .trp .ts

H.265/HEVC·MPEG-2·H.264/AVC [

-MPEG-1 Layer II-MPEG-1 Layer I [

Dolby-Dolby Digital-(MP3) MPEG-1 Layer III

HE-AAC AAC Digital Plus

.yob

MPEG-2·MPEG-1 [5]

-MPEG-1 Layer I-Dolby Digital

DVD-LPCM · MPEG-1 Layer II

.mov .m4v .mp4

DivX3.11 MPEG-4 Part2 MPEG-2 [

H.264/AVC XVID DivX5DivX4

(MP3) MPEG-1 Layer III AAC [S]

.mkv

H.264/·XVID·MPEG-4 Part2·MPEG-2 [

AVC

MPEG-1 Layer-Dolby Digital HE-AAC [

LPCM · (MP3) III

motion JPEG

MJPEG[

ADPCM·LPCM[

.mpe ..mpeg ..mpg

MPEG-2 MPEG-1 [

-MPEG-1 Layer II -MPEG-1 Layer I [S]

LPCM-Dolby Digital

.dat

MPEG-2:MPEG-1 [

MP2 [

.fly

H.264/AVC, Sorenson H.263 [

HE-AAC·AAC·MP3 [

.3gp2 .3gp

MPEG-4 Part2 H.264/AVC [

AMR(NB/WB) .AAC [

aegd gduai ciay

(LW341*LW54**

30p @ 1080 x 1920 :

Motion 30p @ 480 x 640 JPEG

-XViD·MPEG-4 Part2·MPEG-2 [

MP43 · (WVC1 WMV3)VC1 H.264/AVC

AAC MP3 (Pro)WMA9 WMA Standard [

3D WMV Single Stream -AC3

DivX3.11.MPEG-4 Part2.MPEG-2 [

H.264/AVC · XViD · DivX6 · DivX5 · DivX4

MPEG-1 ADPCM LPCM HE-AAC

-Dolby Digital-MPEG-1 Layer II-Layer I

(MP3) MPEG-1 Layer III

.m2ts .mts .tp .trp .ts

VC1·AVS·MPEG-2·H.264/AVC [

-MPEG-1 Layer II -MPEG-1 Layer I [

Dolby-Dolby Digital-(MP3) MPEG-1 Layer III

HE-AAC .AAC Digital Plus

MPEG-2·MPEG-1 [d]

MPEG-1·MPEG-1 Layer I·Dolby Digital [

DVD-LPCM -Layer II

``` .mov .m4v .mp4

DivX4 DivX3.11 MPEG-4 Part2 MPEG-2 [

H.264/AVC XVID DivX6DivX5

(MP3) MPEG-1 Layer III: AAC [

.avi .div)

.vob

.

.

.

.

.

.

.avi .div)

vob

aegdall gaaal caiy

aegdallgaglllaiy

(jpe.jpgJPEG)

[alall all Eso]

SOF0

SOF1

SOF2

( 16 × 26) ÷ ( 10 × 10) =

64 × 64 : all

6400×9600:

PNG:

suiia jie ciuiia [jiaeilaiall e]

[0]

64x64:

800x1200:(

6400 x 9600: (y)

LgPNGBMP

JPEG

jg jgalljgl gglg jgall 100

1

320 32 [J]

j48 16 [gaiill jill]

Layer3·Layer2·MPEG2·MPEG1[

J 1

j48 8 j48 8 [gaii

ADTS·ADIF[

• mp3: -

AAC:

·M4A：

[120]

48 100

MPEG-4 [a]

WMA:

WMA1

320 1a la aiey 128 J [J]

a

48 100

WMA9 Standard WMA8 WMA7 [

a 768 la [alal e]

[5: gai1 1 jui/ 8i]

(LBRg,gl) 48 @ jia: M0

48@5.1:M1

j@96@5.1:M2

WMA10 Pro [a#]

（LW341*，LW54**）

OGG:

Jg [C]

j48 1o jla lo [gagail 2jill]

OGG Vorbis [

m = 311

48 jjla jra 8 ja [gaii

jjjASi ≤

LPCM [e.

24/16/8[

Life's Good

j 1

j

aaii aia i 1

j 小小

---

NAVOD K OBSLUZE

(·:Cervéné,···:Zelené,···:Zlute,···:Modré)

(Závisí na modelu)

A

(NAPAJENI) Zapnuti nebo vypnuti televizoru.

ENERGY SAVING (USPORA ENERGIE) Nastaveni jasu obrazovky tak, aby se snizila spotreba energia.

AV/AbDriezimu AV.

This DivX Certified device has passed rigorous testing to ensure it plays DivX® video.

To play purchased DivX movies, first register your device at vod.divx.com. Find your registration code in the DivX VOD section of your device setup menu.

DivX Certified® to play DivX® video up to HD 1080p, including premium content.

DivX, DivX Certified and associated logos are trademarks of DivX, LLC and are used under license.

Covered by DivX Patents 7,295,673; 7,515,710; RE45,052; and others available at [www.divx.com/patents].

[Podpora] ADIF, ADTS

Typ souboru:M4A

https://www.lgecommercial.com/digital-signage/support/download/supersign

Logiciel: SuperSign W_LiteServer_vX.X_X_Setup.zip

SuperSign C_vX.X.X_Setup.zip

SuperSign W_Editor_vX.X.X_Setup.zip

SuperSign WPLAYER_vX.X.X_Setup.zip

Manuel: SuperSign W_Lite服务器_vX.X_X_Manual.zip

SuperSign C_vX.X.X_Manual.zip

SuperSign W_Editor_vX.X.X_Manual.zip

SuperSign WPLAYER_vX.X.X_Manual.zip

Specifications

[Support] ADIF, ADTS

[Support] WMA7, 8, 9 Standard

[Support] WMA 10 Pro

(Uniquement LW54**, LW341*)

Type de fichier:OGG

[Taux en bits] Format libre

[Bitrate] 32 kbit/s - 320 kbit/s

[Bitrate] Freies Format

[Abtastfrequenz] 8kHz 48kHz

[Unterstutzung] ADIF, ADTS

• Dateityp: M4A

[Bitrate] Freies Format

[Abtastfrequenz] 8kHz 48kHz

[Bitrate] Freies Format

[Abtastfrequenz] 48kHz

[Bitrate] Freies Format

[Abtastfrequenz] 8kHz 48kHz

[Bittiefe] 8 bit / 16 bit / 24 bit

SOF1: Extend Sequential,

SOF2:Progressive

[BildgroBe]

Minimum: 64 × 64 ,

Maximum (Normales Modelli) : 15360 (B) x 8640 (H),

Maximum (Progressive) : 1920 (B) x 1440 (H)

Kategorie:BMP

[Bildgroße] Minimum: 64 x 64, Maximum: 9600 x 6400

Kategorie:PNG

(EKTOc aTo to ovtEo 32LW30**)

Kovmu teletext (T) ToToPmia xpojonoioyta yia to teletext.

SUBTITLE Enavaopopa twv unotitawv nou npotiate stynpsiqiakn Aetoupyia.

This DivX Certified device has passed rigorous testing to ensure it plays DivX® video.

To play purchased DivX movies, first register your device at vod.divx.com. Find your registration code in the DivX VOD section of your device setup menu.

DivX Certified to play DivX® video up to HD 1080p, including premium content.

DivX, DivX Certified and associated logos are trademarks of DivX, LLC and are used under license.

Covered by DivX Patents 7,295,673; 7,515,710; RE45,052; and others available at [www.divx.com/patents].

https://www.lgecommercial.com/digital-signage/support/download/supersign

Lambda:SuperSign W_LiteServer_vX.X_X_Setup.zip

SuperSign C_vX.X.X_Setup.zip

SuperSign W_Editor_vX.X_X_Setup.zip

SuperSign WPLAYER_vX.X.X_Setup.zip

Exyεπρίδιo: SuperSign W_LiteServer_vX.X.X_Manual.zip

SuperSign C_vX.X.X_Manual.zip

SuperSign W_Editor_vX.X.X_Manual.zip

SuperSign WPLAYER_vX.X.X_Manual.zip

PpOdeltapaΦεc

[Formati supportati] ADIF, ADTS

Tipodi file:M4A

Tipodi file:WMA10Pro

[Bitdepth] 8 bit / 16 bit / 24 bit

This DivX Certified device has passed rigorous testing to ensure it plays DivX® video.

To play purchased DivX movies, first register your device at vod.divx.com. Find your registration code in the DivX VOD section of your device setup menu.

DivX Certified® to play DivX® video up to HD 1080p, including premium content.

DivX, DivX Certified and associated logos are trademarks of DivX, LLC and are used under license.

Covered by DivX Patents 7,295,673; 7,515,710; RE45,052; and others available at [www.divx.com/patents].

https://www.lgecommercial.com/digital-signage/support/download/supersign

Oprogramowanie:SuperSign W_LiteServer_vX.X.X_Setup.zip

SuperSign C_vX.X.X_Setup.zip

SuperSign W_Editor_vX.X.X_Setup.zip

SuperSign WPLAYER_vX.X.X_Setup.zip

[Audio] WMA Standard, WMA9 (Pro), MP3, AAC, AC3, 3D WMV Single Stream

. divx,avi

[Wideo] MPEG-2, MPEG-4 Part2, DivX3.11, DivX4, DivX5, DivX6, XViD, H.264/AVC

[Audio] HE-AAC, LPCM, ADPCM, MPEG-1 Layer I, MPEG-1 Layer II, Dolby Digital, MPEG-1 Layer III (MP3)

. ts,trp,tp,mts.m2ts

[Wideo] H.264/AVC, MPEG-2, AVS, VC1

[Audio] MPEG-1 Layer I, MPEG-1 Layer II, MPEG-1 Layer III (MP3),

Dolby Digital, Dolby Digital Plus, AAC, HE-AAC

.vob

[Wideo] MPEG-1, MPEG-2

[Audio] Dolby Digital, MPEG-1 Layer I, MPEG-1 Layer II, DVD-LPCM

. m p4,m4v,m o v

[Wideo] MPEG-2, MPEG-4 Part2, DivX3.11, DivX4, DivX5, DivX6, XVID, H.264/AVC

[Audio] AAC, MPEG-1 Layer III (MP3)

. mkv

[Video] MPEG-2, MPEG-4 Part2, XVID, H.264/AVC

[Audio] HE-AAC, Dolby Digital, MPEG-1 Layer III (MP3), LPCM

motion JPEG

[Wideo] MJPEG

[Audio] LPCM, ADPCM

.mpg, .mpeg, .mpe

[Wideo] MPEG-1, MPEG-2

[Audio] MPEG-1 Layer I, MPEG-1 Layer II, Dolby Digital, LPCM

.dat

[Video] MPEG-1, MPEG-2

[Audio] MP2

.

[Video] Sorenson H.263, H.264/AVC

[Audio] MP3, AAC, HE-AAC

.3gp, .3gp2

[Video] H.264/AVC, MPEG-4 Part2

[Audio] AAC, AMR(NB/WB)

(Tylko modele LW340*, LW31**, LW30**)

[Audio] WMA Standard, WMA9 (Pro), MP3, AAC, AC3

. divx, .avi

[Wideo] MPEG-2, MPEG-4 Part2, DivX3.11, DivX4, DivX5, DivX6, XViD, H.264/AVC

[Audio] HE-AAC, LPCM, ADPCM, MPEG-1 Layer I, MPEG-1 Layer II, Dolby Digital, MPEG-1 Layer III (MP3)

• .ts, .trp, .tp, .mts, .m2ts

[Wideo] H.264/AVC, MPEG-2, H.265/HEVC

[Audio] MPEG-1 Layer I, MPEG-1 Layer II, MPEG-1 Layer III (MP3), Dolby Digital, Dolby Digital Plus, AAC, HE-AAC

.vob

[Wideo] MPEG-1, MPEG-2

[Audio] Dolby Digital, MPEG-1 Layer I, MPEG-1 Layer II, DVD-LPCM

. m p4,m4v,m o v

[Video] MPEG-2, MPEG-4 Part2, DivX3.11, DivX4, DivX5, XVID, H.264/AVC

[Audio] AAC, MPEG-1 Layer III (MP3)

. mkv

[Video] MPEG-2, MPEG-4 Part2, XVID, H.264/AVC

[Audio] HE-AAC, Dolby Digital, MPEG-1 Layer III (MP3), LPCM

motion JPEG

[Wideo] MJPEG

[Audio] LPCM, ADPCM

.mpg, .mpeg, .mpe

[Wideo] MPEG-1, MPEG-2

[Audio] MPEG-1 Layer I, MPEG-1 Layer II, Dolby Digital, LPCM

.dat

[Wideo] MPEG-1, MPEG-2

[Audio] MP2

. .

[Wideo] Sorenson H.263, H.264/AVC

[Audio] MP3, AAC, HE-AAC

.3gp, .3gp2

[Video] H.264/AVC, MPEG-4 Part2

[Audio] AAC, AMR(NB/WB)

[Obstuga] ADIF, ADTS

Typ pliku: M4A

[Obstuga] WMA 10 Pro

(Tylko modeleLW54**, LW341*)

Typ pliku:OGG

Relógio LED LEC-003

AN-WF500 Wi-Fi/Bluetooth Dongle

[Suporte] ADIF, ADTS

He pa3MeaIte n He xpaHITe rOIOue BeIecTBA OKoIyCTpoIcTBA.
V3-3a HeocToPOXHOro 6paUeHHn C rOpOuHMn BeIeCTBaMn MoKET
BO3HNKHyTB B3pbIB WII NOxap.

He poHnIte BHytpb yCTpoINCTBa MeTaNInueckne npEIMetbl (MOHtbl, 3aKoIKN dIy BOIOc, cIIuCbI, KcCKn IPOBOda n T.I.) a TaKKe IeRKOBCnIaMeHIOUncEa npEIMetbl (HaNPmEp, 6ymary nn CnUKN).CneYET BHNMaTeBHO CNEITb 3a DcTBMM, KOrDa OHn HaxOJaTcB 6bn3u yCTpoINCTBa. Bo3MoXHo nopAkeHne 3JIeKTPnuEckn m TokOM, Noxap Nn Nn Hbte TpaBMbl. Ecn B yCTpoINCTBO nonan noCTopoHHn ppeM, OTcoEHNHTe KaebI NITAHn I O6paNTeCb B cepBnChbl ueHTp.

He paCnblIaIe BoDy Ha yCTpoIcTBo H He oUHuaIe erO rOpUHMN BeueCTBaMn (6eH3HOM IIN paCTbOpITeMe).Bo3MoXHO npaXeHne 3JIeKTPuueckm TOKOM IIN IOxap.

He donyckaIte ynapOB no yctpoiCTBy nnonadHnnoctopOHnHex npedMeTob Bnytpb ycTpoiCTBa, He cTyuHTe no 3KpaHy. Hec6bnIOeHne 3THx Mep IpeoCTOPOXHOCTMOKET pINBECTN K HaHeceHIO BaM TpaMbI INI NOBpeXDeHIO yctpoiCTBa.

He npKacaiTecb KcTpoiCTBy nAn aHTeHBe BO Bpemrpo3bl. Bo3MOxHO nopaxKeHne 3NeKtpueckm TOKOM.

He npikacaiTeCb K cteHHoH po3eTke B clyae yTeuKn r3a. OTKpoiTe OKHa N pOBeTpIte NOMEeHne. NcKpa MoKet BblBaTb noXkap, N Bbl MoXeTe NOLyUHTb OXOr.

He cneyuT cmoctoTeBHO pa3bnpaTb, pemOHtnpoBaTb mOINHnupoBaTb yCTpOCTBO.Bo3MOxHo nopaxeHne 3NeKtpueckm TOKOM NIN NoXap.

ДлпnpOBepkn,калбрOBKNипpeMOHTa yCTpoIcTBa obpauaIteCb B cepBnchbI ueHtp.

EcnH IpnH30IET YTO-JIN60 H3 IpeueHCJIeHHO, HeMeJIIeHHO OTKIOHTe 1nHIOJIeHHO yApOB. BHeIIHee BO3JeCTBHe MOKeT npHBecTH K IOBpeKJdeHHO a

• YctpoIcTbO 6bIIO IIOBepHHyTO 3JIeKtpnueCKOMy pa3pyd.
• YctpoIcTbO 6bIIO IOBpeKdEHO.
  B yctpoCTBO IIOIaII NocToPOHHne IpEaMeTbI.
• I3 yctpoiCTBa IIeI bIbIM IIN CTpaHHbI 3aIIax.

3TO MOKET IINBecTH K IIOKAPU HIN IOPaKeHHIO 3JIeKTPnueCKHm TOKOM YOeIITcB, yTO Ka6eJb IINTaHHaIeXHO BCTaBJIeH B pa3bEm IINTaHHaBTel (B 3aBHCIMOCTH OT MoJeHN)

BHIMAHHE!

EcnBbHe cO6HpaeTeCb IIOb3OBaTbCyaCTPOIcTBOM B TeueHHe dIITeBHO

Ha yctpoIcTBO He IJXHbI NOnaIaTb KaJIIN KHKoCTN HJI 6pbI3H. HeJI38

TAKKE CTABHTb Ha Hero IpeMeTbI, HAnIOJIHeHHBIE JHKIOKCTbIO (HnAPIMep, AHTEHOH N Ka6eJEM INTaHNO BO H36eKaHNE HX COIPNKOCHO BA3bI).

3JIeKTPnueeCKHM TOKOM.

He yctaHaBnBaIte 3To yCTpoiCTBO Ha CTeHy, rDe OHO MoKet 6blb

IIOBvBepKeHO BO3JeHCTBnIO MaCLJHbIX NapOB (HaNpIMep, Ha KxYHe, PdOM C

IIHTo).3TO MOKeT IOBpeIHTb yCTpoIcTBO H IIpHBecTH K eTo IaJeHHIO.

He yctaHaBnBaIte yCTpoIcTBO Ha HeyCTOuHBIe IIOJKN HAIHAKIOHHBe IOBepXHOCTN. TaKke CIEyET H36eRaTb MecT, rIe

yctpoCTBOIOIbepraeTcBn6paHm,HN MeC T HeIOJIHOH HecobIOHeHne yKa3aHHbIX Mep IpeIOCTOPOXHOCTH MOKeT II

K ToM, yTo yCTPOCTBO yIaTeH IIN IpeBepHeTcR, YTO MOKeJyUyeAe 3TO

TobHeB 3a cobou HaHeceHne Bam TpaBMbl Hn HOBpeXeHne KOM yCTpOJIcTBa.

EcnB yctpOCTBO (HaPnMep, aAaTtep NpeMeEHoro TOKa, Ka

TeJIeBn3Op) NOnaTeB ODA HIN DpyrOe BeIeCTBO,OTKIOHTe Ka

H HEmeJeHHO6paTHeCbB CepBcHbI cEHtp.B IpOTnBHOM

MOKETIINBECTN KIOXAPYHIN IOPaKeHHO 3JEkTpHueCKHM TO

IcnoB3yTre ToJbKO OIO6peHbIe KOMIIaHnei LG Electronics aIaIreP

IepemHoro TOKa H Ka6eJIb NHTAHn. B IpOTHBHOM Clyuae 3TO M0Ker IINBECTH K IOKApY, IOPaKeHHIO 3JeKTPnueCKHM TOKOM, IOBpeKDEHHn

deOpmaun yctpoHCTBa. yKa3aHHbIX Mep IpeIOCTOPOXHOCTN yCTPOHCTBO MOKeT yIaC MoKET IIpNBecTH K HaHeceHHIO Bam TpaBMbl.

EcIn Tpe6yeTc3aKpeINb yCTpOInCTBO Ha CTHe, yCTaHOBNTcTaHapTHoe VESA-KpeIIeHne IJIM MOHTaKa Ha CTHe

HnKoIa He pa3bnpaIte aIaIepe npemehHOrO ToKa n Ka6JIb

B IIpoTINBHOM Clyae 3TO MOKeT PnHBecTH K IIOKApy HINI NOp

3JIeKTPnueCKHM TOKOM.

（noHnHTeJIbHBeJeTaJH）Ha eO 3aIHeN paHeN.Ppn yCTaH

HCTBa Ha CTeHe C NIOMOIbHO HAcTeHHORO MOHTaXHO

KPOHHTeHa（IOIOLHNTeJIbHbIeJeTaII）HaJExKHO3aKpeINTe H36EkaHHe NaJeHHy UcTpoiCTBa.

IcnoB3yTe TOnbKO KpeHHeHn/Akceccyapbl, peKoMeHDoBaHHble n3rTOBHTeEM.

IyctaHOBKa aHTeHHbI o6paTnTeCb K KBaIIuNpUPOBaHHOMcneuaHnCTy.CamocToTebHaY yCTaHOBKa MoXeT npBecTu K NoxapuynnnpaKeHHIO 3NeKtpnueckm TOKOM.

PnpnpocmOpTe TeneBn3opa peKoMeHnyeTcra c6nIpaTaB paCToHne, paBHOe 2-7 DaarOHaJIaM EKpaHa TeBn3opa. PnpocmTp TeneBn3opa B TeueHne IINTEbHO BpeMeHN MoKET npNBecTN K CHNXeHIO OCTpoTb 3peHn.

IcnoB3yTe TOnbKO yKa3aHHb Tn6aTapeH. HecO6JIIOJeHne 3TOrTo Tpe6oBaHmMoKeT pNBeCTN K NOBpeKDeHnIO nybTa DY.

He nCnoB3yIe HOBIIe 6aTapeu BMeCTe CO CTapbIMN. To MoKET npBecTN K NepeRpeBy u npoteukam 6aTapeu.

3nmeHTbI NITAHH He DOnKbH NoDBepraTbC HArpeBy OT npAbx COHeHbIX Nyuei,OrHnn 3NeKtpueckx 6oRpeBaTeen.

He BCTabIaIte Henepe3apJxJaemble 3JeMeHbI NITaHnB 3apJdHoe yCTPOIcTBo.

Mekny npbTom Dny n daTnKOM He doJHKHO 6bITb HnKaKnx npedmetOB.

CnHAn OT NylbTa DY MoKet 6bItb NOaBHeN CoHHeHbIM CBtOM INI INPpyTMM NCTOuHkOM AkrKO BcTe. B3OM Cnyae B KOMHaTe CneJyET CEnaTb CBt MeHee APKM.

PnnoKIOH H BHeHxN xCTOB, TaKx KAKrpoBbE KOHcON, yBeIITcB TOM, qTO NOKIOHaeMbIE KaEBIN NMeOT DOCTaOHTyO HmHy. HNaue yCTPOCTBO MOKeT yNaCTb, qTO pNBEdET KHaHeceHNO BAM TpaBMbl NIOBpeKdEHN OCTPOCTBa.

He cneyet BKIOUaTb/BbIKIOUaTb TeneBUN3Op, NOcOeINHnI INN OTOeINHnBUNKy OT HAcTeHHo p03ETKN (He NCIONb3yTe BUNKy IINB KIOUeHN). 3TO MOKeT CTaTb PnPHHO MEXAHueCKORO OTKa3a INN NOPaKeHN 3NeKTPuueCKM TOKOM.

Co6nOdaTe INCTpyKcnn No yCTaHOBKe, npBBeEHbIe daJIee, YTObI npEoTbPaTb nepepeBvycPoIcTBa:

PacctoHne MeJy TeJeBn3Opom N CTeHoi DOnXHO 6bITb He MeHee 10 cm.
He yctaHabnBaIte yctpoIcTB0 B MeCTax 6e3 BEHTnlaUu (HaPMMep.Ha KHMXHOJ NONKe UINB CepBaHTe).
He yctaHaBnBaIte yCtpoNCTBO Ha KOBep mnn noDyuky.
- y6eHntecb TOM, yTO BEHTNIAUHOHHbIe OTBepCTnI He 3aKpbITbCKaTePbIO NII UTOPOJ.

B npotnbom cnyae, moKeT npon3oTu Bo3ropaHne.

He npKacaiTecb K BeHTnIaHIOHHbIM OTBepCTNAM npnpocmoTe TeneBu3Opa B TeueHne DOIroTO BpeMeHN, NOCKoJIbky OH N MOrTy CInbHO Harpetbcra. 3To He BnAeH a pa6Ot y nn IpOn3BOJNTelbHOcTb YCTpOCTBa.

IepnoDnueckn OcmatnpBauTe Ka6enb yctpoCTBa n B cnyae BNDMOrO n3HocA nIN IOBpeXDeHnB BbIHbTe erO n3 po3eKn n 3aMeHnTe Ha Ka6enb, peKOMeHNoBaHHb aBTOpN3OBaHHbIM CneuaHnCTOM no 06cnykBAHHO.

He onyckaiTe cKoJIeHnIbIIN Ha KOHTaKTax pa3beMOB IIN Ha po3eTke. 3To MOKeT npUBeCTN K NoXkapy.

He donyckaIte fni3nuecko ro nnn MexaHueckoro BO3deIcTBna Ha shyp 3neKtpoNTaHnra, a mMeHHo nepeKpyuBaHnra, 3aBra3bHaHnra, nepeRbAHHa Hhypa. He 3axmMaTe shyp dBepbIO n He hactynaiTe Ha Hero. 06paauTe ocObe BHMmaHne Ha BnKn, hAcTeHHbIe po3eTKn n ToUKn CoeINHeHn IpoBOda C yCTpOcTBM.

He haxmuTe cnIbHO Ha naHEnb pyKo nnOCTpbIM npEmdToM (rbo3dEm, kapaHaDaWOM nnpyko). He cepapanaTe naHEnb.

CTapaTecb He npKacatbc K kpaHy H He depKaTb Ha HEM paBcB TeueHne npOdoJxHtBHor nepNoa BpeMeHn. 3To MoKeT BblBaTb BpeMeHHbe NCKaXeHnHa 3kpaHe.

PnUcTKe yCtpoCTBa u erO kOMnoHENTOB, Chaana, oTOcoEINHTe BUNKy UHpy nHTAHN O T PO3eTKu, a 3aTeM npOTpNTe yCTPOCTBO MArKo TKaHBIO. PnIMHeHne N36bIToCHbIX ycNNIO MOKeT PnVBecTN K NOBHeHIO UAPANH Nnn ObecuBeHBAHIO NOBepxHOCTN. He paCnblnIte BOy u He npOTpaIte YCTPOCTBO MOKpo TKaHBIO. HIKoRa He NOLb3YITecb ONUCTUENAM INA STEKoI, ABTOMObIBHBIMu NNI pONMbIIeHHbIMN NINpOpONAMN, abpaNBbIMn CpeCTBAMN NIN BOCOM, 6EH30lOM, CNIPrTOM I T. IN, KOtOpBle MOrT NOBpeHbY cTPOCTBO u erO naHEb. HecO6JIIODeHne YkazAHbIX MEP npeDcTOpOJXHOCTM MOKeT npVBecTN K Bo3rOpAHIO, NOPaKeHIO 3JIeKTPnuCeKIM TOKOM NIN NOBpeXdEHNO yCTPOCTBA (deOpMaun, Kopp03N nn noomke).

Ecn yctpoCTBO NOkIIOyeHO K po3eKe nepemehoro ToKa, OHO He OTKIOaETcR O NTOUHnKa PHTAHNNEpemehHOro ToKa, DaXe npBbIKIOeHH C NOMOsbIO nepeKIOuataTnITAHN.

OTKnIOUa np6Op OT 3JIeKtpuYeCKo pO3eTKn, 6epNTecb pyKo 3a BuNKy.

OToeHHeHne npoBIOB BHyTpN Ka6eN MaKeT npNBecn K Bo3rpaHIO.

Pn nepemeuen yctpoiCTBa cchaJy6eHntecb B TOM,TO OHO OTKIOUeHOOTcTn.3aTeMOTcoEHNHTe Ka6eIN NITAHN, aHTEHbIe Ka6eIN N OCTaJIbHbIe PNOKIIOuaemblc Ka6eIN.

TeneBn3op nI KabeIb nITaHnM OryT 6bITb NOBpeXdeHb, YTO MoKet CO3DaTb ONaCHOCTb BO3rOpAHN IIN NopaxHeN 3JIeKTPuYeCKIM TOKOM.

IpeMeueHne nn pacnakOBky yctpoCTBa cneDyET npOn3BOuNTb DBymIOJAM,T.K.OHO TAgKeJeOe.NHaue Bo3MOxHO NOpUyeHne TpaBMbl.

IIO6oe 06cnyxHBHne OJONKbI IPOUN3BOINTB KBaIIuΦNUPOBAHbIE cneuaHnCTbI. 06cnyxHBHne Tpe6yETcR, KOrDa yCTpOHTBO 6blno NOBpeXJEHO KAKIM-NI6o 6pa3OM (NOBpeXJEH Ka6JIb NITAHNA INN BnIKA, IPOJNTA XIKKOCTb, BHYTpB NOnAN NOCTOPOHNI pPeDMET, YCTpOHTBO NOCTpApANO OT DOJXdI INN BnArN, yCTpOHTBO He pa6oTaET DOJXHbIM 6pa3OM, INN erO ypoHNII).

Ecn yctpoCTBO KaKETcXoJIOHbIM Ha Ouynb, npn erO BKIOUeHN BO3MOxHO He6oBbOoe MepaHne. 3To HopMaIbHoe ABLenHe, C yctpoCTBOM BCE BnpAKe.

JaHHa NaHb AByIeTc yCOBepHeCTBOBaHHo MoeIbIO N Meet pa3peWeHne B HeckOJIbKO MmIIInHOB NIKCeIe. Ha naHEn MoYr NOBtBCMeKHe YepHbe TOUKN/INN rPKHe ZeBHte TOOK (KpaCHBe, CnHne INN 3eJeHbe) pa3MePOM 1 ppm. 3TO He ABJAEc HcnpabHOCTb IO He BnIeRt HA pOn3BOuNTeHbHOCTb I HaDeXHOCTb YCTPOCTBa.

3Ta np6bnema TaKke BCTpeaetcB CTOpOHnX npOyKtax N He YBnEeTc NOBOOM IJI O6MeHa INI DeHKeHO BO3MeueHn (DeHKeHOn KOMneHcaun).

B 3aBcHmOCTn OT MeTa npocMOTpa (CneBa/Cnpaba/Cbepx/y/CHN3y) RpKoCTb N CBETHOCt b NaHeIN MoKET N3MeHARrBCr.

3To npOxC0dnt BBnDy 0c06eHHoCTeN CTpoEHn NaHEn.3To He CBaHO C pON3BODNTeNBHOCTbO YCTPOCTBa N He ABnEeTc HncPpABHOCTbO.

OTo6paXeHne cTAtuHOro N3o6paXeHnA nnTeNbHoe BpeMa MoKTe npBecTu K NoaBHeNIO OCTaTOUHO r3o6paXeHn. 136eaiTe oTo6paXeHn HenoBnXHo r3o6paXeHn B TeueHne nnTeNbHoro BpeMeHn Ha TeneBu3ope.

3Bykn, n3daBaemble yCTpoiCTBOM

Tpeck: KOtOpbIM MOxHOb YoCblBHaTb PnP nPoCMoTe uNn BbIKNoeHHn TeneBn3Opa, Bb3BaH TeNIOBbIM CkAtnEm PnAChKa B pe3yIbTaTe N3MeHeHn TEMpeaTpyb I BnAxxHOCTn. DaHhBm Wym ABJRETCg 06bUHbM YBHeHnE mPn NcONb3OBAHm PpOdyKTOB, NOBepXeHHbIX TEMpeaTpyHOn DeOpmaun.

IydeHne 3nEeKpuecko cenJxKkaHne naHn: n3 BbICOKOcKOpocTHo KOMMyTaUHOHHo CXEmbl yCTpoiCTBa MoXeT IxCODHTB TnxN Wym, Opa3OBaHHb NpN pOxoKdHm 60JIbWoTO Ka, Heo6XoDMoro Dnra pa60bI yCTpoiCTBa. 3To 3aBNCIT OT yCTPOiCTBa. DaHHb 3ByK He BnAeT Ha pa60Tu HnadeXHoCTb npOdykTA.

He nCnoIb3yIte 3eKtpoU3JenB bICOKO rHapxKeHn B6u3n TeneBu3Opa (HaNPmep, 3eKTPuueckyo MyxOboKy). Bpe3yIbTaTe yCTPOINCTBO MOKeT 6bITb NOBpeKDeHO.

PndroTOBka

ПРИМЕЧАНЕ

• PnBBeHHOe N3O6paXeHHe MOKeT OTNuaTbcr O T BaJeRo TeJEBu3Opa.
  3KpaHHoe MeHIO BaIero TeneBn3Opa MoXeT He3HaHTeBHO OTINuAcbrOT N306paXeHHOro Ha pucyHke.
  IocTynbIe MeHIO napaMetpblMOrY OTnuaTbC B 3aBcIMOCCTNOTNCIOJIb3yEmoRO NCTOCHNA BXODaNNM OMeJN yCTPOINCTBa.
  Функиусюпства могут 6ытвизмehьб6e3 ybeOMleHnB Dдьншem.
  KOMIIeKTAaIyYCTPOINCTBaMOXETOTNIuHaTbCBA3aBNCMOCTN OTMOJIEN.
  CneuΦkaunyctpoiCTBa nHn coepKaHne daHHoro pykoBDCTBa moKeT nMehraTbca 6e3 npEBApntBHO ryeDOMHeNBuDY MOepHn3aunyfHKn yCTPOICTBa.
  Дяообсесченя ONTNMaJIbHOrO coeINHeHЯ Ka6eHn HDMI n USB-устpoиCTBa DoJNKHbI NMeTb KOpNc pa3bema TOnIuHoi He 60Jee 10 MM u WpHnOH He 60Jee 18 MM. IcNoJIb3yTe ydInHITeB, KOTpbI NOdepKHaET USB 2.0, ecN Ka6eJIb USB nII PhJ3U-HaKoINTeB USB He BCTabJIaERcB nopt USB Ha BaIeM TeJeBn3ope.

IcnoB3yIe cePTnOuHbN Ka6JIb cJorToHnOM HDMI.
- Ppi nCnOJb3OBAHHn He cepTnΦmnpoBaHORo Ka6eYHDMI 3KpaH MoXeT OTo6paKaTbCe HEnpaBnJbHo, NnMoXeT BO3HKnHYb OwN6ka NoKKnOueHn. (PekomeHnyEmbte Tnbl Ka6eNei HDMl)

BbICOKocKOpocTHOHHDKnKa6eNb3MNnKopoye)
- BbICOKocOpocTHoH HDM-Ka6eBc Ethernet (3 mnn Kopoye)

BHIMAHHE!

IIO6epeHn 6e0NaCHOCn n npOoJXHTenbHO rO cPoka cnjK6bl yCTpoiCTBa He nCNOB3yIte DeTaan, He oO6peHHbIe N3rTOBNTeEM.
KaKHe-Ni6o NobpeXdHnI nn yuep6,Bb3BaHHbIe IcNoB3OBaHMe DeTaneH He Odo6peHbIX npOn3BODHTeMe,He YBJIIOCTraPAHTINHbIM CIVHaEM.
Ha 3KpaHe HeKOTOpbIX MoJEn MoKeT 6bITb TOHKa IJIeHka; He CHIMaTe ee.
Ipn noDcoeHHeHH NoCTaBKn K TeJeBu3Opy noIOxHTe erO 3KpaHOM BHN3 Ha CTOn, noDIOXHM MRTKyU TKaHb Hn ynaKOBouHb naket, qTO6bl npEoTbpaNTb NOBLeHne UapannH.
Y6eINTEcB B TOM, YTO BNHTbI npaBnIbHo yCTaHOBHeHbI XOPOIO 3aTHyTbI. (Ecnn OHn He 6yDyt HaJeXHO 3aTHyTbI, TeneBn3Op MOKET HAcNtOHbCBApeD nocle yCTaHOBKn.) He 3aTaNBaTe BNHTbI CNlKOM CnIbHO; B pOtnIBHom Cnyae OHN MoTy 6bITb NOBpeXdHbI 3aTHyTbI HenpaBnIbHO.

PpHaJleXHoCTn, npNo6peTaembIe OTdEJIbHO

OTdIbHbIe 3nEMeHTbI KATAIora MOrTy 6bItb N3MeHeHbI IIN MoDInΦNcIPOBaHbI 6e3 yBeOMnEHn.ДЯ nPnoOpTeHnA TINX npHaIaNEXKHOCTeO6paTntEcB K DnEpy.DaHbIe YcTPOJcTBa pa6oTaOT TOIbKO C COBmecTUMbIMMoDEJIAMn.Ha3BaHne MoDEJIIMn ee KOHCTpyKUIM MOKeT N3MeHArTbCBA3BNCIMOCtN OT ΦyHKUHOHaJIbHbIX O6HOBJIeHn,peWeHn PpOn3BOIDNTeN IIN OT eTo IONITKN.

(B3aBcHMoCTnOT MoJeIN)

Сbvetoindиные LED-часы LEC-003

AN-WF500 Wi-Fi/Bluetooth和个人Tep

(B3aBcHMOCTNOTMOJIIN)

YnpabnTeyHKuMaM TeLeBu3Opa HaKmMa KHONK mCDBurA KHOKNy-IXKOINK.

PIMMEYAHNE

B moJex cepu LW30 oTcTbYIO TfHKUIN JKOJCTnKa,ecb TOIbKO KHONKA BKNIOeHNA/BbIKIOeHNA NITAHNA.

OchOBHbIe yHKmN

OCTaBBTe 10cm (MHHIMYM) 3a3OpOT CTeHbI DnA DOCTaTOUHOB BEHTINAAUN.

2 PoioknouHTe shyprntaHnK po3etke.

BHIMAHHE!

He pa3MeaTe TeneBnOp B6n3n NCTOuHKnOB TeNa, TaK KaK 3TO MoKeT npBecn K NoXapy nn DpymN NOBpeXeHNM.

3aKpenenne TeneBn3opa Ha cTone

(3TOT KOMNHOENT DOCTUEN He DnB Bcex MoJeIe.)

3aKpEnIte TelenBn3Op Ha cTone nIpeNoTbpaueHnaKaJHOHa BnepeI, NOBpeXKeHn I NOTeHuaNbHoro TpaBMIpOBaHn. JIa 3aKpEnIIeHn TelenBn3OpHa HcTone BCTaBBTe N 3aTaNHTe KOMIIeKTHbI BnHT Ha 3aDHeI NaHEIn NODCTaBKn.

Tun A)

4 BnHTa

2 BnHTa IaI KpennneHna NoCTaBKn,

2 7a6bI n4 KpeHnna noCTabKn

2FainKnIaKpnIeHnNoCTabKn

IcnoJb3yEma JnKpEnneHn NOBepxHOCTb DoJXHa 6bITb DOCTaTOHO YCTOuHBO IN PPOHNO.
KpoHHTeHbI, BnHTbI uHypbI He BXOaT B KOMNKeT NOCTABKn. DonoHHTeHbIe akceccyapbl MoXHO npNo6peCt y MeCTHOro dupepa.

PerynipoBka yrna 063opa TepeBn3opa

(3TOT KOMNHOENT DOCTUEN He IINBCEX MoJeIe.)

IobepHnTe TeneBn3Op Ha 20 rpaDycOB BneBO nnBnPaBO, yTo6bl yUyUHTb BNIMoCTb C MeTa npocMOTpa.

BHIMAHHE!

PnpepynpOBKe yrna 0630pa ycTpoNCTBa 6yNbTe oCtopoKbI, TTO6bHe npuemeMTb naBbI.
He donyckaTe 3aueemleHnpyk nn nanbueB,T.K.30 MoKet npuBeTn K TpaBMe. PnCnnKOM 6oNbWOM HAKIO HeBn3Op MOxETynactb, YTO npuBeTcKero NOBpeKeHHIO.

KpenlleHne Ha cTeHe

PnKpEnIte HacteHHbIKPOHtHeN (PnpO6peTaetcOtJeBHO) K 3aDHe NOBepxHOCTN TeLEBn3Opa NK CTHe, BblPOBHB NO yPoBHIO. JMy MoHTaKa HA CTeHy, N3 HENpoUhIX MaTePnaNoB, O63aTeBHO 6oPaNTecb K KBaIIHmNPOBaHOmy CneuaNAty No MOHTaKy I CTOPIeBCTBy. KOMNaHnLG PekOMeHpyET Bbl3bBaTb KBaIIHmNPOBaHOrMaCTepa DnA KpENNeHry TeteBn3Opa K CTHe. PekOMeHpyETcNOnb3OBAbTB KPOHtWeIN DnA HAcTeHHOrO KpENNeHry LG, KOtOpBIOEbcNEuBAET YOObCTBO HaCTpoKn NONOJXHeC NODKNIOUYHBMIM Ka6eJIaM. EcnB Bbl NcNOB3yeTE KPOHtWeIN DnA HAcTeHHOrO KpENNeHry DpyrOTo pON3BOJnteRy, PekOMeHpyETcNcNOb3OBAbTB KPOHtWeIN, KOTOpBIOEbcNEuBAET HaDEXHoe KpENNeHry YcTPOiCTBa HA CTHe IN HAMUwe DOCTaTOOHoro MeCTa 3a YcTPOiCTBOM, DnA YdObHOrO NODCoEINHeHRACE BcEHWHx UcTPOiCTB. PekOMeHpyETcN ONDKNIOUaTb BCE Ka6eNI Do yCTAHOBKn FHKCuPOBaHHbIX HaCTeHHbIX KpeJIeHIn.

Y6eHITcB TOM, YTO BHTbI N HAcTeHHbI KPOHHTeH OTBeaHOt CTAndaptam VESA. B CNeIyUoEe Ta6nue npNBedeHbI CTAndapTHbI r6apNTbI DnKOMIIeKTOB HaCTeHHOrO KpENJIeHN.

PpHnAaJIeXHoCTN, npNo6peTaembIe OTdIeNbHO (KPOHtEINH dIy HAcTeHHORO KpenneHna)

Мо德尔	32LW30** 43LW31** 32/43LW34** 32/43LW54**	49LW31** 49/55LW34* 49/55LW54**
VEDA (A x B) (MM) 200	x 200 300 x 300
Стандартыний ВИNT	M6 M6
Колочто ВИNTОВ	4	4
Крочточим для настеного кpenления	LSW240B MSW240	LSW350B MSW240

BHIMAHHE!

OTcoeHNHTe NOCTABKU neped yctAHOBKOHaCTEHORO KpenneHn TeneBn30pa, BbIIOJIINB IpoueDpy NOcEOHNHeHn NOCTABKN B 6paTHOMnopAKe.

IPIMEYAHNE

PnUyctaHOBKe KPOHHTeHa nIa HAcTeHHOro KpEnHeHn IcNoB3yIte npInaRaemYIO 3aunTHyIO 3aNlyuKy NdyuO B KOMnIeKTe.3aunTHa 3aLyuSha o6ecneHT 3aunTy OTBepTnO TcAanBaHnI NbIIN 3aRpa3HeHn. (ToIbKO eInpdoCTabHeH 3JeMeHT, pInBeDeHHb B CIneDyUoSei FOpMe)

• PnHacteHHOM KpeIneHn peKomeHnyeTc3aKpbBaTb OTBepCTme IIN NOCTaBKN C NMOUbIO JeHTb IIN IpeoTbpaueHn CKaIIuBaHn IIbIJ INI NOnaDaHn Tyda HaceKOBx.(B 3abNCIMOCTN OT MoJeN)

(3TOT KOMNHOENT DoCTyEN He DnB BCEX MoDeJeN.)

PnPKpENNTe cHpOByIO pNCTaBky K TeLEBUN3Op, N Bbl CMOKeTe NCNoJIb30BaTb ee, KOrDa OHa Bam NoHaIaObntc.

1 Pocne ydaJeHn3aunTHoB 6ymarnc 3amKa Dual LockTM (DboHoi 3AMOKTM) npKJeiTe erO KTeIeBu3Opy u cIpPobO npCTabKe, KaN oKa3aHO Ha pCcyHke.

2 PnKpeHne uHpOByIO npCTABky K TeneBn3opy c nOMoubIO "IunyKn".

IPIMEYAHNE

• Y6eHntecb, YTO Ha NOBepxHocTn yCTpOcTBa HET NocToPOHHNX BeIeCTB, n 3aTeM IIOTHo pnpcoeHNHTe Dual LockTM (DBoHHO 3aMOKTM).
  Ipeep KpennnemnpctabK TeneBn3opy nooJnte, noka npcoedHHdu Dual LockTM (DboHOn 3amokTM) npocoxhet, no KpaHHe Mepe,tpn dHa.

(B3aBnHMoCTNOTMOeIN)

BHIMAHHE!

IopKIOUHTe TELBUN3Op K aadantepy NITAHNNEpeMeHHORTo Ka, neped Tem KaK IoKJIIOUHTb UHyp NITAHNTELEBUN3Opa K p03ETke.

Поdkлочене CAM (CI) - мodyILA

(B3aBnMoCtNOTMoDJIIN)

IpoCmToP 3aKoOpOBaHHbIX (IIaTHbIX) KaHaIOB BpeXnme uΦpOBOrTOB.

IpoBepBe, npaBnBHO nYcTaHOBneH CAM (CI)-Moynb B pa3bem PCMCIA. HenpaBnBnaH aYcTaHOBKa Moyn MaKet npuBecT K nobpeXeHnO CAM (CI)-Moynn pa3bema PCMCIA.
EcnB TeneBn3ope OTCyTCTBYHOT BnDEoN3o6paXeHne N 3ByK npI NOkKnouenHom Cl+ CAM-MOnyJe, CBxNtEc b OpeaTopom KIneHTCKO CNyX6bl HaemHoro/Ka6bHoro/cnyTHNKOBORo BeaHn.

IopKJIoueHne BHeuHnx DNHaMnKOB KaYdnoBbIXOy

(B3aBcHMoCTnOT MoJeN)

: B3aBcIMoCTOn OT moJEn

PIMMEYAHNE

IcnoB3yTeToBkoC3-KoHTaKTHbIMpaBeMOMCTepeo3,5MM.
He noCoeHnHnTe HayuHnKn K nOpTy dIy noDKnOueHnBHeuHero DnHaMnKa.

UnpaBHeHrpoMkoctbIepe3 npT

(B3aBcMocTOnOTMoJeIN)
XapakTepeNkKa6eJia

Hactpoikacetn

IopknoueHne K npoBoDHOcTeN

(B3aBcMocTOnOTMoJeN)

DaHbI TeBn3Op MoKet 6bTb NkNoeH K cepBepy Pro:Centric c nOmoBIO npTa LAN. Pocne fN3ueckoro NkNoeHn TeneBn3Op dOnKeH 6bTb HAcToe HnPa60tB B cTeN. NkNouHTe Ka6eJb K npTy LAN moEma nn poyTepa B cepBepe Pro:Centric K npTy LAN TeBn3Opa.

BHIMAHHE!

He npoknouaTe moynbHbI TepeonHbIKa6eBk npoty LAN.
IockoIbky cyueCTbyuT pa3nHhble cnoCo6bl nokKIOUeHn, cnEynTe HNCTpykunm BaWero onepato CBA3n nn INTEpHETnpoBaIdepa.

Дугne полоченя

IpoKIOUHTe TeneBn3Op K BHeuHemy yctpoiCTBy.ДЯ NOlyeHnA HAnLyUWeRo KaueCTBa N3O6paXeHn I 3ByKa POnKIOUHTe TeneBn3Op K BHeuHemy yctpoiCTBy HDM1-KaBeHem. He BCE KaBeN BxOJrT B KOMnNeKT nocTaBKn.

NylbTДиCTaHcNoHOrO ynpabLeHnA (nybT Dy)

OncnBnBaHHOMpyKOBOCTBEOTHOCTKKHONKaHHaNbTe Dy.BHmATEnbHO npouHTaHTe HAcTOnuee pyKOBOCTBO nPpABNbHO nCnoB3yIte nyIbTdy CTeneBu3Opom.

YTo6b3aMeHntb 6aTape,OTKpoTe KpbIuKy 6aTapeHOrO OTeKa, 3aMeHnTe 6aTape (1,5BAAA) cyEtOM+ u Ka3aHHbIX Ha MapKnPOBKe B OTeKe, n 3aKpOTe KpbIuKy OTeKa. JnN3BNeueHn 6aTapeBbINONHe DeiCTBnno INx yCTaHOBKe B 06paTHOM npAKe.

HapabnTe npbT yHa TeNeBn3op.

(B3aBcHmOCTnOT MoDeJIH)

A

（NITAHHE）BkIOUeHne H BbIKIOUeHne TeneBUN3opa.
TV/RAD /PpeeknueHne peKmOB:paio/ uipp.TB/aHaIor. TB.
SUBTITLE OTo6paXeHne cy6TnTpOB B uNΦpObBix KaHaJax (npu BeuaHn).
1 AD Пи Нжати Кногп AD BKлочаetca Функця aydno onncahn. (B 3abncmoctn ot moden)
1 ABMOPaIaNTIPOBaHHbIX K IpOCMOtpy peKIMoB 3kpaHa. (B 3aBNCIMOCTN OT MOnen)
1 RABeHepOBnO6paKeHn.（B3aBNCMOCTNOTMOeN）
1 BXOД), HADNHTMCTOCHNBA BXODHORO cnHana.(B3aBNCMOCTNOTMOJI)
UΦpoBbIe KhoNkBvOuHcen.
LIST Doctyn K cnNcky coxpaHeHHbIX nporpamM.
Q.VIEW Bo3BpaT Kapee npocMaTpuaEmo nporpaMMe.

B

+HactpoKa ypOBHr rpmKoCTn.

FAV Doctyn K cnncky n36paHHbx nporpaMM.

GUIDE OTo6paXeHne nporpaMMbI nepeDaU.

2 (6E3 3BYKA),MUTE BKn./OTkn.3Byka.(B3abncmoctn OTMoJeN)
PvIocneNoBaTeNbHoe nepeKlnOueHne KaHaNoB.
PAGE IoctpaHnHoe npoIcTbBaHne cNCKOB.

C

KhoNkTeJTeKcta（TEXT，T.0PT）3TN KHOJKN NcNoJIb3yOTCA 1pa60tbcTeJTeKCTOM.

3 (HOME) Doctyn MeHIO Home. (B 3abncnmoCTN OT MoJeIN)

3 INFO 0To6paKeHne HhOpMaun O TeKyuue nporpamme BxOJe. (B 3aBnCmocTn OT MoDenu)

3HaCTpOuK), SETTINGtKpbIbAeT MeHIO HAcTpOeK.（B 3aBNCMOCTNOTMOeN)

Q.MENU DocTyn K 6bICTpOmy MeHIO.

KhoNkHabRaunn(BBepx/BHN3/BNeBO/BnpaBO)

IocneobatebnaHabnraaB MeHOB BBb6paHOM HapbaHeHm. 0b6op MeHIO nnpapaMeTPOB INoTBePKeJeHne BBOJa.

3 BACK, BACK Bo3BpaHa npedbyuyn ypoBeHb MeHIO. (B 3aBnCnMoCTN OT MoJeI)

EXIT 3aKpbTne oKOH npocMToPa Ha eKpaHe N Bo3BpaT K npocMTopy TB.

D

4 INFO OTo6paKeHne MhOpMaun o Tekyue nporpamme nn BxoJe. (B 3aBnCmOcTn OT MoJeN)
4 SIMPLINK YnpabIeHne BnDeoyctpOiCTBaMn, NOKIOUeHHbIMN C NOMOuBHO HDMI Ka6eJIa,Yepe3 fHyHKuHNO HDMI-CEC. OTKpbIBaET MeHIO HaCTpoEK «SIMPLINK».(B 3aBNCmOcTn OT MoJeIN)
4REC/HaHano3anncnOTo6paXeHMeMeHIO 3anncn.(B 3aBNCMOCTNOTMOeJIINCTpaHbI)
4 AD Пинхати Кноги AD Bкнчаetca Функця aydno onncn.(B3abncmoctn ot moe)

KhoNkynpabNeHn（,，II，（）YnpaBHeMeMaKOHTeHToM.

UBeTHbIe KJIaBnHIOCTyN K CneuaNbHbIM FyHKuM HeKOTOpbIX MEHO.

Kpachn, 3eneha, KenTaa, Cnna

(B3abucmoctnoT MoJeH)

A

(NTAHWE) BkIIOUeHne I BbIKIOUeHne TeIeBn3opa.

ENERGYSAVING Perynnpobka npKocTn KpHa dna cnHexeHna 3heprnontpe6neHna.

AVBMAaANTnPOBaHHbIX KnpocMTopy pexmOB3KpaHa.

INPHeHHeNIE NCTOUYHkA BXoHOrO CnHaHa.

TV/RAD bcknoeHnepeKMOB TB/PaNo.

UHpObBie KhoNKn BBOJ HOMepa KaHaJa (BBOJ Yncen).

LIST Bb3bBaet Cnncok KaHaIOB.

Q.VIEW Bo3BpaT K npeIbIyUeMy KaHaNo

B

+HaCtpoNka rPoMkoCTM.

FAV DocTyn K cnNCKy u36paHHbIX nporpamM.

RATIO IV3MeHeHHeΦoPMaTa 3KpaHa.

MUTE bIKIOUeHne 3Byka.

Pv NocneobatbHoe nepeKlnoueHne KaHaIOB.

PAGEI NocpaHnHoe npoINCTbBAHne cINCKOB.

C

GUIDE OTo6paXeHnI npOrpaMMbI nepeJaU.

PORTAL OTo6paKeHne nCKpbITNe roCTnHnHOro mHTepaKTNBHO MOHIO.

INFO OTo6paXeHne INΦopMaun o Tekyuein pporpaMme n BXOe. KhonKn HABraaunn (BBePx/Bn3/ BneBO/BnpaBo) IpokpyTka MeHIO Nn npaMetpoB.

OKBbI6Op MeHIOI npaMeTpOB N IOITBePxJdeHne BBOda.

SETTINGSDoctynKrrabHomyMeHIO.

(HA3A) Bo3Bpa HnpebIyuyn ypoBeHb.

EXIT 3aKpbItme OKOH npocMToPa Ha 3kpaHe u Bo3BpA t K npocMTopy TB.

UBeTHbIe KnaBnIuOCTyN K CneuaNbHbIM yHKuM HekOTopbIX MeHO.

:Kpaacha, :3eneha, :XenTaan.

D

KhoNk TeneTeKcTa（）Tck

MCNoJb3yIOCTaIpa6oTbIcTeNeTeKCTOM.

SUBTITLE BkIIOueHne mN OTKIOUoeHne OTo6paKeHn cy6TntpoB. KhonKn ynpabLeHn (, , II, , YnpabHeHne MeJaKOHTeHtOM.

SMPLINK YnpabHeHne BnDeoCyTroPoiCTBaMn, NOKIOueHHbIMN cNoMoBHO HDMI Ka6eJIype3 FyHKuH OHDMI-CEC.OTKpbBaET MeHNO HAcTpoEk «SIMPLINK»

Q.MENU DocTyN K 6bICTpOmy MeHIO.

AD Pn HaxkTu KhoKu AD BKnUoHaTcA yHKnua ayNo OncaHn.

ALARM YCTAHOBKa CnHrHaJa. (B 3aBNCMOCnOT MoJeIN)

JIuueH3nn

IopdepKmbaembIe IuueH3Mn MOyT OTNuaTbcra B 3aBcIMOCTn O T MoJI. DOnONHHTbHa NfOpMaunr O IuueH3nx HaxoNTcR n aDpcy www.lg.com.

DOLBY. DIGITAL PLUS

PpOn3BvEeHNo pIuIeHzMn Dolby Laboratories.

Ha3BaHne Dolby n CnmboC DBOHO6yKBOD RAJIOTc TropOBbIM MapkAm Dolby Laboratories.

This DivX Certified device has passed rigorous testing to ensure it plays DivX® video.

To play purchased DivX movies, first register your device at vod.divx.com. Find your registration code in the DivX VOD section of your device setup menu.

DivX Certified® to play DivX® video up to HD 1080p, including premium content.

DivX, DivX Certified and associated logos are trademarks of DivX, LLC and are used under license.

Covered by DivX Patents 7,295,673; 7,515,710; RE45,052; and others available at [www.divx.com/patents].

YBeDOMJIeHne O npoRpaMMHom ObeCpeHnC OTKpbITbIM NCXODHbIM KOdOM

Дя поунець NGXODHOrO KOJa no yCNoBnAM JInueH3Nn GPL, LGPL, MPL nДугnx JInueH3n COTKpbTbIM NGXODHbIM KODom, KOTopbln copejKtCB B DaHHOM npOdyKTe, NocetNTe Be6-caIT: http:// opensource.lge.com.

Kpome nCxOJHO KoJa,ДЯ 3aRpy3Kn DoCTyINbI BCE COOTBeTcTBIOUe YCIOBnI NmEHN,OTKa3OT rapAHTn I yBeOMJIeHnO6 ABTOPCkNx npabax.

LG Electronics TAKKne npedocabnT NcOxDHb KOD Ha KOMnAaKT-DnCKe 3a nlaTy, KOtopaan POKpbBaet CTOnMOCTb BbINONHeHn 3ToI paCCbIKN (B YactHOCTn, CTOnMOCTb MeDnaHOCHTeYn, NepeCbIKN u O6pa6OTKn) nocpeCTBOM 3anpocob B LG Electronics no aDpyc: opensource@Ige. com.Данhoe npednoKeHne DeiCTBnteHbNo B TeueHne Tpex (3) net c daTbI npio6peTeHn I3dennr.

YcTpaHenne HeNCpPaBHOCTeI

TeneBn3Op He pearnpyET Ha KOMaHdbI NylbTa DnCTaHNoHHOrO ynpabNeHn (nybTa DY).

• PpOBepeTc DaTuH Kdy Ha TeNeBn3ope n NOBTopTe NOnbItKy.
• 6eIITecb BOTCYCTBn INpeTCTBm MeKny TeLEBu3Opom nIyblTom Dv.
  Y6eHITcB,HTo 6TapeH HaxOaTcB pa6Oyem COCToHHn npabunbHO yCTaHOBneHb (K K)

TB He BkIIOaTeTc:OTcyTCTByIO Tn3O6paKeHne n 3ByK.

Y6eNTecbBTOM,HTOTeJIeBn3OpBKIOUoyEH.
- 6eNTecb B TOM, yTO SHyP NITaHn NOKJIIOUeH K po3TeK.
- Y6eIITecbBTOM,HTo p03ETKa pa60TaET,IOKJIIOuHB KHei DpyTne yCTpOINCTBa.

TeNeBn3Op caMOnpOuN3BOJbHo BvIKIouaTcA.

• PpOBepbTe npaMeTpbl ynpaBneHn3HeprOnoTpe6BeHnEM. Bo3MoXHO, npon30We n c6oB B cTeu 3NeKTPoNtAHn.
  IpoBepbTe, BkIOUeHaJIyHKeUNABy. peK. OKnuaHNa (B 3aBcIMOCTN OT MoJeIN) / TaMep cHa / BpeMa BBkN. B MeHIO BPEMa. (B 3aBcIMOCTN OT MoJeIN)
  Поберп, ВКLOЧЕHA JIN ФункUIА АВTO-OTKLOчЕн птун(AВЗUMOCTN OT MОДEL) / Таймср са / ОТКLOчЕн TB no таймету B MEHIO Tайметы. (В 3aBUNMOCTN OT MОДEL)
• EcnTeneBn3NOHbCnHJAtOCTCTByET BTeueHne 15 MmHyT, TeneBn3Op BbIKIOaEaTCa ABtOMaTNUeCKN.

PnnooCoeHHeHH K KombItepy (RGB/HDMI/DVI), oTo6paXaetc coo6ueHne "Het CnHana" nn "HeBephbl fOpMaT".

BbIKIOUeHHe/BKIOUeHHe TeneBu3Opa c NOMOuIy npIbTa DY.
- Nobtophoe noDkIoueHne ka6eJI RRGB/HDMI.
- Ipe3anyctTe KOMIbIOpTe, noka TeJIeBn3Op BKNIOueH.

IHHOpMaunO 3aRpyXaemom nporpaMMHom o6ecneHnn

• Истору лговедing
• Доступацьдс влговедing
• Ви може тагу堕ьпгогамнhoe обесенке SuperSign и руховскво по Экспл Anyaцьtenеевизорacbe6-caia LG Electronics.
• https://www.igecommercial.com/digital-signage/support/download/supersign
• Погамнhoe обесенке: SuperSign W_Lite_Server_vX.X.X_Setup.zip SuperSign C_vX.X.X_Setup.zip SuperSign W_Editor_vX.X.X_Setup.zip SuperSign WPLAYER_vX.X.X_Setup.zip

```python PykoBooDCTBO: SuperSign W_Lite服务器_vX.X_X_Manual.zip SuperSign C_vX.X.X_Manual.zip SuperSign W_Editor_vX.X.X_Manual.zip SuperSign WPLAYER_vX.X.X_Manual.zip

TexHnueckne xapaKTepeNCTmKn

(B3aBcIMOCTHOTCTpaHbI)

	Цфравоe TB А滥огвоe TB
	Спунниковoe 3фчрhoe Кабелhoe 3фчрhoe /Кабелhoe
Стодарт veшаня DVB-S/S2*	DVB-T DVB-T2*	DVB-C	PAL/SECAM B/G, D/K, I, SECAM L
Диапазон частот (палoca) 950-2150 MФц	VHF III:174-230 MГц UHF IV:470-606 MГц UHF V:606-862 MГц S палoca II:230-300 MГц S палoca III:300-470 MГц	46-862 MГц 46-	862 MГц
Мakсимальное колчесво Каналов в списke	6000	1500 (Толко д��LW54**, LW341*)2000 (Толко д��LW340*, LW31**, LW30**)
Волное с的对象们 aHTehны	75Ω

• Tônbkö對於 moDenei c noДepeKko DVB-T2/C/S2.

ПовдерхиBaemblepeхиmbiHDMI OT BHeuHnx yCTpoiCTB

Разрешие	Частota ториозанъно развертук(кг.)	Частota Вертукалъно развертук(кg)
640 x 480	31,46	59,94
	31,50	60,00
720 x 480	31,469	59,94
	31,50	60,00
720 x 576 31,250	50,00
1280 x 720	37,50	50,00
	45	60,00
	44,96	59,94
1920 x 1080	28,125	50,00
	33,75	60,00
	33,72	59,94
	56,250	50,00
	67,50	60,00
	67,432	59,94
	27,00	24,00
	26,973	23,976
	33,75	30,00
	33,716	29,976

(TonbkoJnLW340*, LW31**, LW30**)

• MakcimajbHoe pa3peueHne: 1920 x 1080 @ 30p (ToIbko Motion JPEG 640 x 480 @ 30p)
  .asf.,wmv [Bnudeo]MPEG-4 Part2,XViD,H.264/AVC,VC1(WMV3,WVC1), MP43

[Ayduo] WMA CtaHdapt, WMA9(Pro), MP3, AAC, AC3

. divx, .avi

[Bnneo] MPEG-2, MPEG-4 Part2, DivX3.11, DivX4, DivX5, DivX6, XVid, H.264/AVC

[Aydno] HE-AAC, LPCM, ADPCM, MPEG-1 Layer I, MPEG-1 Layer II, Dolby Digital, MPEG-1 Layer III (MP3)

• .ts, .trp, .tp, .mts, .m2ts

[Büneo] H.264/AVC, MPEG-2, H.265/HEVC

[Ayduo] MPEG-1 Layer I, MPEG-1 Layer II, MPEG-1 Layer III (MP3), Dolby Digital, Dolby Digital Plus, AAC, HE-AAC

.vob

[Bndeo]MPEG-1,MPEG-2

[Ayduo] Dolby Digital, MPEG-1 Layer I, MPEG-1 Layer II, DVD-LPCM

. m p4 .m4v.mov

[BuJeO] MPEG-2, MPEG-4 Part2, DivX3.11, DivX4, DivX5, XVID, H.264/AVC

[Aydnio] AAC, MPEG-1 Layer III (MP3)

. mkv

[Büneo] MPEG-2, MPEG-4 Part2, XVID, H.264/AVC

[Aydnio] HE-AAC, Dolby Digital, MPEG-1 Layer III (MP3), LPCM

motion JPEG

[BuJeo] MJPEG

[Ayduo] LPCM, ADPCM

.mpg, .mpeg, .mpe

[BnuJeo] MPEG-1, MPEG-2

[Aydnio] MPEG-1 Layer I, MPEG-1 Layer II, Dolby Digital, LPCM

.dat

[Bndeo]MPEG-1,MPEG-2

[AyDnO] MP2

.

[Büdeo] Sorenson H.263, H.264/AVC

[Aydn0] MP3, AAC, HE-AAC

.3gp, .3gp2

[BuJeO] H.264/AVC, MPEG-4 Part2

[Ayduo] AAC, AMR(NB/WB)

PoiodepxmbaembleaynnoΦopMaTbI

ΦopMaT Φaɪnla : mp3

[Bütpeɪt] 32 K6nt/cek - 320 K6nt/cek

[Yachota dnckpnt3aun] 16K-48K

[Подержka] MPEG1, MPEG2, Layer2, Layer3

• Φορмαςλα: AAC

[Bintpeit] CBO6OHNbIΦOPMaT

[YaTota DaNcKeTpNaun] 8Kt～48Kt

[ПодэржкА]ADIF,ADTS

ΦopMaTΦaɪnə:M4A

[BntpeT] CBO6OHNbIΦOPMaT

[YaTota DaNcKeTp3auu] 8Kt～48Kt

[Подэржкa] MPEG-4

ΦopMaT Φaɪna:WMA

[Bütpeɪt] 128 K6nT/ceK ~ 320 K6nT/ceK

[YaTotaIuNcKpTeN3auu]8Kt～48Kt

[Подержka] WMA7, WMA8, WMA9 Стандгт

ΦopmaT φaɪna: WMA 10 Pro

[BunpeiT] 768 K6nt/cek

[KaHaH/uaCTotaDnCKpeTnaaun]

M0:2-KaHaJIbHbI npn 48 Kt (KpOmepeXkMa LBR),

M1:5.1-kaHabHbI np4 8Kt,

M2:5.1-kaHaJIbHbI npn 96KΓu

[Пордержka]WMA10Pro

(TonbkoДЯ LW54**, LW341*)

ΦopMaT φaɪnɑːOGG

[BntpeT]cbo6oHbIΦOpMaT

[YaTota dnckpTe3aun] 48

[Подержka]OGG Vorbis

(Tonbko Дя LW340, LW31, LW30*)

ΦopMaTΦaɪnɑ:OGG

[BntpeT] CBO6OHNbIΦOPMaT

[HaTota DaNcKpeTn3aun] 8Kt～48Kt

[Подержк]OGG Vorbis

-ΦopMaTφaɪn:A:WAV

[Bunpuit]64Kbnt/cek 1,5 M6nt/c.

[YaTota DaNcKpeTn3auu] 8 Kt ~48 Kt

[Плдержka] LPCM

[BiTobraIy6nHa]86nTa/166nTa/246nTa

Iopdepknaembl opMaTbI n3o6paXeHn

Kateropma:2D (jpeg, jpg, jpe)

[OocTyHbIΦopMaΦaIIOB]

SOF0:6a0BaJnnHnA,

SOF1: noceioBaTeBHeo paacnpeHne,

SOF2: nporpeccnBna pa3BepTka

[Pa3Mep 0TO ]

MHHMaJIbHbI:64x64,

Makcimamblbni (O6bIuHoro Tuna): 15360 (III) x 8640 (B),

MaKcImaJIbHbI (PpOpeCcnBHybTmN) :1920 (U) x 1440 (B)

KateropnB: BMP

[Pa3Mep foTo] MmHmMaJIbHbI : 64 x 64, MaKcMaJIbHbI : 9600 x 6400

Kateropn:PNG

[DocTyHbIΦopMaTΦaHnOB]YepeCCTpoUHbI,NoCTpoUHbI [Pa3Mep fOTo]

MHHMaJIbHbI:64x64,

MaKcImaJIbHbIy (YepeccTpoUHbI) : 1200 x 800,

MaKcImaJIbHbI (IOcTpOuHbI) : 9600 x 6400

• OopMaTbI n3o6paXeHn BMP n PNG mOryT oTo6paXaTbcA MeDJIeHHee fOpMaTa JPEG.

HeCTaHdApTHbIe aNbI OToRpaΦn/N3o6paXeHm MoYr He oTo6paKaTbCra.

LG

Life's Good

MoIeNb n cepnHbH Homep TeIeBn3opa yKa3aHbHa 3aHHe nAHeN yCTpoiCTBa. 3aIIuInTe HxKeyka3aHHbIe daHHbIe, Ha cnya, eCn Bam Notpe6yETc TExHueckoe 06cIyKINBaHne.

MOДЕЛb

CEPNHbIN HOMEP

MANUAL DE USUARIO

[Audio] MP3, AAC, HE-AAC

.3gp, .3gp2

[Video] H.264/AVC, MPEG-4 Parte 2

[Audio] AAC, AMR(NB/WB)

(Sólo LW340, LW31, LW30*)

Maximo: 1920 x 1080 a 30p (solo Motion JPEG 640 x 480 a 30p)
.asf.wmv

[Video] MPEG-4 parte 2, XViD, H.264/AVC, VC1 (WMV3, WVC1), MP43

[Audio] WMA estandar, WMA9 (Pro), MP3, AAC, AC3

. divx, .avi

[Video] MPEG-2, MPEG-4 parte 2, DivX3.11, DivX4, DivX5, DivX6, XVid, H.264/AVC

[Audio] HE-AAC, LPCM, ADPCM, MPEG-1 capa I, MPEG-1 capa II, Dolby Digital, MPEG-1 capa III (MP3)

• .ts, .trp, .tp, .mts, .m2ts

[Video] H.264/AVC, MPEG-2, H.265/HEVC

[Audio] MPEG-1 capa I, MPEG-1 capa II, MPEG-1 capa III (MP3), Dolby Digital, Dolby Digital Plus, AAC, HE-AAC

.vob

[Video] MPEG-1, MPEG-2

[Audio] Dolby Digital, MPEG-1 capa I, MPEG-1 capa II, DVD-LPCM

. m p4,m4v,mov

[Video] MPEG-2, MPEG-4 parte 2, DivX3.11, DivX4, DivX5, XVID, H.264/AVC

[Audio] AAC, MPEG-1 Layer III (MP3)

. mkv

[Video] MPEG-2, MPEG-4 parte 2, XVID, H.264/AVC

[Audio] HE-AAC, Dolby Digital, MPEG-1 capa III (MP3), LPCM

motion JPEG

[Video] MJPEG

[Audio] LPCM, ADPCM

.mpg, .mpeg, .mpe

[Video] MPEG-1, MPEG-2

[Audio] MPEG-1 capa I, MPEG-1 capa II, Dolby Digital, LPCM

.dat

[Video] MPEG-1, MPEG-2

[Audio] MP2

.

[Video] Sorenson H.263, H.264/AVC

[Audio] MP3, AAC, HE-AAC

.3gp, .3gp2

[Video] H.264/AVC, MPEG-4 Parte 2

[Audio] AAC, AMR(NB/WB)

[Sopporte] ADIF, ADTS

[Sopporté] WMA 10 Pro

(Sólo LW54*, LW341)

SOF1: Extension sequencial,

SOF2:Progresivo

[Tamano de Foto]

Minimo: 64 × 64 ,

Maximo (Tipo normal) : 15360 (ancho) x 8640 (alto),

Maximo ( Tipo progresivo) : 1920 (ancho) x 1440 (alto)

• Categoría:BMP

[Tamaño de Foto] Minimo: 64 x 64, Maximo: 9600 x 6400

Categoría: PNG

[Audio] WMA Standard, WMA9(Pro), MP3, AAC, AC3, 3D WMV Single Stream

. divx,avi

[Video] MPEG-2, MPEG-4 Kisim 2, DivX3.11, DivX4, DivX5, DivX6, XVid, H.264/AVC

[Audio] HE-AAC, LPCM, ADPCM, MPEG-1 Layer I, MPEG-1 Layer II, Dolby Digital, MPEG-1 Layer III (MP3)

. ts.trp,tp.mts.m2ts

[Video] H.264/AVC, MPEG-2, AVS, VC1

[Audio] MPEG-1 Layer I, MPEG-1 Layer II, MPEG-1 Layer III (MP3), Dolby Digital, Dolby Digital Plus, AAC, HE-AAC

.vob

[Video] MPEG-1, MPEG-2

[Audio] Dolby Digital, MPEG-1 Layer I, MPEG-1 Layer II, DVD-LPCM

.mp4,m4v,mov

[Video] MPEG-2, MPEG-4 Kisim 2, DivX3.11, DivX4, DivX5, DivX6, XVID, H.264/AVC

[Audio] AAC, MPEG-1 Layer III (MP3)

. mkv

[Video] MPEG-2, MPEG-4 Kisim 2, XVID, H.264/AVC

[Audio] HE-AAC, Dolby Digital, MPEG-1 Layer III (MP3), LPCM

motion JPEG

[Video] MJPEG

[Audio] LPCM, ADPCM

.mpg, .mpeg, .mpe

[Video] MPEG-1, MPEG-2

[Audio] MPEG-1 Layer I, MPEG-1 Layer II, Dolby Digital, LPCM

.dat

[Video] MPEG-1, MPEG-2

[Audio] MP2

.

[Video] Sorenson H.263, H.264/AVC

[Audio] MP3, AAC, HE-AAC

.3gp, .3gp2

[Video] H.264/AVC, MPEG-4 Kisim 2

[Audio] AAC, AMR(NB/WB)

(Yalnizca LW340, LW31, LW30*)

• Maksimum : 1920 x 1080 @ 30p (yalinizca Motion JPEG 640 x 480 @ 30p)
  .asf.,.wmv

[Video] MPEG-4 Kism 2, XViD, H.264/AVC, VC1(WMV3, WVC1), MP43

[Audio] WMA Standard, WMA9(Pro), MP3, AAC, AC3, MP3

divx,avi

[Video] MPEG-2, MPEG-4 Kisim 2, DivX3.11, DivX4, DivX5, DivX6, XViD, H.264/AVC

[Audio] HE-AAC, LPCM, ADPCM, MPEG-1 Layer I, MPEG-1 Layer II, Dolby Digital, MPEG-1 Layer III (MP3)

• .ts, .trp, .tp, .mts, .m2ts

[Video] H.264/AVC, MPEG-2, H.265/HEVC

[Audio] MPEG-1 Layer I, MPEG-1 Layer II, MPEG-1 Layer III (MP3), Dolby Digital, Dolby Digital Plus, AAC, HE-AAC

.vob

[Video] MPEG-1, MPEG-2

[Audio] Dolby Digital, MPEG-1 Layer I, MPEG-1 Layer II, DVD-LPCM

• mp4, .m4v, .mov

[Video] MPEG-2, MPEG-4 Kism 2, DivX3.11, DivX4, DivX5, XVID, H.264/AVC

[Audio] AAC, MPEG-1 Layer III (MP3)

. mkv

[Video] MPEG-2, MPEG-4 Kisim 2, XVID, H.264/AVC

[Audio] HE-AAC, Dolby Digital, MPEG-1 Layer III (MP3), LPCM

motion JPEG

[Video] MJPEG

[Audio] LPCM, ADPCM

.mpg, .mpeg, .mpe

[Video] MPEG-1, MPEG-2

[Audio] MPEG-1 Layer I, MPEG-1 Layer II, Dolby Digital, LPCM

.dat

[Video] MPEG-1, MPEG-2

[Audio] MP2

.

[Video] Sorenson H.263, H.264/AVC

[Audio] MP3, AAC, HE-AAC

.3gp, .3gp2

[Video] H.264/AVC, MPEG-4 Kism 2

[Audio] AAC, AMR(NB/WB)

Desteklenes formatari

Dosya turi: mp3

[Bittiz]32Kbps-320Kbps

[Ornek frek.] 16 kHz - 48 kHz

[Destek] MPEG1, MPEG2, Layer2, Layer3

Dosya Turii: AAC

[Bittizi] Serbest Biqim

[Ornek frek.] 8kHz 48kHz

[Destek] ADIF, ADTS

Dosya Turu: M4A

LG Electronics Mlawa Sp. z o.o. (Ltd.)

LG Electronics 7 street

06-500 Mlawa, Poland

Tel.: [phone]

Fax:[phone]

LG Electronics Wroclaw Sp. z 0.o

UI. LG Electronics 1-2

Biskupice Podgone

55-040 Kobierzyce, Poland

Tel:[phone]

Fax:[phone]

LG Electronics Inc.

77, Sanho-daero, Gumi-si, Gyeongsangbuk-do, 39381, Rep. of KOREA

Tel:[phone]

Fax:[phone]

Yetkili Servisler

Degerli Musterimiz,

He po36bnpaIte, He peMOHTyIe I He MOdNfIKyIte Bnpi6 camocTiH.
Le MoKe cPnPHHTn POKExy a60 ypaKeHH eNEKTPuHIM CTpyMOM.
IJInepeBipKn, KaJIbpyBaHH a60 peMOHTy Bnpo6y 3BepHiTbcrdo
cepBicHO rO CEHTpy.

HeraHbIeNHyTe Bup6BJeNekTpOmepeKt Ta3BepaTecra Do MiceBOrOp cepBichoro ueHTpy B TaNX BnAdkax, KOIM:

Bnpi63a3HaBydpy;
Bupi6 6yno nouKoJKeHo;
yBupi6 noTpapanm CTOpOHn IpemMeTn;
3Bnpo6yIeDmA60uyTNHe3BnHn3aNAx.

Lc moKe CTaTn npuHIO noXeKi ypaXeHH eEeKtpuHMM cTpyMOM.

Kuio Bn He nlaHyTe BNkOpncTObyBaTN Buip6 ynpodBx TpNbAIOrO
acy,BiD'EnHaIte Ka6eJIb XmBJeHHa BiEneKtpomepeKi.

HaKoIuueHn nIy moKe cnpunHHTaMaHnA, a noripuHn pIBHa 130raiBNTIK CTpyM, ypaXeHHCTpymo A6o noKexy.

06epiraTe BIPi6 BiN noTpannHnKpaneB abo 6pn3OK pInHn; He CTaTE Ha HbOrO npEmdTn, 3AnOBHeH i piINHO, HanpNKJaD BaN.

He BCTaHOBJIIOTe Bnpi6 Ha CTiHi y MiCi, De Ha HbOrO MoXe nOTpanHTu KInp Ta XnpuoBi Bnnap.BoH MoKyTb NOnKoJTu Bnpi6 i CnpuHnHTu naDHHa.

Kyuo y Bpi6 (Hapnknad, BaanTep 3miHHoro CTpyM, Ka6enb KMBenneHry n Tenebi3Op) Notpanntb Boda nn iHua peOBOHa, BiD'ednaTe Ka6eB JxMBenneHry i HeraiHo 3BepHITcR y ceHTp 06CnyroByaHHra. HeoTpuMaHHra ciEi BmORr MoKe cTaN npuHHo 3aMaHHra uypaeHHra eNEkTpnuHMM CTpyMOM.

BukopncToByte Jnne aadantep 3MiHoro ctpMy i Ka6eNb XmBleHHa, cxbanehi Komnaiicu LG Electronics. HeoTpmaHH uci Bmorm moKe np3BecTu Do 3aMaHHa, ypaXeHH eNEKtpnHm Ctpymom, 360o y po6oTI Bnp6oy a6o NOro deOpmaui.

He po36npaIte aIaIaTe 3miHoro CTpyMу cI KabeIb XKIBNeHHa. HexTyBaHHa IcIeIO BmOrOIO MOKe npU3BecTn Do 3aMHaHHa YpaxKeHHa eJIeKTpUHIM CTpyMOM.

6yNbTe 6bepexhi, Kopntuocnb aanTepom; yHnKaTe 6yb-akx 30Bhihix yapib Bnpo6y. 30BhiHni ynap Moje npn3BeCTn do noikokgeHHa anTepa.

Ipebeipte, Hn HadiHIO nIKKIOUeHO Ka6eJIb KINBHeHHr Do pO3'EMy TeneBisopa. (3aJekHo BiD MoDeni)

YBAGA

BctaHOBIOIte Bupioy Micx,de Hemae BnIpomHOBaHHpaiaoxbib.

30BHIHn aHTeHa NOBHn 3hAxOHTnc Ha DoCTaHi BiDCTaHi BID nHH. XNBHeHH, 06 BOHa He TopKanacix, y BuNaKy naIHHH. IHaKeIe MoKe npu3BeTn Do ypaXeHH eEnkTpHuM CTpymOM.

He BCTaHOBNIIOte Bupi6 Ha HeCTIKNX NOnuKax a6o Noxunx
NoBepxHax.KpIM TOrO,He BCTaHOBNIIOte Bupi6 y Micx i3 Bi6paicio
a6o Micx,aki He NiTpMHyOTb NOro NobHCtIO.
HaKaIe Bupi6 MoKe BnactN uNnepeBepHyTcA,Yepe3 0o MoXHa
TpaBMyBatncA6o NOnkoDHTn NOro.

ypa3i BCTaHOBHeHH TeneBi3opa Ha NiICTaBky Notpi6Ho BxHTn BiNObiDnHex 3axoIB, 06 BIn He BnAB. IHaKwe Bnpio MoKe nepeBepHyTnC, 10 MoKe npn3BecTu Do TpaBM.

Uo6 npknpiinTu Bpi6 do CTiHn, Ni4'EnHaIe Do NOrO 3aHb0i NaHeJI cTaNapTnKpOHTeuH VESA (npOdaetbcra OkpeMo). Uo6 TeleBIOp He BnAb, HadiHo 3akpinITb HaCTIHnKpOHTeuH (npOdaETbcra OKpeMo).

BukopncToByte Nmte Ti akcecyapu/daTkobipnnaa,aki Bka3aHOBnpo6hNkOM.

ypa3i BCTaHOBHeHH aHTehn 3BepHITbCdo KBaIiFIOBAHOIOCO6n, nTTO, uo6 yHNKHyTN noKeXi a6o ypaKeHH eneKTPuHM CTpyMOM.

Ibntca TeneBi3op peKoMeHdyetyb cI 3 BiDctahi,ka 0HaMeHHe B2-7 paIB nepeBnUyE diarOHaJI b ekpAHa. TpuBaII n TeJepeRna MOnke npn3BeCTn Do pO3foKycBaHHa 3opy.

BukopncToByte Nnne 6Taapei Bka3aHOro Tny. IHaKHe MoXHa NOwKOOnTn NylbT DnCTaHcHnHO KepyBaHH.

He BnKOpNCTOByIte OndHocHo HOBi Ta cTapi 6aTapeei. Ie MoKe np3BcTeN do ix neperpiBaHHa IBtikAHHa 13 Hnx eNeKTponity.

06epiraTe 6atapei BID HAdMpHoro HarpibaHHa3KpemaBid npAmoro coHnHO npOMHHa, BiKpntoBOrHTo aObirpiaivb.

HEbctabTnHe nepe3azkybani 6aTaepiB 3apHn npncptip.

CTe, 106 MxN PybTom DnctaHINHO KepyBaHH Ta NOrO ceHCOPOM Ha Bnpo6i He 6yNo nepeuKoJ.

CnHn nnbTa dNCTaHuiHoro KepyBaHHa MoKe nepepNBATnca COHnHM CBITnOM a60 IHnM nOTyXnM CBITnOM. Y Takomy pa3i 3aTeMHItb KIMHaTy.

Pd'cHyoN 3OBHIiHi IpiCTpoI, Taki kI rpoBi BiDeOpnCTaBKn, BkOpNCToByTe Ka6eni DoCTaTHboI DOBXHH. IHaKSe BpioMoKe BNaTn Cu NepeBepHyTuC, Uepe3 10 MoXHa TpaBMyBaTuC a6o NooKOJNTu No.

He BMnKaIe Ta He BMMKaIe Bupi6, BCTBnaIOuH ITekep y po3eTKy i BmMaIOU mOro (He BkOpNCToByIe ITekep AK nepEMnKa).
Le MoKc cnpuHHTM MexaHHe NooKoJKeHH a60 ypaKeHH
eNEKTPNHM CTpyMOM.

J3a 3anobirahnnepeperibAHHBOBPO6y DToPmUyTecb noDaHx HNkue IHCTpyKcui 3i BCTaHOBNeHH.

BjntaHb mix Bnpo60m i CTHO MAe CTAHOHT He MeHue 10 cm.
He BCTaHOBIOIe BUIp6 y MiCi 6e3 BeHTnlaJI (Ha npKnaD, Ha KHHKKOBy NOJNUo a60 B cepBaHT).
He BCTaHOBIOHTe Bpi6 Ha KINIM a6o noyky.
Cnikynte,io6BeHTnuauiHIO TBOPn He 6yno HApknTOCKaTePTNHOIO Y3HaHBiCKOIO.

IHaKHe MoKe BnHnKHyTn NoKExKa.

KuTo TeneBIOp yBIMKHeHO DOBnYac, He TopKaITeCBAENTNLIHINX OTbOpIB, OckInbKn BOH MoKyTb HarpBaTnC. He He BnMbAe Ha YHKUioHaJIbHiCTb Cu npoOi XapAKTePcTnK BuPo6y.

Yac Biy acy ornaaTe Ka6enb npncpo1i B pa3i BnBneHn noKoKeHb 3noeHHBaE'edHaTe NOrO iCKOpCTaTEcra nocnyram cneuaIcTa dna 3amHn Noro ideHTuHM Ka6eem.

CTe,io6Ha KOHTaKTx BnIKn i Ha po3eTu He 36npaBcnn.
Le moKe cnpuHHnTo noXeKy.

06epiraTe Ka6eIb BiD fi3iunHxu MexaHHynx nookdoKeHb.
CTeXTe, 1o6 BIn He nepeKpyuBaCra, He 3aNnyTyBaBCra, He TopKaBcra
roctpux npedMeTIB, He 3aTnckabCra DBePma i He JexaB Ni d Horamu.
Oco6nBu BO CTeXTe 3a WtkepaMn, po3etkAm Ta MiCem Ni d'EdHaHHa Ka6eIIO Do npicToPO.

He HatackaIte Ha naHenb npncTropo nalbZaMn a6o roctpMM npdeMetamn (hirtem, onibcem nu pykoio) i He dpanaTe ii.

He TopkaTeca ekpaha Ta He TpuMaTe Ha HbOMy naneCb (nabci) TpuBaJIIn nepioJ acy. Ie MoKe cnpuHHTN TMHaCoBI BnKpNBHeHHa 3o6paKeHHa ekpani.

y pa3i nuueneHH Bnpo6y Ta Ioro KOMnoHENTB CnoaTy BiD'cHaIte NOro BiD eEnktpomepexi, a Notim npoTpiB M'aKO rAnHipkoIO. He 3actocobyTe HAdmipHO iN niD yac uHSeHH. Lc MoKe cnpuHHTN NOBBy Noopnnn ABO 3MHy KObOpy. He po3nHOnTe Ha Bnpi6 BoY Ta He npotpaIte NOro MOKPO rAnHipKOIO. YKoDHomy pa3i He BnKOpncTObyTe 3ac06n DnA uHSeHHCKna Ta ABTomO6inB, 3ac06n DnA uHSeHH nPomncNoBOrO npn3NaueHH, a6pa3NBt 3ac06n DnA uHSeHH, BICK, 6eH30J, CNPT Ta iHsi 3ac06n, Aki MOKyTB NOnKoDInT Bnpi6 i NOro ekpan.

HedotpmaHHa iE BUMn MOKe np3BecTu DO BHNKHeHH noXeKi, ypaHexHH enektpnHm CTpyMOM a6o noKoJxHH BInpo6y (deopmaui, Kop03i nnamHH).

Pnpiptni ndknoeHdo po3etkn 3minhoro ctpmy,Ha hbo noctiHNOaTbcra XNBneHHHa npctpoi nepebeedeHO b noJoxehn "BUMKHeHO".

IooB BID'cHATn Ka6enb, Bi3bMitb 3a wTeKepi BnIMiTb Noro.
KIO npOTn BCEpeHHI Ka6eHIO KINBEHnnoWKOJKeHO, MoKe BHNKHyTN NoXeKa.

Ipeep nepemiuHnM Bnpo6y cnoatky BmKHiTb KnBHeHH. Notim BiD'edHaTe KaBeni XnBHeHH, KaBeni aHTeHN Ta BcI KaBeni, Aki BnKOpNCBOYOTbc dnn iD'edHaHH.

TeneBizop a6o Ka6enb XnBHeHHa MoKe 6yTu N0wKoJxHeHo, 10 MoKe np3BeCTn Do BnHKnHeHHa NoXeXi Yn ypaXeHHa eNeKtpuHIM CTpyMOM.

IpehoCbTe Ta pO3nakOByTe Bupi6 yDBox, OckInbKn BiH BaKKn. IHaKHe MoXHa TpaBMyBaTnca.

Kkuo BuHnkae noTppe6a B 06cnyrobyBaHHi, 3BeptaeTecra do Kbaiofikobahnx CneuaianictiB. 06cnyrobyBaHHa Heo6xIDHe B pa3i noKoDkeHHa BnpOy a6o Noro qactHH, HapnKnad, Ka6eHoo KnuBHeHH a6o BuNKu, po3NITTA pIDHH a6o nToPpAnHnCTOpOHIX npEdMeTb y Bnip6, BnNBy DoUy a6o NiIBNueHOI BOrN, npOyuHnHaJeKHOi p6oTu a6o naHHn.

Kuio Bupi6 xoJIOHM Ha doTnK, nicra Ioro BMKAHH MoKe CnoCTepiratnc He3NaHcpeMepextinHa. Lc 3BmUe ABUSe, i BOHO e O3HaKOIO HecnpabHocTi.

LnaHbE BnCOKOTExHONOrIyHM BnPO6OM, 0oMiCTNbMlbHOH nIKcJIIB. Ha ekpaHI MoXHa NObaHTN MaJeHbKi OOpHI TOCK Na/ a6o RckpABI KObOpBI ToKu (eepBOHi, 6NaKTHi 3eHe) 3 KOHcHTpaIeIO 1 aCtINHa HMaBNoH. Ie He eO3HaKO HeCnPaBHOCTI BnPO6y Ta He BnINBa H NoIoro pOboTy i HadiHicTb.

Take ABnue TaKoX CnOCTepiraAeTbCay y Bnpo6ax IHnx Bnpo6HKnB i He nepe6a4e 3amHy a60 nobephenra rpoen.

RcKpaBictb i KOpIep eKaHa MoKyb pi3HnTnc 3aJIexHo BID BaWOrO Micue3HaxoJxKeHHa nIac nepeTny (3nBa/cnpBa/Bropi/Bn3y). Lc xapaKtePho dIe ekpHa. Lc JbNtne He nob'z3ane 3 p60To1 Bnpo6y i He o3HaKOIO HecnPabHOcti.

BIDO6paXeHHcStaTHHOro 3O6paXeHHyynpoDObK TpNBanoro Qacy MoKe npN3BcTn Do 3aNNaHHa 3O6paXeHH. YnKaIte TpNBanoro BIO6paXeHHHaekpahi TeneBb3opa cTaTHNHx 3O6paXeHb.

Uytu wym

3BykNotpickyBaHHa:3Byk NotpickyBaHHa,Anu yTu nIac
neperrany Telenporpam a6o BmKHaHr TeleBizopa,cnpuHneHn
TENIOBIM CTncHEHAM NactMaC Hpe3 3MHy TemNepaTyra
BONORCTi. 3ByuAHHN 3Byk dNBA BPO6iB,yAKNX BiDyBaCTbca
TENIOBa DeOpMaJia.EeKtpnHa Cxema rye/naHeB d3NKHTb:
TUXN WUM BUNKa e y cxemi, AKepeMkaCTbca 3 BeNIKO
WBnIKcTO Ta npOnycka cTpym BENIKO CIIN dln po6Ou npOdykTu.
Bih BiPi3HcTa 3aneXHO BiD BPO6y.
Ue3Byk He BNInBa Ha p6Otu Ta HadiHicTh BINO6y.

He KopuCTyIeTcnaopd i3 TeneBisOpom npnanaamn, kpi npauoTo b niD BnCOKOHaNPyTOO (K-OT eNEKtpnuHO nactKOIO KOMax). HexTyBaHnra ciEIO BmOrOIO MoKe npn3BecTu Do HeCnpaBHOctI.

Плд罗товka

IPMMITKA

3o6paXeHHaMoKe DeuO BiPi3Hnca BiD pealbHoro BuTnay BaUoro TeneBi3opa.
EkpaHHe MeHIO TeneB3Opa MoKe DeIe BoBip3HrTcB BID 306paXeHOrO y UbOMy Noci6Hnky.
IocTynHi MeHIO Ta napaMeTpMoXyTb BiDiPi3HrTncb 3aJeKHO BID BnKOpNCTOBvBaHOrO DKepeNa BxIDHO rHany Ta MoDeni npNCTpoJ.
- y MaH6yTHbOMy Do UboTeNeB1Opa MoKyTB 6yTn DoaHI HOBI
KOMIIeKaIg Bnpo6y MoKe DeIoo BiIpi3HATuCA 3aJIeXHO BID MOJIeI.
XapakTepcnKn Bnpo6y a6o 3mict zuoro noci6nka moKe 6ytu 3miHeNo 6e3 nonepdxKHeH y 3B'3Ky i3 BdoCKoHaJIeHHM Bnpo6y.
ДяHopMaIbHOrO nID'EDHaHHKa6eINB HDMI ta npIcTpoIB USB TOBUnHa 3OBHIuHbOrO 6pbamHeHH po3'EMiB He IOBUNHa nepeBnUyBaTu 10 MM, a uInpHa - 18 MM. RaIO USB-Ka6eNB a6o USB-npNCptpiHemOxKnBO BCTaBNTu B USB-po3'EM TeNeBi3opa, ckOpIcTaIteCn Ka6eEm-NoDObKByaueM, AKN IITpIMyE pO3'EM USB2.0.

$$ \begin{array}{l} ^ {} A \leq 1 0 M M \ ^ {} \mathrm {B} \leq 1 8 \mathrm {M M} \ \end{array} $$

BukopncTObuYte cepTnphiKOBaHm Ka6enb i3 lorotnnom HDMI.
HexTyBaHHIeIOBMMOrIOMOKe npn3BcTn Do nOMnIO 3'EnHaHHa6o MoKe He BiOobpaXaTnC3o6paXeHHa. (PekomeHIOBaHI TINKabEIB HDMI)

BucOKoUbUNKICHMKa6eNbHDM（IOBxNHOIO3M）
BucokoiuiknKia6enbHDMPiTpumkoO Ethernet (D0BxNHOIO 3M)

YBARA

He BUKOpncTObyIte HEniueH3iHne npnlaDnIe Ia36e3neHnH 6e3neKn Ta IpnoOBKeHH TepmiHy BUKOpncTaHnBnpOby.
Ha 6ydb-aki NOIKOJKeHHa 60 TpaBMn, Aki BUNKIN BHaCJIIOK BKNOPcTAHH HEniueH3iHHX KOMNoHEHTIB, rapaHTi He NOUIMIOCTbCA.
Ha deKnx Moenx do ekpaHa npnKpInHeo ToKy nibKy,ky He MoKHa 3Hima.
PiE'EnHyOu NiCTabKy Do TeneB3Op, NOKaIITb TeneB3Op ekpaHOM DoHn3y Ha CIn i3 M'AKoIO NOBepxHeo A60 pIBHy NOBepxHIO, 306 3axXCTHTN EKpAH BID NoDpAHH.
Cnikkyte 3a Tm, uo6 yci TBnHTn 6yyn npabunbHO BCTaBneHi Ta HadiHIO 3akpyeHI. (Kkuo TBnHTn 3aTARHyTN HeOCTaTHbO CnIbHo, TeneB3Op MOKe HaxnnITcR Bpeep nICr BCTAHOBENH). He 3actocobyTe HaMipHy cny i He nepetaryTe TBnHTN, uo6 He NowKOJNTn IX.

PpnilaIaIy KOMnJIeK

Ppnaadra, kae He BXoNTb y KOMnIeKT, MoXe 6yTu 3MInHeO a60 BDOCKoHaJIeHO 6e3 nobIDomLeHHa. Uo6 npuD6aTn ce npnaadra, 3BepHITbcrdo nnepa. Ce npnaadra cymiche nIWe 3 NeBHmM moJeMa. Ha3By moJeni a60 du3aH MoXe 6yTu 3MInHeO uepe NOKpaueHHra pOdykTu Ta Ioro fYHKui, a60 uepe3 3MiHy noJIiHKK KOMNaHI-Bnpo6Hnka.

(3anexno biM moeni)

CbitIOiOHN IODHHNK LEC-003

AN-WF500 Мо dye Wi-Fi/Bluetooth

MoJeni LW30 He Maotb JxKoCTnKa, a JIWe KhoNky yBIMKHeHH/ BIMKHeHH XMBJIeHHA.

Ba3oBiΦyHKuii

KoH TeJIeB3Op yBIMKHeHO, OIN pa3 HaTNCiTB KONKY
HaTnCKaOuH qpyXaOuH KOnkAMM, MoXHa HanaWtYBaTu npaMeTpM
MeHIO.

(DoctynHO He nIa Bcx MoJeN.)

Tenebi3op 6ob'raKoBO cIa KpInNTn DO CTony, uOb BIn He BnaB Bnepea 60 Ha3aD Bi ND NooTobxy, He CnpuHINB TpaBMn Ta He 6yb NooKOJKeHH.

TnA)

IPMMITKA

ΓBnHT:M5xL(*L:TobuHa cToIy+8~10MM) npuknaTTOBuaHcToIy:15MM,ΓBnHT:M5xL25

Tun B)

2rBnHTn dna fikcaui nictabkn, 2wa6n dna fikcaui nictabkn, 2raKn dna fikcaui nictabkn (BxodTb y komnneK Tenebi3opa)

BukopncTaHHa cncTeMn 6e3neKn Kensington

(Doctynho He nBcx MoJeN.)

306paKeHHMOKeIeIOBIipi3HHTnCBAIDpeaIbHoroBunny BaworoTeneBi3opa.

Hi3do nIpiN eHaHHn CnCTMe N Kensington po3aObaHe Ha 3aHi nAnesi TeneBisOpa. DetalbHlwe npo BctahOBHeHH Ta BnKOpNtAHn YHTaTe B Noci6Hmky Do CnCTMe N 63neKn Kensington a6o Ha Be6-caTi http://www.kensington.com. 3a donomoroo Ka6eNo CnCTMe N 63neKn Kensington npnkpinTb TeneBisOp do CTony.

KpinlenHa Telebi3opa do CTiH

(Doctynho He nBcxMdoJeN.)

1 HadiHIO BkpyTb rBHTn 3 KInbuaaMn a6o 3BnuaHi uypnn 3 KpoHsTeHAMN no3ady tenebi3opa.
HadiinHO BkpyTb TBnHTn 3 KInbMaN a60 3BnauHi wypnn 3 KPOHtEnHAMn No3aDy TeneBizopa.
2 PnKpinitb KpOHTeHn Do CTIN 3a DOnOMoHO WypynIB. KpOHTeHn MaOTb 6yTN pO3TaWOBaHI Ha CTINI npN6m3HO HABNPOT rBnHTiB i3 KInbAaMn Ha 3aDHi NaHeni TeneBisopa.
3 3a donomoroio miuHoro shhpa npB'jxitb rBnHTN 3 KInbquMN do KpoHtneHIB Na CTiHi. UHyp Mae HataryBaTcR TOpN3OHTaNbHO, nepHeuKnyIrpHo Do CTiH.

YBAGA

CniikkyTe, 106 dITn He Bnna3nHa TeNeBisOp i He Bnchyn Ha HbOMy.

PIMITKA

CTABTE TENEBI3Op TINbKN Ha CTiIKy Ta MiUHy NiICTaBky a60 uAφKy, RKA BHTPIMAc Bary TENEBI3Opa.
KpOHTeHH, Wpyu Ta UHypn dN KpInnHe BxOaTb Do KOMnEeTy NoCTabKn 3 TB. Akuo Bu Xouete npud6aTu i AkceCyApn, 3BepHtcb DO NOkAusbHX NoCTaunbHnKIB.

PerylIOBaHHa KyTa TeIeBi3Opa Ila 3pyuHoro neperyA

(DoctynHO He nIy BcxMdoJeN.)

PpNkpinb npntabky do TeleBizopa i Kopnctyntecn Heo, KOn 3a6axaTe.

1 3nBm 3axnchnnanip i3 3actiok Dual LockTM, npnkpinitb ix do TebeB3opa i npntabKN, kNOKa3aHo Ha MaIohky.

2 Ppikpinib npnctabky do tenebi3opa, cncnybnn cpiKn Velcro dokyn.

TIPMMITKA

IINbHyTe, 106 ha nobepxhi Bnpo6y He 6yno ctoponHHix peoBnH, nCra yoro hao HnO npKpinTb 3acti6Kn Dual LockTM.
Iepw HIX KpINTN pNCTABky Do TeneB3opa, daTepnKpINHeHMM 3act6kam Dual LockTM BucOxHyTN npOTAROM OohaimeHWe Tpbox DnH.

3'εdHaHn (NobidomleHn)

Do Telebiopa MoXHa NiE'EnHyBaTpi3HbOHi npCTpoi; 0o6 Bn6paTn 3OBHIwHn npCTpI, cnId 3mHHTn pexMM BXIDHO rHany. DeTaBHiWe np NiE'EdHaHHa 3OBHIhBo rnpCTpOu YHTaTe B IHctpKqii 3 BkOpncTaHHa KxHOro npCTpOu.

Doctyni taki 30bhiu npctpo: npmaui Bucokoi icKocTi, DVD nporpaBau, BiodeomarHitofoH, ayioCTemU, USB-hakonuYbai, PIK, irpOBI npctpo Ta iHsi 30bhiu npctpo.

NIPMITKA

CnociiπEaHHa3ObHbHO npCTpO MoKe 6yTu DeuO Hm3aJExKHO BIMoJI.
PiE'ENHyBaTN 3OBHlHiN pIncTpoI DO TeneB1Opa MoXHa He 3BaXaOHn Ha NopAIOK PO3'EMIB TeneB1Opa.
- ⅢO63aIncyBaTnTeBbI3HInI nporpaMnHa DVD-nporpaBaay a6o BiDeomarHITofoH, nID'EDHainTe Ka6enb BxIHHO rHany do npictpoIO 3aNcy, a npictpi -do TeBbI3OpA. DeTalbHIwe npo 3aNc uHTaTBe Noc6Hmky KopctyBaHa pINHHO npCTpOio.
IHTpykui3eknnyatauuiyntaBnoC6HkyKOpCTyBaTa 30BHIIHBTO npCtpo.
PiE'EDHyOuH irpOBn npCTpiI do TeneBizopa, BIKOPNCOTobyTe Ka6eB, kNIOdaeTbCBA KOMNNEKTI 3 irpOBm npCTpoEM.
Y pexmikomn'tepa moxyb cnoctepiraTcna ymu, 10 noB'ra3aHO 3 hanaHTyBaHHM po3dInbHOI 3daTHOCTi, BEPTKanbHOI qACTOTN, KOHTpactHOCTi Y RAckpabocTI. Y taKOMy pa3i Bn6epit bIg rHany KOMn'tepa iHw y po3dInbHy 3daTHICb, 3MIHt b qACTOTy OHOBLeHH a6o BiDperyIOHTe RCKpABICTb I KOHTpactHCTb y MeHIO "305PAXEHHA", 106 306paXeHHa CTANO YITKIM.
YpeKMI KOMNIOTepa DeKa HanaWtYaBaHHPO3INbHOI 3aTHOCT MoKyTb He CnpaBobyBaTH HaJeXHM YHOM 3aJeXHO BID BiDeokaptn.

Пд'сданьаHTEH

3a donomoro k6eio nna nepedaipapioactoTHoro cnHany niEHaHTe TneBisop no HactiHHoro rH3da nna aHTEH (75Ω).

Длп ni'd'снанн дBox i 6iNbwe TeneBisopIB BnKOpNCTOByIte po3ranyKyBaH CnHany.
Kkio 306paXeHHH Hn3bKOJ KOKti,ДЯ NOrO NOKpaueHHBCTaHOBITNIDCMIOBAu CMHaY.
KIO nIeCnHaHO aHTeHy iAkiCTb 306paKeHHa NoraHa, cnpMyTe ii B CTOPOHY 3 HaneXHM NpHOMOM CURHAly.
Ka6eIb aHTeHn i nepeTbOpOBa cHrHany He eoJIoAIOTBcA.
ПдгмУвануадioфорМатцфрбог罗телбаehнMPEG, Dolby Digital, Dolby Digital Plus, HE-AAC

Пд'еданна сунтунковоюаHTEHN

(Tinbkn DnMoDenei 3nTIpMkoO CynyTHNKOBOro MOBHeH)

PiEaTe TeneBIOp Do rH3da CnyTHNKOBaHTeHN 3a DOnOMoTO Ka6eIIO nJepeaHi cyNYTHKOBOr paoactoTHORcHany (75Ω).

3'εДнанняадаNTep

(3anexhoBID moenii)

YBAGA

PiKIOHTb TeneB3Op Do aAnTepa KINBHeHH 3MiHOrO CTpyMy nepeTUM, kN pIKIOHTu KaebIb KINBHeHH TeENEB3Opa Do p03ETK.

Пд'энданулсI

(3aIeXHo BID MoJei)

Jaε 3Mory nepernlaTn 3akodobahi (nlaTHi) kaHn y pexmI uΦpOBOrO MOBHeHH.

Moynb cTahapTHoro iHTepfeiCy Ma 6yTu BCTaHOBeHo y rH3di InJa Kapr PCMCIA y npabunbHomy HAnpMky. RaIO Moynb He BCTaHOBHe HANEXHM YINOM, ue MOx ePn3BeCTn Do NowkoJXeHH TeneBisOpa YrH3daIJa Kapr PCMCIA.
Kuio nicn iiknoeHH C+ CAM Tenebi3op He BiO6paKa Hi Bideo, Hi ayDIO, cnI 3BepHyTcN DO onepatopa noCnyr Ha3EMHOrO/ka6eBbHorO/CNYTHIKOBORMOBHeHH.

HanaStyBaHHa BnBeDeHHa 3ByKy uepe3 rychomobci

(3anexno biM moen)

:3aJIeXHoBiD MoIeni

IPMMITKA

BukopncToByte nne i3-NonpHm CTepeoWTekepm 3,5 MM.
He nie'cnHynte rapHitpy a6o habyuHNKn do po3'Emy dna nie'edHaHHa 30BHiHbO ruyHomOBua.

CnTeMa npTy KepyBaHHr rYHicTIO

(3aJIeKHO bI d MoJIeJI)
XapakTepeNTmKKa6eJIO.

HaTnCKaHOn KNHOKN, cnpMObyTe nybT dNCTaHcHOrO KepyBaHH Ha CEHCOP DCNTaHcHOrO KepyBaHH Ha TeneBIsopi.

(3anexhoBID moenii)

A

(KNBUHENH)YBIMKHeHH Ta BUMKHeHH XNBHeHH TeneBi3opa.

TV/RAD kaHany paio-, TeneMOBHeHH a6o cnofoBoro MOBHeHH.

SUBTITLE Buknk Bn6paHux Bamu cy6TuTpib y uNphiPobomy pexmimi.

1 ABaTncHeHH KHOIIKn AD BMnKae yHKuH 3BykoBOrO onNcy. (3aJekHo BiD MoIeI)

ABMOPeKIMyayIO-BiJeocurnany.(3aIeXHO BID MoJeni)

1 RAtMa FOOPATyO6paXeHHa ekpaHi. (3anexHo BiD moJIeI)

1 BxID), 3nepena BxHoro CnHany. (3aneXHO BiD moJeI)

KhoNk 3 uΦpamn BBeHeHnaΦp.

LIST DocTy nO cnNCKy 36epeXeHn npOrpam.

Q.VIEW TObepHHeHnDo nonepeHbOro KaHany.

B

+PerynIOBaHHpIBHryHocti.

FAV Doctyn do cncky Bn6paHnx KaHaiib nn nporpaM.

GUIDE BuknkdoBidnka nporpaM.

BUMKHEHH 3BYKY), MHTHn 3ByKy.

(3aJIeXHO BID MoIeNi)

Ipeerna36epekehenx kaahaiB nn nporpaM.

AGE Iepexid nopepehbo ro n HacTyHoro ekpaHa.

C

KhoNpexnMy TeJeTeKcy TEXT,T.0PTI KHOINBHKOPNCTOBYOTbCra IynpabNIHHA TeJETEKTOM.

（IM）IOCTyI IO MEHIO TOnOBHe MEHIO.(3aIexHO BID

01IpeerIaIhfoopMaui noToHoi nporpaMn ta ekpaHa. HoBID moJeni)

anaTuBaHHa), SETTINGOCTyn Do MeHn npaMeTpib. (HO BID MoDeni)

U Bn6ip MeHIO WBNKORO DOCTNY.
uhi KhoNk (Bropy/0oH3y/niBopyu/npaBopuy)
ueHHa NHTAMM MeHIO Ta npaMaTePamn.

6ip nyHKTu cnnapaMeTpMa MeHTo Ta niTBepeJKeHHBn6Opy.

K, BACK IOBepHeHHa DO nonpeHbOro pIBHa. HO BiM MoDeni)

EXIT Buxi3 ekpaHHoro MeHIO Ta noBepHeHHa Do pexmMy nepernay Teenporpam.

D

NFO IpeerIaI hOpMaui noToHoi nporpaM Ta ekpaHa. HO BID moJei)

mPLNK Doctyn do aydiobideonpncptoib, ndknouehnx 3a oroIO ka6eHIO HDMI uepe3 HDMI-CEC. BiO6paXeHHa MeHIO INK". (3aIexHIO BiM moJI)

C/* NoyatoK 3aIncy i BiIO6paXeHHa MeHIO 3aIncy. HO BID MoDeni)

TNCHEHHKHOHKNADBMKAeFyHKQIO3ByKOBOOONCY. HO BIDMOJeni)

KepyBaHHaII,II,（YnpabHnHaIMeIiHM BMICTOM.

poBI KhoNKn DoCTyn Do neBHX FyHKuY DeAKNX MeHIO. YepBOHa, :3eneHa, :KoBtA, :CnHa)

(3anexknobidmoneni)

A

(XXMBNEHH)YbIMKHeHH Ta BIMKHeHH XNBHeHH TeneBi3opa. ENERGYSAVING PeryIOBaHH RcKpaBOCTI 306paXeHH 3 MeTOO 3MeHHeHH CNOXBHaHH EneKTpoeHeprii.

ABMqExMyayio-BiDeo CnHany. INRuta DxkepeNa BxIDHO CnHany.

TV/RAD KaHany paio-, TeneMOBHeHH a6o cnpoBOr MOBHeHH.

KhONK3 uΦpamn BBeEHHaΦp.

LIST DocTyn do cnNcky 36epexeHnx nporpaM.

Q.VIEW NObepHeHHaNopeHbOro KaHaNo

B

+PerynIOBaHHpIBHryHocti.

FAV Doctyn do cncky Bn6paHnx KaHaiB YN nporpaM.

RATIO Resizes an image.

MUTE MMKHeHHa 3ByKy.

P P PepereTnA 36epeKeHenK KaHaiB Yn nporpaM.

PAGE Iepexid o nonepedhboro uHaCtynHoro ekpana.

C

GUIDE BnKnIbDObiDnHka nporpaM.

PORTAL BiO6paKeHHI BnDaneHHIHTepaKTUBHO MeHOTOTENIO.

INFO Ipeperna iHOpMaui noToHoi nporpaMu Ta ekpHa. Habirauii KhoKn (Bropy/0On3y/Inbopy/pnbopuy) IpepeiennyHKTaMm MeHIO Ta npaMeTpAmu.

OIB6ip NyKty uH npaMeTp a MeHIO Ta NiTBePdxKeHHBn6opy.

SETTINGSDoctynoMeHIOnapaMeTpiB.

(BACK) NobepeHHa do noonepeHbOro pIBHa.

EXIT Buxi3 ekpaHHoro MeHIO Ta noBepHeHHa Do pexKIMy nepernny TeIenporpam. KonbopoBi KhoNKn Doctyn Do neBHnx fYHKui y DeAKNX MeHIO. :UepBOHa, :SeHeHa, :XOBra, (CnH)

D

KhONkpeKmY TeTeKcty 1EeOIOOPT
BnKOpNCTOBYbTcRdIyynpaBlnHrTeTeKCTOM.
SUBTITLE BnKNK Bn6paHnx BamC cy6tntpIB yuNphiPobomy
peKmI.
KhONk KepyBaHHa, ,II, 已 YnpabInHn
MylbTMMeiHn BMICTOM.
SIMPLIK Doctyno ayioBideonpcTroib, niKnIOueHnx 3a
DonomoroIO Ka6JIHO HDMI uepe3 HDMI-CEC. BiO6paXeHHa MeHo "SIMPLINK".
Q.MENU Bn6ip MeHIO uBnKOro DoCTyny.
AD HatncHeHHa KHONk AD BmKAe FyHKUIO 3BykoBOrO onNCy.
ALARM HanaTuBaHHa FyHKUII 6yDnIbHnka. (3aJexHO BiD MoJeNi)

JIiueH3ii

Ha6ip liueh3i moke 6yTu pi3Hm 3aIexHo BiD MoJeni. DeTalbHiwy iHopMaio npo liueh3ii dUbiTBcra Ha Be6-caTi www/lg.com.

DOLBY.

DIGITAL PLUS

BnroToBneo 3a liueh3ieo KOMnHaIIi Dolby Laboratories.

Dolby Ta em6bema 3 noDBiHMM "D" - ToproBeIbHi MapKn KOMnaii Dolby Laboratories.

HIGH-DEFINITION MULTIMEDIA INTERFACE

«HDMI, HDMI High-Definition Multimedia Interface ta norotmHDMI € TopriBeIbHIMM MapKamn a6o 3apecTpoBaHIMN TopriBeIbHIMM MapKamn HDMI Licensing, LLC B CIIJA ta iHuxk paihax.»

This DivX Certified device has passed rigorous testing to ensure it plays DivX® video.

To play purchased DivX movies, first register your device at vod.divx.com. Find your registration code in the DivX VOD section of your device setup menu.

DivX Certified® to play DivX® video up to HD 1080p, including premium content.

DivX, DivX Certified and associated logos are trademarks of DivX, LLC and are used under license.

Covered by DivX Patents 7,295,673; 7,515,710; RE45,052; and others available at [www.divx.com/patents].

Повимлени zuo nporpaHoro 3a6e3neueHn 3 BiKpTm KODom

Ioo6 OTPMaTH BuxiHn Ko3a liueh3ieGPL, LGPL, MPL qH iHmMi BiNobiHmN liueh3iaMn, AkiMiCtntbcr y cboMy Bnpo6i, BiDjaTe CTopihkY http://opensource.lge.com.

Ha doataokdo BuxiHoro Koody Moxha 3aBaHTaXHTu ci yMOBb BiNobiDnHex Niueh3i, BiMDOBu Bi DBiNobiDaIbHoCTi i NobiDomHeHH npo aBtopcbKi npaba.

KomnaHia LG Electronics HadaCTb TakoB BiKpnTn BxidHn KoHa KOMnAaT-DnCKy 3a OnNaTy BapTOci BUKOHaHH TaKoro p03NoBcIOJKeHHN (HaNPuKJa, BApTOci HOcI, nepeCnHaHH i TpaHCnpTyBaHH) nicra HaDCnHaHH BIDNOiDHorO 3aHTy Ha eNeKTpOnHyy aDpecy [e-mail]. Lya nponoZiuJdiHcHbPnoDBX Tpbox (3) pokIB 3 MoMeHTy pnID6aHH npodykTu.

YcyHeHH HeCnpaBHOCTeI

Длвскоганehн рботи ппстpoю можна онови Версio nporpam Horo 3a6e3neueHH. KopntyBaayebi notpi6no nepekoHaTnca lo do cmyichocti CBOrO o6naHann i3 nporpaHmM 3a6e3neueHHM LGE.Якso notpi6Ho,3BepHtbcra do LGI e3aBaHTaxTe nepebipyeh Vepciio nporpamHoro 3a6e3neueHH 3r1ho i3 BkazibKam Bi LGE.

HeBdaetbcKepyBaTnTeleBizOpom3aDonomoroIpybTa ductauHIOKepeBaHH.

• Ipebeipte ceHcop nyIbTa dNCTaHcuiHoro KepyBaHHa H Bnpo6i Ta cnpo6yute ue pa3.
• yCyHbTe 6yDb-Якп epeшKoДm MIX NpIbTOM mCTaHcIMHO KepyBaHH Ta TeJIeB3OpM.
  IpebeipTe pecypc 6aTapei Taix HaneXHe po3TaUyBaHHn DO ① ,② 0 )

Hemae 306paXeHHa Ta 3ByKy.

• Ipebeipte, yu Bpi6 yBIMKHeo.
  Ipebeipte nIDcHnHHKa6eIO KJbEnHNo pO3eTKHa CTHI.
• IpepeipTe, nI cnpabHa po3eTKa, nID'cHabuN do Hei Hwi npictpoi.

TeneBisop panTOBO BIMKAcTbCA.

• PepebiTe HanaWtBuHaHH peKIMy ynpabHnH XuBHeHHM. MoKe BiD6yBaTncb 36i niOaui KInBneHH.
  Ipebeipte,ynyBIMKHeHO fYHKuii ABTom. ouikyBaHHa (3anexHo BID Moeni)/YacBmKHeHH/Taimep Chy y HalaawTyBaHHx 4ACy.(3anexHo BID Moeni)

Ipebeipte,ynyBIMKHeNo fHyKuII ABTom.0uyKyBaHHa (3anexHo BiMoJe) / TaMep cHy/BumKHeHHx KnBHeHH 3a TaMePOM y HanaStyBaHHx TaMepn.(3anexHo Bi MoJe)

• RaKIO yBIMKHeHn TeJIeBI3Op He OTPMHy cRHaIy, BiH aBTOMaTNUHO BIMKHeTBcA Yepe3 15 XBUNH 6e3IaIbHoCTi. Y pa3i NiI'cDHaHHNo po3'Emy PC (RGB/HDMI/DVI) BiO6paKaTaBCa NobIDOMHeHH "HemaE CRIHaIy" a6o "HenpaBInbHm FOpMaT cRHaIy".

BIMKHTb iyBMKHITb TeneBizop 3a donomoroI npNbTa DnCTAHUIHOrO KepyBaHHa.
3Noby niD'eHaHte Ka6eBb RGB/HDMI.
- Ipepe3aBaHTaXTe KOMn'IOTe 3 yBIMKHeHm TeJIeBi3OpOM.

InΦopMaúi ΣoO 3aBaHTaJxHNeI npOrpaMHorO 3a6e3neuHNe

• ВикоростовуITEинформасIONдЯпсстpoьсерiiLW540S.
  ПогамнeЗабзпецнг SuperSign i nociбнК можна заыт枪ив 3 Be6-caITy LG Electronics.https://www.lgecommercial.com/digital-signage/support/download/supersign
  ПогамнeЗабзпецнг:SuperSign W_Lite_Server_vX.X.X_Setup.zipSuperSign C_vX.X.X_Setup.zipSuperSign W_Editor_vX.X.X_Setup.zipSuperSign WPLAYER_vX.X.X_Setup.zip
  Посiбнк:SuperSign W_Lite_Server_vX.X.X_Manual.zipSuperSign C_vX.X.X_Manual.zipSuperSign W_Editor_vX.X.X_Manual.zipSuperSign WPLAYER_vX.X.X_Manual.zip

TexhiHi xapaKTepuCTnKn

DocynHi My3nHi faInn

Tun pfaijny:mp3

[WBnKictb nepaui daHnx] 32-320 K6iT/c

[YaTota nckpeTn3aui] 16KΓ-48KΓ

[Плдтимka]MPEG1,MPEG2,Layer2,Layer3

Tun fainy: AAC

[BwNkictb nepaay daHnx] BilbHHoPmAt

[YaTota DaNcKeTpN3aui] 8Kt～48Kt

[Плгимка] ADIF, ADTS

Tun pfaiyu:M4A

[BwndkiCTbpeepaichiDaHnx]BilbHHΦopmat

[YaTota DnckpeTn3aui] 8KtU 48 KtU

[Плдтумka] MPEG-4

Tun qainy:WMA

[WbnkiCTb nepaui daHnx] 128-320K6it/c

[YaTota DaNCKpeTn3aui]8Kt～48Kt

[Плдтумka] WMA7, WMA8, WMA9 Standard

Tun phauny:WMA 10 Pro

[üBnkiCTb nepaui daHnx] npu6bn.768KbiT/c

[KaHann /YacToTa NcKpeTn3aui]

M0:do 2 kahanib no 48 kTc (okpim pekimy Hn3bkoi uBnKocti

nepedaui daHnx),

M1:do5.1KaHaNIB no 48KtU,

M2:do5.1KaHaiB no 96KtU

[ПиТримka] WMA 10 Pro

(Tinbkn LW54**, LW341*)

TnФa尼y:OGG

[WBnKicb nepaui daHx] BinbHn fOpMaT

[HaTota DnKpeTn3aui] 48

[Плстимka]OGG Vorbis

(Tinbkn LW340, LW31, LW30*)

Tun phaiyny:OGG

[WBnKicb nepaui daHx] BInbHn foopMaT

[YaTota DnckpeTn3aui] 8KtU 48 KtU

[Плгимма]OGG Vorbis

Tun pfaiyu:WAV

[WBnkiB peepaui daunx] 64 k6it/c ~1,5 M6it/c

[YaTota DnckpeTn3aui] 8Kt\~48Kt

[ПиТримka]LPCM

[Tn6nHaKoIbOpy]86iTu/166iTu/246iTu
