USER MANUAL KM80 H.KOENIG

Front Protection cover

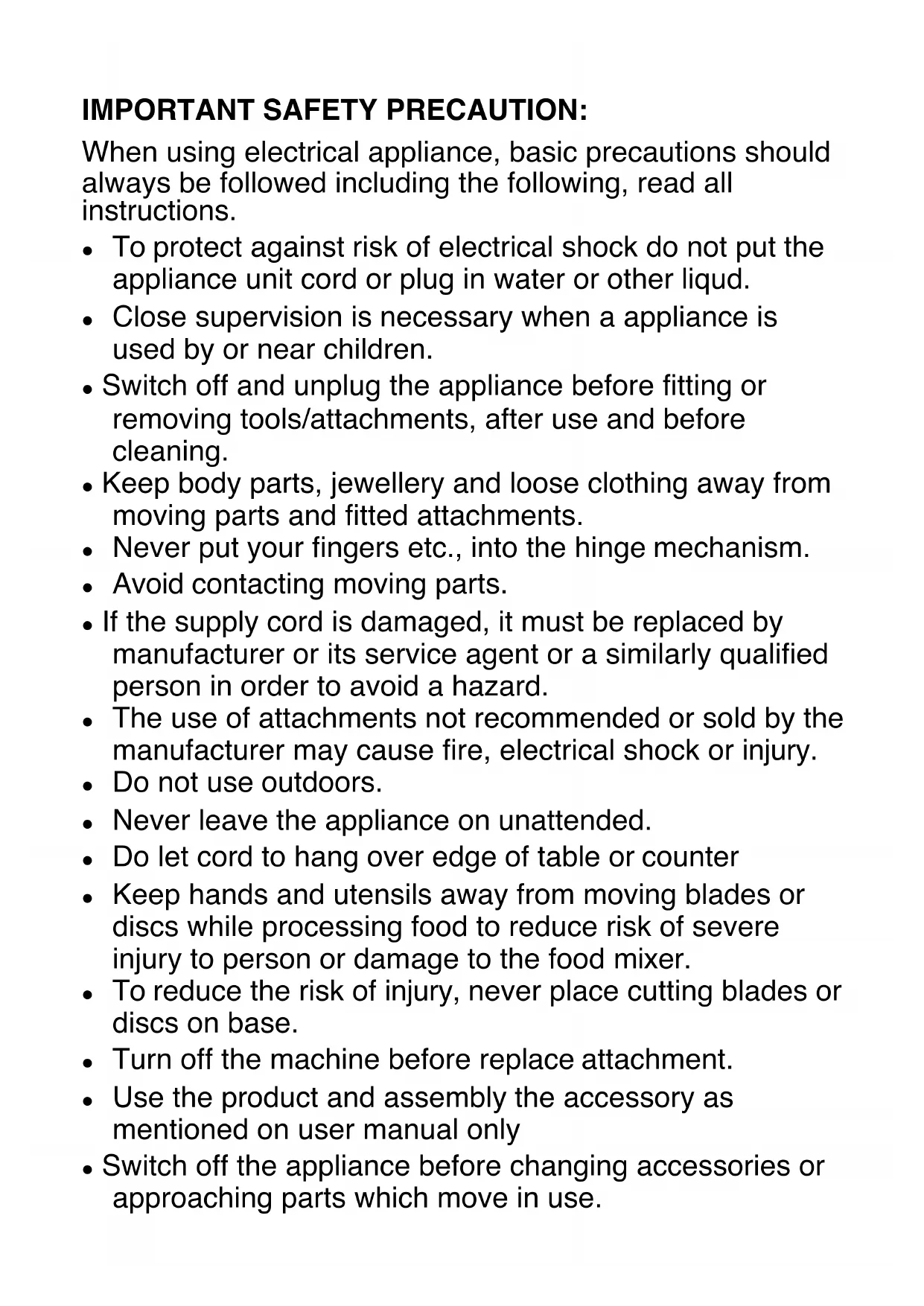

KnobIMPORTANT SAFETY PRECAUTION: When using electrical appliance, basic precautions should always be followed including the following, read all instructions. l To protect against risk of electrical shock do not put the appliance unit cord or plug in water or other liqud. l Close supervision is necessary when a appliance is used by or near children. l Switch off and unplug the appliance before fitting or removing tools/attachments, after use and before cleaning. l Keep body parts, jewellery and loose clothing away from moving parts and fitted attachments. l Never put your fingers etc., into the hinge mechanism. l Avoid contacting moving parts. l If the supply cord is damaged, it must be replaced by manufacturer or its service agent or a similarly qualified person in order to avoid a hazard. l The use of attachments not recommended or sold by the manufacturer may cause fire, electrical shock or injury. l Do not use outdoors. l Never leave the appliance on unattended. l Do let cord to hang over edge of table or counter l Keep hands and utensils away from moving blades or discs while processing food to reduce risk of severe injury to person or damage to the food mixer. l To reduce the risk of injury, never place cutting blades or discs on base. l Turn off the machine before replace attachment. l Use the product and assembly the accessory as mentioned on user manual only l Switch off the appliance before changing accessories or approaching parts which move in use.l This appliance may be used by persons with reduced physical, sensory or mental capabilities or lack of experience or knowledge, provided that they are supervised or instructed in the safe use of the appliance and that they fully understand the potential hazards. l Children should be supervised to ensure that they do not play with the appliance. l The device must not be used if it has been dropped, it obvious signs of damage are visible or if it has leaks. l This appliance may be used by children of at least 8 years of age, as long as they are supervised and have been given instructions about using the appliance safely and are fully aware of the dangers involved. l Cleaning and maintenance should not be carried out by children unless they are at least 8 years of age and are supervised by an adult. l Keep the appliance and its power cord out of reach of children under 8 years of age. l When using electrical equipment, safety precautions must always be taken to prevent the risk of fire, electric shock and/or injury in the event of misuse. l Make sure that the voltage rating on the typeplate corresponds to your main voltage of your installation. If this is not the case, contact the dealer and do not connect the unit. l Never leave the unit unattended while in operation. l Please keep this document at hand and give it to the future owner in case of transfer of your device. l The device must not be used if it has been dropped, it obvious signs of damage are visible or if it has leaks. l This appliance is only intended for domestic and indoor use. l Before cleaning the blender, make sure it is unplugged.l This appliance may be used by children of at least 8 years of age, as long as they are supervised and have been given instructions about using the appliance safely and are fully aware of the dangers involved. l Cleaning and maintenance should not be carried out by children unless they are at least 8 years of age and are supervised by an adult. l Keep the appliance and its power cord out of reach of children under 8 years of age. l When using electrical equipment, safety precautions must always be taken to prevent the risk of fire, electric shock and/or injury in the event of misuse. l Make sure that the voltage rating on the typeplate corresponds to your main voltage of your installation. If this is not the case, contact the dealer and do not connect the unit. l Never leave the unit unattended while in operation. l Please keep this document at hand and give it to the future owner in case of transfer of your device. l Before cleaning the blender, make sure it is unplugged. l The device is not intended to be operated by external timer means or a remote control system. l This appliance is only intended for domestic and indoor use. l Your appliance has been designed for domestic use only. It is not intended for use in the following situations which are not covered by the warranty: l - in staff kitchen areas in shops, offices and other professional environments, l - in farm hostels, l - by guests in hotels, motels and other residential environments, l - in bed and breakfast type environments.SAVE THESE INSTRUCTIONS SWITCH OFF-----Stop Setting1-4----- Operating speed Setting1-----Minimum speed--slow Setting4-----Maximum speed—fast

33rpm/50rpm 1.5min at button 1 and 8 min at button 2 Balloon Whisk

5minOPERATING POSITIONS Warning! Operate the appliance only when the accessory/tool is attached according to this table and is in the operating position.

Risk of injury from the rotating tools! While the appliance is operating, keep fingers clear of the mixing bowl. Do not change tools until the appliance is at a standstill and have been unplugged. When switch off, the drive continues running briefly.

Set up Kneading Hook, Beater, Balloon Wisk, according to your desire Position

Stirrer, Eggbeater, Kneading hook

Align the arrow on front protection cover to the one on arm, and then revolve it into arm counter-clockwise.

Revolve the knob clockwise; meanwhile, set the arm to the position as picture shown.

Assembling the bowl filled with powder into base flute clockwise.

Assembly bowl cover into arm counter- clockwise.

According to your desire, assembly beater, balloon wish, kneading hook into rotating axis then revolve them clockwise (As picture shown).6. l Press arm down to position as picture shown. l Power on. Set switch to the appropriate speed.

After food is ready, set the control panel to “OFF” then unplug. Turn the knob clockwise and set arm up to position as picture shown.

Remove bowl with prepared food counter- clockwise.

Press arm down to position as picture shown.r top rack of dishwaherer. Rinse and dry IMPORTANT!

1. The temperature of water which will be added into dough at 40+/-5 ℃degree when preparing

for dough is on progress.

2. Do not operate the appliance for more than 10mins consecutively when the dough hook, flat

beater, and whisk are working. Running the appliance continuously for too long without a break may reduce the life span of the appliance. After having used the appliance for 10 minutes, take a break and wait at least 40-45 minutes before using it again.

3. If at any time, the mixer head is raised during an operation, the mixer will

automatically stop and it will not re-start when the mixer head is lowered. To re-start the mixer turn the speed control to the off “ 0” position and then re-select a speed.

CLEANING AND SERVICING

Never immerse the base unit in water or hold under running water. Do not use abrasive to clean Wipe unit with a damp cloth, if required; use a litter washing up liquid. Then wipe unit dry. Do not wedge plastic parts in the dishwasher as the could warp Wash attachment in hot soapy water After washing and drying, immediately place attachment into the protective sleeve for storage.

1.5kg flour and 0.75Kg water When stirring flour, power gets to 1000W. KB1 min WARRANTY The warranty period for our products is 2 years, unless otherwise stated, starting from the date of initial purchase or the date of delivery. If you have any problems or questions, you can easily access our help pages, troubleshooting tips, FAQ, and user manuals on our service site: https://sav.hkoenig.com. By typing the reference name of your device in the search bar, you can access all available online support, designed to best meet your needs. If you still cannot find an answer to your question or problem, then click on “Did the answer solve your problem?”. This will direct you to the Customer Support Request Form, which you can fill out to validate your request and get help. WARRANTY CONDITIONS The warranty covers all failures occurring under normal use, in accordance with the usage and specifications in the user's manual.This warranty does not apply to packaging or transportation problems during shipment of the product by the owner. It also does not include normal wear and tear of the product, nor maintenance or replacement of consumable parts.

EXCLUSION OF WARRANTY

- Accessories and wearing parts (*). - Normal maintenance of the device. - All breakdowns resulting from improper use (shocks, failure to comply with power supply recommendations, poor conditions of use, etc.), insufficient maintenance or misuse of the device, as well as the use of unsuitable accessories. - Damage of external origin: fire, water damage, electrical surge, etc. - Any equipment that has been disassembled, even partially, by persons other than those authorized to do so (notably the user). - The products whose serial number would be missing, deteriorated or illegible that would not allow its identification. - The products subjected to leasing, demonstration, or exhibition. (*) Some parts of your device, called wear parts or consumables, deteriorate with time and frequency of use of your device. This wear and tear are normal but can be accentuated by poor conditions of use or maintenance of your device. These parts are therefore not covered by the warranty. The accessories supplied with the device are also excluded from the warranty. They cannot be exchanged or refunded. However, some accessories can be purchased directly through our website: https://sav.hkoenig.com/.

ENVIRONMENT CAUTION: Do not dispose of this product as it has with other household products. There is a separation of this waste product into communities, you will need to inform your local authorities about the places where you can return this product. In fact, electrical and electronic products contain hazardous substances that have harmful effects on the environment or human health and should be recycled. The symbol here indicates that electrical and electronic equipment should be chosen carefully, a wheeled waste container is marked with a cross. Adeva SAS / H.Koenig Europe - 8 rue Marc Seguin, 77290 Mitry-Mory, France www.hkoenig.com - https://en.hkoenig.com - Tél: +33 1 64 67 00 05FRANÇAIS
