USER MANUAL KOL7812 H.KOENIG

H SAFETY INSTRUCTIONS

Thank you very much for selecting this new model of Portable Air Conditioner, please read this Use and Care Manual carefully before installing and using this appliance. Please keep this Use and Care Manual properly for future reference.

The refrigerant used in portable air conditioner is the environmentally friendly hydrocarbon R290. This refrigerant is odorless, and compared to the alternative refrigerant, the R290 is an ozone-free refrigerant.

Please read the instructions before use and repair.

The drawings provided in this manual may not be the same as the physical objects. Please refer to the physical objects.

WARNING

• Do not use means to accelerate the defrosting process or to clean, other than those recommended by the manufacturer.
• The appliance shall be stored in a room without continuously operating ignition sources (for example: open flames, an operating gas appliance or an operating electric heater.)
• Do not pierce or burn.
• Be aware that refrigerants may not contain an odour.
• Appliance shall be installed, operated and stored in a room with a floor area larger than 12.5 ~m^2 .
• Keep any required ventilation openings clear of obstruction.
  Servicing shall be performed only as recommended by the manufacturer.
• The appliance shall be stored in a well-ventilated area where the room size corresponds to the room area as specified for operation.
• Any person who is involved with working on or breaking into a refrigerant circuit should hold a current valid certificate from an industry-accredited assessment

authority, which authorises their competence to handle refrigerants safely in accordance with an industry recognised assessment specification.

Servicing shall only be performed as recommended by the equipment manufacturer. Maintenance and repair requiring the assistance of other skilled personnel shall be carried out under the supervision of the person competent in the use of flammable refrigerants.
- All working procedure that affects safety means shall only be carried by competent persons.
- Be careful not to bump when moving to avoid leakage in the refrigeration line.

Flammable material. Refer operators Read technical Read operators manual manual manual

This appliance contains R290/Propane a flammable refrigerant

The maximum dosage of refrigerant is 260g.

NOTES:

• The air conditioning is only suitable for indoor use, and is not suitable for other applications.
• Follow local grid interconnection rules while installing the air conditioning and ensure that it is properly grounded. If you have any question on electrical installation, follow the instructions of the manufacturer, and if necessary, ask a professional electrician to install it.
• Place the machine in a flat and dry place and keep a distance of above 50cm between the machine and the surrounding objects or walls.
• After the air conditioning is installed, ensure that the

power plug is intact and firmly plugged into the power outlet, and place the power cord orderly to prevent someone from being tripped or pulling out the plug.

• Do not put any object into the air inlet and outlet of the air conditioning. Keep the air inlet and outlet free from obstructions.
• When drainage pipes are installed, ensure that the drainage pipes are properly connected, and are not distorted or bended.
• While adjusting the upper and lower wind-guide strips of the air outlet, pluck it with hands gently to avoid damaging wind-guide strips.
• When moving the machine, make sure that it is in an upright position.
  The machine should stay away from gasoline, flammable gas, stoves and other heat sources.
• Don't disassemble, overhaul and modify the machine arbitrarily, otherwise it will cause a machine malfunction or even bring harm to persons and properties. To avoid danger, if a machine failure occurs, ask the manufacturer or professionals to repair it.
• Do not install and use the air conditioning in the bathroom or other humid environments.
• Do not pull the plug to turn off the machine.
• Do not place cups or other objects on the body to prevent water or other liquids from spilling into the air conditioning.
• Do not use insecticide sprays or other flammable substances near the air conditioning.
• Do not wipe or wash the air conditioning with chemical

solvents such as gasoline and alcohol. When you need to clean the air conditioning, you must disconnect the power supply, and clean it with a half-wet soft cloth. If the machine is really dirty, scrub with a mild detergent.

• This appliance may be used by persons with reduced physical, sensory or mental capabilities or lack of experience or knowledge, provided that they are supervised or instructed in the safe use of the appliance and that they fully understand the potential hazards.
• Do not operate this appliance if it has a damaged cord or plug, if it is not working properly or if it has been damaged or dropped. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.
• The appliance shall be installed in accordance with national wiring regulations.
• The device must not be used if it has been dropped, it obvious signs of damage are visible or if it has leaks.
• Your appliance has been designed for domestic use only. It is not intended for use in the following situations which are not covered by the warranty:
• in staff kitchen areas in shops, offices and other professional environments,
• in farm hostels,
• by guests in hotels, motels and other residential environments,
• in bed and breakfast type environments.

TRANSPORTATION, MARKING AND STORAGE FOR UNITS

1. Transport of equipment containing flammable refrigerants Compliance with the transport regulations
2. Marking of equipment using signs Compliance with local regulations
3. Disposal of equipment using flammable refrigerants Compliance with national regulations
4. Storage of equipment/appliances

The storage of equipment should be in accordance with the manufacturer's instructions.

1. Storage of packed (unsold) equipment

Storage package protection should be constructed such that mechanical damage to the equipment inside the package will not cause a leak of the refrigerant charge.

The maximum number of pieces of equipment permitted to be stored together will be determined by local regulations.

The appliance shall be stored so as to prevent mechanical damage from occurring Remark:

The best operating ambient temperature for cooling is 17 - 35^ , and the optimum ambient temperature for heating is 8 - 25^ .

Fuse Parameter: 5.0× 20mm 3.15A,250Vac.

Appliance is filled with flammable gas R290, and the maximum charge of refrigerant is 260g.

GWP value of R290refrigerant is 3.

Any repairs you need, contact the nearest authorized Service Centre and strictly follow manufacturer's instruction only.

FEATURES AND IDENTIFICATION OF PARTS

1. Features

• New appearance with compact design, more luxury and upscale.
• Outlet louver swing automatically and wind direction up to consumer needs.
• Beautiful and simple appearance, humanized design for remote control storage, which can be placed in storage bracket at the back of the unit body.
• Simple operation, LED digital display control panel and high-end LCD remote control.
• Winding pillar and universal socket can protect power cord better.
  24-hour Timer function, unique on/off reminding music.
• 3-minute re-start delay protection to compressor and other multiple protection functions.
• Unique exhaust hose and fasteners, convenient installation.

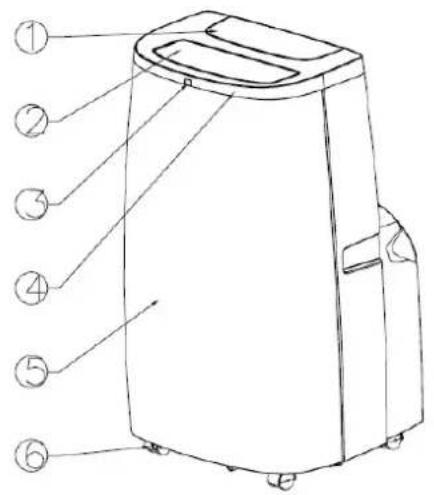

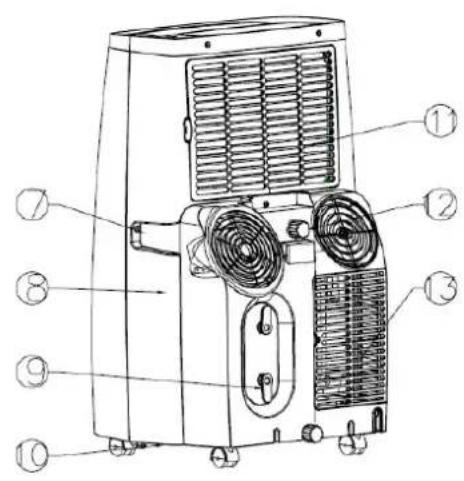

2. Identification of Parts

1. Co

ntrol panel

1. Hor

izontl louver

1. Re

mote control

receiving window

4.To

p panel

1. Fro

nt shell

1. Uni

versal wheels

1. Ha

ndle
8. Back shell
9.

Winding pillar

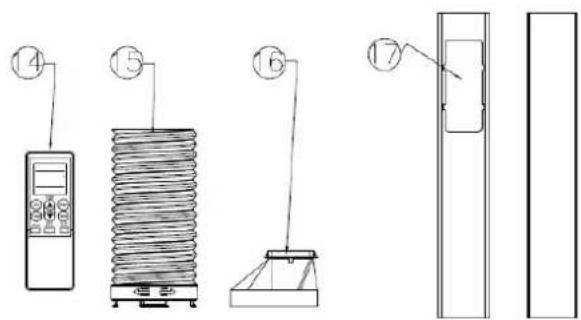

1. Ch
   assis
   11.Up
   per filter assembly
2. Dr
   ain cover and stopper
3. Lo
   wer filter assembly
4. Re
   mote control
5. Ro
   und connector and exhaust hose
6. Ad
   apter of exhaust hose
7. Wi
   ndow kits

OPERATIONS AND SETTINGS

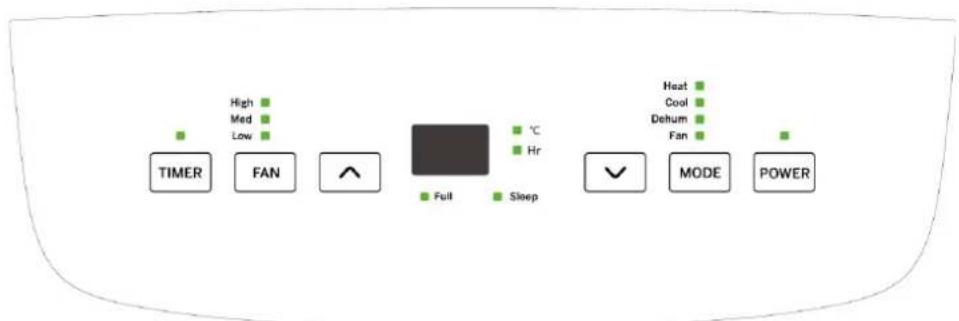

1. Control Panel

This section explains proper mobile air conditioner operation.

2. Control Panel Operation

A. Power button: Press the power button, the power indicator lights up in green; when the power is on, press the power button, the power indicator light is off (or red).
B. Mode button: Touch this key to switch and select unit working mode you want, all modes turn as COOL - DEHUM - FAN - HEAT, the indicator will light up accordingly.
C. Fan button: Press this button to change fan speed to High, Medium or Low.
D. Up button: Press the up key to adjust the set temperature or timing up.
E. Down button: Press the down key to adjust the set temperature or timing up.
F. Timer button: Press the timer button to set the timing, query timing, and cancel the timing.
G. "Up" + "Down" button: Press this group of composite keys at the same time to switch the display temperature (Fahrenheit / Celsius).
H. "Timer" + "Up" button: Press this group of composite keys at the same time to select sleep mode.

I. "Timer" + "Fan" button: Press this group of composite buttons at the same time to turn the swing function on or off.

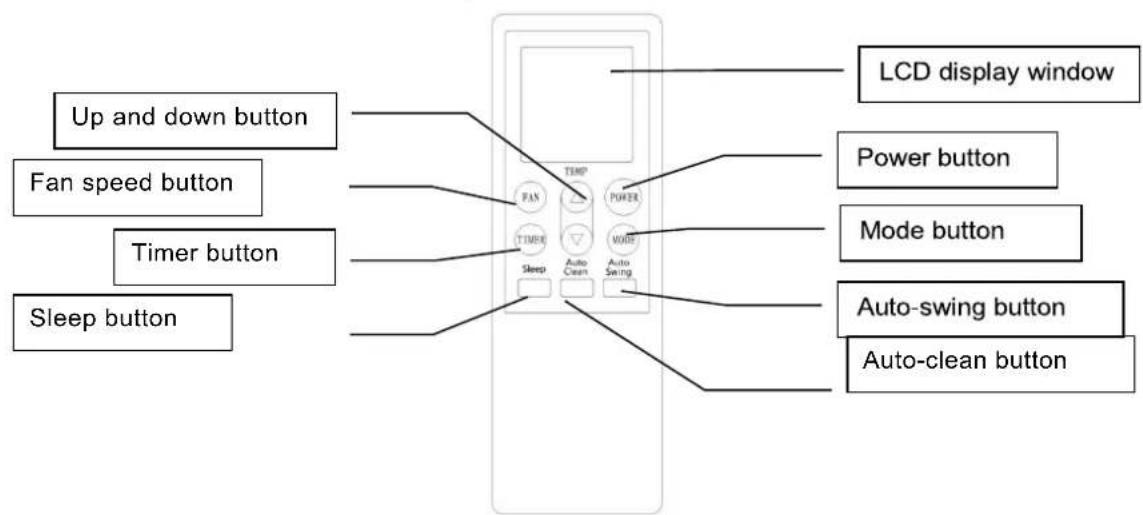

3. Remote Control Operation

1) Power: Press this button to start the unit when it is energized or stop the unit when it is in operation.
2) Mode: Press this button to select operation mode.
3:Press this button to increase room temperature and timer setting.
4) : Press this button to decrease room temperature and timer setting.
5) Fan: Press this button to select fan speed in sequence: Low Medium High.
6) Auto-Swing: Press this button to turn on or turn off auto-swing function.
7) Sleep: Press this button to select or cancel sleep mode (only effective under coolingoperation or energy conversation modes).
8) Timer: press this button to set AUTO-ON and AUTO-OFF time. Time can be adjusted between 0.5-24 hours. It jumps by 0.5 hour interval within 5 hours, and 1 hour interval over 5 hours, set time will flash 5 times on screen then confirm the setting.

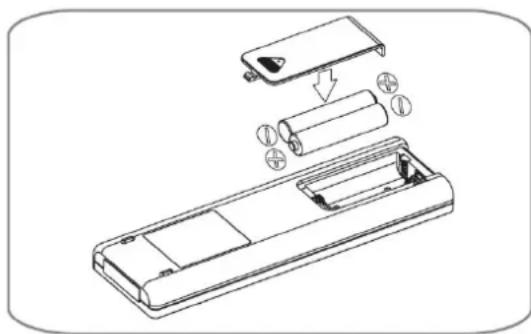

Before using your remote, install the AAA batteries into remote control.

1) Press and glide the battery cover on the back of the remote control, then you can remove the cover.
2) Insert two new alkaline AAA batteries into the battery compartment, being sure to note the proper polarity.

Reattach the battery cover, making sure the locking tab clicks into place.

Be sure to note proper polarity of batteries

Notes:

• Use alkaline batteries only. Do not use rechargeable batteries.
• When replace batteries, always replace both batteries with new batteries, do not mix old and new batteries.
• If the air conditioner will not be used for an extended period of time, remove the batteries from the remote control.

4. Remote Control Storage

1) Insert remote controller into built-in compartment in left side of unit, and push it gently for closure.
2) Press the lower part of built-in compartment gently to open it and take out remote controller. Note: In order to avoid losing the remote control, please put the remote control inside of the storage place when you not use it.

WARNING

If the liquid from the batteries gets onto your skin or clothes, wash it well with clean water, do not use the remote control if the batteries have any leakage.

If you eat the liquid from the batteries, brush your teeth and see doctor. The chemicals in batteries could cause burns or other health hazards.

HANDLING AND TRANSPORTATION

1. Handle and move the unit

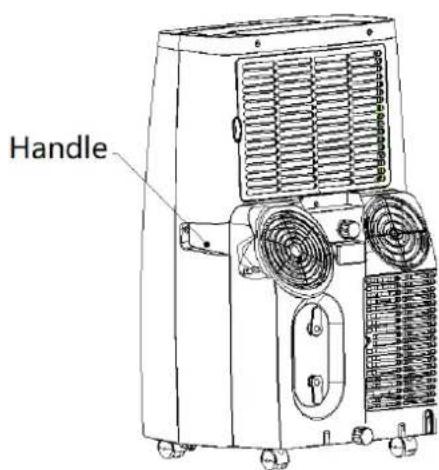

   1) Hold handles on side panels to move the unit in upright position. Note:
2. Make the unit in the upright position whatever handling or moving it.
3. Drain the water in the unit completely to prevent water leakage and wet the floor or carpet before handling or moving the unit.
   Take out the remote control from the storage area and keep it.

INSTALLATION & ADJUSTMENT

1. Installation Notes:

2. Keep this mobile air-conditioner in upright position at least 2 hours before first installation.

3. This air-conditioner may be moved indoor conveniently; keep the unit in upright position while moving it. The air-conditioner shall be placed at flat surface.
4. Do not install or operate this air-conditioner in bathroom or other wet environments.

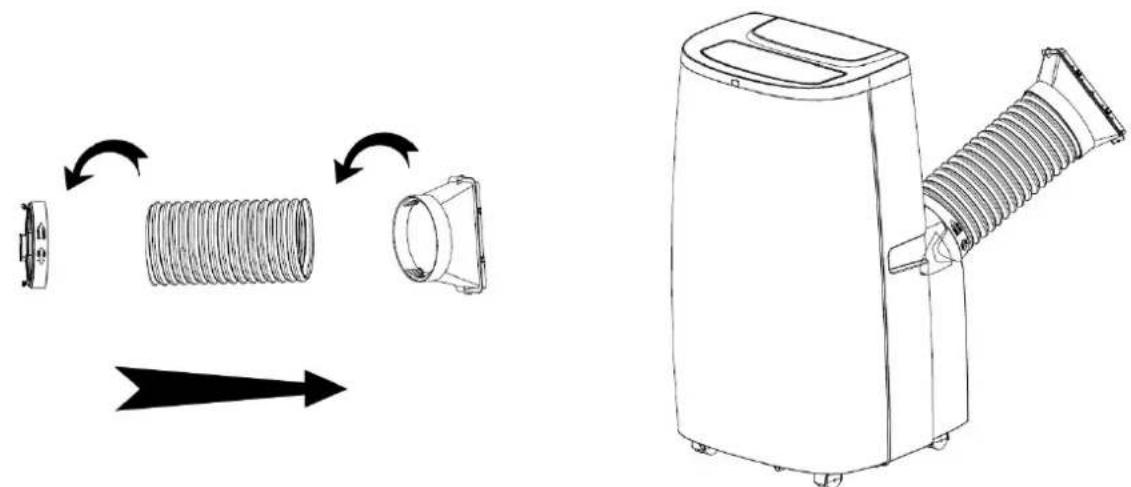

1) Installation of exhaust hose assembly and its adapter.

A. Take out the exhaust hose and its connector and adapter, to remove the plastic bag.
B. Extend one end of exhaust hose, screw the end without slot of round connector onto it with anticlockwise direction at least 3 laps.
C. Extend another end of exhaust hose, screw the adapter onto it with anticlockwise direction at least 3 laps.

Note: Screw round connector and adapter into right position, at least 3 laps, to keep good connection of exhaust hose assembly.

2) Installation of window seal-plate

A Make the window half open, put the seal-plate into window, either in vertical or horizontal position.
B. Extend seal plate parts and adjust it to the length of window, keep both ends to meet window edge, fix it with screws then.

Note:

• Keep two ends of window seal-plate to meet the window edges well, to assure seal effect.
• Turn the screw in good position.

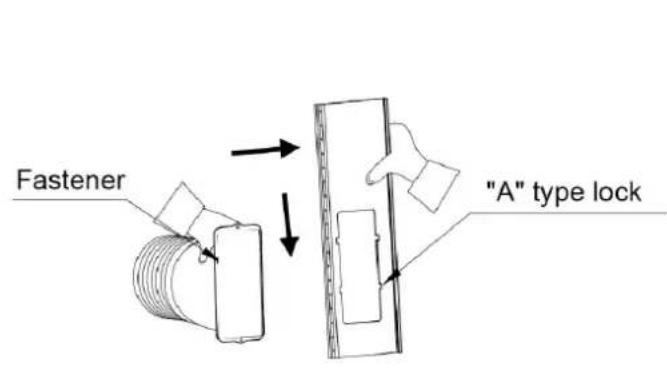

3) Installation of the unit

A. Move the unit with the exhaust hose assembly installed in front of window and keep the unit at least 50cm away from the walls or other objects.

B. Install the rectangle end of exhaust hose assembly into the corresponding rectangle hole in window seal-plate assembly, fix it with screw and close the window.

Note:

• Slide the adapter downwards and assure adapter installed in good position.
  Assure the slant panel direction to match seal-plate direction.
• Exhaust hose cannot be bent or with flexure higher than 45^ , in order to keep good ventilation of exhaust hose.

Important notes:

The exhaust hose is 280mm-1500mm long and this length is determined based on the specification of the air-conditioner (s). Do not use prolonged the hose or replace it with other different hoses as this may affect the functions of the air-conditioner. The exhaust hose must be smooth or it may lead air-conditioner overheat and damage.

DRAINAGE INSTRUCTION

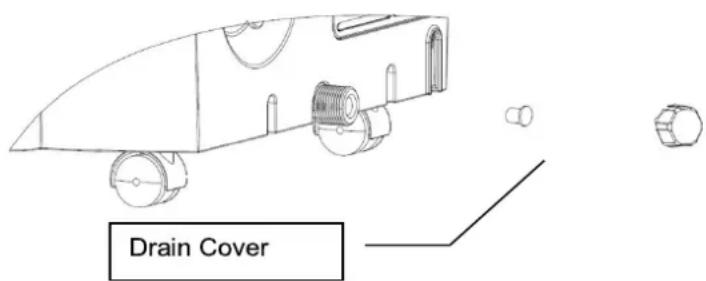

1. Manual drainage:

1) Once the unit shuts down upon water-full, turn off the unit and then unplug.
2) Put the tray below the water outlet at the back of the unit.
3) Screw off the drain cover, unplug the water stopper for water flow into the tray.
4) Plug in stopper and screw the drain cover tightly onto water outlet after drainage. Notes:

• Protect the drain cover and water stopper properly.
• Move the unit carefully to avoid the leakage it is necessary.
• Tilt the unit slightly backwards when draining.
• Block the drain hole as soon as possible before the tray is full if it cannot hold all water in the unit to prevent the water leakage and wet the floor or carpet.
• Water stopper and drain cover must be tightly installed, to avoid new condensate to wet the floor or carpet when the unit re-starts working.

1. Continuous drainage

1) Screw off the drain-cover & unplug the water stopper.
2) Connect drain-hole with 13mm drain hose, as deep as possible to avoid leakage.
3) Pull the drain hose to bathroom or outdoor. Notes:

• Drain hose must be installed when there's no water in the tray.
• It is suggested that not to use continuous drainage when unit is in COOL mode, to ensure enough water recycle in the unit to enhance the system cooling effects.
• Put the drain hose in an inaccessible place, not higher than drainage hole and keep drain hose straight without any flexure.
• Keep the drain cover and its stopper properly when continuous drainage is adopted.
• Drain pipe needs to be purchased separately

MULTIPLE PROTECTION FUNCTIONS

1. Anti-frozen protection function

Under COOL mode, when the compressor continuously runs over 10 minutes, if tube temperature is ≤ 2^ / 36^ for 20 seconds, the anti-frozen protection function will be on, E4 will be shown on LCD display, compressor and water wheel motor will stop working, but upper fan remains running; If tube temperature ≥ 8^ / 46^ , the unit will stop anti-frozen protection and recover to the original working condition. Compressor will re-start working with 3 minutes delay for protection.

1. Water-full safety alarm and shut-off protection function

When the water volume exceeds its alarm level in chassis, warning sounds automatically and water-full icon is lighting in LCD display, you need to drain the condensate and re-start the unit.(For more information about how to drain, refer to the "Drainage Instruction" please). If the unit is not shut down manually, the unit will recover to the original operating status automatically once the water is fully drained. Or connect the power to re-start the unit again.

1. Delay protection function of compressor

This unit offers restart protection to compressor. Except that the compressor may start immediately when the unit is energized first time, there is 3-minute delay re-start protection after compressor is shut down.

MAINTENANCE AND SERVICE

Note: Be sure to turn off the unit and pull out the plug before maintain or send to service center.

1. Surface cleaning

1) Clean the unit surface with wet soft cloth and do not use chemical solvents such as alcohol and gasoline to avoid any damage to unit.
2) Clean the dirty air outlet or louver with wet soft cloth and detergent.
3) Any chemical solvent is prohibited to use for unit cleaning or put such things near the unit for a long time.
4) Any thinner, alcohol-glazer or other similar solvents is prohibited for unit cleaning.

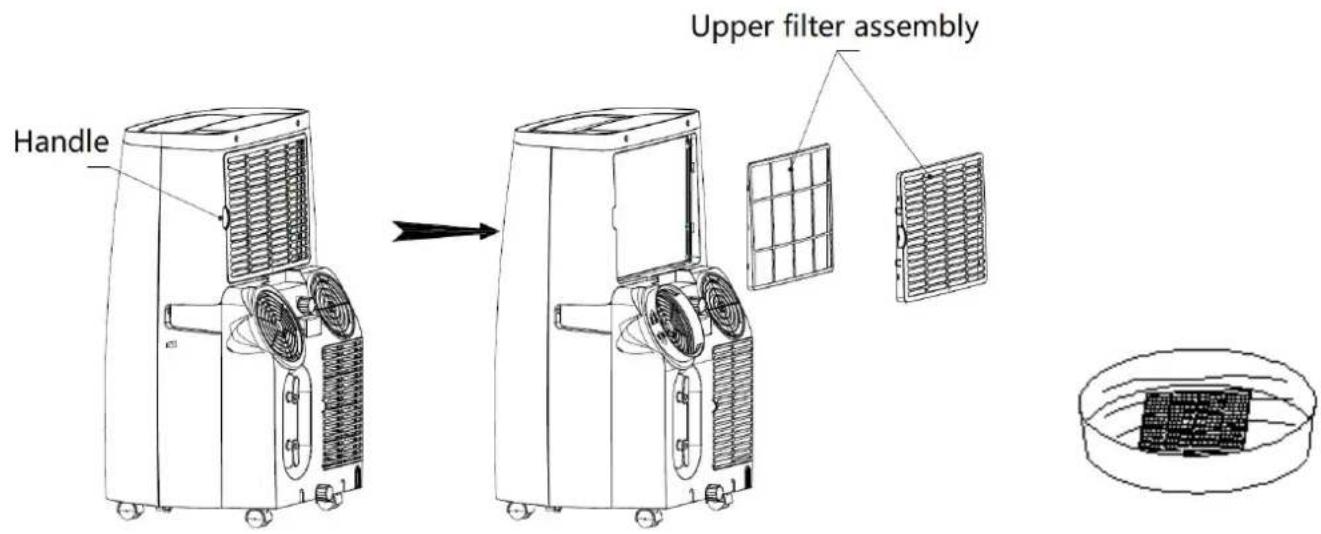

1. Filter cleaning

Clean the filter once every two weeks, or it would influence the unit function if filter clogged with dust.

1) How to clean filter

A. Grip the filter handle and pull it out gently in correct direction.
B. Clean the dirty particles in filter by cleaner if it is necessary.
C. Immerse and wash the filter gently into warm water (about 40^ C ) mixed with neutral cleaner, and then rinse and dry them thoroughly in the shade.

Notes:

• Pull out the filter gently.
• Removal of filter at back panel is at priority then for the filter at side panel, to avoid any twist or damage to filter.
• Do not squash the mesh.
• Do not hit the mesh with sharp objects or brush.

3. Installation of the filter

Aim the end of the filter toward slot then push filter gently into slot.

Notes:

• Be sure to install the filter to side panel then for the filter to back panel.
• Install the filter with opposite direction of removal.

• Install the filter into place gently to avoid any damage to filter.

• End of Season Storage

1) Screw off the drain cover and pull out the stopper to drain condensate water completely. (Note: the tilt angle of the unit must be ≤ 30^ .
2) Keep unit running in fan mode for half day to dry inside of unit completely to prevent from going moldy.
3) Turn off the unit, pull out plug then wrap the power cord around the wire-winding pillar, insert the plug into the universal fixing hole at the back panel of the unit, install the water stopper and drain cover.
4) Remove the heat exhaust hose assembly, clean and keep it properly.

Notes:

• Hold the exhaust hose assembly with both hands when removal.
• Push the fasteners aside on exhaust air outlet using your thumbs, then pull out exhaust hose assembly.
  5) Pack the air-conditioner properly with soft plastic bag and put it in dry place with appropriate dust-proof measures, and keep the unit away from children.
  6) Take out the batteries from the remote control and keep it properly.

Note:

Assure the unit is stored in a dry place. All accessories of the unit shall be protected together properly.

TROUBLESHOOTING

Please check the unit and suggestions below before asking for professional service, but never dismantle or repair the unit by yourself, it may cause harm to you and your property.

If problems not listed in the table occur or recommended solutions do not work, please contact the professional service organization.

Trouble	Cause	Remedy
The unit fails to start up	Power supply failure	Connect the unit to a live socket and turn it on.
	Water-full and its icon lighting	Drain the water stored in the unit.
	Ambient temperature too low or low high	It is recommended to use this unit between 8-35°C
	The room temperature is lower than the set temperature in cooling mode or higher temperature in heating mode	Change the set temperature
Bad cooling effects	There is direct sunlight	Close the window curtain
	The doors and windows are open, the room is crowded or there are other heat sources	Close the door and window, remove other heat sources, and add new air-conditioners
	Dirty filter	Clean or replace the filter mesh
	Air inlet or air outlet clogged	Remove the obstruction
High noise level	The unit is being placed at uneven surface.	Put the unit at a flat and firm place (may reduce noise)
The compressor does not work	Initiation of overheat protection.	Wait until the temperature decrease, the unit will re-start automatically
The remote control does not work	Too long distance	Bring the remote control close to the air-conditioner and ensure air's at signal receptor on unit.
	The remote control didn't aim at signal receptor on unit.
	The batteries have no electricity	Replace the batteries
“E1” code displays	Tube temperature sensor failure	Check the tube temperature sensor and related circuits
“E2” code displays	Room temperature sensor failure	Check the room temperature sensor and related circuits
“E4” code displays	Anti-freeze protection	Restore the functions automatically once anti-freeze protection is over.
FL Displays	Water tank in chassis is full	Drain the condensate and re-start the unit

1. Information on servicing

1) Checks to the area

Prior to beginning work on systems containing flammable refrigerants, safety checks are necessary to ensure that the risk of ignition is minimized. For repair to the refrigerating system, the following precautions shall be complied with prior to conducting work on the system.

2) Work procedure

Work shall be undertaken under a controlled procedure so as to minimize the risk of a flammable gas or vapor being present while the work is being performed.

3) General work area

All maintenance staff and others working in the local area shall be instructed on the nature of work being carried out. Work in confined spaces shall be avoided. The area around the workspace shall be sectioned off. Ensure that the conditions within the area have been made safe by control of flammable material.

4) Checking for presence of refrigerant

The area shall be checked with an appropriate refrigerant detector prior to and during work, to ensure the technician is aware of potentially flammable atmospheres. Ensure that the leak detection equipment being used is suitable for use with flammable refrigerants, i.e. non-sparking, adequately sealed or intrinsically safe.

5) Presence of fire extinguisher

If any hot work is to be conducted on the refrigeration equipment or any associated parts, appropriate fire extinguishing equipment shall be available to hand. Have a dry powder or CO2 fire extinguisher adjacent to the charging area.

6) No ignition sources

No person carrying out work in relation to a refrigeration system which involves exposing any pipe work that contains or has contained flammable refrigerant shall use any sources of ignition in such a manner that it may lead to the risk of fire or explosion. All possible ignition sources, including cigarette smoking, should be kept sufficiently far away from the site of installation, repairing, removing and disposal, during which flammable refrigerant can possibly be released to the surrounding space. Prior to work taking place, the area around the equipment is to be surveyed to make sure that there are no flammable hazards or ignition risks. "No Smoking" signs shall be displayed.

7) Ventilated area

Ensure that the area is in the open or that it is adequately ventilated before breaking into the system or conducting any hot work. A degree of ventilation shall continue during the period that the work is carried out. The ventilation should safely disperse any released refrigerant and preferably expel it externally into the atmosphere.

8) Checks to the refrigeration equipment

Where electrical components are being changed, they shall be fit for the purpose and to the correct specification. At all times the manufacturer's maintenance and service guidelines shall be followed. If in doubt consult the manufacturer's technical department for assistance.

The following checks shall be applied to installations using flammable refrigerants:

a. The charge size is in accordance with the room size within which the refrigerant containing parts are installed.

b. The ventilation machinery and outlets are operating adequately and are not obstructed.

c. If an indirect refrigerating circuit is being used, the secondary circuit shall be checked for the presence of refrigerant.

d. Marking to the equipment continues to be visible and legible. Markings and signs that are illegible shall be corrected.

e. Refrigeration pipe or components are installed in a position where they are unlikely to be

exposed to any substance which may corrode refrigerant containing components, unless the components are constructed of materials which are inherently resistant to being corroded or are suitably protected against being so corroded.

9) Checks to electrical devices

Repair and maintenance to electrical components shall include initial safety checks and component inspection procedures. If a fault exists that could compromise safety, then no electrical supply shall be connected to the circuit until it is satisfactorily dealt with. If the fault cannot be corrected immediately but it is necessary to continue operation, an adequate temporary solution shall be used. This shall be reported to the owner of the equipment so all parties are advised.

Initial safety checks shall include:

a. That capacitors are discharged: this shall be done in a safe manner to avoid possibility of sparking.

b. That there no live electrical components and wiring are exposed while charging, recovering or purging the system.

c. That there is continuity of earth bonding.

2. Repairs to sealed components

1) During repairs to sealed components, all electrical supplies shall be disconnected from the equipment being worked upon prior to any removal of sealed covers, etc. If it is absolutely necessary to have an electrical supply to equipment during servicing, then a permanently operating form of leak detection shall be located at the most critical point to warn of a potentially hazardous situation.

2) Particular attention shall be paid to the following to ensure that by working on electrical components, the casing is not altered in such a way that the level of protection is affected. This shall include damage to cables, excessive number of connections, terminals not made to original specification, damage to seals, incorrect fitting of glands, etc. Ensure that apparatus is mounted securely. Ensure that seals or sealing materials have not degraded such that they no longer serve the purpose of preventing the ingress of flammable atmospheres.

Replacement parts shall be in accordance with the manufacturer's specifications.

NOTE: The use of silicon sealant may inhibit the effectiveness of some types of leak detection equipment. Intrinsically safe components do not have to be isolated prior to working on them.

3. Repair to intrinsically safe components

Do not apply any permanent inductive or capacitance loads to the circuit without ensuring that this will not exceed the permissible voltage and current permitted for the equipment in use. Intrinsically safe components are the only types that can be worked on while live in the presence of a flammable atmosphere. The test apparatus shall be at the correct rating. Replace components only with parts specified by the manufacturer. Other parts may result in the ignition of refrigerant in the atmosphere from a leak.

4. Cabling

Check that cabling will not be subject to wear, corrosion, excessive pressure, vibration, sharp edges or any other adverse environmental effects. The check shall also take into account the

effects of aging or continual vibration from sources such as compressors or fans.

5. Detection of flammable refrigerants

Under no circumstances shall potential sources of ignition be used in the searching for or detection of refrigerant leaks. A halide torch (or any other detector using a naked flame) shall not be used.

6. Leak detection methods

The following leak detection methods are deemed acceptable for systems containing flammable refrigerants.

Electronic leak detectors shall be used to detect flammable refrigerants, but the sensitivity may not be adequate, or may need re-calibration. (Detection equipment shall be calibrated in a refrigerant-free area.) Ensure that the detector is not a potential source of ignition and is suitable for the refrigerant used. Leak detection equipment shall be set at a percentage of the LFL of the refrigerant and shall be calibrated to the refrigerant employed and the appropriate percentage of gas (25 % maximum) is confirmed.

Leak detection fluids are suitable for use with most refrigerants but the use of detergents containing chlorine shall be avoided as the chlorine may react with the refrigerant and corrode the copper pipe-work.

If a leak is suspected, all naked flames shall be removed/ extinguished.

If a leakage of refrigerant is found which requires brazing, all of the refrigerant shall be recovered from the system, or isolated (by means of shut off valves) in a part of the system remote from the leak. Oxygen free nitrogen (OFN) shall then be purged through the system both before and during the brazing process.

7. Removal and evacuation

When breaking into the refrigerant circuit to make repairs – or for any other purpose – conventional procedures shall be used. However, it is important that best practice is followed since flammability is a consideration. The following procedure shall be adhered to:

1) Remove refrigerant.
2) Purge the circuit with inert gas.
3)Evacuate.
4) Purge again with inert gas.
5) Open the circuit by cutting or brazing.

The refrigerant charge shall be recovered into the correct recovery cylinders. The system shall be "flushed" with OFN to render the unit safe. This process may need to be repeated several times. Compressed air or oxygen shall not be used for this task.

Flushing shall be achieved by breaking the vacuum in the system with OFN and continuing to fill until the working pressure is achieved, then venting to atmosphere, and finally pulling down to a vacuum. This process shall be repeated until no refrigerant is within the system. When the final OFN charge is used, the system shall be vented down to atmospheric pressure to enable work to take place. This operation is absolutely vital if brazing operations on the pipe-work are to take place. Ensure that the outlet for the vacuum pump is not close to any ignition sources and there is ventilation available.

8. Charging procedures

In addition to conventional charging procedures, the following requirements shall be followed.

1) Ensure that contamination of different refrigerants does not occur when using charging equipment. Hoses or lines shall be as short as possible to minimize the amount of refrigerant contained in them.
2) Cylinders shall be kept upright.
3) Ensure that the refrigeration system is earthed prior to charging the system with refrigerant.
4) Label the system when charging is complete (if not already).
5) Extreme care shall be taken not to overfill the refrigeration system.

Prior to recharging the system it shall be pressure tested with OFN. The system shall be leak tested on completion of charging but prior to commissioning. A follow up leak test shall be carried out prior to leaving the site.

9. Decommissioning

Before carrying out this procedure, it is essential that the technician is completely familiar with the equipment and all its detail. It is recommended good practice that all refrigerants are recovered safely. Prior to the task being carried out, an oil and refrigerant sample shall be taken in case analysis is required prior to re-use of reclaimed refrigerant. It is essential that electrical power is available before the task is commenced.

1) Become familiar with the equipment and its operation.
2) Isolate system electrically.
3) Before attempting the procedure ensure that:
a) Mechanical handling equipment is available, if required, for handling refrigerant cylinders.
b) All personal protective equipment is available and being used correctly.
c) The recovery process is supervised at all times by a competent person.
d) Recovery equipment and cylinders conform to the appropriate standards.
4) Pump down refrigerant system, if possible.
5) If a vacuum is not possible, make a manifold so that refrigerant can be removed from various parts of the system.
6) Make sure that cylinder is situated on the scales before recovery takes place.
7) Start the recovery machine and operate in accordance with manufacturer's instructions.
8) Do not overfill cylinders. (No more than 80% volume liquid charge).
9) Do not exceed the maximum working pressure of the cylinder, even temporarily.
10) When the cylinders have been filled correctly and the process completed, make sure that the cylinders and the equipment are removed from site promptly and all isolation valves on the equipment are closed off.
11) Recovered refrigerant shall not be charged into another refrigeration system unless it has been cleaned and checked.

10. Labelling

Equipment shall be labelled stating that it has been de-commissioned and emptied of refrigerant. The label shall be dated and signed. Ensure that there are labels on the equipment stating the equipment contains flammable refrigerant.

11. Recovery

When removing refrigerant from a system, either for servicing or decommissioning, it is recommended good practice that all refrigerants are removed safely.

When transferring refrigerant into cylinders, ensure that only appropriate refrigerant recovery cylinders are employed. Ensure that the correct number of cylinders for holding the total system charge is available. All cylinders to be used are designated for the recovered refrigerant and labelled for that refrigerant (i.e. special cylinders for the recovery of refrigerant). Cylinders shall be complete with pressure relief valve and associated shut-off valves in good working order. Empty recovery cylinders are evacuated and, if possible, cooled before recovery occurs. The recovery equipment shall be in good working order with a set of instructions concerning the equipment that is at hand and shall be suitable for the recovery of flammable refrigerants. In addition, a set of calibrated weighing scales shall be available and in good working order. Hoses shall be complete with leak-free disconnect couplings and in good condition. Before using the recovery machine, check that it is in satisfactory working order, has been properly maintained and that any associated electrical components are sealed to prevent ignition in the event of a refrigerant release. Consult manufacturer if in doubt.

The recovered refrigerant shall be returned to the refrigerant supplier in the correct recovery cylinder, and the relevant Waste Transfer Note arranged. Do not mix refrigerants in recovery units and especially not in cylinders.

If compressors or compressor oils are to be removed, ensure that they have been evacuated to an acceptable level to make certain that flammable refrigerant does not remain within the lubricant. The evacuation process shall be carried out prior to returning the compressor to the suppliers. Only electric heating to the compressor body shall be employed to accelerate this process. When oil is drained from a system, it shall be carried out safely.

Appendix

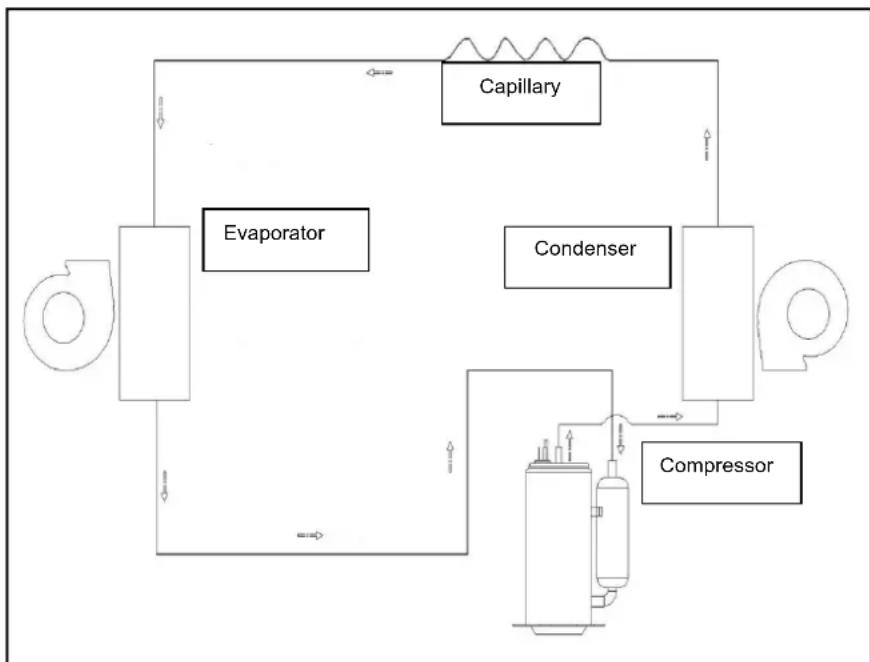

Schematic diagram of the air-conditioner

For specific technical parameters of the model, refer to rating label on the product.

WARRANTY

The warranty period for our products is 2 years, unless otherwise stated, starting from the date of initial purchase or the date of delivery.

If you have any problems or questions, you can easily access our help pages, troubleshooting tips, FAQ, and user manuals on our service site: https://sav.hkoenig.com.

By typing the reference name of your device in the search bar, you can access all available online support, designed to best meet your needs.

If you still cannot find an answer to your question or problem, then click on "Did the answer solve your problem?" This will direct you to the Customer Support Request Form, which you can fill out to validate your request and get help.

WARRANTY CONDITIONS

The warranty covers all failures occurring under normal use, in accordance with the usage and specifications in the user's manual.

This warranty does not apply to packaging or transportation problems during shipment of the product by the owner. It also does not include normal wear and tear of the product, nor maintenance or replacement of consumable parts.

EXCLUSION OF WARRANTY

• Accessories and wearing parts (^*)
• Normal maintenance of the device.
• All breakdowns resulting from improper use (shocks, failure to comply with power supply recommendations, poor conditions of use, etc.), insufficient maintenance or misuse of the device, as well as the use of unsuitable accessories.
• Damage of external origin: fire, water damage, electrical surge, etc.
• Any equipment that has been disassembled, even partially, by persons other than those authorized to do so (notably the user).
• The products whose serial number would be missing, deteriorated or illegible that would not allow its identification.
• The products subjected to leasing, demonstration, or exhibition.

(*) Some parts of your device, called wear parts or consumables, deteriorate with time and frequency of use of your device. This wear and tear are normal but can be accentuated by poor conditions of use or maintenance of your device. These parts are therefore not covered by the warranty.

The accessories supplied with the device are also excluded from the warranty. They cannot be exchanged or refunded. However, some accessories can be purchased directly through our website: https://sav.hkoenig.com/.

ENVIRONMENT

CAUTION:

Do not dispose of this product as it has with other household products. There is a separation of this waste product into communities, you will need to inform your local authorities about the places where you can return this product. In fact, electrical and electronic products contain hazardous substances that have harmful effects on the environment or human health and should be recycled. The symbol

here indicates that electrical and electronic equipment should be chosen carefully, a wheeled waste container is marked with a cross.

FRANÇAIS CONSIGNES DE SECURITÉ

MANUTENTION ET TRANSPORT

CONDITIONS DE GARANTIE
