USER MANUAL DFX500 H.KOENIG

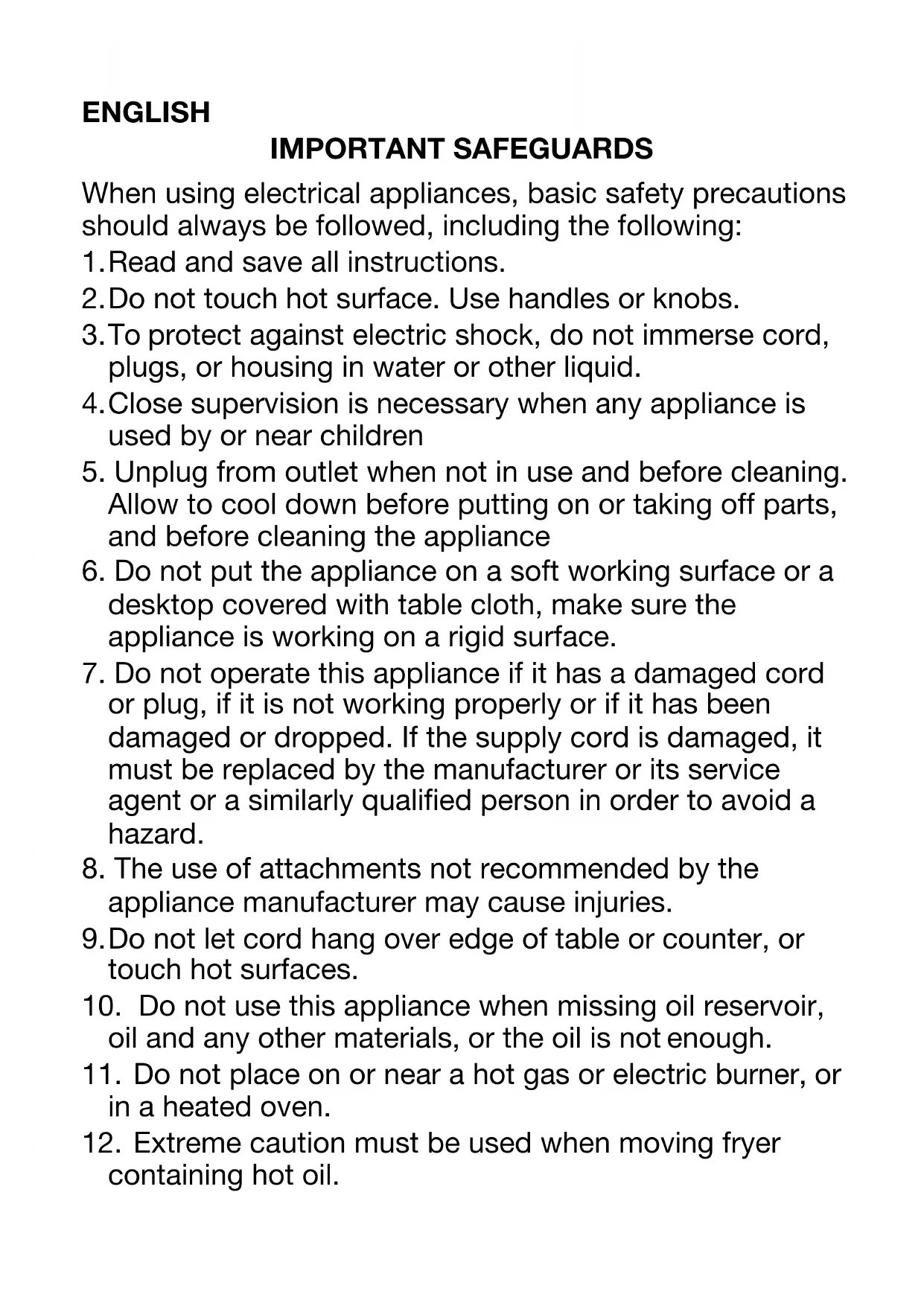

1. Read and save all instructions.

2. Do not touch hot surface. Use handles or knobs.

3. To protect against electric shock, do not immerse cord,

plugs, or housing in water or other liquid.

4. Close supervision is necessary when any appliance is

used by or near children

5. Unplug from outlet when not in use and before cleaning.

Allow to cool down before putting on or taking off parts, and before cleaning the appliance

6. Do not put the appliance on a soft working surface or a

desktop covered with table cloth, make sure the appliance is working on a rigid surface.

7. Do not operate this appliance if it has a damaged cord

or plug, if it is not working properly or if it has been damaged or dropped. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.

8. The use of attachments not recommended by the

appliance manufacturer may cause injuries.

10. Do not use this appliance when missing oil reservoir,

oil and any other materials, or the oil is not enough.

11. Do not place on or near a hot gas or electric burner, or

12. Extreme caution must be used when moving fryer

containing hot oil.13. Make sure handles are properly assembled to basket and locked in place. See detailed assembly instructions.

14. Before use, always ensure that the oil reservoir is

positioned correctly.

15. Never connect the fryer to the electricity supply

without placing oil in the oil reservoir first

16. The oil in the oil reservoir will be still hot after it is

switched off. Never attempt to move your fryer until it is completely cool down, lift the oil reservoir use the handles

17. Though the detachable oil reservoir can be completely

immersed in water and clean, it must be thoroughly dried before next use to prevent electric shock

18. Never overfill the fryer with oil. Fill only between the

minimum and maximum levels, as indicated inside the oil reservoir.

19. Do not add food with ice crystals or if it is wet to the

20. This appliance may be used by persons with reduced

physical, sensory or mental capabilities or lack of experience or knowledge, provided that they are supervised or instructed in the safe use of the appliance and that they fully understand the potential hazards.

21. Cooking appliances should be positioned in a stable

situation with the handles (if any) positioned to avoid spillage of the hot liquids

22. These appliances are not intended to be operated by

means of an external timer or separate remote-control system.

23. On completion of frying, always raise the basket and

wait a few seconds to allow steam pressure to subside.24. Do not use appliance for other than intended use.

25. Do not use outdoors.

26. Store the appliance indoors to prevent electronic parts

27. WARNING: Serious hot oil burns may result from a

deep fryer being pulled off a countertop. Do not allow the power cord to hang over the edge of a counter where it may be grabbed by children or become entangled with the user.

28. This appliance must not be immersed.

29. The device must not be used if it has been dropped, it

obvious signs of damage are visible or if it has leaks.

30. This appliance is intended to be used in

household and similar applications such as: – staff kitchen areas in shops, offices and other working environments – farm houses – by clients in hotels, motels and other residential type environments – bed and breakfast type environments

31. The surfaces are liable to get hot during use.

32. Never open the appliance from the front, always

position yourself slightly to the side to avoid burning yourself with steam.

33. Do not place the unit on a work surface. Flexible or on

a desk covered with a tablecloth. Make sure it works on a hard surface.

34. Before use, always ensure that the oil reservoir is

positioned correctly.

35. Never connect the fryer to the electricity supply without

placing oil in the oil reservoir first.36. The oil in the oil reservoir will be still hot after it is switched off. Never attempt to move your fryer until it is completely cool down, lift the oil reservoir use the handles.

37. Cooking appliances should be positioned in a stable

situation with the handles (if any) positioned to avoid spillage of the hot liquids.

38. This appliance may be used by children of at least 8

years of age, as long as they are supervised and have been given instructions about using the appliance safely and are fully aware of the dangers involved.

39. Cleaning and maintenance should not be carried out

by children unless they are at least 8 years of age and are supervised by an adult.

40. Keep the appliance and its power cord out of reach of

children under 8 years of age.

41. This appliance may be used by persons with reduced

physical, sensory or mental capabilities or lack of experience or knowledge, provided that they are supervised or instructed in the safe use of the appliance and that they fully understand the potential hazards.

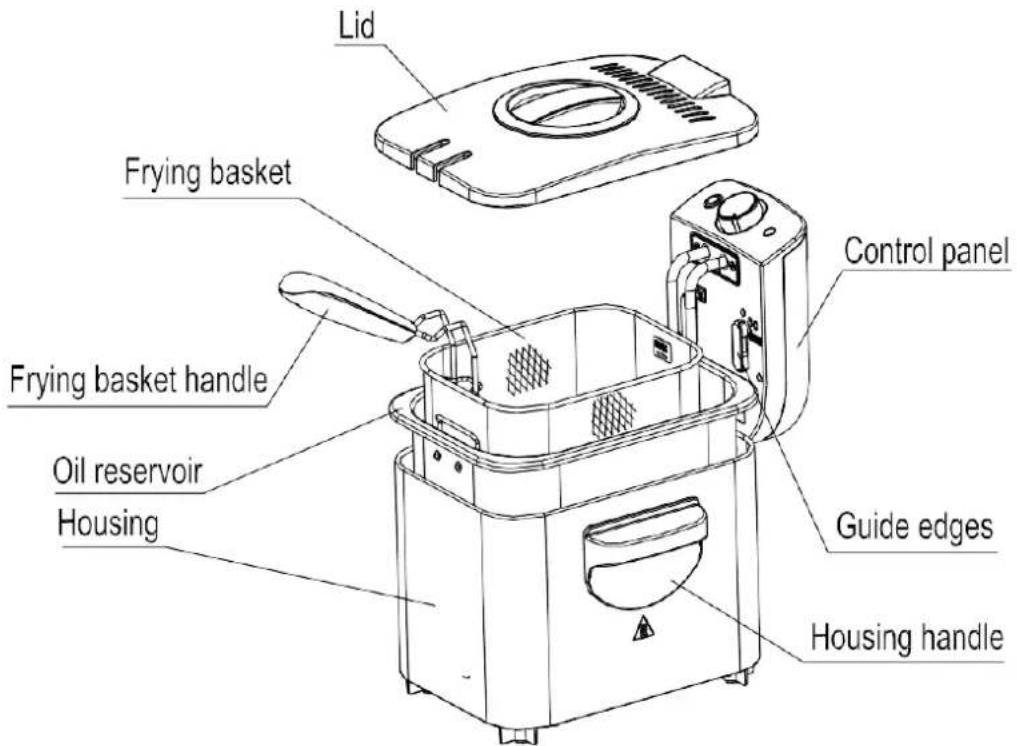

HOUSEHOLD USE ONLYPRODUCT DESCRIPTION

FEATURE The Temperature Control The temperature control knob turns the deep fryer on and sets the desired temperature for frying. The Power Light The power light illuminates when the deep fryer is on. The Ready Light The ready light will off during frying. This indicates that the temperature is thermostatically maintained. The Reset Feature Your deep fryer is equipped with a feature that protects damage due to overheating. If for some reason the unit overheats, the deep fryer will automatically turn off. Once the deep fryer is reset, it can be turned on again.

USING FOR THE FIRST TIME

Remove all the packaging materials, labels and/or stickers from the deep fryer.

WARNING: Do not plug in the deep fryer when the control panel is not installed in the

deep fryer body. Only plug in the deep fryer when the unit is fully assembled and the heating element is immersed in oil.

WARNING: Do not immerse the control panel, cord or plug in water.

WARNING: This unit should not be used to boil water.Cleaning Prior To First Use

The body, oil reservoir, frying basket, frying basket handle and the lid can be washed in warm soap water. Dry thoroughly before use.

WARNING: Do not immerse the control panel, power cord, or plugs into liquid of any kind.

To wash the deep fryer:

1. Lift the control panel with heating element out of its slots by pushing it up from the

bottom with one hand while holding the body of the deep fryer with your other hand.

2. Remove the oil reservoir from the body of the deep fryer.

Wash the oil reservoir and the frying basket with hot water, a nonabrasive sponge, and dishwashing liquid or other non-poisonous detergent. Assembling the Deep Fryer

1. Place the oil reservoir into the deep fryer housing. (Fig. 1)

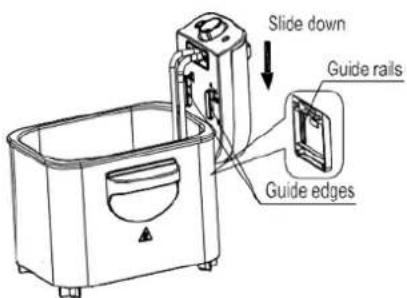

2. Insert the guide edges on the control panel into the guide

rails mounted on the metal body. (Fig.2).

3. Slide the guide edges down as far as they can go.

Note: The deep fryer has an automatic safety switch to ensure that the unit will not operate unless the control panel has been inserted securely into the guide rails on the body of the deep fryer.

4. Attach the fryer basket handle to the fryer basket by

squeezingthe handle bars together and inserting them into the metal bracket on the basket. Make sure that the end of the bars are inserted into the bracket holes. Lift the handle up to lock in place. (Fig. 3). Using the Deep Fryer

WARNING: Never plug in the deep fryer before filling the oil

reservoir with oil. Always make sure that the control panel is securely in place in the housing of the deep fryer and that the heating element is inside the oil in the oil reservoir before plugging in. Filling the Oil Reservoir:

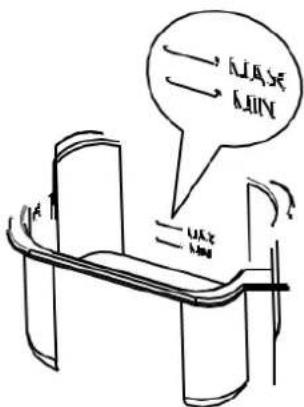

1. Pour cooking oil into the oil reservoir making sure that it is

between the “Min” and “Max” fill lines in the oil container. Do not under fill or overfill. The oil levels must be maintained between the minimum (2.2 liters) and the maximum levels (3 liters) marked inside the oil container. (Fig. 4)

2. You can use blended vegetable oil, corn oil, or canola oil. Do

not use olive oil, margarine, lard or drippings. Never mix old and new oil together or different oils and fat. Using Solid Fat:

WARNING: Do not put solid shortening in the oil reservoir or the

frying basket. 1. If using solid vegetable shortening, melt it first in a separatecontainer and then very carefully pour the melted fat into the oil reservoir.

2. Previously used solid vegetable shortening which has curdled and hardened in the oil

reservoir should be removed from the oil reservoir and melted in a separate pan before reusing.

WARNING: If you try to melt the solidified fat in the oil reservoir, there is a risk of hot melted fat

suddenly sputtering from below through the solid top layer of fat. Use only the following procedure when melting solid fat in your deep fryer:

1. Make sure the fat is at room temperature. If the fat is cold, then there is a greater risk of

2. Using a fork, carefully make some holes in the fat.

3. Make sure the lid is always securely closed while the fat is melting.

4. Set the temperature control to 170°C.

IMPORTANT: Setting the temperature will automatically turn the deep fryer “ON” and the ready light will off. The ready light will on when the fat or oil in the reservoir has reached the selected temperature. PREHEATING:

WARNING: Never plug in the deep fryer before filling the oil reservoir with oil. Always

unplug the appliance when it is not in use.

1. Make sure that the oil level in the oil reservoir is between the “MAX” and “MIN”

fill lines inside the oil container.

2. Place the lid onto the deep fryer.

3. Insert the plug into the electrical wall outlet. The power on light will illuminate.

4. Turn the temperature control to the desired

temperature. 9.The ready light will on when the set temperature is reached.

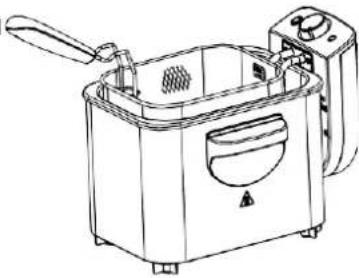

FILLING THE FRYING BASKET & FRYING

WARNING: When frying frozen foods, remove the frying basket from the deep fryer before

filling because oil will spatter and cause burns. CAUTION: When frying frozen foods such as French Fries, you should not exceed the 2/3 depth of the fryer basket. Clean off any ice from frozen food prior to frying. Failure to do so may cause fryer to overflow when food is placed in oil. CAUTION: Never plug in the control panel when it is not assembled to the fryer body. Do not immerse the control panel, power cord or plug in water or any other liquid.

1. Do not fill the frying basket when it is immersed in the hot oil.

2. Place the food in the frying basket. Do not drop the food into the hot cooking oil.

Do not overfill it and never exceed the 2/3 depth of the frying basket. For optimum results and shorter frying time, fry smaller quantities.3. Immerse the frying basket into the oil reservoir carefully so that you do not splash the oil.

4. Replace the lid on the deep fryer while it is frying.

5. When the cooking period is over, carefully remove the deep fryer

lid, lifting it up away from you to allow the steam to escape before removing the lid completely. Fig. 5

6. Keep your face away from the top of the appliance to avoid burns

caused by escaping steam.

7. Turn the temperature control to the “MIN” position and remove the plug

from the electrical wall outlet.

8. Lift up the frying basket by the handle and place it on the hook to allow

the oil to drain. (Fig. 5)

9. Once the oil has drained from the frying basket, the basket may be lifted

off and the food served or placed in a dish.

WARNING: Always let the deep fryer cool completely (approximately 2 hours) before

cleaning or storing. Never carry or move the appliance with hot oil inside. CAUTION: The metal surfaces of the deep fryer become hot during use. Do not touch the sides of the appliance while it is use.

• Always use the frying basket to fry food.

• Always close the lid during frying.

• When the oil is pre-heated, the ready indicator light will on，indicating that the desired temperature is reached.

• Slowly lower the frying basket into the hot oil. Lowering the frying basket too quickly can result in the oil overflowing and splashing.

• Replace the lid carefully.

• It is normal for steam to escape through the sides of the lid while frying.

• Avoid standing too close to the deep fryer while it is working.

• Do not mix different oils or new and old oil together.

• Replace oil regularly. In general, oil will be tainted fast when frying food containing a lot of protein, (such as poultry, meat and fish). When oil is used mainly to fry potatoes and is filtered after each use, it can be used up to 8 to 10 times, but do not use the same oil for more than 6 months.

• Always replace all oil as soon as it starts foaming when heated or when color becomes dark or when it has a rancid smell or taste or becomes syrupy.

• Make sure that the food to be fried is dry.• Remove loose ice from frozen food before frying.

• To cook evenly, pieces should be the same size and thickness.

• Thicker pieces will take longer to cook. The following cooking times reflect only the approximate time needed to fry one basket. The exact time may be different depending on actual quantity, personal cooking preferences, size and thickness of pieces, etc. TEMPERATURE SETTINGS In general, use lower settings for delicate foods (vegetables, fish) and higher settings for frozen foods, French Fries and chicken. FOOD COOKING TIME TEMPERATURE French fries 8-10 minutes

Fried mushrooms 3 minutes

Onion rings 3 minutes

ATTENTION: Make sure the deep fryer is unplugged from the electrical socket and the oil has cooled (approximately 2 hours) before changing the oil, or cleaning and storing the deep fryer. Note: The oil does not need to be changed after each use. In general, the oil will be tainted rather quickly when frying food containing a lot of protein (such as poultry, meat or fish). When oil is mainly used to fry potatoes and is filtered after each use, it can be used 8 to 10 times. However, do not use the same oil for longer than 6 months. To Filter the Oil:

1. Make sure the oil has cooled (approximately 2 hours) and

then empty the oil from the oil reservoir into another container or bottle. (Fig. 6)

2. Wash and dry the oil reservoir and frying basket.

3. Refill the oil reservoir with the oil by pouring the oil through

a wire strainer or paper filter. (Fig. 7) Fig. 6 Fig. 7CLEANING INSTRUCTIONS To ensure many years of service from your appliance, clean your deep fryer after every use.

WARNING: Always remove the plug from the

electrical wall outlet before cleaning. Allow the deep fryer and the oil to cool completely (approximately 2 hours) before cleaning. Never immerse the control panel, cord or plug in water or any other liquid.

• Do not place the control panel, cord or plug in the dishwasher.

• Clean the control panel with a damp cloth only.

• The body,oil reservoir, frying basket, and lid can be washed on the top rack of a dishwasher.

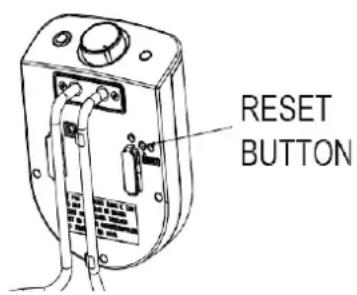

Your deep fryer is equipped with a reset feature. If for some reason the deep fryer stops heating, the reason may be that the reset switch has tripped. To reset the deep fryer:

1. Unplug the appliance from the

electrical wall outlet.

2. Let the appliance and the oil in the oil

reservoir cool completely.

3. After the appliance has cooled Fig. 8

completely, lift the control panel and using the tip of a ball point pen or pencil, push the thermostat resetbutton that is located on the inside of the control panel (Fig. 8)

4. Re-assemble the control panel to the housing of the

deep fryer and then you may resume frying. TROUBLESHOOTING PROBLEM POSSIBLE CAU

The fryer is not operating

1. The control assembly

is not installed correctly.

2. The plug is not connected

to the electrical wall outlet.

3. The electrical outlet is

4. The reset switch has tripped.

1. Re-attach the control panel assembly

2. Insert the plug into the electrical wall

4. Turn the appliance off and let it cool

completely. Then remove the control panel and press the thermostat reset button Oil is spilling out of the deep fryer

1. Too much oil in the oil

3. Oil has been used too often

1. Turn the deep fryer off. Let the oil

cool completely and remove some of the excess oil.

2. Remove some of the food from the

3. Turn the deep fryer off. Let the oil cool

completely and refill the oil reservoir with new oil. Food is tasting soggy or greasy

1. Oil is not hot enough.

2. The food basket is overfilled.

1. Adjust the temperature control dial to

appropriate temperature for food being fried.

2. Remove some of the food from the

basket. Food not cooked complet ely

1. Food pieces too large.

2. Cooking time too short.

3. Oil temperature too hot.

1. Cut the food into smaller pieces.

2. Continue frying and check

the process continually.

3. Lower the temperature of the oil to

allow the food to cook completely. The cooking oil is foaming or emitting smoke

1. The oil has been used too

1. Let the oil cool completely and replace

with new oil.WARRANTY The warranty period for our products is 2 years, unless otherwise stated, starting from the date of initial purchase or the date of delivery. If you have any problems or questions, you can easily access our help pages, troubleshooting tips, FAQ, and user manuals on our service site: https://sav.hkoenig.com. By typing the reference name of your device in the search bar, you can access all available online support, designed to best meet your needs. If you still cannot find an answer to your question or problem, then click on “Did the answer solve your problem?”. This will direct you to the Customer Support Request Form, which you can fill out to validate your request and get help. WARRANTY CONDITIONS The warranty covers all failures occurring under normal use, in accordance with the usage and specifications in the user's manual. This warranty does not apply to packaging or transportation problems during shipment of the product by the owner. It also does not include normal wear and tear of the product, nor maintenance or replacement of consumable parts.

EXCLUSION OF WARRANTY

- Accessories and wearing parts (*). - Normal maintenance of the device. - All breakdowns resulting from improper use (shocks, failure to comply with power supply recommendations, poor conditions of use, etc.), insufficient maintenance or misuse of the device, as well as the use of unsuitable accessories. - Damage of external origin: fire, water damage, electrical surge, etc. - Any equipment that has been disassembled, even partially, by persons other than those authorized to do so (notably the user). - The products whose serial number would be missing, deteriorated or illegible that would not allow its identification. - The products subjected to leasing, demonstration, or exhibition. (*) Some parts of your device, called wear parts or consumables, deteriorate with time and frequency of use of your device. This wear and tear are normal but can be accentuated by poor conditions of use or maintenance of your device. These parts are therefore not covered by the warranty. The accessories supplied with the device are also excluded from the warranty. They cannot be exchanged or refunded. However, some accessories can be purchased directly through our website: https://sav.hkoenig.com/.ENVIRONMENT CAUTION: Do not dispose of this product as it has with other household products. There is a separation of this waste product into communities, you will need to inform your local authorities about the places where you can return this product. In fact, electrical and electronic products contain hazardous substances that have harmful effects on the environment or human health and should be recycled. The symbol here indicates that electrical and electronic equipment should be chosen carefully, a wheeled waste container is marked with a cross. Adeva SAS / H.Koenig Europe - 8 rue Marc Seguin, 77290 Mitry-Mory, France www.hkoenig.com - https://en.hkoenig.com - Tél: [phone]FRANÇAIS
