USER MANUAL MXK32 H.KOENIG

In order to let the product better working for you, please read the instruction before using it. Please put away well the instruction after reading for consulting in later days.

ATTENTION :

• Wrong operation and improper handling can cause problems with the appliance and injury to the user.
• The unit may be used only for the intended purposes. No liability is accepted for damages arising from improper use or faulty handling.
• Before connecting to the mains, please check whether the type of supply and the mains voltage match with the details given on the nameplate on the appliance.
• Do not immerse the appliance and mains plug in water or other fluids. Should the appliance still fall in water some time, pull out the power plug immediately and have the appliance checked by an expert before using it again. There is danger to life from electrical shock!
• Do not try to open the housing yourself! Do not introduce any kind of objects into the housing.
• Do not use the appliance with wet hands, on moist floor or when the ambience is humid.
• Do not hold the mains plug with wet or moist hands.
• Check the mains plug and mains adapter regularly for damages. If the supply cord or plug is damaged, it must be replaced by manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• Do not operate the appliance, if power cable or the mains plug shows damage or the unit falls to the floor

or has been damaged otherwise. In such cases, bring the unit to the workshop for checking and repairs, if necessary.

• Do not ever try to repair the unit yourselves. There is danger from electrical shock!
• Do not let the power cord hang over sharp edges and keep it away from hot objects and open flames. Pull the plug itself to remove it from the plug socket.
• Installation of a spike protector will offer additional protection with a nominal trigger current of not more than 30Ma in the house installation. Please consult your installing electrician.
• The cable as well any extension cable required should be laid such that there will not be any risk of anyone pulling it inadvertently or tripping over it.
• If a long extension cable is used, it must be suitable for the power supply in question. Otherwise it causes overheating of the cable and/ or plug.
• Set the unit on a rigid, flat and heat-proof surface, not near open flames (such as gas oven) and operate it out of reach of children.
• This appliance is suitable neither for commercial use nor for use outdoors.
• Children cannot sense the dangers caused by improper handling of electrical devices.
• Children should be supervised to ensure that they do not play with the appliance.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision

or instruction concerning use of the appliance by a person responsible for their safety.

• Pull out the plug out of the socket, when the appliance is not in use and also before cleaning.
• Caution! The appliance is on power so long as it is connected to the power circuit.
• Care shall be taken when handling the sharp cutting blades, emptying the bowl and during cleaning.
• Avoid to potential injury from misuse
• Switch off the appliance and disconnect from supply before changing accessories or approaching parts that move in use.
• Switch off the unit before pulling out the mains plug.
• Use only spare parts from the manufacturer or his local dealer.
• Never carry the unit by its power cord.
• Do not remove individual housing components.
• When mixing hot liquids/foods excess pressure may build up inside the blender, and this could make the lid come off and the contents splash out. We therefore recommend that you avoid mixing excessively hot foods and that you only put very small quantities of hot liquids or foods into the blender.
• Do not use the blender for very hard food products, such as bones, shelled nuts, frozen meats etc., which could either damage the blade or cause the motor to seize.
• The device must not be used if it has been dropped, it obvious signs of damage are visible or if it has leaks.
• This appliance may be used by children of at least 8 years of age, as long as they are supervised and

have been given instructions about using the appliance safely and are fully aware of the dangers involved.

• Cleaning and maintenance should not be carried out by children unless they are at least 8 years of age and are supervised by an adult.
• Keep the appliance and its power cord out of reach of children under 8 years of age.
• When using electrical equipment, safety precautions must always be taken to prevent the risk of fire, electric shock and/or injury in the event of misuse.
• Make sure that the voltage rating on the typeplate corresponds to your main voltage of your installation. If this is not the case, contact the dealer and do not connect the unit.
• Never leave the unit unattended while in operation.
• Please keep this document at hand and give it to the future owner in case of transfer of your device.
• Do not use outside.
• The device is not intended to be operated by external timer means or a remote control system.

Caution:

Switch off the unit before clean it to avoid creepage and other dangers. When the plug or power cord have damage, do not use the unit, even not to disassembly by yourself, must be inform the after- service center to handle.

SPECIAL SECURITY PRECAUTIONS

• Caution: The blades of the jug are very sharp. There is a danger of injury! While the blades are turning, never touch the jug from the inside and never put any objects inside.
• Only use equipment endorsed by the manufacturer.
• Only use the unit with tightly closed cover and inserted closure.
• The unit is equipped with a security function. The unit can only be switched on if the jug is put on the engine base properly. If the unit cannot be switched on, pull the power cable and check the connection between jug and engine base.

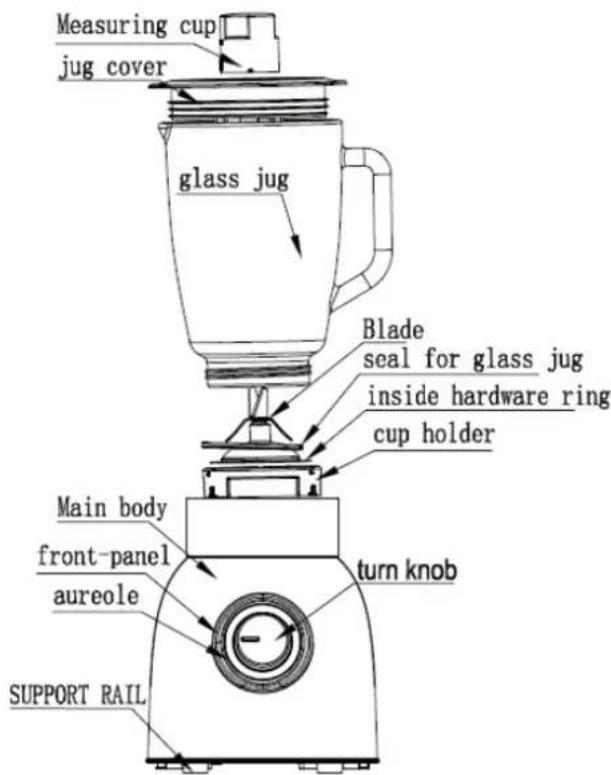

PARTS ITEM

INSTALLATION

1. Clean the measuring cup, cover and jar (except main body) and so on before first using.
2. To make sure the unit is turned off and not to connect before installation.
3. First ring the jar sealed ring into blade base, then enclose the blade base into jar, last rock the jar slightly causing it to lock into place.
4. Fit the blender glass jar onto the main body, and turn it slightly in a clockwise so it locks with the motor section. Fill the jug with the desired foods. Please ensure the water not spill over from cup. (Maximal water capacity cannot exceed 1500 ml) DO NOT USE THE UNIT WITHOUT ANY MATERIAL INSIDE.
5. Put the cover on top of the jar and push it down. Insert the closure into the cover and turn till it locks into place.
6. Place the measuring cup on the center of cover, anticlockwise rock the measuring cup slightly.

OPERATION

1. Connect the power.
2. This unit have safety design, it do not work if the jar is not install on main body properly.
3. Turn the turning knob P/0/1/2/3/4/5 to position 0 in order to make sure the unit is turned off.
4. Fill the jug with the desired foods
5. Put the cover on top of the jar and fix it. Place the measuring cup on the center of cover, anticlockwise rock the measuring cup slightly.

6. Put the blender glass jar onto the main body, and turn it slightly in a clockwise so it locks with the motor base. and the machine was fully assembled.

7. Turning the knob to required speed (P—pulse, grade 1 to 5 means speed of blades from low to high).

8. During working mode, the blue light around the knob is on.

Speed adjust:

P-pulse -Stainless steel blade operate with transitorily highest speed, suitable for ice.

1—Stainless steel blade operate with low speed.
2—Stainless steel blade operate with higher speed than grade 1 but lower speed than grade 3.
3—Stainless steel blade operate with higher speed than grade 2 but lower speed than grade 4.
4—Stainless steel blade operate with higher speed than grade 3 but lower speed than grade 5.
5—Stainless steel blade operate with higher speed than grade 4 and it is the highest speed of the machine.

0—turn off the unit.

Caution:

1. Over-filled can block the operation, please turn off the unit and do not connect the plug, take out some of material, then operating.
2. Do not use unit continuous more than 2 minutes.

CLEANING AND STORAGE

• In addition to this, you must refer to the security precautions.
• Do not clean Motor main body, power cord and plug with water.
• Clean the engine base with a soft, wet piece of cloth and some mild cleaning agent.
• Fill the jug half-full with hot water and a little cleaning agent. Let the unit run on speed 2 until the jug is clean.
• The jar base bottom with the blades can be taken apart. Screw off the base bootm counter-clockwise which is marked "un-lock" on the bottom. Take out the blades together with sealing ring facing upwards.
• Now clean jug, cover, closure, base and blades with sealing ring with hot water and some cleaning agent.

Dry well before re-using. Caution! The blades inside of the jug are very sharp.

• Never use aggressive cleaning agents.

Warning:

Do not to touch the sharp blade. When clean, please wipe by dishcloth, to avoid accidentally injure.

Note:

1. Unit suitable for household only.
2. Overheat protection

In order to prolong the device's service life, an overheat protecting unit is installed. If the motor runs too long or overloaded, the temperature reaches the warning value and the motor will stop automatically. Pull out power supply plug and wait for the motor to cool (about 20 to 30 minutes), then use again.

If you have any problem with this device, do not disassemble it by yourself. Always contact the service department or after-sale service department.

1. Do not use for commerce. Otherwise the maintain service will invalid.

CLEANING

Cleaning the Blender Jug

1. Pour about 500 ml of warm soapy water into the jug and place the jug on the base.

2. Use the pulse mode to loosen any food particles and free them from the blades.

3. Remove the jug, pour away the water and rinse in fresh running water. Repeat steps 1 and 2 with fresh water.

4. Alternatively the jug may be immersed in warm soapy water and cleaned using a long handled brush. Do not touch the blades when cleaning.
5. Wash the lid and measuring cup separately in warm soapy water, rinse and allow to dry.

• The jug body should be handled carefully. The jug contains moving parts- do not leave the jug immersed in water for longer than necessary to clean it or you may affect the operating performance of the blender.
• Handle blades with care especially during cleaning as they are extremely sharp.
  DO NOT wash the jug or attachments in a dishwasher.

Although it is not advisable to take apart the jug base with the blades, in case you have taken it apart, you should re-install the parts back in the correct order.

Sealing Ring

1. Fit the rubber Sealing Ring first securely under the blades. Caution! The blades are very sharp.
2. Assemble the fitted Sealing Ring and blades into the jug base.
3. Fit the plastic Locking Ring into the jug base and rotate it tightly.

Cleaning the Base

1. Ensure the blender is switched off and unplugged from the mains.
2. Wipe the outer surface of the motor unit with a damp cloth. Never use abrasive cleaners or scouring creams.

Never immerse the base in water when cleaning.

WARRANTY

The warranty period for our products is 2 years, unless otherwise stated, starting from the date of initial purchase or the date of delivery.

If you have any problems or questions, you can easily access our help pages, troubleshooting tips, FAQ, and user manuals on our service site: https://sav.hkoenig.com.

By typing the reference name of your device in the search bar, you can access all available online support, designed to best meet your needs.

If you still cannot find an answer to your question or problem, then click on "Did the answer solve your problem?" This will direct you to the Customer Support Request Form, which you can fill out to validate your request and get help.

WARRANTY CONDITIONS

The warranty covers all failures occurring under normal use, in accordance with the usage and specifications in the user's manual.

This warranty does not apply to packaging or transportation problems during shipment of the product by the owner. It also does not include normal wear and tear of the product, nor maintenance or replacement of consumable parts.

EXCLUSION OF WARRANTY

• Accessories and wearing parts (^*)
• Normal maintenance of the device.
• All breakdowns resulting from improper use (shocks, failure to comply with power supply recommendations, poor conditions of use, etc.), insufficient maintenance or misuse of the device, as well as the use of unsuitable accessories.
• Damage of external origin: fire, water damage, electrical surge, etc.
• Any equipment that has been disassembled, even partially, by persons other than those authorized to do so (notably the user).
• The products whose serial number would be missing, deteriorated or illegible that would not allow its identification.
• The products subjected to leasing, demonstration, or exhibition.

(*) Some parts of your device, called wear parts or consumables, deteriorate with time and frequency of use of your device. This wear and tear are normal but can be accentuated by poor conditions of use or maintenance of your device. These parts are therefore not covered by the warranty.

The accessories supplied with the device are also excluded from the warranty. They cannot be exchanged or refunded. However, some accessories can be purchased directly through our website: https://sav.hkoenig.com/.

ENVIRONMENT

CAUTION:

Do not dispose of this product as it has with other household products. There is a separation of this waste product into communities, you will need to inform your local authorities about the places where you can return this product. In fact, electrical and electronic products contain hazardous substances that have harmful effects on the environment or human health and should be recycled. The symbol here indicates that electrical and electronic equipment should be chosen carefully, a wheeled waste container is marked with a cross.

Adeva SAS / H.Koenig Europe - 8 rue Marc Seguin - 77290 Mitry Mory - France www.hkoenig.com - [e-mail] - [e-mail] - Tél: [phone]
