MIX75 - Blender H.KOENIG - Free user manual and instructions

USER MANUAL MIX75 H.KOENIG

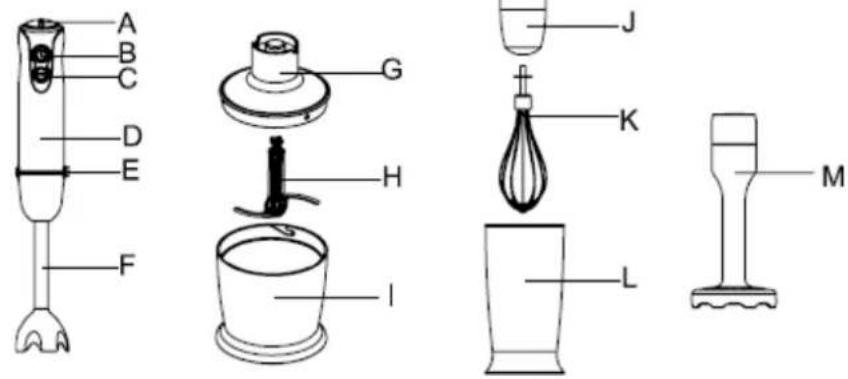

SwitchII
Blender stick
Chopping bowl
Measuring beaker
Masher

Caution

Please read the instructions carefully and completely before using the appliance.

1. Before plugging into a socket, check whether your voltage corresponds to the rating label of the appliance.
2. The appliance is not to be used by children or persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction. children being supervised not to play with the appliance.
3. Always disconnect the blender from the supply if it is left unattended and before assembling, disassembling or cleaning;

4. Don't let children play with this appliance. Do not allow children to use the blender without supervision

5. Switch off the appliance and disconnect from supply before changing accessories or approaching parts that move in use.

6. Care shall be taken when handling the sharp cutting blades, emptying the bowl and during cleaning.
7. Don't plug the appliance into the power supply until it is fully assembled and always unplug before disassembling the appliance or handle the blade.
8. Don't let the motor unit, cord, or plug get wet.
9. Never use a damaged appliance. If it has been damaged, please get it to approved service center, checked or repaired.
10. If the supply cord is damaged, it must be replaced by approved service center.
11. Don't let excess cord hang over the edge of the table or worktop or touch hot surface.
12. The blades are very sharp!
13. Don't place the appliance in the hot ingredients.
14. The appliance is constructed to process normal household quantities.
15. Neither the measuring beaker, nor the chopping bowl is microwave proof.
16. Short-time operating. Use the appliance according to the table of Processing Guide.

17. If you want to operate the unit for more than one cycle, you should wait at least 3 minutes before the next working.

18. Do not use the masher to process uncooked food.

19. This appliance may be used by persons with reduced physical, sensory or mental capabilities or lack of experience or knowledge, provided that they are supervised or instructed in the safe use of the appliance and that they fully understand the potential hazards.
20. If the power cord is damaged, it must be replaced with an after-sales service to avoid any danger.
21. This appliance may be used by children of at least 8 years of age, as long as they are supervised and have been given instructions about using the appliance safely and are fully aware of the dangers involved.
22. Cleaning and maintenance should not be carried out by children unless they are at least 8 years of age and are supervised by an adult.
23. Keep the appliance and its power cord out of reach of children under 8 years of age.
24. When using electrical equipment, safety precautions must always be taken to prevent the risk of fire, electric shock and/or injury in the event of misuse.
25. Make sure that the voltage rating on the typeplate corresponds to your main voltage of your installation. If this is not the case, contact the dealer and do not connect the unit.
26. Never leave the unit unattended while in operation.
27. Please keep this document at hand and give it

to the future owner in case of transfer of your device.

1. The device must not be used if it has been dropped, it obvious signs of damage are visible or if it has leaks.
2. The device is not intended to be operated by external timer means or a remote control system.
3. This appliance is only intended for domestic and indoor use.
4. Before cleaning the blender, make sure it is unplugged.

Your appliance has been designed for domestic use only. It is not intended for use in the following situations which are not covered by the warranty:

• in staff kitchen areas in shops, offices and other professional environments,
  -in farm hostels,
• by guests in hotels, motels and other residential environments,
• in bed and breakfast type environments.

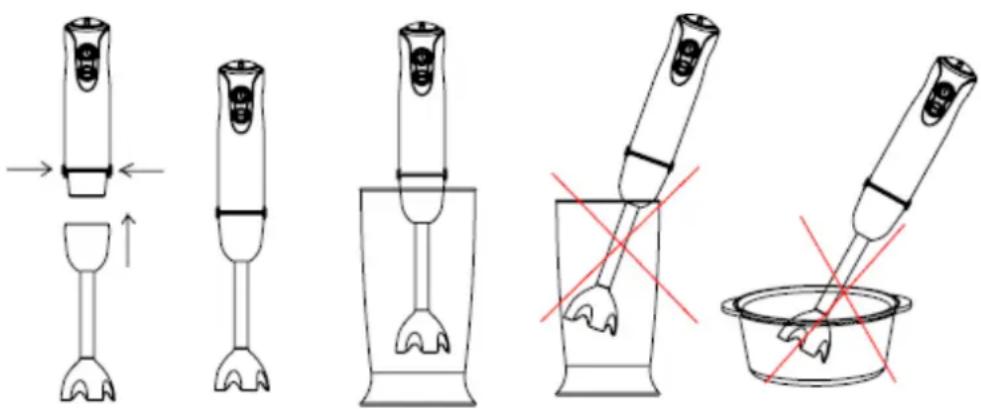

How to use the hand blender

The hand blender is perfectly suited for preparing dips, sauces, soups, mayonnaise and baby food as well as for mixing and milkshakes.

1. Take the blender stick on the motor unit until it locks.
2. Introduce the hand blender in the measuring beaker. Then press switch II or choose speed "1"-5" and press the switch!
3. Take the blender stick out off the motor unit after use.

You can use the hand blender in the measuring beaker and just as well in any other vessel.

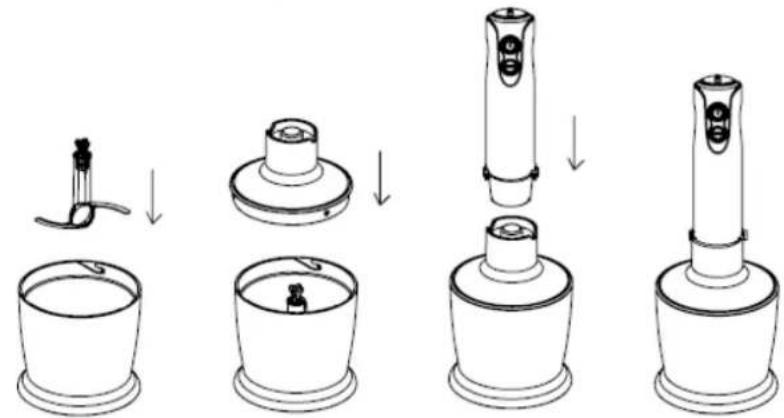

How to use your chopper

1. Chopper is perfectly suited for hard food, such as meat, cheese, onion, herbs, garlic, carrots, walnuts, almonds, prunes etc.

2. Don't chop extremely hard food, such as ice cubes, nutmeg, coffee beans and grains. Before chopping...

3. Carefully remove the chopping bowl lid from the blade. Caution: the blade is very sharp! Always hold it by the upper plastic part.

4. Place the blade on the center pin of the chopper bowl. Press down the blade and lock bowl. Always place the chopping bowl
5. Place the food in the chopping bowl.
6. Place the chopping bowl lid on the chopping bowl.
7. Turn the motor unit on the chopping bowl lid until it locks.
8. press switch II or choose speed "1"-5" and press switchlto operate the chopper. During processing, hold the motor unit and the chopper bowl.
9. After use, take the motor unit off the out off chopping bowl lid by pushing ejection button.
10. Then remove the chopping bowl lid.
11. Carefully take out the blade.
12. Remove the processed food from the chopping bowl

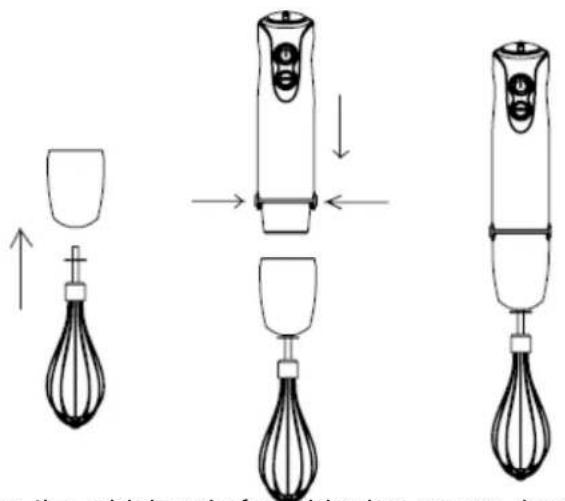

How to use your whisk

Use the whisk only for whipping cream, beating egg whites and mixing sponges and Ready-mix desserts.

1. Inset the whisk into the whisk holder, and then turn the whisk holder onto the motor unit until it locks.
2. Introduce the whisk in a measuring beaker and then press switch II or Choose speed "1"-5" and press the switchto operate it.
3. Turn the whisk with whisk out off the motor unit after use. Then pull the whisk out of the whisk holder.

How to use the masher

The masher is perfectly suited for processing some cooked food such as potato, pumpkin etc.

1. Fit the masher onto the motor unit until it locks
2. Put some cooked food such as potato into a pan vessel, but not more than 500q.
3. If necessary, put some salt, sauces etc onto the cooked food.
4. Introduce the masher in the pan vessel. Then press switch Ilor turn the fine tuning switch to choose speed "1"-5" and same time press the switch I.
5. Stop the appliance until the food has been mashed perfectly.

6. Unplug then press the ejection button to remove the masher after use.

7. Take out the mashed food and then you can process it into the food you need.

8. You should not operate the appliance for more than 30 seconds and wait at least 3 minutes before the next working.
9. Do not use the masher to process uncooked food. If you want to process pumpkin, you should peel skin and then cut it into cubes.

Cleaning

Cleaning the motor unit and chopping bowl lid only with a damp cloth only. Do not immerse the motor unit and chopping bowl lid in water!

1. All other parts except motor unit and chopping bowl lid can be cleaned in the dishwasher. However, after processing very salty food, you should rinse the blades right away.
2. Also, be careful not to use an overdose of cleaner. When processing food with color, the plastic parts of the appliance may become discolored. Wipe these parts with vegetable oil before placing them in the dishwasher.
3. The blades are very sharp, please attention.
4. Unplug the appliance before cleaning.

Processing Guide

Food	Maximum		Operation time
meat	250g	chopper	15sec
herbs	50g	chopper	10sec
nut, almonds	150g	chopper	15sec
cheese	100g	chopper	10sec
bread	80g	chopper	10sec
onions	200g	chopper	10sec
biscuits	150g	chopper	10sec
soft fruit	200g	chopper	10sec
Carrot	200g	Blender	10sec
egg	4PCS(200g)	whisk	15sec
Cooked potato	500g	masher	20sec

WARRANTY

The warranty period for our products is 2 years, unless otherwise stated, starting from the date of initial purchase or the date of delivery.

If you have any problems or questions, you can easily access our help pages, troubleshooting tips, FAQ, and user manuals on our service site: https://sav.hkoenig.com. By typing the reference name of your device in the search bar, you can access all available online support, designed to best meet your needs.

If you still cannot find an answer to your question or problem, then click on "Did the answer solve your problem?" This will direct you to the Customer Support Request Form, which you can fill out to validate your request and get help.

WARRANTY CONDITIONS

The warranty covers all failures occurring under normal use, in accordance with the usage and specifications in the user's manual.

This warranty does not apply to packaging or transportation problems during shipment of the product by the owner. It also does not include normal wear and tear of the product, nor maintenance or replacement of consumable parts.

EXCLUSION OF WARRANTY

• Accessories and wearing parts (^*)
• Normal maintenance of the device.
• All breakdowns resulting from improper use (shocks, failure to comply with power supply recommendations, poor conditions of use, etc.), insufficient maintenance or misuse of the device, as well as the use of unsuitable accessories.
• Damage of external origin: fire, water damage, electrical surge, etc.
• Any equipment that has been disassembled, even partially, by persons other than those authorized to do so (notably the user).
• The products whose serial number would be missing, deteriorated or illegible that would not allow its identification.
• The products subjected to leasing, demonstration, or exhibition.

(*) Some parts of your device, called wear parts or consumables, deteriorate with time and frequency of use of your device. This wear and tear are normal but can be accentuated by poor conditions of use or maintenance of your device. These parts are therefore not covered by the warranty.

The accessories supplied with the device are also excluded from the warranty. They cannot be exchanged or refunded. However, some accessories can be purchased directly through our website: https://sav.hkoenig.com/.

ENVIRONMENT

CAUTION:

Do not dispose of this product as it has with other household products. There is a separation of this waste product into communities, you will need to inform your local authorities about the places where you can return this product. In fact, electrical and electronic products contain hazardous substances that have harmful effects on the environment or human health and should be recycled. The symbol here indicates that electrical and electronic equipment should be chosen carefully, a wheeled waste container is marked with a cross.

Adeva SAS / H.Koenig Europe - 8 rue Marc Seguin, 77290 Mitry-Mory, France

www.hkoenig.com - https://en.hkoenig.com - Tél: [phone]
