USER MANUAL PSTKA 800 A1 PARKSIDE
GB IE
JIGSAW
Translation of original operation manual
FR BE
SCIE SAUTEUSE PENDULAIRE
Before reading, unfold both pages containing illustrations and familiarise yourself with all functions of the device.
DK
GB / IE Translation of the original instructions Page 1
General Power Tool Safety Warnings ....3
- Work area safety 3
- Electrical safety 3
- Personal safety 3
- Power tool use and care 4
- Service 4
Safety instructions specifically for jigsaws 4
Original accessories/additional equipment 5
Information on saw blades 5
Initial operation 6
Fitting/changing the saw blade 6
Fitting the guide fence 6
Connecting the sawdust extraction appliance 6
Fitting the sliding shoe 6
Operation 6
Setting the cutting angle 6
Setting the stroke rate 6
Setting the pendulum stroke 6
Switching on/off 6
Switching the laser/working light on/off 7
Sawdust blowing function 7
Maintenance and Cleaning 7
Warranty....7
Service....7
Importer 8
Disposal 8
Translation of the original Conformity Declaration 8

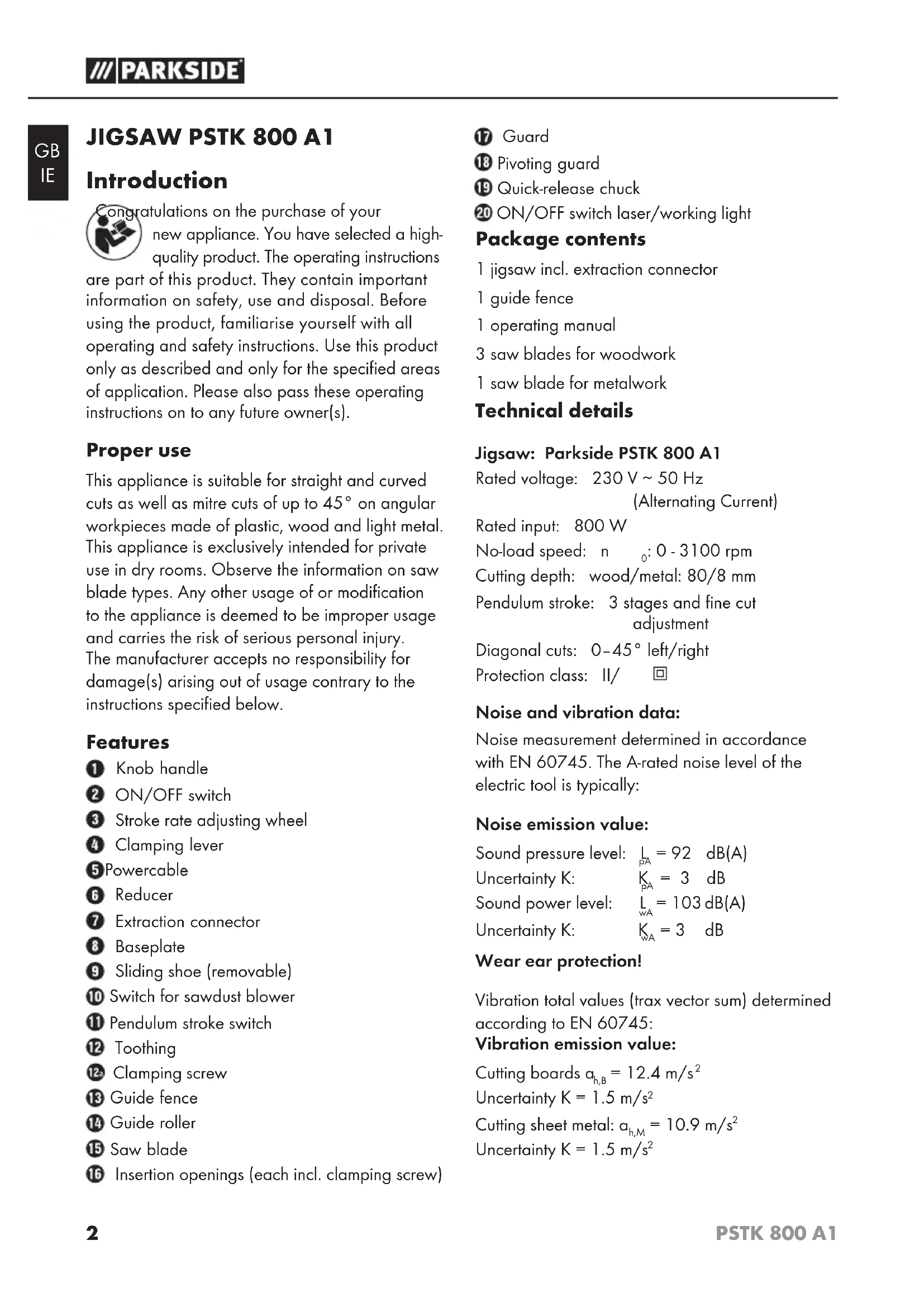

JIGSAW PSTK 800 A1
Introduction
tulations on the purchase of your
new appliance. You have selected a high-quality product. The operating instructions are part of this product. They contain important information on safety, use and disposal. Before using the product, familiarise yourself with all operating and safety instructions. Use this product only as described and only for the specified areas of application. Please also pass these operating instructions on to any future owner(s).
Proper use
This appliance is suitable for straight and curved cuts as well as mitre cuts of up to 45^ on angular workpieces made of plastic, wood and light metal. This appliance is exclusively intended for private use in dry rooms. Observe the information on saw blade types. Any other usage of or modification to the appliance is deemed to be improper usage and carries the risk of serious personal injury. The manufacturer accepts no responsibility for damage(s) arising out of usage contrary to the instructions specified below.
Features
① Knob handle
② ON/OFF switch
③ Stroke rate adjusting wheel
4 Clamping lever
5 Powercable
6 Reducer
⑦ Extraction connector
8 Baseplate
9 Sliding shoe (removable)
10 Switch for sawdust blower
⑪ Pendulum stroke switch
12 Toothing
12 Clamping screw
13 Guide fence
14 Guide roller
15 Saw blade
16 Insertion openings (each incl. clamping screw)
17 Guard
18 Pivoting guard
19 Quick-release chuck
20 ON/OFF switch laser/working light
Package contents
1 jigsaw incl. extraction connector
1 guide fence
1 operating manual
3 saw blades for woodwork
1 saw blade for metalwork
Technical details
Jigsaw: Parkside PSTK 800 A1
Rated voltage: 230 V \~ 50 Hz (Alternating Current)
Rated input: 800 W
No-load speed: n 0: 0 - 3100 rpm
Cutting depth: wood/metal: 80/8 mm
Pendulum stroke: 3 stages and fine cut adjustment
Diagonal cuts: 0-45° left/right
Protection class: II/
Noise and vibration data:
Noise measurement determined in accordance with EN 60745. The A-rated noise level of the electric tool is typically:
Noise emission value:
Sound pressure level: L_pA = 92 dB(A)
Uncertainty K: K_pA = 3 dB
Sound power level: L_wA = 103 dB(A)
Uncertainty K: K_wA = 3 dB
Wear ear protection!
Vibration total values (trax vector sum) determined according to EN 60745:
Vibration emission value:
Cutting boards a_h,B = 12.4 m/s^2
Uncertainty K = 1.5 m/s²
Cutting sheet metal: a_h,M = 10.9 m/s^2
Uncertainty K = 1.5 m/s²
WARNING!
The vibration level specified in these instructions has been measured in accordance with the standardised measuring procedure specified in EN 60745 and can be used to make equipment comparisons. The specified vibration emission value can also be used to make an initial exposure estimate. The vibration level varies in accordance with the use of the electric tool and may be higher than the value specified in these instructions in some cases. The vibration load could be underestimated if the electric tool is regularly used in such a way.
NOTE
▶ Try to keep the vibration loads as low as possible. Measures to reduce the vibration load are, e.g. wearing gloves and limiting the working time. Wherein all states of operation must be included (e.g. times when the power tool is switched off and times where the power tool is switched on but running without load).
eral Power Tool Safety Warnings
WARNING!
Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference.
The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.
1. Work area safety
a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.
2. Electrical safety
a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.
3. Personal safety
a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
GB IE
c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.
4. Power tool use and care
a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean.
Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
5. Service
a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.
Safety instructions specifically for jigsaws
■ Hold the electric tool by the insulated handles when you are carrying out work during which the electric tool may come into contact with concealed power cables or its own power cable. Contact with a live cable may also cause metal parts of the appliance to become live and lead to electric shock.
- Keep your hands away from the sawing area. Do not reach underneath the workpiece. Contact with the saw blade may result in injury.
- Keep your hands away from the stroke rod and the quick-release chuck. Contact with these components may result in a crushing injury.
■ Always switch on the electrical power tool before applying it to the workpiece. Otherwise, there is a risk of a kickback.
■ When sawing, ensure that the baseplat ^8 is in contact with the workpiece.
■ After completing your work, switch the electric tool off and do not pull the saw blade 15 out of the cut until the tool has come to a standstill. This avoids kickbacks, and allows you to put the tool down safely.
■ Only use undamaged saw blades that are in perfect working order. Bent and blunt saw blades can break or cause a kickback.
- Do not try and slow the saw blade down after switching off by applying lateral pressure. The saw blade can be damaged, break or cause a kickback.
■ Immobilise the workpiece securely. Use clamps/ vices to hold the workpiece firmly. This is much safer than simply holding it in your hand.
■ Always run the power cord away from the appliance to the rear.
■ Never work on moistened materials or wet surfaces.
Hazards caused by dust! When working for extended periods on wood and, in particular, materials that produce dusts that are hazardous to health, connect the appliance to an appropriate dust extraction appliance.
■ Wear a dust mask.
■ Ensure there is sufficient ventilation.
WARNING! Protect yourself from laser radiation!
LASER 2
P max.: < 1 mW•λ: 650 nm•EN 60825-1:2014
■ Never look directly into the laser beam or into the opening from which it emerges.
WARNING!
▶ Looking at a laser beam through optical instruments (e.g. magnifying glasses etc.) can cause eye injuries.
▶ Caution! If operating and adjustment equipment is used or procedures other than those specified here are carried out, this may result in hazardous radiation exposure.
■ Never aim the laser beam at reflective surfaces, people or animals. Even brief visual contact with a laser beam can result in eye injuries.
Original accessories/additional equipment
■ Only use the accessories and additional equipment that are specified in the operating instructions and are compatible with the appliance.
Information on saw blades
The Parkside basic equipment includes saw blades for use with wood and metal.
● 3 saw blades for general wood cuts
- 1 saw blade for light metals up to 3 mm
NOTE
▶ You can also use any other saw blades provided they are fitted with a suitable mounting (single-lug shank).
Saw blade type
suitable unsuitable
Fitting/changing the saw blade
Always remove the plug from the power socket before working on the appliance.
◆ Remove the pivoting guard ^18 .
◆ Turn the quick-release chuck9 and hold it in this position.
◆ Press the required saw blade into the quick-release chuck 19 as far as the limit stop.
Release the quick-release chuck19 - it must return to its initial position. The saw blade is now locked.
■ WARNING! The saw blade teeth must point forwards at this point (see foldout page)!
◆ Replace the pivoting guard 18 back onto the device.
Fitting the guide fence
The guide fence 13 can be fixed on the left or right of the appliance.
- Undo both the clamping screws on the insertion openings 16.
♦ Push the guide fence ^13 into the insertion openings ^16
◆ Retighten the two clamping screws.
Connecting the sawdust extraction appliance
♦ Push the reduce ⑥ into the extraction connector ⑦ until it is secured.
◆ Attach an approved dust and sawdust extractor to the reducer ⑥ or extraction connector ⑦ directly.
Fitting the sliding shoe
When working on sensitive surfaces, you can fit the sliding shoe ⑨ in the baseplate t avoid scratching the surface.
Mount the sliding sho ⑨ onto the baseplate ⑧ and press it up at the back until it clicks into place on the baseplate ⑧.
To remove the sliding sho⑨, unfasten it at the rear of the baseplate ⑧ and slide it off forwards.
Operation
Setting the cutting angle
♦ Push the clamping level 4 forward and pull the baseplate 8 to the rear.
Adjust the cutting angle to 0^/15^/30^/45^ with the aid of the markings on the baseplate 8. Push the baseplate 6 to the front so that the locking pin engages in the toothing 12
♦ Push the clamping level④ backwards.
NOTE
With a cutting angle of 30^/45^ , the pivoting guard 18 must be removed beforehand! If the baseplate 2 cannot be locked well by clamping lever 4 remove the extraction connector, 7 then tighten the clamping screw 12a with hex key.
Setting the stroke rate
Use the stroke rate preselection adjusting wheel 3 to set the required stroke rate.
Setting the pendulum stroke
You can use the pendulum stroke switch to set the pendulum movement of the saw blade 15 You can achieve fine, clean cut edges without pendulum movement (setting "0"). Switch the pendulum movement off when working on thin workpieces. You can achieve an increasingly fast workrate with activated pendulum stroke (settings 1-3).
Switching on/off
Switching the appliance on:
Slide the ON/OFF switch forward to the position "I".
Switching the appliance off:
Slide the ON/OFF switch ② backward to the position "0".
Switching the laser/working light on/off
On/off switch:
Press the ON/OFF switch 20 until the required function is active.
LASER and WORKING LIGHT → WORKING LIGHT → LASER → SWITCH OFF
Sawdust blowing function
Switching the sawdust blowing function on:
◆ Slide the sawdust blower function switch10 in the position
Supporting the extraction function:
◆ Slide the sawdust blower function switch10 in the position "0".
Maintenance and Cleaning
NING! RISK OF INJURY!
Switch the appliance off and remove the power plug before starting any work.
■ The appliance must always be clean, dry and free from oil or grease.
■ To clean the casing, use a soft dry cloth.
WARNING!
If the mains power cord of the device is damaged, it must be replaced with an original wire which is available at the manufacturer or costumer service.
- Replace the saw blade ^15 as soon as its teeth are blunt and proper sawing is therefore no longer possible.
■ Clean the appliance after completing your sawing work.
■ Remove any dirt (e.g. sawdust). If necessary, clean the saw blade mounting with a brush or blow it out with compressed air.
Warranty
The warranty provided for this appliance is 3 years from the date of purchase. This appli-ance has been manufactured with care and inspected meticulously prior to delivery. Please retain your receipt as proof of purchase.
In the event of a warranty claim, please contact your Customer Service by telephone. This is the only way to guarantee free return of your goods.
The warranty covers only claims for material and manufacturing defects, not for transport damage, worn parts or for damage to fragile components, e.g. switches or batteries. This appliance is intended solely for private use and not for commercial purposes.
The warranty is deemed void if this product has been subjected to improper or inappropriate handling, abuse or modifications that were not carried out by one of our authorised service centres. Your statutory rights are not restricted in any way by this warranty.
The warranty period is not prolonged by repairs made under the warranty. This also applies to replaced and repaired parts. Damage and defects present at the time of purchase must be reported immediately after unpacking, or no later than two days after the date of purchase. Repairs made after expiry of the warranty period are chargeable.
Service
Service Great Britain
Tel.: 0871 5000 720 (£ 0.10/Min.)
E-Mail: kompernass@lidl.co.uk
IAN 270762
Service Ireland
Tel.: 1890 930 034
(0,08 EUR/Min., (peak))
(0,06 EUR/Min., (off peak))
E-Mail: kompernass@lidl.ie
IAN 270762
Importer
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
GERMANY
www.kompernass.com
Disposal
Packaging is made from environmentally friendly material and can be disposed of at your local recycling plant.
t dispose of electric tools in your normal domestic waste!
As required by European Directive 2012/19/EU, worn-out electric tools must be collected separately and fed into an environmentally compatible recycling process.
Your local communal or municipal authorities can provide information on how to dispose of the worn-out appliance.
Translation of the original Conformity Declaration
We, KOMPERNASS HANDELS GMBH, Custodian of Documents: Mr. Semi Uguzlu, BURGSTR. 21, 44867 BOCHUM, GERMANY, hereby declare that this product complies with the following standards, normative documents and the EC directives:
Machinery Directive
(2006/42/EC)
EMC (Electromagnetic Compatibility)
(2004/108/EC)
RoHS Directive
(2011/65/EU)
Applied harmonised standards:
EN 60745-1:2009 / A11: 2010
EN 60745-2-11: 2010
EN 62233: 2008
EN 55014-1:2006 / A2: 2011
EN 55014-2:1997 / A2: 2008
EN 61000-3-2: 2014
EN 61000-3-3: 2013
Type designation of machine:
Jigsaw PSTK 800 A1
Year of manufacture: 12 - 2015
Serial number: IAN 270762
Bochum, 31/12/2015
Semi Uguzlu
- Quality Manager -
Subject to technical changes in the course of further developments.
Indholdsfortegnelse
Indledning....10
Anvendelsesområde 10
Udstyr....10
Pakkens indhold 10
Tekniske data 10
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
GERMANY
www.kompernass.com
Bortskaffelse
Semi Uguzlu
- Kvalitetschef -
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
GERMANY
www.kompernass.com
Mise au rebut
Uguzlu, BURGSTR. 21, 44867 BOCHUM,
WAARSCHUWING! LETSELGEVA
NL P.E
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
GERMANY
www.kompernass.com
Afvoeren
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
GERMANY
www.kompernass.com
Entsorgung
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
DEUTSCHLAND / GERMANY
www.kompernass.com
Last Information Update · Tilstand af information · Version des informations
Stand van de informatie · Stand der Informationen:
01 / 2016 · Ident.-No.: PSTK800A1-102015-1
