USER MANUAL HA70BE 31 X HOTPOINT

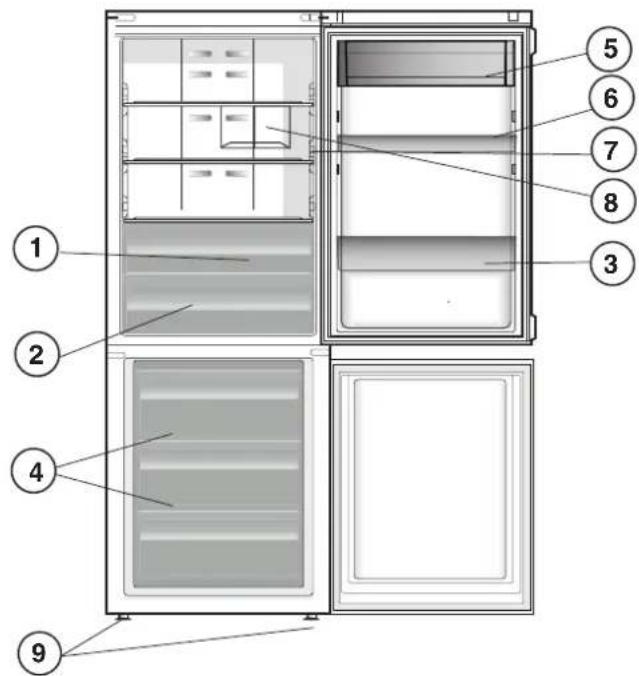

1. Fruit and vegetable bin *
2. Food Care Zone 0^/ Safe Defrost
3. Bottle shelf *
4. Freezer and storage compartment
5. Dairy Shelf *
6. Movable shelves *
7. Temperature indicator *
8. Bottle rack

9. Levelling feet

10. Varies by number and/or position, available only on certain models.

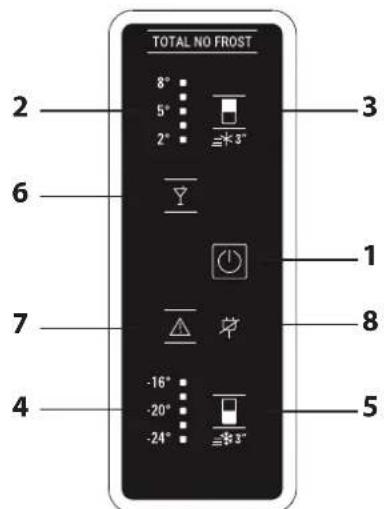

CONTROL PANEL

1. ON/STANDBY Indicator and Button
2. Fridge Temperature Indicator
3. Fridge Temperature / Fast Cool Button
4. Freezer Temperature Indicator
5. Freezer Temperature / Fast Freeze Button
6. Party Mode Indicator
7. Stop Alarm Button (see the below Alarm Table)
8. Black Out Alarm Long Black-Out Alarm Indicator (see the Instructions for Use)

ACCESSIONS

BOTTLE RACK

FIRST TIME USE

HOW TO START THE APPLIANCE

After plugging the appliance to the mains, it starts the operation automatically. After starting the appliance, wait at least 4-6 hours before placing food into the fridge and into the freezer compartment.

When the appliance is connected to the power supply, the display lights up and all the icons appear on the display for approximately 1 second. The default (factory) values of the fridge - freezer compartment settings light-up.

DAILY USE

See Use and Care Guide for more details on functions / see last page for information on how to obtain the Use and Care Guide

FUNCTIONS

ON/STANDBY INDICATOR /BUTTON

To put the product in Stand-by, press and hold for 3 seconds. All the icons turn off except On/Standby indicator. To reactivate the appliance press once (briefly) this button.

FRIDGE TEMPERATURE SETTING

To adjust the Fridge Temperature, press the Fridge ^ C button. The Fridge Temperature can be adjusted between +2^ and +8^, as shown by the Fridge Temperature LEDs.

FAST COOL

Using Fast Cool function it is possible to increase the cooling in the refrigerator compartment. The use of this function is recommended when placing a very high quantity of food in the refrigerator compartment. Press & hold for 3 sec. the Fridge ^ C button to activate Fast Cool function. When activated, the Fast Cool indication will be displayed by the Fridge Temperature LEDs as shown in the beside sequence. The function is automatically disabled after 6 hours, or can be manually disabled by pressing Fridge ^ C button.

FREEZER TEMPERATURE SETTING

The appliance is normally factory-set for operation at the recommended temperature of -18^ . To adjust the Freezer Temperature, press the Freezezer ^ C button. The Freezezer Temperature can be adjusted between -16^ and -24^, as shown by the Freezer Temperature LEDs.

FAST FREEZE

The use of this function is recommended when placing a very high quantity of food to be frozen in the freezer compartment. 24 hours before freezing fresh food, press & hold for 3 sec. the Freezer button to activate the Fast Freeze function. When activated, the Fast Freeze indication will be displayed by the Freezer Temperature LEDs as shown in beside sequence. After 24 hours place the food to be frozen in the upper basket of freezer compartment. The function is automatically disabled after 48 hours, or can be manually disabled by pressing Freezer ^ C button.

REFRIGERATOR LIGHT

The light system inside the refrigerator compartment uses LEDs light, allowing a better lightning as well as a very low energy consumption. If the LED light system does not work, please contact the Service to replace it.

PARTY MODE

Use this function to chill drinks inside the freezer compartment. Press the Party Mode button to activate/deactivate this function.

Once the Party mode has been activated, after 30 minutes an acoustic alarm will remind you to remove drink/bottle from the freezer compartment. To mute the alarm press the Stop alarm button, or deactivate the function pressing the Party mode button.

Important: do not leave the bottle inside the freezer compartment longer than the function is active (30 minutes).

BLACK OUT ALARM

In the event of an interruption in electricity, your product is designed to automatically monitor the temperature in the freezer when electricity is resupplied. If the temperature in the freezer rises above freezing level, the Black Out icon lit, & the Alarm Icon blinks and the acoustical alarm sounds when electricity is re-supplied. To reset the alarm press the Reset button just once.

SMART DISPLAY

This optional function can be used to save energy. To activate the Smart Display, press Fridge ^ C and Freezer ^ C buttons at the same time for 3 seconds until an audible signal sounds. To deactivate this function repeat the same procedure. Remember that this function does not disconnect the appliance from the power supply, but only reduce the power consumed by external display.

TEMPERATURE INDICATOR

Temperature indicator informs you if the temperature in this cavity is cold enough for storage with the word "OK".

1. Check that OK appears clearly on the indicator light (see the picture below).

1. If the word "OK" does not appear it means that the temperature is too high: set a lower temperature and wait approximately 10 hours until the temperature has been stabilised.
2. Check the indicator light again: if necessary, readjust it following the initial process. If large quantities of food have been added or if the refrigerator door has been opened frequently, it is normal for the indicator not to show OK. Wait at least 10 hours before adjusting the REFRIGERATOR OPERATION knob to a higher setting.

FOOD CARE ZONE 0°C / SAFE DEFROST*

A compartment designed to keep delicate food such as meat and fish fresh. The low temperature in the compartment makes it possible to store the food for up to one week tests performed on meat products - without changing its nutrients, appearance and flavour. The compartment is also very suitable for healthy food defrosting, as low-temperature defrosting prevents any proliferation of microorganisms,

while protecting its taste and organoleptic properties. It is not suitable for fruit, vegetables and green salad. But it can be used for stuffed fresh pasta and even cooked food or leftovers.

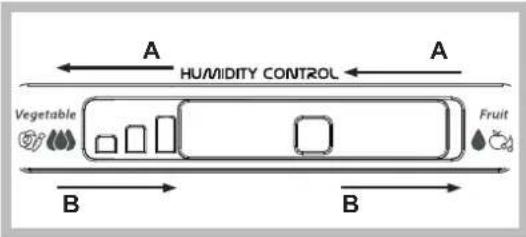

FRUIT AND VEGETABLE BIN*

The salad crispers fitted inside the fridge have been specially designed for the purpose of keeping fruit and vegetables fresh and crisp. Open the humidity regulator (position B) if you want to store food in a less humid environment like fruit, or close it (position A) to store food in a more humid environment like vegetable.

SHELVES\*

Due to the special guides the shelves are removable and the height is adjustable, allowing easy storage of large containers and food.

ALARM TABLE

ALARM TYPE SIGNAL CAUSE SOLUTION
Door open alarm The acoustical alarm is activated and the Alarm Indicator ↓blinks.		The door has remained open for more than 2 minutes.	Close the door or press the Stop Alarm to mute the acoustical alarm.
Temperature Alarm	The Temperature display blinks (℃) and the Alarm Indicator ↓remains on.	The inside temperature is not adequate.	Press the Stop Alarm button ∅; the acoustical alarm stops, the Temperature Display (℃) blinks and the Alarm Indicator ↓remains on until a temperature < -10℃ is reached.
Party Mode Alarm	The Party Mode Indicator ↓blinks and the acoustical alarm is activated.	30 min. elapsed since Party Mode function has been activated. It is time to take out the bottle from the freezer (see Instructions for Use for more details).	Press the Stop Alarm button ∅ and remove the bottle from the freezer.
Long Black-Out alarm	The Black Out Alarm icon ↓remains on, the Alarm indicator ↓blinks and the Temperature display (℃) blinks.	Prolonged power failure, able to cause the inside temperature to increase to 0℃.	Press the Stop Alarm button ∅; the acoustical alarm stops, the Temperature Display (℃) blinks and the Alarm Indicator ↓remains on until a temperature < -10℃ is reached.

SOME OF THE FUNCTIONAL SOUNDS YOU MIGHT HEAR

A hissing sound when switching on the appliance for the first time or after a long pause.

Hisss

Buzzing sound when water valve or fan start working.

A gurgling sound when refrigerant fluid enters into the pipes.

A cracking sound when compressor starts.

BRRR sound is from the compressor running.

Bmm

The Click is from the thermostat which adjusts how often the compressor is running.

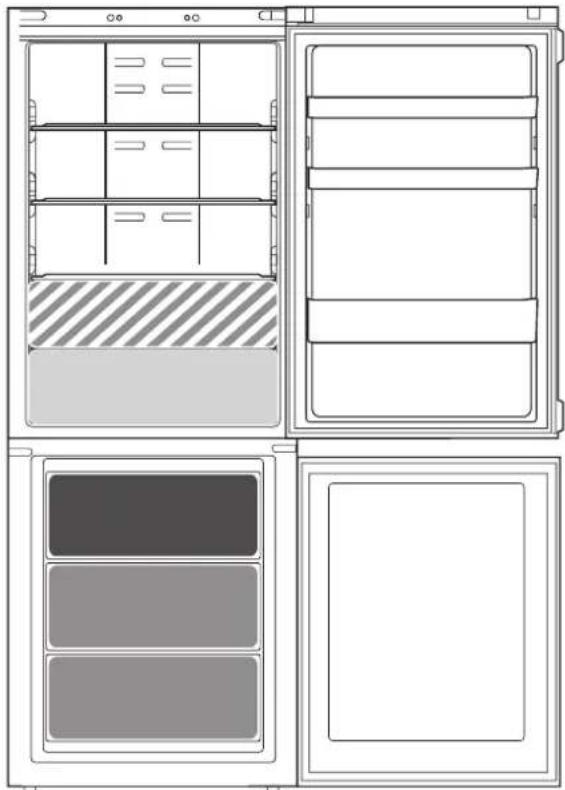

HOW TO STORE FOOD AND BEVERAGE

Legend

COOL ZONE

Suggested for the storage of beverage, milk and food as dairy food, delicatessen, yogurt, eggs, butter, sauces, pickles, desserts

FRUIT & VEGETABLE DRAWER

COOLER ZONE:

FOOD CARE ZONE 0°C/SAFE DEFROST*

Suggested for the storage of meat, fish, cold cuts, stuffed fresh pasta, cooked food, leftovers. This zone is also suggested for food defrosting.

FAST FREEZING ZONE DRAWER

Max cool zone suggested to freeze fresh food and cooked food.

NORMAL FREEZER DRAWERS

Suggested for the storage of frozen food and ice cream.

Note: The Grey tone of the legend doesn't match with the color of drawers

FRIDGECOMPARTMENT

Use recyclable plastic, metal, aluminum and glass containers and cling film to wrap foods.

Always use closed containers for liquids and for food that may give off or be tainted by odor or flavor transfer or cover them.

If you have a little quantity of food to store in the refrigerator, we recommend to use the shelves above the risper for fruits and vegetables since this is the coolest area of the compartment.

Foods which give off a large amount ethylene gas and those that are sensitive to this gas, such as fruit, vegetables and salad, should always be separated or wrapped so as not to reduce the storage life; for example do not store tomatoes together with kiwi fruits or cabbage.

To avoid bottles falling over, you can use the bottle holder (available on selected models).

Do not store food too close together to enable sufficient air circulation.

FREEZER COMPARTMENT

The freezer is the ideal storage location for store frozen food, make ice cubes and freeze fresh food in the freezer compartment.

The maximum number of kilograms of fresh food that can be frozen within a 24-hour period is indicated on the rating plate (...kg/24h).

If you have a little quantity of food to store in the freezer, we recommend to use the coldest areas of your freezer compartment, corresponding to the middle area.

Policies, standard documentation and additional product information can be found by:

Visiting our website docs.hotpoint.eu
- Using QR Code
- Alternatively, contact our After-sales Service (See phone number in the warranty booklet). When contacting our After-sales Service, please state the codes provided on your product's identification plate. The model information can be retrieved using the QR-Code indicated on the energy label. The label also includes the model identifier that can be used to consult the https://eprel.ec.europa.eu database portal.
