Thank you for purchasing a Concept product. We wish you much joy with your new appliance every day you use it. Please read the instruction manual carefully before initial use. To refer to this manual any time you need to, we recommend you to keep it in a safe place. And please pass it to any future owner of the appliance.

Technical specifications
Unfolded scooter size 1083*401*1186 mm
Folded scooter size 1083*401*460 mm
Height from ground to the deck 115 mm
Weight 13 kg
Wheel size	10 inches
Capacity 6.4 Ah
Motor power 350 W
Range per charge Up to 25 km
Maximum speed 25 km/h
Maximum load 100 kg (120 kg)
Maximum incline 15°

IMPORTANT SAFETY PRECAUTIONS

• Do not use the scooter in any other way than as described in this manual.
• Remove all the covering and marketing materials from the appliance before the first use.
• For your own safety, follow the local road traffic code. Before using the electric scooter, check the condition of your electric scooter, check for a damaged tire or any other part and check that all parts are properly tightened.
• When using the electric scooter, always be careful not to hurt yourself, other people or damage other people's property.
• It is forbidden to modify or rebuilt the electric scooter as it may damage the electric scooter or change the power of the motor, which may result in serious injury.
• Do not leave the electric scooter unattended.
• When disconnecting the unit from the wall outlet, never pull the power cord, grasp the charger and disconnect it by removing it from the receptacle.

EN

concept

concept

EN

• Do not allow children or unauthorized people to handle the electric scooter, use it out of their reach.
• Pay extra attention when the using the electric scooter near children.
• Do not allow the electric scooter to be used as a toy.
• Do not use any accessories other than those recommended by the manufacturer.
• Do not insert any objects into the openings. Do not use the electric scooter if any of the openings is clogged.
• Do not immerse the electric scooter in water or any other liquid. This would damage the electric scooter and lead to an accident.
• Check the electric scooter and the charger cord for damage regularly.
• Do not throw the battery of the electric scooter into a fire or expose it to temperatures above 35 °C.
• Do not touch the driven moving parts of the electric scooter during operation. When riding the electric scooter, do not touch the brake discs.
• Do not attempt to repair the electric scooter by yourself. Contact an authorized service centre.
• This electric scooter can be used by children aged from 15 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the device in a safe way and understand the hazards involved.
• Please bear in mind that when riding the electric scooter, you can lose balance, bump into something or fall. In order to prevent an injury, read and understand this manual and keep the scooter in good condition.
• Before riding the electric scooter, put on safety elbow pads, knee pads and a helmet. Wear appropriate clothing – we recommend sportswear.
• Do not use the electric scooter in a bad weather (rain, snow, strong wind, etc.).
• Do not use the scooter to transport other people or children. The electric scooter is intended for one person only.
• The electric scooter can be used by people over 15 years of age. DO NOT USE the electric scooter if you are pregnant.
  • The maximum load of the electric scooter is 120 kg.
• Do not consume alcohol or use any other addictive substances before or during riding the electric scooter. Do not smoke while riding the electric

scooter.

• Do not make calls or use headphones while riding the electric scooter. Always pay full attention to driving.
• Pay attention to the state of the roads, any uneven road surface can negatively affect your ride – mud, ice, snow, wet ground, potholes.
• The electric scooter is designed to climb to an angle that is less than 15^ .
• Do not use the electric scooter on roads intended for cars.
• Do not park your electric scooter in front of safety exits, evacuation corridors and spaces reserved for emergency services.

WARNING! IMPROPER USE OF THE ELECTRIC SCOOTER OR FAILURE TO READ THIS INSTRUCTION MANUAL MAY RESULT IN SERIOUS INJURY. THE DEALER OR THE DISTRIBUTOR ASSUME NO RESPONSIBILITY FOR INJURY, FINANCIAL DAMAGE, DISAGREEMENTS, LEGAL DISPUTES OR CONFLICTS CAUSED BY IMPROPER USE AND FAILURE TO FOLLOW INSTRUCTIONS OF THIS MANUAL.

Damages from failure to follow the manufacturer's instructions are not covered by the warranty.

EN

concept

concept

EN

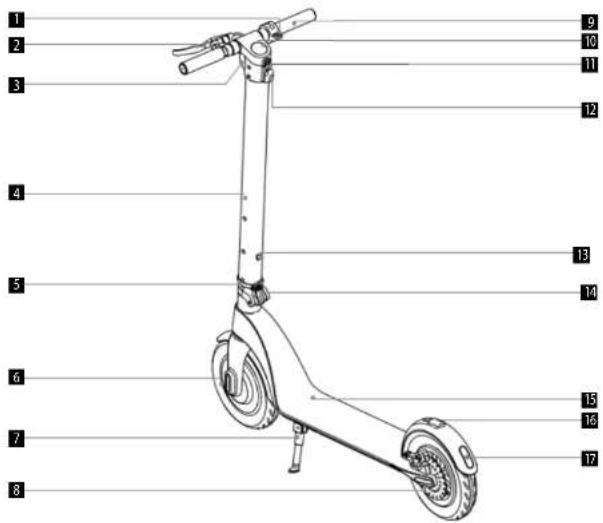

PRODUCT DESCRIPTION

1 Accelerator
2 Brake
3 Headlight
4 Column
5 Locking ring
6 Motor
7 Kickstand
8. Disc brake
9 Handlebars

10 LED display
11 Dashboard cover lock
12 Hook
13 Charging port
14 Safety lock
15 Anti-slip deck
16 Mudguard
17 Tail lights

Package contents

1x Electric scooter SC2500
1x Charger
1x Battery
1x M5 Allen key
1x User manual

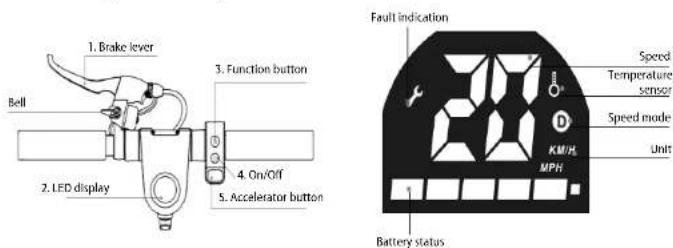

HANDLEBARS AND CONTROL DESCRIPTION

1. Brake lever

Hold the brake handle to stop. Lightly step on the rear mudguard to brake a little.

2. LED display

If the "Fault indication" light lights up, contact your dealer and ask him for an advice on how to proceed.

3. Function button

A Short press the function button to switch gears.

• Beginner mode: the speed mode indicator off.
• Advanced mode: the speed mode indicator 9 white.
• Sports mode: the speed mode indicator B-red.

B Short press the function button twice to turn on/off the headlights. The tail lights turn on automatically when braking.

4. On/Off button

Long press the button to switch the electric scooter on/off.

5. Accelerator button

Press the accelerator button to start the electric scooter and press it again to accelerate.

6. Cruise control function

The cruise control is automatically activated if you maintain a constant speed for 6 seconds. If you want to deactivate the cruise control, simply accelerate or step on a brake.

SC2500SC2500

EN

concept

concept

EN

OPERATING INSTRUCTIONS

ELECTRIC SCOOTER ASSEMBLY

Warning

Always switch off the electric scooter and disconnect the charger from wall socket before assembling or removing accessories!

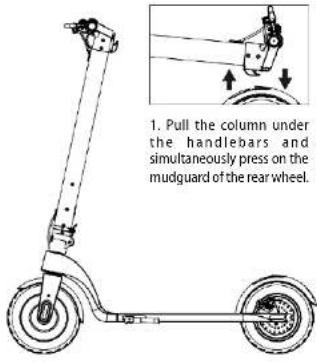

1. Pull the column under the handlebars and simultaneously press on the mudguard of the rear wheel.

2. Put the column upright and use the locking ring to secure the safety lock.

3. Secure the brake lever with an MS Allen key.

4. Tighten the handlebars (pay attention to the direction when tightening).

5. Tighten the bolt at the column so that it is stationary.

ELECTRIC SCOOTER ASSEMBLY

Line drawing of a modern electric scooter with visible wheels and side-mounted sensors (no text or symbols)

1. Loosen the locking ring.

2. Loosen the safety lock.

3. Lower the column.

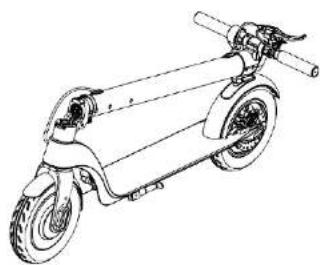

4. The hook must fit into the opening on the rear mudguard, press to secure it.

HOW TO RIDE THE ELECTRIC SCOOTER

1. Press and hold the On/Off button for 2 seconds.
2. Place one foot on the deck and use the other one to kick off the ground.
3. After you reach a sufficient speed and you feel stable, place your other foot on the deck of the electric scooter.
4. After start, slightly press the accelerator and carefully turn the handlebars to change direction.
5. Press the ACCELERATOR button to accelerate. Be careful and do not ride too fast!
6. Press the brake lever and lightly step on the rear brake to brake.
7. When the electric scooter slows down enough, remove your foot from the deck. After the electric scooter stops completely, put both your feet on the ground.

RANGE OF THE ELECTRIC SCOOTER

The range of the electric scooter can be affected by several factors, such as the weather, weight, battery charge and state of the road. These are just main examples, each factor can affect the range and many of them can combine with each other. Please bear in mind that the total range given in specifications is for reference only. The actual range can vary greatly. Bear it in mind when using the electric scooter.

Scooter range depending on weight

BATTERY SPECIFICATIONS

Follow these storage and charge instructions to extend battery lifespan and performance. Please pay special attention to safety precautions and other specifications.

Battery specifications
Type Li-ion battery
Charging time 3-4 hours
Voltage 36 V
Operating temperature 0-35 °C
Charge temperature 0-35 °C
Storage temperature -8 °C – 35 °C
Maximum charging voltage	42 V
Recommended storage time (-8 °C – 35 °C)	3 months when fully charged
Battery capacity	6.4 Ah

EN

concept

concept

EN

Maximum charging current 2 A
Input voltage 100-240 V AC
Frequency 50–60 Hz
Output voltage 42 V
Output current 1.5 A

SAFE USING OF THE BATTERY

Stop using the battery in the following cases:
- Use the battery of the electric scooter only in accordance with local laws. Contact a qualified person to remove and replace the battery.
- Do not touch any substances leaking from the battery. If the battery starts to produce an unpleasant odour or gets too hot, stop using it.
- Do not use the electric scooter during charging. Always disconnect the battery from the charger before ride and installation.
- Do not let children and animals touch the battery!
- To ensure proper operation of the battery, pay attention to the storage and charge temperature. Always observe the temperature range given in the specifications.
• Always follow local laws when transporting lithium batteries. Lithium batteries are considered dangerous.
• The battery contains dangerous substances, never open the battery. Do not insert anything into the battery.
- It is forbidden to charge a lithium battery that has been over-discharged. These batteries represent a safety hazard, hand them over to the appropriate collection point.
- If the internal temperature of the battery exceeds 45 °C, the protection system will be automatically activated.
- Do not charge the battery if the outdoor or indoor temperature exceeds 40 °C.
- Never leave the electric scooter on a direct sunlight. This could damage the battery.
- Use only original chargers to charge the electric scooter.

CHARGING PROCEDURE

First charging method:

• Open the charging port cover and make sure that the charging port is clean and dry.
• Connect the charging device to the battery and the other end to the power supply (100-240 V).
• If the indicator on the charger lights up red, the battery is charging properly. If the indicator does not light up, check the connection to the mains.
• If the indicator on the charger lights up green, the battery is charged to 99%. Stop charging the battery. Prolonged charging of the battery affects its lifespan.

Second charging method:

• Remove the battery from the electric scooter. Remove the silicone cover from the charging port, then connect the DC connector of the charger to the charging port of the battery.
• Plug the power cord into the charger and the second port into a wall outlet (100-240 V). Check whether the charger indicator is on.

Charging port

Battery interface

If the indicator on the charger lights up green, the battery is charged, disconnect the charging device from the battery. After charging, cover the charging port with the silicone cover which protects the port from dust and prevents contact with foreign metal objects that could cause a short circuit.

SC2500SC2500

BATTERY REPLACEMENT
1. Removing the battery from the electric scooter

Technical line drawing of a scooter handle and wheel assembly (no text or symbols)

1. Press the button below the display to open the dashboard.

2. Unscrew the battery cover. 3

Pull out the battery using the cord located on the top of the battery.

1. installing the battery into the electric scooter

2. Press the button below the display to open the dashboard, remove the battery cover.

2. Alight the groove of the battery with the groove in the electric scooter. Make sure that the cord is always visible on the top of the battery.

3. Tighten the battery cover. Then press on the dashboard. Always make sure that the display is firmly attached.

CLEANING AND MAINTENANCE

• Always make sure that the battery and charger of the electric scooter are disconnected from the power supply. The electric scooter must be switched off.
- Dampen a soft cloth with clean water and use it to clean the electric scooter. Never use an excessive amount of lubricating oil when performing bearing maintenance.
- It is forbidden to clean the electric scooter using water spray or immerse it into water and other liquids. This would permanently damage the electrical components.

EN

concept

concept

EN

STORAGE

• Before storage, fully charge the battery to prevent damage to the battery caused by over-discharge during long-term storage.
• Recharge the battery at least once every three months.
• Do not charge the battery if the storage temperature is below 0 °C. Move the battery to a room with a room temperature and then charge it.
• Store your electric scooter in a suitable dry interior. The electric scooter can be covered to prevent dust on settling on it.

TROUBLESHOOTING

Problem Remedy
The electric scooter does not start Charge the battery.
The electric scooter does not charge	Make sure that the charger is correctly connected to the wall outlet, if not, connect the charger to the mains.
	Make sure that the charger of the electric scooter works (the indicator is on).
	Make sure that the plug of the charger and the charging port of the electric scooter are correctly connected.
Reduced performance of the battery	The battery life is over – replace the battery with a new one. Contact an authorized service centre.
The motor is not working Contact an authorized service centre.
Brakes	The brakes make a grinding or whistling noise – check their adjustment.
	If the clamping element of the brakes is loosened, tighten the bolts and adjust the brakes.
	If the brakes and brake pads are dirty and offer poor braking power, clean the brakes with clean water.

If the instructions in the table above do not help you to solve the problem, contact your dealer or an authorized service centre. Any modifications and repairs you make to the electric scooter may damage the appliance and subsequent warranty claims will not be accepted!

OPTIONAL ACCESSORIES

Bag product code 42393855

Mobile phone holder product code 42393856

Spare battery product code 42393834

BATTERY DISPOSAL

The appliance contains a Li-ion battery. This type of battery contains substances that can damage the environment in their disintegration. Before disposing of the appliance or replacing the battery, the original battery must be removed and returned to an appropriate collection point.

SERVICE

Extensive maintenance or repair, which requires access to internal parts of the product, has to be performed by a qualified service centre.

ENVIRONMENTAL CONCERNS

• Packaging materials and old appliances should be recycled.
• Packaging materials may be disposed of as sorted waste.
- Dispose the plastic bags made of polyethylene (PE) of as sorted waste.

Recycling of the appliance at the end of its lifespan

This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (Waste Electrical and Electronic Equipment - WEEE). The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead, it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The disposal of such material has to be done according to the recycling regulations. For more detailed information about recycling of this appliance see the authorized local office or service for household waste disposal or the shop, where you purchased the appliance.

The product meets all the necessary requirements of the EU directives applicable to the specific product.

Changes in text, design, and technical specifications are subject to change without notice and we reserve the right to change them.

DANKSAGUNG

SC2500SC2500

Line drawing of a modern electric scooter with visible battery pack and wheels (no text or symbols)

DESCRIPTION DES GUIDONS ET DES COMMANDES

1. Levier de frein

Line drawing of a modern electric scooter with visible wheels and side-mounted sensors (no text or symbols)

Line drawing of a scooter with extended body and wheels (no text or symbols)

Line drawing of a modern electric scooter with visible suspension and wheel (no text or symbols)

DESCRIEREA GHIDONULUI ŞI A COMENZILOR

1. Manetă de frână

Line drawing of a scooter with extended handle and wheels (no text or symbols)

CONCEPT POLSKA sp. z o.o.

The manufacturer (or Importer) is responsible for ensuring the product complies with the requirements of applicable legal regulations as well as those of the relevant technical standards. Moreover, they are responsible for ensuring the product has the properties the manufacturer described in documents related to the goods or those reasonably expected by the customer with regard to the nature of the goods or based on advertising produced by the manufacturer, and further they are responsible for ensuring the product is fit for the purpose proposed by the manufacturer or that a product of the same type is normally used for.

The quality warranty term is 24 months from product takeover by the customer.

The warranty does not apply to wear and tear caused by regular use. The customer shall not be entitled to any warranty claims if, prior to taking the product over, they knew the product contained a defect or if the defect is attributable to the customer.

In terms of these warranty conditions, a defective battery is considered a battery that is electronically inoperative (i.e., does not communicate with the base unit, the charging or discharging circuits are defective, etc.) or has an internal short circuit.

Defects or changes in parameters caused by normal use and wear (e.g. natural capacity decrease) are in no way considered a defect in terms of warranty.

The battery is provided warranty service for a period of 6 months. In terms of these warranty conditions, the battery has the nature of a consumable, for more details see „Consumables“.

Consumables

For consumables (batteries, etc.) we guarantee the preservation of technical parameters for 6 months, in case it was not damaged by improper use and its lifetime has not expired.

The warranty specifically does not apply:

• If the product installation, operation and service conditions stipulated in the product operating manual have not been adhered to,
  • to malfunctions caused due to mechanical, heat or chemical damage, short circuit, over voltage or incorrect installation,
  • to malfunctions caused by an inexpert third-party intervention,
  • to malfunctions caused by natural disaster,
• to malfunctions caused by insufficient or inappropriate maintenance in violation of the operating manual, including malfunctions caused by water and other sediments,
  • to changes in colour of the heating surface or to scratching of the surface caused as a result of using the products in an unusual manner,
  • to appearance and functional changes caused by exposure to sunlight, thermal radiation of water and other sediments,
• If the service life of certain product parts expires, e.g. for accumulators, bulbs, etc.

The warranty does not apply to any products and services provided along with the product (gifts, promotional articles, etc.).

Filing a complaint

A complaint against a product defect must be filed as soon as identified, yet no later than before the end of the warranty term.

The customer must file a product complaint with the dealer from which they have purchased the product, or with any authorised service centre, a list of which is included in the product package, or available at www.my-concept.com.

While filing a product complaint, the product must be duly cleaned and securely packed so as to prevent any damage during its transport to an authorised service centre, where relevant, unless the product is delivered in person.

The customer must submit proof of having concluded a purchase contract for the product by producing the receipt.

While filing their complaint, the customer must indicate the noted defect and identify the preferred complaint application method.

Complaints processing

As long as the noted defect may be removed, the user has the right to have the defect duly removed free of charge on a timely basis.

If the noted defect is not removable, or if the customer becomes entitled to replacement of the product or a part thereof, yet the replacement is not possible, for example due to the product having been sold out, the customer has the right to return the product (withdrawal from the contract).

The customer shall have the right to a new product (replacement) or to replacement of a part of the product even if the defect can be removed, provided they cannot properly use the product due to repeated occurrence of the defect or due to a high number of such defects. In such a case, the customer also has the right to return the product (by withdrawing from the contract).

If the product is not returned (the customer does not withdraw from the contract), or if the customer does not apply the right to a new defect-free product (replacement), to replacement of a part thereof or to repair of the product, they may request a reasonable discount. The customer also has a right to a reasonable discount if a new defect-free product cannot be supplied to them, or if a product part cannot be replaced or the product repaired unless the situation is remedied within a reasonable time limit, or if remedying the situation would create major discomfort on the part of the customer.

The seller, authorised service centre or a staff member authorised by them must decide about each complaint immediately or within three business days in complicated cases. This term does not include a reasonable period of time, depending on the type of product concerned, required for the defect to be assessed by an expert. A complaint, including defect removal, must be dealt with without any undue delay, yet no later than within 30 calendar days of the complaint filing date, unless the seller and the customer agree on a later deadline.

On returning the product (withdrawing from the contract) the customer must return any accessories and documents supplied along with the product.

The customer does not have the right to keep the defective parts and components of the product replaced as part of a repair of the product.

This shall be without prejudice to any other rights the customer may have in relation to the purchase of the product.

Remark: Complaints against products damaged in transport are governed by the carrier's complaints procedure.

Manufacturer

Jindřich Valenta - Concept

Company ID No. 13216660

email: [e-mail]

www: www.my-concept.com

Product data

Model:
Production number:
Date of purchase: Seal and signature of vendor:

concept concept

DE

GARANTIEBEDINGUNGEN

Garantie

CONDITIONS DE GARANTIE

Garantie

smartly designed for your life

EU Declaration of conformity

Product / model

Type:

Electric scooter SC250D

X7

Name and address of

manufacturer:

Jindrich Valenta - Concept

Vysokomýtská 1800

565 01 Chocen

This declaration of conformity is issued under the sole responsibility of the manufacturer.

Subject of the declaration: The product is intended for household. The product is designed for passenger transportation.

The product described above complies with the relevant harmonization legislation of the European Union: directive 2014/35/EU (LVD).

directive 2014/30/EU [EMC],

directive 2011/65/EU (RoHS).

directive 2006/42/EC [MD]

Relevant harmonized standards used:

EN 17128:2020

EN ISO 12100:2010

EN 60335-1:2012+A11:2014+A13:2017

EN 62233:2008

EN 61000-6-3:2007+A1:2011

EN 61000-6-1:2007

concept

Johansk Valents - Concept Vysokomytska 1800, 545 01 Chocet

Tel: [phone] Fax: [phone]

C:1321560-01C:126902171377

Signed and followed by the name

In: Chocen 9.7.2021

Name and function: Dominik Jehlička, Product engineer SDA

Jindrich Valenta - Concept

Vysokomytská 1800, Choceň

Tel.: [phone]

E-mail: info@my-concept.c2

ICO: 13216660

DIC: C26702171377

concept concept

PI CONCEPT POLSKA sp. z o.o.
