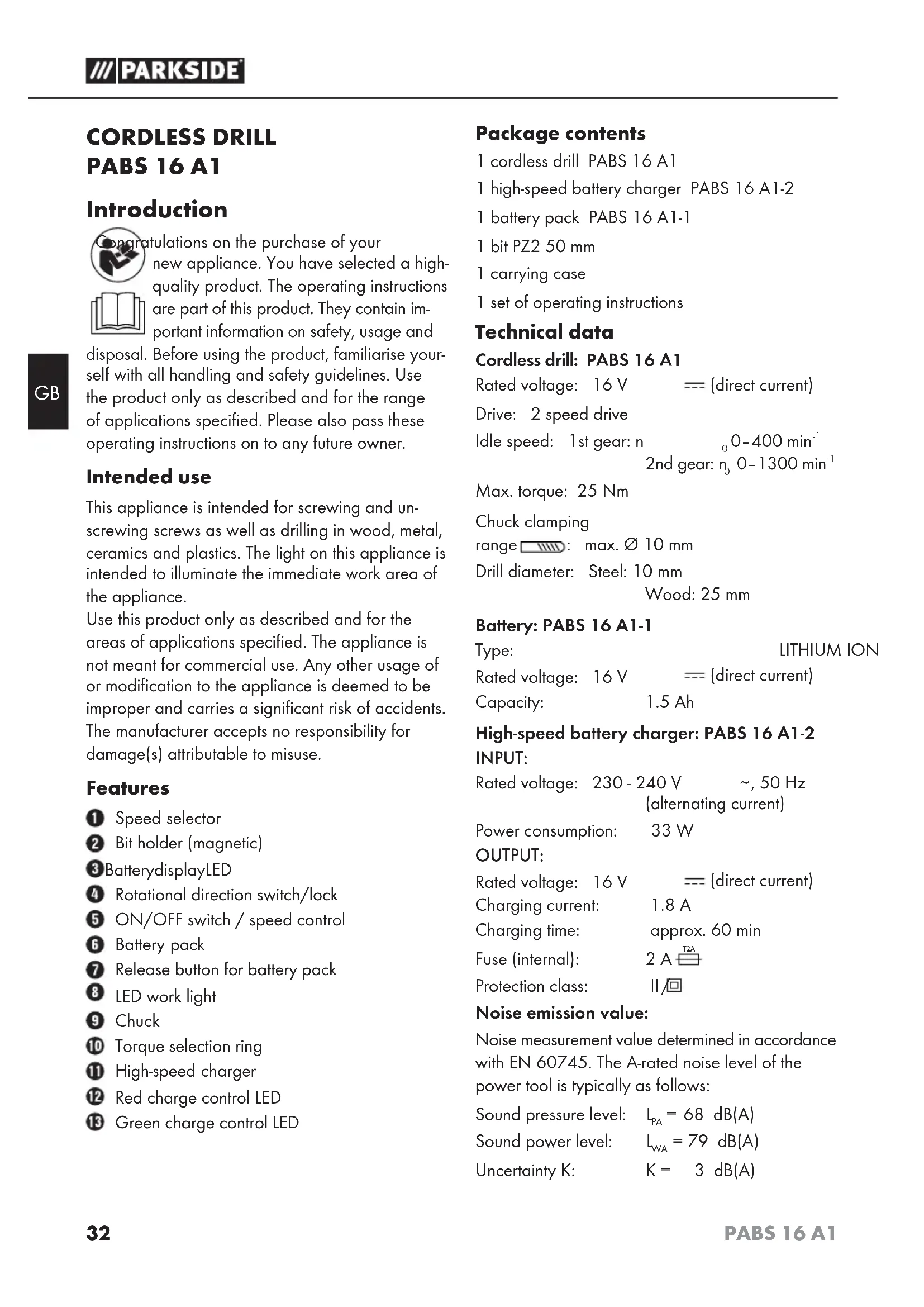

CORDLESS DRILL PABS 16 A1 Introduction Congratulations on the purchase of your new appliance. You have selected a high- quality product. The operating instructions are part of this product. They contain im- portant information on safety, usage and disposal. Before using the product, familiarise your- self with all handling and safety guidelines. Use the product only as described and for the range of applications specified. Please also pass these operating instructions on to any future owner. Intended use This appliance is intended for screwing and un- screwing screws as well as drilling in wood, metal, ceramics and plastics. The light on this appliance is intended to illuminate the immediate work area of the appliance. Use this product only as described and for the areas of applications specified. The appliance is not meant for commercial use. Any other usage of or modification to the appliance is deemed to be improper and carries a significant risk of accidents. The manufacturer accepts no responsibility for damage(s) attributable to misuse. Features Speed selector Bit holder (magnetic) Battery display LED Rotational direction switch/lock ON/OFF switch / speed control Battery pack Release button for battery pack LED work light Chuck Torque selection ring High-speed charger Red charge control LED Green charge control LED Package contents 1 cordless drill PABS 16 A1 1 high-speed battery charger PABS 16 A1-2 1 battery pack PABS 16 A1-1 1 bit PZ2 50 mm 1 carrying case 1 set of operating instructions Technical data Cordless drill: PABS 16 A1 Rated voltage: 16 V (direct current) Drive: 2 speed drive Idle speed: 1st gear: n

, 50 Hz (alternating current) Power consumption: 33 W OUTPUT: Rated voltage: 16 V (direct current) Charging current: 1.8 A Charging time: approx. 60 min Fuse (internal): 2 A T2A Protection class: II / Noise emission value: Noise measurement value determined in accordance with EN60745. The A-rated noise level of the power tool is typically as follows: Sound pressure level: L

Vibration emission value: Vibration total values (triax vector sum) determined according to EN 60745: Screwdriving: Vibration emission value

Drilling in metal: Vibration emission value

Wear hearing protection! NOTE ► The vibration level specified in these instruc- tions has been measured in accordance with the standardised measuring procedure specified in EN 60745 and can be used to make equipment comparisons. The specified vibration emission value can also be used to make an initial exposure estimate. WARNING! ► The vibration level varies in accordance with the use of the power tool and may be higher than the value specified in these instructions in some cases. There is a risk of underestima- tion of the vibration load if the power tool is used regularly in this manner. Try to keep the vibration load as low as possible. Measures to reduce the vibration load are, e.g. wearing gloves and limiting the working time. Wherein all states of operation must be included (e.g. times when the power tool is switched off and times where the power tool is switched on but running without load). General power tool safety warnings WARNING! ► Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery- operated (cordless) power tool.

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents. b) Do not operate power tools in explosive atmospheres, such as in the presence of flam- mable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes. c) Keep children and bystanders away when operating a power tool. Distractions can cause you to lose control.

2. Electrical safety

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock. b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, cookers and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded. c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock. d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.34 PABS 16 A1

e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock. f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury. b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries. c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents. d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury. e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations. f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewel- lery or long hair can be caught in moving parts. g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

4. Power tool use and care

a) Do not overload the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed. b) Do not use a power tool whose switch does not turn it on and off. Any power tool that can- not be controlled with the switch is dangerous and must be repaired. c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally. d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dan- gerous in the hands of untrained users. e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool’s operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools. f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control. g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, tak- ing into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.35 PABS 16 A1

5. Use and handling of the cordless

electrical power tool a) Charge a rechargeable battery unit using only the charger recommended by the manu- facturer. Chargers are often designed for a particular type of rechargeable battery unit. There is a risk of fire if other types of recharge- able battery units are used. b) Only the rechargeable battery units supplied are to be used with the power tools. The use of other rechargeable battery units may lead to the danger of injury or fire. c) When they are not being used, store recharge- able battery units away from paperclips, coins, keys, nails, screws or other small metal objects that could cause the contacts to be bridged. Short-circuiting the contacts of a rechargeable battery unit may result in heat damage or fire. d) Fluid may leak out of rechargeable battery units if they are misused. If this happens, avoid contact with the fluid. If contact occurs, flush the affected area with water. Seek additional medical help if any of the fluid gets into your eyes. Escaping battery fluid may cause skin irritation or burns. CAUTION! RISK OF EXPLOSION! Never charge non-rechargeable batteries! Protect the rechargeable battery from heat, for example from continuous solar irradiation, fire, water and moisture. There is a risk of explosion.

a) Have your power tool serviced by a qualified repair person using only identical replace- ment parts. This will ensure that the safety of the power tool is maintained. Safety guidelines for the cordless drill WARNING! ■ Hold the power tool by the insulated grip- ping surfaces when performing an opera- tion where the screw or attached tool could come into contact with hidden wiring. Con- tact between the screw or attached tool and a live wire may cause exposed metal parts of the power tool to become live and give the operator an electric shock. Safety guidelines for battery chargers ■ This appliance may be used by children aged 8 years and above and by persons with limited physical, sensory or mental capabilities or lack of experience and knowledge, provided that they are under supervision or have been told how to use the appliance safely and are aware of the potential risks. Children must not use the appliance as a plaything. Cleaning and user maintenance tasks may not be carried out by children unless they are supervised. This charger is suitable for indoor use only. WARNING! ■ To avoid potential risks, if the appliance power cord is damaged it must be replaced by the manufacturer, its customer service or by a qualified technician.36 PABS 16 A1

Supplementary notes ■ Secure the workpiece. A workpiece securely held by a clamping device or vice is much safer than one held in your hand. ■ Hold the power tool firmly. High reaction moments can occur for brief periods while tightening and loosening screws. ■ Switch the power off immediately if the tool blocks while in use. Be prepared for high reac- tion moments as these can cause kickback. ■ While working on the appliance, transporting it or storing it, always set the rotation direc- tion switch to the centre position (lock). This prevents the power tool from starting up unintentionally. ■ CAUTION, POWER CABLES! DANGER! Ensure that you are not likely to contact power, gas or water supply lines when you are working with the power tool. If necessary, check with a service line detector before you start to cut or drill into a surface. Before use Charging the battery pack (see fig. A) CAUTION! ► Always unplug the appliance before you remove the battery pack from or connect the battery pack to the charger. ■ Never charge the battery pack when the ambient temperature is below 10°C or above 40°C. ♦ Connect the battery pack to the rapid battery charger (see Fig. A). ♦ Insert the power plug into the socket. The control LED will light up red and indicates the charg- ing process. ♦ The green control LED indicates that the charging process is complete and the battery pack is ready. ♦ Insert the battery pack back into the appli- ance. ♦ Switch off the charger for at least 15 minutes between successive charging sessions. Also disconnect the power plug from the mains power socket. Attaching/disconnecting the battery pack to/from the appliance Attaching the battery pack: ♦ Move the rotation direction switch to the middle position (lock). Allow the battery pack to click into the handle. Removing the battery pack: ♦ Press the release button and remove the battery pack. Checking the battery charge level ♦ Press the ON/OFF switch to check the status of the battery (see also main diagram). The status/remaining charge will be shown on the battery display LED as follows: ♦ GREEN/RED/ORANGE = maximum charge/ performance RED/ORANGE = medium charge/performance RED = low charge – charge the battery37 PABS 16 A1

Changing tools Your cordless drill has a fully automatic spindle lock

When the motor is stopped, the power train is locked so that the chuck can be opened by turning . After you have attached the desired tool and tight- ened it by turning the chuck , you can continue working. The spindle lock is automatically released when the motor starts (ON/OFF switch pressed

Torque selection ring/drill setting You can set the torque using the torque selection ring

♦ Select a low level for small screws or soft materials. ♦ Select a high level for large screws, hard materials or removing screws. ♦ Select the drill setting for drilling work by adjusting the torque selection ring to the position

2 speed gearbox CAUTION! ► Only operate the speed selection switch when the appliance is at a standstill. Other- wise the appliance can be damaged. In first gear (speed selector switch

position: 1) you can reach a speed of approx. 400 rpm and a high torque. This setting is suitable for all screw- driving. In second gear (speed selector switch

position: 2) you can reach a speed of approx. 1300 rpm for carrying out drilling work. Operation Switching on and off Switching on: ♦ To start the appliance, press the ON/OFF switch and keep it pressed in. The LED work light illuminates when the ON/OFF switch is depressed even lightly. This allows illumination of the work area in low lighting. Switching off: ♦ Release the appliance's ON/OFF switch

switch off the appliance. Adjusting the rotational speed Pressing the ON/OFF switch lightly yields a low speed. Increasing pressure increases the speed. NOTE ► The integrated motor brake ensures rapid stoppage. Changing the direction of rotation ♦ Change the direction of rotation by pressing the rotational direction switch towards the left or right.38 PABS 16 A1

Tips and tricks Tip! This symbol indicates proper behaviour! ♦ Before operation, check whether the screw or drill bit is correctly positioned, i.e. centred in the drill chuck. ♦ Screw bits are labelled according to their di- mensions and their shape. If you are uncertain, always check whether the bit fits tightly in the screw head without any free play. Torque: ♦ Smaller screws/bits can be damaged if you set the torque or rotational speed too high. Hard screw joints (in metal): ♦ Particularly high torques occur, for example, in metal screw joints made using drive sockets. Select a low rotational speed. Soft screw joints (e.g. in soft wood): ♦ Here, too, you should use a low rotational speed, e.g. to avoid damaging the surface of the wood upon contact with the bolt head. Use a countersink. When drilling in wood, metal and other mate- rials, observe the following: ♦ Use a high speed for drill bits with small diam- eter and a low speed for drill bits with large diameter. ♦ Select a low speed for hard materials and a high speed for soft materials. ♦ Secure or fasten the workpiece in a clamp or vice (if possible). ♦ Mark the location where you want to drill using a centre punch or nail. Select a low rotational speed when starting. ♦ Pull the rotating drill bit from the hole repeatedly to remove dust and chips and clear the hole. Drilling in metal: ♦ Use a metal drill (HSS). For optimum results, you should cool the drill bit with cutting oil. Metal drill bits can also be used to drill into plastics. Start with a 3 mm diameter drill bit and then increase the size until the desired hole diameter is achieved. Drilling in wood: ♦ Use a wood drill with a lathe centre; for deep holes, use an "auger bit"; for large-diameter holes, use a Forstner bit. Small screws can be screwed directly into soft wood. Maintenance and cleaning WARNING! RISK OF INJURY! Always switch the appliance off and remove the battery before carrying out any work on the appliance. The cordless screwdriver is maintenance-free. ■ The appliance must always be kept clean, dry and free from oil or grease. ■ Never allow liquids to get into the appliance. ■ Use a soft, dry cloth to clean the housing. Never use petrol, solvents or cleansers which can damage plastic. ■ If a lithium-ion battery is to be stored for an extended period, the charge level should be checked regularly. The optimum charge level is between 50% and 80%. The optimum storage climate is cool and dry. NOTE ► Replacement parts not listed (such as carbon brushes, switch) can be ordered via our service hotline.39 PABS 16 A1

Warranty This appliance is provided with a 3-year warranty valid from the date of purchase. The appliance has been manufactured with care and inspected meticulously prior to delivery. Please retain your receipt as proof of purchase. In the event of a warranty claim, please contact your Customer Service unit by telephone. This is the only way to guarantee free return of your goods. The warranty only covers claims for material and manufacturing defects, not for damage sustained during carriage, components subject to wear and tear or damage to fragile components such as switches or batteries. This appliance is intended solely for private use and not for commercial purposes. The warranty shall be deemed void in cases of misuse or improper handling, use of force and modifications/repairs which have not been carried out by one of our authorised Service centres. Your statutory rights are not restricted by this warranty. The warranty period is not prolonged by repairs effected under the warranty. This also applies to replaced and repaired components. Any damage and defects present at the time of purchase must be reported immediately after unpacking, but no later than two days after the date of purchase. Repairs carried out after expiry of the warranty period shall be subject to charge. Service WARNING! ► Have the power tool repaired by the Service centre or a qualified electrician and only using genuine replacement parts. This will ensure that the safety of the appliance is maintained. ► Always ensure that the power plug or the mains cable is replaced only by the manufacturer of the appliance or by an approved customer service provider. This will ensure that the safety of the appliance is maintained. Service Great Britain Tel.: 0871 5000 720 (£ 0.10/Min.) E-Mail: kompernass@lidl.co.uk IAN 270701 Hotline availability: Monday to Friday from 8:00 a.m. to 8:00 p.m. (CET) Importer

Disposal The packaging is made from environmen- tally friendly material and can be disposed off at your local recycling plant. Do not dispose of power tools in your normal household waste! European Directive 2012/19/EU requires that worn-out power tools be collected separately and recycled in an environmentally compatible manner. Do not dispose of batteries in your normal domestic waste! Defective or worn-out rechargeable batteries must be recycled according to Directive 2006/66/EC. Take the battery pack and/or appliance to a nearby collection facility. Please consult your local authorities regarding suitable disposal of worn out power tools/battery packs. Translation of the original Conformity Declaration We, KOMPERNASS HANDELS GMBH, documents officer: Mr. Semi Uguzlu, BURGSTR.21, 44867 BOCHUM, GERMANY, hereby declare that this product complies with the following standards, normative documents and EC directives: Machinery Directive (2006/42/EC) EC Low Voltage Directive (2006/95/EC) EMC (Electromagnetic Compatibility) (2004/108/EC) RoHS Directive (2011/65/EU) Applied harmonised standards: EN 60745-1:2009/A11:2010 EN 60745-2-1:2010 EN 60745-2-2:2010 EN 55014-1:2006/A2:2011 EN 55014-2:1997/A2:2008 EN 60335-1:2012/A11:2014 EN 60335-2-29:2004/A2:2010 EN 62233:2008 EN 61000-3-2:2014 EN 61000-3-3:2013 Type/appliance designation: Cordless drill PABS 16 A1 Year of manufacture: 09 - 2015 Serial number: IAN 270701 Bochum, 30/06/2015 Semi Uguzlu - Quality Manager - The right to effect technical changes in the context of further development is reserved.IAN 270701
