CORDLESS COMBI SCREWDRIVER/IMPACT DRIVER PDSSA 12 A1

Introduction

Congratulations on the purchase of your new appliance. You have chosen a high-quality product. The operating instructions are part of this product. They contain important information about safety, usage and disposal. Before using the product, please familiarise yourself with all operating and safety instructions. Use the product only as described and for the range of applications specified. Please also pass these operating instructions on to any future owner.

Intended use

This appliance is intended for screwing in and unscrewing screws and tightening and loosening nuts in a given torque range. The appliance has a clockwise/anticlockwise rotation, a 1/4" hexagon socket bit holder and an LED working light. The light on this appliance is intended to illuminate the immediate work area of the appliance. The rotary impact function of the appliance enables the power of the motor to be converted into uniform rotary impacts. The impact mechanism can be activated for tightening and loosening.

This appliance is not designed for removing vehicle wheels.

Use this product only as described and for the areas of applications specified. The appliance is not intended for commercial use. Any other usage or modification of the appliance is deemed to be improper and carries a significant risk of accidents. The manufacturer accepts no responsibility for damage attributable to misuse.

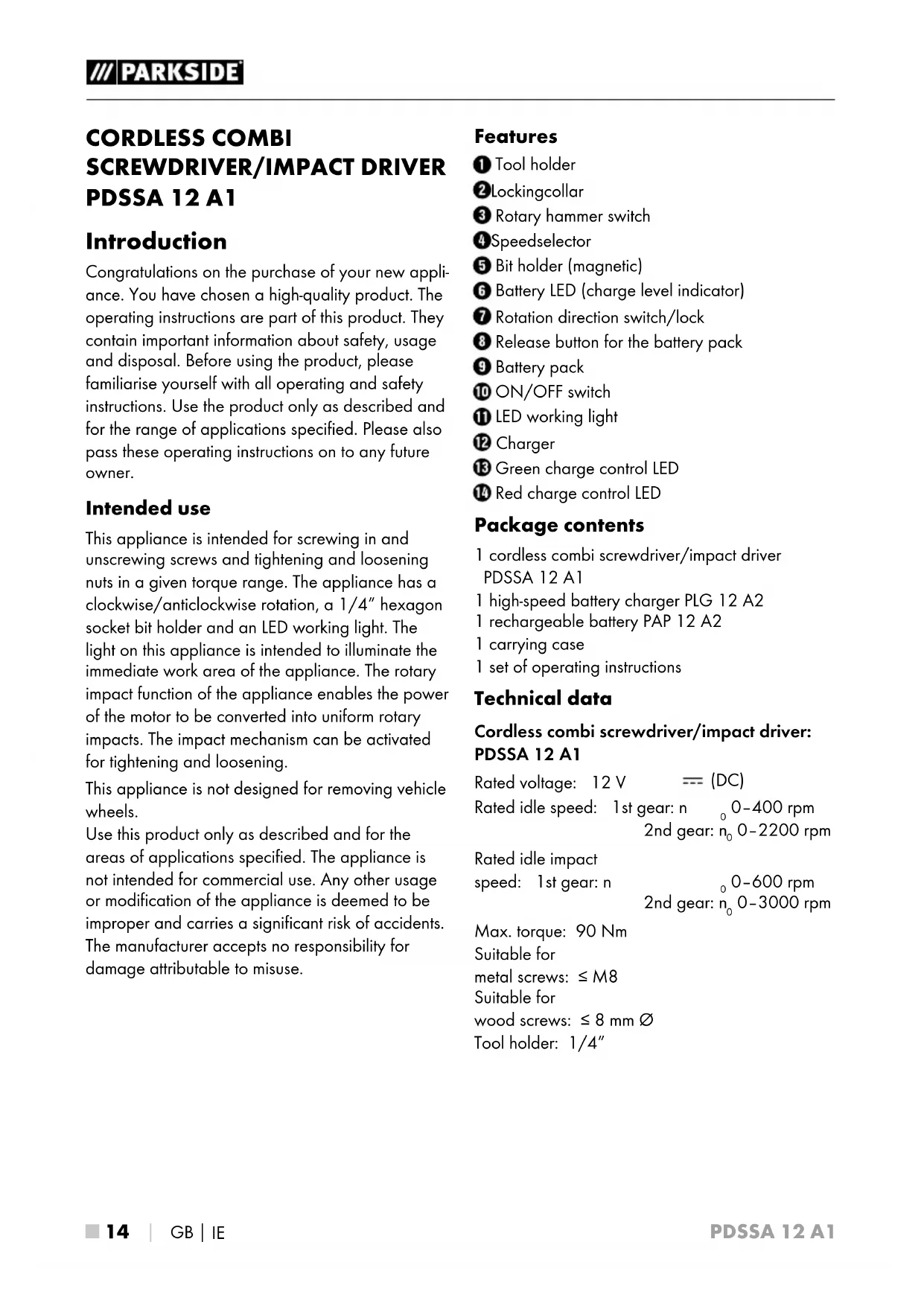

Features

① Tool holder
②Lockingcollar
3 Rotary hammer switch
4 Speedselector
5 Bit holder (magnetic)
⑥ Battery LED (charge level indicator)
7 Rotation direction switch/lock
8 Release button for the battery pack
9 Battery pack
10 ON/OFF switch
⑪ LED working light
12 Charger
13 Green charge control LED
14 Red charge control LED

Package contents

1 cordless combi screwdriver/impact driver PDSSA 12 A1
1 high-speed battery charger PLG 12 A2
1 rechargeable battery PAP 12 A2
1 carrying case
1 set of operating instructions

Technical data

Cordless combi screwdriver/impact driver: PDSSA 12 A1

Rated voltage: 12 V = (DC)

Rated idle speed: 1st gear: n 0-400 rpm

2nd gear: n_0 0–2200 rpm

Rated idle impact

speed: 1st gear: n 0-600 rpm

2nd gear: n_0 0–3000 rpm

Max. torque: 90 Nm

Suitable for

metal screws: ≤ M8

Suitable for

wood screws: ≤ 8 mm ∅

Tool holder: 1/4"

Battery pack: PAP 12 A2

Type:LITHIUMION

Lithium

Rated voltage: 12 V === (DC)

Cells: 3

Capacity:2000mAh

High-speed battery charger: PLG 12 A2

INPUT:

Rated voltage: 230-240 V \~ (AC), 50 Hz

Power consumption: 38 W

OUTPUT:

Rated voltage: 12.6 V —— (DC)

Rated current: 2.4 A

Charging time: approx. 60 min

Fuse (internal): 2 A

Protectionclass:II/ (double insulation)

Noise emission value:

Noise measurement value determined in accordance with EN 60745. The A-rated noise level of the power tool is typically as follows:

Sound pressure level: L_PA = 90 dB (A)

Uncertainty K: K _PA = 3 dB

Sound power level: L_WA = 101 dB (A)

Uncertainty K: K _WA = 3 dB

Vibration emission value:

Total vibration values (vector total of three directions) determined in accordance with EN 60745:

Tightening screws and nuts of maximum permissible size:

$$ a _ {h} = 6. 9 \mathrm{m} / \mathrm{s} ^ {2} $$

Uncertainty K = 1.5 m/s ^4

Wear ear protectors!

NOTE

The vibration level specified in these instructions has been measured in accordance with a standardised measuring procedure and can be used for equipment comparisons. The specified vibration emission value can also be used to make an initial exposure estimate.

WARNING!

The vibration level varies depending on the use of the power tool and may, in some cases, be higher than the value specified in these instructions. Regular use of the power tool in this way may cause the user to underestimate the vibration. Try to keep the vibration loads as low as possible. Measures to reduce the vibration load are, e.g. wearing gloves and limiting the working time. Wherein all states of operation must be included (e.g. times when the power tool is switched off and times where the power tool is switched on but running without load).

General Power Tool Safety Warnings

WARNING!

▶ Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1. Work area safety

a) Keep work area clean and well lit.
Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2. Electrical safety

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.

b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.

c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.

d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.

e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

3. Personal safety

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

4. Power tool use and care

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

5. Use and handling of the cordless electrical power tool

a) Charge a rechargeable battery unit using only the charger recommended by the manufacturer. Chargers are often designed for a particular type of rechargeable battery unit. There is the danger of fire if other types of rechargeable battery units are used.
b) Only the rechargeable battery units supplied are to be used with an electrical power tool. The use of other rechargeable batteries may result in injury or a risk of fire.
c) When they are not being used, store rechargeable battery units away from paper-clips, coins, keys, nails, screws or other small metal objects that could cause the contacts to be bridged. Short-circuiting the contacts of a rechargeable battery unit may result in heat damage or fire.
d) Fluids may leak out of rechargeable battery units if they are misused. If this happens, avoid contact with the fluid. If contact occurs, flush the affected area with water. Seek additional medical help if any of the fluid gets into your eyes. Escaping battery fluid may cause skin irritation or burns.

ON! RISK OF EXPLOSION!

Never charge non-rechargeable batteries.

t the rechargeable battery from heat; for example, from continuous exposure to sunlight, fire, water and moisture. There is a risk of explosion.

6. Service

a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

Safety instructions specifically for impact wrenches

■ Wear hearing protection when impact screwing. Exposure to loud noise can lead to hearing loss.
- Secure the workpiece. A workpiece securely held by a clamping device or vice is much safer than one held in your hand.
- Hold the power tool firmly. High torques can occur for brief periods while tightening and loosening screws.

• Wait until the power tool has come to a standstill before putting it down. The tool could catch in something and thus lead to loss of control of the power tool.
• Hold the power tool by the insulated gripping surfaces, when performing an operation where the screw or attached tool could come into contact with hidden wiring. Contact between the screw or attached tool and a live wire may cause exposed metal parts of the power tool to become live and give the operator an electric shock.

Safety guidelines for battery chargers

■ This appliance may be used by children aged 8 years and above and by persons with limited physical, sensory or mental capabilities or lack of experience and knowledge, provided that they are under supervision or have been told how to use the appliance safely and are aware of the potential risks. Do not allow children to use the appliance as a toy. Cleaning and user maintenance tasks may not be carried out by children unless they are supervised.

The charger is suitable for indoor use only.

WARNING!

■ To avoid potential risks, damaged mains cables should be replaced by the manufacturer, their customer service department or a similarly qualified person.

ATTENTION!

Hot surface.

There is a risk of burns.

Before use

Removing/charging/inserting the battery pack

CAUTION!

▶ Always unplug the appliance before you remove the battery pack ⑨ from or connect the battery pack to the charger.

NOTE

The battery is supplied partially charged. Before first use, charge the battery in the charger for at least 1 hour. This guarantees full battery performance. You can charge the lithium-ion battery at any time without shortening its service life. Interrupting the charging process does not damage the battery.

■ Never charge the battery pack ^9 if the ambient temperature is below 10°C or above 40°C.

1. To remove the battery pack ^9 , press the release button 8 and pull the battery pack 9 of the appliance.
2. Insert the battery pack ⑨ into the high-speed charger ⑫
3. Insert the mains plug into the socket. The control LED 14 lights up red.
4. The green charge status indicator LED ^13 indicates that the charging process is complete and the battery pack is ready.
5. Insert the battery pack ⑨ back into the appliance.

Checking the battery charge level

If the appliance is switched on, the charge level will be shown on the battery LED 📄is follows:

RED/ORANGE/GREEN = maximum charge

RED/ORANGE = medium charge

RED = low charge - charge the battery

Switching the hammer function on/off

CAUTION!

▶ Operate the hammer function switch ③ only when the appliance is at a standstill. Otherwise the appliance can be damaged.

Switching the hammer function on:

◆ Move the hammer function switch 3 into the position to activate the hammer function.

Switching the hammer function off:

◆ Move the hammer function switch 3 into the position to deactivate the hammer function.

2-speed gearbox

CAUTION!

▶ Operate the speed selection switch only when the appliance is at a standstill. Otherwise the appliance can be damaged.

No hammer function

In first gear (speed selector switch 4n position: 1)

you can reach a speed of approx. 400 rpm and a low torque. This setting is suitable for all screwing jobs.

No hammer function

In second gear (speed selector switch 4n position: 2)

you can reach a speed of approx. 2200 rpm for carrying out drilling work.

With hammer function

In first gear (speed selector switch 4 in position: 1)

you can reach a speed of approx. 600 rpm and a high torque. This setting is suitable for all screwing jobs.

With hammer function

In second gear (speed selector switch 4) position: 2)

you can reach a speed of approx. 3000 rpm for carrying out drilling work.

Use

Switching on and off

Switching on:

To start the appliance, press the ON/OFF switch 10 and keep it pressed in. The LED working light lights up when the ON/OFF switch 10s depressed lightly or fully. This provides illumination of the work area in poor lighting conditions.

Switching off:

◆ Release the ON/OFF switch10 to switch off the appliance.

Setting the speed/tightening torque

- Press the ON/OFF switch ^10 lightly for a low speed/tightening torque. Increasing the pressure increases the speed/tightening torque. - The tightening torque depends on the selected speed and impact duration.

ATTENTION!

The tightening torque actually attained must always be checked with a torque wrench!

NOTE

The integrated motor brake ensures rapid stoppage.

Changing the direction of rotation

- Change the direction of rotation by pressing the rotation direction switch ⑦ towards the left or right.

Activate lock

♦ Push the rotation direction switch ⑦ into the middle position. The ON/OFF switch ⑩ is blocked.

Inserting bits

- Insert a suitable bit or adapter (not supplied) into the tool holder ① - Pull the locking sleeve backwards and allow the bit or the adapter to click into place.

Maintenance and cleaning

WARNING! RISK OF INJURY! Alway switch the appliance off and remove the battery before carrying out any work on the appliance.

The appliance is maintenance-free.

■ The appliance must always be kept clean, dry and free from oil or grease.
■ Never allow liquids to get into the appliance.
■ Use a soft, dry cloth to clean the housing. Never use petrol, solvents or cleansers which can damage plastic.
If a lithium-ion battery is to be stored for an extended period, the charge level should be checked regularly. The optimum charge level is between 50% and 80%. The optimum storage environment is cool and dry.

NOTE

▶ Replacement parts not listed (such as batteries, switches) can be ordered via our service hotline.

This appliance has a 3-year warranty valid from the date of purchase. If this product has any faults, you, the buyer, have certain statutory rights. Your statutory rights are not restricted in any way by the warranty described below.

Warranty conditions

The validity period of the warranty starts from the date of purchase. Please keep your original receipt in a safe place. This document will be required as proof of purchase.

If any material or production fault occurs within three years of the date of purchase of the product, we will either repair or replace the product for you at our discretion. This warranty service is dependent on you presenting the defective appliance and the proof of purchase (receipt) and a short written description of the fault and its time of occurrence.

If the defect is covered by the warranty, your product will either be repaired or replaced by us. The repair or replacement of a product does not signify the beginning of a new warranty period.

Warranty period and statutory claims for defects

The warranty period is not prolonged by repairs effected under the warranty. This also applies to replaced and repaired components. Any damage and defects present at the time of purchase must be reported immediately after unpacking. Repairs carried out after expiry of the warranty period shall be subject to a fee.

Scope of the warranty

This appliance has been manufactured in accordance with strict quality guidelines and inspected meticulously prior to delivery.

The warranty covers material faults or production faults. The warranty does not extend to product parts subject to normal wear and tear or fragile parts such as switches, batteries, baking moulds or parts made of glass.

The warranty does not apply if the product has been damaged, improperly used or improperly maintained. The directions in the operating instructions for the product regarding proper use of the product are to be strictly followed. Uses and actions that are discouraged in the operating instructions or which are warned against must be avoided.

This product is intended solely for private use and not for commercial purposes. The warranty shall be deemed void in cases of misuse or improper handling, use of force and modifications/repairs which have not been carried out by one of our authorised Service centres.

Warranty claim procedure

To ensure quick processing of your case, please observe the following instructions:

■ Please have the till receipt and the item number (e.g. IAN 12345) available as proof of purchase.

■ You will find the item number on the type plate, an engraving on the front page of the instructions (bottom left), or as a sticker on the rear or bottom of the appliance.

If functional or other defects occur, please contact the service department listed either by telephone or by e-mail.

■ You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.

NOTE

For Parkside and Florabest tools, please send us only the defective item without the accessories (e.g. battery, storage case, assembly tools, etc.).

You can download these instructions along with many other manuals, product videos and software at www.lidl-service.com.

Service

WARNING!

▶ Have the power tool repaired by the service centre or a qualified electrician and only using genuine replacement parts. This will ensure that the safety of the appliance is maintained.
▶ Always ensure that the power plug or the mains cable is replaced only by the manufacturer of the appliance or by an approved customer service provider. This will ensure that the safety of the appliance is maintained.

GB

Service Great Britain

Tel.: [phone] (£ 0.10/Min.)

E-Mail: [e-mail]

IE

Service Ireland

Tel.: [phone]

(0,08 EUR/Min., (peak))

(0,06 EUR/Min., (off peak))

E-Mail: [e-mail]

IAN 302331

Importer

Please note that the following address is not the service address. Please use the service address provided in the operating instructions.

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

DE-44867 BOCHUM

GERMANY

www.kompernass.com

Disposal

packaging is made from environmen- tally friendly material and can be disposed of at your local recycling plant.

· dispose of power tools in your normal domestic waste!

European Directive 2012/19/EU requires that worn-out power tools be collected separately and recycled in an environmentally compatible manner.

· dispose of batteries in your normal household waste!

Remove the batteries from the appliance before disposal.

Defective or worn-out rechargeable batteries must be recycled according to Directive 2006/66/EC. Take the battery pack and/or appliance to a nearby collection facility.

Please consult your local authorities regarding suitable disposal of worn-out power tools/battery packs.

Dispose of the packaging in an environmentally friendly manner. Note the labelling on the packaging and separate the packaging material components for disposal if necessary. The packaging material is labelled with abbreviations (a) and numbers (b) with the following meanings:

1-7:plastics, 20-22: paper and cardboard, 80-98: composites

Your local community or municipal authorities can provide information on how to dispose of the product.

Translation of the original Conformity Declaration

We, KOMPERNASS HANDELS GMBH, document officer: Mr Semi Uguzlu, BURGSTR. 21, DE - 44867 BOCHUM, GERMANY, hereby declare that this product complies with the following standards, normative documents and EC directives:

Machinery Directive (2006/42/EC)

EC Low Voltage Directive (2014/35/EU)

EMC (Electromagnetic Compatibility) (2014/30/EU)

RoHS Directive (2011/65/EU) ^*

*The manufacturer bears full responsibility for compliance with this conformity declaration. The object of the declaration described above complies with the requirements of the Directive 2011/65/EU of the European Parliament and Council of 8 June 2011 on the limitations of use of certain dangerous substances in electrical and electronic appliances.

Applied harmonised standards:

EN 60745-1:2009/A11:2010

EN 60745-2-2:2010

EN 60335-1:2012/A11:2014

EN 60335-2-29:2004/A2:2010

EN 62233:2008

EN 55014-1:2017

EN 55014-2:2015

EN 61000-3-2:2014

EN 61000-3-3:2013

EN 50581:2012

Type/appliance designation: Cordless combi screwdriver/impact driver PDSSA 12 A1

Year of manufacture: 01 - 2018

Serial number: IAN 302331

Bochum, 14/02/2018

Jeddy 2014

CE

Semi Uguzlu

- Quality Manager -

We reserve the right to make technical changes in the context of further product development.

Sommaire

Introduction....26

KOMPERNASS HANDELS GMBH

Sur www.lidl-service.com, vous poBURGSTRASSE 21

Directive relative aux machines (2006/42/CE)

Directive RoHS (2011/65/EU)*

ACCUSLAGCHROEFMACHINE PDSSA 12 A1

Inleiding

Nominale spanning: 230 - 240V \~ (wissel-stroom), 50 Hz

Zekering (intern): 2 A

$$ L _ {W A} = 1 0 1 \mathrm{dB(A)} $$

Onzekerheid K: K

$$ _ {\mathrm{WA}} = 3 \mathrm{dB} $$

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

DE-44867 BOCHUM

DUITSLAND

www.kompernass.com

Afvoeren

Sofia Fyork

CE

Semi Uguzlu

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

DE-44867 BOCHUM

NĚMECKO

www.kompernass.com

Likvidace

KOMPERNASS HANDELS GMBH

Sofia Fyork

CE

Semi Uguzlu

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

DE-44867 BOCHUM

ALEMANHA

descar-

www.kompernass.com

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

DE-44867 BOCHUM

GERMANY

www.kompernass.com

Stand der Informationen · Last Information Update · Version des informations

Stand van de informatie · Stav informací · Estado de las informaciones
