WP 120 - Hot plate STEBA - Free user manual and instructions

Product type	Hot plate
Brand	Steba
Model	WP 120
Usage	Warming plates and terrines
Heating type	Ceramic stone
Maximum temperature	100 °C
Heating time	About 10 minutes
Cordless autonomy	About 1 hour (drop to 50 °C)
Power supply	220-240 V / 50-60 Hz
Power consumption	500 W
Material	Stainless steel and ceramic
Dimensions (L x W x H)	30 x 25 x 10 cm
Weight	2 kg
Indicator lights	Red light (heating) and green light (ready)
Cordless function	Yes (unplug after heating)
Cleaning	Damp cloth, do not immerse
Safety	Automatic light shut-off, hot surface
Warranty	2 years (subject to conditions)

Frequently Asked Questions - WP 120 STEBA

How long does it take for the plate to reach 100 °C?

About 10 minutes after powering on.

Can I use the plate without plugging it in?

Yes, after initial heating, you can unplug it and use it cordless for about 1 hour.

Can the plate heat food directly?

No, it is designed to keep plates and terrines warm, not for cooking.

How to clean the plate?

Use a damp cloth after complete cooling. Never immerse in water.

What containers are suitable?

Prefer flat-bottomed containers for better heat transfer. Avoid rough bottoms to prevent scratching the stainless steel surface.

What do the indicator lights mean?

The red light indicates heating, the green light indicates that the operating temperature is reached.

Can I stack multiple plates?

Yes, but for even temperature, swap the bottom plates with the top ones after a few minutes.

What safety distance around the appliance?

Leave at least 10 cm around the appliance and 10 cm from the wall.

Is the appliance suitable for children?

It can be used by children over 8 years old under supervision. Cleaning by children under 8 is not allowed.

What to do in case of malfunction?

Contact the authorized after-sales service. Repairs must be carried out by a qualified electrician.

USER MANUAL WP 120 STEBA

Instructions for use 7

Mode d'emploi 11

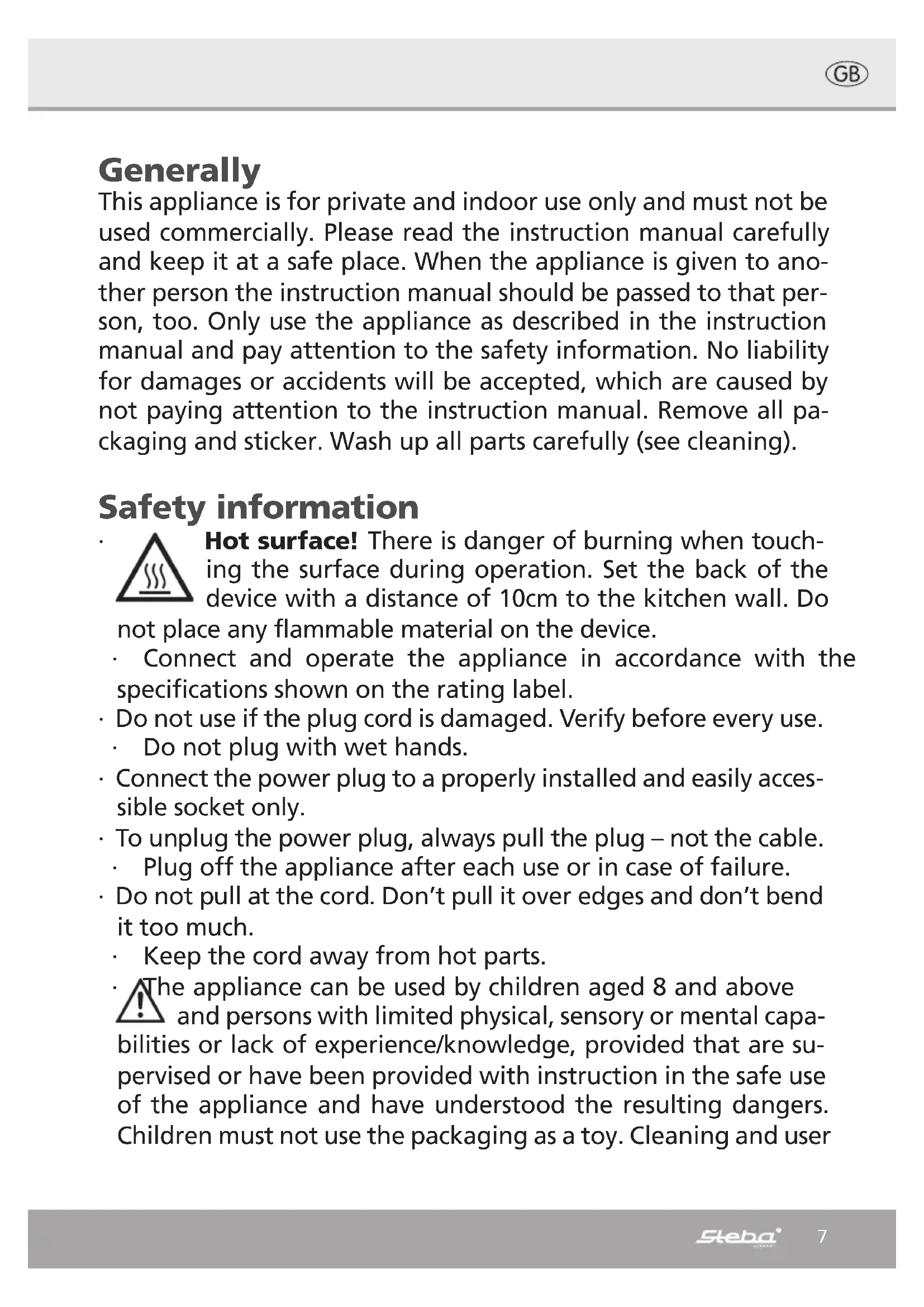

This appliance is for private and indoor use only and must not be used commercially. Please read the instruction manual carefully and keep it at a safe place. When the appliance is given to another person the instruction manual should be passed to that person, too. Only use the appliance as described in the instruction manual and pay attention to the safety information. No liability for damages or accidents will be accepted, which are caused by not paying attention to the instruction manual. Remove all packaging and sticker. Wash up all parts carefully (see cleaning).

Safety information

Hot surface! There is danger of burning when touching the surface during operation. Set the back of the device with a distance of 10cm to the kitchen wall. Do not place any flammable material on the device.

• Connect and operate the appliance in accordance with the specifications shown on the rating label.

• Do not use if the plug cord is damaged. Verify before every use.

• Do not plug with wet hands.

• Connect the power plug to a properly installed and easily accessible socket only.

• To unplug the power plug, always pull the plug – not the cable.

Plug off the appliance after each use or in case of failure.

• Do not pull at the cord. Don't pull it over edges and don't bend it too much.

• Keep the cord away from hot parts.

The appliance can be used by children aged 8 and above and persons with limited physical, sensory or mental capabilities or lack of experience/knowledge, provided that are supervised or have been provided with instruction in the safe use of the appliance and have understood the resulting dangers. Children must not use the packaging as a toy. Cleaning and user

maintenance must not be carried out by children unless they are 8 years or older and are supervised.

• Children under the age of 8 must be kept away from the appliance and the connecting cable.
• Children should be supervised to ensure that they do not play with the appliance or packaging material (e.g. Plastic Bags).

• The appliance must not be operated using a timer or a separate remote system!

• Never leave the appliance unattended when in use.

• Do not leave the appliance outdoors or in a damp area.
• Never immerse the unit in water.

• Leave a space of about 10 cm around the device.

• Never use the device after a malfunction, e.g. if it felt down or has been damaged in any other manner.

• The manufacturer is not liable for damage which is occurring due to the usage of the appliance in a different way as described or a mistake in the handling has been made.
• To prevent injury, repairs such as replacing a damaged cord, should only be carried out by a customer service. Only original spare parts have to be used.

The device gets hot, only transport if it cooled down.
- Only use the device as described in this manual.

• This appliance is intended to be used in household and similar applications such as:

o staff kitchen areas in shops, offices and others working environments
o by clients in hotels, motels and other residential type environments
o bed and breakfast type environments.

• Before initial use: clean all parts and leave to dry. Heat up the device for about 15 min. to eliminate the smell of newness.

• If an extension cable is used, it has to have a cross-section of 1.5mm^2

• If a GS-tested 16 A multi-pin extension is used, it may not be charged with more than 3680 watts due to fire hazard.

• Make sure that children do not tease the cable or that a trip hazard occurs.
• The device must always be disconnected from the power supply if it is not supervised and before assembling, disassembling or cleaning.

Cleaning

Attention! Pull the plug before cleaning and allow the device to cool down.

· Never immerse the unit into water.
Clean the device with a damp cloth.
- Do not use aggressive or abrasive cleaning agents.

Workplace

Important:

Never place this device on or next to hot surfaces (e.g. hot stoves). Only use it on a even, stable and a heat resisting surface. It is important that no inflammable items are near to the device. Do not place the device on the edge of the table so that it cannot be touched by children or fall down when touched.

General

The device is suitable for keeping plates and terrines with food warm.
- The ceramic heating stone in the device is heat up in about 10 minutes to 100^ in the centre of the plate. After the device is heated up, it can be used disconnected from the power supply on a table. Within one hour, the surface temperature drops to about 50^ .

Operation

• Connect the power cord.

• Switch on the device, the red lamp lights up and the appliance starts to heat.

• After reaching the temperature of approx. 100^ , the red lamp turns off and the green one lights up.
• If the device is kept on the power supply, the thermostat clocks. The red and green lamp light up alternately.
• If the device is turned off, or is operated without the power cord, the temperature drops to approx. 50^ within one hour.

Please note:

• The flatter the edge of the tableware, the better the heat transfer.
• In order to avoid scratches, tableware with a rough bottom should not be pushed onto the stainless steel surface.
• If several plates are heated, they should be re-sorted to achieve a uniform temperature. Place the lower hot plates up and the upper ones down.

not transport tableware on the device.

Correct Disposal of this product

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return

your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

Packaging disposal: Do not throw away the package materials. Please put it in the recycling bin.

PS

PP

PE

Gift box: Paper, should be put to the old paper collection point. Plastic packaging material and foils should be collected in the special collection containers.

Service and Repair:

If the appliance must be repaired, please get in touch with your trader or with the manufacturer:
