Dome Lite 4MP - Camera IMOU - Free user manual and instructions

Product type	Indoor surveillance camera
Brand	Imou
Model	Dome Lite 4MP
Resolution	4MP (2560 × 1440)
Night vision	Yes, with IR LEDs
Audio	Two-way
Connection	Wi-Fi 2.4 GHz
Storage	microSD card (up to 128GB)
Power supply	5V DC via included USB adapter
LED indicator	Multicolor LED (red, green)
Motion detection	Yes, via Imou app
Compatible app	Imou App (iOS/Android)
Mounting	Ceiling, installation template included
Reset	Reset button (press for 10 seconds)
Maintenance and cleaning	Clean the lens with a soft, clean cloth
Security	Hardware reset, app password

Frequently Asked Questions - Dome Lite 4MP IMOU

How to install the camera?

Make sure your mobile device and camera are within range of your Wi-Fi router. Before setup, the camera LED should blink green. Use the Imou app to scan the QR code and follow the instructions.

What to do if the app says 'Device network configuration failed'?

Reset your camera by holding the reset button for 10 seconds, then plug it back in. Make sure you only connect to the 2.4GHz Wi-Fi band, as some dual-band routers can cause issues.

What does 'Linking failed' mean in the app?

It means the camera is connected to Wi-Fi but the router has no Internet access, or the Wi-Fi signal is unstable. Check your Internet connection and move the camera closer to the router if necessary.

Why is there no image or video signal?

Check that the camera LED is solid green (normal operation). Make sure the USB power adapter is properly connected. Try repositioning the camera or router to improve the signal.

The image is blurry, what should I do?

Clean the camera lens with a soft, clean cloth to remove dirt or spider webs. Also remove the protective vinyl cover from the lens if present.

No sound is emitted, how to fix?

Make sure the camera's audio function is enabled in the Imou app. Also check that the volume of your viewing device (smartphone) is not set to silent mode.

The phone does not read the QR code

Clean the lens of your smartphone's camera. Make sure the QR code is well lit and clear. Do not hold the QR code too close or too far from the camera.

How to reset the camera to factory settings?

Locate the reset button on the camera. Press and hold it for about 10 seconds until the LED blinks red, then release. The camera will restart and be reset.

What does the green blinking LED mean?

A blinking green LED means the camera is waiting for a network connection. If you just powered it on, this is normal. Proceed with setup via the app.

How to mount the camera on the ceiling?

Use the included installation template to mark drilling points. Drill the holes, insert the expansion anchors, then screw the camera base. Attach the dome by turning the camera until it clicks into place.

USER MANUAL Dome Lite 4MP IMOU

Simple line drawing of a toilet with a curved base and top panel (no text or symbols)

www.imoulife.com

Welcome

Thank you for choosing IMOU.

We are devoted to providing you easy smart home products.

If you have problems using the product, please contact

our service team before returning your product.

Our service mail: [e-mail]

Frequently asked questions can be found at

imoulife.com/support/help

QR code image containing encoded data, no visible human-readable text

Illustration of a person sitting on a sofa with a coffee table and smartphone, next to a QR code (no text or symbols)

Packing content

EN

Simple line drawing of a toilet or sink with a curved lid (no text or symbols)

Camera ×1 Power Adapter ×1

Simple geometric diagram showing a circle with four marked points (no text or symbols)

Positioning Map ×1

Simple line drawing of a plug connected to a cable with two connectors (no text or symbols)

imou

Quick Start Guide ×1 Screw Package ×1

Simple line drawing of two cylindrical objects with no text or symbols

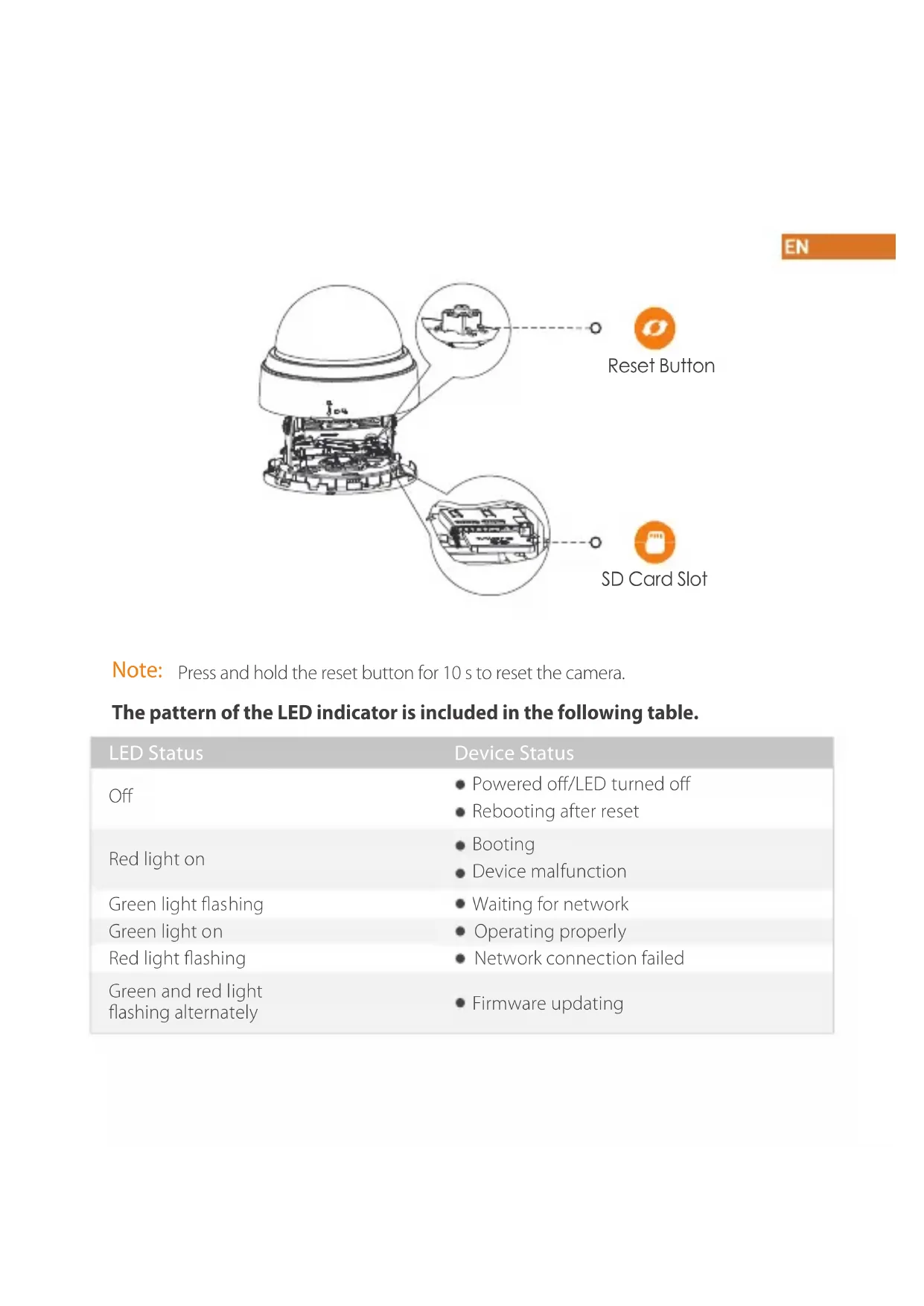

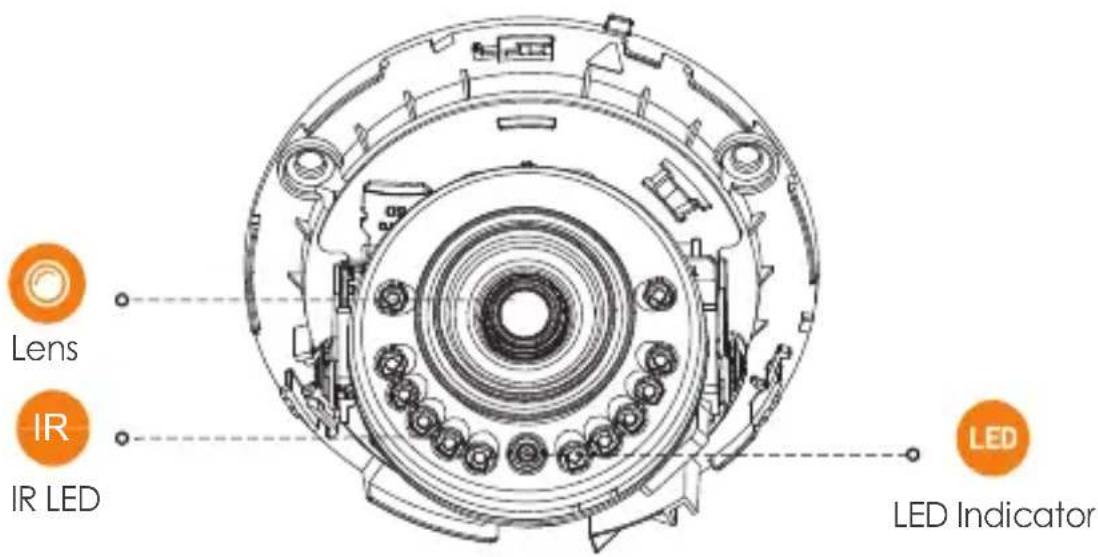

Camera introduction

Lens IR IR LED LED LED Indicator

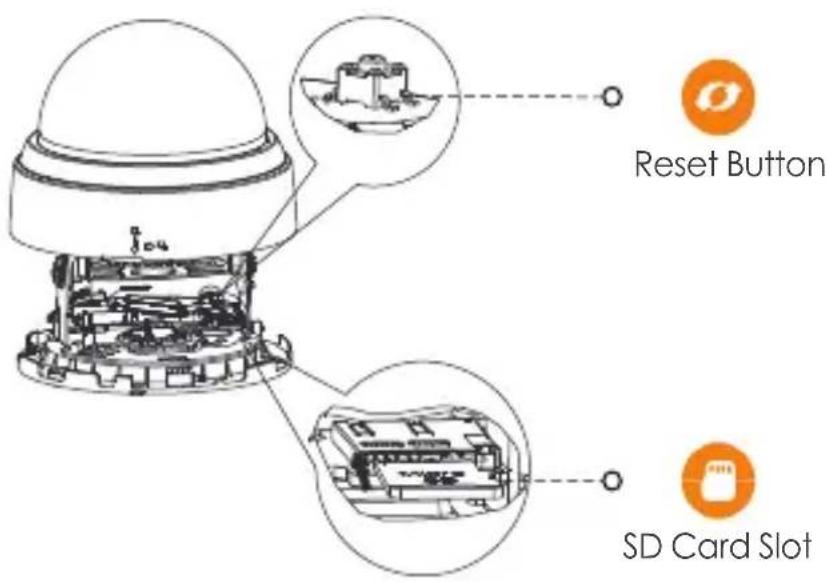

Reset Button SD Card Slot

Note: Press and hold the reset button for 10 s to reset the camera.

The pattern of the LED indicator is included in the following table.

LED Status	Device Status
Off	Powered off/LED turned offRebooting after reset
Red light on	BootingDevice malfunction
Green light flashing	Waiting for network
Green light on	Operating properly
Red light flashing	Network connection failed
Green and red light flashing alternately	Firmware updating

1

Download on the App Store

GET IT ON Google play

Windows

i
Tips

Diagram showing various household and security symbols including a router, trees, houses, monitors, and surveillance devices with signal waves.

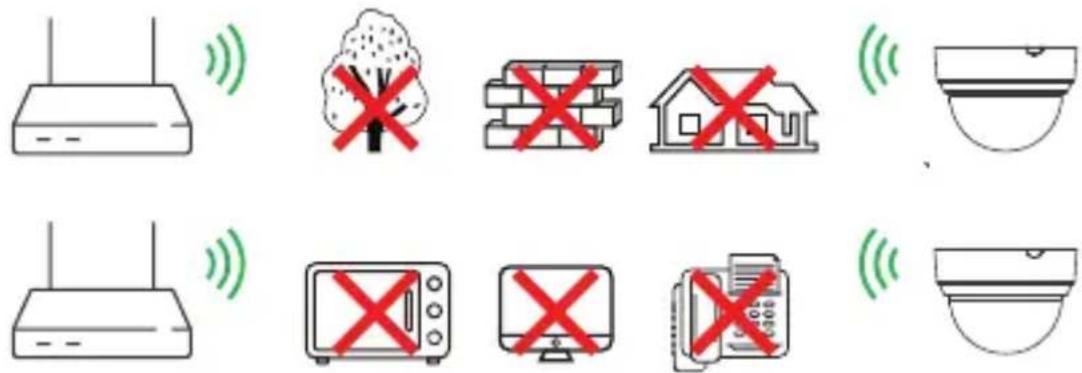

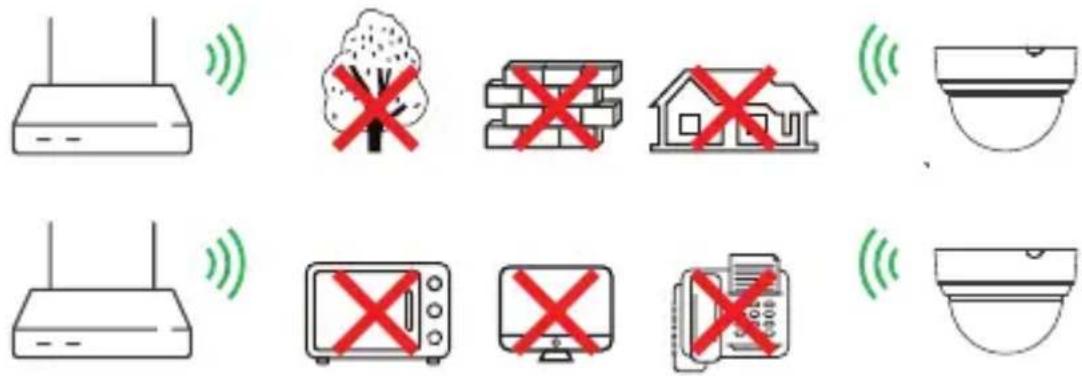

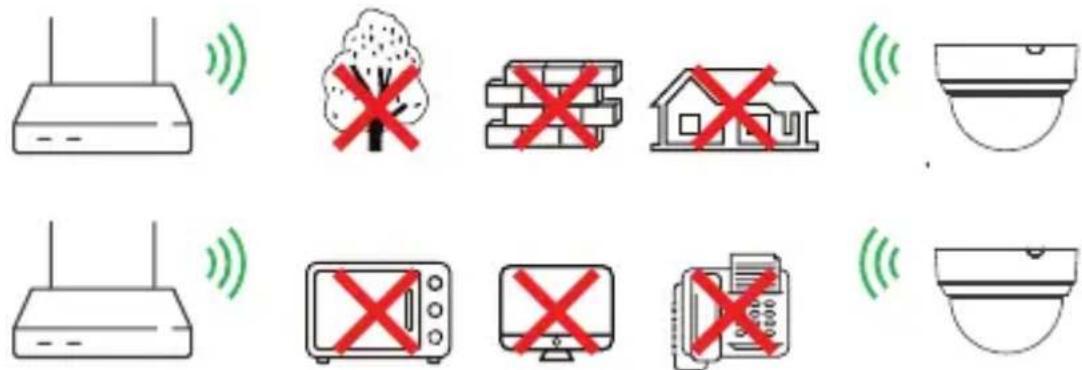

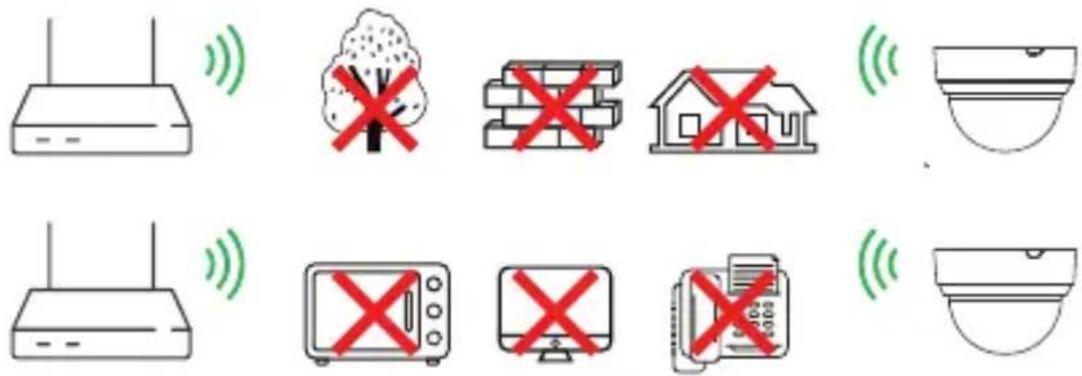

To ensure the best possible wireless performance, please make sure there are no obstacles and electromagnetic interference between the camera and router.

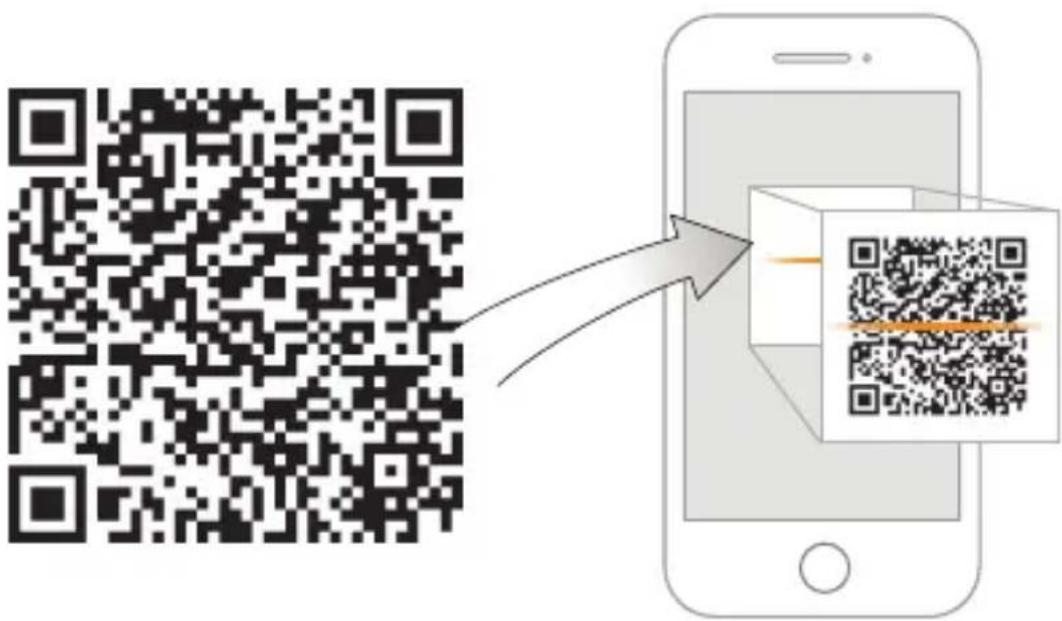

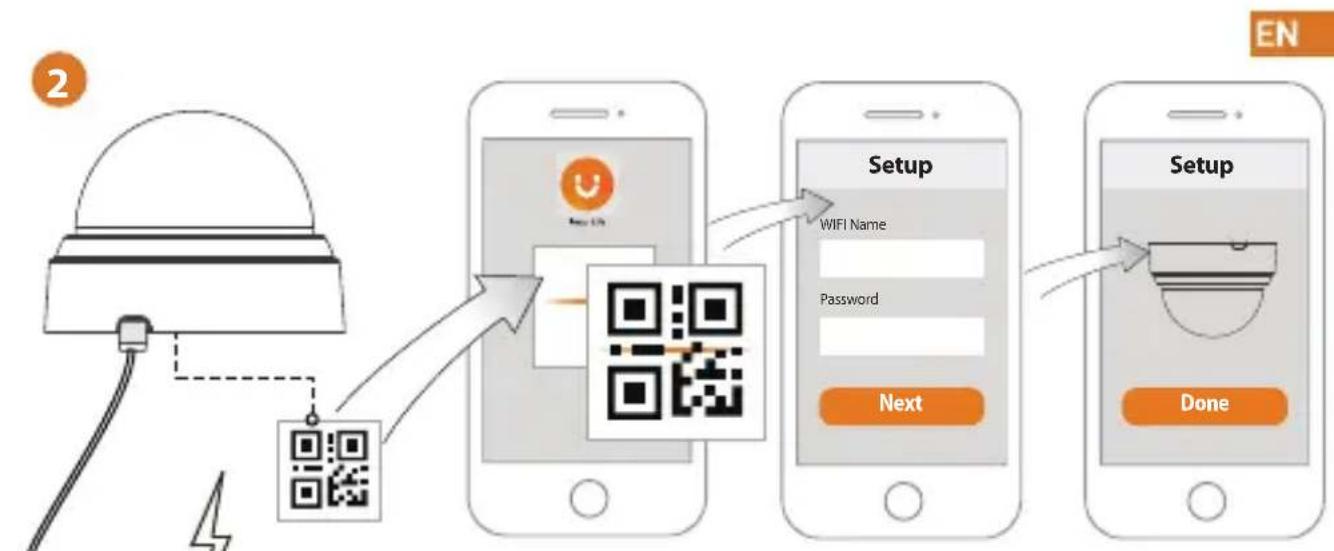

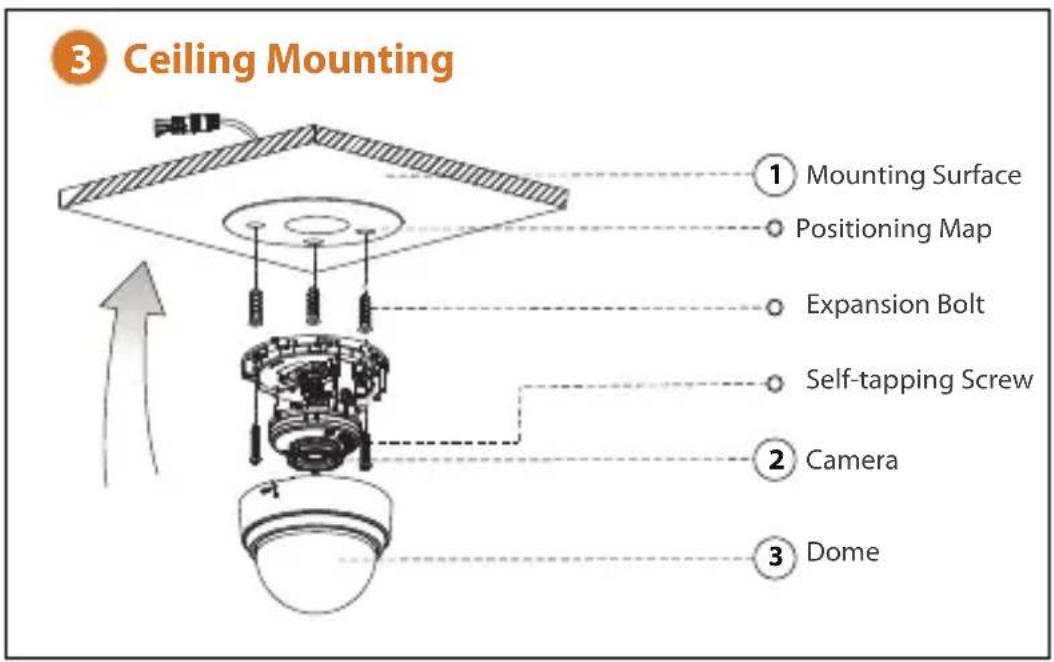

3 Ceiling Mounting ① Mounting Surface Positioning Map Expansion Bolt Self-tapping Screw ② Camera Dome

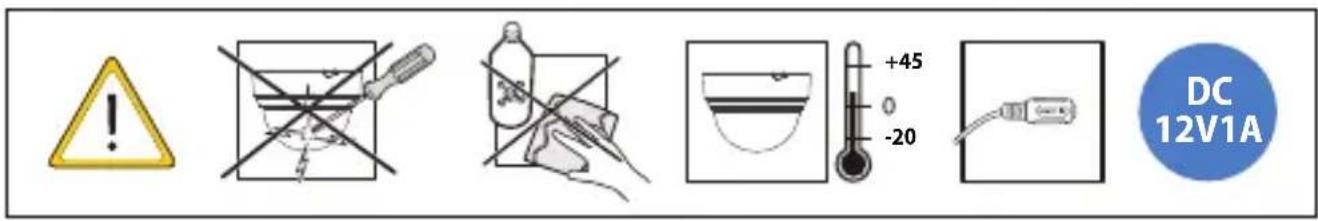

DC 12V1A

Problem Solution
Cannot set up camera	·Ensure your mobile device and the camera are within range of your Wi-Fi router.·Ensure the LED indicator on the camera is flashing green before beginning setup.
The APP says "Failed to configure device network"	·Reset your Camera and connect it again.·Some cameras only support 2.4GHz, while some routers have dual band, 2.4G/5G. Make sure you are connecting 2.4GHz only.
The app says "Failed to bind"	The camera is already connected to Wi-Fi, but the router is:·Not connected to Interne.·Poor network status.·The Wi-Fi signal is not stable due to obstacles or electronic interference.
No picture / signal	·Ensure the LED indicator on the camera is flashing steady green. See 'LED Status' section for details if otherwise.·Ensure the camera is properly connected to power using the included USB power adapter.·Try repositioning the camera, router, or both to improve signal strength.
Picture is not clear	·Check the camera lens for dirt, dust, spider webs. Clean the lens with a soft, clean cloth.·Remove the vinyl cover on the camera lens.
No audio	·Ensure audio function on camera is turned on.·Ensure audio is turned up on viewing device.
Phone is not reading QR code	·Clean the camera lens of your Smartphone.·Ensure that there is enough light on the QR code.·Don't hold the QR code too close to the camera.

Kurzanleitung

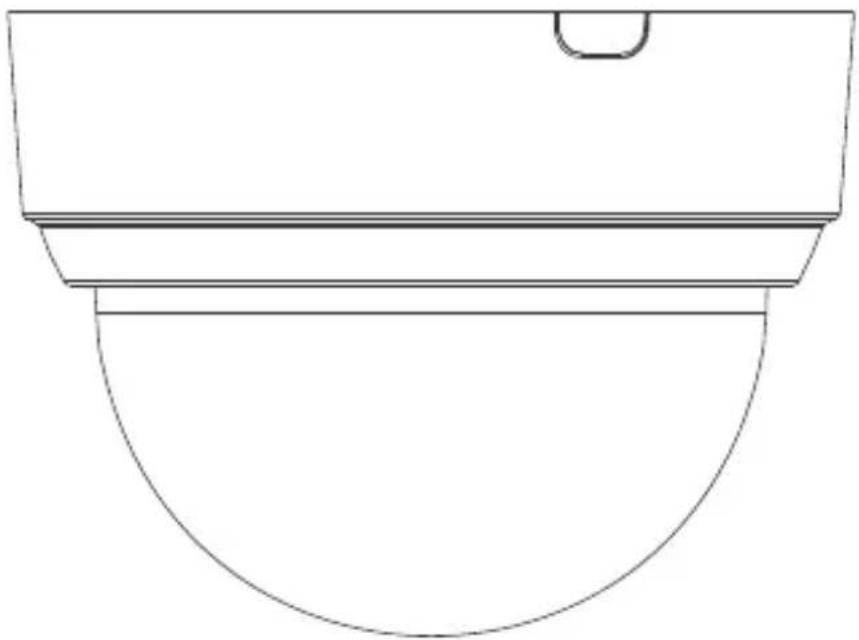

Dome Lite Dome Lite 4MP

Simple line drawing of a toilet with a curved base and top panel (no text or symbols)

Willkommen

DE

QR code image containing encoded data, no visible human-readable text

Illustration of a person sitting on a sofa with a coffee table and QR code in the background (no text or symbols)

Packungsinhalt

Simple line drawing of a toilet or showerhead (no text or symbols)

Simple geometric diagram showing a circle with four center points and dashed outer lines (no text or symbols)

Bohrlochschablone ×1

Simple line drawing of a mechanical or electrical component with no text or symbols

imou

Simple line drawing of two cylindrical objects with no text or symbols

Download on the App Store

GET IT ON Google play

Windows

i
Tips

Diagram showing various household and security symbols including a router, trees, houses, monitors, and surveillance devices with signal waves.

Simple line drawing of a toilet with a curved base and handle (no text or symbols)

Bienvenido

ES

QR code image containing encoded data, no visible human-readable text

Illustration of a person sitting on a sofa with a coffee table and QR code in the background (no text or symbols)

Simple line drawing of a bowl-shaped object with a handle and lid (no text or symbols)

Simple geometric diagram with a dashed circle and four small circles inside, no text or symbols present.

Simple line drawing of a mechanical or electrical component with no text or symbols

corriente ×1

imou

Simple line drawing of two cylindrical objects with no text or symbols

Download on the App Store

GET IT ON Google play

Windows

i
Tips

Diagram showing various household and security symbols including a router, trees, houses, monitors, and surveillance devices with wireless signals.

Simple line drawing of a toilet with a curved base and handle (no text or symbols)

www.imoulife.com

Bienvenue

FR

QR code image containing encoded data, no visible human-readable text

Illustration of a person sitting on a sofa with a QR code in the background, likely representing a mobile app or service.

Simple line drawing of a bowl with a handle and lid (no text or symbols)

Simple geometric diagram showing a circle with four marked points (no text or symbols)

Simple line drawing of a plug connected to a cable with a resistor (no text or symbols)

secteur ×1

imou

Simple line drawing of two cylindrical objects with no text or symbols

Paquet de vis ×1

Download on the App Store

GET IT ON Google play

Windows

i
Tips

Diagram showing various household and security symbols including a router, trees, houses, monitors, and surveillance devices with wireless signals.

Simple line drawing of a toilet with a curved base and top panel (no text or symbols)

Benvenuti

QR code image containing encoded data, no visible human-readable text

IT

Simple line drawing of a toilet (no text or symbols)

Telecamera ×1 Adattatore ×1

Simple geometric diagram with a dashed circle and four small circles inside, no text or symbols present.

Simple line drawing of a medical or electrical device with a bulb, tubing, and connector (no text or symbols)

IT

imou

Simple line drawing of two cylindrical objects with no text or symbols

Kit di viti ×1

Download on the App Store

GET IT ON Google play

Windows

i
Tips

Diagram showing various household and security symbols including a router, trees, houses, monitors, and surveillance devices with wireless signals.

Simple line drawing of a toilet with a curved base and top panel (no text or symbols)

www.imoulife.com

NL

Welkom

QR code image containing encoded data, no visible human-readable text

Illustration of a person sitting on a sofa with a coffee table and a smartphone, no text or symbols present.

Inhoud verpakking

Simple line drawing of a toilet or sink with a curved lid (no text or symbols)

Camera ×1 Spanningsadapter

Simple geometric diagram with a dashed circle and four labeled points (no text or symbols)

Simple line drawing of a plug connected to a cable with a resistor (no text or symbols)

×1

Simple line drawing of two cylindrical objects with no text or symbols

Schroefpakket ×1

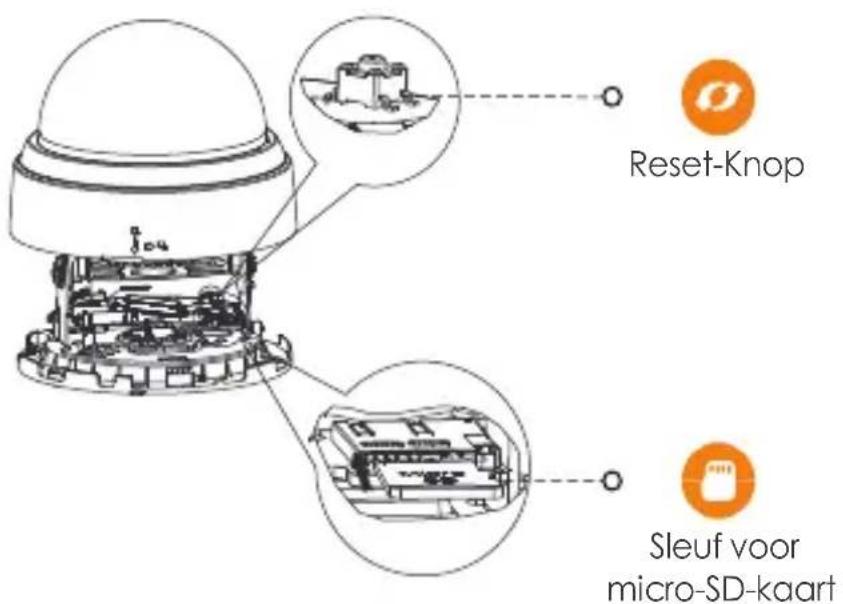

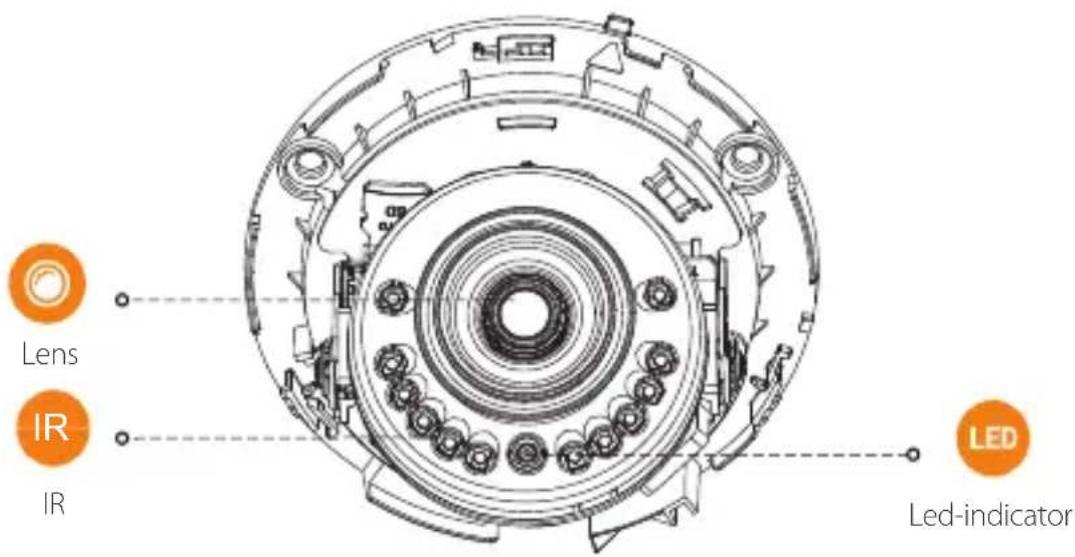

Introductie camera

Lens IR IR LED Led-indicator

Download on the App Store

GET IT ON Google play

Windows

i Tips

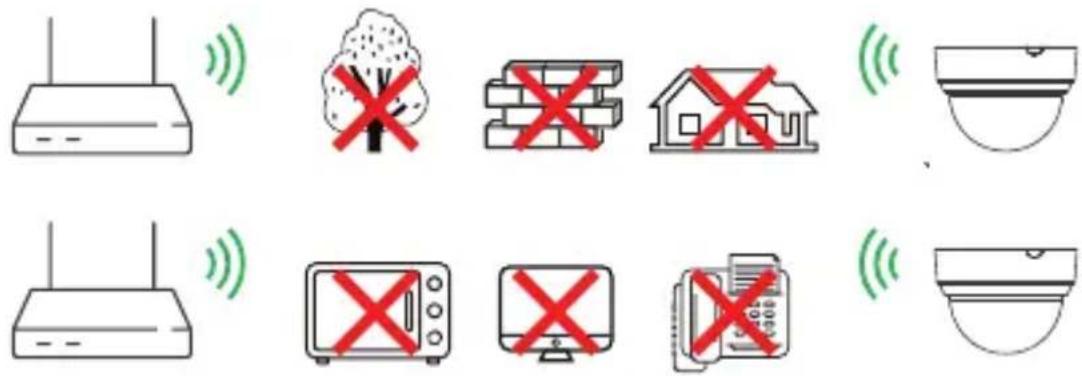

Diagram showing various household and security symbols including a router, trees, houses, monitors, and surveillance devices with signal waves.

Simple line drawing of a toilet with a curved base and top panel (no text or symbols)

www.imoulife.com

Bem-vindo

QR code image containing encoded data, no visible human-readable text

PT

Simple line drawing of a toilet or sink with a curved lid (no text or symbols)

Simple geometric diagram showing a circle with four smaller circles inside, no text or symbols present.

Simple line drawing of a plug connected to a cable with a resistor (no text or symbols)

imou

Simple line drawing of two cylindrical objects with no text or symbols

Download on the App Store

GET IT ON Google play

Windows

i Tips

Diagram showing various household and security symbols including a router, trees, houses, monitors, and surveillance devices with signal waves.
