USER MANUAL New Bullet IMOU
Thank you for choosing IMOU.
We are devoted to providing you easy smart home products. If you have problems using the product, please contact our service team before returning your product.
Our service mail: service.global@imoulife.com
Frequently asked questions can be found at imoulife.com/support/help
Package content
EN
Camera × 1
Positioning Map x1 Waterproof Connector x1
Screw Package × 1
Quick Start Guide × 1
Power Adapter × 1

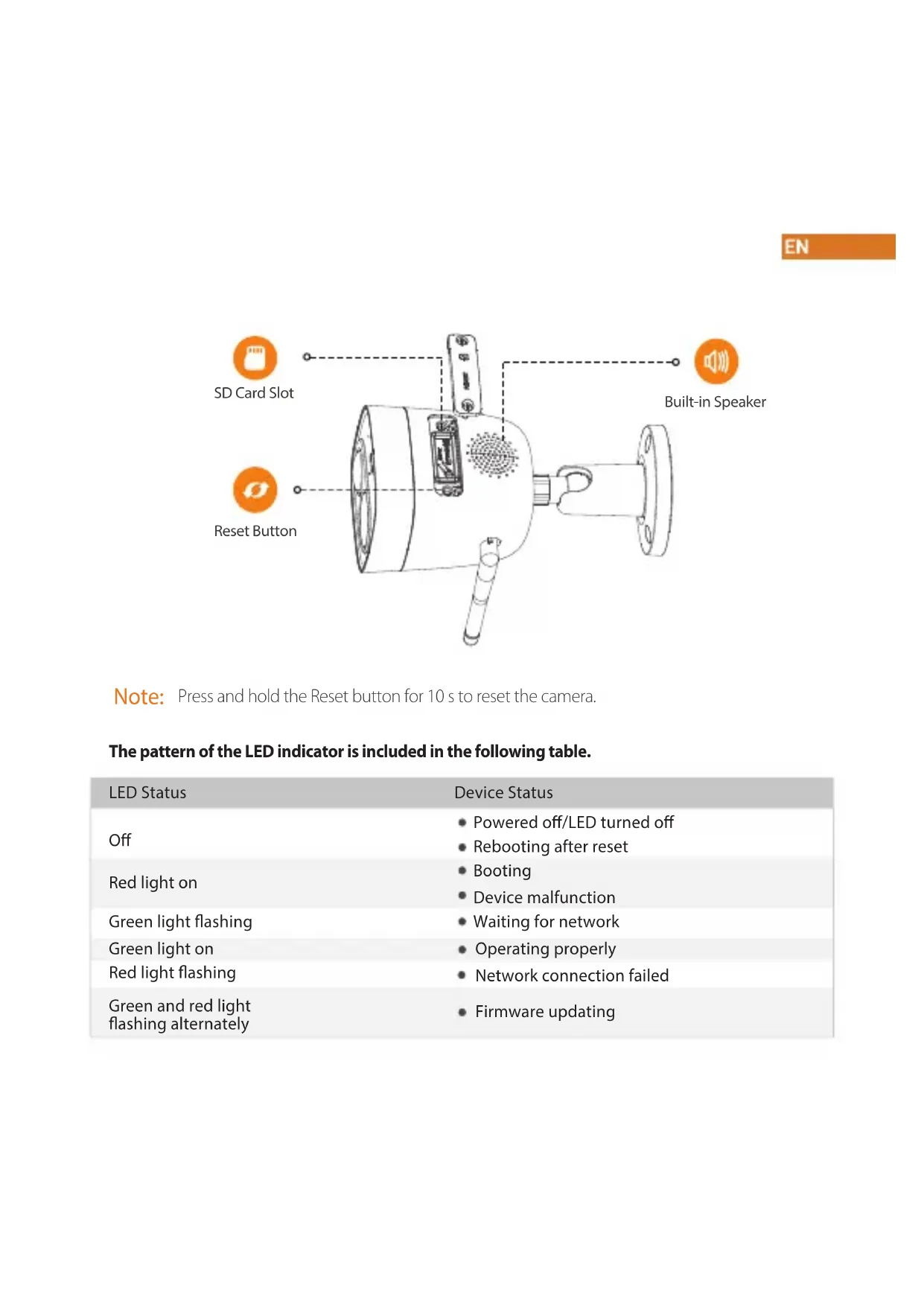

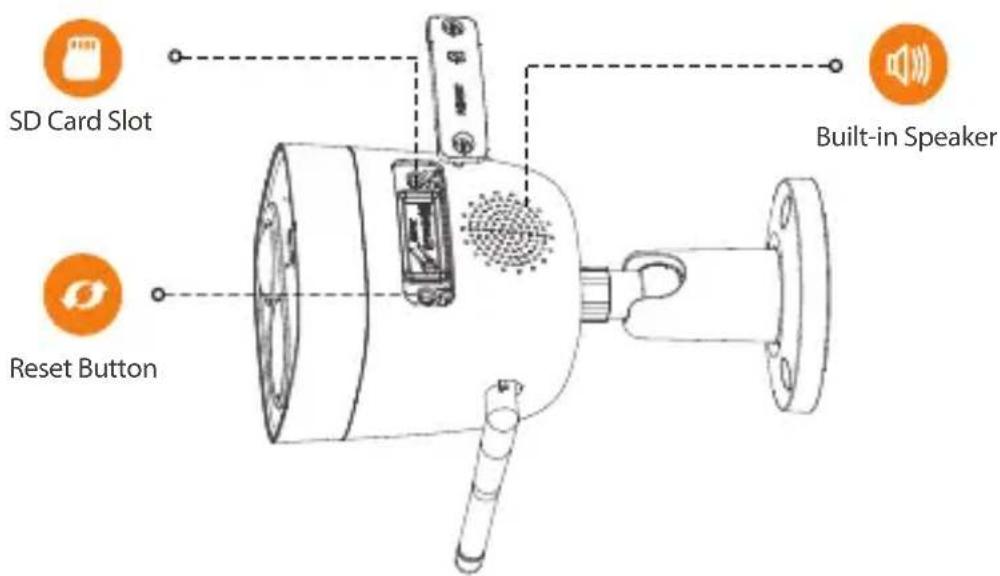

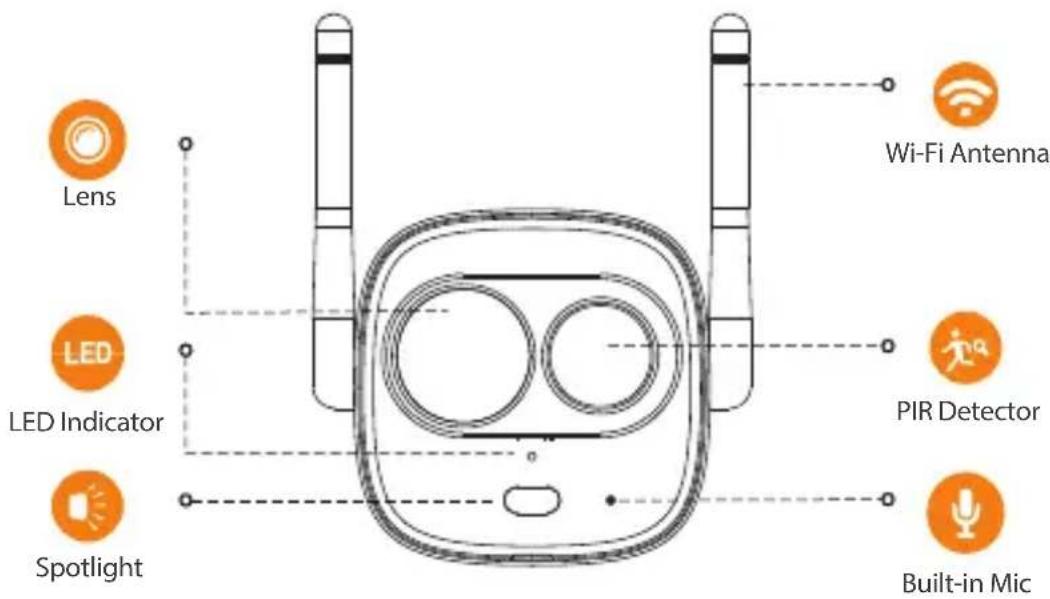

Camera introduction
Note: Press and hold the Reset button for 10 s to reset the camera.
The pattern of the LED indicator is included in the following table.
| LED Status | Device Status |
| Off | • Powered off/LED turned off • Rebooting after reset |
| Red light on | • Booting • Device malfunction |
| Green light flashing | • Waiting for network |
| Green light on | • Operating properly |
| Red light flashing | • Network connection failed |
| Green and red light flashing alternately | • Firmware updating |
1
EN
Imou Life
Download on the App Store
GETITON Google play
Windows
i Tips
To ensure the best possible wireless performance, please make sure there are no obstacles and electromagnetic interference between the camera and router.
EN
2
Troubleshooting
EN
| Problem | Solution |
| Cannot set up camera | ·Ensure your mobile device and the camera are within range of your Wi-Fi router. ·Ensure the LED indicator on the camera is flashing green before beginning setup. |
| The APP says "failed to configure device network" | ·Reset your Camera and connect it again. ·Some cameras only support 2.4GHz, while some routers have dual band, 2.4G/5G. Make sure you are connecting 2.4GHz only. |
| The app says "Failed to bind" | The camera is already connected to Wi-Fi, but the router is: ·Not connected to Internet ·Poor network status ·The Wi-Fi signal is not stable due to obstacles or electronic interference |
| No picture / signal | ·Ensure the LED indicator on the camera is flashing steady green. See LED Status' section for details if otherwise. ·Ensure the camera is properly connected to power using the included USB power adapter. ·Try repositioning the camera, router, or both to improve signal strength. |
| Picture is not clear | ·Check the camera lens for dirt, dust, spider webs. Clean the lens with a soft, clean cloth. ·Remove the vinyl cover on the camera lens. |
| No audio | ·Ensure audio function on camera is turned on. ·Ensure audio is turned up on viewing device. |

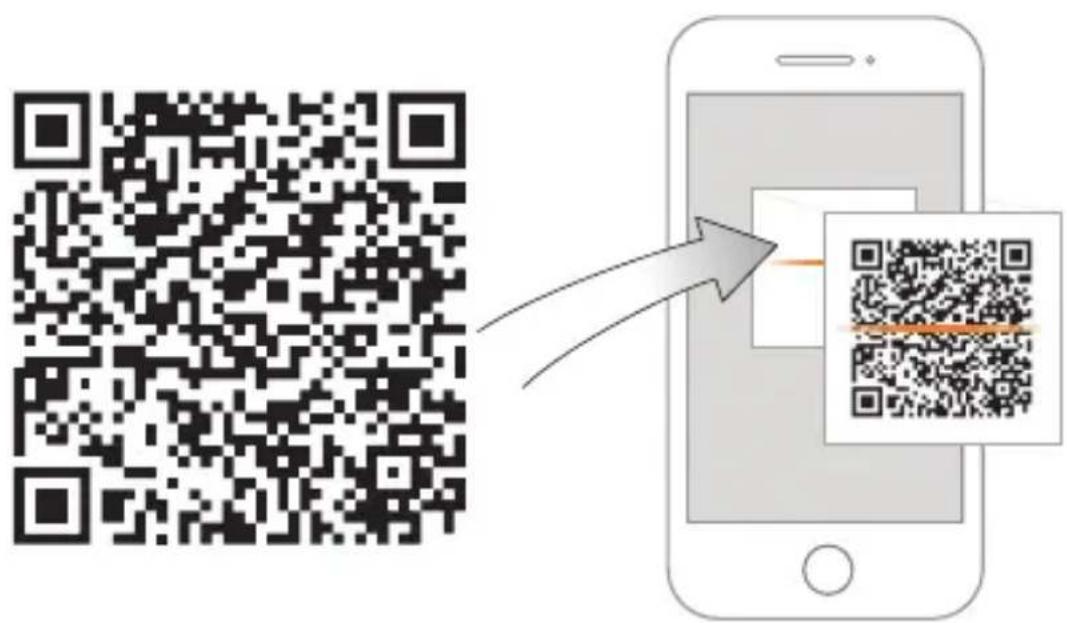

| Phone is not reading QR code | ·Clean the camera lens of your Smartphone ·Ensure that there is enough light on the QR code ·Don't hold the QR code too close to the camera |
