Product type	Bicycle helmet with flip-up visor
Size	L (59-60 cm)
Shell material	High-resistance ABS (HCM)
Safety standard	ECE-R 22.05
Closure system	Safety clip buckle
Visor	Scratch-resistant coating, Pinlock compatible
Pinlock lens included	Yes, Pinlock 30 model
Integrated sun visor	Yes, pivoting with safety lock
Ventilation	Adjustable front and top
Inner lining	Coolmax, removable and hand washable ≤30°C
Antibacterial treatment	HeiQ Fresh Tech (silver on silica)
Cheek pads	Two thicknesses for individual fit
Winter collar	Supplied, replaces standard collar
Glasses compatibility	Suitable for glasses wearers
Delivery contents	Helmet, Pinlock lens, additional cheek pads, acoustic padding, winter collar, cover, manual
Maintenance	Cleaning with neutral detergent, hand-washable lining, visor with clear water
Warranty	3 years (1 year for Pinlock lens)
Spare parts	Replacement visor (type DS-VISOR400), pads, etc.

Frequently Asked Questions - IAN 344580 CRIVIT

How to adjust the helmet size?

Measure your head circumference and choose the corresponding size (M: 57-58 cm, L: 59-60 cm). Use the additional cheek pads provided for a precise fit. The helmet must be snug without moving, even without tightening the chin strap.

How to clean the helmet?

Use a pH-neutral detergent diluted in clear water and a soft cloth. Never use solvent, petroleum, or abrasive products. The inner lining, cheek pads, and acoustic padding are hand washable at ≤30°C. Let dry at room temperature, away from heat sources.

How to change the visor?

Open the visor fully, pull the locking lever and remove it. To install the new visor, place it in the open position, engage the lever and ensure it is securely fastened. The replacement visor must be type DS-VISOR400.

How to install the Pinlock lens?

Remove the visor from the helmet. Slightly bend the visor and insert the Pinlock lens between the two retaining pins. Release the visor to return to its shape. The silicone seal must be in perfect contact with the visor. Remove the protective film before reassembling.

How to use the integrated sun visor?

Press the safety lock (5) to unlock the sun visor, then use the slider to lower or raise it. The sun visor should only be used during the day, with the visor closed. Make sure it does not obstruct your field of vision.

What is the safety standard of this helmet?

This helmet is approved according to ECE-R 22.05 standard, which includes tests for impact absorption, field of vision, strength, etc. It is also certified free from harmful substances by TUV Rheinland.

How to adjust the tension of the Pinlock lens?

Remove the lens. To adjust the tension, press the retaining pins outward while turning them manually. Replace the lens and check that it is in full contact with the visor.

How to maintain the inner lining?

The inner lining is removable: first remove the collar and cheek pads, unfasten the snap buttons at the back and remove the front clips. Hand wash at ≤30°C with a mild detergent, air dry without heat source.

What to do in case of an accident with the helmet?

Replace the helmet immediately, even if it shows no visible damage. A helmet that has suffered a violent impact loses its protective capacity. Do not reuse after impact.

How to use the winter collar?

Remove the standard collar mounted by default by pulling at the center on one side. Insert the tabs of the winter collar into the openings on the helmet, then push it in completely. The winter collar reduces air intake in cold weather.

USER MANUAL IAN 344580 CRIVIT

Instructions for use

图图

Bereare reading. Yield out the ilustration page and gait to know all of the functions of your urit.

IAN344582_2004IAN344582_2004

IAN 344580_2004IAN 344580_2004

01 04

（）（）

G8 Usage and safety information Page 28

DE AT CH

Teilebezeichnung 8

Lieferumfang 8

Wichtige Information 8

Scope of Delivery 28

Important Information 28

Instructions for Use 28-30

Safety Advice 28-29

Product Characteristics 29-30

Use and Installation Instructions 30-31

Sun Shield 30

Inner Lining 30

Snap-Fastener System 30

Chin-Wind Deflector 30

Cheek Pads 30-31

Acoustic Damping 31

Front Vent 31

Top Vent 31

Winter Collar 31

Visor Replacement 31

Installing the Pinlock 31

Adjusting the Pinlock ⑥ lens tension 31

Selecting the Correct Helmet Size 31-32

Maintenance and Care 32

Storage 32

Disposal 32

Notes on the guarantee and service handling 32-33

Pare-soleil (III. C)

You have chosen to purchase a high-quality product. Familiarise yourself with the product before using it for the first time.

Read the following instructions for use carefully.

Use the product only as described and only for the given areas of application. Store these instructions for use carefully. When passing the product on to third parties, please also hand over all accompanying documents.

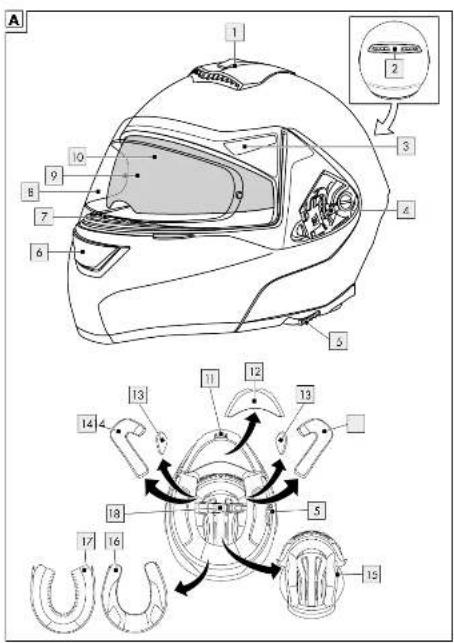

Parts Overview

Top vent
Air exhaust
3 Reflector
4 Visor mechanism
5 Slider for sun shield with safety latch
6 Front vent
7 Breath deflector
8 Visor
Pinlock lens
Sun shield
Pivoted release
12 Chin-wind deflector
[13] Acoustic damping
14 Cheek pads
15 Inner Lining
16 Standard collar
Winter collar
18 Chin straps with snap fastener

Scope of Delivery

The scope of delivery for your helmet consists of the following:

Additional pair of cheek pads for individual size adjustment
Pinlock lens
- Acoustic damping
Winter collar
- Helmet bag
- Instructions for use

Important Information

Our helmets are manufactured in accordance with the latest technology and are specifically designed for motorcycling. Whether the owner deems them to be suitable for any other use, is up to him. Wearing a helmet does not exclude the possibility of injury should an accident occur.

To guarantee adequate protection this helmet must be well fitting and securely fastened.

Every helmet that is exposed to a hard blow must be replaced.

We guarantee that this item is free of production and material defects. The guarantee does not apply to normal wear and tear and in case of improper use.

Instructions for Use

Safety Advice

- Warning!

When riding, the helmet may only be used if the chin piece and visor are closed.

• The helmet is equipped with a hinged sun shield, which may only be used in conjunction with a closed visor.
• To open the chin piece, press the release (11) and lift the chin piece up (Fig. B).
• To close the chin part, pull the chin section down until it audibly locks into place.
• The helmet must fit tightly and the chin strap be closed.
• Always ensure that there is no airflow restriction inside the helmet.
• Ensure that your visor is clean and scratch-free at all times. Exchange damaged visors for a genuine replacement immediately. Never use smoked visors at night or when visibility is poor.

You are able to obtain replacement visors from the stipulated service address for a period of 5 years from the purchase date. Visor type: DS-VISOR400.

• Never modify the helmet, its structure or the individual components.

• The helmet may not be painted or have stickers or labels.

• The helmet is designed to absorb the energy of a blow or a collision by destroying some of its components. In case of a further blow it wouldn't protect you any longer. After an accident, the helmet must be replaced even though it doesn't show external damages.

• Refrain from transporting your helmet by hanging it onto any part of your motorcycle. Keep it away from exhaust pipes and other sources of heat.
• Never clean the helmet with solvents containing petroleum or scouring agents, neither the outside nor the inside. Always use pH-neutral detergent dissolved in clean water. Careful rub with a soft cloth. Then wipe dry with a lint-free cloth. The pad may be cleaned with a little soap using a soft brush.
• Only use genuine spare parts for your helmet.
• Only use the sun shield in daylight! Never use at twilight or at night.

Product Characteristics

ECE-R 22.05 Homologa-tion

This helmet is in compliance with ECE-R 22.05 standards and is homologised accordingly.

The ECE-R 22.05 standard consists of uniform conditions for the approval of protective helmets and its visors for drivers and passengers of motorcycles and mopeds. The basic principles for these tests are the so called ECE-Regulations of the Economic Commission for Europe.

Significant Tests of the ECE-Regulation 22.05

• Shock absorbance
• Dynamic test of wear features
  Field of vision test
• Design strength
• Sustainability test (Strip-off test)
• Chin straps and lock test
• Shear test for outside edges
• Friction performance test of the outer shell
• Visor test

(mechanical and visual characteristics)

• Chin bar, chin part damping test

Voluntary product testing Emission certificate

The TUV Rheinland emission certificate indicates products tested for contaminants and according to current knowledge pose no risks to the health.

Inside Padding with Coolmax Inserts

Coolmax® by INVISTA is a high-performance fabric fibre

that supports its wearers during sport activities.

Based on the patented DuPont-fibre technology, Coolmax® transports moisture from the body to the fabric surface where it dries quicker than with any other fabric.

The specially developed fibres of INVISTA that are used for Coolmax®-fabrics transport the moisture away from the body to the surface of the fabric where it has the opportunity to evaporate quickly. At the same time, the uniquely formed fibres offer maximum breathing activity, even in wet conditions. In addition, the breathing activity improves the heat regulating effect. Cheeks, forehead and neck pads of this article are equipped with Coolmax®.

HeiQ® Fresh Tech

HeiQ Textile freshness

Experience the feeling of

lasting freshness through the power of silver, keeping you odour-free all day long.

The helmet liner contains a biocide agent (HeiQ Fresh Tech) for an anti-bacterial, odour-inhibiting lining treatment. Active ingredient: silver adsorbed to silicon dioxide (nano).

Breath deflector and visor ventilation

The breath deflector (7) de creases fogging of the visor due to exhaled air. Additionally, the air circulation in the visor area is improved.

Pinlock® 30

PINLOCK 30

The plastic lens in the Pinlock visor absorbs moisture. The air

pocket between the lens and visor reduce the difference between the temperature inside the helmet and the outdoor temperature.

Integrated sun shield

High-strength HCM outer shell

High Density Copolymer Matrix: High quality ABS plastic is formed under extreme heat and pressure to make a robust and impact-resistant outer shell.

Anti-scratch coated visor

Separate winter comfort collar

Removable, washable liner

Toolless visor changes

With an additional set of cheek pads for a custom fit

Suitable for eyeglass wearers

Safety lock closure

Date of manufacture

(month/year): 11/2020

Use and Installation Instructions

Sun Shield (Fig. C)

The integrated sun shield (10) will enable you to quickly and easily react to changed light conditions with the aid of the patent mechanism. To pull out and retract the sun shield, press the safety latch to operate the slider (5).

Note:

• Please take care that the edge of the sun shield does not block your field of vision.
• The sun shield may only be used when the visor is closed and may only be used during the day.

Inner Lining (Fig. D)

The inner lining (15) can be completely removed and cleaned separately (see care instructions).

To remove the inner lining, firstly remove the helmet collar and the cheek pads. Then undo the back press-studs of the inner lining and pull the clips of the inner lining from the front side of the helmet.

Snap-Fastener System (Fig. E)

The snap-fastener enables an individual and quick vernier adjustment of the chin strap. Press the snap-fastener together until the helmet is sitting comfortably but firm. The movable buckle may be used to fasten or secure excess chin strap.

Chin-Wind Deflector (Fig. F)

The chin-wind deflector (12) can be removed or fixed as needed. To fix, slide the chin-wind deflector into the chin bar.

Cheek Pads (Fig. G)

You will receive two different pairs of cheek pads (14) for individual size adjustment. The thinner cheek-pads are already pre-mounted as standard. The thicker cheek pad is enclosed with the helmet separately. If the helmet is too loose and therefore is not sitting firmly on your head, you can replace the thin cheek pad with the thicker ones.

The cheek pads are affixed via three press-studs respectively in the helmet. You can easily remove the pads. The thicker cheek pads can now also be affixed in the helmet with three press-studs. You need to be able to hear that each press-stud locks-in.

Acoustic Damping (Fig. H)

The acoustic damping (13) is for noise reduction, in particular when driving at high speeds. Press the acoustic damping into the cavity of the cheek pads. The acoustic side pad equipped with Velcro faces towards the helmet shell.

Front Vent (Fig. I)

The front ventilation (6) can be opened and closed using a slide switch.

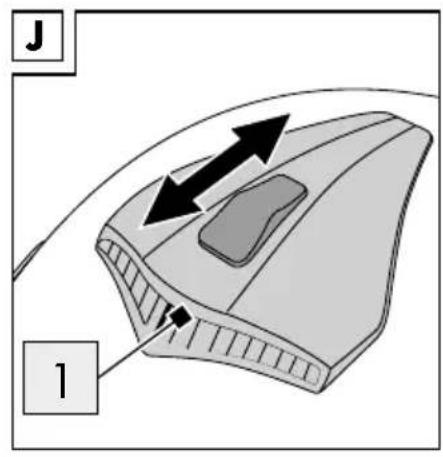

Top Vent (Fig. J)

The top ventilation (1) can be opened and closed using a slider.

Winter Collar

To reduce the wind inlet at the bottom of the helmet during periods with very cold temperatures, the pre-installed standard collar (16) can be replaced with the supplied winter collar (17).

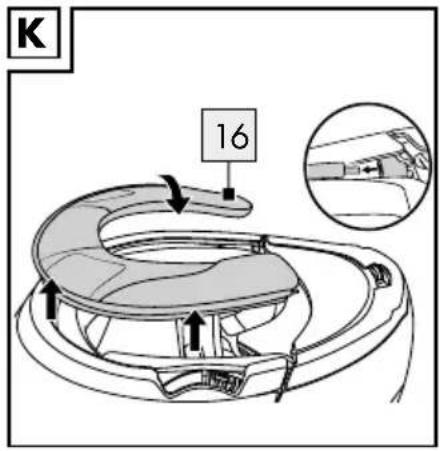

Removing the standard collar (Fig. K)

Pull the one-piece standard collar towards the inside of the helmet at the middle of one side.

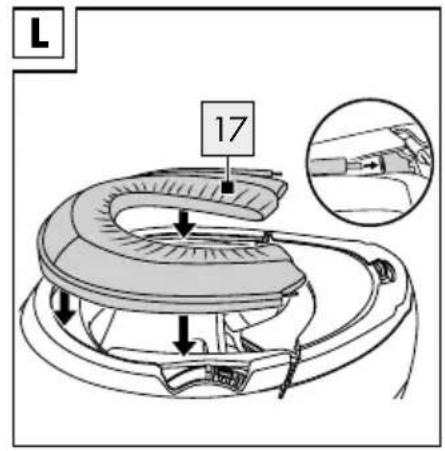

Inserting the Winter Collar (Fig. L)

Insert the rod of the winter neck roll into the opening on one side of the helmet. Fix the neck roll almost completely. Insert the second rod into the opening in the helmet and push in the remainder of the neck roll.

Visor Replacement

A damaged or severely scratched visor (8) can be replaced with a replacement visor.

Removal of the Visor

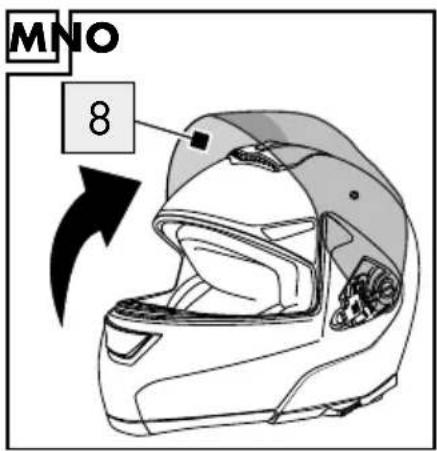

• Slide the visor into the highest position (fully opened) (Fig. M).
• Pull the visor-locking lever and remove the visor (Fig. N).

Inserting the Visor

• Place the replacement visor on the hold-down device and observe the correct positioning in the process (fully opened) (Fig. M).
• Pull the visor-locking lever and place the visor appropriately (Fig. O).
• Allow the replacement visor to snap in and close the visor.

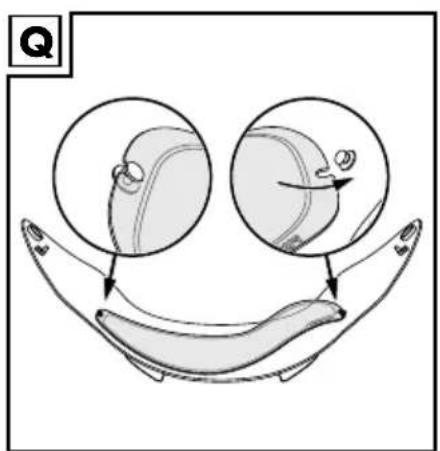

Installing the Pinlock lens

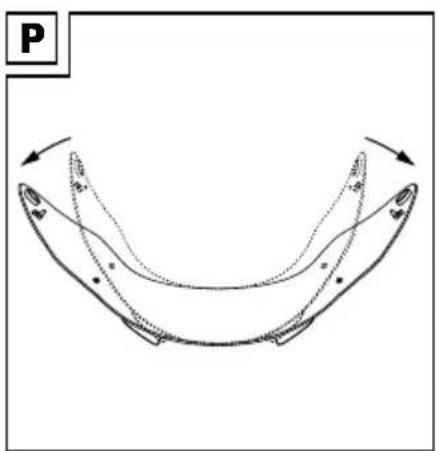

Remove the helmet visor. Bend the visor and place the Pinlock lens between the two pins on the helmet visor (Fig. P-Q). Allow the helmet visor to return to its original shape. The silicone seal on the Pinlock lens must make full contact with the helmet visor to prevent condensation (Fig. R). Remove the protective film from the Pinlock lens. Reattach the helmet visor to the helmet.

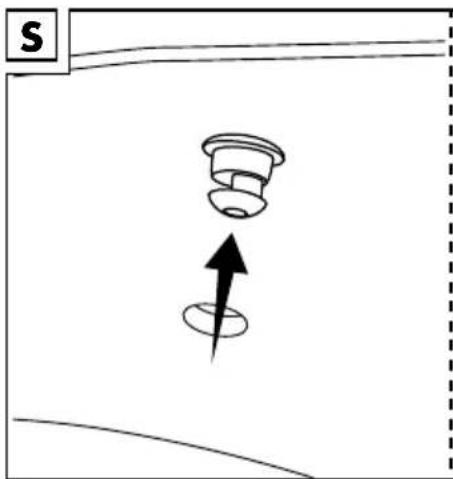

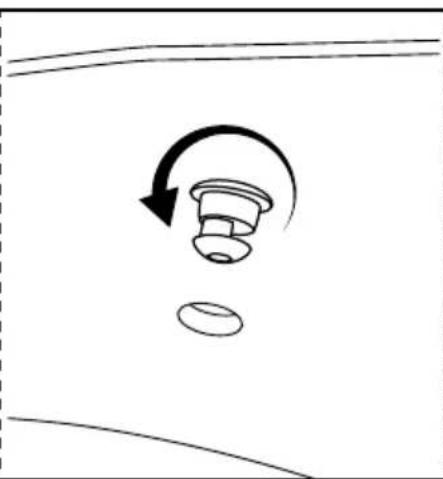

Adjusting the Pinlock lens tension

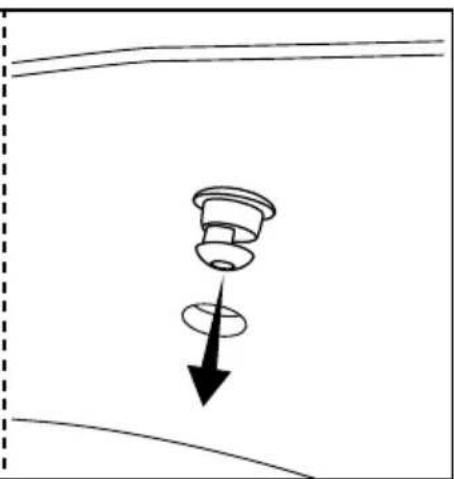

Remove the Pinlock lens. To adjust the pins, push the pins outward, turn with your fingers and push back in (Fig. S).

Selecting the Correct Helmet Size

• Measure the circumference of your head and select the helmet size based on this measurement. Try out several helmets before deciding. Ideally, the skin on your temples will move along when wearing the helmet.
• Ensure that even without the chin strap secured, the helmet does not move much on your head.
• The chin strap must be closed firmly for a secure fit. It is fitted correctly if it is difficult to slide your fingers under the chin strap. However, you must still be able to comfortably breathe, swallow and turn your head.
• Verify the helmet was tested according to the latest ECE standard.

Size table

Size Head circumference
M 57 -	58cm
L 59 -	60cm

Maintenance and Care

Regular maintenance and care contributes to safety and maintaining the helmet.

Cleaning of the Helmet

• Never use solvents, petrol or other detergents when cleaning the shell and interior of your helmet.
  Always use pH-neutral detergent dissolved in clean water. Careful rub with a soft cloth. Then wipe dry with a lint-free cloth.

Visor care and cleaning

After using the helmet, lightly wipe off any grime (e.g. dead insects, dirt, sand, dust etc.) from the visor with a soft cloth and then fully wipe it clean using a dry soft cloth.
- When the visor gets wet (e.g. rainwater) it should always be wiped with a soft cloth.
- When cleaning the visor, never use any petroleum-based solvents or detergents containing abrasives.
- Remove the Pinlock® lens and clean with a soft, damp cloth and mild detergent. Let the Pinlock® lens air dry. Do not use harsh detergents or fluids containing ammonia or alcohol.

Cleaning of the Cheek Pads, Acoustic Pads and Inside Pads

• Hand wash below 30^ .

• Allow to dry at room temperature.

• Avoid sources of heat.

• When not in use, store in a dry, well ventilated place.

Storage

When not in use, store the helmet in a dry and well ventilated place at room temperature. Avoid sources of heat. Do not needlessly expose the item to heat, e.g. in the car in hot outside temperatures.

Disposal

Dispose of the article and the packaging materials in accordance with current local regulations. Packaging materials such as foil bags are not suitable to be given to children. Keep the packaging materials out of the reach of children.

Dispose of the products and the packaging in an environmentally friendly manner.

The recycling code is used to identify various materials for recycling. The code consists of the recycling symbol - which is to reflect the recycling cycle - and a. er which identifies the material.

Notes on the guarantee and service handling

The product was produced with great care and under constant supervision. You receive a three-year warranty for this product from the date of purchase. Please retain your receipt.

The warranty applies only to material and workmanship and does not apply to misuse or improper handling. Your statutory rights, especially the warranty rights, are not affected by this warranty.

With regard to complaints, please contact the following service hotline or contact us by e-mail. Our service employees will advise as to the subsequent procedure as quickly as possible. We will be personally available to discuss the situation with you.

Any repairs under the warranty, statutory guarantees or through goodwill do not extend the warranty period. This also applies to replaced and repaired parts. Repairs after the warranty are subject to a charge.

1 Year Warranty on Pinlock® visor lens

The Pinlock ^® visor lens is covered by a one year manufacturer durability warranty subject to the following terms:

LIMITED LIABILITY

Pinlock® guarantees the original owner the visor insert to be free from defects in material and manufacture for a period of one (1) year from the date originally purchased. Pinlock® will at its discretion repair, replace or refund the purchase price of a defective visor insert. The Pinlock® warranty does not apply to damages due to misuse, negligence, modifications, normal wear, incorrect installation or cleaning, or accidents (also including races, stunts or similar activities). The Pinlock® warranty does not apply to the Pinlock® ready helmet visor or the location of the holes in the helmet made for the Pinlock® helmet visor. This warranty and legal means are exclusive and replace all other warranties and legal means, verbal or written, express or implied. Pinlock® resellers, retailers, agents or employees are not authorised to modify or extend this warranty or legal means. To exercise a warranty claim, the original owner must present the visor insert and purchase invoice or dated receipt to an authorised Pinlock® retailer. Pinlock® excludes any implied warranty, which also includes the guarantee of marketability and suitability for a specific purpose. In the event Pinlock® is unable to legitimately exclude implied warranty under applicable law, these shall be excluded as permitted by law. All claims for implied warranty are void upon expiration of the above warranty period. Pinlock® is not liable for direct, indirect, specific, collateral or consequential damages due to violation of the warranty terms or other principle of law.

IAN: 344582_2004 (Size M)

IAN: 344580_2004 (Size L)
