| Product type | LED projector for indoor/outdoor use with motion detector |
| Brand | Livarno Lux |
| Model | HG01042A |
| Power consumption | 20 W |
| Operating voltage | 230 V~ 50 Hz |
| Bulb | COB LED 20 W non-replaceable |
| Protection rating | IP65 (dust-tight and protected against water jets) |
| Protection class | I |
| Overall dimensions | 18 x 12.5 x 8 cm |
| Weight | approx. 640 g |
| Motion detector - Range | max. 8 m (adjustable) |
| Motion detector - Angle | approx. 160° horizontally |
| Remote control - Power supply | 1 x lithium battery CR2025 (3 V) |
| Remote control - Range | approx. 12 m |
| Recommended mounting height | approx. 1.8 - 2.5 m |
| Maximum projection area | 18 x 12.5 cm |
| Remote control functions | Day/night modes, continuous lighting, SOS, flash, sensitivity and delay settings |
| Warranty | 3 years from date of purchase |
| Cleaning | With a slightly damp cloth and mild detergent; do not immerse |
| Package contents | 1 LED spotlight, 1 bracket, 2 wall plugs, 2 screws, toothed washers, washers, remote control, battery, instruction manual |
| Certification | GS, IP65 |
Frequently Asked Questions - HG01042A Livarno Lux
User questions about HG01042A Livarno Lux
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your LED Spotlight in PDF format for free! Find your manual HG01042A - Livarno Lux and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. HG01042A by Livarno Lux.
USER MANUAL HG01042A Livarno Lux
DE AT CH
LED-STRAHLER20W
Assembly, operating and safety instructions
NL BE
LED-SCHIJNWERPER20W
Parts description......Page 23
Technical data......Page 23
Scope of delivery....Page 24
General safety instructions......Page 25
Safety instructions for batteries/rechargeable batteries ......Page 26
Before installation Page 27
Installation......Page 28
Operation Page 29
Mode buttons......Page 30
Sensitivity buttons......Page 31
Time buttons......Page 31
Replacing the battery ......Page 32
Cleaning and care......Page 32
Disposal Page 33
Warranty Page 34
Warranty claim procedure......Page 34
Service Page 35

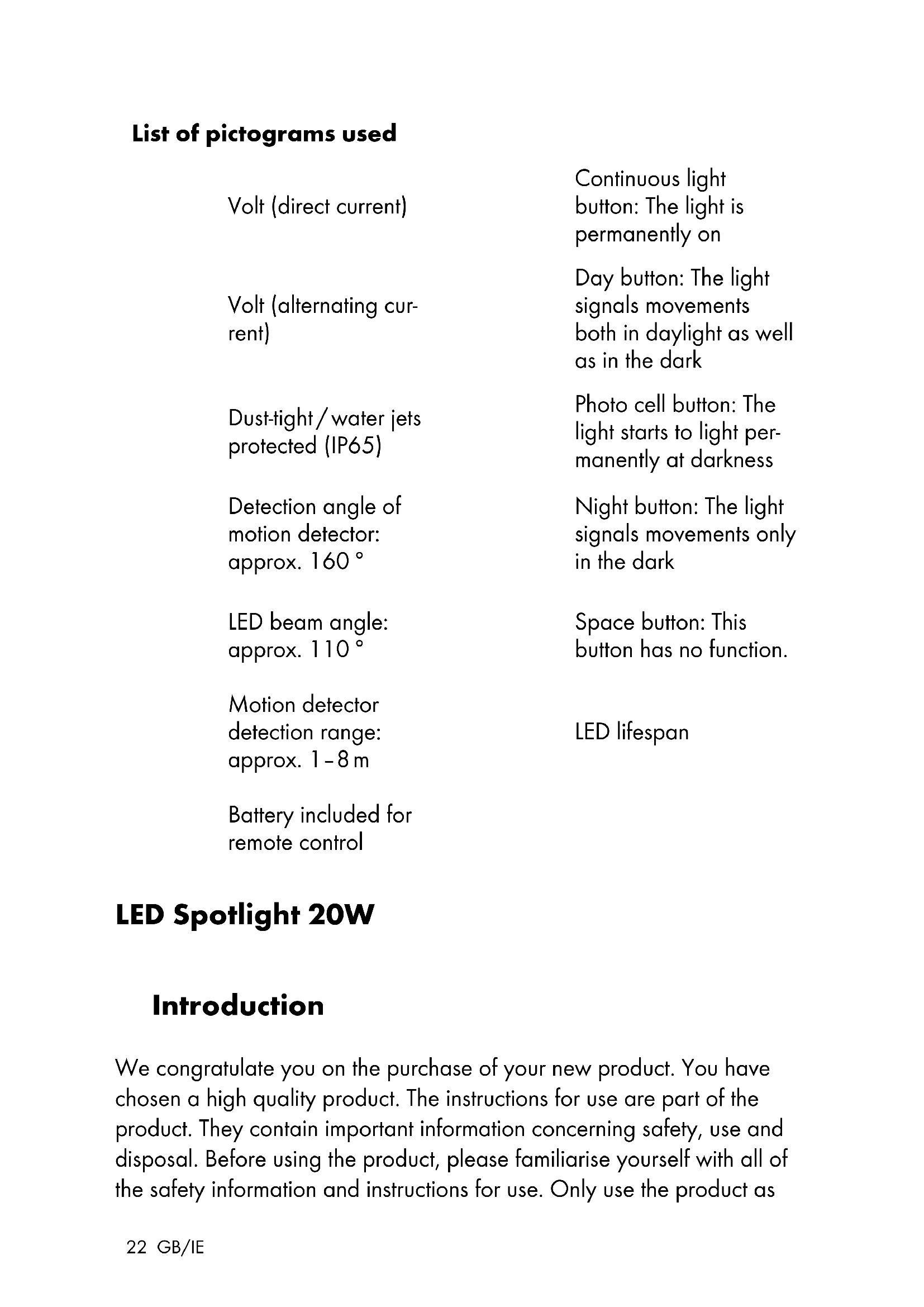

List of pictograms used
| Volt (direct current) | Continuous light button: The light is permanently on |
| Volt (alternating current) | Day button: The light signals movements both in daylight as well as in the dark |
| Dust-tight/water jets protected (IP65) | Photo cell button: The light starts to light permanently at darkness |
| Detection angle of motion detector: approx. 160° | Night button: The light signals movements only in the dark |
| LED beam angle: approx. 110° | Space button: This button has no function. |
| Motion detector detection range: approx. 1-8 m | LED lifespan |
| Battery included for remote control |
LED Spotlight 20W
Introduction
We congratulate you on the purchase of your new product. You have chosen a high quality product. The instructions for use are part of the product. They contain important information concerning safety, use and disposal. Before using the product, please familiarise yourself with all of the safety information and instructions for use. Only use the product as
described and for the specified applications. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.
Intendeduse
The product is intended to illuminate indoor and outdoor areas. This product is only intended for private use and is not suitable for commercial use or for use in other applications.
Partsdescription
| 1 | Motion sensor |
| 2 | LED spotlight |
| 3 | Locking screw |
| 4 | Bracket |
| 5 | Screwless connection terminal |
| 6 | Terminal cover |
| 7 | Cable gland |
| 8 | Remote control |
| 9 | Sensitivity buttons |
| 10 | Time buttons |
| 11 | Mode buttons |
| 12 | SOS button |
| 13 | OFF button |
| 14 | FLASH button |
| 15 | Space button |
| 16 | Night button |
| 17 | Photo cell button |
| 18 | Day button |
| 19 | Continuous light button |
| 20 | Spring |
| 21 | Battery sled |
| 22 | Battery compartment |
| 23 | Screws ∅ 5 x 50 mm |
| 24 | Wall plug ∅ 8 mm |
| 25 | Tooth lock washer |
| 26 | Flat washer |
| 27 | Spring washer |
- Technicaldata
Operating voltage: 230V\~50Hz
Total power consumption: 20 W
Illuminant (COB LED): 20 W (non-replaceable)
Motion sensor: Range: max. 8 m (adjustable), detection
angle: approx. 160° horizontal
Protection class: I
Degree of protection: IP65 (dust-tight / water jets protected)
Weight: approx. 640 g
Overall dimension: 18 × 12.5 × 8 cm
Projected area: max. 18 x 12.5 cm
Mounting height: approx. 1.8–2.5 m
GS certified
Remote control
Power supply: 3 V
Battery: 1 x 3 V
--- Type: CR2025 Lithium battery
Operation range: approx. 12 m from the product
- Scope of delivery
Check immediately after unpacking that the parts are complete and that the product is in proper condition.
1 LED spotlight
2 Wall plugs (∅ 8 mm)
2 Screws ( 5 x 50 mm)
1 Bracket
2 Tooth lock washers
2 Flat washers
2 Spring washers
2 Locking screws
1 Terminal cover
1 Cable gland
1 Remote control
1 Lithium battery, type CR2025
(pre-installed)
1 Instructions for use
General safety instructions
BEFORE USING THE PRODUCT, PLEASE FAMILIARISE YOURSELF WITH ALL OF THE SAFETY INFORMATION AND INSTRUCTIONS FOR USE! WHEN PASSING THIS PRODUCT ON TO OTHERS, PLEASE ALSO INCLUDE ALL THE DOCUMENTS!
DANGER TO LIFE AND ACCIDENT HAZARD FOR
TODDLERS AND SMALL CHILDREN! Never leave children unattended with the packaging material. The
packaging material represents a danger of suffocation. Children frequently underestimate the dangers. Please keep the product out of the reach of children at all times.
This product may be used by children age 8 years and up, as well as by persons with reduced physical, sensory or mental capacities, or lacking experience and / or knowledge, so long as they are supervised or instructed in the safe use of the product and understand the associated risks. Children should not be allowed to play with the product. Cleaning and user maintenance should not be performed by children without supervision.
DANGER OF SUFFOCATION! Children could swallow on small included parts (e.g. screws). Keep children away from the work area during assembly.
The illuminants are not replaceable.
If the illuminants fail at the end of their lives, the entire product must be replaced.
■ Only to be installed outside arm reach.
Danger to life by electric shock
■ Always check the product for damage before connecting it to the mains. Never use the product if it shows any signs of damage.
Prior to installation, verify that the mains voltage on site corresponds with the operating voltage required for the product (230 V\~50 Hz). Otherwise do not install the product.
CAUTION! DANGER OF BURN INJURIES! To prevent burns, verify the product is switched off and has cooled down for at least 15 min before touching it. The product can become very hot.
FIRE HAZARD! Fit the product so that it is at least 1.0 m-away from the material to be illuminated. Excessive heat can result in a fire.
CAUTION! RISK OF INJURY! Broken lamp glass must be replaced before any further use is made of the product.
The product continues to draw a small amount of power even if the lamp is off as long as product is connected to supply mains. To switch the product off completely, the mains switch should be switched off.
If the external flexible cable or cord of this luminaire is damaged, it shall be exclusively replaced by the manufacturer or his service agent or a similar qualified person in order to avoid a hazard.
Safetyinstructions for batteries / rechargeable batteries
EEP BATTERIES OUT OF THE REACH OF CHILDREN!
Swallowing batteries can cause chemical burns, perforation of soft tissue, and death. Severe burns may occur within 2 hours of swallowing batteries. Seek immediate medical attention.
DANGER TO LIFE! Keep batteries/rechargeable batteries out of reach of children. If accidentally swallowed seek immediate medical attention.
DANGER OF EXPLOSION! Never recharge non-
rechargeable batteries. Do not short-circuit batteries / rechargeable batteries and / or open them. Overheating, fire or bursting can be the result.
Never throw batteries / rechargeable batteries into fire or water.
Do not exert mechanical loads to batteries / rechargeable batteries.
Risk of leakage of batteries / rechargeable batteries
- Avoid extreme environmental conditions and temperatures, which could affect batteries / rechargeable batteries, e.g. radiators / direct sunlight.
If batteries / rechargeable batteries have leaked, avoid contact with skin, eyes and mucous membranes with the chemicals! Flush immediately the affected areas with fresh water and seek medical attention!
WEAR PROTECTIVE GLOVES! Leaked or damaged
batteries / rechargeable batteries can cause burns on contact with the skin. Wear suitable protective gloves at all times if such an event occurs.
In the event of a leakage of batteries / rechargeable batteries, immediately remove them from the product to prevent damage.
■ Remove the batteries / rechargeable batteries if the product will not be used for a longer period.
Risk of damage of the product
Only use the specified type of battery / rechargeable battery!
Insert batteries / rechargeable batteries according to polarity marks (+) and (-) on the battery / rechargeable battery and the product.
- Clean the contacts on the battery / rechargeable battery and in the battery compartment before inserting!
■ Remove exhausted batteries / rechargeable batteries from the product immediately.
- Before installation
Note: Remove all packaging materials from the product.
Important: The electrical connection must be established by a qualified electrician or a person trained to perform electrical installations. This person must be familiar with the properties of the product and the connection regulations.
Before installation ensure that the circuit, to which the product will be connected, is not energised. To do so, remove the fuse or switch off the circuit breaker in the fuse box (0 position).
Use a voltage tester to verify the de-energised status.
The included mounting material is suitable for ordinary solid concrete or masonry construction. Check which mounting material is suitable for your chosen mounting surface. If necessary, seek expert advice.
- Installation
Make sure you will not be drilling into electrical, gas or water lines inside the wall. Use a power drill to drill the holes into the brick wall. Always observe all safety instructions for the power drill in the manual for the power drill. Death or injury due to electric shock may otherwise result.
When selecting the mounting location, pay attention to the following:
☐ Select a sturdy and vibration-free wall.
☐ Keep a minimum distance of approx. 20 cm to other objects to ensure a good ventilation.
☐ Only mount the product in one direction. The "UP" label on the product resp. the arrow should be pointed upwards (see Fig. D).
Make sure that the LED spotlight illuminates the desired area. You can move the product vertically to adjust the angle.
Make sure the motion sensor covers the desired area. The motion sensor 1 has a maximum coverage range of 8 m, with a coverage angle of about 160° (depending on the mounting height - a height of 1.80-2.50 m is ideal).
Make sure the motion sensor is not illuminated at night by street lighting. This can influence its functioning.
Don't adjust the motion sensor onto trees, bushes or locations where animals could be easily detected. Do not adjust the motion sensor 1 to fan heaters, air conditioners, pools or other objects with fast-changing temperatures.
Use the bracket as a pattern to mark the drilling holes onto the wall. Ensure that there are no cables or wires in this area in the wall.
Drill two holes ( 8 mm) and insert the wall plugs 24. Screw the bracket 4 with the help of the screws 23 and check the tight fit.
☐ Loosen the cable gland and terminal cover 6, then run the connection cable (not include in the product), type H05RN-F 3G 1.0 mm², through the cable gland 7 and terminal cover 6 to the screwless connection terminal 5. The suitable length for the connecting wires please refer to Fig. C.
☐ Insert the connection cable into the holes of the screwless connection terminal 5. Pay attention to the markings on the screwless connection terminal 5 (L for live, N for neutral and ⏱ for the earth wire) (Fig. C).
☐ Make sure each wire of the connection cable is completely insert into the end of the holes of the terminal and further check the security fixed.
☐ Then lock the terminal cover and cable gland 7 again.
Now attach the LED spotlight to the bracket 4 using the included locking screws 3, spring washers 27, flat washers 26 and tooth lock washers 25 (Fig. D).
Adjust the product into the desired direction. For this, you may need to slacken the locking screws 3 between the bracket 4 and the LED spotlight 2. After adjustment, tighten the locking screws 3 again, to ensure a secure hold.
After the fuse has been inserted or the fuse panel is switched on again, your product is ready for use.
Operation
You can operate the product by using the included remote control 8
Note: Remove the insulating strip from the battery compartment 22 before using the remote control 8 for the first time.
Note: The product is preset to continuous light mode.
Mode buttons
You can use the Mode buttons 11 to
- switch the product on,
- select the lighting type,
- set, at which light intensity the product is being activated,
- switch the product off.
Hold the remote control 8 in front of the product and press one of the Mode buttons 11 with the desired function.
| Mode button Function | |
| SOS button 12 | The light flashes SOS(3 x short, 3 x long, 3 x short). |
| Continuous light button 19 | The light is permanently on. |
| FLASH button 14 | The light flashes. |
| Space button 15 | This button has no function. |
| Photo cell button 17 | The light starts to light permanently at darkness. |
| Night Button 16 | The light signals movements only in the dark. |
| Day button 18 | The light signals movements both in daylight as well as in the dark. |
The product confirms the received signal from the remote control by a short flashing of the LED spotlight 2. The function is now set and the product is switched on.
☐ To switch off the product, press the OFF button. The product lights up shortly and then switches off.
Sensitivitybuttons
Use the Sensitivity button to adjust the sensitivity of the motion sensor 1. The detection angle expands or decreases automatically with the selected sensitivity.
☐ Press the night button or the day button 18 to activate the motion sensor 1.
☐ Press one of the Sensitivity buttons 9 to adjust the sensitivity.
| Sensitivity buttons | The LED spotlight 2 responds to movements within a radius of |
| 100% Up to 8 Meter | |
| 75% Up to 6 Meter | |
| 50% Up to 4 Meter | |
| 25% Up to 2 Meter |
The product confirms the received signal from the remote control by a short flashing of the LED spotlight 2. The sensitivity of the motion sensor 1 is now set.
Timebuttons
Use the Time button to set the length of time that the product will light up after being triggered by the motion sensor 1.
Press the night button or the day button 18 to activate the motion sensor 1.
Press one of the Time button with the desired lighting duration.
| Time buttons Light duration | |
| 5S, 10S, 30S, 60S 5, 10, 30 or 60 Seconds | |
| 2M, 5M, 10M, 30M 2, 5, 10 or 30 Minutes | |
| 1H, 5H, 10H, 24H 1, 5, 10 or 24 Hours | |
The product confirms the received signal from the remote control by a short flashing of the LED spotlight 2. The lighting duration is now set.
● Replacing the battery
Improperly changing the battery can cause damage. Remove an empty battery from the remote control.
Hold the remote control with the rear panel facing up (see Fig. B).
Press the spring ^20 toward the battery compartment 22 and pull the battery sled 21 out of the battery compartment 22.
Remove the battery.
Insert a new 3-¥ CR2025 battery into the battery sled[21]. Ensure the correct polarity which is shown on the rear side of the remote control [8].
☐ Slide the battery sled back into the battery compartment 22.
- Cleaning and care
■ CAUTION! The product becomes hot when it is switched on.
Allow the product to cool down completely before cleaning.
Before cleaning, remove the fuse or switch off the circuit breaker at the fuse box.
■ Never immerse the product in water or other liquids. Otherwise the product can be damaged.
□ Clean the product with a lint-free, slightly moist cloth and mild cleaning agent.
After cleaning, replace the fuse or switch on the circuit breaker.
To clean the remote control, remove the battery from the battery compartment 22 (see chapter "Replacing the battery").
□ Clean the remote contr8l with a soft, dry cloth.
If the dirt is stubborn, use a slightly moistened cloth. Then dry the remote control 8 well.
☐ Reinstall the battery.
●Disposal
The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.
Observe the marking of the packaging materials for waste separation, which are marked with abbreviations (a) and numbers (b) with following meaning: 1–7: plastics / 20–22: paper and fibreboard / 80–98: composite materials.
The product and packaging materials are recyclable, dispose of it separately for better waste treatment. The Triman logo is valid in France only.
Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.
To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority.
Faulty or used batteries / rechargeable batteries must be recycled in accordance with Directive 2006/66/EC and its amendments. Please return the batteries / rechargeable batteries and / or the product to the available collection points.
Environmental damage through incorrect disposal of the batteries / rechargeable batteries!
Batteries / rechargeable batteries may not be disposed of with the usual domestic waste. They may contain toxic heavy metals and are subject to hazardous waste treatment rules and regulations. The chemical symbols for heavy metals are as follows: Cd = cadmium, Hg = mercury, Pb = lead. That is why you should dispose of used batteries / rechargeable batteries at a local collection point.
- Warranty
The product has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of product defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.
The warranty for this product is 3 years from the date of purchase. Should this product show any fault in materials or manufacture within 3 years from the date of purchase, we will repair or replace it – at our choice – free of charge to you.
The warranty period begins on the date of purchase. Please keep the original sales receipt in a safe location. This document is required as your proof of purchase. This warranty becomes void if the product has been damaged, or used or maintained improperly.
The warranty applies to defects in material or manufacture. This warranty does not cover product parts subject to normal wear, thus possibly considered consumables (e.g. batteries) or for damage to fragile parts, e.g. switches, rechargeable batteries or glass parts.
- Warranty claim procedure
To ensure quick processing of your case, please observe the following instructions:
Please have the till receipt and the item number (e.g. IAN 123456_7890) available as proof of purchase.
You will find the item number on the type plate, an engraving on the front page of the instructions (bottom left), or as a sticker on the rear or bottom of the appliance.
If functional or other defects occur, please contact the service department listed either by telephone or by e-mail.
You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.
Service
GB Service Great Britain
Tel.: 0800 404 7657
E-Mail: owim@lidl.co.uk
IE Service Ireland
Tel.: 1890 930 034
(0,08 EUR / Min., (peak))
(0,06 EUR / Min., (off peak))
E-Mail: owim@lidl.ie
