Bon Cuisine 450 0986 - Oven ARIETE - Free user manual and instructions

Product type	Electric oven
Brand	Ariete
Model	Bon Cuisine 450 0986
Dimensions (W x D x H)	45 x 35 x 30 cm (approx)
Weight	8 kg (approx)
Power supply	220-240 V ~ 50/60 Hz
Power	1500 W (approx)
Maximum temperature	250 °C
Timer	0 - 60 minutes with automatic shut-off
Cooking functions	Upper heat, lower heat, combined, with fan, rotisserie
Included accessories	Grill, drip tray, crumb tray, rotisserie spit, extraction fork
Installation type	Countertop placement (do not build-in)
Cleaning and maintenance	Enamel surfaces: soapy water, non-abrasive sponge. Accessories: dishwasher (top rack)
Safety	Do not immerse the body, automatic shut-off, cool handle, no aluminum on heating elements
Spare parts and repairability	Contact authorized after-sales service for cable replacement or repairs
Usage	Household use only, do not leave unattended

Frequently Asked Questions - Bon Cuisine 450 0986 ARIETE

How to use the oven for the first time?

Perform an empty cycle: select the upper and lower heat function, set the temperature to maximum and the timer to 15 minutes. Leave the door open in a ventilated area to remove protective odors and fumes.

What are the different cooking functions?

The functions are: upper heat (gratin), lower heat, combined cooking (upper and lower), cooking with fan for even heat, and rotisserie with spit.

How to use the rotisserie?

Thread the meat onto the spit, secure the forks. Place the spit in the motor shaft on the right and on the left support. Select the rotisserie function (corresponding symbol), set temperature and timer. Monitor cooking.

Why is there smoke during the first use?

It's normal: the protective substances on the metal parts burn off. Perform an empty cycle of 15 minutes at maximum temperature, door open, in a ventilated room.

Can I use aluminum foil in the oven?

No, never cover the internal parts with aluminum foil, as this can seriously damage the thermostat's operation.

How to clean the oven?

Clean the external surfaces with a damp sponge. Accessories (grill, drip tray, crumb tray, spit) can go in the dishwasher (top rack). For the interior, use a damp sponge after complete cooling. Avoid abrasive and corrosive products.

What is the maximum temperature and how to set it?

The maximum temperature is 250°C. Turn the thermostat knob (G) to select the desired temperature. The indicator light turns on and off when the temperature is reached.

How to set the timer?

Turn the timer knob (L) to the desired time (0 to 60 minutes). The oven stops automatically at the end and emits a sound signal. You can also stop manually by turning the knob back to 0.

Can I leave the oven unattended?

No, never leave the oven unattended while it is on. Always monitor cooking, especially with the rotisserie.

What to do if the power cord is damaged?

Do not use the appliance. The cord must be replaced by the manufacturer, its after-sales service or a qualified technician to avoid any danger.

USER MANUAL Bon Cuisine 450 0986 ARIETE

Black-and-white photo of a modern flat-screen toaster oven with grilles and control knobs (no visible text or symbols)

Forno

Mini oven

Four

Backofen

Horno

Forno

Oven

Φούρνος

Мини-печь

Піч

C D B A P O N E F G H I L M Fig. 1

Exterior view of an oven with metal grating and ventilation slots (no text or symbols)

Exterior view of a microwave oven with open door and tray (no text or symbols visible)

Illustration of a hand using a tool to clean or operate inside a microwave oven (no text or symbols visible)

Illustration of a hand inserting a tool into a microwave oven (no text or symbols visible)

Illustration of a hand holding a flatboard inside an oven, with no visible text or symbols

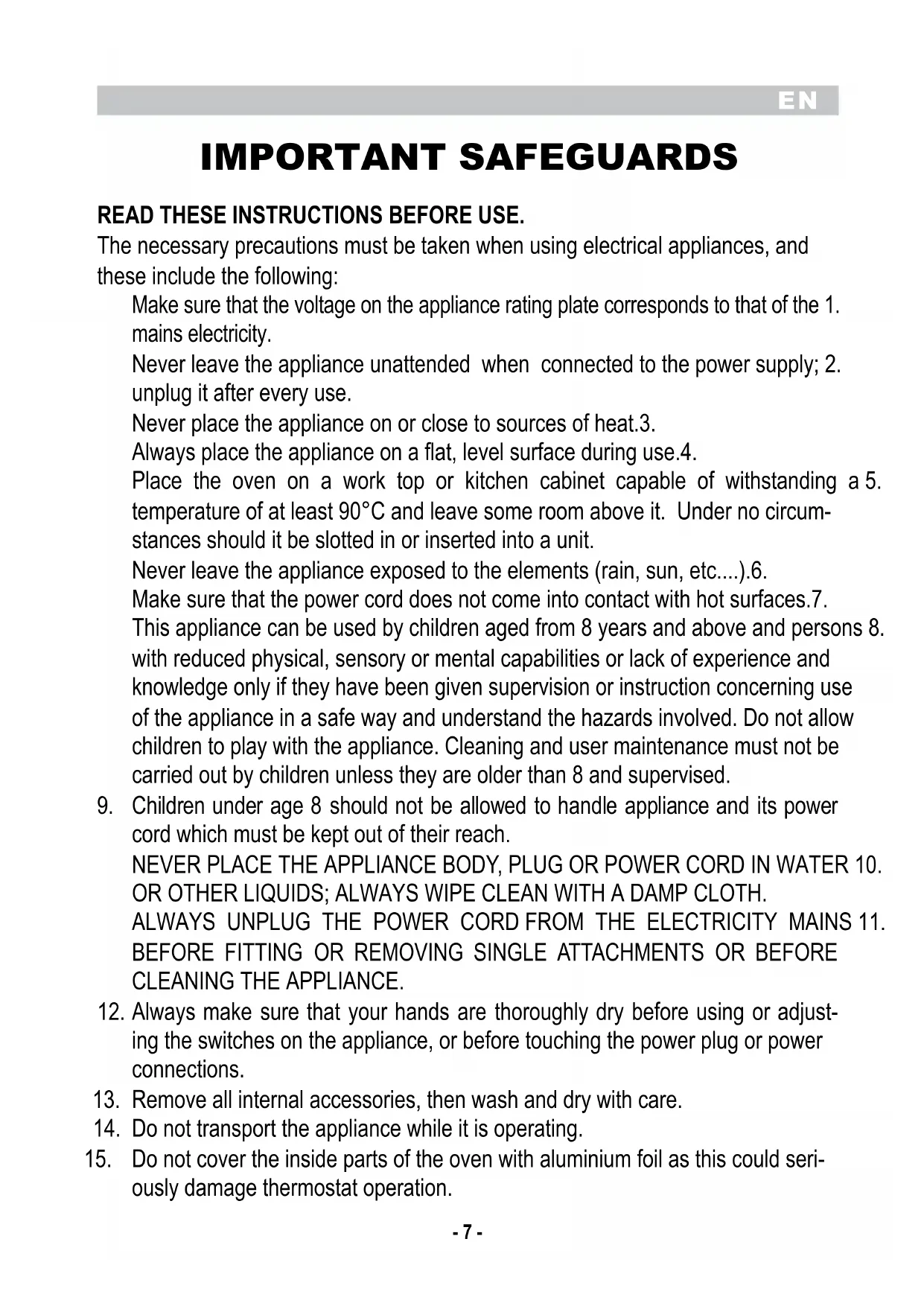

AVVERTENZE IMPORTANTI

LEGGERE QUESTE ISTRUZIONI PRIMA DELL'USO.

The necessary precautions must be taken when using electrical appliances, and these include the following:

Make sure that the voltage on the appliance rating plate corresponds to that of the 1. mains electricity.

Never leave the appliance unattended when connected to the power supply; 2. unplug it after every use.

Never place the appliance on or close to sources of heat.3.

Always place the appliance on a flat, level surface during use.4.

Place the oven on a work top or kitchen cabinet capable of withstanding a 5. temperature of at least 90^ C and leave some room above it. Under no circumstances should it be slotted in or inserted into a unit.

Never leave the appliance exposed to the elements (rain, sun, etc....).6.

Make sure that the power cord does not come into contact with hot surfaces.7.

This appliance can be used by children aged from 8 years and above and persons 8. with reduced physical, sensory or mental capabilities or lack of experience and knowledge only if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Do not allow children to play with the appliance. Cleaning and user maintenance must not be carried out by children unless they are older than 8 and supervised.

1. Children under age 8 should not be allowed to handle appliance and its power cord which must be kept out of their reach.

NEVER PLACE THE APPLIANCE BODY, PLUG OR POWER CORD IN WATER 10. OR OTHER LIQUIDS: ALWAYS WIPE CLEAN WITH A DAMP CLOTH.

ALWAYS UNPLUG THE POWER CORD FROM THE ELECTRICITY MAINS 11.

BEFORE FITTING OR REMOVING SINGLE ATTACHMENTS OR BEFORE CLEANING THE APPLIANCE.

1. Always make sure that your hands are thoroughly dry before using or adjusting the switches on the appliance, or before touching the power plug or power connections.

2. Remove all internal accessories, then wash and dry with care.

3. Do not transport the appliance while it is operating.

4. Do not cover the inside parts of the oven with aluminium foil as this could seriously damage thermostat operation.

During operation, the metal parts and glass become hot: only touch the 16. door handle at this time.

Do not place anything on the door when it is open.17.

Do not place dish cloths or plates on the appliance.18.

Only use the appliance for cooking purposes.19.

The appliance shall be placed against a wall when use. 20.

Do not allow acid substances (lemon juice, vinegar, etc.) to remain on 21. the appliance.

Acidic as lemon juice, tomato sauce, vinegar or similar, if leaved for long time, may harm the enamel, making it opaque.

To unplug the appliance, grip the plug and remove it directly from the power 22. socket. Never pull the power cord to unplug the appliance.

Never use the appliance if the power cord or plug are damaged or if the appli-23. ance itself is faulty; in this case, take it to your nearest Authorised Assistance Centre.

To prevent any risks, if the power cord is damaged, it must be replaced by the 24. manufacturer, its Technical Assistance Service or a similarly qualified person. This appliance is designed for HOME USE ONLY and may not be used for com-25. mercial or industrial purposes.

This appliance conforms to the 2006/95/EC and EMC 2004/108/EC directives.26. Any changes to this product that have not been expressly authorised by the 27. manufacturer may lead to the user's guarantee being rendered null and void. In the event that you decide to dispose of the appliance, we advise you to make 28. it inoperative by cutting off the power cord. We also recommend that any parts that could be dangerous be rendered harmless, especially for children, who may play with the appliance or its parts.

Packaging must never be left within the reach of children since it is potentially 29. dangerous.

The appliance is not intended to be operated by means of an external timer or 30. separate remote-control system.

DO NOT THROW AWAY THESE INSTRUCTIONS

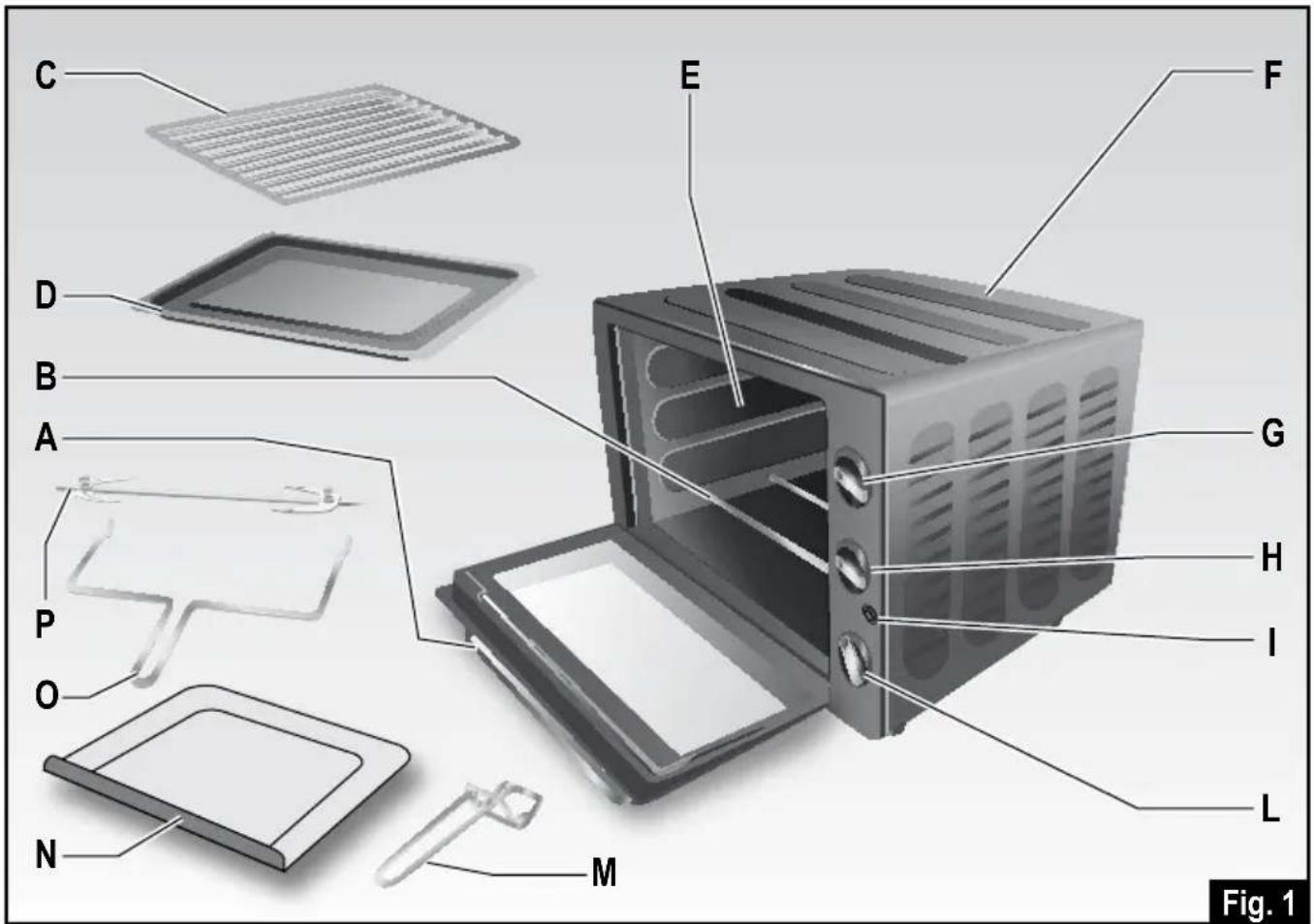

DESCRIPTION OF THE APPLIANCE (Fig. 1)

A Handle
B Heating elements
C Grill
D Drip pan
E Cooking levels
F Appliance body
G Thermostat dial
H Function select dial
I Temperature light
L Power on and timer dial
M Fork to remove grill and drip pan
N Crumb tray4
O Fork to remove brochette
P Rotisserie brochette

USING FOR THE FIRST TIME

Carry out an "empty" cooking cycle so as to remove any smell and smoke from the protective coatings applied to metal parts:

• switch on the oven by turning the dial (H) to the symbol; set the temperature to the maximum and the timer to 15 minutes;
• leave the appliance to operate with the door open in a well-aired environment.

During this operation, it is usual for smoke to come off metal parts and side openings. After this operation, ventilate the room.

INSTRUCTIONS FOR USE

• Prepare the foods for cooking by placing them on the grill (C) or inside the drip pan (D).
• Plug the appliance into the mains power and use the function select dial (H) to select the type of cooking required:

☐ upper cooking for grating;

full power cooking (top and bottom at the same time) with fan;

top cooking with fan;

☐ full power cooking (top and bottom at the same time).

Note: Owing to the fan function, hot ventilated air guarantees an even temperature distribution and permits an uniform cooking on several levels without mixing up smells.

• Turn the dial of the thermostat (G) and set the required cooking temperature.

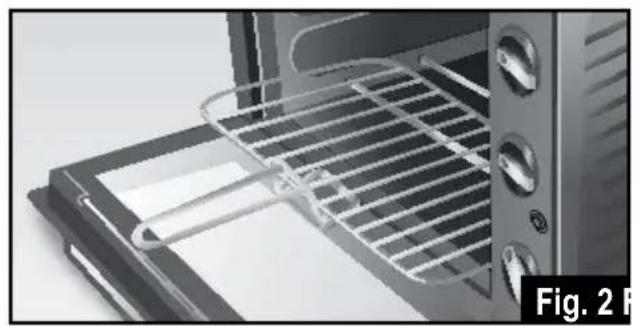

• Place the grill (C) with the previously prepared food into the oven at the required cooking level (E), by using the suitable fork (M) (Fig. 2). When cooking foods on the grill (C), also insert the drip pan

(D) at a lower level (E) than the grill (C) so as to collect any cooking fat. We recommend pouring two glasses of water in the drip pan (D) to prevent smoke, unpleasant odours and build up.

In case of food prepared in the drip pan (D), insert the grill (C) into the oven first, and then position the drip pan itself on it (D) (Fig. 3).

IMPORTANT: Place foods at a minimum distance of 2 cm from the top heating element.

- Use the dial (L) to set the timer for the required cooking time.

At this stage, the oven starts cooking and the temperature light (I) switches on; it switches off when reaching the set temperature or if the dial (H) is manually reset to "0" position.

IMPORTANT: Keep an eye on the food while it is cooking.

• At the end of the cooking time, the oven stops automatically, sending out an alarm.
• Unplug the appliance, open the door and remove the grill (C) or the drip pan (D) using suitable oven gloves or the appropriate fork (M) supplied with the latter.

ROTISSERIE COOKING

- Slide one of the carving forks along the brochette (P), with the tips inwards, and screw to lock. Tie the roast with a string (meat, chicken, etc.) and skewer it being careful to centre the meat properly, and then slide the second fork with the tip inwards.

If necessary, unscrew the first fork to centre the roast on the brochette and lock the two forks.

• Remove the oven grill (C) and put the drip pan (D) on a level (E) below the brochette position (P).

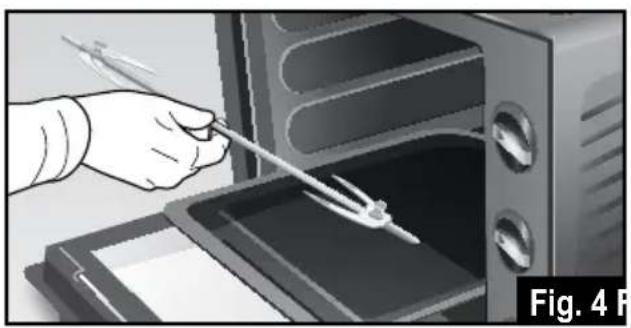

• Insert the sharp tip of the brochette (P) into the cavity situated on the right side by fixing it to the motor shaft. Place the opposite side on the brochette support positioned on the left side (Fig. 4).
• Plug in appliance and select the required cooking type by means of the function selecting dial (H):

full power rotisserie cooking (top and bottom at the same time, with fan)

top rotisserie cooking

• Turn the thermostat knob (G) to set the required cooking temperature.
• Turn the dial (L) to set the timer according to required cooking time. At this stage, the oven starts cooking and the temperature light (I) switches on; it switches off when reaching the temperature set or if the dial (L) is manually reset to "0" position.

WARNING: Monitor food while cooking.

• The oven stops automatically when the cooking time has elapsed or when the dial (L) is brought to "0" position. In both cases, the light (M) goes off.
• Unplug the appliance, open the door, lift the brochette from the side of the left support using the fork (O) and then remove the other end from the motor shaft (Fig. 5).

CLEANING

• Frequent cleaning prevents the formation of smoke and unpleasant odours during cooking.

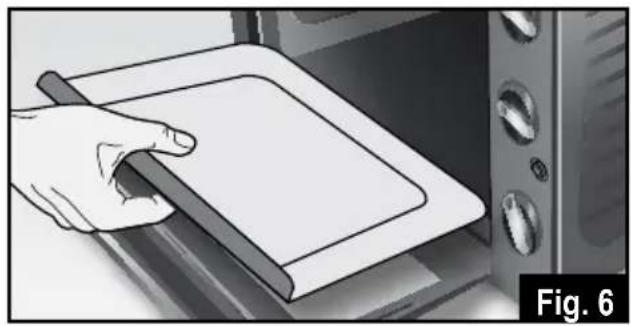

• Use the special oven gloves to remove the crumb tray (N) and proceed to clean. Return it to the inside of the appliance, taking care to position it correctly under the heating elements (B) (Fig. 6).
• The drip pan (D), the grill (C), the crumb tray (N), and the brochette (P) may be washed in warm water and soap, or in the upper part of the dishwasher.
• Always wipe the outside clean with a damp sponge.
  Do not use abrasive products that can damage the paintwork.
• Never use products that might corrode aluminium (spray detergents) to clean the inside surfaces and never scrape the sides with sharp or pointed objects. Wipe with a damp sponge at the end of each use, when the oven has completely cooled.

IMPORTANT: All enamelled parts need to be washed with soapy water or other non-abrasive products.

- When there are grease spots or smoke exhalations, we recommend removing grease with a sponge soaked in hot soapy water.

IMPORTANT: Dry with a soft cloth. Acidic substances such as lemon juice, tomato purée, vinegar or similar can damage the enamel, making it lose shine.

Recipes/quantities Degrees Times Funct.

Meat roasts (1 Kg) 200°-250° 60-80 min.
Roast fish (1 Kg) 190°-210° 30-40 min.
Baked vegetables (500 g) 190°-210° 30-40 min.
Brochettes, sausage, chopped meats (500 g) 190°-210° 30-45 min.
Wrapped meat, vegetables and fish (500 g) 190°-210° 30-45 min.
Meat, vegetable, fish gratin (500 g) 250° 20-30 min.
Oven-baked pasta (1 Kg) 200° 20-30 min.
Bread, pizza and focaccia (500 g) 250° 20-35 min.
Cakes, pastries (500 g) 170°-180° 25-40 min.
Biscuits, small pastries (200 g) 170° 10-15 min.
