USER MANUAL Genie BENQ

© 2021 BenQ Corporation.

All rights reserved. Rights of modification reserved.

Package Contents

Check the packaging for the following items. If any is missing or damaged, please contact the place of purchase immediately.

• Genie e-Reading Lamp body x I

- Screw x 2

- Pedestal base with arm x l

- Power adapter x I

- Hex L-key x I

- Rubber pad x l

The illustrations in this guide are for your reference only and may look different from the appearance of the product you purchased.

For Your Safety

• Use only the supplied power adapter and connect only to a suitable outlet power (100-240V AC, 50-60 Hz). Otherwise the lamp will fail to work normally or result in a fire hazard.
  • In order to prevent any damages to the lamp, do not hang or place any objects over the lamp.
• Route the power cord so as to avoid it from being walked on or pinched by items placed upon or against it.
• Place the lamp only on a solid, flat and stable surface. Otherwise the lamp may topple over and result in damages.
• If the lamp will not be used for a long period of time, unplug it from the power outlet.

In case of the following situations, unplug the lamp from the power outlet immediately and contact the authorized service center or a qualified service person for inspection or repair:

• When the outer casing of the lamp is broken
• When there are strange odors coming from the lamp
• When the lamp flickers
• When the insulation of the lamp's wiring is damaged or frayed, and the metal strings inside can be seen

Do not use the lamp in a humid environment (like in a bathroom or outdoors). Otherwise the components inside may short-circuit and result in accidents.

This lamp is designed for indoor use only. Do not use it outdoors.

Never disassemble the lamp or remove any components from it, as doing so may result in accidents and will void the product warranty.

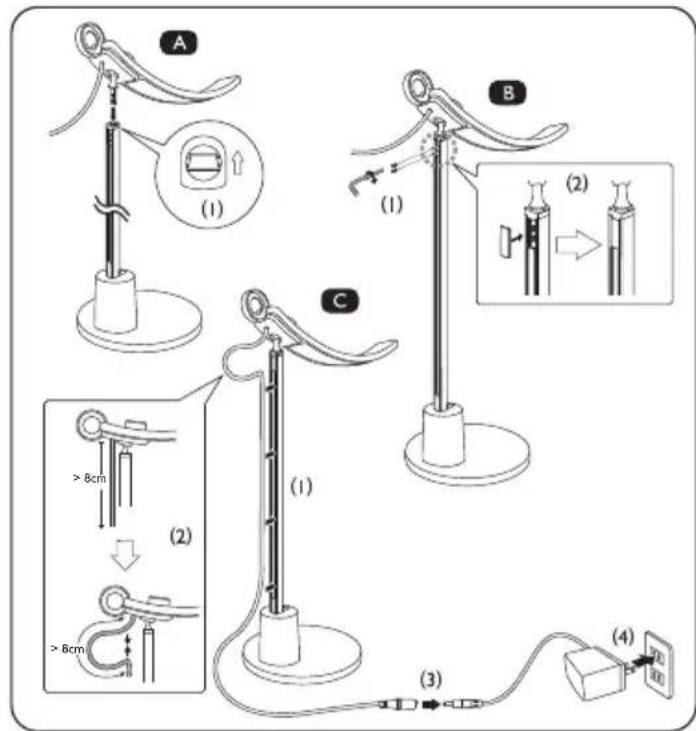

Installation

I. Place the pedestal base on a solid, flat and stable surface.
2. Insert the metal shaft on the lamp body into the hole on the top of the lamp arm [Figure A] When inserting, note the direction of the shaft and ensure that the lamp body is horizontally seated on the lamp arm.

The convex side of the lamp arm should face toward the direction where the lamp head extends [Figure A(1)].

1. Secure the lamp body to the lamp arm by tightening the two screws using the hex L-key provided [Figure B(1)].

Press the rubber pad into the groove to cover the screw holes [Figure B(2)].

1. Press the cable into the groove on the lamp arm [Figure ☐].

At least 8 cm of excess length should be left in order for the lamp body to move freely [Figure ☐].

A (1) B (1) (2) C (1) (2) (3) (4) > 8cm > 8cm

1. Connect the power cord to the power adapter [Figure C] and plug it into a power outlet [Figure C (4)].

Using the Lamp

Identifying the Model of Your Lamp

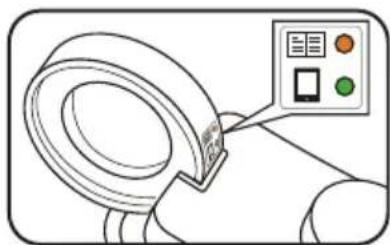

Check if the sticker is there on the metal ring of the

Diagram showing a rolled-up cable with a control panel labeled in Chinese, indicating data input or status.

lamp.

- If yes, then you are using the model with dual auto-dimming mode. Refer to "Using the Model with Dual Auto-Dimming Mode" below for instructions.

- If no, then you are using the standard model. Refer to "Using the Standard Model" on page 3 for instructions.

Using the Model with Dual Auto-Dimming Mode

Turning On/Off the Lamp

To turn on the lamp, gently touch the metal ring on the lamp. To turn off the lamp, touch the metal ring again. You can also turn the lamp on by pressing the knob on the lamp.

Line drawing of a hand holding a pair of scissors with a coiled cord (no text or symbols)

Adjusting Brightness and Color Temperature

The lamp provides one Manual lighting mode that allows you to adjust the brightness and color temperature manually and two Auto lighting modes for use in two different situations.

Lighting mode		Setting		Lighting mode indicator color
		Color temperature	Brightness level
Manual Adjustable None (off)
Auto	Book reading 5700K Automatically optimized according to ambient lighting condition			Orange
	Digital reading 4000K Green

Adjusting Brightness and Color Temperature Manually Using the Manual Lighting Mode

• When the lamp is on, turn the knob on the lamp [Figure]
  ①] clockwise to increase brightness, or counter-clockwise to decrease it.

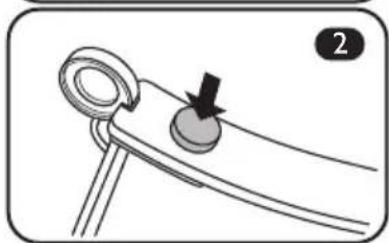

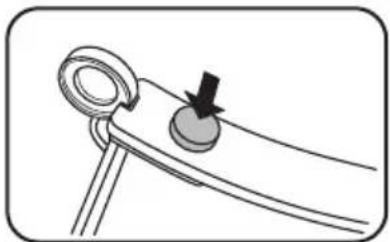

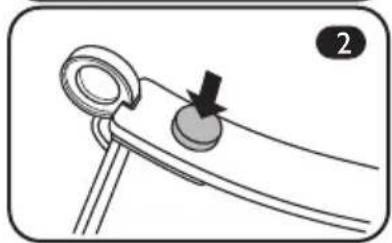

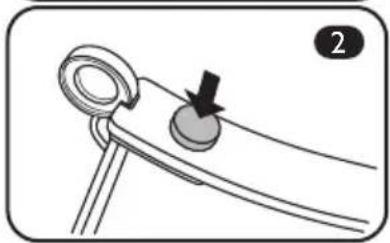

• When the lamp is on, press the knob on the lamp [Figure 2] to switch to the color temperature menu. Then, turn the knob clockwise to increase color temperature (the light becomes whitish), or counter-clockwise to decrease it (the light becomes yellowish).

To switch back to the brightness menu, press the knob on the lamp again.

Illustration of a tool with a curved handle and circular head, showing rotational motion (no text or symbols)

Illustration of a tool with a curved handle and a circular button, no text or symbols present

Using the Auto Lighting Modes

• To enter the Auto - Book reading mode, touch and hold the metal ring on the lamp [Figure 3] or approximately 2 seconds when the lamp is on. The Lighting mode indicator will light up orange. To switch to the Auto - Digital reading mode, touch and hold the metal ring on the lamp for approximately 2 seconds again, and the Lighting mode indicator will light up green.
- The Auto lighting modes protect your eyes by adjusting the lamp's brightness automatically according to the ambient lighting condition detected by the Ambient light sensor [Figure 4] and optimizing the color temperature settings for book and digital reading.
- Do not block the Ambient light sensor on the lamp. Otherwise the Auto lighting modes will not function properly.
- Do not hold the metal ring when adjusting the angle of the lamp arm.
- The Auto lighting modes will exit automatically and the Lighting mode indicator will go off if you manually adjust the brightness and/or color temperature using the knob on the lamp.

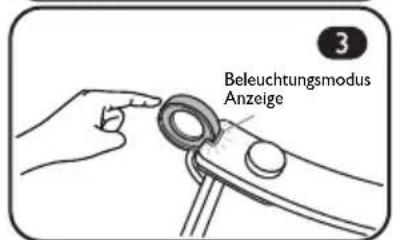

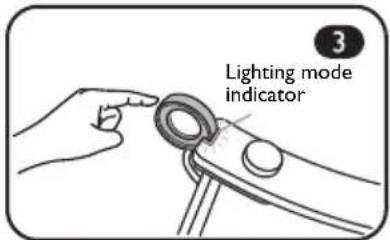

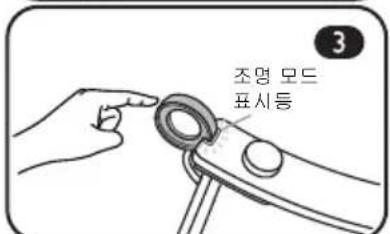

Lighting mode indicator 3

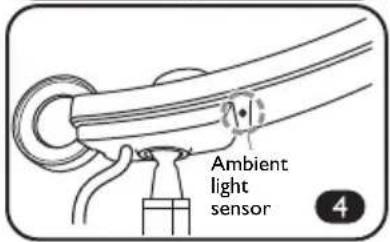

Ambient light sensor 4

Using the Standard Model

Turning on/off the Lamp and Entering Eye-care Mode

• To turn on the lamp, gently touch the metal ring on the lamp. To turn off the lamp, touch the metal ring again. You can also turn the lamp on by pressing the knob on the lamp.
• To enter Eye-care Mode, touch and hold the metal ring on the lamp for approximately 2 seconds when the lamp is on. The Eye-care Mode indicator will light up green. The Eye-care Mode protects your eyes by adjusting the lamp's brightness according to the ambient lighting condition automatically and optimizing the color temperature settings for screen reading.
• Do not block the Eye-care sensor on the lamp. Otherwise the Eye-care Mode will not function properly.
• Do not hold the metal ring when adjusting the angle of the lamp arm.
• The Eye-care Mode will exit automatically and the Eye-care Mode indicator will go off if you manually adjust the brightness and/or color temperature using the knob on the lamp.

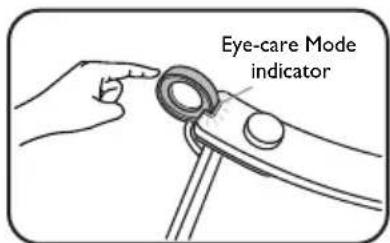

Eye-care Mode indicator

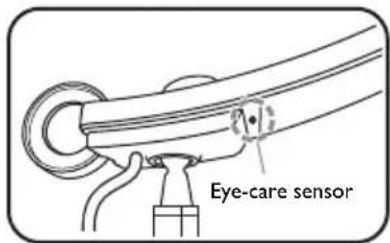

Eye-care sensor

Adjusting Brightness and Color Temperature

• When the lamp is on, turn the knob on the lamp clockwise to increase brightness, or counter-clockwise to decrease it.
• When the lamp is on, press the knob on the lamp to switch to the Color Temperature adjustment. Turn the knob clockwise to increase color temperature (the light becomes whitish), or counter-clockwise to decrease it (the light becomes yellowish).

Illustration of a hand using a tool to lift a circular object, showing motion arrows (no text or symbols)

Illustration of a tool with a curved handle and a circular button, showing motion (no text or symbols)

To switch back to the Brightness adjustment, press the knob on the lamp again.

Adjusting Angle

You can adjust the angle of the lamp arm according to your desktop space to obtain a suitable lighting effect.

Diagram of a mechanical lever system with a 45-degree angle标注 (no text or symbols beyond the angle marker)

Maintenance and Troubleshooting

Turn off the lamp first, and unplug the lamp from the power outlet. Wipe any smears or dusts off the lamp's outer casing using a soft, lint-free cloth lightly moistened with a mild detergent solvent. Do not use alcohol or any other chemical solvents like kerosene, naphtha and so on, as the lamp's casing may become damaged.

Do not rinse the lamp or any of its components directly with water.

If the lamp does not turn on, check to make sure that there are no loose connections between the power cord, power adapter, and the power outlet.

If the problem persists, please contact the original place of purchase for help.

Specifications

Model AR15_D
DC power input 12V, 1.5A
Max. power consumption 18W

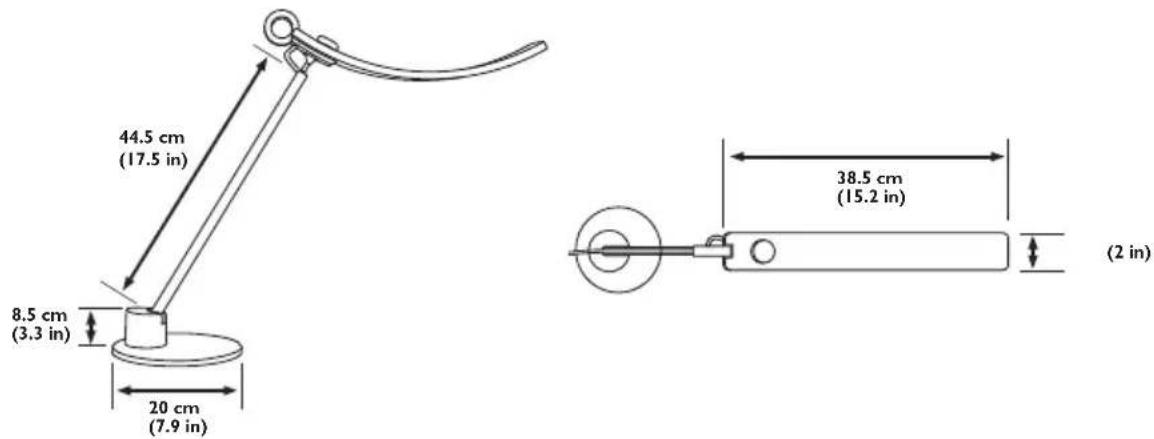

Dimensions (Refer to the illustration below)

44.5 cm (17.5 in) 8.5 cm (3.3 in) 20 cm (7.9 in) 38.5 cm (15.2 in) (2 in)

Lieferumfang

- Inbusschlüssel x I

- Gummipolster x I

Diagram showing a device with a control panel and indicator lights, labeled in Chinese.

Line drawing of a hand holding a ring attached to a tool, no text or symbols present

Illustration of a hand using a power tool to lift a circular component, showing rotational motion (no text or symbols)

Illustration of a tool with a curved handle and a circular button, no text or symbols present

Illustration of a tool with a curved handle and a circular component, showing rotational motion (no text or symbols)

Illustration of a hand using a tool to lift a circular object, with an arrow indicating the motion (no text or symbols present)

Diagram of a mechanical lever system with a 45-degree angle标注 (no text or symbols beyond the angle marker)

Diagram showing a device with a scroll and control panel, labeled in Chinese with icons for print, tablet, and display.

Line drawing of a hand holding a pair of scissors with a coiled cord (no text or symbols)

Illustration of a hand holding a tool with a circular component and curved arrows indicating motion (no text or symbols)

Illustration of a tool with a curved handle and a circular button, showing a finger movement (no text or symbols)

Illustration of a tool with a circular component being cut, showing rotational motion (no text or symbols)

Illustration of a hand using a tool to lift a circular object, with an arrow indicating the motion (no text or symbols present)

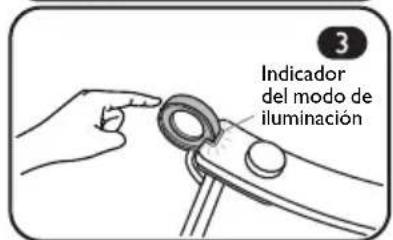

Ajuster l'angle

Diagram of a mechanical lever system with a 45-degree angle标注 (no text or symbols beyond the angle indicator)

Diagram showing a device with a control panel and three labeled buttons, likely illustrating a process or operation.

Line drawing of a hand holding a pair of scissors with a ring, no text or symbols present

Illustration of a tool with a curved handle and a circular component, showing rotational motion (no text or symbols)

Illustration of a tool with a curved handle and a circular button, no text or symbols present

Illustration of a tool with a curved handle and a circular component, showing rotational motion (no text or symbols)

Illustration of a tool with a curved handle and a circular button, no text or symbols present

Ángulo de ajuste

Diagram of a mechanical lever system with a 45-degree angle标注 (no text or symbols beyond the angle marker)

Diagram showing a device with a labeled control panel and icons, likely illustrating a system or application interface.

開燈 / 關燈

Line drawing of a hand holding a pair of scissors with a ring, no text or symbols present

調整亮度 / 色溫

Illustration of a tool with a circular component being pulled by a curved arrow (no text or symbols)

Illustration of a tool with a circular component and an arrow pointing to it, no text or symbols present

自動調光模式

Illustration of a tool with a circular head and curved arrows indicating motion (no text or symbols)

Illustration of a tool with a curved handle and a circular button, no text or symbols present

調整角度

Diagram of a mechanical lever system with a 45-degree angle标注 (no text or symbols beyond the angle marker)

一般保養與故障診斷

Diagram showing a rolled-up cable with a control panel labeled in Chinese, indicating data or operation.

使用方法-智能调光升级版

开灯/关灯

Line drawing of a hand holding a ring next to a pair of scissors (no text or symbols)

调整亮度和色温

Illustration of a tool with a circular component being cut, showing rotational motion (no text or symbols)

Illustration of a tool with a curved handle and a circular button, no text or symbols present

以下内容仅供中国大陆地区参考

自动调光模式

Illustration of a tool with a curved handle and a circular component, showing rotational motion (no text or symbols)

Illustration of a tool with a curved handle and a circular button, no text or symbols present

以下内容仅供中国大陆地区参考

调节角度

Diagram of a mechanical lever system with a 45-degree angle标注 (no text or symbols beyond the angle indicator)

维护与故障诊断

38.5 cm (15.2 in) (2 in)

パッケージ内容

Diagram showing a rolled-up cable with a control panel and three buttons labeled in Chinese

デュアル自動調光モード搭載モデルを使う

ランプの電源をオン / オフにする

Line drawing of a hand holding a ring attached to a tool, no text or symbols present

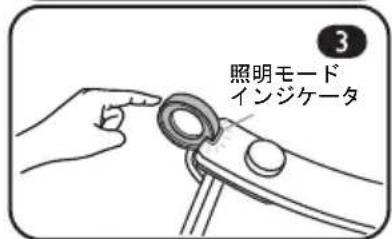

輝度および色温度の調整

Illustration of a tool with a curved handle and a circular component, showing rotational motion (no text or symbols)

Illustration of a tool with a curved handle and a circular button, no text or symbols present

Illustration of a tool with a circular component being cut, showing rotational motion (no text or symbols)

Illustration of a tool with a curved handle and a circular button, showing motion (no text or symbols)

角度の調整

Diagram of a mechanical lever system with a 45-degree angle标注 (no text or symbols beyond the angle marker)

Line drawing of a hand holding a ring next to a pair of scissors (no text or symbols)

밝기 및 색온도 조정

Illustration of a hand using a power tool to lift a ball, showing motion arrows (no text or symbols)

Illustration of a tool with a curved handle and a circular button, no text or symbols present

Illustration of a tool with a curved handle and a circular button, showing rotational motion (no text or symbols)

Illustration of a tool with a curved handle and a circular button, no text or symbols present

각도 조정하기

Diagram of a mechanical lever system with a 45-degree angle标注 (no text or symbols beyond the angle marker)

유지 관리 및 문제 해결

Disposal of Waste Electrical and Electronic Equipment and/or Battery by users in private households in the European Union.

This symbol on the product or on the packaging indicates that this can not be disposed of as household waste. You must dispose of your waste equipment and/or battery by handling it over to the applicable take-back scheme for the recycling of electrical and electronic equipment and/or battery. For more information about recycling of this equipment and/or battery, please contact your city office, the shop where you purchased the equipment or your household waste disposal service. The recycling of materials will help to conserve natural resources and ensure that it is recycled in a manner that protects human health and environment.

Recycling information: See http://www.beng.com/support/recycle for details.

http://www.beng.com/support/recycle.

リサイクル情報：詳しくは、

DECLARATION OF CONFORMITY

The device complies with the requirements set out in the Council Directives on the Approximation of the Laws of the Member States relating Electromagnetic Compatibility (2004/108/EC) and Low Voltage Directive (2006/95/EC) and Radio and Telecommunications Terminal Equipment Directive (1999/5/EC), the Restriction of The Use of Certain Hazardous Substances in Electrical And Electronic Equipment Directive (2011/65/EU), Turkish EEE Directive; Turkish ErP (Decision 2010/643);the Commission Regulation (EC) No 1275/2008 implementing Directive 2005/32/EC of the European Parliament and of the Council with regard to eco-design requirements for standby and off mode electric power consumption of electrical and electronic household and office equipment, and the Commission Regulation (EC) No 1194/2012 implementing Directive 2009/125/EC of the European parliament and of the council establishing a framework for the setting of eco-design requirements for energy-related products.

Deutsch

DÉCLARATION DE CONFORMITÉ

Federal Communication Commission Interference Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures:

• Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.

China RoHS
