ScreenBar Halo CR20_C - Lamp BENQ - Free user manual and instructions

Product Type	LED Monitor Lamp
Brand	BenQ
Model	ScreenBar Halo CR20_C
Power Supply	USB 5V DC, 1.3A (max 6.5W)
Lamp Dimensions (L × D × H)	500 × 94.7 × 97.1 mm
Remote Control Dimensions (L × D × H)	74 × 74 × 38.4 mm
Compatible with Frame Thickness	0.7 – 6 cm (0.7 – 4.2 cm with curved accessory)
Color Temperature	2700 K (warm) to 6500 K (cool)
Auto Dimming Mode	Yes, with ambient light sensor (4000 K)
Lighting Modes	Front, back, front + back
Favorite Setting Function	Yes, save with ♥ button (3 s)
Multiple Connection	Up to 2 lamps with one remote
Remote Control Batteries	3 × AAA (included, alkaline recommended)
Remote Control Range	Less than 1 meter
Lamp Tilt Angle	35°
Power Cable	USB Type-A cable supplied
Included Accessories	Lamp, remote, curved screen accessory, AAA batteries, foam strip
Maintenance	Soft slightly damp cloth, no alcohol or solvents
Usage	Indoor only
Safety	Do not disassemble, do not use in humid environment

Frequently Asked Questions - ScreenBar Halo CR20_C BENQ

How to install the ScreenBar Halo on a curved monitor?

Use the included curved screen accessory for better stability. You can also add the foam strip for extra grip.

How to turn on the remote control?

Place your hand 2 cm above the sensor of the remote to wake it up. The central light will then turn on.

How to adjust brightness and color temperature?

Press the brightness or temperature button then turn the outer ring: clockwise to increase, counterclockwise to decrease.

What to do if the lamp does not turn on?

Check that the USB cable is connected to a port providing at least 5V / 1A. Avoid USB extensions.

How to activate auto dimming mode?

Press the auto dimming button. The light turns on and the lamp automatically adjusts brightness to 4000 K. Do not block the light sensor.

Can I connect multiple ScreenBar Halo to one remote?

Yes. Unplug the lamps, place the remote within 1 meter, hold the button, then reconnect the lamps within 15 seconds while covering the light sensor.

How to clean the lamp?

Unplug the lamp, then wipe with a soft lint-free cloth slightly damp (water + mild detergent). Never use alcohol or solvents.

When and how to change the remote batteries?

Replace the batteries when the button flashes. Open the compartment on the back of the remote and insert 3 AAA batteries following polarity. Prefer using alkaline batteries.

The lamp flickers, what to do?

This indicates insufficient power supply (less than 5V). Connect the lamp to a USB port providing at least 5V / 1.5A for optimal operation.

Can I use the lamp outdoors?

No, this lamp is designed for indoor use only. Using it outdoors or in a bathroom may cause a short circuit.

USER MANUAL ScreenBar Halo CR20_C BENQ

ScreenBar Halo (CR20_C)

ScreenBar Halo Controller (CR20_C Controller)

User Guide

繁體中文

日本語

English

Deutsch

Français

BenQ.com

© 2021 BenQ Corporation.

All rights reserved. Rights of modification reserved.

包装内容

Simple line drawing of a mechanical lever with a rotating shaft and circular head (no text or symbols)

0.7 cm - 6 cm (0.28 in -2.36 in) 1.6 cm - 4.2 cm (0.63 in -1.65 in) 0.7 cm - 3 cm (0.28 in -1.18 in)

Diagram showing battery charging process with labeled components and directional arrows

使用方法

使用前需先喚醒無線控制器

Illustration of a hand holding a circular device with a 2cm measurement label (no text or symbols on the device itself)

Illustration of a hand holding a cylindrical object (no text or symbols visible)

一般保養與故障診斷

Simple line drawing of a mechanical lever system with a circular head and rotating arm (no text or symbols)

0.7 cm - 6 cm (0.28 in - 2.36 in) 1.6 cm - 4.2 cm (0.63 in - 1.65 in) 0.7 cm - 3 cm (0.28 in - 1.18 in)

Illustration of a hand holding a circular device with a 2cm scale indicator (no text or symbols on the device itself)

Diagram showing battery charging process with labeled components and directional arrows

自動調光モード

Beng 1 2 3

BENQ I I * *

senq I I I Heart

Hand holding a cylindrical tool or mechanical component (no text or symbols visible)

故障・お手入れ

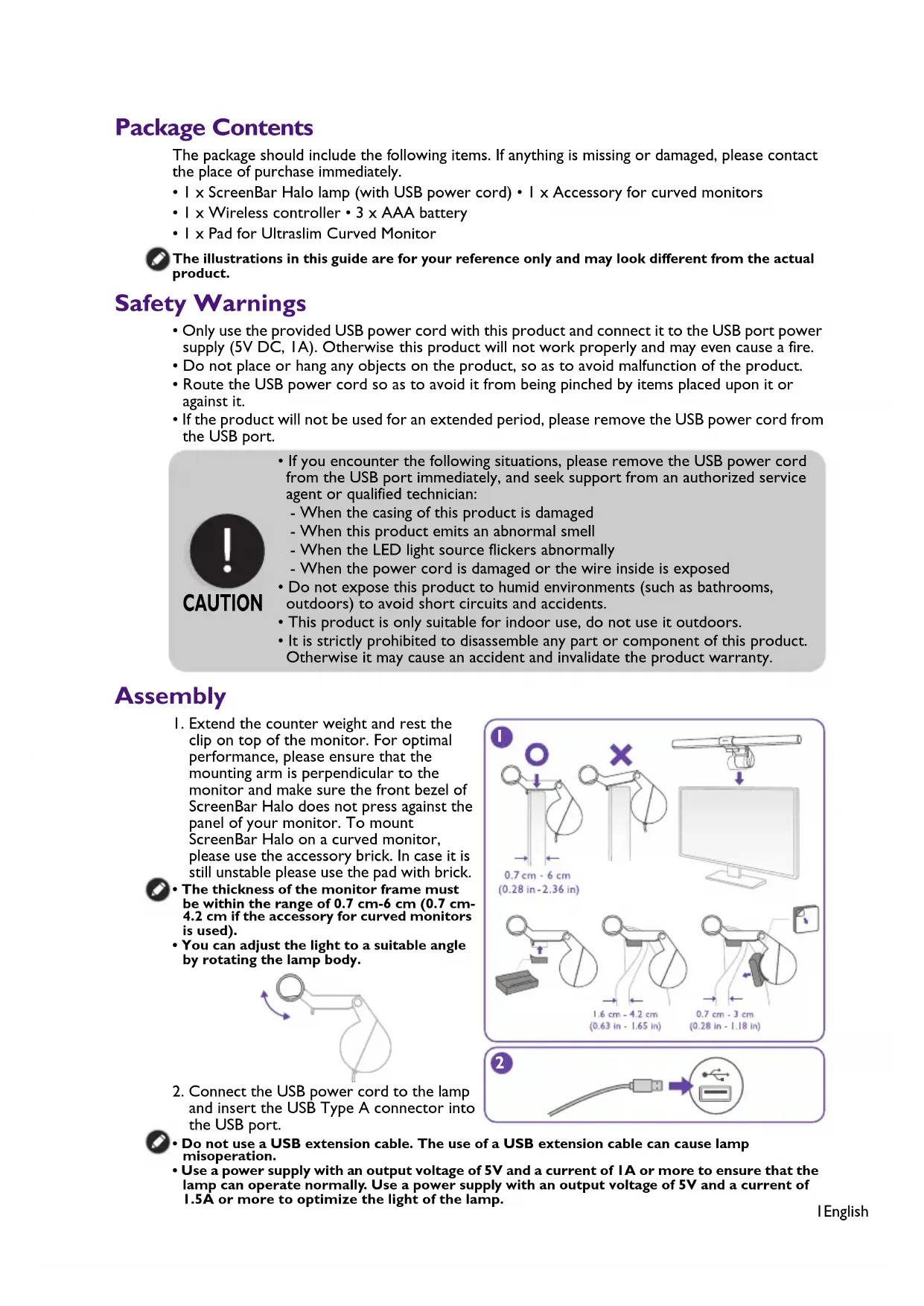

The package should include the following items. If anything is missing or damaged, please contact the place of purchase immediately.

- I x ScreenBar Halo lamp (with USB power cord) • I x Accessory for curved monitors

- 1 x Wireless controller • 3 x AAA battery

• I x Pad for Ultraslim Curved Monitor

The illustrations in this guide are for your reference only and may look different from the actual product.

Safety Warnings

• Only use the provided USB power cord with this product and connect it to the USB port power supply (5V DC, IA). Otherwise this product will not work properly and may even cause a fire.
• Do not place or hang any objects on the product, so as to avoid malfunction of the product.
• Route the USB power cord so as to avoid it from being pinched by items placed upon it or against it.
• If the product will not be used for an extended period, please remove the USB power cord from the USB port.

- If you encounter the following situations, please remove the USB power cord from the USB port immediately, and seek support from an authorized service agent or qualified technician:

• When the casing of this product is damaged
• When this product emits an abnormal smell
• When the LED light source flickers abnormally

• When the power cord is damaged or the wire inside is exposed

• Do not expose this product to humid environments (such as bathrooms, outdoors) to avoid short circuits and accidents.
  • This product is only suitable for indoor use, do not use it outdoors.

• It is strictly prohibited to disassemble any part or component of this product. Otherwise it may cause an accident and invalidate the product warranty.

Assembly

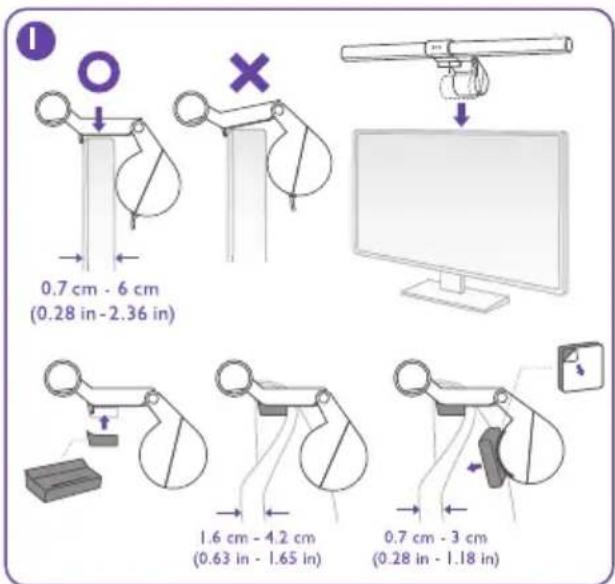

1. Extend the counter weight and rest the clip on top of the monitor. For optimal performance, please ensure that the mounting arm is perpendicular to the monitor and make sure the front bezel of ScreenBar Halo does not press against the panel of your monitor. To mount ScreenBar Halo on a curved monitor, please use the accessory brick. In case it is still unstable please use the pad with brick.

• The thickness of the monitor frame must be within the range of 0.7 cm-6 cm (0.7 cm-4.2 cm if the accessory for curved monitors is used).
• You can adjust the light to a suitable angle by rotating the lamp body.

Simple line drawing of a mechanical lever with a rotating arm and handle (no text or symbols)

1. Connect the USB power cord to the lamp and insert the USB Type A connector into the USB port.

0.7 cm - 6 cm (0.28 in - 2.36 in) 1.6 cm - 4.2 cm (0.63 in - 1.65 in) 0.7 cm - 3 cm (0.28 in - 1.18 in)

2

• Do not use a USB extension cable. The use of a USB extension cable can cause lamp misoperation.

• Use a power supply with an output voltage of 5V and a current of 1A or more to ensure that the lamp can operate normally. Use a power supply with an output voltage of 5V and a current of 1.5A or more to optimize the light of the lamp.

• Open the battery compartment cover at the bottom of the wireless controller and insert the three AAA batteries provided (please make sure that the batteries are inserted with the correct polarity) and then install the battery cover back.

• Do not mix old and new batteries.
• Do not place the batteries under direct sunlight, at a high temperature or near fire. Neither store the batteries in high humidity nor submerge them in water.
• Do not disassemble, hit, or make modifications to the batteries or they may short circuit and pose a hazard.
• Do not attempt to recharge discarded non-chargeable batteries or expose them to fire.
• Remove the batteries if they are depleted or if the lamp will not be used for an extended period; otherwise chemicals inside the batteries may leak and damage the product.
  • To reduce adverse impact on the environment and prevent health hazards, please properly discard the batteries according to your local recycling regulations.
• It is recommended to use alkaline batteries to extend the life of the controller.

Diagram showing battery charging process with labeled components and directional arrows

How to Use

Activating the Wireless Controller Before Use

Illustration of a hand holding a circular device with a 2cm measurement label (no text or symbols on the device itself)

The wireless controller will enter sleep mode after 5 seconds idle to save power. To activate the wireless controller, place your hand 2 cm above the sensor on the wireless controller. The power indicator in the center of the wireless controller will then light up to indicate that you can start performing operations.

• The wireless controller can be operated within 1 meter of the lamp.
• When the wireless controller is in the sleep mode, the power indicator
  ① located in the center of the wireless controller will turn off.
• Please ensure there is no cover within 20 cm above the wireless control to avoid waking it up unintentionally.

Turning On/Off the Lamp and Switching Light Modes

Power On/Off

Tap the Power ⏻ button to turn on the lamp. To turn off the lamp, tap the Power button again.

When the remaining battery charge is low, the power indicator will flash to remind you to replace the batteries.

Light Mode Control

Tap the Light Mode Switch ⚪ button to cycle through the following three light modes:

Front light on > Ambient light on > Both lights on

Auto Dimming Mode

Tap the Auto Dimming Mode button 🔒 to enter this mode. The indicator will light up when the mode is on. In the Auto Dimming Mode, the light mode (front light/ambient light/both) remains the same while the lamp automatically adjusts its brightness according to the surrounding lighting condition and sets the color temperature to 4000K.

• Avoid blocking the light sensor located on the lamp to ensure that the Auto Dimming Mode works correctly.
• The Auto Dimming Mode will automatically turn off when you adjust the brightness or the color temperature or switching light modes. The Auto Dimming Indicator will turn off when the mode is off.

Adjusting Brightness and Color Temperature

Brightness Control

Bright benq

BrightD

Tap the Brightness Adjustment 🙏 button to activate brightness control. The indicator will light up when the brightness control is on. Rotate the adjustment ring to adjust the brightness and the lights around the adjustment ring will change accordingly. Rotate the adjustment ring clockwise to increase the brightness, or counterclockwise to decrease the brightness.

Color Temperature Control

Benz Color

ColdV

Tap the Color Temperature Adjustment 🤒 button to activate color temperature control. The indicator will light up when the color temperature control is on. Rotate the adjustment ring to adjust the color temperature and the lights around the adjustment ring will change accordingly. Rotate the adjustment ring clockwise to increase the color temperature (the highest color temperature is 6500K), or counterclockwise to decrease the color temperature (the lowest color temperature is 2700K).

If the power supply is interrupted, the brightness and color temperature settings will be restored to the state before the power interruption.

My Favorite Mode

Setting Up My Favorite Mode

I. Adjust the brightness, color temperature and light mode of the lamp.
2. Tap and hold the My Favorite Mode ♥ button for about 3 seconds. The brightness, the color temperature and the auto dimming mode indicator will flash three times simultaneously to indicate that the settings are memorized successfully.

Using My Favorite Mode

Tap the My Favorite Mode button to enter this mode.

Pairing and Connecting Multiple ScreenBar Halos

You can pair and connect a wireless controller with multiple lamps to operate at the same time. If the distance between the controller and these lights is within 1 meter, the settings of these lamps will change simultaneously.

I. Unplug the lamp.
2. Make sure that the power indicator is on (the wireless controller is activated), and the wireless controller is within 1 meter of the lamp.
3. While holding the Light Mode Switch button, tap and hold the My Favorite Mode button for about 5 seconds. You will see the function indicators on the wireless controller start flashing simultaneously.

1. After the indicators start flashing, cover the light sensor (on the reverse side of the light bar) of the lamp you wish to pair then plug in the USB power cord within 15 seconds. If the controller and the lamps are successfully paired

and connected, all the indicators will turn off and the controller will go into sleep mode.

Hand holding a cylindrical object with a handle, no visible text or symbols

Maintenance and Troubleshooting

- First Turn off the lamp and unplug the lamp from the USB port. When cleaning the lamp, wipe off any smears or dusts using a soft, lint-free cloth lightly moistened with a mild detergent solvent. Do not use alcohol or any other chemical solvents like kerosene, naphtha and so on, as the lamp's casing may become damaged.

- Do not rinse the lamp or any of its components directly with water.

- If the lamp does not turn on, check to make sure that there are no loose connections between the USB cable and USB port.

- The light flashes when the power supply of the lamp is insufficient (less than 5V). Connect the lamp to another USB port that provides 5V output voltage to solve this problem.

- If the problem persists, please contact the place of purchase for help.

Specifications

Model CR20_C
DC power input 5V, 1.3A
Max. power consumption 6.5W
Dimensions (Width x Depth x Height)	Lamp: 500 x 94.7 x 97.1 mm
	Wireless controller: 74 x 74 x 38.4 mm

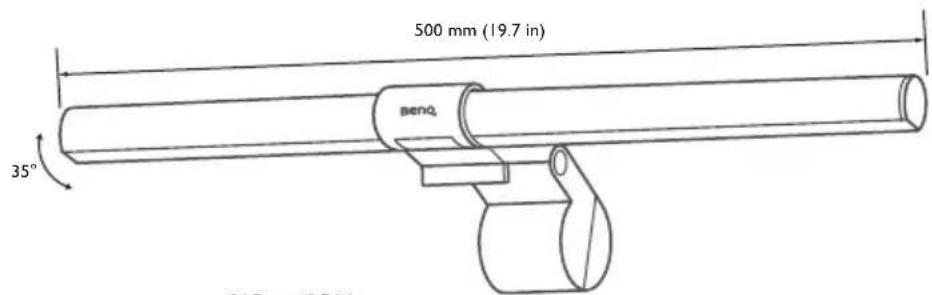

500 mm (19.7 in) 35° Benz 24.7 mm (2.7 in)

94.7 mm (3.7 in) 97.1 mm (3.8 in) 35°

74 mm (2.9 in) 38.4 mm (1.5 in)

Inhalt des Pakets

0.7 cm - 6 cm (0.28 in -2.36 in) 1.6 cm - 4.2 cm (0.63 in -1.65 in) 0.7 cm - 3 cm (0.28 in -1.18 in)

Simple line drawing of a robotic arm with a circular head and curved arrow indicating rotation (no text or symbols)

Diagram showing a USB cable connected to a device with an icon indicating internal connection.

Diagram showing battery charging process with labeled components and directional arrows

Anwendung der Lampe

Illustration of a hand holding a circular device with a 2cm measurement label (no text or symbols on the device itself)

BenQ Heil

Hand holding a cylindrical object with a handle, no visible text or symbols

Simple line drawing of a mechanical lever with a rotating shaft and circular head (no text or symbols)

0.7 cm - 6 cm (0.28 in - 2.36 in) 1.6 cm - 4.2 cm (0.63 in - 1.65 in) 0.7 cm - 3 cm (0.28 in - 1.18 in)

Diagram showing battery charging process with labeled components and directional arrows

Comment Utiliser la lampe

Illustration of a hand holding a circular device with a 2cm scale indicator (no text or symbols on the device itself)

Forte Beng

ForteFa

Froid seng

Froide

Hand holding a cylindrical object, possibly a tool or device, with no visible text or symbols.

Disposal of Waste Electrical and Electronic Equipment and/or Battery by users in private households in the European Union.

This symbol on the product or on the packaging indicates that this can not be disposed of as household waste. You must dispose of your waste equipment and/or battery by handling it over to the applicable take-back scheme for the recycling of electrical and electronic equipment and/or battery. For more information about recycling of this equipment and/or battery, please contact your city office, the shop where you purchased the equipment or your household waste disposal service. The recycling of materials will help to conserve natural resources and ensure that it is recycled in a manner that protects human health and environment.

Recycling Information: See https://www.beng.com/en-us/support/recycling/global-recycle.html for details.

https://www.beng.com/en-us/support/recycling/global-recycle.html.
