USER MANUAL DA20 Bimar

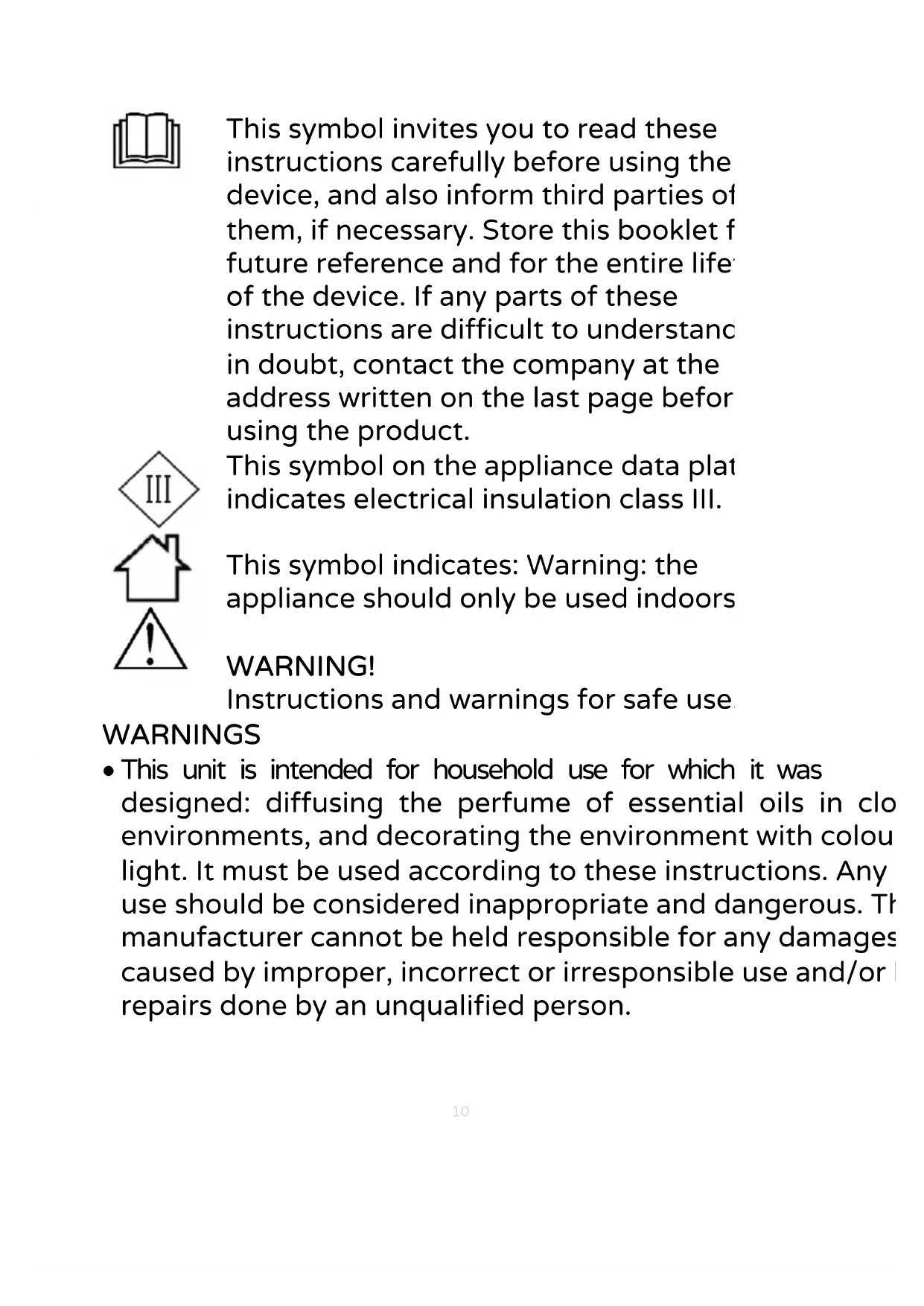

This symbol invites you to read these instructions carefully before using the device, and also inform third parties of them, if necessary. Store this booklet for future reference and for the entire lifetime of the device. If any parts of these instructions are difficult to understand or if in doubt, contact the company at the address written on the last page before using the product.

This symbol on the appliance data plate indicates electrical insulation class III. This symbol indicates: Warning: the appliance should only be used indoors. WARNING! Instructions and warnings for safe use. WARNINGS This unit is intended for household use for which it was designed: diffusing the perfume of essential oils in closed environments, and decorating the environment with coloured light. It must be used according to these instructions. Any other use should be considered inappropriate and dangerous. The manufacturer cannot be held responsible for any damages caused by improper, incorrect or irresponsible use and/or by repairs done by an unqualified person.11

Examples of devices for domestic use are those used for typical domestic reasons, in domestic environments and that can be used by non-experts: - in shops, offices and other similar places of work; - in farming businesses or similar businesses; - by guests in hotels, motels and other residential type environments; - in bed and breakfast accommodation. The appliance must only be used to diffuse the perfume of essential oils diluted in tap water, according to the quantities specified below; the use of other substances can be dangerous. Do not use the appliance outdoors. Only use the accessories provided: any other accessories used can pose a danger to the user and can damage the appliance The water must be placed only in the tray provided and no more than the amount indicated: if an adaptor or other parts get wet, do not put your hand in the liquid but first remove the plug from the plug point. Dry thoroughly and check that the electrical parts are dry and then reconnect the appliance; if in doubt consult a qualified professional. Should the appliance fall or not work correctly, immediately disconnect the adaptor. Check that it is not damaged, and thereafter turn it back on: if in any doubt, consult a qualified professional. Do not touch the appliance with wet hands or feet. The appliance can be used by children over 8 years of age and by people whose physical, mental or emotional capacity is12

limited or compromised, or who lack the appropriate experience or knowledge, only if they are supervised or after receiving instructions about safe use of the appliance and understand the hazards. Children should not play with the appliance. Cleaning and maintenance that must be carried out by the user cannot be performed by children unless they are supervised. The appliance and its accessories must be kept out of reach of children.

Warning: when using electrical appliances, always adhere to

basic safety precautions to prevent the risk of fire, electric shocks and physical injury. Even more attention and care is required when using electrical appliances incorporating a container with water: should the water overflow, immediately unplug the adaptor from the outlet, check that the electrical parts of the device are not wet, and if they are, dry them thoroughly and carefully. Insert the plug into the power point and then continue using the unit. If in doubt consult a qualified professional. Do not remove the cover when the unit is in use. Do not move the appliance when it is running and when the water tray is full. This appliance can only be used with the adaptor provided, mod. DQS12V-240050-V. Do not place your hands, face or body directly above the vapour outlet when the unit is running. Do not breathe in the vapour given off.13

If the appliance is not being used, unplug it from the mains and empty the water tray. Do not leave the appliance exposed to atmospheric conditions (sun, rain, etc..). Do not pull the power cable or the appliance itself to unplug the appliance from the mains. In order to protect yourself from electric shocks, do not immerse the plug, the adaptor, the power cable or the appliance in water or any other liquid. If the power cable is damaged, it must be replaced by the manufacturer or its technical assistance centre or by someone who is similarly qualified, in order to prevent any risks.

Warning: in order to avoid overheating, do not cover the device.

INSTALLATION After unpacking, check the integrity of the appliance; if in doubt, do not use and contact a qualified technician. The packaging materials (plastic bags, polystyrene, metal staples, etc.) must not be left within reach of children, as they constitute possible sources of danger and must be disposed of according to applicable regulations. Before connecting the appliance, verify that the voltage values on the adaptor's plate match with those of the electric system. Should the socket and the adaptor's plug be incompatible, have the former replaced with a correct one by a professional operator. The use of adaptors or extensions is generally not advisable; if it is necessary to use them, they must comply with safety regulations and the total current (amps) must not be rated lower than the maximum current of the appliance. Before each use, ensure that the appliance is in good order, that the power cable is not damaged: if you have any doubts, consult a qualified professional. Ensure that the power cable is correctly positioned and does not come into contact with hot parts or sharp edges, or become wound around the device itself and is not twisted. The plug point must be easily accessible so as to easily remove the plug in case of an emergency. The appliance must not be placed directly beneath a plug point.14

Place the appliance far from any heat sources (stoves, heaters), carpeting, parquet flooring, curtains, tapestries, electrical appliances (such as computers, precision tools, etc.) or delicate furniture that could get damaged by water or the vapour. The surface on which it is placed must be water-resistant, the free space around the appliance must be at least 50 cm, because the vapour can settle on objects that can be damaged. Make sure the vapour is not pointed to the wall, as this could cause damage. Make sure the cable is positioned correctly and that it is not wound around the appliance or tangled and that it cannot get caught, to prevent the appliance from falling. Make sure there's no risk of tripping, to prevent people from accidentally tripping over it or being injured. Also make sure the cable is not under a carpet. The surface where the appliance is used must be stable, spacious (do not use on shelves), and level (since the appliance could tip over or the liquid could spill out). Excessive humidity in the environment can cause the formation of condensation on windows and furniture. In this case, turn the unit off. The appliance must be used at a temperature of between +10 to + 25°C. Make sure that the appliance works correctly: if not, turn it off and consult a qualified professional. Make sure that the vapour outlet is clean and clear and not obstructed by objects, fabrics, or other such materials to prevent overheating or the appliance from breaking. This appliance is not to be used with an external timer or with a separate distance control unit. This is to prevent fire hazards should the appliance be covered or incorrectly positioned. Check that other devices with high power consumption are not connected on the same circuit. If there is a fault or the appliance is not working correctly, switch it off and have it checked by a qualified professional. Repairs done by an unqualified person can be dangerous and cause the guarantee to become void.

Warning: fill the water tray only when the power is off and the adaptor plug is not

inserted in the plug point: always fill the water tray with tap water at room temperature, do not use hot, distilled or purified water. The appliance tray contains approximately 100ml of water and ensures running time of about 4↔6 hours. OPERATION (see figures)

Warning: the perfume diffuser can be used only if fully and properly assembled,

that is, with the lid in the base, and placed on a perfectly horizontal surface. Before each use, check that the appliance is in good condition, placed on a horizontal and stable surface, and that the wiring is not damaged. To use the appliance, proceed as follows:15

1. Make sure the plug on the cable is connected to the base correctly, and that

the adaptor is NOT connected to the power outlet.

2. Remove the cover from the base (1), and with the measuring cup add

demineralised water (or tap water, if free of limestone) in the base tray, up to and not over the maximum level (MAX, see figure), then and add a few drops of essential oil, fragrance, or citronella if you wish to ward off pesky insects.

3. Without removing the base from the surface on which the appliance is being

used, close the cover (insert it on the base).

4. Plug the adaptor into the plug point: you will hear a "beep" and the appliance

is now in "stand-by" mode.

5. Press the "aroma" button to the diffuse the fragrance: the green LED lights up

and the water vapourises through the upper outlet in "min" mode and at regular intervals. By pressing the button a second time, the diffuser changes to "max" mode and carries on working. By pressing the button a third time, the vapour turns off: the unit is thus in "stand-by" mode.

6. Press the "cromia" button to activate the coloured light effect. The lights

change hue and alternate slowly. It is possible to have the fixed light in one of 15 available shades: by pressing the button, the lights change hue or intensity. When holding down the button for a few seconds, the lights go out and the unit is in standby mode.

7. The vapour stops when the water runs out, the lights turn off, and you will hear

a "beep": the appliance goes into "stand-by" mode.

8. To fill the tray once again, repeat the steps described in 1, 2, 3 and 4.

9. To turn the appliance off, remove the adaptor from the plug point.

10. After each use the water tray should be emptied and the tray, the lid and the

diffuser rinsed. Dry them with a clean cloth; even when using a different type of essential oil. For long periods of inactivity, remove the plug from the plug point, make sure the water tray and the inside of the base are perfectly dry.

CLEANING AND MAINTENANCE

Warning: turn the appliance off and unplug it before cleaning.

Descaling If the appliance is used frequently and if the water is very hard, it is recommended to remove the limestone from the appliance in order to extend the lifespan of the appliance and its accessories. Water tray and disc made of cermamic: d) Add 10/15 drops of white vinegar (8%) or a descaling substance to the water tray for 5 minutes. e) Making sure that water does not enter through the hole in the side of the tray (the air outlet), rinse thoroughly by adding water inside and then make sure it is completely dry. f) Avoid the use of abrasive products, solvents, acids that damage the surface finish; Do not use steel wool or abrasive products. Do not wash it under16

running water, do not immerse it in water, do not wash it in the dishwasher. Before use, ensure it is perfectly dry. Diffuser and cover Clean them with a soft cloth slightly dampened with water and vinegar, then rinse with a soft cloth dampened with water only. Avoid the use of abrasive products, solvents, acids that damage the surface finish; Do not use steel wool or abrasive products. Do not wash in the dishwasher. Before use, ensure they are perfectly dry. Cleaning The water tray and the lid must be cleaned periodically: the water must be emptied after each use, wash with soapy water and rinse them with care to avoid the formation of dirt and limescale. Do not wash it under running water, do not immerse it in water, do not wash it in the dishwasher. Avoid the use of abrasive products that can damage the filter and the surface finish; do not use steel wool or abrasive products. Before use, ensure they are perfectly dry. Failure to maintain and clean the appliance could lead to the formation of micro-organisms in the water. The following cleaning operations, therefore, must be performed regularly in order to ensure correct and efficient operation of your humidifier, We cannot emphasise enough the importance of correct and constant cleaning of the unit in order to prevent the formation of bacteria and algae inside the unit. Periodically check that the vapour outlet is not blocked. To clean the main outer casing using a soft, damp cloth; do not use steel wool or abrasive products. If you decide to no longer use the appliance, it is recommended that it is made inoperative by cutting the power cable (first ensure that the appliance has been unplugged from the power supply), and ensure that any parts that could represent a risk to playing children are put away. Correctly disposing of the product as per European Directive 2011/65/UE. At the end of its lifespan, the product must not be disposed of as part of ordinary waste. It can be handed in to specific collection points set up by the municipality, or to retailers who provide such a service. Disposing of a household appliance separately avoids possible negative consequences for the environment and human health resulting from inappropriate disposal and allows the recovery of the materials of which it is made in order to obtain significant savings in energy and resources. As a reminder of the obligation to dispose of appliances separately, the product is marked with a wheeled bin symbol. Incorrect disposal of the product by the user will lead to administrative sanctions according to current regulations.17

PROBLEM POSSIBLE CAUSE SOLUTION The appliance does not work. The plug of the adaptor is not plugged into the power outlet. Plug into the power point. The connector of the adaptor is not plugged into the base. Insert the connector in the base. The lights do not come on and no vapour is coming out. There is no water in the water tray. Fill the water tray. Unpleasant smell. The unit is new or the water needs replacing.

Remove the cover from the base, and leave it open for 12 hours or, in the second instance, empty the water, dry, and leave it open for 12 hours.18

Little vapour comes out. The vapour outlet is dirty or blocked by objects, fabric or other materials. Clean the vapour outlet. The water used is dirty or has been left for a long period in the tank or in the tray of the base. Empty the water tray and fill with clean water. The appliance is noisy. The appliance has been placed on an unstable surface. Place the appliance on a flat, smooth surface.
