USER MANUAL DA15 Bimar

I signal that the height of the characters (3mm) is only for "AVVERTENZE GENERALI" and for the letters high-lighted, as rule EN 60335-1:2012.

es of the I/B. Please reproduce them without any ges except under special instruction from Bimar . The pages must be reproduced and folded in to obtain a booklet A5 (+/- 148.5 mm width x 210 height). When folding, make sure you keep the good bering when you turn the pages of the I/B. Don't ge the page numbering. Keep the language

FAX[phone]

integrity.

I signal that the height of the characters (3mm) is only for "GENERAL NOTICES" and for the letters high-lighted, as rule EN 60335-1:2012.

Copies of the I/B. Please reproduce them without any changes except under special instruction from Bimar Italy). The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

Fax [phone]

Please read these instructions carefully before using the appliance, and instruct other persons using it, too, when necessary. Keep booklet Hndy for further use. If when reading this instructions manual certain parts should remain difficult to understand, or if there is any confusion, contact the company indicated on the last page before using the product.

This symbol on the rating on the adaptor show: the appliance is class II equipment, for which the power cord plug is without of the pole to the ground.

This symbol indicates: Caution: Use the equipment only indoor.

Attention: instructions and general notices for safety use.

WARNING

• This appliance is exclusively intended for home ideal for spreading the pleasant aroma of essential oils, creating an atmosphere of comfort and relaxation for the hues of lighting effects following the instructions in this booklet.

This appliance is intended to be used in household and similar applications such as:

• staff kitchen in shops, offices and other working environments;
• farm houses
• by clients in hotels, motels and other residential type environments

• bed and breakfast type environments

• Any other use is improper and dangerous. The manufacturer will not be liable for damage resulting from improper, incorrect or irresponsible use and/or for repairs made by unqualified persons.

• The appliance must be used only for the diffusion of essential oils with only tap water; the use of other substances can be dangerous.
• The appliance must not be used in out of doors in the open.
• Use the appliance with the accessories provided. Do not use accessories other than those provided: It can be dangerous for the user and can damage the appliance.
• Make sure that the humidifier does not come into contact with water or other liquids. If this should happen, do not put your hand in the liquid, but first remove the plug from the socket. Carefully dry the appliance and make sure that all the electrical parts are dry: if you are unsure, contact qualified service personnel.
• Ensure that the heating fan does not come into contact with water or other liquids. If this should happen, never immerse hands in the liquid but remove the plug from the socket first of all. Dry the appliance carefully and check that all the electric parts are dry. If in doubt, call a qualified expert.
• Do not touch the appliance with wet hands or feet.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they

understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

• The supply cord cannot be replaced. If the cord is damaged the appliance the appliance should be scrapped.
• Attention: when using electrical appliances, always follow basic safety precautions to avoid the risks of fire, electric shock and personal injury. You must take even more precautions when using electrical appliances that incorporate a water reservoir: in the case of water overflows, immediately remove the plug from the power outlet to adapter, verify that the electrical components of the appliance are not wet, and if they are, dry thoroughly and carefully. Re-insert the plug into the socket of the adapter, and then use the device. In case of doubt, contact a qualified technician.
• Do not remove the diffuser and the cover when the unit is running.
  The appliance is only to be used with the power supply unit provided with the appliance mod. GQ15-240050-AG.
• If the unit is not running, remove the plug from the adapter's socket and empty the tank.
  In order to avoid any risk of electrical shock, do not immerse the plug and the adapter's connector, the electrical cable and the appliance in water or in any other liquid.
• Do not move the appliance when it is on and when the tank is full.
• Do not place your hands, face or body directly above the steam output orifice when the appliance is on.
• Do not inhale the vapor emitted from the orifice.
• Unplug the appliance when not in use.
• Do not expose the heater to the weather (sun, rain, etc.).
• The supply cord cannot be replaced. If the cord is damaged the appliance should be scrapped.
• Do not pull on the power cord or the appliance to unplug the appliance from the electric socket.
• If the electric cord is damaged, it has to be replaced by the supplier or an authorized service center or a professionally qualified, to avoid any risks.

INSTALLATION

• After removing the packing materials, check the integrity of the appliance; if you are unsure, do not use it and ask for qualified professional help. The packing materials (plastic bags, polystyrene foam, nails, etc.) must be kept out the reach of children because they are potential sources of danger; but dispose of them in accordance with current law.
• Before connecting the appliance, check that the voltage shown on the data plate matches that of your electricity. In the event of incompatibility between the electric outlet and the plug of the appliance, have the outlet replaced with another more suitable type by professionally qualified personnel, who will make sure that the section of the wires of the outlet is appropriate for the absorbed power of the appliance. In general, the use of adapters or extension cords is not recommended; if their use is indispensable, they must conform to existing safety standards and their current capacity (ampere) must not be less than the maximum of the appliance.
• Stand the appliance on a horizontal, flat surface or table; do not stand on a inclined plane (the appliance could upset.

• Make sure that the cable is correctly positioned, that it is not touching hot elements or sharp edges, is not wound around the utensil, is not twisted up on itself or in the way to prevent the utensil from being pulled over. Check that you cannot trip over to prevent accidental falls or harm to persons.

• The appliance must not be positioned immediately under a socket.

• The power socket must be easy to reach so the plug can be removed quickly in case of emergency.

• Place the appliance away from sources of heat (stoves, fan heaters, etc.), carpets, parquet floors, electric appliances (such as computers, precision instruments, etc. ..), curtains, upholstery or delicate furniture that could be damaged by contact with water or steam. The support surface must be water-resistant and there must be at least 50~cm of free space around the appliance because water vapour can be deposited on objects that could be damaged. Make sure that the steam is not directed against a wall, which could be damaged.

• Make sure the cable is positioned correctly and that it is not wrapped around the appliance or twisted around itself and not entangled, in order to avoid the falling over of the device. Make sure that no one can trip, to avoid accidental falling or injury. However, verify that the cord is not placed under the carpets.

• The support surface must be stable, wide (not on a shelf) and not sloping (because the appliance could tip over).

• Excessive humidity in the room could cause condensation on windows and furniture. In this case, turn off the humidifier.

The appliance must be used at a temperature between +10 and +30^

• Make sure that the appliance is working correctly: if not, turn off the appliance and have it checked by professionally-qualified personnel.

• Make sure the Steam output orifice is clean and free from foreign bodies.

• In the case of a breakdown or fault, switch off the appliance and have it checked by a professionally qualified technician; repairs made by unqualified persons can be dangerous and render void the warranty.

• Do not use the appliance with a timer or a programmer or with a system that can switch on the appliance automatically, to avoid risk of fire, since a fire risk exists if the heater is covered or positioned incorrectly.

Attention: Fill the tank only when the power is off and the power adapter is not plugged into the socket: always fill the tank with tap water at room temperature, do not use hot water, distilled or purified water.

The tank of the appliance contains approximately 80ml of water and ensures an autonomy of operation of about 1-2 hours.

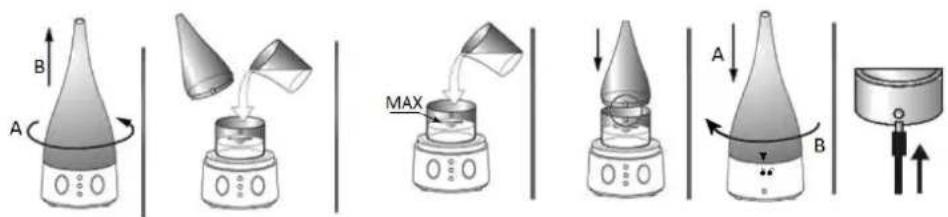

OPERATION

Warning: the aroma diffuser can be used only if it is completely and correctly assembled, that is complete with base, tank, lid and diffuser. In case of doubt, have it checked or carry out the operation by qualified personnel.

Before each use, check that the equipment is in good condition, that the electrical cable is not damaged: if the power cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person, in order to prevent any risk.

1. Make sure that the appliance is not connected to the mains.

2. Place the humidifier on a stable surface.

3. Turn counterclockwise the diffuser (2), remove it from the base (1).

4. Remove the cover from the tank (4).

5. Insert the tank using the measuring cup provided clean tap water up to the maximum level indicated (MAX is printed on the tank, as shown in the figure), add a few drops of your favourite essential oil, close the lid properly on the tank, make sure the two arrows (on the lid and on the tank) match.

6. Place the diffuser on the base and turn it clockwise until it locks, make sure that the mark of the diffuser and the lock symbol 品 on the base match.

Attention: Fill the water tank only with the measuring cup provided, do not fill the fuel tank above the maximum level prescribed (80ml).

4.Insert the connector into the base of the device and the adapter's plug into the socket, the device will switch on: the lights will light up at the same time (5) (7), the vapor will come out at maximum intensity and shades of lights will light up alternately.

1. To change the intensity of the steam press the button (8), at each pressure of the button varies the intensity of the steam, pressed once it activates the average intensity, pressed a second time it activates the minimum intensity of the steam, pressed a third once stops the output of the steam, simultaneously will light the lamps (5), (7), (9).

2. To change the hue of light alternating with a desired steady light, press the button (6) once, the desired shade of light will be red, pressing a second time will be the desired light green, etc. ... pressing until the shades of light turn off. To turn on the light again press the button again, at this point the lights will light up alternately, to maintain again the desired steady light, press the button until the desired shade of red light and then repeat the procedures from the beginning

1. When the tank is empty, the light "stop" (7) will turn on and a red light will flash inside the diffuser. To fill the tank again, repeat steps 1 to 4.

2. To switch off the appliance, press the button (8) until the light stop will turn on and remove the plug from the socket of the adapter.

3. After each use, you should always empty and rinse the tank, the lid and the diffuser, dry them with a clean cloth, even when using a different kind of essential oil.

If the device is not to be used for a long time, remove the plug from the electric outlet and make sure the tank and inside of the base are perfectly dry.

Dscaling

Caution: Before cleaning the device turn it off, unplug it from the socket.

In case of frequent use of the device, and if the water is very hard and to prolong the life of the appliance and its accessories, you should clean it to remove the limestone.

Tank and ceramic filter:

d) Add in the tank 10/15 drops of white vinegar (8 degrees) or descending substances for 5 minutes.

e) Rinse carefully adding water inside and then make sure it is completely dry.

f) Avoid the use of abrasive products, acid solvents that damage the surface finish, do not use steel wool or abrasive products. Do not wash it under running water, do not soak, do not wash it in the dishwasher. Before you use it make sure it is completely dry.

Diffuser and cover:

Clean the cover and diffusor with a soft cloth dipped in a mixture of water and vinegar and then rinse with a soft cloth dipped in plain water. Avoid the use of abrasive products that could damage the surface finish; do not use scouring pads or abrasive products. Do not wash it under running water, submerge it in water, or place it in a dishwasher. Before use, check that it is perfectly dry.

CLEANING AND MAINTENANCE

Attention: before cleaning the appliance, switch off and remove the plug from the electric outlet.

• The water tank and diffusor must be cleaned periodically: empty the water, wash it with soapy water and rinse it carefully to avoid the formation of dirt and scale. Do not wash it under a jet of water or immerse in water; do not wash in the dishwasher. Avoid the use of abrasive products that could damage the gasket and the surface; do not use scouring pads or abrasive products. Before use, check that the utensil, and above all the contacts are perfectly dry.
• Failure to perform maintenance and cleaning could allow microorganisms to grow in the water. For this reason, the humidifier must be cleaned periodically to ensure correct and efficient operation. Correct, habitual cleaning of the appliance is extremely important for avoiding the formation of bacteria and algae inside.
  Periodically check the steam output orifice is not obstructed.
  To clean the body use a soft damp cloth; do not use abrasive products.
• If you decide not to use the appliance any more, we recommend making it inoperative by cutting the power cord (after making sure you have disconnected the plug from the socket) and make dangerous parts harmless if children are allowed to play with them.

IMPORTANT INFORMATION FOR CORRECT DISPOSAL OF THE PRODUCT IN ACCORDANCE WITH EC DIRECTIVE 2011/65/EC.

At the end of its working life, the product must not be disposed of as urban waste. It must be taken to a special local authority differentiated waste collection centre or to a dealer providing this service. Disposing of a household appliance separately avoids possible negative consequences for the environment and health deriving from inappropriate disposal and enables the constituent materials to be recovered to obtain significant savings in energy and resources. As a reminder of the need to dispose of household appliances separately, the product is marked with a crossed-out wheeled dustbin.

Trouble	Possible reasons	Shooting Way
The appliance does not work.	No power supply of the adaptor.	Connect power supply
	The connector of the adaptor isn't insert on the base.	Insert the connector to base.
The leds on, no mist outlet with wind	No water in water tank	Fill water into water tank
	Security switch is too slight	Make the switch tight
Abnormal smell mist	New unit	Take out water tank, open cover and diffuser, let it stay 12 hours in cool position
	Dirty water or long time staying water	Cleaning water tank, fill in clear water
Mist fog is too small	Steam output orifice isn't clean and free from foreign bodies.	Clean the steam output orifice.
	Water is too dirty or water kept too long in the tank	Clean water tank, change to fresh clear water
Abnormal noise	Unit is on an unstable surface	Move the unit to a stable flat surface
Mist coming out from around nozzle	There are apertures between the nozzle and water tank	Dip the nozzle in water for a while and then fix it to the socket on water tank
