Product type	Pedestal fan
Brand	Bimar
Model	VP412
Supply voltage	220-240 V ~ 50 Hz
Number of speeds	3 (low, medium, high)
Horizontal oscillation	Yes, activated by button on the motor
Vertical tilt	Yes, manually adjustable with indexed positions
Protection	Front and rear safety grilles
Electrical class	II (double insulation)
Use	Domestic, indoor
Aroma diffuser	Compatible (accessory not included)
Assembly required	Yes: assembly of feet, pole, grilles and rotor
Cleaning	Soft, slightly damp cloth; do not immerse
Control	Rotary selector (0-1-2-3)
Repairability	Repairs by qualified personnel only

Frequently Asked Questions - VP412 Bimar

How to assemble the Bimar VP412 fan?

Follow the steps in Fig. 1: cross the two feet (7) and secure the fixed pole (11) with screws. Insert the rear grille (16) onto the motor, then the rotor (14), and finally the front grille (12). Lock with the rings (13,15). Attach the body onto the adjustable pole. Refer to the manual for details.

Can the fan oscillate?

Yes, it has horizontal oscillation (left-right) activated by pressing the button (2) on the motor body. To stop it, lift the button.

How to adjust the fan tilt?

To adjust the vertical tilt (up-down), grasp the motor body and orient it in the desired direction. Clicks indicate the different possible positions.

Can I use the fan with an aroma diffuser?

Yes, some models are compatible. Put a few drops of oil/essence on the filter (not included) without overdoing it to avoid damaging the paint. Hang the diffuser on the front or rear grille with the hooks.

How to clean the fan?

Before cleaning, unplug the plug from the socket. Use a soft, slightly damp cloth. Avoid abrasive or corrosive products. Never immerse the appliance in water.

What to do if the fan does not work?

Check that the plug is properly inserted and the socket is powered. If the appliance still does not work, do not attempt to repair it yourself. Contact a qualified technician.

Can I use an extension cord with this fan?

Use of adapters or extension cords is not recommended. If essential, use an extension cord compliant with safety standards and with an amperage at least equal to that of the appliance.

Is the fan suitable for use by children?

No. This product cannot be used by children under 8 years. Children must not play with the appliance. Cleaning and maintenance must not be performed by children without supervision.

How to dispose of the fan at end of life?

In accordance with the WEEE Directive 2012/19/EU, do not dispose of the appliance with household waste. Take it to a recycling center or return it to the retailer when purchasing an equivalent new appliance.

What is the electrical class of the fan?

The appliance is class II, meaning it has double insulation and the power cord has no earth pole.

USER MANUAL VP412 Bimar

Exploded view diagram of a mechanical assembly with numbered parts for identification

1) Albero motore

Close-up of a textured, mesh-covered object with an arrow pointing downward (no visible text or symbols)

1

Close-up of a mechanical component with a circular housing and cylindrical body (no visible text or symbols)

16

Close-up of a mechanical device with a central knob and a vertical line, no visible text or symbols

15

Close-up of a person's head and shoulders with large circular objects, possibly part of a fan or abstract structure (no text or symbols visible)

14

13

Please read these instructions carefully before using the appliance, and instruct other persons using it, too, if necessary. Keep the manual handy for future use.

If when reading these instructions manual certain parts should be difficult to understand, or if there is any confusion, contact the company indicated on the last page before using the product.

This symbol indicates that the appliance is a class II appliance. This means the plug on the power cord is not earthed.

This symbol highlights instructions and precautions for safe use. Warnings and appliance installation, use, cleaning and maintenance procedures may be updated slightly from those described in this manual; for further details, please consult the updated on-line manual at www.bimaritaly.it.

GENERAL NOTICES

• This device is intended for home use only, to ventilate rooms: do not use it for any other purpose. Any other use is to be considered inappropriate and therefore dangerous. The manufacturer cannot be held responsible for any damage caused by inappropriate, improper or irresponsible use and/or for repairs made to the product by unauthorised personnel.

• Examples of devices for domestic use are appliances typically used in the home, which can be used for typical domestic tasks even by non-experts:

• in shops, offices and other such places of work;

• in agricultural businesses or similar,
• by clients in hotels, motels and other residential type environments

• bed and breakfast type environments

• Do not insert any tool, or your fingers, into the grille protecting the blades.

• Do not use the device at room temperatures above 40^ .
• This appliance can be used by children aged 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of

experience and knowledge if they are supervised or if they have been given instructions concerning the use of the appliance in a safe way and if they understand the hazards involved. Children must not play with the appliance. Cleaning and user maintenance must not be performed by children without supervision.

- The appliance must be kept out of children's reach.

- Warning: when using electrical appliances, the basic safety precautions must always be observed to avoid risks of fire, electric shocks and physical injury.

- Do not use the appliance if it is not operating correctly or seems damaged; if in doubt, contact professionally qualified personnel.

- Make sure that the fan is working correctly: if not, turn the appliance off and have it checked by professionally qualified personnel.

- Do not move the appliance when it is running.

- If the appliance is not in use, unplug it from the plug point.

- Always unplug the appliance before you assemble, disassemble or clean the appliance.

- Do not leave the appliance exposed to the weather (sun, rain, etc.).

- Do not touch the appliance with wet hands or feet.

- Do not pull on the cord to move the appliance.

- Do not pull on the cord or the appliance itself to disconnect the plug from the plug point.

- If the power cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid risks.

- Check that the fan does not come into contact with water or other liquids. If it is accidentally wet or immersed in a liquid, first disconnect the power supply by turning off the control panel

switch, and only then remove the plug from the power socket. Dry both the plug and the power socket carefully before reactivating the power socket. Reconnect the plug to the power socket and then use the appliance. If in doubt, call in qualified staff.

• This appliance must not be operated by means of an external timer or a separate remote control system, to avoid the risk of fire if the device is covered and / or is positioned incorrectly. It must also not be used together with another device that can automatically turn on the unit, thus avoiding the risk of damage to people, animals or property.
• If the appliance breaks or there is a malfunction, switch off the appliance and have it checked by qualified personnel; repairs carried out by unauthorised personnel may be dangerous and nullify the guarantee.
• Ensure that the fan is switched off from the supply mains before removing the guard.

INSTALLATION

• After removing the packing materials, check the integrity of the appliance; if you are unsure, do not use it and ask for qualified professional help. The packing materials (plastic bags, polystyrene, nails, etc.) must be kept out the reach of children because they are potential sources of danger. Note: any stickers or advertising material applied to the grille must be removed before using the appliance.
• Before connecting the appliance, check that the voltage indicated on the data plate correspond to those of the electricity network. In the event of incompatibility between the plug point and the plug of the appliance, have the plug replaced with q suitable one by professionally qualified personnel, who will make sure that the section of the wires of the outlet is suitable for the power drawn by the appliance. In general, the use of adapters or extension cords is not recommended; if their use is necessary, they must conform to existing safety standards and their current capacity (amperes) must not be less than the maximum of the appliance.
• Before each use, check that the equipment is in good condition, that the power cord is not damaged: if in doubt consult a qualified professional.
• The power socket must be easy to reach so the plug can be removed quickly in case of emergency.

- Keep the appliance away from:

• heat sources (e.g. open flame, gas stove, etc.)
• liquid receptacles (e.g. sinks, etc.) to avoid water splashing onto the appliance or it falling in (minimum distance of 2 meters)

• fabrics (curtains, etc.) or floating materials that could obstruct the air intake grille; make sure that the front is free of floating materials (dust, etc.).

• This device is NOT suitable to use it in an explosive environment (in the presence of flammable substances such as gas, vapor, mist or dust, in atmospheric conditions when, after ignition, the combustion is spread in the air).

• The appliance must not be used in dusty environments or in the presence of floating materials or used in a room where there is a fire risk.
• Stand the appliance on a smooth, horizontal surface or table; do not place it on a inclined surface (the appliance could fall over).

ASSEMBLY

Before each use, verify that the unit is in good condition, the electric cord is not damaged, if the power cord is damaged, it must be replaced by the manufacturer or a competent qualified electrician or a person with similar qualifications, in order to avoid any risk.

If in doubt, have the appliance checked or assembled by a qualified professional person. For assembly, refer to figure.

Attention: the fan can be used only when completely and correctly assembled, that is complete with its base and protection grid.

Attention: always unplug the appliance before you assemble.

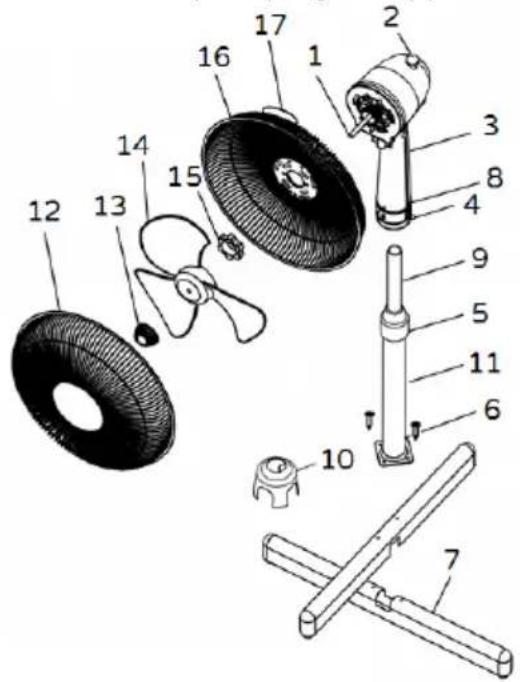

Technical diagram of a mechanical assembly with numbered parts for identification

1) Motor shaft
2) Oscillation button
3) Body
4) Body attachment screw
5) Pole attachment ring nut
6) Feet attachment screw
7) Foot
8) Selector
9) Adjustable pole
10) Cover
11) Fixed pole
12) Front grille
13) Fan attachment ring nut
14) Fan
15) Grille attachment ring nut
16) Rear grille
17) Handle

Stand

1. Cross the two feet (7) and attach them to the fixed pole (11) with the 4 screws (6).
2. Unscrew the fixed pole ring nut (5) and slide if off; insert the cover (10) to cover the junctions between the feet and the fixed pole.
3. Lengthen the adjustable pole (9) until the height desired and lock it by tightening the pole attachment ring nut.

Fan

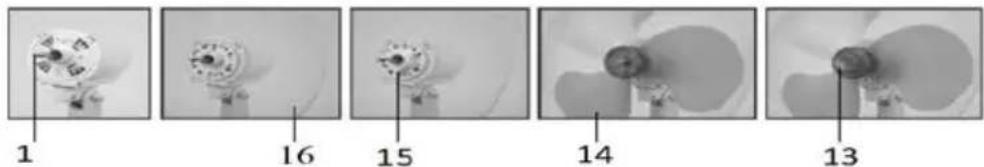

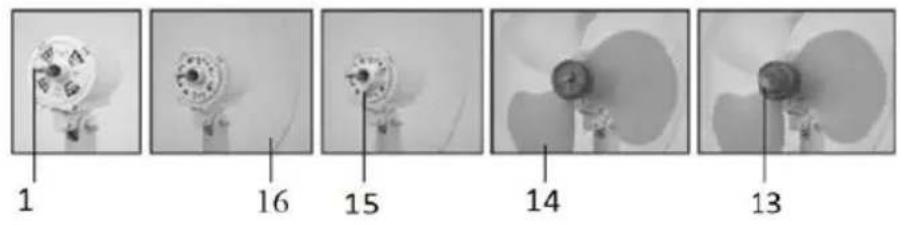

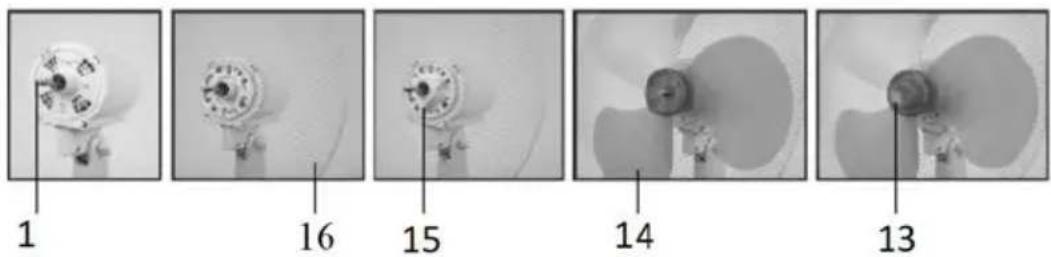

1. Unscrew the ring nuts: fan fixing (13) and rear grid (15) on the motor shaft.
