USER MANUAL CEMO34CGSM CONTINENTAL EDISON

Istruzioni per l’uso FOUR À MICRO-ONDES Guide d’utilisation www.continentaledison.frEN [original version] Please read through this user manual thoroughly, its detailed instructions, warnings and safety precautions to ensure you get the most out of your product. Keep this manual for future reference.22

PRECAUTIONS TO AVOID

possible exposure to excessive microwave energy

IMPORTANT SAFETY INSTRUCTIONS

When using electrical appliance basic safety precautions should be followed, including the following:

WARNING: To reduce the risk of burns, electric shock, re, injury to persons or exposure to

excessive microwave energy:

1. Read all instructions before using the appliance and keep for future reference.

2. Use this appliance only for its intended use as described in this manual. Do not use corrosive

chemicals or vapors in this appliance. This type of oven is specically designed to heat, cook or dry food. It is not designed for industrial or laboratory use.

3. Do not operate the oven when empty.

4. Do not operate this appliance if it has a damaged cord or plug, if it is not working properly or if it has

been damaged or dropped. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualied person in order to avoid a hazard.

WARNING: When the appliance is operated in the combination mode, children should only

use the oven under adult supervision due to the temperatures generated.

WARNING: Only allow children to use the oven without supervision when adequate instructions

have been given so that the child is able to use the oven in a safe way and understands the hazards of improper use.

7. To reduce the risk of re in the oven cavity:

a) When heating food in plastic or paper container, check the oven frequently to the possibility of ignition. b) Remove wire twist-ties from paper or plastic bags before placing bag in oven. c) If smoke is observed, switch off or unplug the appliance and keep the door closed in order to stie any ames. d) Do not use the cavity for storage purposes. Do not leave paper products, cooking utensils or food in the cavity when not in use. e) The microwave oven is intended for heating food and beverages. Drying of clothing and heating of warming pads, slippers, sponges, damp cloth and similar may lead to risk of injury, ignition or re.

1. Do not attempt to operate this oven with the door open since open-door operation can result in

harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks.

2. Do not place any object between the oven front face and the door or allow soil or cleaner residue

to accumulate on sealing surfaces.

3. Do not operate the oven if it is damaged. It is very important that the oven door close properly and

that there is no damage to the a) Door (including any dents), b) Hinges and latches (broken or loosened), c) Door seals and sealing surfaces.

4. The oven should not be adjusted or repaired by anyone except qualied service personnel.23

WARNING: Liquid or other food must not be heated in sealed containers since they are liable

9. Microwave heating of beverage can result in delayed eruptive boiling, therefore care has to be

taken when handle the container.

10. Do not fry food in the oven. Hot oil can damage oven parts and utensils and even result in skin

11. Eggs in their shell and whole hard-boiled eggs should not be heated in microwave ovens since they

may explode even after microwave heating has ended.

12. Pierce foods with heavy skins such as potatoes, whole squashes, apples and chestnuts before

13. The contents of feeding bottles and baby jars should be stirred or shaken and the temperature

should be checked before serving in order to avoid burns.

14. Cooking utensils may become hot because of heat transferred from the heated food. Potholders

may be needed to handle the utensil.

15. Utensils should be checked to ensure that they are suitable for use in microwave oven.

WARNING: It is hazardous for anyone other than a trained person to carry out any service or

repair operation which involves the removal of any cover which gives protection against exposure to microwave energy.

17. This product is a Group 2 Class B ISM equipment. The denition of Group 2 which contains all

ISM (Industrial, Scientic and Medical) equipment in which radio-frequency energy is intentionally generated and/or used in the form of electromagnetic radiation for the treatment of material, and spark erosion equipment. For Class B equipment is equipment suitable for use in domestic establishments and in establishments directly connected to a low voltage power supply network which supplies buildings used for domestic purpose.

18. This appliance is not intended for use by persons (including children) with reduced physical,

sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

19. Children should be supervised to ensure that they do not play with the appliance.

20. The microwave oven is only used in freestanding.

WARNING: Do not install oven over a range cook top or other heat-producing appliance. If

installed could be damaged and the warranty would be avoid.

22. The microwave oven shall not be placed in a cabinet.

23. The door or the outer surface may get hot when the appliance is operating.

WARNING: Accessible parts may become hot during use. Young children should be kept

25. During use the appliances becomes hot. Care should be taken to avoid touching heating elements

inside the oven, for cooking ranged and ovens.

26. The temperature of accessible surfaces may be high when the appliance is operating.

27. Appliance is not to be used by children or persons with reduced physical, sensory or mental

capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction

WARNING: If the door or door seals are damaged, the oven must not be operated until it has

been repaired by a competent person

29. The instructions shall state that appliances are not intended to be operated by means of an external

timer or separate remote-control system.

30. The microwave oven is for household use only and not for commercial use.

31. Never remove the distance holder in the back or on the sides, as it ensures a minimum distance

from the wall for air circulation.24

32. Please secure the turntable before you move the appliance to avoid damages.

Caution: It is dangerous to repair or maintain the appliance by no other than a specialist because under these circumstances the cover have to be removed which assures protection against microwave radiation. This applies to changing the power cord or the lighting as well. Send the appliance in these cases to our service centre.

34. The microwave oven is intended for defrosting, cooking and steaming of food only.

35. Use gloves if you remove any heated food.

37. This appliance can be used by children aged from 8 years and above and persons with reduced

physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not be made by children unless they are aged from 8 years and above and supervised.

38. If smoke is emitted, switch off or unplug the appliance and keep the door closed in order to stie

Mark Continental Edison Reference CEMO34CGSM (Model :CBD340G4B-SA0C0G) Power supply 230-240V~50Hz Absorbed power (Microwave) 1 500 W Power restored (Microwave) 1 000 W Frequency of operation 2 450 MHz Power (Grill) 1 250 W Power (Convection) 2 050 W Dimensions of the product 30 cm (H) × 54 cm (L) × 46 cm (P) Dimensions of the oven cavity 24 cm (H) × 37.5 cm (L) × 40 cm (P) Oven volume 34 liters Turntable diameter 32,5 cm Net weight Approx. 19,6 kg27

1. Make sure that all the packing materials are removed from the inside of the door.

WARNING: Check the oven for any damage, such as misaligned or bent door, damaged

door seals and sealing surface, broken or loose door hinges and latches and dents inside the cavity or on the door. If there is any damage, do not operate the oven and contact qualied service personnel.

3. This microwave oven must be placed on a at, stable surface to hold its weight and the heaviest

food likely to be cooked in the oven.

4. Do not place the oven where heat, moisture, or high humidity are generated, or near combustible

5. For correct operation, the oven must have sufcient airow. Allow minimum 20cm of free space

necessary above the top surface of the oven and 5cm at both sides. The microwave oven rear plate must be placed close to the wall. Do not cover or block any openings on the appliance. Do not remove feet.

6. Do not operate the oven without glass tray, roller support, and shaft in their proper positions.

7. Make sure that the power supply cord is undamaged and does not run under the oven or over any

hot or sharp surface.

8. The socket must be readily accessible so that it can be easily unplugged in an emergency.

9. Do not use the oven outdoors.

This appliance must be grounded. This oven is equipped with a cord having a grounding wire with a grounding plug. It must be plugged into a wall receptacle that is properly installed and grounded. In the event of an electrical short circuit, grounding reduces risk of electric shock by providing an escape wire for the electric current. It is recommended that a separate circuit serving only the oven be provided. Using a high voltage is dangerous and may result in a re or other accident causing oven damage.

WARNING: Improper use of the grounding plug can result in a risk of electric shock.

1. If you have any questions about the grounding or electrical instructions, consult a qualied electrician

2. Neither the manufacturer nor the dealer can accept any liability for damage to the oven or personal

injury resulting from failure to observe the electrical connection procedures. The wires in this cable main are colored in accordance with the following code: Green and Yellow = EARTH Blue = NEUTRAL Brown = LIVE28

Operation of the microwave oven can cause interference to your radio, TV, or similar equipment. When there is interference, it may be reduced or eliminated by taking the following measures:

1. Clean door and sealing surface of the oven.

2. Reorient the receiving antenna of radio or television.

3. Relocate the microwave oven with respect to the receiver.

4. Move the microwave oven away from the receiver.

5. Plug the microwave oven into a different outlet so that microwave oven and receiver are on different

branch circuits. Before asking for service, please check each item below: ● Check to ensure the oven is plugged in securely. If not, remove the plug from the outlet, wait 10 seconds, and plug it in again securely. ● Check for a blown circuit fuse or a tripped main circuit breaker. If these seem to be operating properly, test the outlet with another appliance. ● Check to ensure the control panel is programmed correctly and the timer is set. ● Check to ensure the door is securely closed, engaging the door lock system. If the door is not properly closed, the microwave energy will not ow inside. IF NONE OF THE ABOVE RECTIFIES THE SITUATION, THEN CONTACT A QUALIFIED TECHNICIAN. DO NOT TRY TO ADJUST OR REPAIR THE OVEN YOURSELF.

1. Arrange food carefully. Place thickest areas towards outside of dish.

2. Cover foods while cooking. Covers prevent spattering and help foods to cook evenly.

3. Turn foods over once during microwave cooking to speed cooking of such foods as chicken and

hamburgers. Large items like roasts must be turned over at least once.

4. Rearrange foods such as meatballs halfway through cooking both from top to bottom and from the

center of the dish to the outside.29

VII - COOKING UTENSILS GUIDE

1. Microwave cannot penetrate metal. Only use utensils that are suitable for use in microwave

ovens. Metallic containers for food and beverages are not allowed during microwave cooking. This requirement is not applicable if the manufacturer species size and shape of metallic containers suitable for microwave cooking.

2. Microwave cannot penetrate metal, so metal utensils or dishes with metallic trim should not be

3. Do not use recycled paper products when microwave cooking, as they may contain small metal

fragments which may cause sparks and/or res.

4. Round /oval dishes rather than square/oblong ones are recommend, as food in corners tends to

5. Narrow strips of aluminum foil may be used to prevent overcooking of exposed areas. But be

careful don’t use too much and keep a distance of 1 inch (2.54cm) between foil and cavity. Cookware Microwave Grill Convection Combination* Heat–Resistant Glass Yes Yes Yes Yes Non Heat–Resistant Glass No No No No Heat–Resistant Ceramics Yes Yes Yes Yes Microwave–Safe Plastic Dish Yes No No No Kitchen Paper Yes No No No Metal Tray No Yes Yes No Metal Rack No Yes Yes No Aluminum Foil & Foil Containers No Yes Yes No The list below is a general guide to help you select the correct utensils.

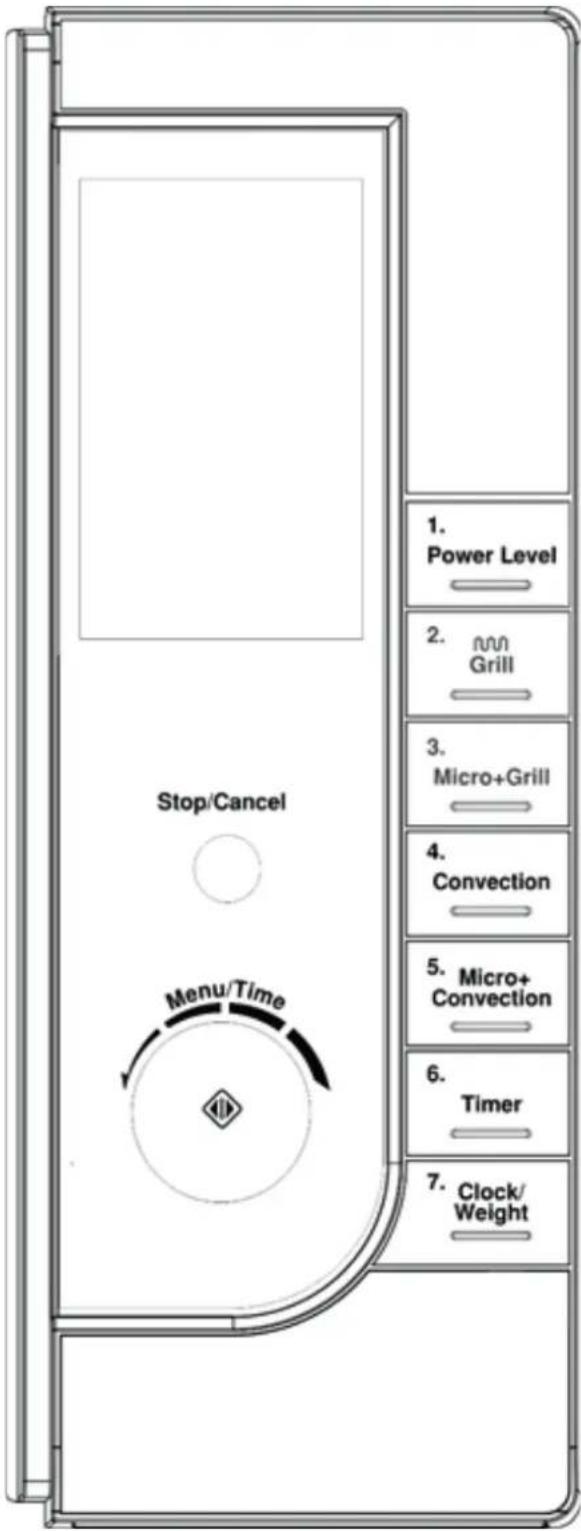

Use to start the oven or set quick start program.

Cooking time, power, indicators and clock time are displayed. Use to select power level.

Use to set grill cooking.

Use to set microwave and grill combination cooking.

Use to set convection cooking.

Use to set microwave and convection combination cooking.

Use to set timer function.

Use to set the current time or select the weight or amount of food.32

X - OPERATION INSTRUCTIONS

● Please place the glass tray in your microwave oven to heat your food. ● When the oven first plugged in, beep will sound and the display will show ”1:01” and

● During cooking, if press STOP/CANCEL pad once or open the door, the program will be paused, then press START/QUICK START pad to resume, but if press STOP/CANCEL pad twice, the program will be canceled. ● After ending cooking, the system will sound beeps to remind user every two minutes until user press any pad or open the door. A - Setting Clock This is a 24 or 12 hour clock, you can select it by pressing CLOCK/WEIGHT pad.

NOTE: During cooking, the current time can be seen by touching CLOCK/WEIGHT pad. B - Microwave Cooking Microwave cooking allows you to customize cooking power and time. First, select a power level by pressing the POWER LEVEL button (see the table below). Then turn the MENU/TIME dial to enter cooking time. Maximum cooking time is 95 minutes. The oven will start cooking after you press START/QUICK START pad. Suppose you want to cook for 5 minute at 60% power level.

1. Open the oven door and place the food, close it.

3. Turn MENU/TIME knob to enter cooking time.

4. Press START/QUICK START button to start.

NOTE: You can check the power while cooking is in progress by pressing the POWER LEVEL button.33 C - Quick Start In standby mode, press START/QUICK START pad continually to enter cooking time, the longest time is 10 minutes, and the oven will start automatically at 100% high power level. During cooking, you can add the cooking time by pressing START/QUICK START pad. D - Speed Defrost

3. Turn MENU/TIME knob to enter defrosting time. The longest time is 95 minutes.

4. Touch START/QUICK START pad.

NOTE: During defrosting program, the system will pause and sound beeps to remind user to turn food over, and then press START/QUICK START pad to resume. E - Grill Cooking Grill cooking is particularly useful for thin slices of meat, steaks, chops, kebabs, sausages and pieces of chicken. The longest cooking time is 95 minutes.

2. Turn MENU/TIME knob to enter cooking time.

3. Touch START/QUICK START pad.

F - Microwave + Grill Cooking Grill works more time than microwave in combination 1 cooking mode, use for sh and au gratin. But microwave works more time than grill in combination 2 cooking mode, use for pudding, omelets, baked potatoes and poultry.

1. Touch MICRO+GRILL pad once or twice to select the combination mode.

2. Turn MENU/TIME knob to enter cooking time. The longest time is 95 minutes.

3. Touch START/QUICK START pad.

NOTE: During cooking you can check the current cooking power level by touching MICRO+GRILL pad, G - Convection Cooking During convection cooking, hot air is circulated throughout the oven cavity to make crisp foods quickly and evenly. This oven has ten different cooking temperatures from 110°C to 200°C. The longest cooking time is 95 minutes. During cooking, the current temperature can be seen by touching CONVECTION pad. To Cook with Convection:

1. Touch CONVECTION pad to select desired temperature.

2. Turn MENU/TIME knob to enter cooking time.

3. Touch START/QUICK START pad.

To Preheat and Cook with Convection: Your oven can be programmed to combine preheating and convection cooking operations.

3. Open the door and place container of food at the center of the turntable.

4. Turn MENU/TIME knob to enter cooking time.

5. Touch START/QUICK START pad.

NOTE: The preheat time cannot be set. When the temperature reaches the preheat temperature, the countdown stop with sound every 5 seconds for 30 minutes. If you don’t open the oven door within the 30 minutes, the system will stop automatically34 H - Microwave + Convection Cooking This oven has four different combination cooking temperatures from 110°C to 200°C. It’s easy to cook with both convection heat and microwave automatically. The longest cooking time is 95 minutes. During cooking, the current combination temperature can be seen by touching MICRO+CONVECTION pad.

1. Touch MICRO+ CONVECTION pad to select desired combination temperature.

2. Turn MENU/TIME knob to enter cooking time.

1. In standby state or during cooking, touch TIMER pad.

2. Turn MENU/TIME knob to enter desired time. The longest time is 95 minutes.

3. Touch START/QUICK START pad.

NOTE: You can check the countdown time by pressing TIMER pad, if press STOP/CANCEL pad when the display shows the time, the function is cancelled. J - Multistage Cooking First stage Speed Defrost / Microwave cooking / Grill cooking / Microwave + Grill cooking / Convection cooking (without preheating) / Microwave + Convection cooking Second stage Microwave cooking / Grill cooking / Microwave + Grill cooking / Convection cooking (without preheating) / Microwave + Convection cooking Third stage Microwave cooking / Grill cooking / Microwave + Grill cooking / Convection cooking (without preheating) / Microwave + Convection cooking

1. Set the rst stage cooking program. NOT TOUCH START/QUICK START.

2. Set the second stage cooking program. NOT TOUCH START/QUICK START.

3. Set the third stage cooking program.

4. Touch START/QUICK START pad.

NOTE: If you need two stages cooking program, only omit the third step. K - Setting Child Lock The lock prevents unsupervised operation by children. ● To set the child lock: In standby mode, press and hold STOP/CANCEL pad for 3 seconds, then a beep will sound. In the lock state, the oven can’t be operated. ● To cancel the child lock: Press and hold STOP/CANCEL pad for 3 seconds, then a beep will sound, and the oven can be operated.35 L - Automatic Protection Mechanism Cooling Feature: The controlling system of the microwave oven has the feature of cooling. As for any cooking mode which cooking time above 2 minutes, after nishing cooking, the oven fan will work about 3 minutes automatically to cool the oven for prolonging the life of the oven. High Temperature Protection: While entering into super high temperature protection status, the system sounds beeps and the display shows “E01” until user press STOP/CANCEL pad to return normal condition. Please open the door to cool the oven cavity or call for consumer service to check. Low Temperature Protection: While entering into super low temperature protection status, the system sounds beeps and the display shows “E02” until user press STOP/CANCEL pad to return normal condition. Please call for consumer service to check. Sensor Malfunction Protection: When the sensor is short circuited, the system enters into protection mode and sound beeps, the display shows “E03” until user press STOP/CANCEL pad to return normal condition. Please call for consumer service to check and replace the faulty sensor. M - Auto Cook For food or the following cooking mode, it is not necessary to program the time and the cooking power. It is sufcient to indicate the type of food that you want to cook as well as the weight of this food.

1. Turn MENU/TIME knob anti-clockwise once and then turn it again to select the code of food.

2. Touch CLOCK/WEIGHT pad to select the weight or amount of food.

3. Touch START/QUICK START pad.

Auto cook menus: Code Menu 001 Popcorn (g) 002 Coffee (200ml/cup) 003 Fresh Vegetable (g) 004 Grilled Chicken (g) 005 Cake (g) 006 Reheat (g) 007 Potato (230g/unit) NOTE: ● For menu 004, use microwave + convection cooking, for menu 005, use convection cooking, the others use microwave cooking, please choose suitable cookware. ● For menu 004, during cooking, the system will pause and sound beeps to remind you to turn food over for uniform cooking, and then close the door and press START/QUICK START pad to resume. ● The result of auto cooking depends on factors such as uctuation of voltage, the shape and size of food, your personal preference as to the doneness of certain foods and even how well you happen to place food in the oven. If you nd the result at any rate not quite satisfactory, please adjust the cooking time a little bit accordingly.36

XI - CLEANING AND CARE

1. Turn off the oven and unplug the power cord from the wall when cleaning.

2. Keep the inside of the oven clean. When food splatters or spilled liquids adhere to oven walls, wipe

with a damp cloth. Mild detergents may be used if the oven gets very dirty. Avoid using spray or other harsh cleaners. They may stain, streak or dull the door surface.

3. The outside of the oven should be cleaned with a damp cloth. To prevent damage to the operating

parts inside the oven, water should not be allowed to seep into the ventilation openings.

4. Wipe the door and window on both sides, the door seals and adjacent parts frequently with a damp

cloth to remove any spills or spatters. Do not use abrasive cleaner.

5. A steam cleaner is not be used.

6. Do not allow the control panel to become wet. Clean with a soft, damp cloth. When cleaning the

control panel, leave oven door open to prevent oven from accidentally turning on.

7. If steam accumulates inside or around the outside of the oven door, wipe with a soft cloth. This may

occur when the microwave oven is operated under high humidity condition. And it is normal.

8. It is occasionally necessary to remove the glass tray for cleaning. Wash the tray in warm sudsy

water or in a dishwasher.

9. The roller ring and oven oor should be cleaned regularly to avoid excessive noise. Simply wipe the

bottom surface of the oven with mild detergent. The roller ring may be washed in mild, soapy water or in a dishwasher. When removing the roller ring, be sure to replace it in the proper position.

10. Remove odors from your oven by combining a cup of water with the juice and skin of one lemon in

a microwaveable bowl. Microwave for 5 minutes. Wipe thoroughly and dry with a soft cloth.

11. If the light bulb burns out, please contact customer service to have it replaced.

12. The oven should be cleaned regularly and any food deposits should be removed. Failure to maintain

the oven in a clean condition could lead to deterioration of surface that could adversely affect the life of the unit and could possibly result in a hazardous situation.

13. Please do not dispose of this appliance into the domestic rubbish bin; it should be disposed to the

particular disposal center provided by the municipalities.

14. When the microwave ovens have grill function is rst used, it may produce slight smoke and smell.

This is a normal phenomenon, because the oven is made of a steel plate coated with lubricating oil, and the new oven will produce fumes and odor generated by burning the lubricating oil. This phenomenon will disappear after a period of using.37

XII - ENVIRONMENT AND RECYCLING

Disposal of old electrical appliances 2012/19/UE The European Directive on Waste Electrical and Electronic Equipment (WEEE) requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment. The crossed out “wheeled bin” symbol on the product reminds you of your obligation, that when you dispose of the appliance, it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance. Pour en savoir plus : www.quefairedemesdechets.fr Continental Edison 120-126, Quai de Bacalan CS 11584 – 33067 Bordeaux CEDEX Importé par VESTEL France, 17 rue de la couture – 94563 Rungis CEDEXCEMO34CGSM
