Product Type	Combi microwave with grill and convection
Brand	Continental Edison
Model	CEMO25SG13S3
Capacity	25 L
Voltage	230 V ~ 50 Hz
Microwave Power	1400 W
Grill / Convection Power	1200 W
Frequency	2450 MHz
Functions	Microwave (5 levels), Grill (G, G-1, G-2), Convection (100°C, 140°C, 180°C), Combinations (C-1, C-2), Defrost (weight/time), 8 auto menus, Child lock
Control Type	Rotary and touch buttons
Display	LCD
Cavity Material	Stainless steel
Turntable	Yes, glass
Approximate Dimensions	50 x 40 x 30 cm
Approximate Net Weight	15 kg
Safety	Child lock, auto shut-off, locked door
Maintenance	Regular cleaning, avoid abrasive products, do not remove the waveguide cover
Power Supply	230 V ~ 50 Hz

Frequently Asked Questions - CEMO25SG13S3 CONTINENTAL EDISON

How do I use the child lock function?

Press and hold the Stop/Lock button for 3 seconds to activate or deactivate the child lock.

What utensils can I use in this microwave?

Use heat-resistant ceramic, glass, suitable plastic containers. Avoid metal, bamboo, paper, and varnish.

How do I defrost food?

Press Defrost to choose dEF1 (defrost by weight) or dEF2 (defrost by time), then adjust with the Time/Weight dial and press Start/+30s.

What should I do if smoke comes out of the oven?

Stop or unplug the oven, keep the door closed to smother any possible flames.

Can I use plastic wrap?

Yes, but not for meats or chops as the high temperature can damage the wrap. Use it only for low-fat foods.

How do I clean the inside of the microwave?

Wipe the interior walls with a soft damp cloth. Clean the turntable and rotating ring with soapy water, rinse and dry.

Why isn't the turntable rotating?

Check that the turntable is correctly placed on the rotating shaft and that the rotating ring is in place. Make sure the oven is not empty.

How do I preheat the oven in convection mode?

Select the temperature (100C, 140C, 180C) with the Convection button, then press Start/+30s directly without setting the time. A beep indicates the temperature is reached; you can then put in the food and set the time.

What automatic programs are available?

The 8 auto menus are: Pizza, Potato, Beverage, Rice, Fish, Fresh vegetables, Popcorn, Frozen vegetables.

How do I adjust the microwave power?

Press the Microwave button to cycle through levels: 100P (high), 80P, 50P, 30P, 10P (low). After selection, turn the Time/Weight dial to set the duration.

USER MANUAL CEMO25SG13S3 CONTINENTAL EDISON

Abstract geometric shapes resembling partial crescent and angular segments (no text or symbols)

Continental Edison

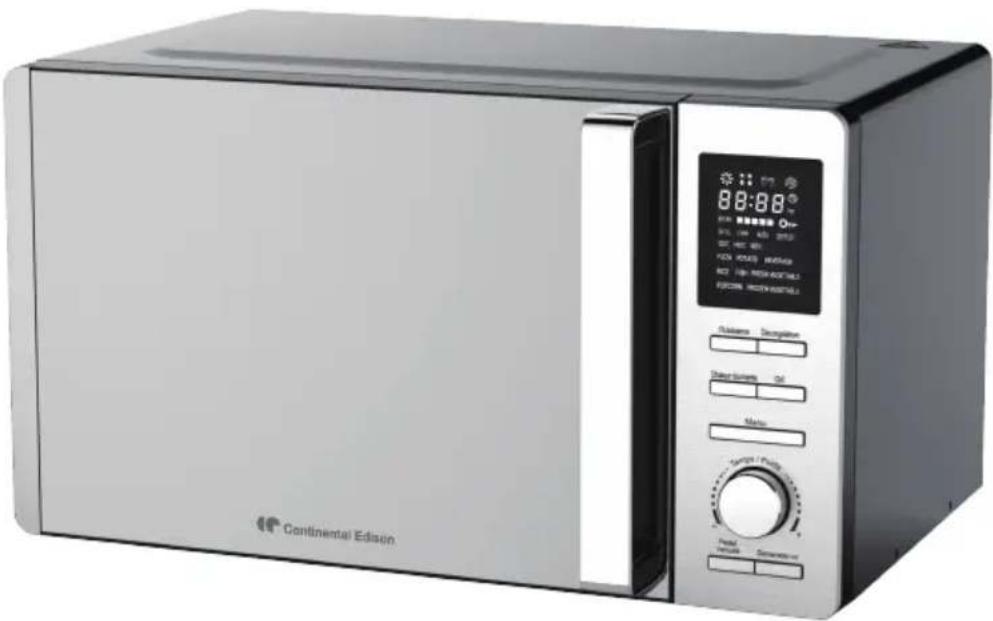

Exterior view of a Continental Edison microwave oven (no visible text or symbols on the device body)

CEMO25SG13S3

MICRO-ONDES COMBINÉ GRILL 25L 25 L COMBINED GRILL MICROWAVE

INSTRUCTIONS SUR LE PRODUIT

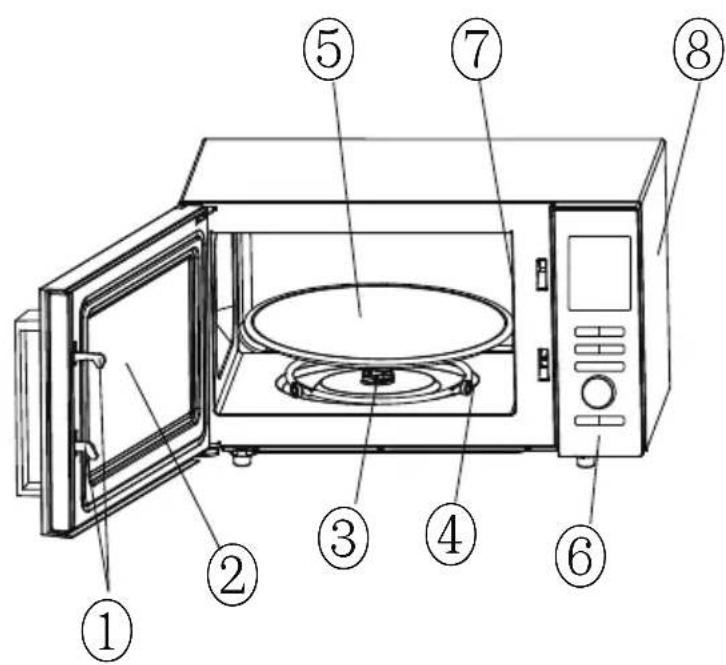

Labeled diagram of a microwave oven with numbered parts for identification

Waveguide cover

Household use only SAVE THESE INSTRUCTIONS

IMPORTANT SAFEGUARDS

The following basic precautions should always be followed when using electrical appliance:

1. Read all instructions before using.

2. Make sure the voltage in your living area corresponding to the one shown on the rating label of the appliance. And the wall socket is properly grounded.

3. To reduce the risk of fire in the oven cavity:

a. Do not overcook the food.
b. Remove wire twist -ties from paper or plastic bags before placing bags in the oven.
c. Do not heat oil or fat for deep drying as the temperature of oil cannot be controlled.
d. If materials inside the oven should smoke or ignite, keep oven door closed, turn oven off and disconnect the power supply.
e. When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition.

1. To reduce the risk of explosion and sudden boiling:

a. WARNING: Liquids and other foods must not be heated in sealed container since they are liable to explode; Baby bottles fitted with a screw cap or teat are considered to be sealed containers.

b. Use the wide -mouthed container to cook liquid, and the cooked liquid should not be removed out immediately. Several moments should be waited before removing. In order to avoid possible hazards caused by delayed eruptive boiling of liquids.

c. Potatos, sausage and chestnut should be peeled or pierced before cooking. Eggs in their shell, whole hard - boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended.

d. The Contents of feeding bottles and baby food jars are to

be stirred or shaken and the temperature is to be checked before consumption, in order to avoid burns.

1. If the door or door seals are damaged, the oven must not be operated until it has been repaired by a trained person.

2. If the supply cord is damaged, it must be replaced by the manufacturer or its services agent or a qualified technician in order to avoid a shock hazard.

3. After cooking, the container is very hot. Using gloves to take out the food and avoid steam burns by directing steam away from the face and hands.

4. Slowly lift the furthest edge of dishes cover and microwave plastic wrap and carefully open popcorn and oven cooking bags away from the face.

5. To prevent the trunctable from breaking, let the trunctable cool down before cleaning.

6. Make sure the utensils do not touch the interior walls during cooking.

7. Only use utnesils that are suitable for use in microwave ovens.

8. Do not store food or any other things inside the oven.

9. Do not operate the oven without any liquid or food inside the oven. This would do damage the oven.

10. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

11. Any accessories not recommended by the manufacture may cause injuries to persons.

16.Do not use outdoors.

1. The appliances are not intended to be opearted by means of an external timer or separate remote-control system.

2. The lamp of microwave oven is not intended for other purposes.

19.WARNING: Accessible parts may become hot during use. Young children should be kept away.

1. The microwave oven must not be placed in a cabinet. The

microwave oven is intended to be used freestanding.

1. To ensure sufficient ventilation the free distance above the top surface at least 20 cm.

22.WARNING: It is hazardous for anyone other than a trained person to carry out any service or repair operation, which involves the removal of any cover, which gives protection against exposure to microwave energy.

1. Remove the power cord from the wall outlet before cleaning.

2. Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.

3. The oven should be cleaned regularly and any food deposits removed.

4. Never use hard detergent, gasoline, abrasive powder or metal brush to clean any part of the appliance.

5. Do not remove the waveguide cover.

6. For detailed information on how to clean door gaskets, cavities and adjacent parts, refer to the “CLEANING AND MAINTENANCE” section.

7. The microwave oven is intended for heating food and beverages. Drying of food or clothing and heating of warming pads, slippers, sponges, damp cloth and similar may lead to risk of injury, ignition or fire.

8. This appliance is intended to be used in household and similar applications such as:

- staff kitchen areas in shops, offices and others working environments;

- farm houses;

- by clients in hotels, motels and other residential type environments;

- bed and breakfast type environments.

31.Group 2 Class B appliance

Group 2 ISM equipment: group 2 contains all ISM equipment in which radio-frequency energy is intentionally generated and/or used in the form of electromagnetic radiation for the treatment of material, and EDM and arc welding equipment. Class B

equipment is equipment suitable for use in domestic establishments and in establishments directly connected to a low voltage power supply network which supplies buildings used for domestic purposes.

CAUTION: HOT SURFACE

Household use only

INSTALLATION

1. Take out all the packing. If there is a safe film over the oven, tear it off before use. Check carefully for damage. If any, immediately notify dealer or send to the manufacturer's service center.
2. Microwave ovens must be placed under dry and non-corrosiveness environments, kept away from heat and humidity, such as gas burner or water tank.
3. To ensure sufficient ventilation, the distance of the back of microwave to the wall should be at least 10 cm, the side to the wall should be at least 5 cm, the free distance above the top surface at least 20 cm. the distance of the microwave to the ground should be at least 85 cm.
4. The position of the oven shall be such that it is far from the TV, Radio or antenna as picture disturbance, or noise may occur. The distance should be more than 5m.
5. The appliance must be positioned so that the plug is accessible, and must ensure a good grounding in case leakage, ground loop can be formed to avoid electric shock.
6. The microwave oven must be operated with the door closed.
7. The microwave oven must not be placed in a cabinet. The microwave oven is intended to be used freestanding.
8. As there is manufacturing residue or oil remained on the oven cavity or heat element, it usually would smell the odor, even a slight smoke, It is normal case and would not occur after several times use, keep the door or window open to ensure

good ventilation. So it is strongly recommended to place a cup of water in the cavity, setting at high power and operate for several times.

CLEANING

MICROWAVE OVEN CARE

The oven should be cleaned regularly and any food deposits removed.

a. When the microwave oven has been used for a long time, there may be some strange odors exist in oven. Following 3 methods can get rid of them:
1) Place several lemon slices in a cup, then heat with high Micro Power for 2-3 min.
2) Place a cup of red tea in oven, then heat with high micro power.
3) Put some orange peel into oven, and then heat them with high Micro Power for 1 minute.
b. When the product is not used, it should be placed in try and ventilated areas as well as possible.

Details how to clean surfaces in contact with food:

After use wipe the waveguide cover with a damp cloth, followed by dry cloth to remove any food splashes and grease. Built-up grease may overheat and begin to cause smoke or catch fire.

TIPS FOR CLEANING

Details for cleaning door seals, cavity and adjacent parts:

Exterior:

Wipe the enclosure with a dampened soft cloth.

Door:

Using a dampened soft cloth, wipe clean the door and window.

Wipe the door seals and adjacent parts to remove any spill or spatter.

Wipe the control panel with a slightly dampened soft cloth.

Interior walls:

Wipe clean the interior surfaces with a dampened soft cloth.

Wipe clean the waveguide cover to remove any food splashed.

Turntable / Rotation ring / Rotation axis:

Wash with mild soap water.

Rinse with clean water and allow drying thoroughly.

PRODUCT INSTRUCTION

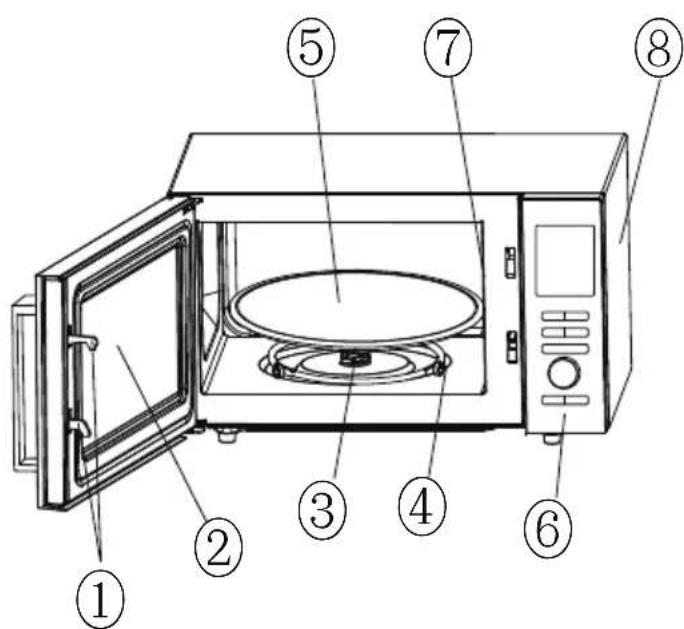

Labeled diagram of a microwave oven with numbered parts for identification

Waveguide cover

1) Door lock

Microwave oven door must be properly closed in order for it to operate

2) Viewing window

Allow user to see the cooking status

3) Rotating axis

The glass turntable sits on the axis; the motor underneath it drive the turntable to rotate

4) Rotating ring

The glass turntable sits on its wheels; it supports the turntable an helps it to balance when rotating

5) Turntable

The food sits on the turntable, its rotation during operation helps to cook food evenly

CAUTION

- Place the rotating ring first

- Fit the turntable onto the rotating axis and make sure that it is geared in properly

6) Control panel

See below in details (the control panel is subject to change without

prior notice)

7) Waveguide cover

It is inside the microwave oven, next to the wall of control panel.

8) Housing

It is used to wrap and protect the internal structural parts and electrical parts of the whole machine

After power-on, the LCD will flash 3 times, then enter the standby state.

2. "TIME.WEIGHT" KNOB

When setting up the cooking program, you can increase or decrease the cooking time and the automatic menu weight by turning the “Time/Weight” knob.

3. STOP/LOCK

Press the “STOP/LOCK” button to cancel the setting firepower, cooking or defrosting procedure. When cooking, press the “STOP/LOCK” button once to pause and press twice to cancel the procedure.

4. AUTO REMINDER

When the cooking or defrosting procedure is completed, you will hear 3 beeps. If the oven door is not opened or the "STOP/LOCK" button is not pressed, the microwave oven will beep one beep every 3 minutes.

5. MICROW. COOKING

Press the "Microw." button, the LCD cycles to show 100P、80P、50P、30P、10P.

High power	100% microwave power. Applicable for fast cooking
Medium High power	80% microwave power. Applicable for faster cooking
Medium power	50% microwave power. Applicable for steaming food
Medium Low power	30% microwave power. Applicable for defrosting food
Low power	10% microwave power. Applicable for keeping warm

1) The max time which can be set is 60 minutes.
2) Never operate the oven empty. Do not use metal utensils to avoid damage to the microwave oven or danger.
3) If you turn the food during operation, press Start button once and the preset cooking procedure will continue.

4) If you intend to remove the food before the preset time, you must press STOP/LOCK button once to clear the preset procedure to avoid unintended operation of next time use.

5) In order to avoid the long-term high-power work affecting the life of the microwave oven, after a certain period of high-power work, it will automatically reduce the power.

Example: To cook at 80P for 10 minutes.
	Steps	Display
1	Power on
2	Press the "Microw." button twice to select the required microwave power	80P
3.	Turn the "Time/Weight" knob and set the time to 10:00	10:00
4	Press the “Start/+30s” button and the LCD will show the remaining cooking time.

6. GRILL

In the standby mode, press the "Grill" button, and the display cycle shows G, G-1 and G-2.

G	Grill, the heat element will be energized during operation time. Which is applicable for rolling thin meats or pork, sausage, chio wing as good brown color can be obtained
G.1	Combination of grill and microwave cooking. 30% of time microv output and 70% of time grilling
G.2	Combination of grill and microwave cooking. 55% of time microv output and 45% of time grilling

7. CONV.

Touch the Conv. button to display 100C, 140C, 180C, C-1, C-2 cycles in turn.

100C	Convection 100 degrees
140C	Convection 140 degrees
180C	Convection 180 degrees
C-1	Combination of convection and microwave cooking. 30% of time microwave output and 70% of time convection
C-2	Combination of convection and microwave cooking. 55% of time microwave output and 45% of time convection

The convection function can select 100C, 140C and 180C these three temperature points, with or without preheating function.

Usage with preheating function:

After selecting the temperature point, do not turn the "Time/Weight" knob to set time, directly press the "START/+30s" button to start, and the microwave oven starts to preheat. After reaching

the preheating temperature, the display screen will flash to display the set temperature, and will give a long sound to prompt the use. At this time, you can open the door of the oven and put in food, then turn the "Time/Weight" knob to set time, and then press the "START/+30s " button to start roast food.

Usage without preheating function:

First put in the food, and then select the convection temperature point. After selecting the temperature point, turn the "Time/Weight" to set the cooking time. After setting the cooking time, press the "START/+30s" button to start, and the microwave oven starts to heat and roast the food.

Microwave and convection combination function:

C-1 and C-2 are combined functions of microwave and convection. After selecting C-1 or C-2, turn "Time/ Weight" to set the cooking time. After setting the cooking time, press the "START/+30s" button to start. The difference between C-1 and C-2 is that the proportion of microwave and convection is different.

8. DEFROST

There are two defrost mode, dEF1 and dEF2, respectively. dEF1 for defrost by weight and dEF2 for defrost by time. Press “Defrost button continuously to select the defrost mode then turn the “Time Weight” knob to chose the food weight or defrost time. dEF1 selectable option range of weight is 100g \~ 1500g. dEF2 selectable option range is 0:10 \~ 60:00. After selecting, press the “START/+30s” button start to work. An buzzing sound to notify completion of the operation. The dEF1 defrost mode by weight will have a beeping sound to prompt the food to be turned over during defrosting.

Below is some food defrosting time advice:

dEF1	For defrosting, the weight range from 0.1 to 1.5 kg.
dEF2	For defrosting, the time range from 0:10 to 60:00.

a. It is necessary to turn over the food during operation to obtain uniform effect.
b. Usually defrosting will need longer time than that of cooking the food.
c. If the food can be cut by knife, the defrosting process can I considered completed.
d. Microwave penetrates around 4cm into most food
e. Defrosted food should be consumed as soon as possible, it is not advised to put back to fridge and freeze again.

9. AUTO COOKING

There are eight automatic menus A.1\~A.8, Pizza, Potato, Beverage, Rice, Fish, Fresh vegetable, Popcorn and Frozen vegetable respectively. Press the “Menu” button continuously to select the desired menu, then turn the “Time.Weight” knob to select the weight of the menu. After selecting the weight and cooking weight, press “START/+30s” button to start work. An buzzing sound to notify completion of the operation.

Display	Kind	Method
A.1	Pizza	Applicable for the weight range from 0.2-0.4kg.
A.2	Potato	Applicable for the weight range from 0.25-0.75kg
A.3	Beverage	Applicable for the weight range is 1 cup, 2 cup 3 cups, each one about 250ml.
A.4	Rice	Applicable for the weight range from 0.1-0.3kg
A.5	Fish	Applicable for the weight range from 0.2-0.6kg
A.6	Fresh beverage	Applicable for the weight range from 0.2-0.6kg
A.7	Popcorn	Applicable for the weight range from 0.01-0.1kg
A.8	Frozen beverage	Applicable for the weight range from 0.2-0.6kg

1) The above procedure is designed according to the temperature of food at 20-25 °C. If the food is at different temperatures, the cooking effect will be different. Please adjust it according to the actual situation.
2) When cooking potatoes, etc., it is recommended to cover the food with a layer of wrap to prevent evaporation of water during cooking.
3) The shape, weight and temperature of the food will affect the cooking effect. When using the automatic cooking menu program, please follow the conditions mentioned. If the cooking effect is not satisfactory, please adjust it yourself.

10. CHILD LOCK FUNCTION

This feature is primarily intended to prevent children from using the microwave oven without adult guidance or to protect the control panel when cleaning. When in child safety lock mode, all buttons will be locked.

Set child lock: Hold "Stop/Lock" button about 3 seconds.

Cancel child lock: Hold "Stop/Lock" button about 3 seconds.

UTENSILS GUIDELINE

Depending on the cooking method, it is necessary to choose a safe and suitable vessel. If it is not properly selected, it will not c

affect the cooking effect, but also cause damage to the vessel or microwave oven. Please refer to the table below for use:

Material of container	Microwave	Grill	Combi	Notes
Heat-resistant ceramic	Yes	Yes	Yes	Never use the ceramics which are decorated with metal rim or glazed
Heat-resistant plastic	Yes	No	No	Can not be used for long time microwave cooking
Heat-resistant glass	Yes	Yes	Yes
Plastic film	Yes	No	No	It should not be used when cooking meat o chops as the over-temperature may do damage to the film
Grill rack	No	Yes	No
Metal container	No	No	No	It should not be used in microwave oven. Microwave can not penetrate through metal.
lacquer	No	No	No	Poor heat-resistant. Can not be used for High-temperature cooking
Bamboo wood and paper	No	No	No	Poor heat-resistant. Can not be used for High-temperature cooking

COOKING TIPS

The following factors may affect the cooking result:

Food arrangement

Place thicker areas towards outside of dish, the thinner part towards the centre and spread it evenly. Do not overlap if possible.

Cooking time length

Start cooking with a short time setting, evaluate it after it times out and extend it according to the actual need. Over cooking may result in smoke and burns.

Cooking food evenly

Food such as chicken, hamburger or steak should be turned once during cooking.

Depending on the type of food, if applicable, stir it from outside to centre of dish once or twice during cooking

Allow standing time

After cooking times out, leave the food in the oven for an adequate length of time, this allows it to complete its cooking cycle and cooling it down in a gradual manner

Whether the food is done

Color and hardness of food help to determine if it is done, these include:

• Steam coming out from all parts of food, not just the edge
• Joints of poultry can be moved easily
• Pork or poultry shows no signs of blood
• Fish is opaque and can be sliced easily with a fork

Browning dish

When using a browning dish or self-heating container, always place a heat-resistant insulator such as a porcelain plate under it to prevent damage to the turntable and rotating ring.

Microwave safe plastic wrap

When cooking food with high fat content, do not allow the plastic

wrap come into contact with food as it may melt

Microwave safe plastic cookware

Some microwave safe plastic cookware might not be suitable for cooking foods with high fat and sugar content. Also, the preheating time specified in the dish instruction manual must not be exceeded.

MAINTENANCE

SERVICING

Please check the following before calling for services.

1. Place one cup of water (approx. 150ml) in a glass measure in the oven and close the door securely. Oven lamp should go off the door is closed properly. Let the oven work for 1 min.
2. Does the oven lamp light?
3. Does the cooling fan work?

(Put your hand over the rear ventilation openings.)

1. Does the turntable rotate?

(The turntable can rotate clockwise or counter clockwise. This is quite normal.)

1. Is the water inside the oven hot?

If “NO” is the answer to any of the above questions, please check your wall socket and the fuse in your meter box.

If both the wall socket and the fuse are functioning properly, CONTACT YOUR NEAREST SERVICE CENTER APPROVED.

SERVICING SAFEGUARDS

Caution: MICROWAVE RADIATION

1. The high voltage capacitor remains charge after disconnection; short the negative terminal of H. V capacitor to the oven chassis (use a screwdriver) to discharge before touching.

2. During servicing below listed parts are liable to be removed and give access to potentials above 250V to earth.

3. Magnetron
   • High voltage transformer
   • High voltage capacitor

• High voltage diode
- High voltage fuse

1. The following conditions may cause undue microwave exposure during servicing.

2. Improper fitting of magnetron;

3. Improper matching of door interlock, door hinge and door;
4. Improper fitting of switch support;
5. Door, door seal or enclosure has been damaged.

Correct disposal of this product

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

IMPORTE PAR

Continental Edison

120-126, Quai de Bacalan

CS 11584

33 000 Bordeaux

FRANCE

A.M.C.

Two overlapping gray semicircles on white background (no text or symbols)

Continental Edison

FR

www.continentaledison.fr

CE
