USER MANUAL CEMO20IXES CONTINENTAL EDISON

Abstract geometric shapes with no text or symbols

Continental Edison

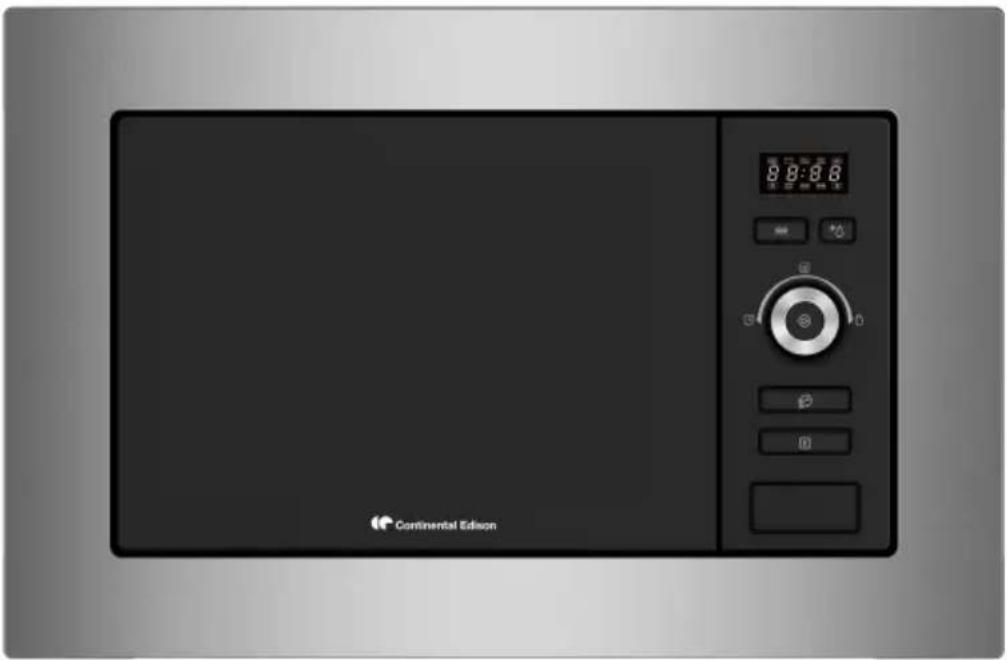

Front view of a Continental Edison microwave oven with control panel and digital display (no text or symbols on main body)

CEMO20IXES

FOUR À MICRO-ONDES-MICROWAVE OVEN

Warning symbol depicting steam rising inside a triangle, indicating heat or hazard

Simple line drawing of a 3D rectangular prism (no text or symbols)

MATERIALS VEGETABLE 100 gm 200 gm 300 gm 400 gm 500 gm 600 gm 700 gm 800 gm 900 gm 1000 gm 1100 gm 1200 gm 1300 gm 1400 gm 1500 gm 1600 gm 1700 gm 1800 gm 1900 gm 2000 gm 2100 gm 2200 gm 2300 gm 2400 gm 2500 gm 2600 gm 2700 gm 2800 gm 2900 gm 3000 gm 3100 gm 3200 gm 3300 gm 3400 gm 3500 gm 3600 gm 3700 gm 3800 gm 3900 gm 4000 gm 4100 gm 4200 gm 4300 gm 4400 gm 4500 gm 4600 gm 4700 gm 4800 gm 4900 gm 5000 gm 5100 gm 5200 gm 5300 gm 5400 gm 5500 gm 5600 gm 5700 gm 5800 gm 5900 gm 6000 gm 6100 gm 6200 gm 6300 gm 6400 gm 6500 gm 6600 gm 6700 gm 6800 gm 6900 gm 7000 gm 7100 gm 7200 gm 7300 gm 7400 gm 7500 gm 7600 gm 7700 gm 7800 gm 7900 gm 8000 gm 8100 gm 8200 gm 8300 gm 8400 gm 8500 gm 8600 gm 8700 gm 8800 gm 8900 gm 9000 gm 9100 gm 9200 gm 9300 gm 9400 gm 9500 gm 9600 gm 9700 gm 9800 gm 9900 gm

Simple line drawing of a 3D box with a vertical rod inserted into the interior (no text or symbols)

Vis A

Support

ligne centrale

Vis A Support

C. Installez le four

Digital display panel with time and device icons, showing a circular dial indicator and control buttons

Three technical diagrams showing electronic component layouts with no visible text or symbols

Instruction:

Symbol of a trash bin crossed out by two crossed lines, with no text or labels present.

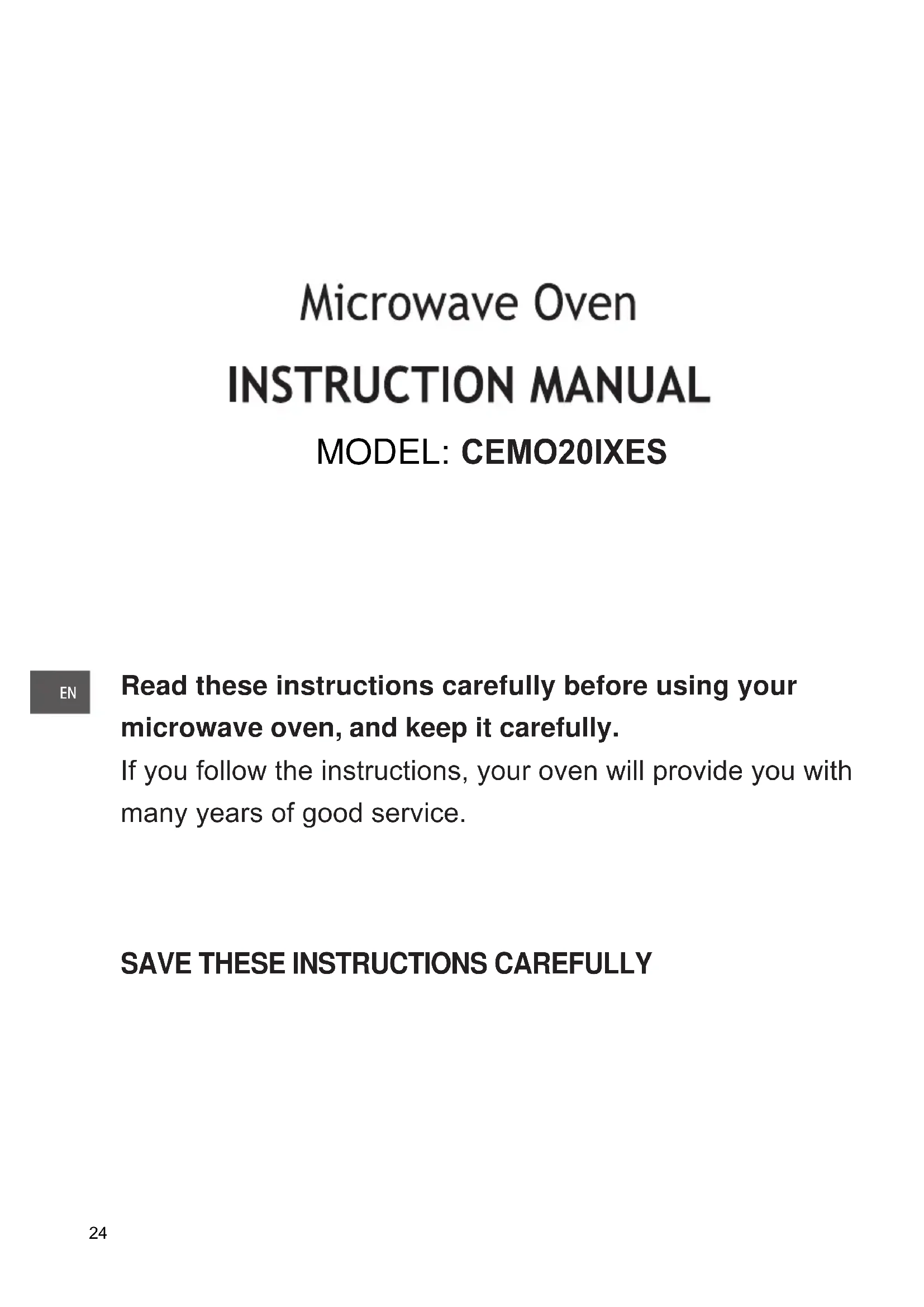

Read these instructions carefully before using your microwave oven, and keep it carefully.

If you follow the instructions, your oven will provide you with many years of good service.

SAVE THESE INSTRUCTIONS CAREFULLY

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY

(a) Do not attempt to operate this oven with the door open since this can result in harmful exposure to microwave energy. It is important not to break or tamper with the safety interlocks.
(b) Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces.
(c) WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person.

ADDENDUM

If the apparatus is not maintained in a good state of cleanliness, its surface could be degraded and affect the lifespan of the apparatus and lead to a dangerous situation.

Specifications

Model:	CEMO20IXES
Product Reference:	AM820B8N-S0EE
Rated Voltage:	230V~50Hz
Rated Input Power(Microwave):	1250W
Rated Output Power(Microwave):	800W
Oven Capacity:	20L
Turntable Diameter:	∅245mm
External Dimensions:	595mmx343.5mmx 388mm
Net Weight:	Approx. 1kg

IMPORTANT SAFETY INSTRUCTIONS WARNING

To reduce the risk of fire, electric shock, injury to persons or exposure to excessive microwave oven energy when using your appliance, follow basic precautions, including the following:

1. Warning: Liquids and other foods must not be heated in sealed containers since they are liable to explode.
2. Warning: It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.

3. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.

4. Keep the appliance and its cord out of reach of children less than 8 years.

5. Only use utensils that are suitable for use in microwave oven .s

6. The oven should be cleaned regularly and any food deposits should be removed.

7. Read and follow the specific:"PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY".

8. When heating food in plastic or paper containers,

keep an eye on the oven due to the possibility of ignition.

1. If smoke is emitted, switch off or unplug the appliance and keep the door closed in order to stifle any flames.

2. Do not overcook food.

3. Do not use the oven cavity for storage purposes. Do not store items, such as bread, cookies, etc. inside the oven.

4. Remove wire twist-ties and metal handles from paper or plastic containers/bags before placing them in the oven.

5. Install or locate this oven only in accordance with the installation instructions provided.

6. Eggs in theirshell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended.

7. This appliance is intended to be used in household and similar applications such as:

-staff kitchen areas in shops, offices and other working environments;

-by clients in hotels, motels and other residential type environments;

-farm houses;

-bed and breakfast type environments.

1. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

2. Do not store or use this appliance outdoors.

3. Do not use this oven near water, in a wet basement or near a swimming pool.

4. The temperature of accessible surfaces may be high when the appliance is operating. The surfaces are liable to get hot during use. Keep cord away from heated

surface, and do not cover any vents on the oven.

1. Do not let cord hang over edge of table or counter.

2. Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.

3. The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns.

4. Microwave heating of beverages can result in delayed eruptive boiling, therefore care must be taken when handling the container.

5. The appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

6. Children should be supervised to ensure that they do not play with the appliance.

7. The appliances are not intended to be operated by means of an external timer or separate remote-control system.

8. Accessible parts may become hot during use.

Young children should be kept away.

1. The appliance shall not be cleaned with a steam cleaner.

2. During use the appliance becomes hot. Care should be taken to avoid touching heating elements inside the oven.

30.WARNING: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised.
31. The appliance must not be installed behind a decorative door in order to avoid overheating. (This is not applicable for appliances with decorative door.)
32. Surface of a storage drawer can get hot.
33. The microwave oven is intended for heating food and beverages. Drying of food or clothing and heating of warming pads, slippers, sponges, damp cloth and similar may lead to risk of injury, ignition or fire.
34. WARNING: Ensure that the appliance is switched off before replacing the lamp to avoid the possibility of electric shock.
35. Metallic containers for food and beverages are not allowed during microwave cooking.
36. Care should be taken not to displace the turntable when removing containers from the appliance. (For fixed appliances and built-in appliances being used equal or higher than 900mm above the floor and having detachable turntables. But this is not applicable for appliances with horizontal bottom hinged door.)
37. The microwave oven is intended to be used built-in.

READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

To Reduce the Risk of Injury to Persons Grounding Installation

DANGER

Electric Shock Hazard Touching some of the internal components can cause serious personal injury or death. Do not disassemble this appliance.

WARNING

Electric Shock Hazard Improper use of the grounding can result in electric shock. Do not plug into an outlet until appliance is properly installed and grounded.

EN

This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. This appliance is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded.

Consult a qualified electrician or serviceman if the grounding instructions are not completely understood or if doubt exists as to whether the appliance is properly grounded. If it is necessary to use an extension cord, use only a 3-wire cord. extension

1. A short power-supply cord is provided to reduce the risks resulting from becoming entangled in or tripping over a longer cord.
2. If a long cord set or extension cord is used:

1) The marked electrical rating of the cord set or extension cord should be at least as great as the electrical rating of the appliance.

2) The extension cord must be a grounding-type 3-wire cord. 3) The long cord should be arranged so that it will not drape over the counter top or tabletop where it can be pulled on by children or tripped over unintentionally.

CLEANING

Be sure to unplug the appliance from the power supply.

1. Clean the cavity of the oven after using with a slightly damp cloth.
2. Clean the accessories in the usual way in soapy water.
3. The door frame and seal and neighbouring parts must be cleaned carefully with a damp cloth when they are dirty.
4. Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass.
5. Cleaning Tip---For easier cleaning of the cavity walls that the food cooked can touch: Place half a lemon in a bowl, add 300ml (1/2 pint) water and heat on 100% microwave power for 10 minutes. Wipe the oven clean using a soft, dry cloth.

UTENSILS

CAUTION

Personal Injury Hazard

It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.

See the instructions on "Materials you can use in microwave oven or to be avoided in microwave oven." There may be certain non-metallic utensils that are not safe to use for microwaving. If in doubt, you can test the utensil in question following the procedure below.

Utensil Test:

1. Fill a microwave-safe container with 1 cup of cold water (250ml) along with the utensil in question.
2. Cook on maximum power for 1 minute.
3. Carefully feel the utensil. If the empty utensil is warm, do not use it for microwave cooking.
4. Do not exceed 1 minute cooking time.

Materials you can use in microwave oven

Utensils Remarks

Browning dish	Follow manufacturer's instructions. The bottom of browning dish must be at least 3/16 inch (5mm) above the turntable. Incorrect usage may cause the turntable to break.
Dinnerware	Microwave-safe only. Follow manufacturer's instructions. Do not use cracked or chipped dishes.
Glass jars	Always remove lid. Use only to heat food until just warm. Most glass jars are not heat resistant and may break.
Glassware	Heat-resistant oven glassware only. Make sure there is no metallic trim. Do not use cracked or chipped dishes.
Oven cooking bags	Follow manufacturer's instructions. Do not close with metal tie. Make slits to allow steam to escape.
Paper plates and cups	Use for short-term cooking/warming only. Do not leave oven unattended while cooking.
Paper towels	Use to cover food for reheating and absorbing fat. Use with supervision for a short-term cooking only.
Parchment paper	Use as a cover to prevent splattering or a wrap for steaming.
Plastic	Microwave-safe only. Follow the manufacturer's instructions. Should be labeled "Microwave Safe". Some plastic containers soften, as the food inside gets hot. "Boiling bags" and tightly closed plastic bags should be slit, pierced or vented as directed by package.
Plastic wrap	Microwave-safe only. Use to cover food during cooking to retain moisture. Do not allow plastic wrap to touch food.
Thermometers	Microwave-safe only (meat and candy thermometers).
Wax paper	Use as a cover to prevent splattering and retain moisture.

Materials to be avoided in microwave oven

Utensils Remarks

Aluminum tray	May cause arcing. Transfer food into microwave-safe dish.
Food carton with metal handle	May cause arcing. Transfer food into microwave-safe dish.
Metal or metal-trimmed utensils	Metal shields the food from microwave energy. Metal trim may cause arcing.
Metal twist ties	May cause arcing and could cause a fire in the oven.
Paper bags	May cause a fire in the oven.
Plastic foam	Plastic foam may melt or contaminate the liquid inside when exposed to high temperature.
Wood	Wood will dry out when used in the microwave oven and may split or crack.

SETTING UP YOUR OVEN

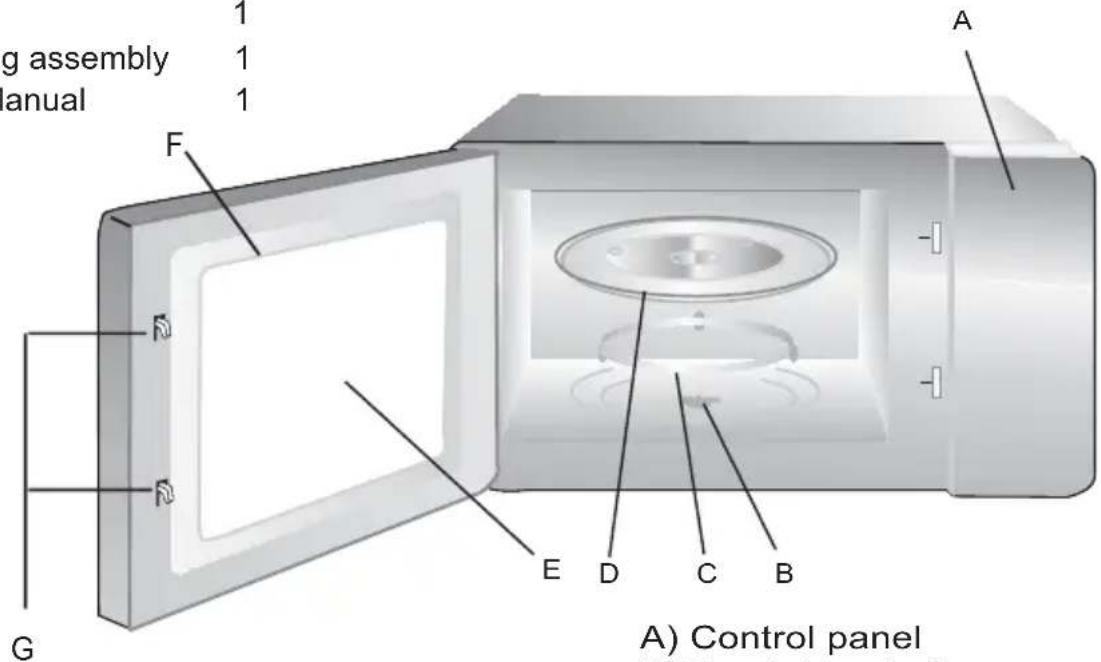

Names of Oven Parts and Accessories

Remove the oven and all materials from the carton and oven cavity.

Your oven comes with the following accessories:

Glass tray	1
Turntable ring assembly	1
Instruction Manual	1

g assembly manual 1 1 1 A F F E D C B G A) Control panel

A) Control panel
B) Turntable shaft
C) Turntable ring assembly
D) Glass tray
E) Observation window
F) Door assembly
G) Safety interlock system

EN

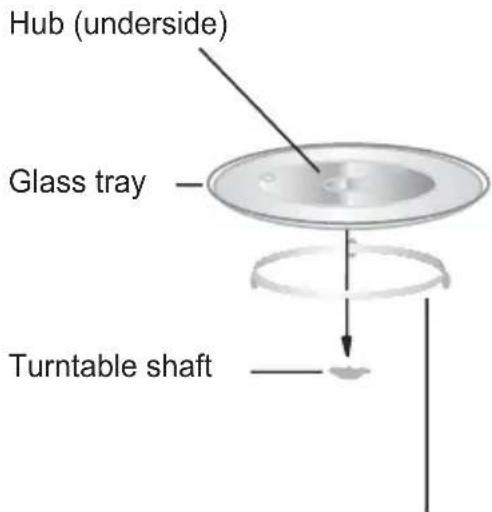

Turntable Installation

Hub (underside) Glass tray Turntable shaft

Turntable ring assembly

a. Never place the glass tray upside down. The glass tray should never be restricted.
b. Both glass tray and turntable ring assembly must always be used during cooking.
c. All food and containers of food are always placed on the glass tray for cooking.
d. If glass tray or turntable ring assembly cracks or breaks, contact your nearest authorized service center.

Installation and connection

1. This appliance is only intended for domestic use.
2. This oven is intended for built-in use only. It is not intended for counter-top use or for use inside a cupboard.
3. Please observe the special installation instructions.
4. The appliance can be installed in a 60cm wide wall-mounted cupboard (at lease 55cm deep and 85cm off the floor).
5. The appliance is fitted with a plug and must only be connected to a properly installed earthed socket.
6. The mains voltage must correspond to the voltage specified on the rating plate.
7. The socket must be installed and connecting cable must only be replaced by a qualified electrician. If the plug is no longer to accessible following installation, an all-pole disconnecting device must be present on the installation side with a contact gap of at lease 3mm.
8. Adapters, multi-way strips and extension leads must not be used. Overloading can result in a risk of fire.

The accessible surface may be hot during operation.

Warning symbol with steam inside a triangle, indicating heat or smoke hazard

Installation Instructions

Please Read the Manual Carefully Before Installation

Pleasenote

Electricalconnection

The oven is fitted with a plug and must only beconnectedtoaproperlyinstalledearthed socket. Thesocketmustonlybeinstalled replacedbyaqualifiedelectrician, andin Iftheplugisnolongeraccessiblefollowing bepresentontheinstallationsidewitha andtheconnectingcablemustonlybe accordancewiththeappropriateregulations installation, anall-poleisolatingswitchmust contactgapofatleast3 mm.

The fitted cabinet must not have a back wallbehindtheappliance.

A gap must be maintained between the wall and the base of the unit above. Specific gap size could be referenced by the diagrams.

Minimuminstallationheight:85 cm.

Do not cover ventilation slots and suction holes.

Note:

Do not trap or bend the power cable.

Screw A

Screw B

Mounting Plate

Trim-kit plastic cover

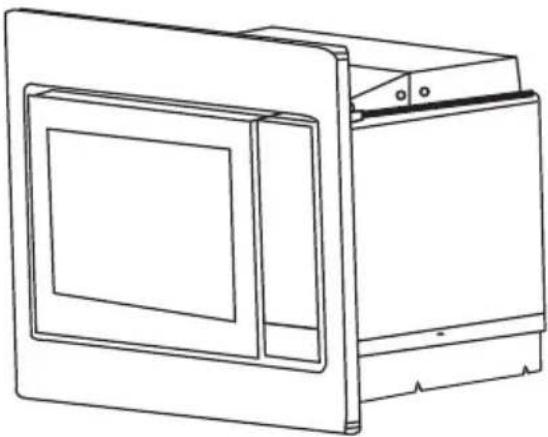

Line drawing of a microwave oven with front panel and side door (no text or symbols)

1.

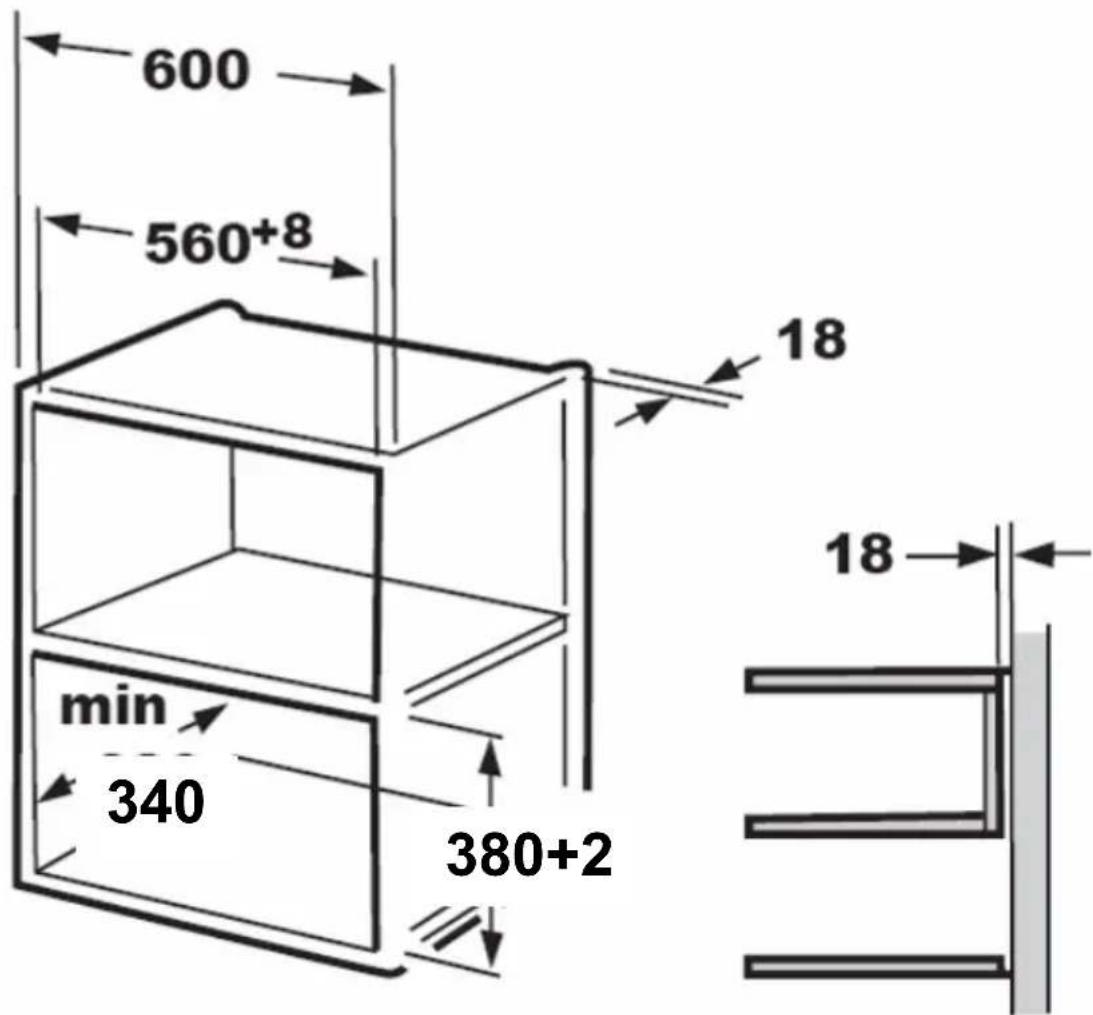

600 560+8 18 min 340 380+2 18

1.

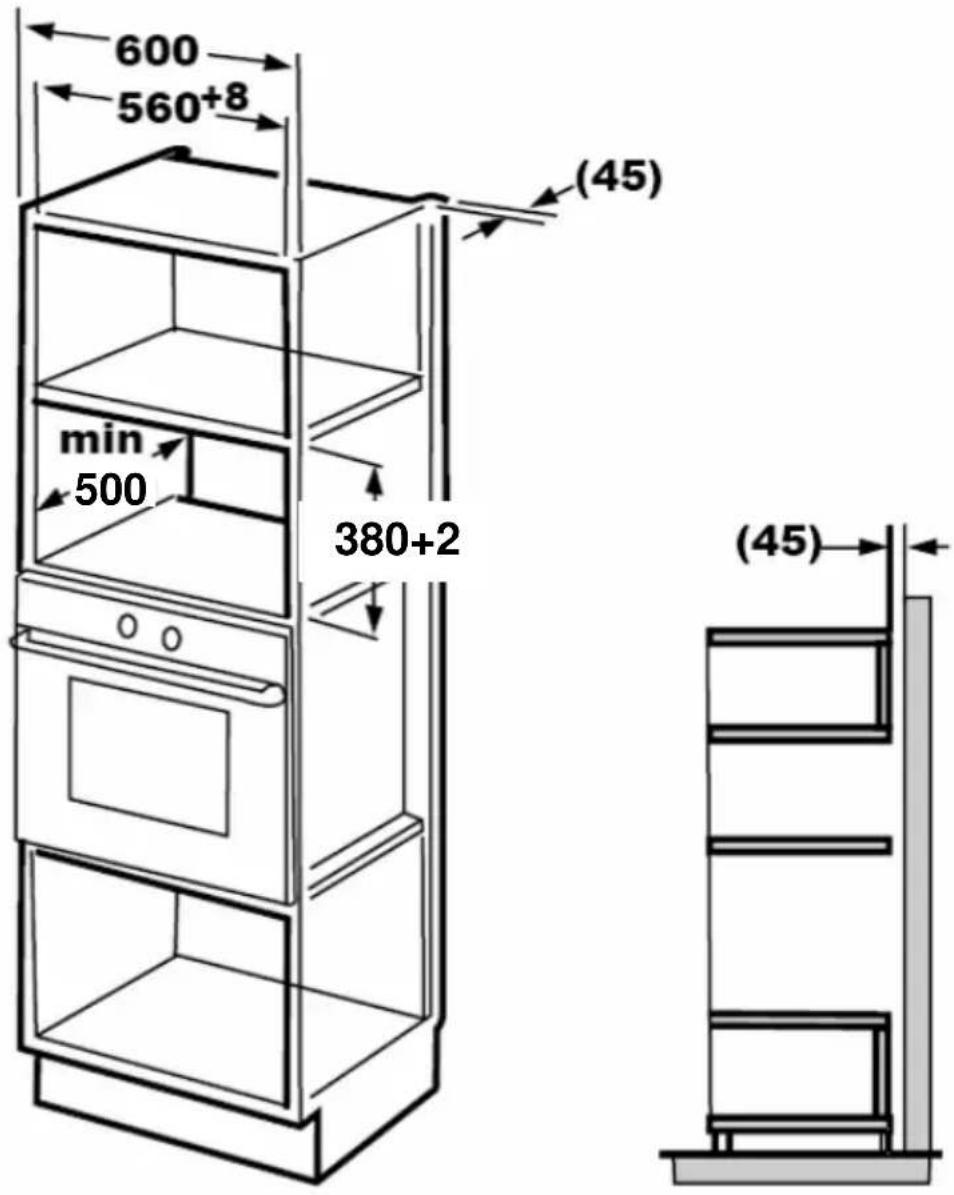

600 560+8 min 500 (45) 380+2 (45)

Note:

The bracket and bottom cabriet template are needed when installing in installation .both s

B. Pre are the cai inet

1. Read the instruction on the BOTTOM CABINET TEMPLATE, put the template on the bottom plane of cabinet.

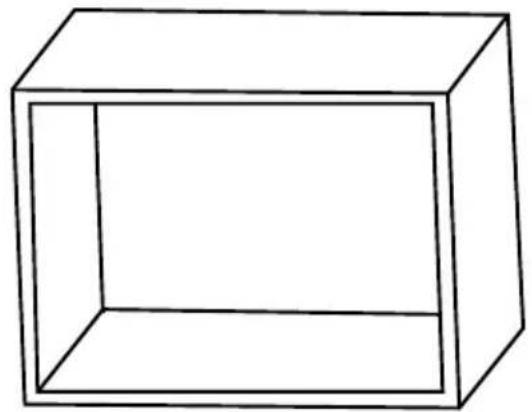

Simple line drawing of a 3D rectangular prism (no text or symbols)

MOTION CAMERA TEMPLATE FRONT

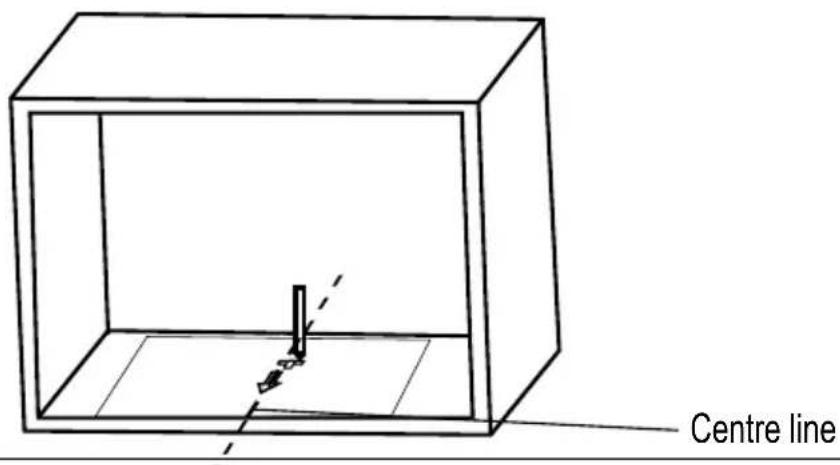

1. Make the marks on the bottom plane of cabinet according to marks"a" of the template

Centre line

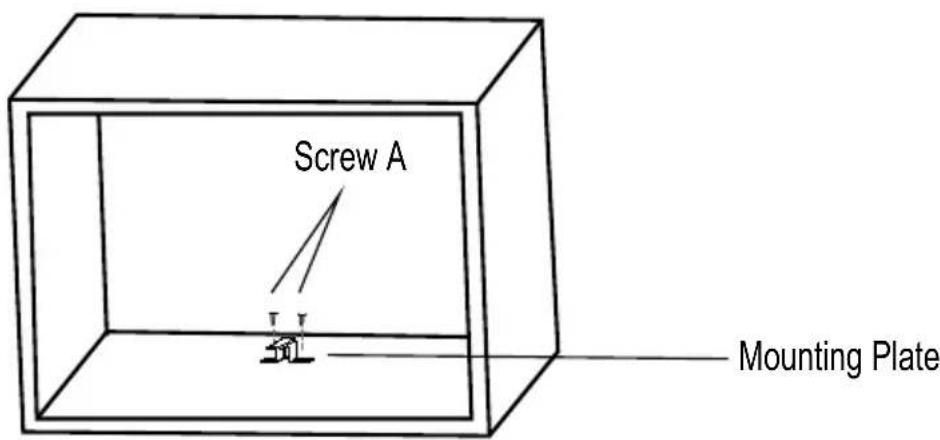

1. Remove the bottom cabinet template and fix the mounting plate with screw A.

Screw A Mounting Plate

.Install the oven

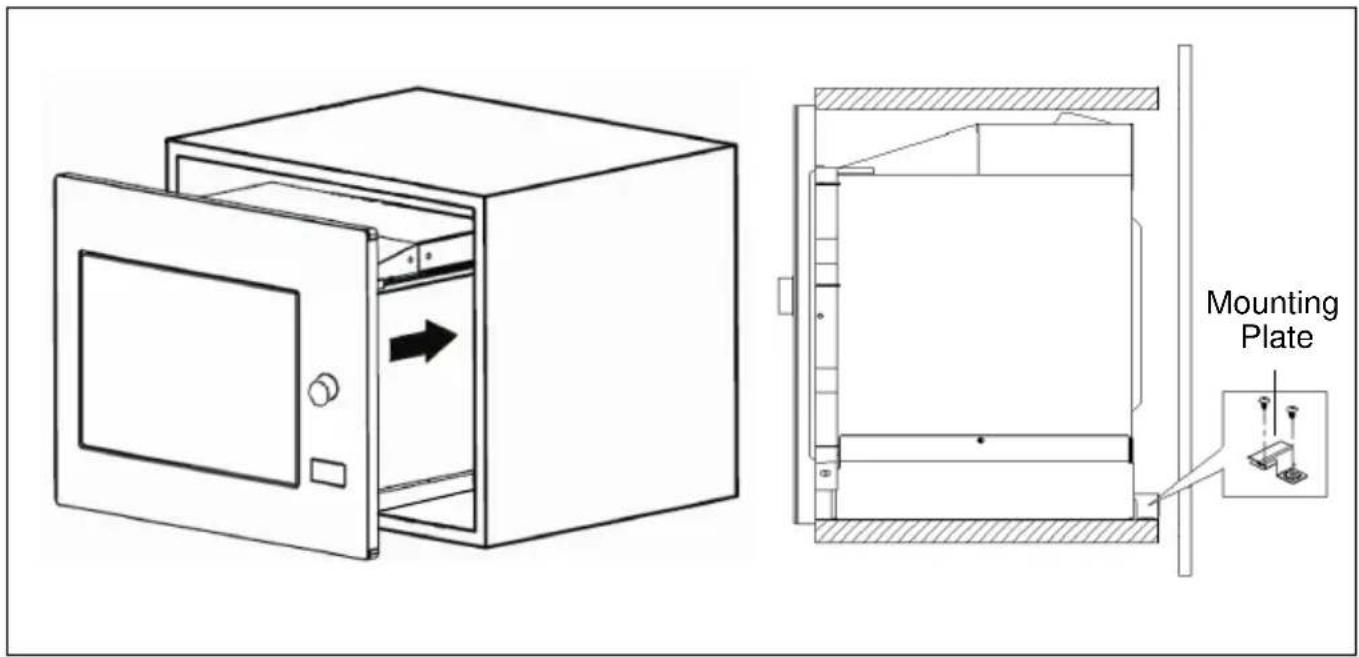

4. Install the oven to the cabinet

• Make sure the back of the oven is locked by mounting plate.
• Do not trap or kink the power cord.

Mounting Plate

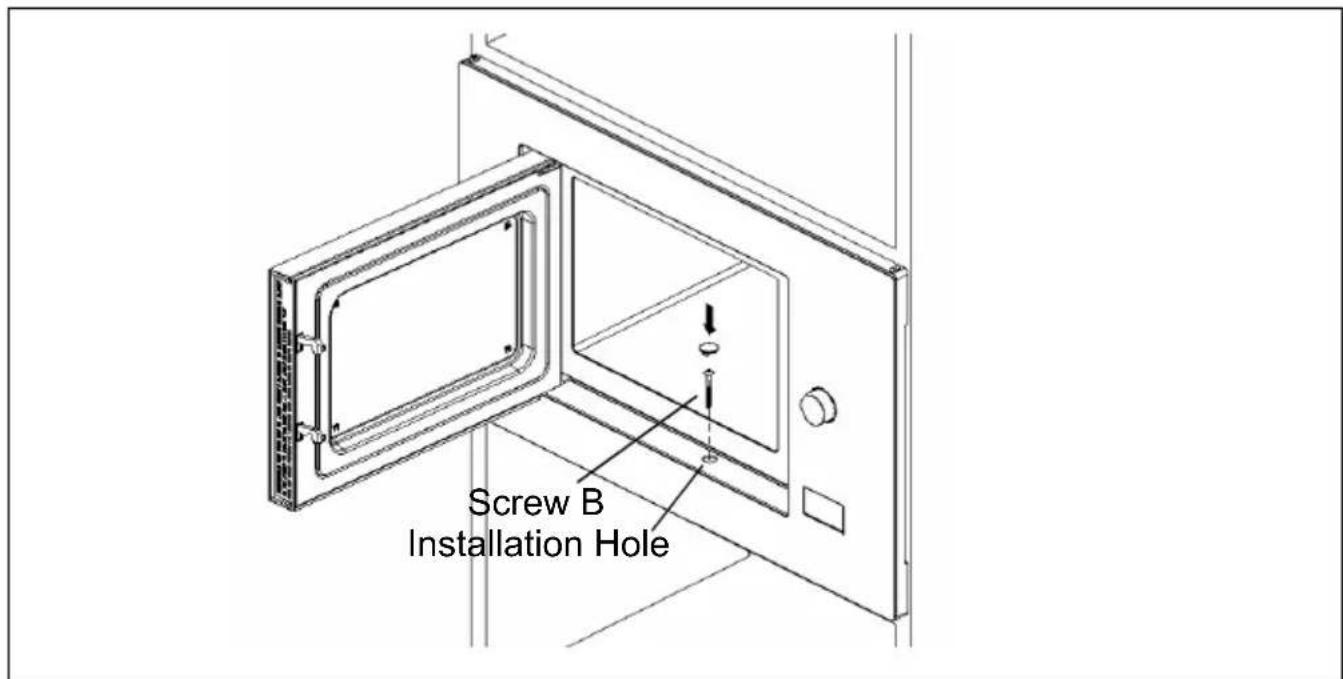

1. Open the door, fix the oven to the cabinet with Screw B, at the installation hole. Then fix the Trim-kit plastic cover to the installation hole.

EN

Screw B Installation Hole

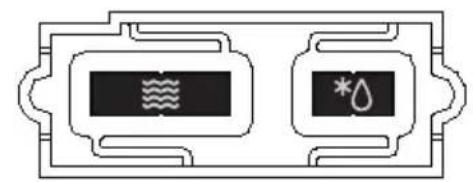

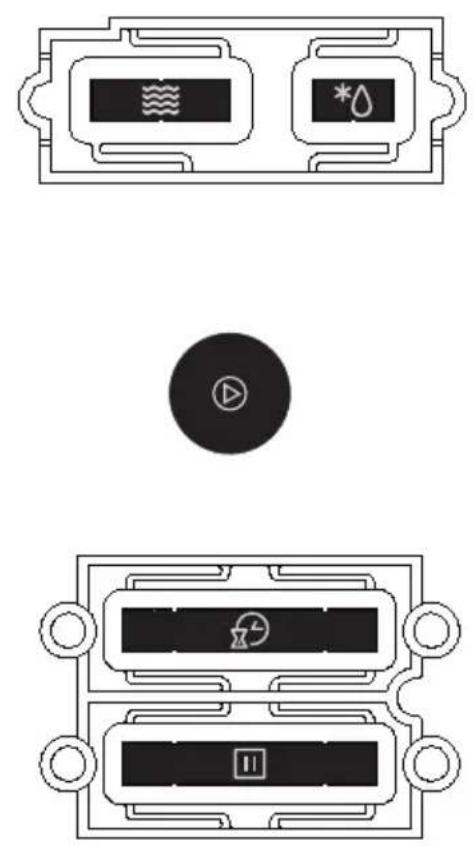

Control Pannel

8 8:8 8 Auto +0 9

Pure electrical connector diagram without any text, numbers, or symbols

Pure electrical circuit lines without any symbols

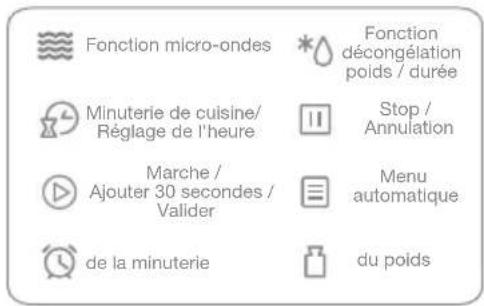

Instruction:

Microwave Weight/Time Defrost Kitchen Timer/ Clock Stop/Clear Start/ +30Sec./Confirm Auto Menu Time Weight

Operation Instructions

1. Clock Setting

When the microwave oven is electrified, the screen will display "0:00", buzzer will ring once.

1) Press " 🔊" twice to select clock function, the hour figures will flash.

2) Turn " 🔥 " to adjust the hour figures, the input time should be within 0--23.
3) Press " ", the minute figures will flash.
4) Turn " 🔍 " to adjust the minute figures, the input time should be within 0--59.
5) Press " 🔍 " to finish clock setting. ":" will flash, and the time will light.

Note: 1) If the clock is not set, it would not function when powered.

2) During the process of clock setting, if you press "☐", the oven will go back to the previous status automatically.

2. Microwave Cooking

Press " 🔊 " once, the screen will display "P100". Press " 🔊 " repeatedly or turn " 🔊 " to choose the power you want, and "P100", "P 80", "P 50", "P 30" or "P10" will display for each added press. Then press " ▶ " to confirm, and turn " 🔊 " to set cooking time from 0:05 to 95:00. Press " ▶ " again to start cooking.

EN

Example: If you want to use 80% microwave power to cook for 20 minutes, you can operate the oven as the following steps.

1) Press " ≡" once, the screen displays "P100".
2) Press " ☐" once again or turn " 🔥" to choose 80% microwave power.
3) Press " ▶" to confirm, and the screen displays "P 80".
4) Turn " 🔍 " to adjust the cooking time until the oven displays "20:00".
5) Press " ▶" to start cooking.

Note: the step quantities for the adjustment time of the coding switch are as follow:

" ≡ " Pad instructions

Order	Display	Microwave Power
1	P100	100%
2	P 80	80%
3	P 50	50%
4	P 30	30%
5	P 10	10%

3. Quick Start

1) In waiting state, Press " ▶" to start 30 seconds cooking with 100% power, each added press will increase 30 seconds cooking time up to 95 minutes.

2) In microwave cooking or time defrost state, each press of " ▶" can increase 30 seconds of cooking time.

3) In waiting state, turn " 🔍 " left to set cooking time with 100% microwave power. After choosing the cooking time, press "▶" to start cooking.

4. Defrost By Weight

1) Press " *△ " once, and the oven will display "dEF1".

2) Turn " 🔍 " to select the weight of food from 100 to 2000 g.

3) Press " ▶ " to start defrosting.

5. Defrost By Time

1) Press " *△" twice, and the oven will display "dEF2".

2) Turn " 🔍" to select the defrost time. The MAX time is 95 minutes.

3) Press " ▶" to start defrosting. The defrost power is P 30, and it cannot be changed.

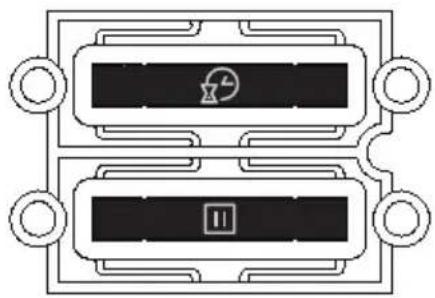

6. Kitchen Timer

(1) Press " once, the screen will display 00:00.
(2) Turn " " to enter the correct time. (The maximum cooking time is 95 minutes.)
(3) Press " ▶ " to confirm setting.
(4) When the kitchen time is reached, the buzzer will ring 5 times. If the clock has been set (24-hour system), the screen will display the current time.

Note: The kitchen Time is different from 24-hour system. Kitchen Timer is a timer. The clock cannot be in u ed during timer operation. ir

7. Auto Menu

1) Turn " " right to choose the menu, and "A-1" to "A-8" will display.
2) Press " ▶" to confirm.
3) Turn " 🔍 " to choose the default weight as the menu chart.
4) Press " ▶" to start cooking.
5) After cooking, the buzzer will sound 5 times and the LED will display "0:00". If the clock has been set before cooking, the current time will be displayed. During the beeping process, if the door or the keys is opened, interrupt the beep prompt.

Example: If you want to use "Auto Menu" to cook fish for 350g.

1) Turn " clockwise till "A-6" displays.
2) Press " ▶" to confirm.
3) Turn " " to select the weight of fish till "350" displays.
4) Press " ▶ " to start cooking.

The menu chart:

Menu	Weight	Display
A-1 Pizza	200 g	200
	400 g	400
A-2 Meat	250 g	250
	350 g	350
	450 g	450
A-3 Vegetable	200 g	200
	300 g	300
	400 g	400
A-4 Pasta	50g(with 450g cold water)	50
	100g(with 800g cold water)	100
A-5 Potato	200 g	200
	400 g	400
	600 g	600
A-6 Fish	250 g	250
	350 g	350
	450 g	450
A-7 Beverage	1 cup(120 ml)	1
	2 cups(240 ml)	2
	3 cups(360 ml)	3
A-8 Popcorn	50 g	50
	100 g	100

8. Multi-section cooking

At most 2 sections can be set for cooking. In multi-section cooking, if one section is defrosting, then defrosting shall be placed in the first section automatically.

Example: If you want to defrost food for 5 minutes and then cook with 80% microwave power for 7 minutes, operate it as the following:

1) Press " *△ " twice, and the oven will display "dEF2".
2) Turn " 🔍 " to select the defrost time till "5:00" displays.
3) Press " ≈" once, the screen displays "P100".
4) Press " ≈ " once again or turn " 🔍 " to choose 80% microwave power.
5) Press " ▶ " to confirm, and the screen displays "P 80".
6) Turn " 🔍 " to adjust the cooking time till the oven displays "7:00".
7) Press " ▶" to start cooking, and buzzer will sound once for the first section, defrosting time counts down. Buzzer will sound once again entering the second cooking. When cooking finishes, buzzer sounds five times.

Note:

(1) Automatic menu cooking cannot be used as one of Multi-section cooking.

9. Inquiring Function

(1) In states of microwave cooking, press "the current power will be displayed for 3 seconds. After 3 seconds, the oven will turn back to the former state.

(2) In cooking state, press " 🔊" to inquire the time and the time will display for 3 seconds.

10. Lock-out Function for Children

Lock: In waiting state, press " [Ⅱ] " for 3 seconds, there will be a long beep denoting entering the children-lock state. → will light and current time will display if the time has been set. Otherwise, the screen will display " [ : : ]".

Lock quitting: In locked state, press " [1] " for 3 seconds, there will be a long "beep" denoting that the lock is released

Trouble shooting

Normal
Microwave oven interfering TV reception	Radio and TV reception may be interfered when microwave oven operating. It is similar to the interference of small electrical appliances, like mixer, vacuum cleaner, and electric fan.It is normal.
Dim oven light	In low power microwave cooking, oven light may become dim. It is normal.
Steam accumulating on door, hot air out of vents	In cooking, steam may come out of food. Most will get out from vents. But some may accumulate on cool place like oven door. It is normal.
Oven started accidentally with no food in.	It is forbidden to run the unit without any food inside.It is very dangerous.

Trouble	Possible Cause	Remedy
Oven can not be started.	(1) Power cord not plugged in tightly.	Unplug. Then plug again after 10 seconds.
	(2) Fuse blowing or circuit breaker works.	Replace fuse or reset circuit breaker (repaired by professional personnel of our company)
	(3) Trouble with outlet.	Test outlet with other electrical appliances.
Oven does not heat.	(4) Door not closed well.	Close door well.

According to Waste of Electrical and Electronic Equipment (WEEE) directive, WEEE should be separately collected and treated. If at any time in future you need to dispose of this product please do NOT dispose of this product with household waste. Please send this product to WEEE collecting points where available.

Abstract geometric shapes with no text or symbols

Continental Edison
