USER MANUAL CEMO23UX042 CONTINENTAL EDISON

Abstract geometric shapes resembling quotation marks, no text or symbols present

Continental Edison

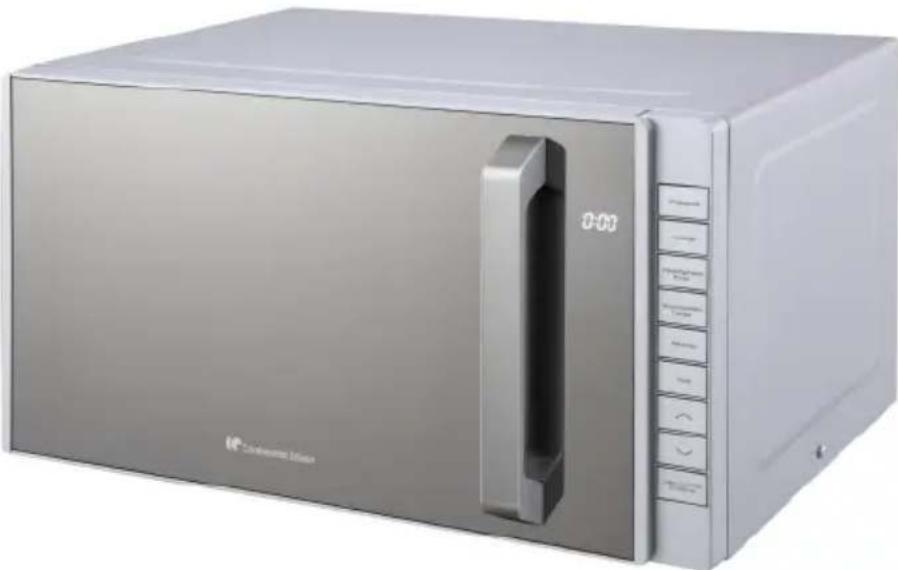

Exterior view of a modern microwave oven (no visible text or symbols on the body)

CEMO23UX042

FOUR À MICRO-ONDES-MICROWAVE OVEN

A F E D C B G

FR

Warning symbol depicting steam rising inside a triangle, indicating heat or smoke hazard.

Symbol of a trash bin crossed out by two crossed lines, with a solid black rectangle below (no text or labels)

IMPORTANT SAFETY INSTRUCTIONS READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

Read carefully and keep for future reference:

1) Read all instructions before using.
2) Make sure the voltage in your living area corresponding to the one shown on the rating label of the appliance.
And the wall socket is properly grounded.

3) To reduce the risk of fire in the oven cavity:

a. Do not overcook the food.
b. Remove wire twist -ties from paper or plastic bags before placing bags in the oven.
c. Do not heat oil or fat for deep drying as the temperature of oil cannot be controlled.
d. If materials inside the oven should smoke or ignite, keep oven door closed, turn oven off and disconnect the power supply.
e. When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition.

4) To reduce the risk of explosion and sudden boiling:

a. WARNING: Liquids and other foods must not be heated in sealed container since they are liable to explode; Baby bottles fitted with a screw cap or teat are considered to be sealed containers.

b. Use the wide -mouthed container to cook liquid, and the cooked liquid should not be removed out immediately. Several moments should be waited before removing. In order to avoid possible hazards caused by delayed eruptive boiling of liquids.

c. Potatos, sausage and chestnut should be peeled or pierced before cooking. Eggs in their shell, whole hard - boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended.

d. The Contents of feeding bottles and baby food jars are to be stirred or shaken and the temperature is to be checked before consumption, in order to avoid burns.

5) Warning: if one of the following occurs:

·The door is damaged, or
·The door seal is damaged, or
·Furnace failure
It shall not be put into use without repair by qualified personnel.

6) if the supply cord is damaged, it must be replaced by the manufacturer or its services agent or a qualified technician in order to avoid a shock hazard.

7) After cooking, the container is very hot. Using gloves to take out the food and avoid steam burns by directing steam away from the face and hands.

8) If the plate is covered or covered with microwave film, lift the other side slightly to release the burning steam jet; This can avoid scalding your hands or face. If it's popcorn or baking bag, gently open it and take the opening away from you.

9) to prevent the trunctable from breaking, let the trunctable cool down before cleaning.

10) make sure the utensils do not touch the interior walls during cooking.

11) only use utnesils that are suitable for use in microwave ovens.

12) do not store food or any other things inside the oven.

13) do not operate the oven without any liquid or food inside the oven. This would do damage the oven.

14) This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

15) any accessories not recommended by the manufacture may cause injuries to persons.
16) do not use outdoors.
17) the appliances are not intended to be opearted by means of an external timer or separate remote-control system.
18) the lamp of microwave oven is not intended for other purposes.
19) WARNING: Accessible parts may become hot during use. Young children should be kept away.
20) The microwave oven must not be placed in a cabinet. The microwave oven is intended to be used freestanding.
21) To ensure sufficient ventilation the free distance above the top surface at least 30 cm.
22) WARNING: It is hazardous for anyone other than a competent person to carry out any service or repair operation, which involves the removal of any cover, which gives protection against exposure to microwave energy.
23) remove the power cord from the wall outlet before cleaning.
24) Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.
25) The oven should be cleaned regularly and any food deposits removed.
26) Never use hard detergent, gasoline, abrasive powder or metal brush to clean any part of the appliance.
27) Do not remove the waveguide cover.
28) For detailed information on how to clean door gaskets, cavities and adjacent parts, refer to the “CLEANING AND MAINTENANCE” section.
29) The microwave oven is intended for heating food and beverages. Drying of food or clothing and heating of warming pads, slippers, sponges, damp cloth and similar may lead to risk of injury, ignition or fire.

30) This appliance is intended to be used in household and similar applications such as:

• staff kitchen areas in shops, offices and others working environments;
• farm houses;
• by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments.

31) Group 2 Class B appliance

This appliance is group 2 as it intentionally generate radio-frequency energy for heating food or stuff. Class B equipment is equipment suitable for use in domestic establishments and in establishments directly connected to a low voltage power supply network which supplies buildings used for domestic purposes.

32) Do not use steam cleaner to clean the equipment.

33) Metallic containers for food and beverages are not allowed during microwave cooking.

34) When the equipment is working, hot or external surfaces can be not added.

35) When the equipment becomes hot, care should be taken to avoid touching the heating elements in the furnace.

36) During use, the surface may get hot.

CLEANING

Be sure to unplug the appliance from the power supply.

1. Clean the cavity of the oven after using with a slightly damp cloth.
2. Clean the accessories in the usual way in soapy water.
3. The door frame and seal and neighbouring parts must be cleaned carefully with a damp cloth when they are dirty.
4. Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass.
5. Cleaning Tip---For easier cleaning of the cavity walls that the food cooked can touch: Place half a lemon in a bowl, add 300ml (1/2 pint) water and heat on 100% microwave power for 10 minutes. Wipe the oven clean using a soft, dry cloth.

SETTING UP YOUR OVEN

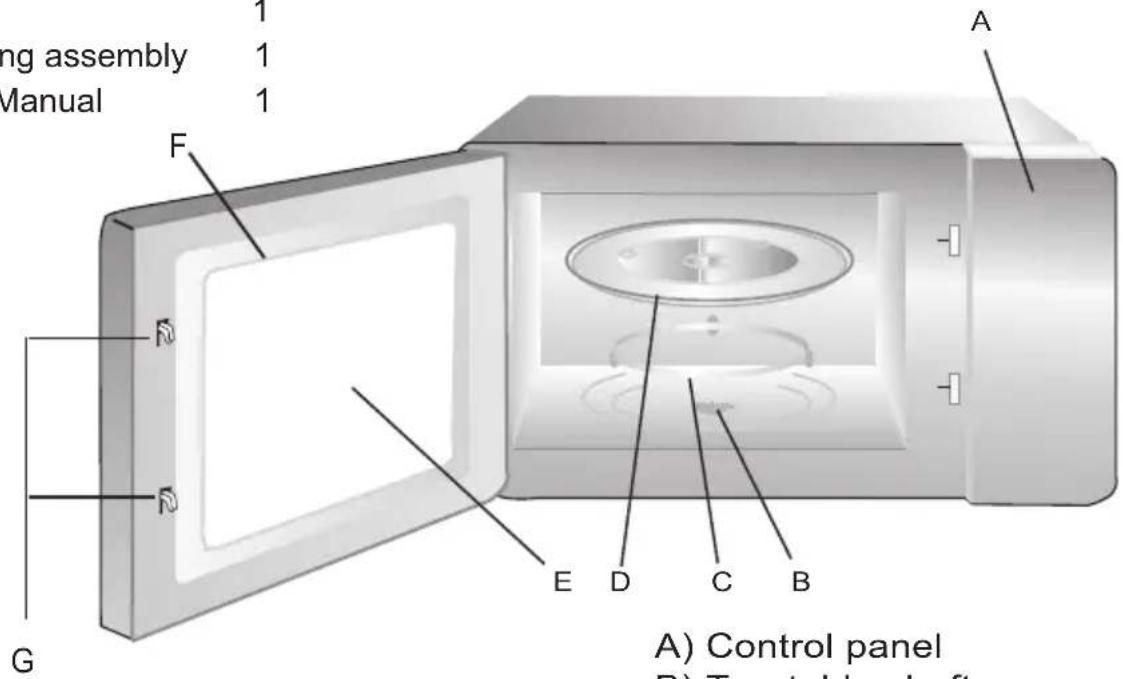

Names of Oven Parts and Accessories

Remove the oven and all materials from the carton and oven cavity.

Your oven comes with the following accessories:

Glass tray	1
Turntable ring assembly	1
Instruction Manual	1

ng assembly Manual 1 1 1 A F R R G E D C B A) Control panel B) Tensible section

A) Control panel
B) Turntable shaft
C) Turntable ring assembly
D) Glass tray
E) Observation window
F) Door assembly
G) Safety interlock system

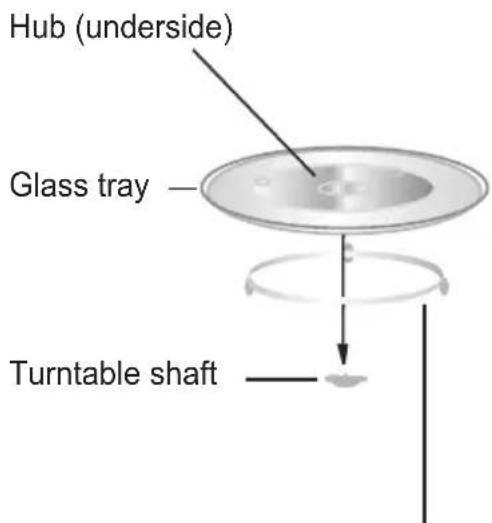

Turntable Installation

Hub (underside) Glass tray Turntable shaft

Turntable ring assembly

a. Never place the glass tray upside down. The glass tray should never be restricted.
b. Both glass tray and turntable ring assembly must always be used during cooking.
c. All food and containers of food are always placed on the glass tray for cooking.
d. If glass tray or turntable ring assembly cracks or breaks, contact your nearest authorized service center.

Countertop Installation

Remove all packing material and accessories. Examine the oven for any damage such as dents or broken door. Do not install if oven is damaged.

Cabinet: Remove any protective film found on the microwave oven cabinet surface. Do not remove the light brown Mica cover that is attached to the oven cavity to protect the magnetron.

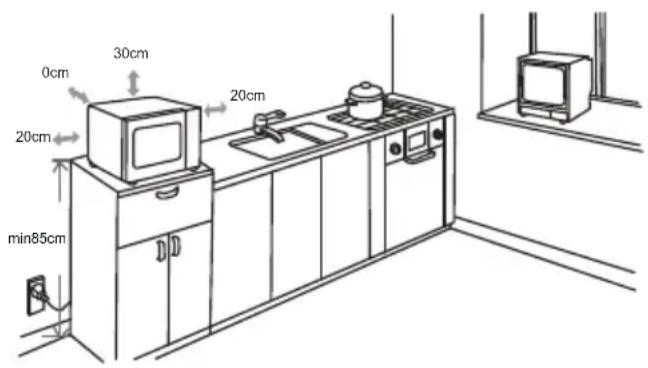

Installation

1. Select a level surface that provide enough open space for the intake and/or outlet vents.

0cm 30cm 20cm 20cm min85cm 20cm 20cm

(1) The minimum installation height is 85cm.
(2) The rear surface of appliance shall be placed against a wall.

Leave a minimum clearance of 30cm above the oven, a minimum clearance of 20cm is required between the oven and any adjacent walls.

(3) Do not remove the legs from the bottom of the oven.
(4) Blocking the intake and/or outlet openings can damage the oven.

(5) Place the oven as far away from radios and TV as possible. Operation of microwave oven may cause interference to your radio or TV reception.
2. Plug your oven into a standard household outlet. Be sure the voltage and the frequency is the same as the voltage and the frequency on the rating label.

WARNING: Do not install oven over a range cooktop or other heat-producing appliance. If installed near or over a heat source, the oven could be damaged and the warranty would be

void.

The accessible surface may be hot during open

Warning symbol of steam inside a triangle (no text or numbers)

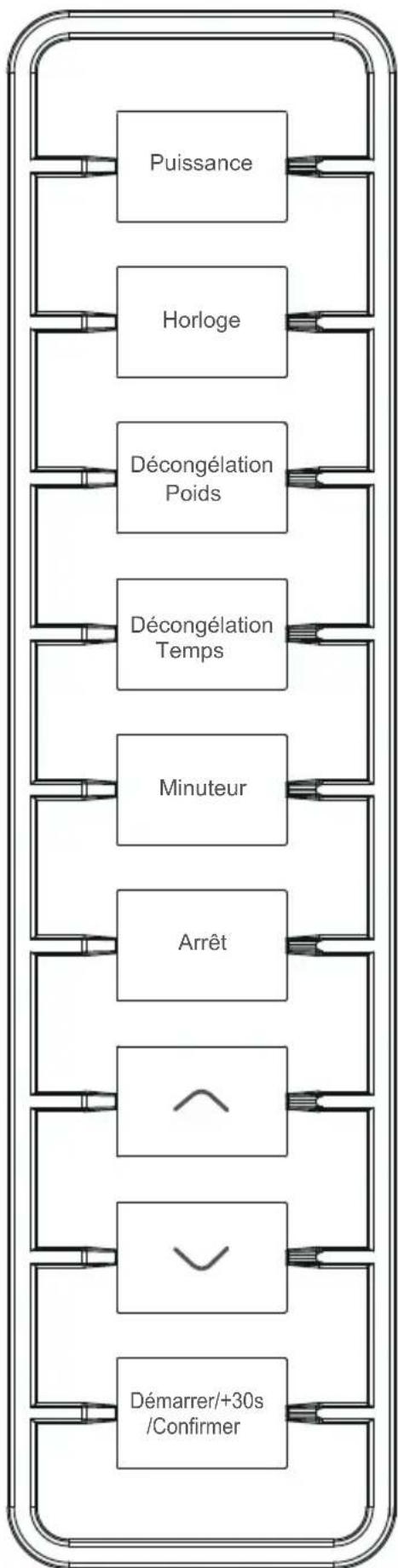

Control Panel

EN

This microwave oven uses modern electronic control to adjust cooking parameters to meet your needs better for cooking.

1. Clock Setting

When the microwave oven is electrified, the oven will display "0:00", buzzer will ring once.

1) Press "Hormogrel figure flash;
2) Press "^" or "∨" to adjust the hour figures, the input time should be within 0--23.
3) Press "Hörtogen minute figures will flash.
4) Turn "∧" or "∨" to adjust the minute figures, the input time should be within 0--59.
5) Press "Hotdogish clock setting. ":" will flash,

Note: 1) If the clock is not set, it would not function when powered.

2) During the process of clock setting, if you press "Arrête oven will go back to the previous status automatically.

2. Microwave Cooking

1) Press the "Puissance" key once, and "P100" will display.
2) Press "Puissance" for times or press "^" and "∨" to select the microwave power. "P100", "P80", "P50", "P30", "P10" will display in order.
3) Press "Démannien+30s /Confirmer
4) Press "^" or " " to adjust the cooking time.

(The time setting should be 0:05-95:00.)

5) Press " Dématerer-30s/n/Confirmer

NOTE: the step quantities for the adjustment time of the coding switch are as follow:

Microwave Power Chart

Microwave Power	100%	80%	50%	30%	10%
Display	P100	P80	P50	P30	P10

4. Defrost By Weight

1) Press "Décongélation Poidsill display "d-1".
2) Press "∧" or "∨" to select the food weight. The range of weight is 100-2000g.
3) Press "Dépantertes30s de Costirgner

5. Defrost By Time

1) Press "Décongélation Temps" once, the screen will display "d-2".
2) Press "^" or "∨" to select the cooking time. The maximum time is 95 minutes.
3) Press " Démarrer/+30s /Confirmer " key to start defrosting.

6.Multi-Stage Cooking

Two stages can be maximally set. If one stages is defrosting, it should be put in the first stage automatically. The buzzer will ring once after each stage and the next stage will begin. Note: Auto menu cannot be set as one of the multi-stage.

Example: if you want to defrost the food for 5 minutes, then to cook with 80% microwave power for 7 minutes. The steps are as following:

1) Press "Décongélation Temps" once, the screen display "d-2".
2) Press " ^ "or " ∨" to adjust the defrost time of 5 minutes;
3) Press" Puissance" once, screen will dispaly "P100".
4) Press "^" or " " to choose microwave power till "P80" display;
5) Press " Démarrer/+30s /Confirmer " to confirm, screen will display "P80".
6) Press "^" or "∨" to adjust the cooking time of 7 minutes;
7) Press " Démarrer/+30s /Confirmer " to start cooking.

7. Kitchen Timer

1) Press "Minuteur" once, the screen will display 00:00.
2) Press " ^ " or " ∨ " to enter the correct timer.

(The maximum cooking time is 95 minutes)

3) Press "Démarrer/+30s /Confirmer" to confirm setting.

4) When the kitchen time is reached, the buzzer will ring 5 times.

If the clock be set(24-hour system), the screen will display the current time. Note: The kitchen Timer is different from 24-hour system, Kitchen Timer is a timer.

8. Auto Menu

1) In waiting state, press "^" first and then press "^" or " √" to choose the menu from "A1" to "A8".
2) Press "Démauref/+30s é Confirmyeu choose.
3) Press "^"or" ∨ " to choose the food weight.
4) Press "Détromatant/é30si/Confirmer
5) After cooking finish, the buzzer sounds five times. The screen display "0:00".

If the time has been set, current time will be displayed.

The menu chart:

Menu		Weight	Display
A1Pizza		200 g	200
		400 g	400
A2 Meat		250 g	250
		350 g	350
		450 g	450
A3 Vegetable [ZCBC]		200 g	200
		300 g	300
		400 g	400
A4 Pasta		50g(with 450 ml cold water)	50
		100g(with 800 ml cold water)	100
A5 Potato		200 g	200
		400 g	400
		600 g	600
A6 Fish		250 g	250
		350 g	350
		450 g	450
A7 Beverage [37Y0]		1 cup(120 ml)	1
		2 cups(240 ml)	2
		3 cups(360ml)	3
A8 Popcorn		50 g	50
		85 g	85
		100 g	100

9. Speedy Cooking

1) In waiting state, press "Dépréten de 30 s/6 d'ouf Power level for 30 seconds. Each press on the same key can increase 30 seconds. The maximum cooking time is 95 minutes.
2) During the microwave and the defrost by time process, press "Démarrerat30sé Confirngme.
3) Under the states of auto menu and defrost by weight, cooking time cannot be increased by pressing " 'Démarrer/+30s /Confirmer
4) In waiting states, press the "first and then press "or" to choose the cooking time directly. After choosing the time, press "Démarrer/+30s /Confirmer start cooking. The microwave power is 100%.

10. Lock Function for Children

Lock: In waiting state, press "Artéor 3 seconds, there will be a long beep denoting entering the children-lock state and the current time will display if the time has been set, otherwise, the screen will display "0:00".

Lock quitting: In locked state, press "Arrêt" for 3 seconds, there will be a long "beep" denoting that the lock is released.

EN

11. Inquiring Function

1) In cooking state of microwave, press "Puissance power will be displayed for 3 seconds.
2) During cooking state, press "Horloge" to check the current time. It will be displayed for 3 seconds.

12. Specification

1) The buzzer will sound once when you press the "or" key at the beginning.
2) "Démorber/préose/Confinitiene cooking if the door is opened during cooking;
3) Once the cooking programme has been set, " Dismat press 30s /Confirmer in 5 minute. The current time will be displayed. The setting will be cancelled.
4) The buzzer sounds once by efficient press, inefficient press will be no response.

Trouble shooting

Normal
Microwave oven interfering TV reception	Radio and TV reception may be interfered when microwave oven operating. It is similar to the interference of small electrical appliances, like mixer, vacuum cleaner, and electric fan.It is normal.
Dim oven light	In low power microwave cooking, oven light may become dim. It is normal.
Steam accumulating on door, hot air out of vents	In cooking, steam may come out of food. Most will get out from vents. But some may accumulate on cool place like oven door. It is normal.
Oven started accidentally with no food in.	It is forbidden to run the unit without any food inside.It is very dangerous.

Trouble	Possible Cause	Remedy
Oven can not be started.	(1) Power cord not plugged in tightly.	Unplug. Then plug again after 10 seconds.
	(2) Fuse blowing or circuit breaker works.	Replace fuse or reset circuit breaker (repaired by professional personnel of our company)
	(3) Trouble with outlet.	Test outlet with other electrical appliances.
Oven does not heat.	(4) Door not closed well.	Close door well.

Symbol of a trash bin crossed with no visible text or labels

According to Waste of Electrical and Electronic Equipment (WEEE) directive, WEEE should be separately collected and treated. If at any time in future you need to dispose of this product please do NOT dispose of this product with household waste. Please send this product to WEEE collecting points where available.

Specifications

Reference:	CEMO23UX042
Model:	AM823ABV
Rated Voltage: 230V~ 50Hz
Rated Power(Microwave):	1250W

EN

Imported by

A.M.C.

123 quai Jules

Guesde

94400 VITRY SUR

SEINE

France

CONTINENTAL

EDISON

120-126 Quai de

Bacalan CS11584

33000

BORDEAUX

Abstract geometric shapes with no text or symbols

Continental Edison
