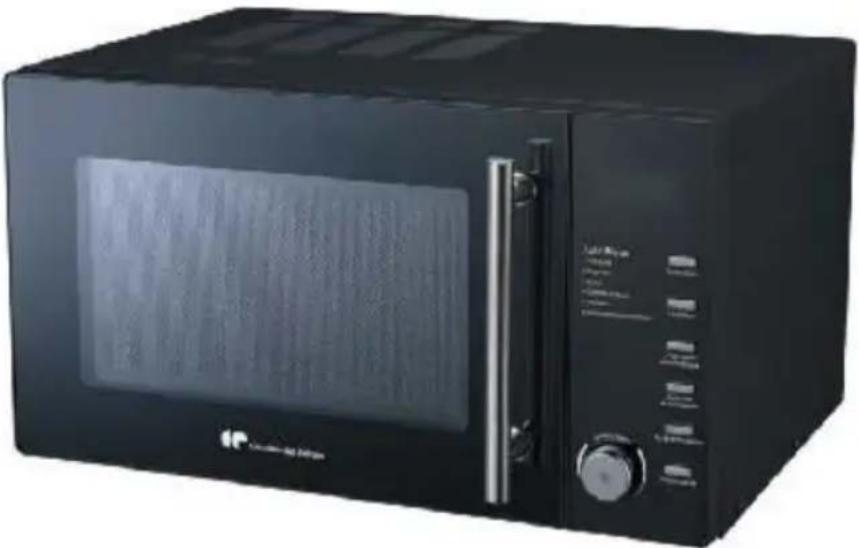

USER MANUAL CEM023SN CONTINENTAL EDISON

RECAUTIONS TO AVOID POSSIBLE

1. Do not attempt to operate this oven with the door open since open door

operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks.

2. Do not place any object between the oven front face and the door or allow soil or

cleaner residue to accumulate on sealing surfaces.

3. Do not operate the oven if it is damaged. It is particularly important that the oven

door close properly and that there is no damage to the Door (bent), Hinges and latches (broken or loosened), Door seals and sealing surfaces.

4. The oven should not be adjusted or repaired by anyone except properly qualified

When using electrical appliance basic safety precautions should be followed, including the following: WARNING!--To reduce the risk of burns, electric shock, fire, injury to persons or exposure to excessive microwave energy:

1. Read all instructions before using the appliance

and keep for future reference.

2. Use this appliance only for its intended use as

described in the manual. Do not use corrosive chemicals or vapors in this appliance. This type of oven is specifically designed to heat, cook or dry food. It is not designed for industrial or laboratory use.

3. Do not operate the oven when empty.

4. Do not operate this appliance if it has a damaged3

cord or plug, if it is not working properly, or if it has been damaged or dropped. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.

5. WARNING!--Only allow children to use the oven

without supervision when adequate instructions have been given so that the child is able to use the oven in a safe way and understands the hazards of improper use.

6. To reduce the risk of fire in the oven cavity:

When heating food in plastic or paper container, check the oven frequently to the possibility of ignition. Remove wire twist-ties from paper or plastic bags before placing bag in oven. If smoke is observed, switch off or unplug the appliance and keep the door closed in order to stifle any flames. Do not use the cavity for storage purposes. Do not leave paper products, cooking utensils, or food in the cavity when not in use. The microwave oven is intended for heating food and beverages. Drying of clothing and heating of warming pads,slippers, sponges, damp cloth and similar may lead to risk of injury, ignition or fire.

7. WARNING!--Liquid or other food must not be

heated in sealed containers since they are liable to explode.

8. Microwave heating of beverage can result in

delayed eruptive boiling, therefore care has to be taken when handle the container.4

9. Do not fry food in the oven. Hot oil can damage

oven parts and utensils and even result in skin burns.

10. Eggs in their shell and whole hard-boiled eggs

should not be heated in microwave ovens since they may explode even after microwave heating has ended.

11. Pierce foods with heavy skins such as

potatoes, whole squashes, apples and chestnuts before cooking.

12. WARNING!--The oven should be cleaned

regularly and any food deposits should be removed. Failure to maintain the oven in a clean condition could lead to deterioration of surface that could adversely affect the life of the unit and could possibly result in a hazardous situation.

13. The contents of feeding bottles and baby jars

should be stirred or shaken and the temperature should be checked before serving in order to avoid burns.

14. Cooking utensils may become hot because of

heat transferred from the heated food. Potholders may be needed to handle the utensil.

15. Utensils should be checked to ensure that they

are suitable for use in microwave oven.

16. WARNING!--It is hazardous for anyone other

than a trained person to carry out any service or repair operation which involves the removal of any cover which gives protection against exposure to microwave energy.

17. This Microwave complies with EN 55011/CISPR

11, in this standard it belong to Class B Group 25 classification. Group 2 equipment: group 2 contains all ISM RF equipment in which radio-frequency energy in the frequency range 9 kHz to 400 GHz is intentionally generated and used or only used locally, in the form of electromagnetic radiation, inductive and/or capacitive coupling, for the treatment of material, for inspection/analysis purposes, or for transfer of electromagnetic energy. Class B equipment is equipment suitable for use in locations in residential environments and in establishments directly connected to a low voltage power supply network which supplies buildings used for domestic purposes..

18. Children should be supervised to ensure that

they do not play with the appliance.

19. The microwave oven is only used in

cook top or other heat-producing appliance. if installed could be damaged and the warranty would be avoid .

21. The microwave oven shall not be placed in a

the appliance is operating.

23. Warning: Accessible parts may become hot

during use. Young children should be kept away.

24. During use the appliances becomes hot. Care

should be taken to avoid Pressing heating elements inside the oven, for cooking ranged and ovens.

25. The temperature of accessible surfaces may be

high when the appliance is operating.6

26. Appliance is not to be used by children or

persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction.

27. WARNING!--If the door or door seals are

damaged, the oven must not be operated until it has been repaired by a competent person.

28. The instructions shall state that appliances are

not intended to be operated by means of an external timer or separate remote-control system.

29. The microwave oven is for household use only

and not for commercial use.

30. Never remove the distance holder in the back

or on the sides, as it ensures a minimum distance from the wall for air circulation.

31. Please secure the turntable before you move

the appliance to avoid damages.

32. CAUTION! --It is dangerous to repair or

maintain the appliance by no other than a specialist because under these circumstances the cover have to be removed which assures protection against microwave radiation. This applies to changing the power cord or the lighting as well. Send the appliance in these cases to our service centre.

33. The microwave oven is intended for defrosting,

cooking and steaming of food only.

34. Use gloves if you remove any heated food.

36. This appliance can be used by children aged

from 8 years and above and persons with reduced7 physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are aged from 8 years and above and supervised.

37. If smoke is emitted, switch off or unplug the

appliance and keep the door closed in order to stifle any flames. SPECIFICATIONS

Power Consumption: 230V/50Hz, 1400W(Microwave) Rated Microwave Power Output: 900W Operation Frequency: 2450MHz Outside Dimensions: 281mm(H)×483mm(W)×387mm(D) Oven Cavity Dimensions: 220mm(H)×340mm(W)×320mm(D) Cooking Uniformity: Turntable System Oven Capacity: 23Litres Net Weight: Approx. 13kg

1. Make sure that all the packing materials are removed from the inside of the door.

2. WARNING!--Check the oven for any damage, such as misaligned or bent

door, damaged door seals and sealing surface, broken or loose door hinges and latches and dents inside the cavity or on the door. If there is any damage, do not operate the oven and contact qualified service personnel.

3. This microwave oven must be placed on a flat, stable surface to hold its weight

and the heaviest food likely to be cooked in the oven.

4. The appliance shall be placed against a wall.

5. Do not place the oven where heat, moisture, or high humidity are generated, or

near combustible materials.

6. For correct operation, the oven must have sufficient airflow. Allow 20cm of8

space above the oven, 10cm at back and 5cm at both sides. Do not cover or block any openings on the appliance. Do not remove feet.

7. Do not operate the oven without glass tray, roller support, and shaft in their

8. Make sure that the power supply cord is undamaged and does not run under the

oven or over any hot or sharp surface.

9. The socket must be readily accessible so that it can be easily unplugged in an

10. Do not use the oven outdoors.

RADIO INTERFERENCE Operation of the microwave oven can cause interference to your radio, TV, or similar equipment. When there is interference, it may be reduced or eliminated by taking the following measures:

1. Clean door and sealing surface of the oven.

2. Reorient the receiving antenna of radio or television.

3. Relocate the microwave oven with respect to the receiver.

4. Move the microwave oven away from the receiver.

5. Plug the microwave oven into a different outlet so that microwave oven and

receiver are on different branch circuits

MICROWAVE COOKING PRINCIPLES

1. Arrange food carefully. Place thickest areas towards outside of dish.

2. Watch cooking time. Cook for the shortest amount of time

indicated and add more as needed. Food severely overcooked can smoke or ignite.

3. Cover foods while cooking. Covers prevent spattering and help foods to

4. Turn foods over once during microwave cooking to speed

cooking of such foods as chicken and hamburgers. Large items like roasts must be turned over at least once.

5. Rearrange foods such as meatballs halfway through cooking both from

top to bottom and from the center of the dish to the outside.

6. Only use utensils that are suitable for use in microwave ovens. Metallic

containers for food and beverages are not allowed during microwave cooking.

BEFORE YOU CALL FOR SERVICE

Before asking for service, please check each item below: ⚫ Check to ensure the oven is plugged in securely. If not, remove the plug from9 the outlet, wait 10 seconds, and plug it in again securely. ⚫ Check for a blown circuit fuse or a tripped main circuit breaker. If these seem to be operating properly, test the outlet with another appliance. ⚫ Check to ensure the control panel is programmed correctly and the timer is set. ⚫ Check to ensure the door is securely closed, engaging the door lock system. If the door is not properly closed, the microwave energy will not flow inside. IF NONE OF THE ABOVE RECTIFIES THE SITUATION, THEN CONTACT QUALIFIED TECHNICIAN. DO NOT TRY TO ADJUST OR REPAIR THE OVEN YOURSELF.

1. Microwave cannot penetrate metal, so metal utensils or dishes with

metallic trim should not be used.

2. Do not use recycled paper products when microwave cooking, as they

may contain small metal fragments which may cause sparks and/or fires.

3. Round /oval dishes rather than square/oblong ones are recommend, as

food in corners tends to overcook.

4. Narrow strips of aluminum foil may be used to prevent overcooking of

exposed areas. But be careful don’t use too much and keep a distance of 1 inch (2.54cm) between foil and cavity. The list below is a general guide to help you select the correct utensils. Cookware Microwave Cooking Heat–Resistant Glass Yes Non Heat–Resistant Glass

Heat–Resistant Ceramics Yes Microwave–Safe Plastic Dish Yes Kitchen Paper Yes Metal Tray No10 PART NAMES

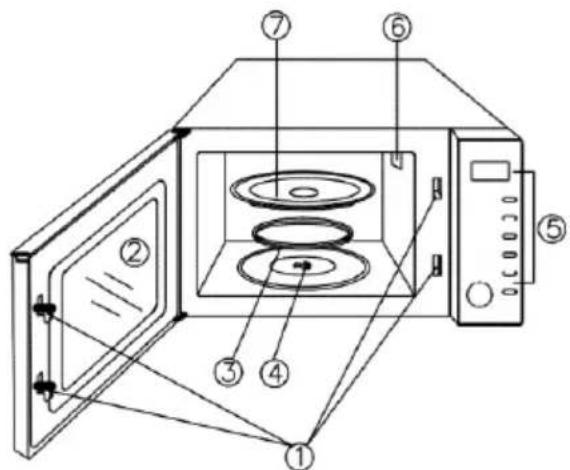

7. the mica plate covering the wave

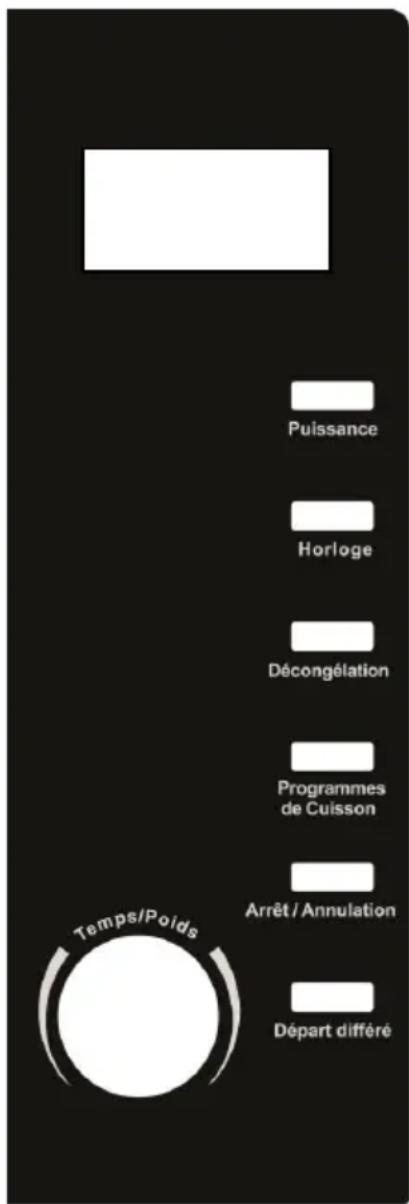

DISPLAY Cooking time, power, indicators and clock time are displayed.

POWER Use to select microwave power level.

CLOCK Use to set the clock time.

⚫ AUTO DEFROST Use to defrost food by weight

STOP/CANCEL Use to pause a cooking, cancel all settings or set child lock.

TIME/WEIGHT Use to set time. Use to select the weight or amount of food. Use to start the oven.

➢ When the oven first plugged in, beep will sound and the display will show and “1:00”. ➢ During the setting mode, the system will return to waiting mode if there is not any operation within 25 econds. ➢ During cooking, if press STOP/CANCEL pad once, the program will be paused, then press TIME/WEIGHT knob to resume, but if press STOP/CANCEL pad twice, the program will be canceled. ➢ After ending cooking, the screen will display End with sound every two minutes until user press any pad or open the door.

The oven is equipped with a digital clock; you can choose to set the clock time in 24 or 12-hour cycle by pressing CLOCK. Suppose you want to set the oven clock time to 8:30.

2. Turn TIME/WEIGHT knob to set 8 o’clock.

3. Press CLOCK pad to confirm. 4. Turn TIME/WEIGHT knob to set 30 minutes 5. Press CLOCK pad to confirm .

NOTE: During cooking you can check the current time by touching CLOCK. QUICK START Use this feature to program the oven to microwave food at 100% power conveniently. In standby mode, press TIME/WEIGHT in quick succession to set the cooking time, the oven will start automatically at full power. The longest cooking time is 10 minutes.

MICROWAVE COOKING 1. In standby mode, press POWER pad repeatedly to select power level.

2. Turn TIME/WEIGHT knob to enter cook time. The longest time you can

enter is 95 minutes.

3. Press TIME/WEIGHT knob to confirm.

Select power level by pressing the POWER pad: Press power pad

Cooking Power (Display) Press power pad Cooking Power (Display) once 100% (100%) 7 times 40% (40%) twice 90% (90%) 8 times 30% (30%) 3 times 80% (80%) 9 times 20% (20%) 4 times 70% (70%) 10 times 10% (10%)13 5times 60% (60%)

0% (00%) 6 times 50% (50%) NOTE: During cooking you can check the current cooking power level by pressing POWER pad. PRESET You can put food in the oven, and program the oven to start up in a later time within the oven's clock cycle.

1. Input the cooking program.(Except express cook and weight defrost).

4. Press PRESET pad to confirm.

5. Turn TIME/WEIGHT to enter the minute digits.

6. Press PRESET pad to confirm.

Note: You can check the preset time during cooking by pressing PRESET pad once. Time countdown can be seen in display for 3 seconds, and then press STOP/CANCEL pad within 3seconds to cancel the program. When it reaches the preset time, beeps can be heard to signal the preset cooking program begins. AUTO DEFROST The defrosting time and power level are adjusted automatically once the weight is programmed. The range weight of frozen food varies between 100g and 1800g.

Turn TIME/WEIGHT knob to select food weight.

Press TIME/WEIGHT knob to confirm. Note: During defrosting program, the system will pause and remind user to turn food over, and then turn TIME/WEIGHT knob to resume. CHILD LOCK The lock prevents un supervised operation by children. To set: Press and hold the STOP/CANCEL pad for 3seconds,a beep sounds and lock indicator lights.In the lock state,press other pads are invalid. To cancel:Press STOP/CANCELpad for 3seconds,then a beep will sound,LOCK indicator disappears.14 AUTO COOK For food or the following cooking mode, it is not necessary to program the duration and the cooking power. It is sufficient to indicate the type of food that you want to cook as well as the weight of this food.

1. In standby mode, press AUTO COOK pad repeatedly to select menu code.(from

2. Turn TIME/WEIGHT knob to select the weight or amount of food.

The result of auto cooking depends on factors such as fluctuation of voltage, the shape and size of food, your personal preference as to the doneness of certain foods and even how well you happen to place food in the oven. If you find the result at any rate not quite satisfactory, please adjust the cooking a little bit accordingly. A01 Tea/ Coffee(200ml/cup) A02 Popcorn(99g) A03 Pizza(g) A04 Potato (shares) A05 Fish(g) A06 Reheat(g)15

1. Turn off the oven and unplug the power cord from the wall when cleaning.

2. Keep the inside of the oven clean. When food splatters or spilled liquids

adhere to oven walls, wipe with a damp cloth. Mild detergents may be used if the oven gets very dirty. Avoid using spray or other harsh cleaners. They may stain, streak or dull the door surface.

3. The outside of the oven should be cleaned with a damp cloth. To prevent

damage to the operating parts inside the oven, water should not be allowed to seep into the ventilation openings.

4. Wipe the door and window on both sides, the door seals and adjacent

parts frequently with a damp cloth to remove any spills or spatters. Do not use abrasive cleaner.

5. A steam cleaner is not be used.

6. Do not allow the control panel to become wet. Clean with a soft, damp

cloth. When cleaning the control panel, leave oven door open to prevent oven from accidentally turning on.

7. If steam accumulates inside or around the outside of the oven door, wipe

with a soft cloth. This may occur when the microwave oven is operated under high humidity condition. And it is normal.

8. It is occasionally necessary to remove the glass tray for cleaning. Wash

the tray in warm sudsy water or in a dishwasher.

9. The roller ring and oven floor should be cleaned regularly to avoid

excessive noise. Simply wipe the bottom surface of the oven with mild detergent. The roller ring may be washed in mild, soapy water or in a dishwasher. When removing the roller ring, be sure to replace it in the proper position.

10. Remove odors from your oven by combining a cup of water with the

juice and skin of one lemon in a microwaveable bowl. Microwave for 5 minutes. Wipe thoroughly and dry with a soft cloth.

11. If the light bulb burns out, please contact customer service to have it

12. Please do not dispose of this appliance into the domestic rubbish bin; it

should be disposed to the particular disposal center provided by the municipalities.16 Environmentally friendly waste Electrical and electronic equipment is subject to selective collection. Do not dispose of waste electrical and electronic equipment with unsorted municipal refuse, but proceed to their selective collection.
