USER MANUAL CERFR3IN2 CONTINENTAL EDISON

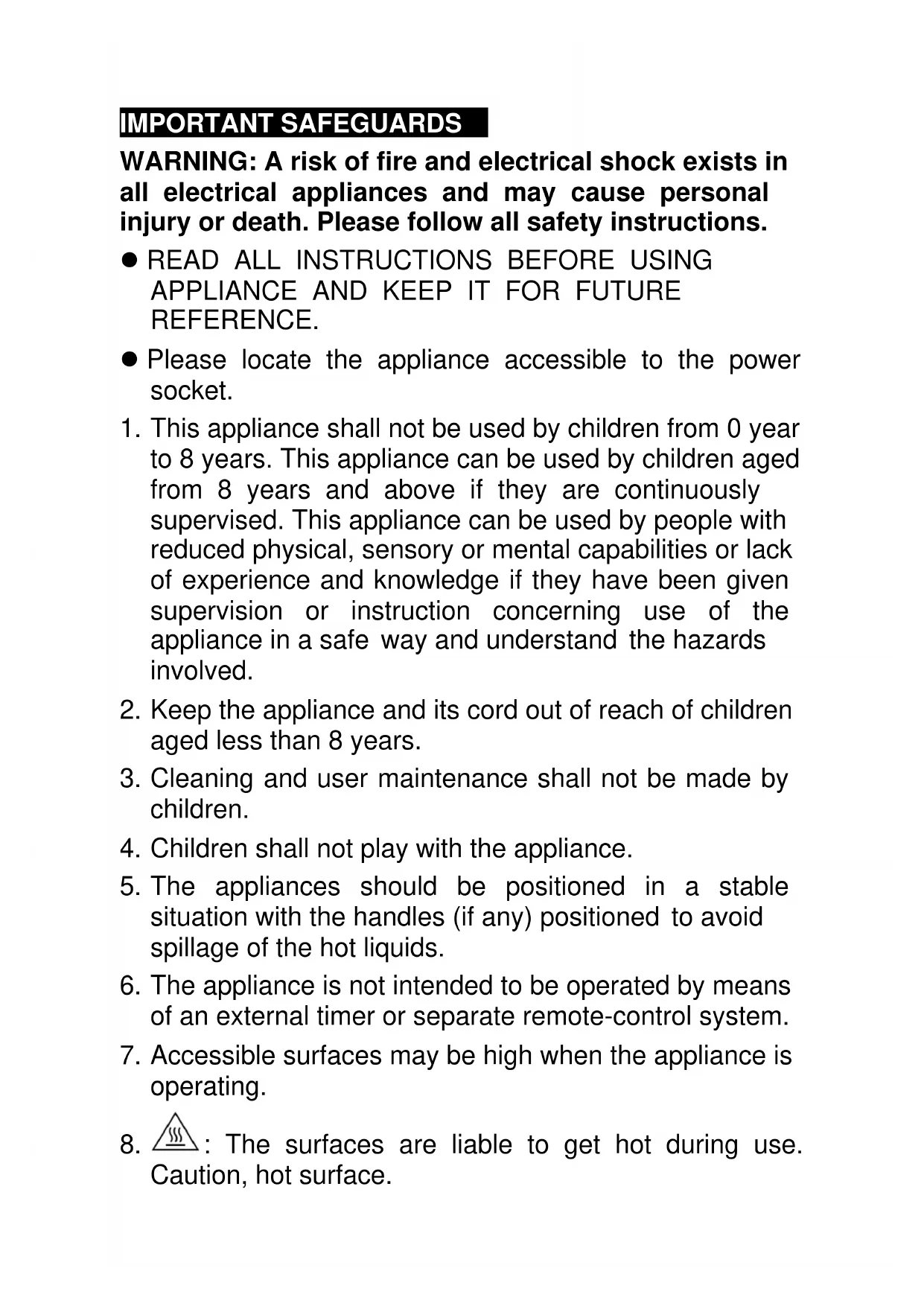

WARNING: A risk of fire and electrical shock exists in

all electrical appliances and may cause personal injury or death. Please follow all safety instructions.

⚫ READ ALL INSTRUCTIONS BEFORE USING

APPLIANCE AND KEEP IT FOR FUTURE

REFERENCE. ⚫ Please locate the appliance accessible to the power socket.

1. This appliance shall not be used by children from 0 year

to 8 years. This appliance can be used by children aged from 8 years and above if they are continuously supervised. This appliance can be used by people with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

2. Keep the appliance and its cord out of reach of children

aged less than 8 years.

3. Cleaning and user maintenance shall not be made by

4. Children shall not play with the appliance.

5. The appliances should be positioned in a stable

situation with the handles (if any) positioned to avoid spillage of the hot liquids.

6. The appliance is not intended to be operated by means

of an external timer or separate remote-control system.

7. Accessible surfaces may be high when the appliance is

8. : The surfaces are liable to get hot during use.

Caution, hot surface.9. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

10. The appliance must not be immersed.

11. The appliance is for household use only. Do not use

12. Use the appliance according to this instruction, any

misuse may cause electric shock or other hazards.

13. This appliance is intended to be used in household

and similar applications such as: – staff kitchen areas in shops, offices and other working environments; – farm houses; – by clients in hotels, motels and other residential type environments; – bed and breakfast type environments.

14. About how to clean surfaces in contact with food,

please refer to the section “CLEANING AND

⚫ Before connecting the appliance to the mains supply, please check if the voltage indicated on the appliance corresponds with the main voltage in your home. ⚫ Do not place the appliance on a hot surface. ⚫ Place the appliance on a stable flat surface. ⚫ Do not operate the appliance if damaged, after an appliance malfunctions or it has been damaged in any manner, return to the customer service department for repair. ⚫ Do not allow the main cord to come into contact with the hot surface. ⚫ Ensure that the mains lead does not overhang the worktop surface. ⚫ Use the appliance out of children reach. Prevent them from pulling the main cord or knocking the appliance over. ⚫ Close supervision is necessary when the appliance is near children. Keep the appliance away from children. ⚫ Make sure that the power switch is off before plug in. ⚫ Care must be taken not to touch any hot surfaces, do not store or cover the appliance until it has fully cooled down. ⚫ Before cleaning the appliance disconnect it from the power supply and wait until it was cooled down. ⚫ Never immerse the appliance or power cord into water or any other liquid. Do not allow liquid to penetrate the electrical parts of the appliance. ⚫ The appliance is only intended for the purpose described in user manual. Do not use appliance or anypart of the appliance out of the intended use to avoid risk. ⚫ The use of attachments which are not recommended or sold by the appliance manufacturer may cause a risk of injury to persons. ⚫ Before you use the deep fryer, it must be filled with the required amount of oil or fat. ⚫ Never use the deep fryer without oil or fat because this could damage the unit. ⚫ Never move the deep fryer during use. The oil becomes very hot and you can get burned. Wait to move the deep fryer until the oil has cooled down. ⚫ This deep fryer is protected with a thermal safety device, which switches the machine off automatically if it overheats. ⚫ Do not put oversized food into the deep fryer. ⚫ Hot steam is released during frying. Keep a safe distance away from the steam to avoid burns and other injuries. ⚫ After setting the thermostat to the lowest setting (turn the thermostat fully anticlockwise). Disconnect the mains plug and allow the oil or fat to cool down. Do not move the deep fryer until it and its contents have cooled down. ⚫ Do not place the appliance near a gas stove or electric burner or in a heated oven. ⚫ Never overheat the oil/fat otherwise it catches fire. Never use water to extinguish a cooking oil fire. ⚫ Never leave the deep fryer unattended while in use. Always ensure the safety of children if they are near the deep fryer. ⚫ Be sure not to damage the heating element. (Do notbend or dent.) ⚫ The electrical component is equipped with a safety switch, which ensures that the heating element can only function when the element is correctly placed on the fryer. ⚫ In the case of overheating, the thermal protective device will switch off the fryer automatically. This device can be reactivated again by pushing the button with a pointed object (e.g. a ball pen) through a hole on the back of cord storage compartment, signed with a word of “Restart”. Before reactivation, disconnect it from mains and wait a whole for system cooling down. ⚫ CAUTION: In order to avoid a hazard due to inadvertent resetting of the thermal cutout, this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off.DESCRIPTIONBEFORE FIRST USE

- Before first use, please check carefully if all the parts of the appliance are in good condition. If not, please contact the supplier or manufacturer. - Remove the packing materials, tear down the protection films on the lid, outer case. - Then, wash the accessories and the inner pan in warm water. Dry well before use. Make sure that the electrical parts remain dry. - Wipe the inside of the bowl with a damp cloth and make sure it is completely dry before you fill the fryer with oil or fat. - This fryer is equipped with a safety micro-switch at the control box. This is to ensure the control box is fixed to the outer metal case in correct position before the unit can be started to use. Fix the control box to the slot on the side of the outer metal case. Ensure the safety micro-switch is pressed by the trigger on the outer metal case. The unit cannot be operated until the control box is fixed to the outer case correctly. If it is not working, remove the control box and fix it again until the micro-switch has been pressed by the trigger.

Miro-switch Ensure the Miro-switch is activatedSAFETY CUT-OUT

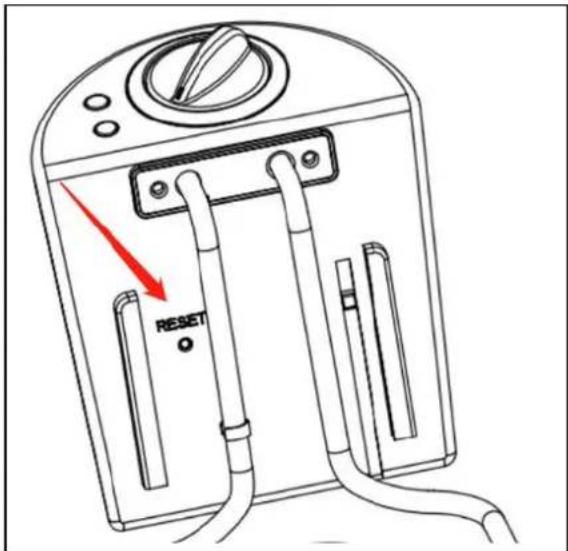

This fryer is equipped with a safety cut-out to protect the appliance from overheating such as not enough oil or fat. In the case of overheating, the thermal cut-out protective device will switch off the fryer automatically. This device can be reactivated again by pushing the button with a pointed object (e.g. a ball pen) through a hole on the back of cord storage compartment, signed with a word of “RESET”. Before reactivation, disconnect it from mains and wait a whole for system cooling down.

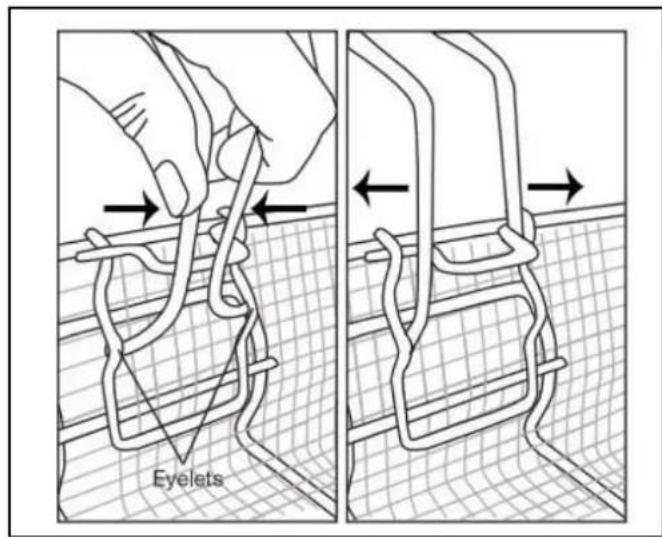

1. Attach the basket handle to the basket by squeezing the two

handle wires together and inserting the ends through the two eyelets in the basket.

2. Rotate the handle backwards until it locks securely in the place.

Ensure the handle is securely connected to the basket before operating your fryer.USING THE APPLIANCE

This type of fryer may only be used with oil or liquid fat, and it is not suitable for use with solid fat. Solid fat may contain water, which can cause hot fat to be sprayed out when heated.

1. Place the deep fryer on a dry, stable surface.

2. Since the deep fryer becomes hot during use, make sure that it is

not too close to other objects.

3. Remove the lid from the deep fryer and take out the accessories.

4. Fill the deep fryer with the desired amount of oil or fat. Make sure

the oil level is between the "MAX" and "MIN" as indicated on the inside of the appliance. For best results, we recommend that you do not mix different kinds of oil together.

5. Set the temperature knob to the required temperature, which is

suitable for what you are frying. The deep fryer will heat up with the indicator light turns on.

6. Use the handle to place the basket in the deep fryer.

7. Place the food to be deep fired into the basket. For best results,

put dry food into the basket.

8. Lower the basket into the oil slowly to prevent excessive bubbling.

The deep fryer can be used with / without the lid.

9. The indicator light will go out when the temperature you have

selected has been reached. During the frying cycle, the indicator light will go on and off in cycle, and this is a normal situation as the appliance is equipped with a temperature regulator.

10. Raise the basket again when the frying time has elapsed.

11. Turn the thermostat fully anticlockwise to switch off the appliance

and remove the plug from the outlet.

12. Once the deep fryer and oil have completely cooled down, you

can replace the basket in the appliance and store it. Store the deep fryer, with the lid close, in a dark, dry place. In this way, you can leave the oil and the basket in the deep fryer when storing.FRYING TIPS

1. Use up to 600 grams of fresh fries. When using frozen fries, be

very careful when you lower the basket into the oil. Also follow the instructions on the packaging of frozen fries.

2. When using fries made from fresh potatoes: dry the fries after

washing so that no water will go into the oil.

3. Deep fry the fries in 2 stages:

- First stage (pre-frying): 5 to 10 minutes at 170 degrees ℃ - Second stage (final frying): 2 to 4 minutes at 190 degrees℃. Drain well.

FRYING TABLE Type of food Frying temperature (

⚫ Always remove the main plug from the socket before cleaning the appliance. ⚫ Never immerse the control box into water or any other liquid. ⚫ Do not flush the appliance directly by water or immerse it in the water. ⚫ Clean the deep fryer on both the inside and outside regularly. ⚫ Clean the outside of the deep fryer with a soft cloth moisten with mild soap, and then use a dry cloth to wipe it again. ⚫ Never use abrasive cleaners or sponges. ⚫ The basket and the handle can be cleaned in warm, soapy water. Dry well before using again. ⚫ When replacing the oil you can also clean the inside of the deep fryer. Empty the deep fryer and first clean the inside with a paper towel and then with a cloth dipped in soapy water. Then wipe with a damp cloth and allow to dry thoroughly. ⚫ All components, except for the control box, may be cleaned in warm soapy water. Dry thoroughly before use. ⚫ Ensure the fryer is completely cool down before storing.

Item reference: CERFR3IN2 Model: MFS330S1 Voltage/Frequency: 230V~ 50-60Hz Wattage: 2000W Instruction manual version: V1CORRECT DISPOSAL OF THIS PRODUCT This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.
