Product Type	Oil-free Fryer
Brand	Continental Edison
Model	CEFRSH1400B
Capacity	4.5 L
Temperature Range	50 °C to 200 °C
Timer	Adjustable up to 60 minutes
Preset Programs	10 (fries, meat, chicken thighs, steak, cake, shrimp, fish, chicken, vegetables, preheat)
Coating	Non-stick on basket and interior
Safety	Automatic shut-off at end of cooking, ventilated cooling
Cleaning	Basket and tray hand washable with non-abrasive sponge
Included Accessories	Cooking basket and cooking tray
Use	Household use only
Power Supply	220-240 V ~ 50/60 Hz
Dimensions (approx.)	30 x 30 x 35 cm (estimate)

Frequently Asked Questions - CEFRSH1400B CONTINENTAL EDISON

Why is my fryer not working?

Check that the appliance is plugged into a grounded wall outlet and that the timer is set. If the problem persists, the appliance may be damaged; contact customer service.

How to clean the cooking basket?

Clean the basket and tray with hot water, some liquid soap, and a non-abrasive sponge to preserve the non-stick coating. You can let them soak for 10 minutes if residue is stuck.

Can I use oil in the fryer?

No, never fill the cooking basket with oil or any other liquid. However, you can add half a tablespoon of oil to the food (e.g., potatoes) for extra crispiness.

How to make crispy homemade fries?

Peel and cut potatoes into sticks, soak in cold water for 30 minutes, dry well, then mix with a spoonful of oil. Cook at 180°C for 18-25 minutes, shaking halfway through.

Why is white smoke coming out of the appliance?

This may be due to greasy residue in the basket from a previous use or cooking very fatty foods. Clean the basket well after each use and reduce the temperature to 180°C for fatty foods.

Food is not cooked evenly, what should I do?

Shake the basket halfway through for overlapping foods (fries, nuggets). Do not overload the basket: smaller quantities cook more evenly.

Can I reheat food in the fryer?

Yes, set the temperature to 150°C and the timer to about 10 minutes. This allows reheating ingredients without cooking them further.

How to preheat the appliance?

Select the Preheat function (default duration 3 min, temperature 180°C) and press the start button. The appliance heats up then goes into standby mode at the end.

The basket does not slide correctly into the appliance, why?

There are probably too many foods in the basket. Do not exceed the quantities indicated in the settings table to avoid blocking the mechanism.

What is the maximum amount of food to cook?

Recommended quantities vary by food; for example, for frozen fries, 300 to 400 g maximum. Never fill the basket beyond the indicated capacity.

USER MANUAL CEFRSH1400B CONTINENTAL EDISON

Abstract geometric shapes with no text or symbols

Continental Edison

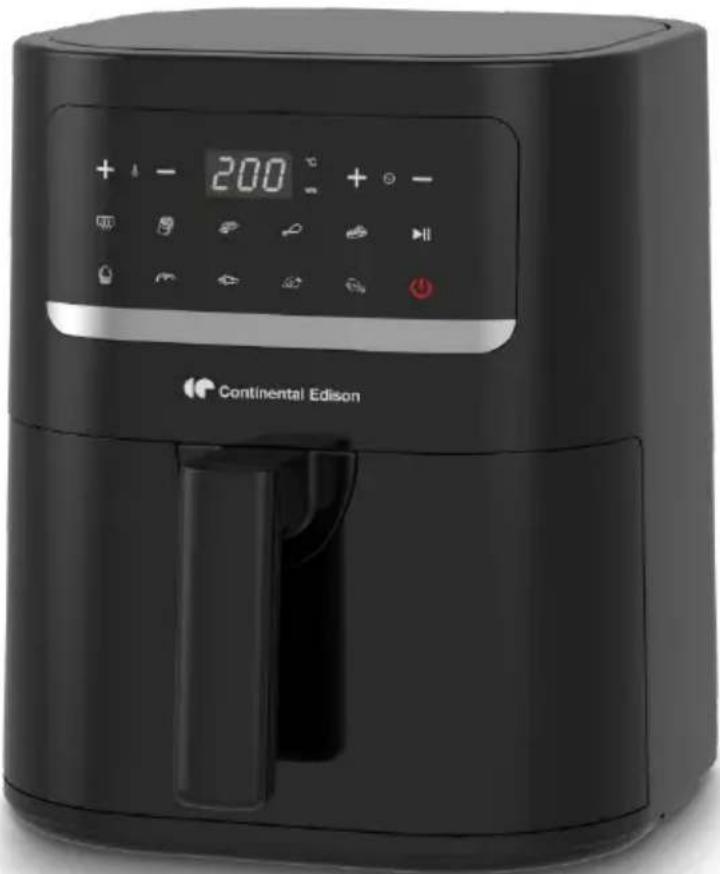

Black Continental Edison air fryer with digital display and control buttons (no visible text or symbols on device body)

CEFRSH1400B

MISE AU REBUT CORRECTE DE CE PRODUIT

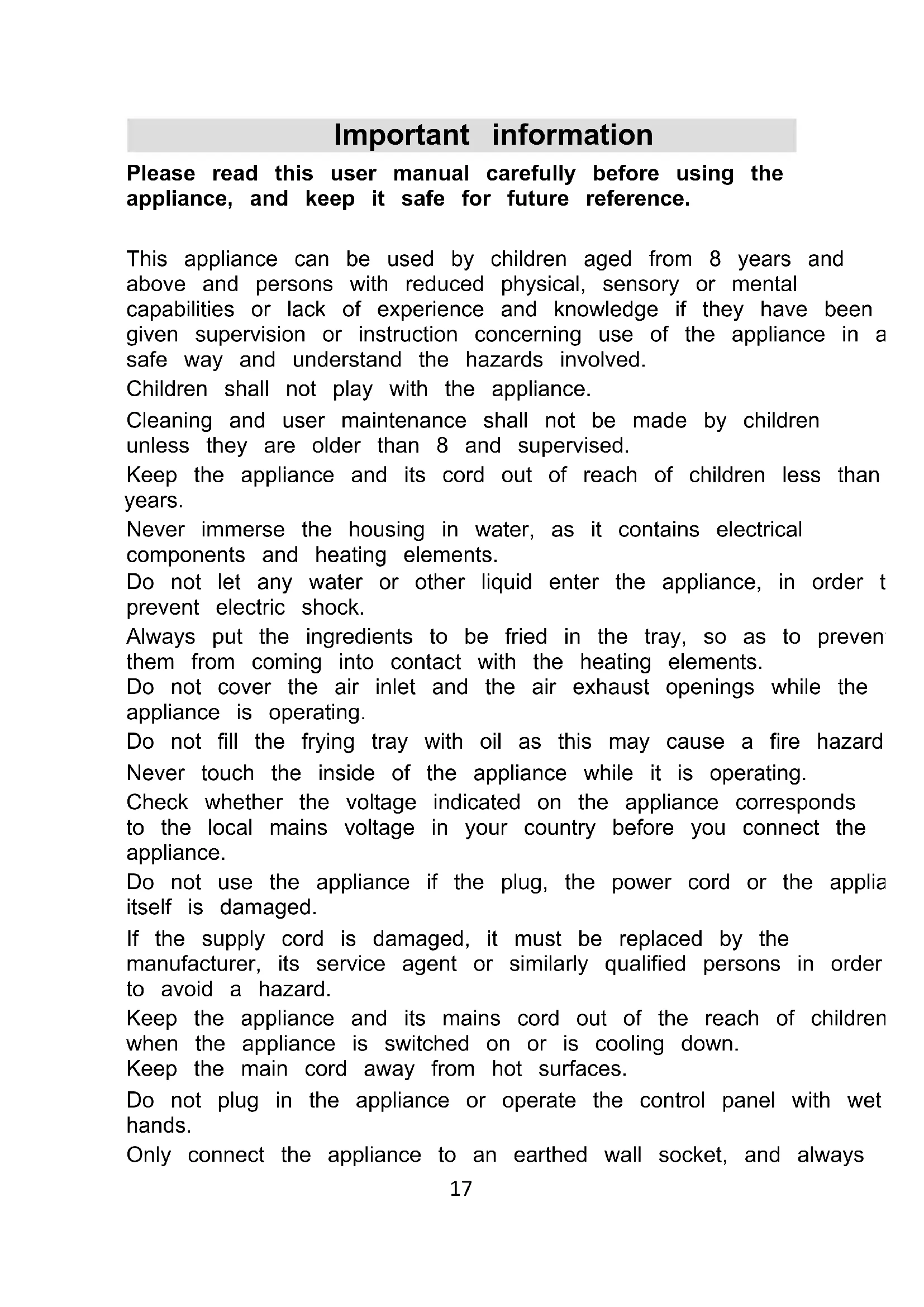

Please read this user manual carefully before using the appliance, and keep it safe for future reference.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

Children shall not play with the appliance.

Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.

Keep the appliance and its cord out of reach of children less than years.

Never immerse the housing in water, as it contains electrical components and heating elements.

Do not let any water or other liquid enter the appliance, in order to prevent electric shock.

Always put the ingredients to be fried in the tray, so as to prevent them from coming into contact with the heating elements.

Do not cover the air inlet and the air exhaust openings while the appliance is operating.

Do not fill the frying tray with oil as this may cause a fire hazard. Never touch the inside of the appliance while it is operating.

Check whether the voltage indicated on the appliance corresponds to the local mains voltage in your country before you connect the appliance.

Do not use the appliance if the plug, the power cord or the appliance itself is damaged.

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

Keep the appliance and its mains cord out of the reach of children when the appliance is switched on or is cooling down.

Keep the main cord away from hot surfaces.

Do not plug in the appliance or operate the control panel with wet hands.

Only connect the appliance to an earthed wall socket, and always

make sure that the plug is inserted into the wall socket properly.

The appliance is not intended to be operated by means of an external timer or separate remote-control system.

Do not place the appliance on or near combustible materials such as a tablecloth or curtains.

Do not place the appliance against a wall or against other appliances.

Leave at least 10cm of free space at the back and sides and 10c of free space above the appliance.

Do not place anything on top of the appliance.

Do not use the appliance for any purpose other than what is described in this manual.

Do not leave the appliance unattended while in operation.

During hot air frying, hot steam is released through the air exhaust openings. Therefore keep your hands and face at a safe distance from the steam and the air exhaust openings.

Be careful of hot steam and hot air when you remove the frying t from the appliance.

The surface below the appliance may become hot during use.

Unplug the appliance immediately if you see dark smoke coming out of the appliance. Wait for the smoke emission to stop before you remove the frying tray from the appliance.

This appliance is intended to be used in households only.

For details on how to clean surfaces in contact with food, please refer to the “Cleaning” section of this manual.

Caution

- Place the appliance on a horizontal and stable surface.

- Always unplug the appliance after use.

- Let the appliance cool down for about 30 minutes before handling or cleaning it.

- Remove any burnt remains of food.

- If the appliance is used improperly or if it is not used according the instructions in the user manual, the warranty will become invalid and seller will not be held liable for any damage that may caused.

Before using your air fryer for the first time

1. Remove all packaging.
2. Remove any stickers or labels from the appliance, other than the rating label.
3. Thoroughly clean the frying tray with hot water and sor liquid washing soap using a non-abrasive sponge.
4. Wipe the inside and outside of the appliance with a da cloth.

Preparing for use

1. Place the appliance on a stable, horizontal, and heat-resistant surface.
2. Place the crisper rack correctly in the frying tray.
   Do not fill the frying tray with oil or any other liquid.
   Do not put anything on top of the appliance. This may disrupt the airflow and affect the air-frying result.

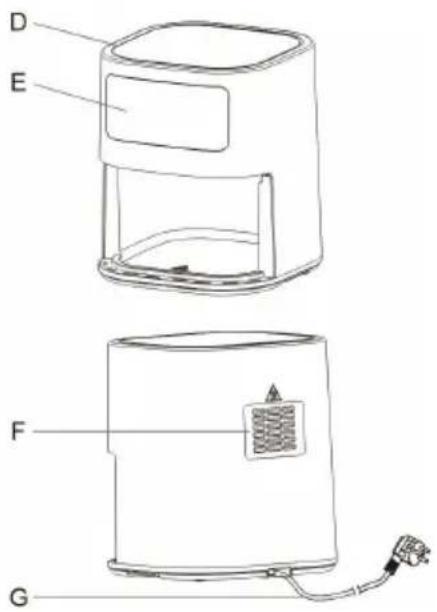

General description

A: Rack
B: The tray
C: Basket handle
D: Air inlet
E: Control panelc
F: Vent windows
G: Power cord

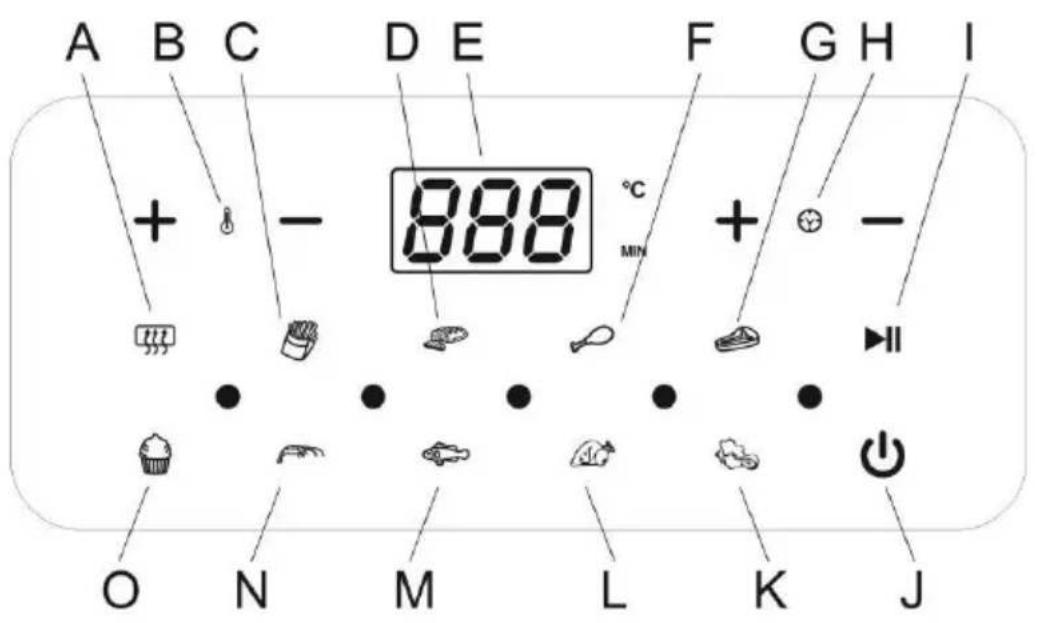

A: Pre-heat B: Temperature plus/minus
C: French fries D: Meat E: Time/Temperature
F: Drumsticks G: Steak H: Time plus/minus
I: PAUSE J: START K: Vegetables L: Chicken
M: Fish N: Shrimp O: Cake

Using the appliance

1. Power on

Plug in the appliance. A BEEP will sound and the display will light up. After one second the appliance will return to standby mode. All lights will be off except.

2. Menu selection/Temperature/Time

Plug in the appliance. When the appliance returns to standby mode. press, default temperature and default time of the Program are 180°C, 15 min respectively. You can adjust the time and temperature freely by pressing the Time +/- and Temperature +/- buttons. You can also press any function icon to cook different food. Then press, and the appliance will then start the operation.

Every function has its own default time and temperature, as shown in the table. You may adjust the time and temperature freely by using the Time +/- and Temperature +/- buttons.

(1) The temperature control range is 50-200°C. Every click on the +/- temperature button will increase or decrease by 10°C. At 200°C, pressing the “+” button will loop the temperature back to 50°C, At 50°C, pressing the “-” button will cycle the temperature back to 200°C. While the temperature is being set, the temperature digital display will flash on the screen (it will not flash during operation). After flashing three times, the temperature is set.

(2) The time range is 1 to 60 minutes. Each press of / - buttons will increase or decrease the time by minute. At 60 minutes, if you press the "+" button time will cycle back to 1 min. At 01 min, if you the temperature will cycle back to 60 min. When the

timer is being set, the time digital display will flash on the screen (it will not flash during operation). After flashing three times, the time is set.

3. Start, pause/stop

After selecting the function, and setting the right time temperature, press ||, the symbol will start to flash. After a BEEP sounds, the machine will start operating. While the machine is in operation, the symbol is displayed. After ten BEEP sounds, the machine will stop working, press ||, and the symbol will stop flashing.

When the machine is in operation, press . After a BEI sound, the machine will stop and return to standby mo

Note:

(1). During operation, you can stop the machine to take frying tray outcheck the cooking result or add more food. The machine will continue to work according to the set program if you reinsert the frying tray.

4. End of program

The heating element will stop working when the operati time is complete and when 00 min is displayed. The will still run for 1 minute to cool down, and a warni buzzer will sound during this cooling period. After coolin complete, the machine will enter standby mode.

Menu table

program logistics
	menu	Default time(min)	Default temperature (°C)
Function	Pre-heat	3	180
	French fries	18	200
	Meat	12	200
	Drumsticks	20	200
	Steak	12	180
	Cake	25	160
	Shrimp	8	180
	Fish	10	180
	Chicken	30	200
	Vegetables	10	160

Caution: Do not touch the pan during and about 30 mins after use, as it gets very hot.

Only hold the pan by the handle.

Operation steps

1. Put the mains plug in an earthed wall socket.
2. Put the ingredients into the frying tray.
3. Put the frying tray in the right position. Choose a funct from the menu and press to start cooking.
4. Screen display

The screen display will show the temperature and time. The temperature is the set temperature and time is the remaining operating time.

The function selected will flash.

1. Some ingredients require shaking halfway through the preparation time (see the 'Settings' section in this chapter). To shake the ingredients, you can pull the frying tray out the appliance by the handle and shake it. You can then slide the frying tray back into the air fryer.
2. When the timer bell sounds, the set preparation time has elapsed. You can now pull the pan out of the appliance a place it on a heat-resistant surface.
3. Check whether the ingredients are ready.

If the ingredients are not ready, you can simply slide the frying tray back into the appliance and continue cooking.

1. Check whether the ingredients are ready.

If the ingredients are not ready yet, you can simply slide frying tray back into the appliance and cook it extra minute

1. Empty the tray into a bowl or onto a plate.

Tip: To remove large or fragile ingredients, you can use a pair of tongs to lift the ingredients out of the tray.

1. When a batch of ingredients is ready, the air fryer is instantly ready to prepare another batch.

Note: When you use the Air Fryer for the first time, the appliance may emit a small amount of smoke or an odor. This is normal and will soon disappear. It is essential to ensure that there is sufficient ventilation around the Air Fryer.

Settings

In addition to the preset menu, you also can use this air fryer to make other food by setting the time and temperature. This table below helps you to select the basic settings for the ingredients you want to prepare.

Note: Keep in mind that these settings are for reference only. As ingredients differ in origin, size, shape and brand, we cannot guarantee the best setting for your ingredients. Because the Rapid Air Technology instantly reheats the air inside the appliance, pulling the frying tray briefly out of the appliance during hot air frying will barely affect the cooking process.

Because the Rapid Air Technology instantly reheats the air inside the appliance, pulling the frying tray briefly out of the appliance during hot air frying barely disturbs process.

Air Fry Cooking Chart

Time(minutes)

Temperature(°C)

Action

Additionalinformation

Potatoes

Frozen fries (300 to 400g)	12-16	200	Shake the basket when halftime of cooking
Fresh fries (8x8mm) (200 to 300g)	18-25	180	Shake the basket when halftime of cooking	Add 1/2 tablespoon of oil
Fresh potatoes in quarters (200 to 300g)	18-22	180	Shake the basket when halftime of cooking	Add 1/2 tablespoon of oil
Fresh cubed potatoes (200 to 300g)	12-18	200	Shake the basket when halftime of cooking	Add 1/2 tablespoon of oil
Rosti (300 to 400g)	15-18	180
Potato gratin (300 to 400g)	18-22	180

Meat and poultry

Steak (300 to 40g)	8-22	180
Pork (300 to 400g)	10-14	180
Beef burger (300 to 400g)	7-14	180
Chicken drumsticks (200 to 300g)	18-22	180
Chicken breast (300 to 400g)	10-15	180

Quick Meal

Spring rolls (300 400g)	8-10	200	Shake the basket when halftime of cooking
Frozen chicken nuggets (300 to 400g)	6-10	200	Shake the basket when halftime of cooking
Frozen fish sticks (300 to 400g)	6-10	200
Stuffed vegetables (300 to 400g)	10	160

Tips:

- Smaller ingredients usually require a slightly shorter preparation time than larger ingredients.

- A larger amount of ingredients only requires a slightly longer preparation time, a smaller amount of ingredients only requires a slightly shorter preparation time.

- Shaking smaller ingredients halfway through the preparation time optimized the end result and can help prevent unevenly fried ingredients.

- You can coat fresh potatoes with a little oil for a crispy result. Fry your ingredients in the air fryer within a few minutes after you have added the oil.

- Do not prepare extremely greasy ingredients such as sausages in the air fryer.

- Snacks that can be prepared in an oven can also be prepared in the air fryer.

- The optimal amount for preparing crispy fries is 500 gram

- Use pre-made dough to prepare filled snacks quickly and

easily. Pre-made dough also requires a shorter preparation time than home-made dough.

- You can also use the air fryer to reheat ingredients by setting the temperature to 150^ C and the timer to about 1 minute.

Making home-made fries

For the best results, we advise using pre-baked fries. If you want to make home-made fries, follow the steps below:

1. Peel the potatoes and cut them into sticks.
2. Soak the potato sticks in a bowl of water for at least minutes, take them out and dry them with kitchen paper.
3. Pour 1/2 tablespoon of olive oil in a bowl, put the stick on top and mix until the sticks
   are coated with oil.
4. Remove the sticks from the bowl with your fingers or a kitchen utensil so that excess oil stays behind in the bowl. Put the sticks in the tray.

Note: Do not tilt the bowl to put all the sticks in the bas one go, to prevent excess oil from collecting at the bottom of the frying tray.

Fry the potato sticks according to the instructions in this chapter.

Cleaning

Clean the appliance after every use.

The frying tray, and the inside of the appliance have a no stick coating. Do not use metal kitchen utensils or abrasive cleaning materials to clean them, as this may damage the non-stick coating.

1. Remove the mains plug from the wall socket and let the appliance cool down.

Note: Remove the frying tray to let the air fryer cool down more quickly.

1. Wipe the outside of the appliance with a damp cloth.

2. Clean the frying tray with hot water, some washing liquid soap and a non-abrasive sponge.

You can use a washing liquid to remove any remaining di

Note: The frying tray is dishwasher-proof.

Tip: If dirt is stuck to the crisper rack or at the bottom of frying tray, you can fill the frying tray with hot water and some washing liquid soap, put the crisper rack in the frying tray, and let the frying tray and the crisper rack soak for approximately 10 minutes.

1. Clean the inside of the appliance with hot water and a non-abrasive sponge.

2. Clean the heating element with a cleaning brush to remove any food residue.

Storage

1. Unplug the appliance and let it cool down.

2. Make sure all parts are clean and dry.

Troubleshooting

Problem	Possible cause	Solution
The air fryer does not work	The appliance is not plugged into the mains.	Put the mains plug in an earthe wall socket.
	You have not set the tir	Turn the timer knob to the requ preparation time to switch on the appliance.
Food not fully cooked	There is too much food the frying tray.	Put smaller batches of food in frying tray. Smaller batches will more evenly.
	The set temperature is t low.	Turn the temperature control kno the required temperature setting (see 'Settings' section).
	The preparation time is short.	Turn the timer knob to the requ preparation time (see 'Settings' section).
The ingredients are fried unevenly in the air fryer.	Certain types of the ingredients need to be shaken halfway through preparation time.	Ingredients that lie on the top d across each other (e.g. fries) ne to be shaken halfway throughout preparation time (see 'Settings' section).
Fried snacks are crispy when they come out of the fryer	You may be cooking a of snack intended for traditional deep fryers.	Use oven snacks or lightly brus some oil onto the snacks for a crispier result.
The pan doesn't slideinto the appliance properly	There is too much food the frying tray.	Do not fill the tray beyond the maximum amount indicated in the table on the previous page.
White smoke is coming out of th appliance	You are preparing greasy ingredients.The pan still contains greasy residue from the previous use.	Note that the temperature is we controlled to be under 180°C wh you fry greasyfood in the air fryWhite smoke is caused by great heating up in the pan. Make su you clean the pan properly after each use.
Fresh potato fr arefried uneven in the air fryer	You may not have soak the potato sticks properly before you fried them.	Soak the potato sticks in a bow water for at least 30 minutes. T them out and dry them with kite paper.
	You did not use the right type of potato.	Use fresh potatoes and make st they stay firm during frying.
Fresh potato fr are not crispy when they com out of the airfr	The crispiness of the frie depends on the amount oil and water in the fries	Make sure you dry the potato s properly before you coat them v
		Cut the potato into thinner sticks a crispier result.
		Add slightly more oil for a crisp result.

Correct Disposal of This Product

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

Continental Edison

120-126 Quai de Bacalan

CS 11584

33000 Bordeaux

IMPORT BY:

A.M.C.

123, QUAI JULES GUESDE

94400 VITRY SUR SEINE

France

Abstract geometric shapes with overlapping semicircles (no text or symbols)

Continental Edison

www.continentaledison.fr CE
