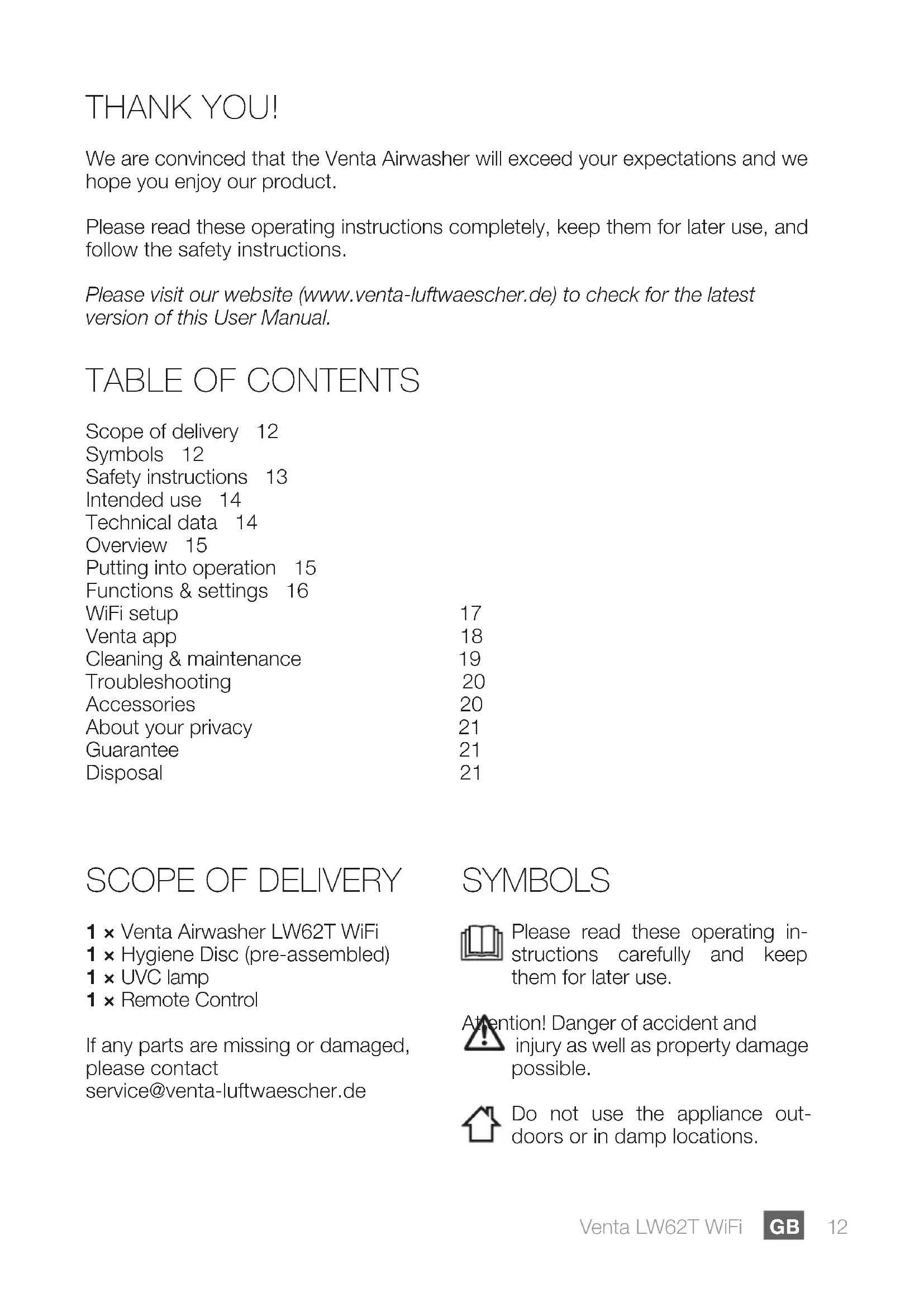

USER MANUAL LW62T Wifi Venta

Scope of delivery 12 Symbols 12 Safety instructions 13 Intended use 14 Technical data 14 Overview 15 Putting into operation 15 Functions & settings 16 WiFi setup 17 Venta app 18 Cleaning & maintenance 19 Troubleshooting 20 Accessories 20 About your privacy 21 Guarantee 21 Disposal 2113 GB ∙ This appliance is not suitable for use by children over the age of 8 years and peo- ple with restricted physical, sensory, or mental capacities or lack of experience and knowledge unless they are super- vised or have received instructions on the use of the appliance and understand the existing hazards. ∙ The appliance is not a toy for children. ∙ Cleaning and user maintenance may not be performed by children under the age of 8 years or without supervision. ∙ Keep the appliance and its power cable out of the reach of children under the age of 8 years. ∙ Improper use can damage the appliance and cause physical injuries. ∙ Read the operating instructions com- pletely before putting the appliance into operation and keep them for later refer- ence. ∙ Plug the appliance into suitable power outlets only – the mains voltage must cor- respond to the nameplate data on the ap- pliance. ∙ Disconnect the power plug before every cleaning or maintenance operation or transportation of the appliance. ∙ Never use the Airwasher if it has a dam- aged power cable. ∙ Spare power cables must conform with the type ‘cold device plug with clover leaf coupling IEC 320 C5’ ∙ Never use the Airwasher if it has been dropped or damaged in any other way. ∙ Electrical appliances should only be re- paired by professional specialists. Ama- teur repairs could result in considerable danger to the user. ∙ Do not sit on the appliance and do not place any objects on it. ∙ Do not put any foreign objects into the appliance. ∙ Do not immerse the appliance in water or any other liquid. ∙ Never disconnect the power plug by pull- ing on the cable or disconnect the power plug from the power supply outlet with wet hands. ∙ The Airwasher should only be operated when it is completely assembled. ∙ Place the Airwasher on a stable surface which is at and dry. ∙ Ensure that the appliance is spaced at least 20 cm away from and 50 cm above any other objects, such as furniture and walls. ∙ Set up the device so that it cannot be knocked over, and so that no one can trip over it or its cable. ∙ Disconnect the power plug from the pow- er supply outlet when the appliance is not in use. ∙ Never cover or block the vents to prevent overheating/damage to the appliance. ∙ Never overll the Airwasher. ∙ Never transport or overbalance the Air- washer with a lled water basin. ∙ Do not look directly at the UVC light. ∙ Do not manipulate the UVC unit in any way. ∙ Never operate the device in case of a de- fective cable or damaged UVC tube. ∙ Do not add fragrance oil to the water. This may impair the function of the Hygiene Disc. ∙ Only use original Venta additives. Venta- Luftwäscher GmbH accepts no liability for damage which may be caused by the use of other additives. SAFETY INSTRUCTIONS14GBVenta LW62T WiFi INTENDED USE The Venta Airwasher is a domestic ap- pliance for moistening and cleansing the air in homes, oces and leisure facilities. The appliance is not suitable for outdoor areas. Any other use or modication of the ap- pliance is considered to be improper use. The manufacturer is not liable for any damage or injuries resulting from improper use. Using the appliance for something other than the intended purpose can endanger health and lives. This includes use under the following conditions: ∙ in rooms or locations where there is risk of explosion and/or where there is an aggressive atmosphere. ∙ in rooms where there is a high con- centration of solvents. ∙ in the vicinity of swimming pools or other wet areas. TECHNICAL DATA Model LW62T WiFi For rooms* up to 250 m² Mains voltage 220-240 V 50 / 60 Hz Speeds 5 Sound level 22/32/42/47/52 dB(A) Dimensions 61 × 30 × 52 cm Weight approx. 13 kg Motor output approx. 6/9/16/25/38 W max. 46 W Water capacity Total 12 L / Water tank 8 L + water basin 4 L WLAN frequency range 2,4 GHz WLAN transmission power maximum 19 dBm

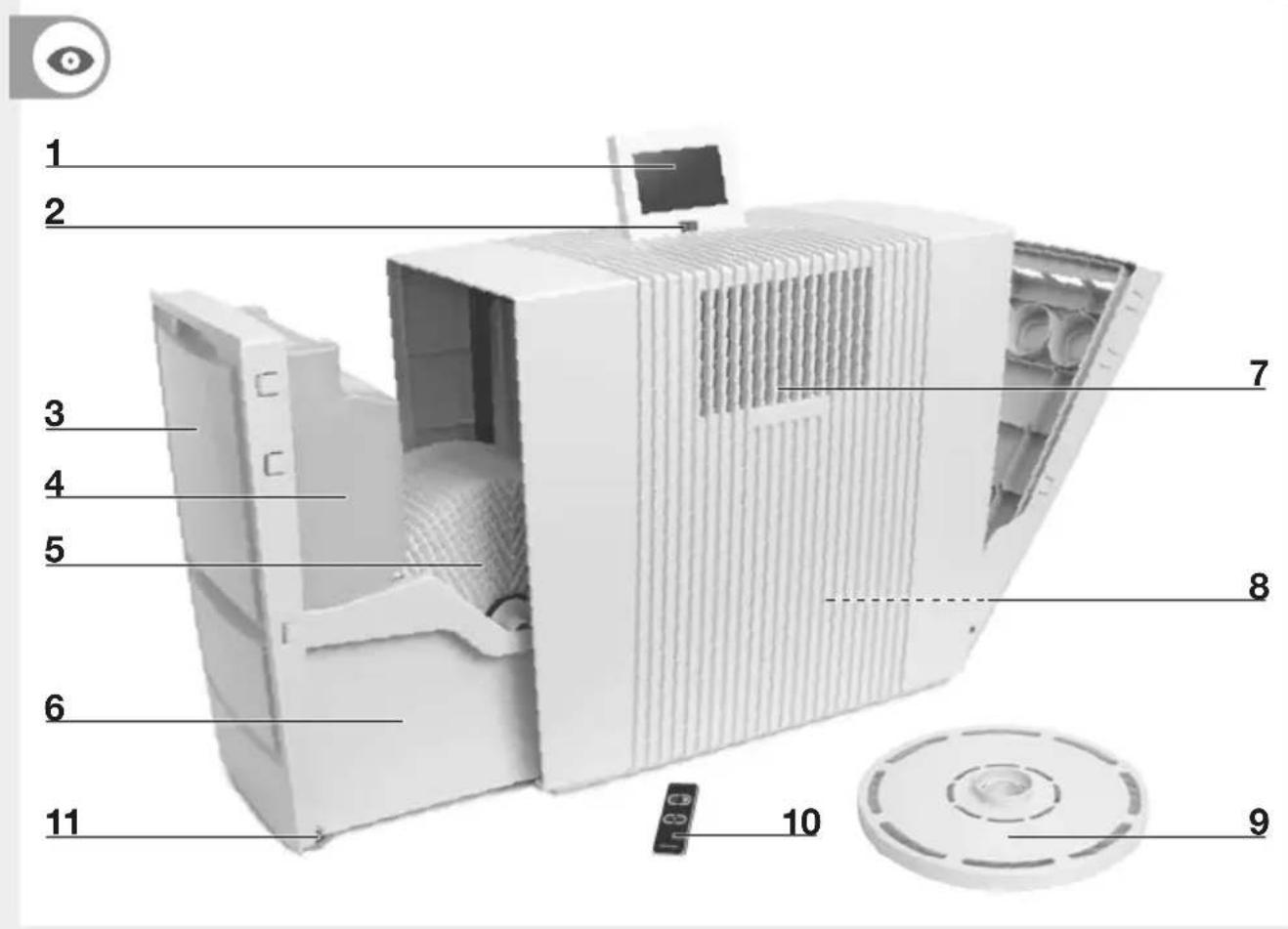

• based on a ceiling height at a max of 2,5 m15 GB 1 Display 2 On/o switch 3 Evaporator compartment 4 Water tank 5 Disc stack 6 Water basin 7 UVC lamp 8 Cable compartment 9 Hygiene Disc (pre-assembled) 10 Remote Control 11 Transportation wheels

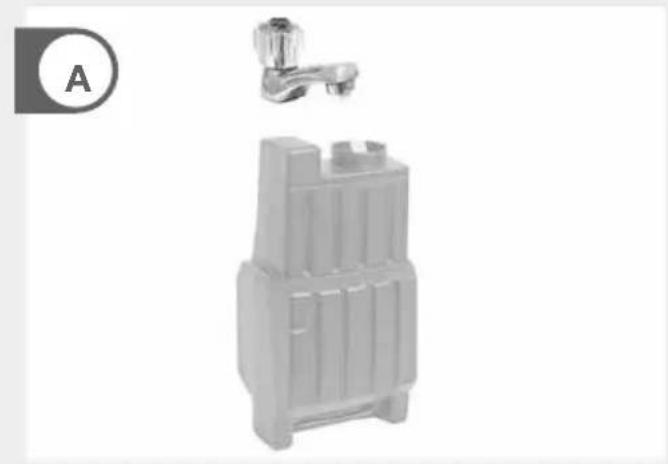

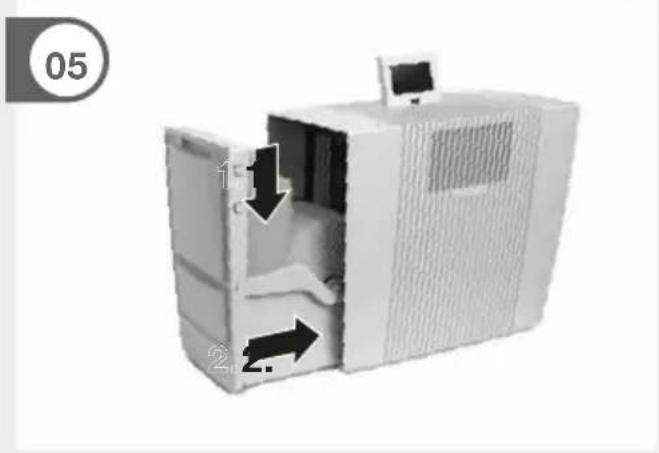

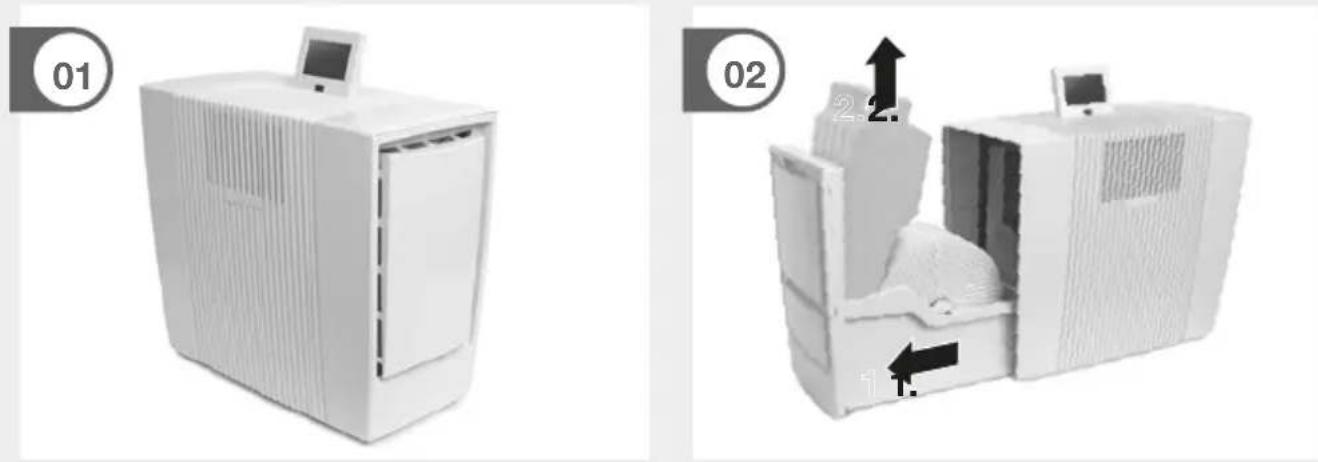

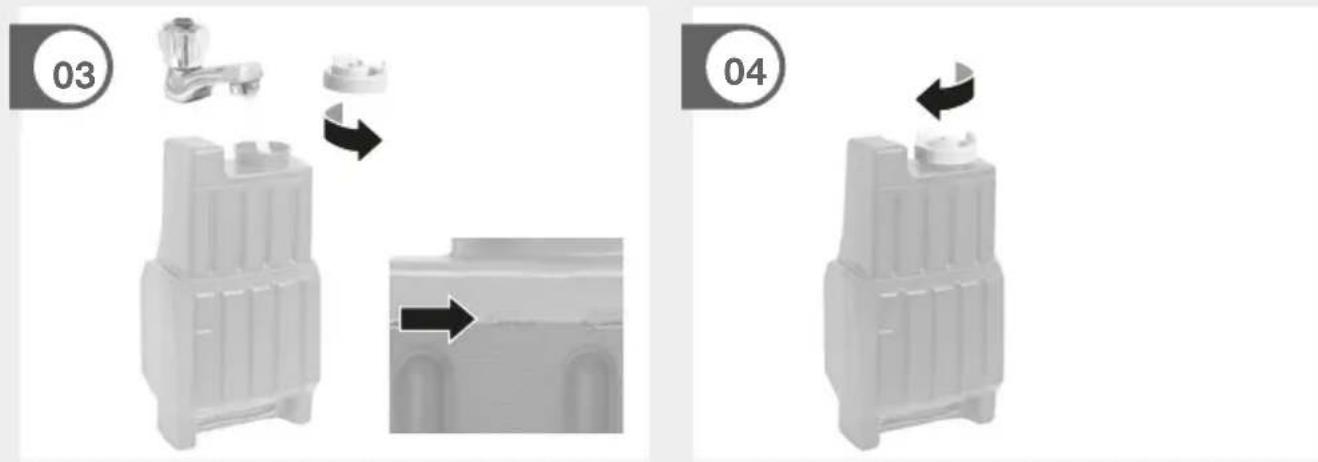

Unpack the appliance and set it up. Lift the appliance slightly on the right sight and move the appliance with the transportation wheels 11 to the desired place. 02 Open the evaporator compartment 3 and remove the water tank 4. 03 Open the water tank 4 and ll up to the MAX marker with water. 04 Close the water tank 4 securely. 05 Insert the water tank 4 into the water basin 6 and close the evaporator compartment 3. 06 The display 1 can be adjusted to three positions.

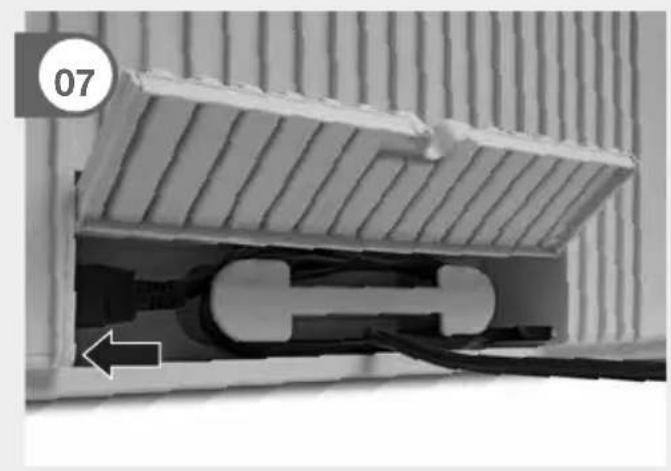

The power cable can be adjusted to the desired length by winding it up in the cable compartment 8. Attention! Make sure that the appliance is switched o and the power plug is disconnected. Attention! The coupling of the mains cable must be plugged rmly into the device! Please remove the protective foil for battery and remote control. Connect the power plug and switch on the appliance at the on/o switch 2 or with the remote control 10. ATTENTION! It may take about a minute for the device to start and for the “Fill Tank” indicator in red or yellow to be ex- tinguished. A gurgling sound may be heard, but this does not represent a quality defect. Description of UVC lamp The air washer features a built-in UVC lamp 7. The UVC lamp is designed for a hygienically awless operation of the air washer and prevents the formation of germs and bacteria in the water. It is active for 4 hours a day. Set fan stage ON/OFF16GBVenta LW62T WiFi Function Setting 1 Air humidity Display air humidity. 2 Speed Fan stage 1 (weak) – 5 (strong). 3 Humidity 30 - 70 % (in 5 % increments) If the specied humi- dity is reached, the disc stack will not turn. 4 Timer OFF / 1 / 3 / 5 / 7 / 9 h (hours) The appliance shuts o automatically after the pre- set hours have expired. 5 Temperature / Comfort zone Temperature: Hold for 3 sec. to switch back and forth between °C and °F. Comfort zone: If the white dot is moving inside the green circle, the relative humidity and room tempe- rature will be in the „comfort zone“ where one can feel comfortable. 6 Auto OFF Appliance operates with preset fan stage 1 – 5. ON The appliance automatically regulates the fan stages depending on the air humidity in the room.

FUNCTIONS, SETTINGS & DISPLAYS

The preferred setting can be selected or changed by briey touching the respective function.

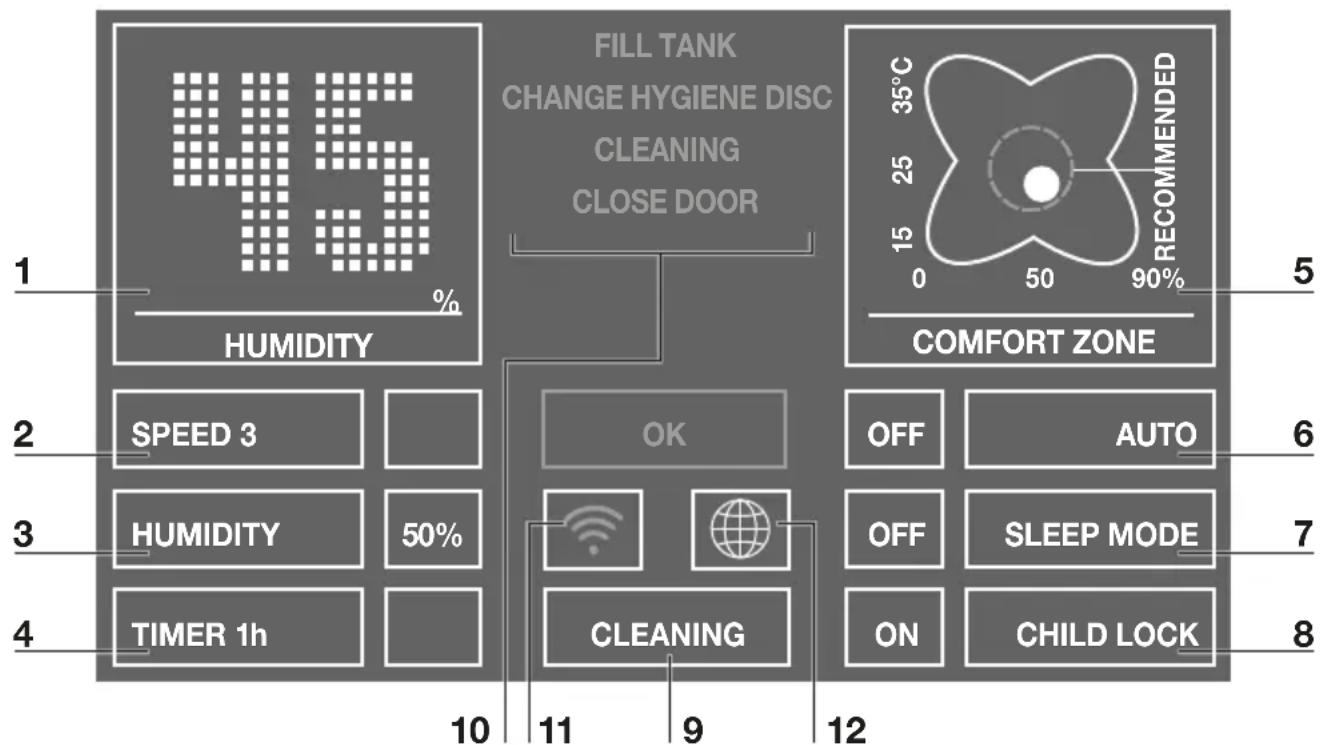

0 50 90% 35°C CLEANING 910 121117 GB 7 Sleep mode OFF/ON Appliance reduces the fan stage to 1 and dims the display. The fan power can be manually changed if desired. 8 Child lock OFF/ON Hold for 3 sec. to activate/deactivate the key lock. 9 Cleaning Cleaning program The cleaning process requires (1) 250 ml bottle of Venta Cleaner. Please follow the instructions on the display. Duration approx. 4 h. 10 Notes Display and conrmation of information messages. 11 WiFi Display and setup of WiFi connection. grey: WiFi disabled green: WiFi connected, local blue: WiFi connected, full access red: WiFi disconnected. Please check the WiFi conguration for network and login data. Follow the instructions on WiFi setup. 12 Select your language CONNECTCLOSE WIFI CONFIGURATION WIRELESS NETWORK Select network: Security type: Access: PSK: LOGIN CREDENTIALS INTERNET ACCESS VENTA

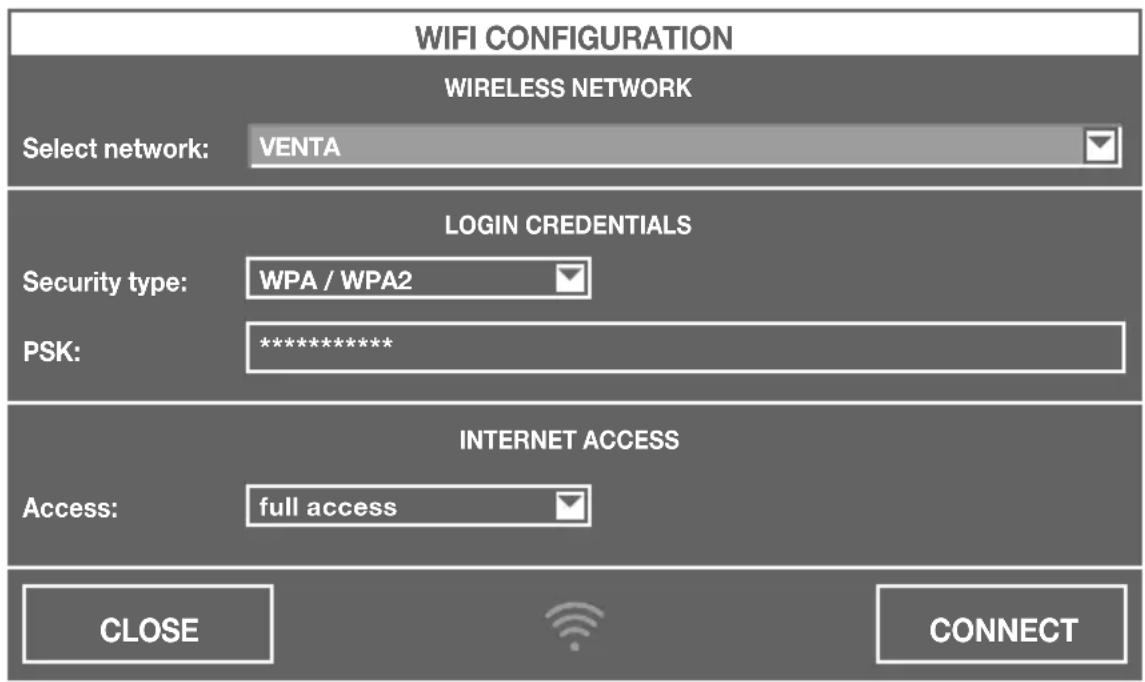

WPA / WPA2 full access WIFI SETUP Holding WiFi display 11 for three seconds will bring up the WiFi conguration. Choose your network from the “Select network” drop-down list. The “Security type” is set automatically as soon as the network is selected.18GBVenta LW62T WiFi Enter your WiFi password/WiFi security code into the “PSK” eld (ASCII input mode) and conrm it with the ENTER key. If your password contains special cha- racters that are not represented on the keyboard, you can generate your entire password as a HEX code at the following website: www.venta-luftwaescher.de Now enter your generated HEX code into the “PSK” eld (HEX input mode) and conrm it with the ENTER key. Under “Access”, select the internet access privile- ges you desire. full access: Access to all convenience functions in the app. local access: local access to app use. To establish a WiFi connection, conrm with the CONNECT button. Green WiFi display: WiFi connection established (local access) Blue WiFi display: WiFi connection established (full access) Red WiFi display: no WiFi connection. Double-check your network and WiFi password. Grey WiFi display: WiFi disabled Actuating the CLOSE button calls up the device’s control panel. WiFi can be enabled or disabled by touching the WiFi display 11 on the appli- ance. If WiFi is disabled, the appliance will not connect to the Venta app. VENTA APP The device functions can be expanded and controlled with the Venta app. The Venta app is available for smartphones and tablets. You can download the Venta app at the following website: www.venta-luftwaescher.de Then follow the instructions on your smartphone/tablet screen. When a connection is being established between the app and the device, a sig- nal tone is emitted. Now conrm connection establishment to your smartphone/ tablet on your device. YES NO WIFI-AUTHORISATION INCOMING WIFI REQUEST. <Your Venta-App Connection>

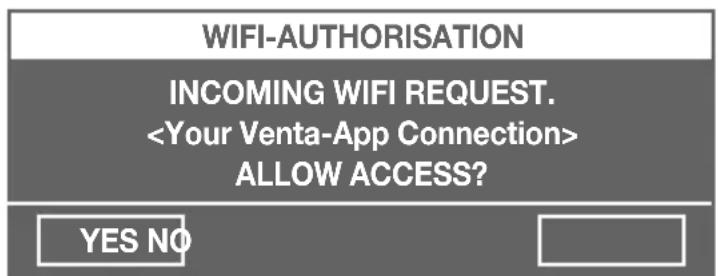

Fill Tank Water tank 4 empty, ll with fresh water. Yellow: hu- midication is still taking place. Red: no humidication is taking place. Cleaning The cleaning process requires (1) 250 ml bottle of Venta Cleaner. Please run the cleaning program by pressing the button CLEANING 9. Please follow the instructions on the display. Duration approx. 4 h. Attention! Make sure that the appliance is switched o and the power plug is disconnected.

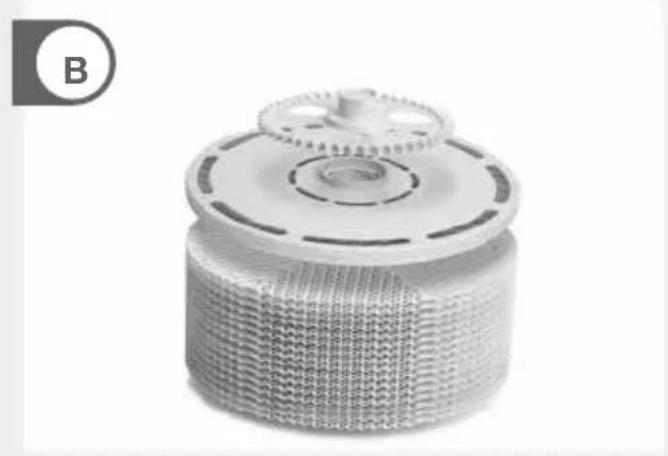

Change Hygiene Disc Open the evaporator compartment 3. Remove the disk stack 5 and unlock the drive wheel. Remove the hygiene disc 9 and replace it. Re-assemble the device and touch the OK indicator in the display again and hold it for 3 seconds until it disappears. The lifespan of the Hygiene Disc is approx. 3 months (with 24/7 operation) and can be aected by the hardness and quality of the water being used as well as the amount of time the unit is in operation (a reminder will ap- pear on the interactive display). The Hygiene Disc can be disposed with household refuse. Recommenda- tion: every 10–14 days Empty the residual water out of the water tank 4 and water basin 6. Clean the water basin 6, disk stack 5 and the water tank 4 under fresh, owing water. Fill the water tank 4 up to the MAX marker with fresh water. Any residue in the water basin and on the disc stack (white, greenyellow- ish or brown deposits or discolorations) do NOT impair the function of the device. Recommendation every 3 years The intensity of the UVC lamp is exhausted after approx. 3 years. That is why the UVC lamp should be changed every 3 years. The UVC lamp is enclosed with a user manual.20GBVenta LW62T WiFi ACCESSORIES Item Packaging unit/(pcs.) Disk Hygiene Disk 1 / 3 Cleaner Venta Cleaner 1 UVC lamp 1 Accessories can be purchased through participating retailers or directly from Venta Airwasher. TROUBLESHOOTING Problem Solution Appliance does not function. Connect the power plug. Connect the power cable coupling to the appliance. Please contact VENTA customer service if you are unable to eliminate a problem with the help of this information: Tel. +49 751 5008 88 e-mail: service@venta-luftwaescher.de21 GB
