USER MANUAL Prime Shadow MAGNAT

Important notes for installation / warranty card

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Magnat Audio-Produkte GmbH is under license. Other trademarks and trade names are those of their respective owners.

Qualcomm aptX

Qualcomm® aptX™ is a product of Qualcomm Technologies, Inc. and/or its subsidiaries.

Qualcomm is a trademark of Qualcomm Incorporated, registered in the United States and other countries. aptX is a trademark of Qualcomm Technologies International, Ltd., registered in the United States and other countries.

At the end of the product's useful life, please dispose of it at appropriate collection points provided in your country.

20/40 Watt (Subwoofer)

Room 301, No.54, Changdong Road, Changping Town, Donguan City,

Guangdong Province, China

Dear MAGNAT Customer,

Congratulations on your fine new loudspeakers and thank you very much for choosing MAGNAT! You have made an excellent choice. The high-quality speakers produced by MAGNAT are renowned all over the world.

Please study the instructions and information below carefully before using your new loudspeakers.

IMPORTANT SAFETY PRECAUTIONS

Please read through the instruction manual carefully before starting to use the device. This manual contains important information concerning operation and safety aspects. It is imperative you observe all of the information. Keep the manual in a safe location.

WARNING NOTICES: All of the warning symbols on the device, accessories and in the instruction manual itself must be adhered to.
- EXPOSURE TO HEAT: Only operate the device and accessories in a temperature range from 10^ to 40^ . The device should not be positioned near heat sources (heaters, ovens, radiant heaters, naked flames, etc.). When setting up close to an amplifier a minimum distance of 10cm must be maintained. No naked flame sources, such as lighted candles, should be placed on the device. Pay attention to a sufficient ventilation of the device. The device may not be covered, e.g. by drapes, curtains. Maintain a distance of 20cm to walls.
- EFFECT OF MOISTURE: The device should not be exposed to dripping or splash water. Neither should it be used to support vases or other containers filled with liquid. Do not expose the device to water or high levels of humidity. There is a danger of electric shock. In the event of contact with moisture or liquids remove the mains adapter immediately.
FOREIGN MATERIAL: Ensure that no foreign material enters through the device openings and into the interior. This could trigger short circuits and even result in electric shock and fire.
- CLEANING: Please use a soft, dry cloth with no cleaning agents, sprays or chemical solvents, as these could damage the surfaces.
- ELECTRICAL CONNECTION: Please note the voltage levels on the information signs. The mains adapter for the device should only be operated with the voltage and frequency values specified on the signs.
LIGHTNING PROTECTION/PREVENTIVE MEASURES: If the device is not going to be used for a prolonged period (e.g. when on holiday), it should be disconnected from the mains by removing the plug. The device should also be disconnected from the mains in the event of a thunderstorm. Doing this will prevent damage caused by lightning and overvoltage.
- MAINS CABLE: The mains cable must always be suitable for operation and it should only ever be laid out in a manner that prevents it from being trodden on. It should not be pinched by objects either, as this can damage the cable. When using plugs and power strips it must be ensured that the cable is not kinked at the point where it emerges from the socket. Do not connect or remove the mains cable with damp hands. The mains plug is used as the disconnecting device. Disconnecting devices shall remain readily operable. Do not endanger the safety of plugs with reverse polarity protection or a ground connection. A plug with reverse polarity protection has 2 contacts with one wider contact. A plug with a ground connection has 2 contacts and a third contact that functions as a ground connection. The third contact is for your safety. If the supplied cable is not compatible with your socket, please ask an electrician to replace the unusable cable.
OVERLOAD: Sockets, power strips and extension cables should not be overloaded. Observe the rated values on the sockets and extension cables. If an overload occurs, there is a risk of electric shock and fire.
- SETTING UP: Please read the installation instructions. The device should only be positioned or mounted on a solid surface and not on moving base frames, otherwise there is a risk of injury.

Only use attachments/accessories specified by the manufacturer.

DAMAGE THAT MUST BE RECTIFIED BY A SPECIALIST:

If any of the following damage occurs, disconnect the speaker from the mains immediately and contact a specialist to conduct the repair work:

• Damage to the mains cable or the mains plug.
  A damaged cable should not be repaired, but must be replaced.
• If moisture or water has entered the device or foreign objects have fallen into the device.
• If the speaker has fallen and the housing is damaged.
  If the device does not work properly, even though all of the information in the instruction manual has been observed.

Only those subsequent alterations approved by the manufacturer may be conducted.

Only original spare parts should be used for repair.

After conducting any repairs the safety of device should be checked to ensure it is functioning correctly and safely.

Repairs must always be conducted by qualified specialists, as you might otherwise be exposed to dangerous high voltage levels or other hazards.

The triangle with a lightning symbol warns the user that high voltage is used within the device which can result in electric shock.

The triangle with an exclamation mark informs the user that important operating and maintenance instructions (repair) are contained in the accompanying instruction manual, which must be observed.

Do not open! Risk of electric shock!

CAUTION: In order to avoid electric shock do not open the speaker housing/mains adapter or remove the covers. The user is not to conduct any repairs him/herself. Repairs should only be conducted by qualified technicians! Do not use any sockets or extension cables that do not fully accommodate the plug of the device.

Use only the power supplies listed in the user manual.

INSTRUCTIONS FOR DISPOSAL

In accordance with European Directive 2012/19/EU all electrical and electronic appliances must be disposed of separately via local collection points. Please observe the local regulations and do not dispose of your old appliances with normal household waste.

DECLARATION OF CONFORMITY

Hereby, Magnat Audio-Produkte GmbH declares that the device MAGNAT PRIME SHADOW is in compliance with the essential requirements and other relevant provisions of directive 2014/53/EU. The Declaration of Conformity can be found at www.magnat.de in the download area of the device.

USE AS DIRECTED

This device is designed for indoor use only.

CONTENTS

(A) 1 pc. Active speaker
(B) 1 pc. Mains adapter incl. power cable
(C) 1 pc. Instruction manual

UNPACKING THE SPEAKER

Please unpack the speaker and accessories carefully and check the contents of the box using the list above. In the event of any transport damage, please contact your supplier. Keep the packing material in a safe location. The original packaging enables trouble-free transportation for any subsequent relocation and servicing requirements.

SETTING UP THE SPEAKER

To ensure optimum playback the speaker should be positioned on a firm, flat surface (such as a table, shelf, etc.). A panel at the rear of the speaker reinforces the bass response. To produce the best stereo image the front of the speaker should be directed towards the listener.

SYSTEM INSTALLATION (FIG. 1)

Connecting the power supply:

Included in delivery is an external mains adapter (110 - 240 V / AC 50/60 Hz).

1. Connect the output cable (jack connector) of the external mains adapter to the power supply jack of the PRIME SHADOW (6).
2. Insert the mains adapter into the socket.

Connecting an audio source to the audio Input AUX IN:

Use an audio cable (3.5mm jack) (not included in delivery) and connect the audio output of the audio source to the audio input AUX IN (7).

Connecting the device to a Bluetooth audio source:

Select the PRIME SHADOW's Bluetooth input (see also OPERATION).

Enable Bluetooth on your smartphone or other device.

Make sure the LED indicator is blinking rapidly blue. (If it isn't, switch the speaker off and on again.)

Choose MAGNAT PRIME SHADOW from the pairing options on your smartphone. (If it's not in the list, choose "Scan" from your phone's Bluetooth menu.)

When it's finished pairing and connecting to your smartphone, the LED indicator is blue.

Note:

If you have previously connected a Bluetooth device, the MAGNAT PRIME SHADOW will automatically attempt to re-establish a connection with this device.
The process of enabling Bluetooth and connecting varies from device to device. See your device's owners manual for more information and specific instructions.
- The MAGNAT PRIME SHADOW supports the „Qualcomm® aptX™" high quality audio transmission standard. If your source device also supports this standard, „Qualcomm® aptX™" will be selected automatically as the transfer mode when establishing a Bluetooth connection.

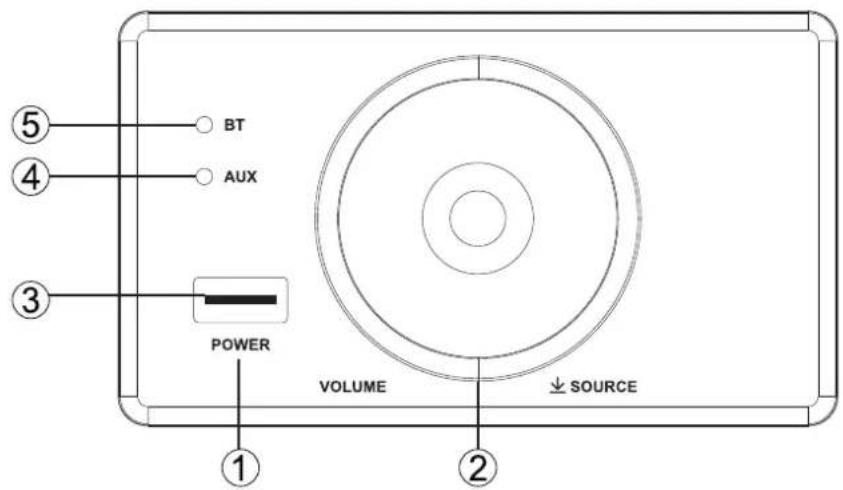

OPERATION (FIG. 1)

Speaker controls:

(1) ON/STBY:/

Switches the device on when it is in the standby mode. Conversely the device can be switched from power operation to the standby mode

(2)VOLUME/SOURCE:

Rotary/push button for volume control and source selection.

(3) LED status display:

• red: standby mode

(4) LED status display AUX:

• white: analogue input active

(5) LED status display BT:

• blue: Bluetooth input active, connected to the source device
• blue, flashing: Bluetooth input active, device in pairing mode

AUTO STANDBY FUNCTION

The unit has an Auto Standby function that automatically switches the device to stand-by mode if no audio signal is detected on the inputs or if there is no Bluetooth pairing over a period of approx. 15 minutes. This function implements an EU energy-saving regulation (1275/2008 EC), reducing power consumption if the device is accidentally left turned on after use.

MAINTENANCE

The surface is best cleaned with a mild household cleaner. On no account use furniture polish or similar products.

SERVICE AND TECHNICAL PROBLEMS

If you should encounter any technical problems, please contact your specialist dealer or Magnat Audio-Produkte GmbH, Tel.: [phone].

SPECIFICATIONS

Powered Bluetooth stereo loudspeaker

Output power RMS/Max.: 2 x 10/20 watts (L+R-channel)

Cross-over frequency: 290Hz

Dimensions (WxHxD): 339 x 155 x 162 mm

Weight: 3.0kg

Operating frequency: 2402 - 2480 MHz

Maximum emitted power according to EN 62479:3,04 dBm

Power supply adapter

Manufacturer's name or trade mark, commercial registration number and address:

Donguan Chenguan Electronic Technology Co.,Ltd./EPS

91441900581446843Q

Room 301, No.54, Changdong Road, Changping Town, Donguan City,

Guangdong Province, China

Output voltage: +20 V DC

Output current: 1.5 A

Output power: 30 W

Average active efficiency: 87 %

Efficiency at low load (10 % 88-89

No-load power consumption: 0.1 W max.

SUBJECT TO TECHNICAL CHANGE

Trés cher client.

Room 301, No.54, Changdong Road, Changping Town, Donguan City, Guangdong Province, China

Room 301, No.54, Changdong Road, Changping Town, Donguan City, Guangdong Province, China

Identificativo del modello: EW30-20150-E

Room 301, No.54, Changdong Road, Changping Town, Donguan City,

Guangdong Province, China

DEKAPAUHCOOTBETCTBNA

AnHHbIM KOMnHaHg Magnat Audio-Produkte GmbH yOCTOBepreT, YTO yCTPOIcTBo MAGNAT PRIME SHADOW OTBeaET OCHOBbIM Tpe6BaHm HApYHM peAeBaHTbIM HopMaM AnPteKTHBbI 2014/53/EU. DeKaIapuNcoOTBeTCTBnH hXoADITc Ha caIte WwW.magnat.de B pa3deJe Downloads (MATEpHaJI bI dA cKaHbAHn) KaKDoIrO yCTPOIcTBa.

NHCTAALLAUNCNCTEMbl (PNC 1)

NoocoeHHeHHe NCTOCHMa nTaHn

B o6bem nocTbKN BxOaHT cAmbl pacnpoCTpaHeHbbl cTeBOB Ka6eIb. IcNoa3yEmbl B BaWe CTpaHE cTeBOB Ka6eIb MOKET bHyIO KOHCTpyKUHO. EcAn cTeBOB Ka6eIb He NoXoAHT K BAuIM WTEncEaHbIM PO3ETKAM HbI He YBepeHbI B KaueCTBE eRO NOaCOeHNHeHH, CLeyEt O6paatbcraB TTOPROByO opraHHaauIO KOMnAHm Magnat.

1.BCTaBbTe DByxNIOIocHbKaeAb CeTeBOrO nHTaHnBa p3bEm (6)Ha PRIME SHADOW.
2. BCTaBtbcTeBOH Ka6eBb WTeNCEbHyIO po3ETKy. O6paatb BHMaHHe Ha npMHeHHe COOTBeTcByIOe Ro TEnCeHoH PO3eTKe ceTeBOrO wTekepa.

IopKaHoueHHe ayHOnctOuHHKa K ayHOBxOaY AUX IN:

Bocnoab3yTebc ayANOkaBelem (pa3bem 3,5 MM) (He n3 KOMnEKA TnOCTaBKN) IN COeAHHHTe ayHOBOXoA ayHOONCTOHNKc C ayHOXBxODAMAXIN(7).

CoeHHHeHne yctpoictBa c ayDnOHCTOuHkOM Bluetooth:

Bb6epnte BxOa Bluetooth Ha MAGNAT PRIME SHADOW (CMotpn TaKke YNPABAEHNE).

AkhBnpye yHKnHIO Bluetho Ha BaWem CMapToHO HAn dpyrom yCTpoNCTBE. Y6eAnTeCb, TTO CBetoAnOAnHbI HAnKAtop (bictpo) Mrraet CHHM UBeTOM. (EcHn Het, BbIKAOHTe HCHOBA BkIOHTe rPOMKOrOBOpNTeAb.)

Bb6epHTe MAGNAT PRIME SHADOW n3 cnNcKa noKAnHcHn Bawero cMapTfoHa. (EcaH yCTpOcTBO He OTo6paXaETcB CnncKe, Bb6epTe "POnck" B npametpax MeHO Bluetooth Bawero cMapTfoHa.)

Korda cnpraKeHne H coeAnHeHne C BaHm CMapToHOM 3aBepWeHb, CBETOHOdHbI HAnKaTOp IOCTOARHHO TOpHT CINHM ZEBOTM.

PpumueaHne

Ecam paHbwe C836 c 3TNM yCTpoHCTBOM Bluetooth yXe yCTaHaBAHbAacb, npeAnpHHMaETcABTomathueckar nonblka BOCCTaHOBaeHH COeAHHeHH.
MAGNAT PRIME SHADOW noDaepxnBaet oc6o kaeeCTBeHHb CTaHapr pepeaun aydno ,Qualcomm * aptXTM".EcAn yctpoiCTBOHIOYHK TAKKKe noDaepxnBaet 3y TEXHOARNO, npu yCTaHOBLeHN COeAHHeHn Bluteoth B KaueCTBe pexmna pepeaun ABOMATUeCKn Bbl6paetcr ,Qualcomm * aptXTM".
IpoceacnBaunncnoeHHeHHcBleothmoKetOAnuatbCBA3aBNCmocnOTyctpoCTBa.Boeae noapobHyNHOOPMaunIO TOHbIE Hnctpykuncmotpne,NoKaaycta,BnHCTpykunno 3KcnnyataunK BaWemy cMaprFOhy.

YNPABVAEHNE(PNC1)

3AemeHtbyynpaBHeHHrpoMkoROBopHTeA:

(1) ON/STBY:

BkHouaet yctpoCTBO, ean OHO haoaHTcB peKIMe oKHaAHHa. H ao6oPOT, yctpoCTBO MOXHO nepeKIOHTb n3 peKHMa Power B peKIM OKHaAHHa

(2) VOLUME/SOURCE:

Nobopothb/HaxMHHOpeyAToPdAByBb6paHcOuHHKaHpeyAnpoBaHaHr pOMKoCTH.

(3) CBeTOADHOH HANKauHH COCTOHHN:

KpaChh:peXMMOKNaHn

(4) CBeToaHDoH HAnKaun CoCToHHAUX:

-6eAaH:aaAorOBbBxOaakTHBEH

(5) CBeToaHOnHOHnHaKaunn CoCToHHN BT:

CHHH: BXoA Bluetooth aKTHBEH, COeAHHeH C yCTPOiCTBOM-MCTOHHKOM
CINHH,6bCTpo MmraouHn:BxOa Bluetooth aKTHBEN,yCTPOcTBO BpeXnme cnapBaHn

ФУHKUABTOMATUeCKOTo OXnDAHNA

YcTPOCTBO HmEeT FyHKnIO ABOMATUeCKOrO pexHMA OxHaHnA, KOtOpAABOTAMUeCK3aNyckaTe pexHM OxHaHnA, eCN B TeHeHne npM. 15 MHyT Ha BXoBb He Noctynaet ayNoCnHnA. 3Ta FyHKnIg COOTBeTCTByET PpeINCaHNO EC o6 3HePrcO6peKhen (1275/2008 EG) n yMeHBsaet Notpe6aHHe 3AEKtpo3HepHH, B Clyae EcN YcTPOCTBO He OKAnOeHO No HeDCMOpy NocNcNb3OBHnR.

yXoA

NoBepxHocTHKe peKoMeHdEyTc OHNsAe b C NOMObIO MRAKHX YHnBepCaIbHbIX YNCTaXxCpeCTB, T. e. HN B KOem cayae He npMHeTb NOHTpy dA Me6eann T. n.

CEPBNC IN TEXHNUECKNE IPOBAEMBI

EeHBo3HNKHyT ExHnueckHe np6Aembl, 6paHTecb B CneuaaHn3npoBaHHb Mara3nH Hn Ha FnpMy Magnat Audio-Produkte GmbH, TEA:02234807-0.

TEXHHUCKNE DAHHbIE

BbIXOHaH MoOHocTh RMS/MaKc.: 2 x 10/20 BaTT (KaHaA L+R)

20/40 BaII (ca6ByΦep)

Hana30n yacto:38-30000T

Pa3eAHTeBnHaaYactota:290T

Pa3Mepbl (UxBxΓ): 339 x 155 x 162 MM

Bec:3,0K

Paboya yactota:2402-2480MHz

MaKcHmAbbHaN3AyuJaMaR MoUHoCTb coIacho EN 62479:

3.04 dBm

6AOKOM NHTAHN

Ha3BaHHe HnTOBaHbI 3HaK npOn3BOAnTeA, HmOpB TOpROBOM peecpe n aDPEC

Donguan Chenguan Electronic Technology Co.,Ltd. / EPS

91441900581446843Q,

Room 301, No.54, Changdong Road, Changping Town, Donguan City, Guangdong Province, China

0603haeHne moe

EW30-20150-E

BxodHoe HnpanjKeHHe

100-240BnepeMeHHoroToKa

Yactota nepemehhoro toka

47-63

BbXoHoe HapnpeHne

+20B noctoHHoro ToKa

TOKHaBbIXOa

1.5A

MoHIOCTb Ha BbIXOe

30 BaTT

CpeHRA 3ΦΦeKTHBHOCTb PnI 3KcPnAyatauN

87%

3ΦΦeKTHBHOCTb npHn3KoHarpy3Ke (10%)

87-89%

Ioppe6AemaMoHocb npn HyeBOHarpy3Ke

0,1 BaTT MaKCHMym

IPABO HA TEXHNUECKNE 3MEHEHNAHAMI

1

Seite / Side panel

Congratulations! You have made a wise selection in becoming the owner of a MAGNAT HiFi equipment. Due to high quality MAGNAT products have earned an excellent reputation through the western world. And this high quality standard enables us to 5-years warranty for MAGNAT HiFi speakers and a 2-years warranty for Magnat HiFi-electronic components.

The equipments are checked and tested continuously during the entire production process. In case you have problems with your MAGNAT HiFi equipment, kindly observe the following:

1. The guarantee period commences with the purchase of the component and is applicable only to the original owner.
2. During the guarantee period we will rectify any defects due to faulty material or workmanship by replacing or repairing the defective part at our discretion. Further claims, and in particular those for price reduction, cancellation of sale, compensation for damages or subsequent damages, are excluded. The guarantee period is not altered by the fact that we have carried out guarantee work.
3. Unauthorized tampering with the equipment will invalidate this guarantee.
4. Consult your authorized dealer first, if guarantee service is needed. Should it prove necessary to return the component to the factory, please insure that the component is packed in original factory packing in good condition - the quality control card has been filled out and enclosed with the component, - your enclose your receipt as proof of purchase.

5. Excluded from the guarantee are: - Illuminates - Wear parts - Shipping damages, either readily apparent or concealed (claims for such damages must be lodged immediately with forwarding agent, the railway express office or post office). - Scratches in cases, metal components, front panels, etc. (You must notify your dealer directly of such defects within three days of purchase.) - Defects caused by incorrect installation or connection, by operation errors (see operating instructions), by overloading or by external force.

6. Equipments which have been repaired incorrectly or modified or where the case has been opened by persons other than us.

Consoquial dages to other equipments. Reimbursement of cools, without our prior consent, when repairng damages by third parties.

Toutes nos felicitations!
