Product type	Waffle maker (sandwich toaster)
Brand	MPM
Model	MOP45M
Power supply	Mains (grounded outlet)
Number of plates	2 cooking plates
Indicator lights	Red light (power) and green light (thermostat)
Adjustable thermostat	Yes, temperature adjustment
Closing latch	Yes
Power cord length	0.7 m
Use	Household use only
Safety	Hot surface, do not immerse, do not use outdoors
Cleaning	Damp cloth, do not use abrasives
Preparation	Grease the plates before use
Functions	Cooking waffles and sandwiches
Control type	Manual

Frequently Asked Questions - MOP45M MPM

How to clean the cooking plates after use?

Unplug the appliance and wait for it to cool down. Clean the plates with a damp cloth. For stubborn residues, apply a little cooking oil and wait 5 minutes before cleaning. Never use metal utensils or abrasives.

Can I use metal utensils to remove food?

No, only use a wooden or plastic spatula to avoid scratching the plate coating.

What to do if the appliance does not heat up?

Check that the plug is properly connected and that the outlet works. The red light should turn on. If the problem persists, contact an authorized service.

How to prepare perfectly golden waffles or sandwiches?

Lightly grease the plates with butter or margarine. Preheat the appliance to maximum temperature for about 10 minutes. Place the food and close the latch. The green light indicates that the temperature has been reached.

The green light turns on and off during cooking, is this normal?

Yes, it is normal. The thermostat maintains the temperature by automatically turning on and off.

Can I leave the appliance unattended while it is operating?

No, never leave the appliance unattended while in use. Unplug it after each use.

How to prevent food from sticking to the plates?

Grease the plates with a little oil or butter before each use. Make sure the plates are clean and dry.

The appliance emits smoke during first use, is it dangerous?

No, it is normal. The smoke comes from the burning of manufacturing residues. Perform a dry preheating for 10 minutes to remove these residues.

How to store the appliance after use?

Wait for the appliance to cool down completely, then unplug it. Store it in a dry place, away from dust.

Is the appliance suitable for children?

Children under 8 years old should not use the appliance. Children over 8 years old can use it under adult supervision. Keep the appliance out of reach of young children.

USER MANUAL MOP45M MPM

Front view of a black rectangular electronic device with 'L4PM' branding and a handle (no readable text or symbols beyond branding)

cz NAVOD K OBSLUZE 3
DE BEDIENUNGSANLEITUNG 8
EE KASUTUSIUHEND T3
EN USER MANUAL 17
ES MANUAL DE INSTRUCCIONES 22
FR MANUEL DE L'UTILISATEUR 27
HU HASZNALATI UTASITAS 32
II MANUALE D'USO 37
LT VARTOTOJOVADOVAS 47
LV LIETOTAJA ROKASGRÄMATA 47
NL CEBRUIKERSI HANDLEING 52
PL NSTRUKCIA OBSLUGI 57
RO MANUAL DE UTILIZARE 62
RU ИНСТРУКЦИЯ ПО ОБСЛУЖИЗАГИЮ 67
SK POUŽIVATEľSKA PRÍRUČKA 73
UA ГОСИЕ ИК КОРИСТУЗАЧА 78

MPM and S.A.

BEZPEČNOSTNÍ POKYNY PŘI POUŽÍVÁNÍ

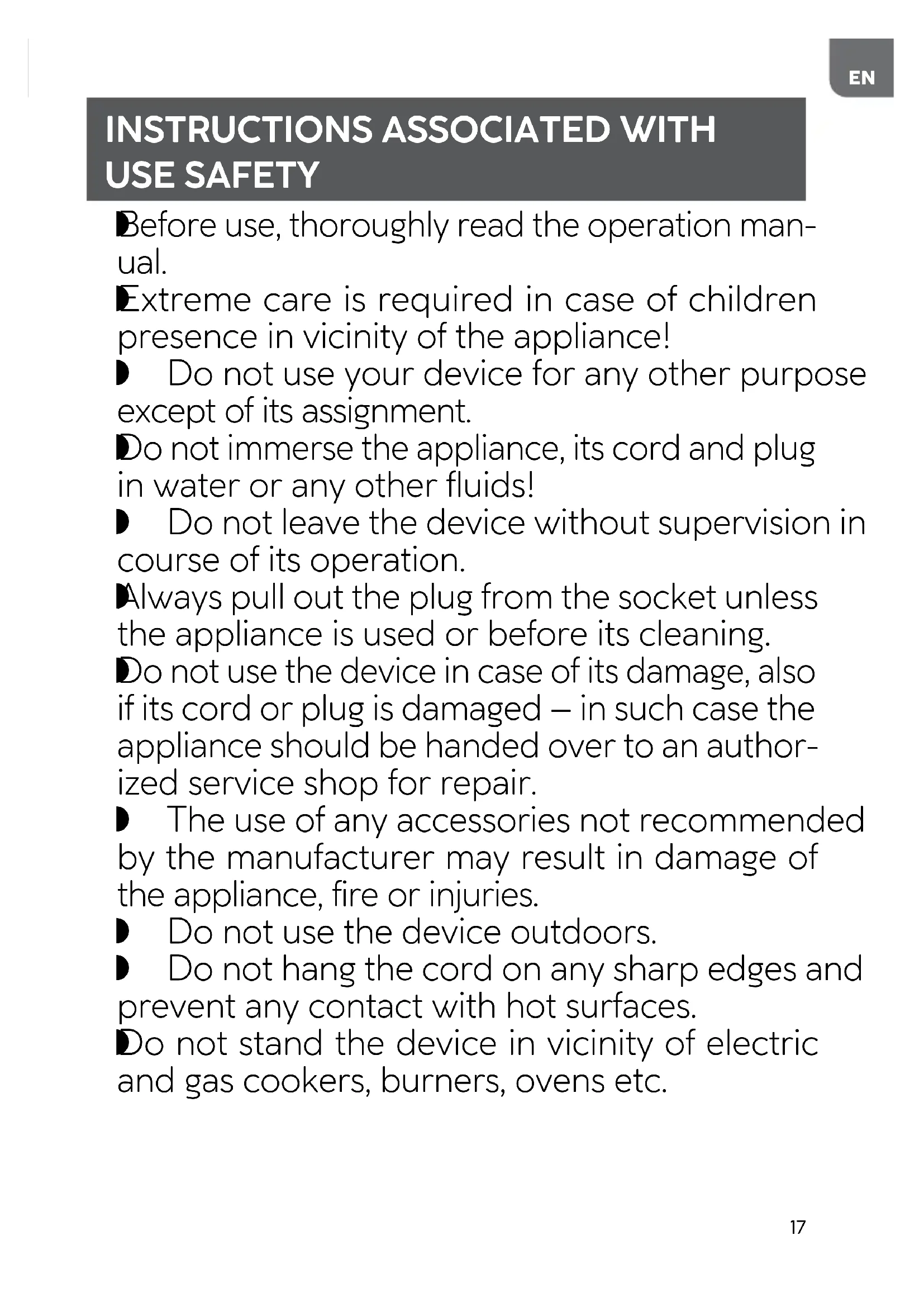

INSTRUCTIONS ASSOCIATED WITH USE SAFETY

Before use, thoroughly read the operation manual.
Extreme care is required in case of children presence in vicinity of the appliance!

Do not use your device for any other purpose except of its assignment.

Do not immerse the appliance, its cord and plug in water or any other fluids!

Do not leave the device without supervision in course of its operation.

Always pull out the plug from the socket unless the appliance is used or before its cleaning.

Do not use the device in case of its damage, also if its cord or plug is damaged – in such case the appliance should be handed over to an authorized service shop for repair.

The use of any accessories not recommended by the manufacturer may result in damage of the appliance, fire or injuries.
Do not use the device outdoors.
Do not hang the cord on any sharp edges and prevent any contact with hot surfaces.
Do not stand the device in vicinity of electric and gas cookers, burners, ovens etc.

Do not touch any hot surfaces in course of roasting – open the device by means of holder designed for this purpose only.

Prior to commencing the cleaning, pull out the plug from the plug socket and allow the device to cool completely.

When opening the appliance in course of roasting, proceed carefully owing to hot damp from the area under the heating panels!!

The device should be connected into the socket with grounding pin!

This equipment may be used by children of at least 8 years of age and by persons of diminished physical, mental capacity and lack of experience and knowledge of the equipment if supervision or instruction is provided regarding the safe use of the equipment so that the hazards involved are understood. Cleaning and maintenance must not be performed by children, unless they are over 8 years old and supervised by an adult. Unsupervised children can not perform cleaning and maintenance of the product.

Store the appliance and its cord out of reach of children under 8 years of age.

Children shall not play with the appliance

▶ Use on a flat, stable surface.

The equipment is not designed to work with external schedulers or a separate control system.

Clean the device, in particular parts being in direct contact with food, before first use, immediately after finishing work and if the device has not been used for a long time. The procedure is described in details in the “CLEANING AND MAINTENANCE” section.

Warning! Hot surface! The symbol on appliance indicates that its components become hot during operation.

Do not pull the plug by holding the power cord.

Do not connect the power plug with wet hands.

The temperature of surfaces may be higher when the appliance is in use.

This appliance is intended for household use only.

To avoid the risk of fire, do not place the appliance near flammable objects, such as curtains, tablecloths, etc.

Keep your children safe: do not leave any parts of the packaging readily accessible (i.e. plastic bags, cardboard boxes, polystyrene inserts, etc.).

WARNING! Never let children play with plastic film or bags. Choking/ asphyxiation hazard! WARNING! Oils and fats may burn when overheated. Please be careful!

APPLIANCE DESCRIPTION

1. Red caution lamp (power supply)
2. Green caution lamp (thermostat)

3. Upper cover

4. Clip

5. Heating panel

PRIOR TO THE FIRST USE:

ATTENTION! Before cleaning the heating plates make sure the appliance is unplugged!

1. Prior to the first use of the roaster, thoroughly wash the heating panels of the roaster with the cloth moistened with warm water and thoroughly wipe with dry cloth thereafter.
2. Stand the appliance on a flat, stable and dry surface which is resistant to high temperatures.
3. Before toasting for the first time, the hot plates must be properly conditioned by running them hot. Place the toaster on a firm, dry, level and smooth surface, plug the power cord to the mains. Leave it running for 10 minutes. Next, unplug the toaster from the mains and wait until it cools down completely. The hot plates may smoke slightly during this process. This is natural and will no recur during further use.

NOTE! Bread may burn! Therefore the appliance must not be used near or below curtains and in vicinity of other combustible materials!

NOTE! The working surfaces of the roaster are heated up to extremely high temperatures! Touch the holders only!

USE OF THE ROASTER

NOTE! When opening the cover, proceed carefully owing to hot damp from the area under the heating panels!

1. Oil the heating plates (5) with butter, margarine or other fat.
2. Insert the plug into the socket – red caution lamp (power supply) (1) and green caution lamp (thermostat) (2) will go on. Close the cover of the appliance (3).
3. Prepare the sandwiches.
4. When the green indicator lamp (2) will go off, open the cover by pulling the latch (4) and put the sandwiches on the heating panels. Gently close the cover and clamp with clip (4).
5. When checking the condition of sandwiches in course of their roasting, open the cover carefully owing to hot damp escaping from the both sides of the roaster!
6. Open the cover and remove roasted sandwiches using wooden or plastic spatula.
7. Before preparation of the next sandwiches, always close the cover in order to maintain required temperature. The green caution lamp (thermostat) will go on and off in course of roasting to indicate that required temperature is maintained.
8. After finished roasting pull out the plug from the plug socket and allow the appliance to cool completely.

NOTE! Do not use and metal and sharp knives or forks, otherwise the damages of heating surfaces are possible!

CLEANING AND MAINTENANCE

1. Prior to commencing the cleaning (and after finishing the roasting), pull out the plug from the plug socket and allow the appliance to cool completely.

2. Thoroughly wipe the heating panels, clean the roaster edges using soft cloth or towel.

3. If complete removal of any food residuals from the surface of heating panels is problematic, pour some edible onto dirty surface and try to clean after about 5 minutes. Your efforts will be successful this time.

4. Wipe the external surface of the roaster using wet cloth.

ATTENTION! Do not immerse the appliance in water or any other liquids! Do not wipe the inside of the appliance with acute, abrasive cloths or sponges, as this can damage the heating surfaces!

TECHNICAL DATA:

The technical parameters are given on the data plate of the product.

Power cord lenght: 0,7 m

NOTE! MPM agd S.A. reserves the right to introduce technical modifications!

Proper disposal of the product (waste electrical and electronic equipment)

Marking on the product indicates that after the service-life of the product expires, it should not be disposed with other type of municipal waste. Used equipment may have a negative impact on the environment and health of people due to potentially containing hazardous substances, mixtures and components. Mixing electric waste with other types of waste or disassembling those in an unprofessional manner may cause a release of substances that are hazardous to the environment and health.

Used equipment should be handed-over to a point for collection of electric waste. In order to obtain detailed information regarding the electric waste collection points, the user should contact the municipal point of electric waste collection or used equipment processing department.

BESCHRIJVING VAN HET APPARAAT

1. Rood controlelampje (netspanning)

2. Groen controlelampje (thermostaat)

3. Bovenklep

4. Vergrendeling

5. Bakplaten
