USER MANUAL MMR20Z MPM

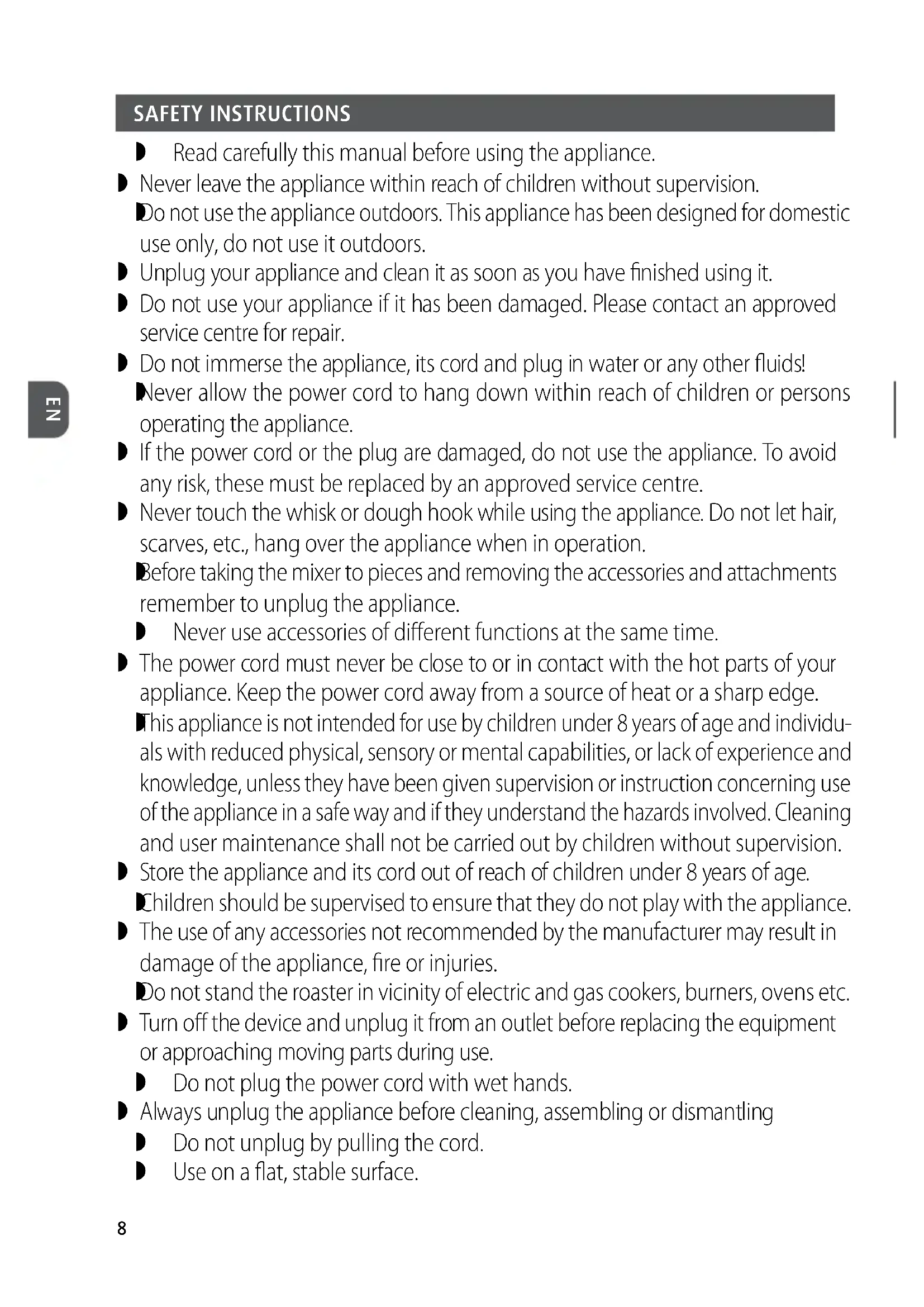

SAFETY INSTRUCTIONS Read carefully this manual before using the appliance. Never leave the appliance within reach of children without supervision.

Do not use the appliance outdoors. This appliance has been designed for domestic use only, do not use it outdoors. Unplug your appliance and clean it as soon as you have finished using it. Do not use your appliance if it has been damaged. Please contact an approved service centre for repair. Do not immerse the appliance, its cord and plug in water or any other fluids!

Never allow the power cord to hang down within reach of children or persons operating the appliance. If the power cord or the plug are damaged, do not use the appliance. To avoid any risk, these must be replaced by an approved service centre. Never touch the whisk or dough hook while using the appliance. Do not let hair, scarves, etc., hang over the appliance when in operation.

Before taking the mixer to pieces and removing the accessories and attachments remember to unplug the appliance. Never use accessories of different functions at the same time. The power cord must never be close to or in contact with the hot parts of your appliance. Keep the power cord away from a source of heat or a sharp edge.

This appliance is not intended for use by children under 8 years of age and individu- als with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved. Cleaning and user maintenance shall not be carried out by children without supervision. Store the appliance and its cord out of reach of children under 8 years of age.

Children should be supervised to ensure that they do not play with the appliance. The use of any accessories not recommended by the manufacturer may result in damage of the appliance, fire or injuries.

Do not stand the roaster in vicinity of electric and gas cookers, burners, ovens etc. Turn off the device and unplug it from an outlet before replacing the equipment or approaching moving parts during use. Do not plug the power cord with wet hands. Always unplug the appliance before cleaning, assembling or dismantling Do not unplug by pulling the cord. Use on a flat, stable surface.9

In order to ensure your children‘s safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach. WARNING! Do not allow small children to play with the foil as there is a danger of suffocation! Before disassembly wait until the motor stops completely.

WARNING! Check that the power parameters on the rating plate of the device correspond parameters of your mains. Do not place the appliance on hot surfaces. The appliance is not intended to be operated by means of an external timer or separate remote-control system.

1. Take the appliance out of the box, remove all protective cardboards and foil.

2. Wash the parts which come in contact with the food.

5. Whisk for whipping cream

6. Rotary bowl with a volume of 3,0 l

7. Dough hook for mixing dough

Note!Second rotary bowl is included in MMR-22Z equipment.

1. Mount beating mixer arms ❺ or hook mixer arms ❼ in right holes of the main unit ❷ until

stop. Always insert accessories with the end with the crown on the left side of the device.

2. Connect the mixer to the power.

3. Place the bowl ❻ on the stand.

4. Open the support ❽ by pressing the stand button ⓫. In extreme position the stand will lock

5. Install the main unit with mounted beating mixer arms or hook mixer arms on the support ❽.

Snap of fastenings indicates that the mixer has been mounted correctly.

6. Press the stand button ⓫ and lower the support ❽.

7. Add products to the bowl.

8. Turn the mixer on by moving the button ❶ from „0” to „5” position

9. The mixer is equipped with movable TURBO button ❸ which allows to obtain maximum

10. After finished work, move the button ❶ to „0” position.

11. Disconnect the mixer from the power.

12. Then, lift the support ❽ by pressing the stand button ⓫.

13. In order to remove the mixer from the support ❽ press the support button ❾.

14. Remove beating mixer arms or hook mixer arms by pressing the release button of the mixer

arm ❷. ATTENTION! During mixing with hook mixer arms to make pastry, flour may deposit on the edges of the bowl. Turn the mixer of and remove it using the spatula. SAFETY PRECAUTIONS

1. After 3 minutes of continuous use, put away the appliance for a few minutes to cool down.

2. Do not use the appliance longer than 3 minutes at a time.

CLEANING AND MAINTENANCE

1. Unplug the appliance.

2. Clean the housing with a damp cloth.

3. Wash the whisks or dough hooks under running water. Rinse and dry.11

4. It is recommended to clean the accessories as soon as you have finished using the appliance.

This will allow to remove deposited sediments. It prevents the leftovers from drying out, which makes cleaning more effective and easier, it also prevents bacteria from reproducing. NOTE! Do not clean the appliance using sharp items, abrasive pastes, solvents and other strong chemical agents which may cause damage to the appliance. NOTE! To avoid the risk of electric shock, do not clean the appliance with water and do not immerse it in water.

SPEED LEVELS DESCRIPTION

1 Good speed for dry food flour, butter and potatoes 2 Use for salat and vegetables 3 Use for cake, paste and bread 4 Use for dessert, sweet, pudding, ice-cream 5 Use for eggs, cream TURBO Just like speed „5” TECHNICAL DATA The technical parameters are given on the data plate of the product. Power cord lenght: 1,0 m ATTENTION! MPM agd S.A. reserves its rights to modify the technical data. PROPER DISPOSAL OF THE PRODUCT (waste electrical and electronic equipment) Poland Marking on the product indicates that after the service-life of the product expires, it should not be disposed with other type of municipal waste. Used equipment may have a negative impact on the environment and health of people due to potentially containing hazardous substances, mixtures and components. Mixing electric waste with other types of waste or disassembling those in an unprofessional manner may cause a release of substances that are hazardous to the environment and health. Used equipment should be handed-over to a point for collection of electric waste. In order to obtain detailed information regarding the electric waste collection points, the user should contact the municipal point of electric waste collection or used equipment processing department.12
