Product type	Microwave
Brand	Beko
Model	MOC20100SFB
Capacity	20 L
Microwave output power	700 W
Input power	1100 W
Voltage / Frequency	230-240 V~, 50 Hz
Microwave frequency	2450 MHz
Power levels	6 levels (10% to 88%)
Mechanical timer	Up to 30 minutes
Turntable	245 mm glass, removable and dishwasher safe
Dimensions (H x W x D)	243 x 446 x 340 mm
Net weight	10 kg
Available colors	White, Black, Silver
Main functions	Cooking, defrosting, reheating
Safety	Door safety lock, grounding, automatic stop when door opens
Installation - Required spacing	20 cm above, 10 cm behind, 5 cm on sides
Care and cleaning	Dishwasher-safe tray; exterior surfaces with damp cloth; do not use steam cleaner
Included accessories	Glass tray, roller ring, shaft
Spare parts and repairability	Use only original parts; repairs by an authorized service
Compliance	WEEE (2012/19/EU), RoHS (2011/65/EU)
Intended use	Household only

Frequently Asked Questions - MOC20100SFB BEKO

How do I clean my Beko MOC20100SFB microwave?

Clean the interior with a damp cloth and mild detergent. The glass tray is dishwasher safe. Wipe external surfaces with a damp cloth. Never use a steam cleaner or abrasive products.

Can I use metal containers in this microwave?

No, metal containers are prohibited in microwave mode as they can cause sparks. Use only microwave-safe utensils (heat-resistant glass, ceramic, special microwave plastic).

What is the maximum power of the microwave?

The maximum output power is 700 W with an input power of 1100 W. You have 6 power levels from 10% to 88%.

How do I set the cooking time?

Turn the timer knob (2) to set cooking time up to 30 minutes. For times less than 2 minutes, first turn past 2 minutes then back to desired time. The oven starts automatically as soon as the timer is turned.

Can the turntable go in the dishwasher?

Yes, the 245 mm glass tray and the roller ring can be washed in the dishwasher or with warm soapy water.

What to do if the oven doesn't turn on?

Check that the oven is properly plugged in, the door is fully closed (safety lock engaged), and the fuse/circuit breaker hasn't tripped. If the problem persists, contact a qualified technician.

Can I cook eggs in the microwave?

Never heat eggs in shell or whole hard-boiled eggs: they can explode even after cooking. Pierce foods with thick skin (potatoes, chestnuts) before cooking.

How to properly install the microwave?

Place the oven on a flat and stable surface. Leave a space of 20 cm above, 10 cm behind, and 5 cm on each side for adequate ventilation. Do not place near heat sources or inside a cabinet.

Why does my microwave produce steam?

Steam accumulation inside or around the door is normal in high humidity conditions. Wipe with a soft cloth. This does not affect operation.

What is the capacity of the microwave?

The capacity is 20 liters, with a 245 mm diameter turntable. It is suitable for medium-sized dishes.

USER MANUAL MOC20100SFB BEKO

EN-FR-DE-ES-HR-CS-IT-PL-RO-PT-NL-SK-LT-ET-BG-SL SR-MK-SQ-BS

CONTENTS

ENGLISH	3-15
FRANÇAIS	16-29
DEUTSCH	30-47
ESPAÑOL 48-61
HRVATSKI	62-74
ČESKY	75-90
ITALIANO	91-105
POLSKI	106-122
ROMÁNă	123-142
PORTUGUES	143-156
NEDERLANDS	157-170
SLOVENSKý	171-185
LIETUVIÜK 186-197
EESTI	198-209
БългAPСКИ	210-227
SLOVENŠČINA	228-239
СРПСКИ	240-252
MAKΕΝΟHСΚΙ	253-269
SHQIPTARE	270-282
BOSANSKI	283-295

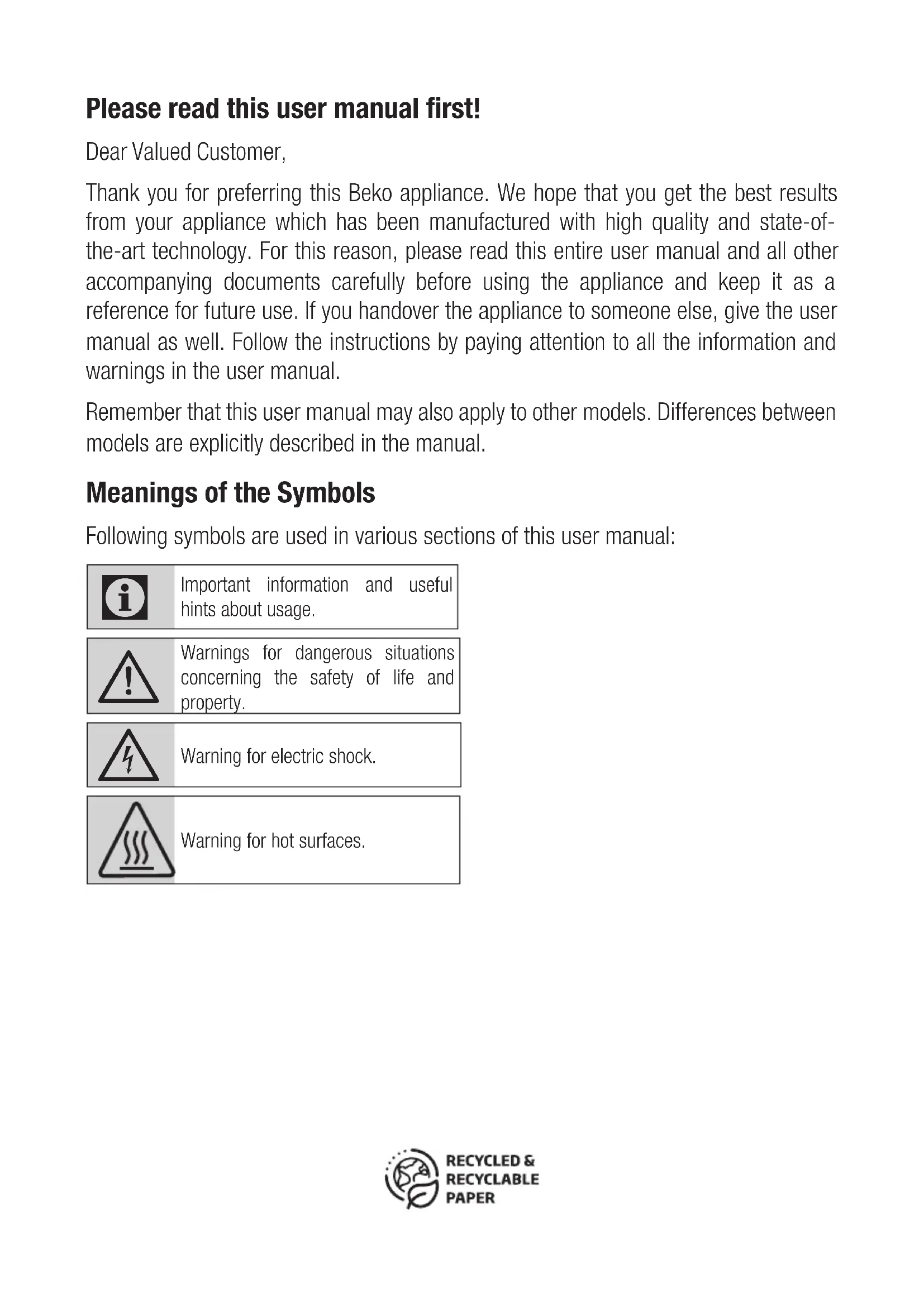

Please read this user manual first!

Dear Valued Customer,

Thank you for preferring this Beko appliance. We hope that you get the best results from your appliance which has been manufactured with high quality and state-of-the-art technology. For this reason, please read this entire user manual and all other accompanying documents carefully before using the appliance and keep it as a reference for future use. If you handover the appliance to someone else, give the user manual as well. Follow the instructions by paying attention to all the information and warnings in the user manual.

Remember that this user manual may also apply to other models. Differences between models are explicitly described in the manual.

Meanings of the Symbols

Following symbols are used in various sections of this user manual:

Important information and useful hints about usage.

Warnings for dangerous situations concerning the safety of life and property.

Warning for electric shock.

Warning for hot surfaces.

1 Important safety and environmental instructions

Important Safety Instructions Read Carefully And Keep For Future Reference

1.1 Safety warnings

This section contains safety instructions that will help protect from risk of fire, electric shock, exposure to leak microwave energy, personal injury or property damage. Failure to follow these instructions shall void any warranty.

• Beko Microwave Ovens comply with the applicable safety standards; therefore, in case of any damage on the appliance or power cable, it should be repaired or replaced by the dealer, service center or a specialist and authorized service alike to avoid any danger. Faulty or unqualified repair work may be dangerous and cause risk to the user.
• This appliance is intended to be used in household and similar applications such as:
• Staff kitchen areas in shops, offices and other working environments;
• Farm houses
• By clients in hotels, motels and other residential type environments;

Bed and Breakfast type environments.

• Bed and Breakfast type environments.
• Microwave oven is intended used freestanding. It is not intended for industrial or laboratory use.
• Do not attempt to start the oven when its door is open; otherwise you may be exposed to harmful microwave energy. Safety locks should not be disabled or tampered with.
• The microwave oven is intended for heating food and beverages. Drying of food or clothing and heating of warming pads, slippers, sponges, damp cloth and similar may lead to risk of injury, ignition or fire.
• Do not place any object between the front side and the door of the oven. Do not allow dirt or cleaning agent remnants to build up on the closure surfaces.
• Any service works involving removal of the cover that provides protection against exposure to microwave energy must be performed by authorized persons/service. Any other approach is

1 Important safety and environmental instructions

dangerous.

• Your product is intended for cooking, heating and defrosting food at home. It must not be used for commercial purposes.
• Your oven is not designed to dry any living being.
• Do not use your appliance to dry clothes or kitchen towels.
• Do not use this appliance outdoors, in bathrooms, in humid environments, or in places where it can get wet.
• No responsibility or warranty claim shall be assumed for damages arising from misuse or improper handling of the appliance.
• Never attempt to dismantle the appliance. No warranty claims are accepted for damage caused by improper handling.
• Only use the original parts or parts recommended by the manufacturer.
• Do not leave this appliance unattended while it is in use.
• Always use the appliance on a stable, flat, clean, dry, and non-slip surface.
• The appliance should not be operated with an external clock timer

or separate remote control system. - Before using the appliance for the first time, clean all parts. Please see the details given in the "Cleaning and Care" section. - Operate the appliance for its intended purpose only as described in this manual. - The appliance becomes very hot while it is in use. Pay attention not to touch the hot parts inside the oven. - Do not operate the oven empty. - Cooking utensils may get hot due to the heat transferred from the heated food to the utensil. You may need oven gloves to hold the utensil. - Utensils shall be checked to ensure that they are suitable for use in microwave ovens. - Do not place the oven on stoves or other heat-generating appliances. Otherwise, it may be damaged and the warranty becomes void. - Steam may come out while opening the covers or the foil after cooking the food. - The appliance and its accessible surfaces may be very hot when the appliance is in use. - The door and outer glass may be very

1 Important safety and environmental instructions

hot when the appliance is in use.

• Make sure that your mains power supply complies with the information supplied on the rating plate of the appliance.
• The only way to disconnect the appliance from the power supply is to remove the power plug from the power outlet.
• Use the appliance with a grounded outlet only.
• Never use the appliance if the power cable or the appliance itself is damaged.
• Do not use this appliance with an extension cord.
• Never touch the appliance or its plug with damp or wet hands.
• Place the appliance in a way so that the plug is always accessible.
• Prevent damage to the power cable by not squeezing, bending, or rubbing it on sharp edges. Keep the power cable away from hot surfaces and naked flame.
• Make sure that there is no danger that the power cable could be accidentally pulled or that someone could trip over it when the appliance is in use.
• Unplug the appliance before each

cleaning and when the appliance is not in use.

• Do not pull the power cable of the appliance to disconnect it from its power supply and never wrap its power cable around the appliance.
• Do not immerse the appliance, power cable, or power plug in water or any other liquids. Do not hold it under running water.
• When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition.
• Remove the wire strings and/or metal handles of paper or plastic bags before placing bags to the oven.
• If smoke is observed, switch off or unplug the appliance if safe to do so and keep the door closed in order to stifle any flames.
• Do not use microwave oven for storage. Do not leave paper items, cooking material or food inside the oven when it is not being used.
• The contents of feeding bottles and baby food jars should be stirred or shaken and the temperature checked before consumption, in order to avoid burns.

1 Important safety and environmental instructions

• This appliance is a Group 2 Class B ISM equipment. Group 2 contains all ISM (Industrial, Scientific and Medical) equipment in which radio-frequency energy is intentionally generated and/or used in the form of electromagnetic radiation for the treatment of material, and spark erosion equipment. Class B equipment is suitable for use in domestic establishments and establishments directly connected to a low voltage power supply network.
• Do not use cooking oil in the oven. Hot oil may damage the components and materials of the oven, and it may even cause skin burns.
• Pierce food with thick crust such as potatoes, courgettes, apples and chestnuts.
• Appliance must be placed so that the rear side is facing the wall.
• Before moving the appliance, please secure the turntable to prevent damage.
• Eggs in their shell and whole hard-boiled eggs must not be heated in microwave ovens since they may explode, even after microwave heating has ended.

WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person.

WARNING: It is hazardous for anyone other than a competent person to carry out any service or repair operation which involves the removal of a cover which gives protection against exposure to microwave energy.

WARNING: Liquids and other foods must not be heated in sealed containers since they are liable to explode.

• The oven should be cleaned regularly and any food deposits removed.
• There should be at least 30 cm of free space above the top surface of the oven.
• Do not overcook foods; otherwise, you may cause a fire.
• Do not use chemicals or steam-assisted cleaners to clean the appliance.
• Extreme caution is advised when using the appliance near children and persons with restricted physical, sensory, or mental abilities.
• This appliance can be used by

1 Important safety and environmental instructions

children aged 8 years and above, and by persons with limited physical, sensory, or mental capabilities, or those lacking experience and knowledge, provided they are supervised or have been instructed on the safe use of the appliance and understand the risks involved. Children should not play with the appliance. Cleaning and user maintenance should not be performed by children unless they are older than 8 and supervised.

• Danger of choking! Keep all packaging materials away from children.
• Keep the product and its power cable out of reach of children under 8 years old.
• Do not cook food directly on the glass tray. Place food in or on appropriate kitchen utensils before putting them in the oven.
• Metallic containers for food and beverages are not allowed during microwave cooking. Otherwise, sparking may occur.
• This product is not designed to be built-in. Do not place the product in a cabinet or box while it is in use.
• Failure to maintain the oven in a clean condition could lead to deterioration of the surface, which could adversely affect the life of the appliance and possibly result in a hazardous situation.
• The appliance shall not be cleaned with a steam cleaner.
• Microwave heating of beverages can result in delayed eruptive boiling, therefore care must be taken when handling the container.
• WARNING: When the appliance is operated in the combination mode, children should only use the oven under adult supervision due to the temperatures generated. Cleaning: Do not place the appliance in water or other liquids. Clean the housing only with a sponge/cloth moistened in warm, soapy water. Do not use harsh, abrasive cleaners. See the Cleaning and care and Storage sections for detailed cleaning instructions.

1 Important safety and environmental instructions

1.2 Compliance with the WEEE Directive and Disposing of the Waste Product:

This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE).

This symbol indicates that this product shall not be disposed with other household wastes at the end of its service life. Used device must be returned to official collection point for recycling

of electrical and electronic devices. To find these collection systems please contact to your local authorities or retailer where the product was purchased. Each household performs important role in recovering and recycling of old appliance. Appropriate disposal of used appliance helps prevent potential negative consequences for the environment and human health.

1.3 Compliance with RoHS Directive

The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive.

1.4 Package information

Packaging materials of the product are manufactured from recyclable materials in accordance with our National

Environment Regulations. Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.

2 Your microwave oven

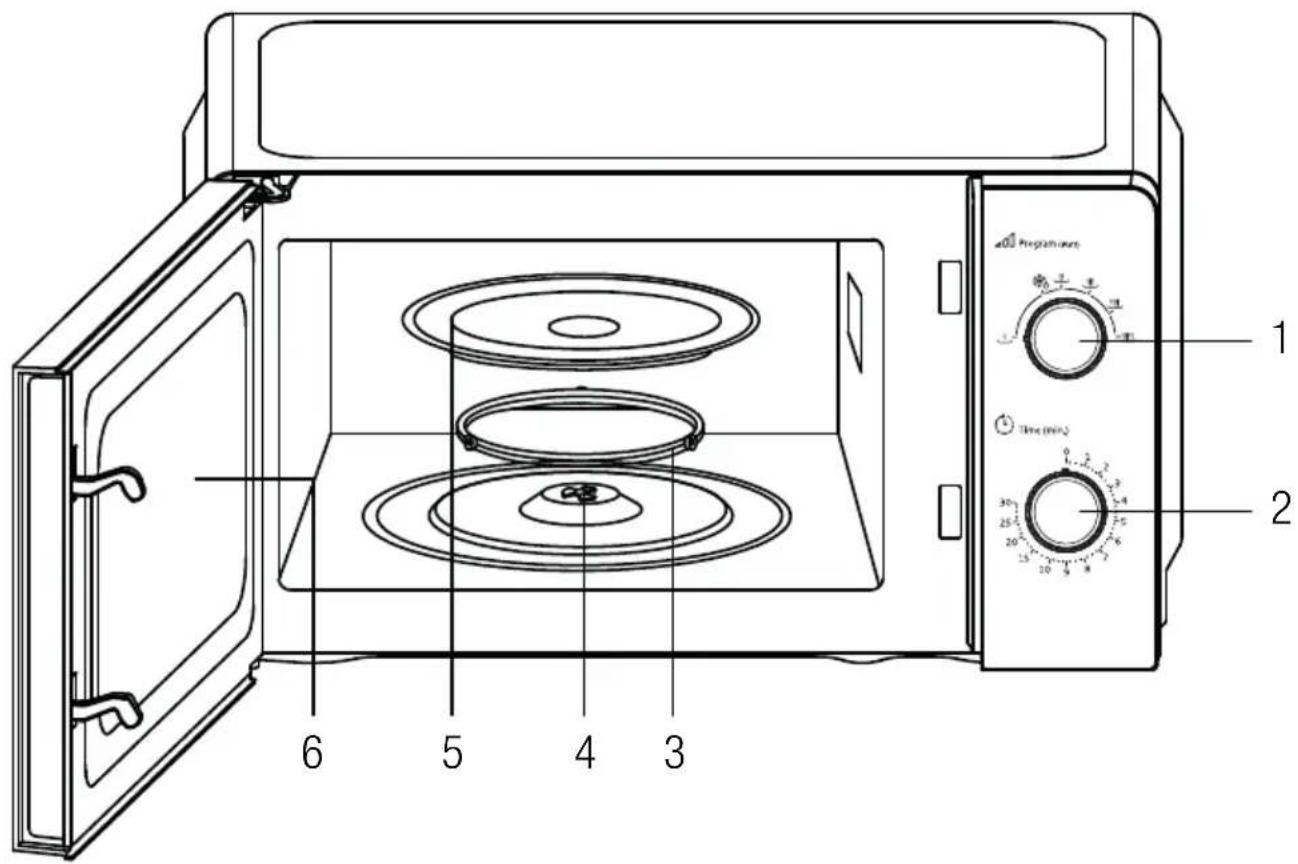

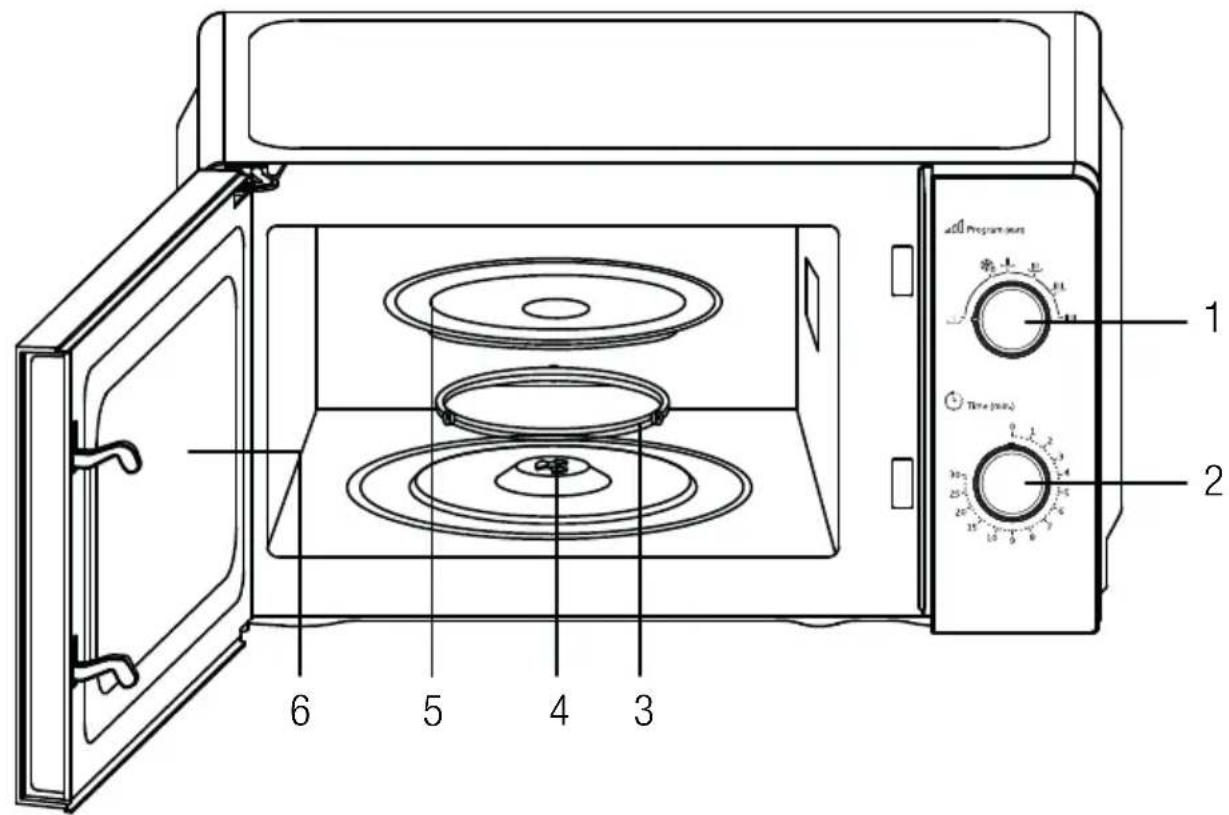

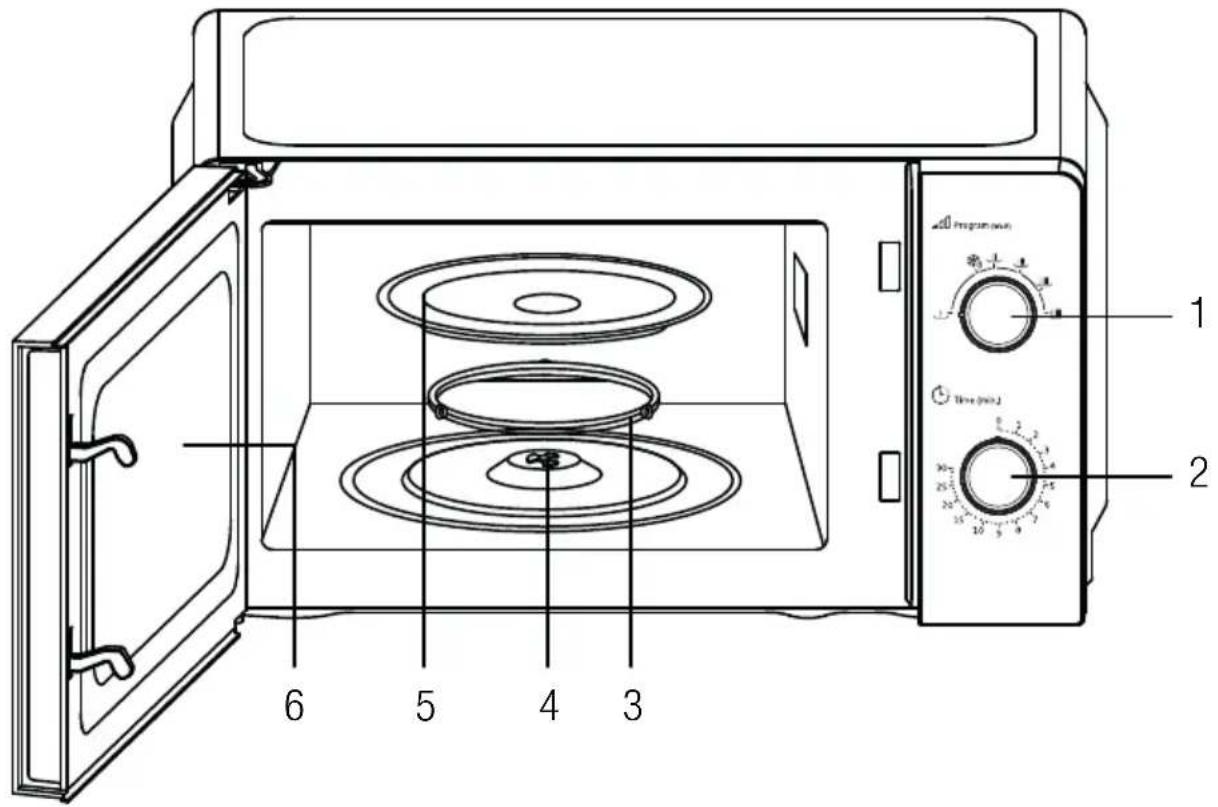

2.1 Overview

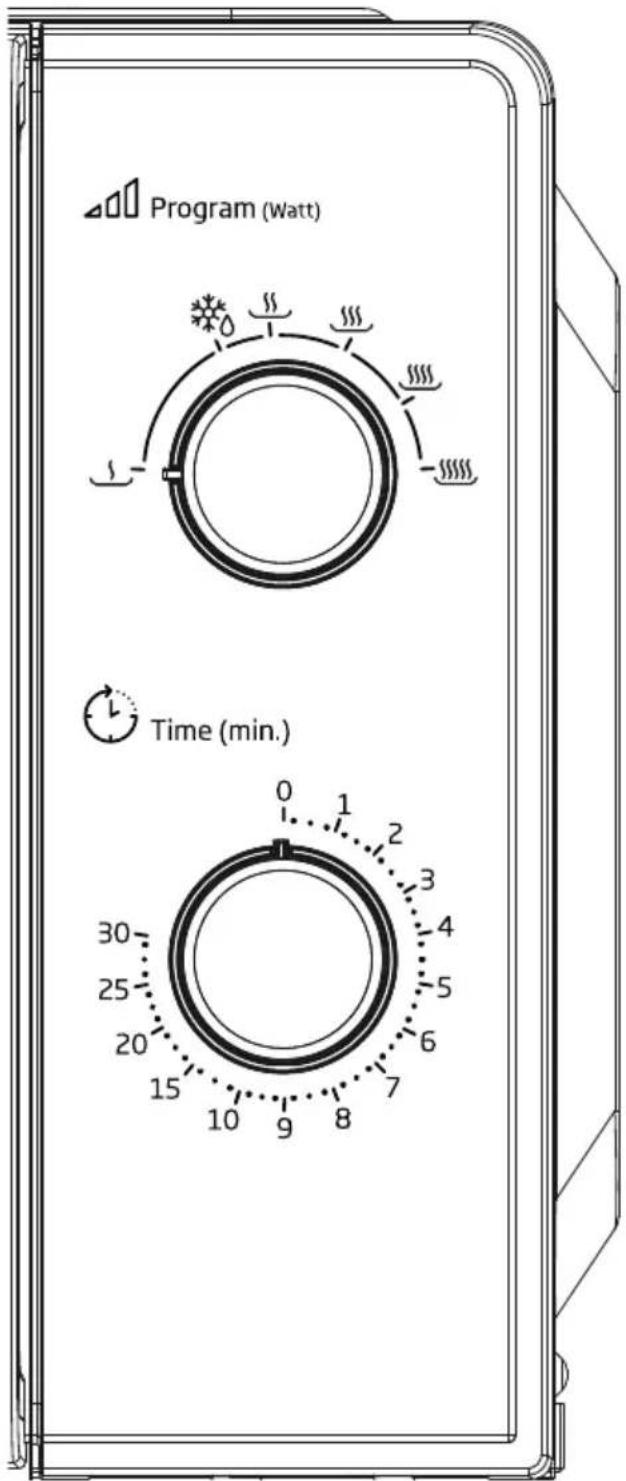

Controls and parts

1. Power knob
2. Timer knob
3. Roller ring
4. Shaft
5. Glass tray
6. Oven window

2.2 Technical data

Rated Voltage 230-240V~,50Hz
Rated Input 1100W (Microwave)
Rated Output 700W
Microwave frequency 2450MHz
Microwave power level 6
Outside dimensions (H*W*D) mm	243*446*340 mm
Glass turntable 245 mm
Oven capacity 20 L
Net weight 10 kg
Color White / Black / Silver

Technical and design modification rights are reserved.

Markings on the appliance or the values stated in other documents supplied with the product are values obtained under laboratory conditions as per relevant standards. These values may vary according to the usage of the appliance and ambient conditions.

3.1 Installation

1. Make sure that all the packing materials are removed from the inside of the door.

1. This microwave oven must be placed on a flat, stable surface to hold its weight and the heaviest food likely to be cooked in the oven.
2. Do not place the oven where heat, moisture, or high humidity are generated, or near combustible materials.
3. For correct operation, the oven must have sufficient airflow. Allow 20 cm of space above the oven, 10 cm at the back, and 5 cm on both sides. Do not cover or block any openings on the appliance. Do not remove the feet.
4. Do not operate the oven without the glass tray, roller support, and shaft in their proper positions.
5. Make sure that the power supply cord is undamaged and does not run under the oven or over any hot or sharp surface.
6. The socket must be readily accessible so that it can be easily unplugged in an emergency.
7. Do not use the oven outdoors.

3.2 Radio interference

Operation of the microwave oven can cause interference to your radio, TV, or similar equipment. When there is interference, it may be reduced or eliminated by taking the following measures:

1. Clean the door and sealing surface of the oven.
2. Reorient the receiving antenna of the radio or television.
3. Relocate the microwave oven with respect to the receiver.
4. Move the microwave oven away from the receiver.
5. Plug the microwave oven into a different outlet so that the microwave oven and receiver are on different branch circuits.

3.3 Microwave cooking principles

1. Arrange food carefully. Place thickest areas towards outside of dish.
2. Watch cooking time. Cook for the shortest amount of time indicated and add more as needed. Food severely overcooked can smoke or ignite.
3. Cover foods while cooking. Covers prevent spattering and help foods to cook evenly.
4. Turn foods over once during microwave cooking to speed cooking of such foods as chicken and hamburgers. Large items like roasts must be turned over at least once.
5. Rearrange foods such as meatballs halfway through cooking both from top to bottom and from the center of the dish to the outside.

3.4 Grounding instructions

This appliance must be grounded. This oven is equipped with a cord having a grounding wire with a grounding plug. It must be plugged into a wall receptacle that is properly installed and grounded. In the event of an electrical short circuit, grounding reduces risk of electric shock by providing an escape wire for the electric current. It is recommended that a separate circuit serving only the oven be provided. Using a high voltage is dangerous and may result in a fire or other accident causing oven damage.

WARNING: Improper use of the grounding plug can result in a risk of electric shock.

3 Installation and connection

If you have any questions about the grounding or electrical instructions, consult a qualified electrician or service person.

4	Neither the manufacturer nor the dealer can accept any liability for damage to the oven or personal injury resulting from failure to observe the electrical connection procedures.

The wires in this cable main are colored in accordance with the following code:

Green and Yellow = EARTH

Blue = NEUTRAL

Brown = LIVE

3.5 Utensils guide

1. Microwave cannot penetrate metal. Only use utensils that are suitable for use in microwave ovens. Metallic containers for food and beverages are not allowed during microwave cooking. This requirement is not applicable if the manufacturer specifies size and shape of metallic containers suitable for microwave cooking.
2. Microwave cannot penetrate metal, so metal utensils or dishes with metallic trim should not be used.
3. Do not use recycled paper products when microwave cooking, as they may contain small metal fragments which may cause sparks and/or fires.
4. Round /oval dishes rather than square/oblong ones are recommend, as food in corners tends to overcook.
5. Narrow strips of aluminum foil may be used to prevent overcooking of exposed areas. But be careful don't use too much and keep a distance of 1 inch (2.54 cm) between foil and cavity.

The list below is a general guide to help you select the correct utensils.

Cookware Microwave
Heat-Resistant Glass Yes
Non Heat-Resistant Glass No
Heat-Resistant Ceramics Yes
Microwave-Safe Plastic Dish Yes
Kitchen Paper Yes
Metal Tray No
Metal Rack No
Aluminum Foil & Foil Containers No

4 Operation

4.1 Control panel

The control panel consists of two function operators. One is a timer knob, and another a power knob.

Power knob

You use this power knob to choose a cooking power level. It is the first step to start a cooking session.

Timer knob

Offers visual timing settings at an easy turn of your thumb to select a desired cooking time up to 30 minutes per cooking session.

Microwave cooking

For pure microwave cooking, there are six power levels from which to choose one as best fit to do the job at hand.

Power level increases with the knob turning clockwise. The power levels can be classified as the following:

	Power output Description
1 10	0% High
2 88	% M. High
3 73	% Med
4 52	% M. Low
5 42	% Defrost
6 20	% Low

4.2 Operation

To start a cooking session,

1. Place food in oven and close the door.
2. Turn power knob (1) to select a power level.
3. Use timer knob (2) to set a cooking time.

As soon as the timer is turned, oven starts cooking. When selecting time for less than 2 minutes, turn timer past 2 minutes and then return to the correct time.

CAUTION: Always return timer back to zero position if food is removed from oven before the set cooking time is complete or when oven is not in use. To stop oven during cooking process, push the door release button or open the door by the handle.

5.1 Cleaning and care

WARNING: Never use gasoline, solvent, abrasive cleaning agents, metal objects or hard brushes to clean the appliance.

WARNING: Never immerse the appliance or its power cable in water or in any other liquid.

1. Turn off the oven and remove the power plug from the wall socket before cleaning.
2. Wait for the appliance to completely cool down.
3. Keep the inside of the oven clean. When food splatters or spilled liquids adhere to oven walls, wipe with a damp cloth. Mild detergent may be used if the oven gets very dirty. Avoid the use of spray and other harsh cleaners as they may stain, streak or dull the door surface.
4. The outside surfaces should be cleaned with a damp cloth. To prevent damage to the operating parts inside the oven, water should not be allowed to seep into the ventilation openings.
5. Wipe the both sides of the door and window, the door seals and adjacent parts frequently with a damp cloth to remove any spills or spatters. Do not use abrasive cleaner.
6. A steam cleaner is not to be used.
7. Do not allow the control panel to become wet. Clean with a soft, damp cloth. When cleaning the control panel, leave oven door open to prevent oven from accidentally turning on.
8. If steam accumulates inside or around the outside of the oven door, wipe with a soft cloth. This may occur when the microwave oven is operated under high humidity condition. And it is normal.
9. It is occasionally necessary to remove the glass tray for cleaning. Wash the tray in warm sudsy water or in a dishwasher.
10. The roller ring and oven floor should be cleaned regularly to avoid excessive noise. Simply wipe the bottom surface of the oven with mild detergent. The roller ring may be washed in mild sudsy water or dishwasher. When removing the roller ring from cavity floor for cleaning, be sure to replace in the proper position.
11. Remove odors from your oven by combining a cup of water with the juice and skin of one lemon in a deep microwaveable bowl, microwave for 5 minutes. Wipe thoroughly and dry with a soft cloth.
12. When it becomes necessary to replace the oven light, please consult a dealer to have it replaced.
13. Please do not dispose this appliance into the domestic rubbish bin; it should be disposed to the particular disposal center provided by the municipalities.
14. When the microwave oven with grill function is first used, it may produce slight smoke and smell. This is a normal phenomenon because the oven is made of a steel plate coated with lubricating oil, and the new oven will produce fumes and odor generated by burning the lubricating oil. This phenomenon will disappear after a period of using.

5.2 Storage

• If you do not intend to use the appliance for a long time, please store it carefully.
• Please make sure that the appliance is unplugged, cooled down and totally dry.
• Store the appliance in a cool and dry place.
• Keep the appliance out of the reach of children.

5.3 Handling and transportation

• During handling and transportation, carry the appliance in its original packaging. The packaging of the appliance protects it against physical damages.

5 Cleaning and care

• Do not place heavy loads on the appliance or the packaging. The appliance may be damaged.
• Dropping the appliance will render it non-operational or cause permanent damage.

6 Troubleshooting

Problem Possible solution
If the oven fails to operate	Check to ensure that the oven is plugged in securely. If it is not, remove the plug from the outlet, wait 10 seconds, and plug it in again securely.
	Check for a blown circuit fuse or a tripped main circuit breaker. If these seem to be operating properly, test the outlet with another appliance.
	Check to ensure that the control panel is programmed correctly and the timer is set.
	Check to ensure that the door is securely closed engaging the door safety lock system. Otherwise, the microwave energy will not flow into the oven.
If none of the above rectifies the situation, then contact a qualified technician. Do not try to adjust or repair the oven yourself.

Dear customer,

3.5 Tool guide

Blue = NEUTRAL

Brown = LIVE

Maroon = LIVE (PHASE)

3.5 Tool guide

Green/yellow = EARTH

Blue = NEUTRAL

Brown = PHASE

WARNING: Before servicing, disconnect the appliance from the power supply. All protective measures against electric shock must be observed. All repair work must be carried out by qualified personnel only.

WARNING: Do not immerse the appliance in water or other liquids. Do not use it near bathtubs, showers, or basins filled with water.

The appliance must be placed on a stable surface, and all food residues must be removed. There must be at least 30 cm of free space above the top surface of the appliance. Do not cook food for too long; you may cause a fire. Do not use chemical or abrasive cleaning agents to clean the appliance.

1 Important safety instructions and environmental protection

CLEANING the appliance.

You must be especially careful if you use the appliance near children or persons with reduced physical, sensory, or mental capabilities.

• The appliance may be used by children aged 8 years and above and by persons with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.
• Risk of burns! Keep packaging materials away from children's reach!

Store the product and its power cord so that they are not accessible to children under 8 years of age.

Do not cook food directly on the glass tray. Place the food in/on a suitable microwave-safe container before putting it in the oven.

- During cooking in the microwave oven, the use of metal containers for food and drinks is not allowed. Otherwise, sparks may occur.

This product is not intended for playing. Do not place the product in a cupboard or corner while it is in use.

• Maintenance of

1 Important safety and environmental instructions

The oven may become hot during operation, which may cause burns. Be careful when touching the surfaces.

• The appliance must not be operated with a timer. For heating drinks in the microwave oven, it may cause delayed boiling, so care must be taken when handling the container.
• WARNING: When the appliance operates in combined mode, children should only use the oven under adult supervision due to the generated temperatures.
• Cleaning: Do not place the oven in water or other liquids. Cleaning: Only the exterior

with a damp cloth soaked in warm soapy water. Do not use harsh, abrasive cleaners. Follow the detailed instructions for cleaning and maintenance.

1.2 Compliance with WEEE Directive and Disposal of Waste Products:

This product complies with the requirements of the EU Directive on waste electrical and electronic equipment (2012/19/EU). This product bears the classification symbol for waste electrical and electronic equipment (WEEE).

This symbol indicates that the product must not be disposed of with unsorted household waste at the end of its useful life.

It must be returned to a designated collection point for recycling of electrical and electronic equipment. To find these collection points, please contact your local authority or the retailer from whom the product was purchased. Every household plays an important role in the collection and recycling of used equipment. Proper disposal of used equipment helps to prevent potential negative effects on the environment and human health.

1 Important instructions for safety and environmental protection

1.3 Compliance with the Directive on the restriction of the use of certain hazardous substances

The product you have purchased complies with the requirements of the EU Directive on the restriction of the use of certain hazardous substances in electrical and electronic equipment (2011/65/EC). It does not contain any of the harmful or banned materials described in the Directive.

1.4 Information on packaging

The packaging of the product is made of recyclable materials in accordance with national legislation.

Do not dispose of packaging materials with household or other waste. Take them to a packaging collection point designated by local authorities.

2 Your microwave oven

2.1 Overview

Control panel and parts

1. Power cord
2. Turntable
3. Roller ring
4. Bān
5. CtbkneHa noctBaKa
6. Прозорец на сурната

2.2 Technical data

Homonhalno habpexeHne 230-	240V~,50Hz
HomonhaJeH BxOД 1100W (MnK	roBbIHOBa)
HomonhaHa MoUHocT 700W
YeCTOTA 2450MXu
HnBO Ha MoUHocT 6
Вьнши размери (Висоуна *ширINA *Дьбочина) MM	243*446*340 MM
Вьртуso ce StbKЛо 245 MM
КаразитET Ha Фурнata	20 п
HetNo Terglo 10 кг
ЦВЯТ БЯП / УрЕн / СрБьрен

Technical rights and rights to change are reserved.

The markings on the device or the values, indicated in other documents, provided with the product, are values obtained in laboratory conditions according to the relevant standards. These values may vary depending on the use of the device and the conditions of the environment.

3.1 Installation

1. Make sure that all packaging material is removed from the inside and outside of the door.

CAUTION: Check the oven for any damage, such as misaligned or bent door, damaged door seals and sealing surface, broken or loose door hinges and latches, and dents inside the oven or on the door. If there is any damage, do not use the oven and contact qualified service personnel.

1. This microwave oven must be placed on a flat, stable surface, to hold the weight of the oven plus the heaviest food that can be cooked in the oven. 3. Do not place the oven in a place where heat, moisture or high humidity are generated, or near combustible materials. 4. For proper operation, the oven must have sufficient air flow. Leave 20 cm of space above the oven, 10 cm from the back and 5 cm from both sides. Do not cover or block any of the openings of the device. Do not remove the feet. 5. Do not operate the oven if the glass tray, roller ring or shaft are not in their correct positions.
2. Make sure that the power cord is not damaged and does not run under the oven or over hot or sharp surfaces.
3. The contact, into which it is plugged, must be easily accessible, so that it can be pulled out quickly in case of an accident. 8. Do not use the oven outdoors.

3.2 Radio interference

Operation of the microwave oven may cause interference in the operation of your radio, television, or other similar equipment.

When interference occurs, it can be reduced or eliminated by taking the following measures:

1. Clean the door and the sealing surface of the oven. 2. Reorient the receiving antenna. 3. Relocate the microwave oven with respect to the receiver. 4. Move the microwave oven away from the receiver. 5. Plug the microwave oven into a different outlet so that the microwave oven and the receiver are on different electrical circuits.

The wires in the mains cable are colored in accordance with the following code:

Green and yellow = Earth

Blue = Neutral

Brown = Live

3.3 Principles for Cooking with the Microwave Oven

1. Prepare the food carefully. Place the remaining parts inside the oven. 2. Pay attention to the cooking time. Cook for the shortest possible recommended time. Add more time if necessary. Overcooked food can catch fire or burn.

3. Stir the food during cooking. Stirring the food prevents burning and helps to ensure even cooking. 4. Turn the food like meat and hamburgers during cooking in the microwave oven to speed up the cooking of such foods. Large pieces of food like roast should be turned at least once. 5. Turn the food like poultry in the middle of the cooking cycle and exchange places from the center of the oven to the outside.

3.4 Instructions for Earthing

This appliance must be earthed. This oven has an earthing cable with a plug. The plug must be connected to a wall socket that is properly installed and earthed. The earthing system allows the discharge of electric current leakage in case of a short circuit and reduces the risk of electric shock. Do not use an electrical outlet that is intended only for the oven. Working with high voltage is dangerous and can lead to fire or other accidents that could damage the oven.

WARNING:

Incorrect earthing of this appliance can lead to electric shock.

Improper grounding of the body can lead to electric shock.

If you have any questions regarding the installation and electrical instructions, consult a qualified electrician or service personnel.

The manufacturer/supplier is not responsible for damages that may occur as a result of non-compliance with the electrical connection procedures.

3.5 Cookware Guide

1. Microwaves cannot pass through metal. Use only cookware that is suitable for use in a microwave oven. When using a microwave oven, the use of metal containers for food and drinks is not permitted. This requirement does not apply if the manufacturer has specified the dimensions and format of the metal containers suitable for use in the microwave oven.
2. Microwaves cannot pass through metal, so metal utensils or utensils with metal coating should not be used.
3. Do not use recycled paper products when cooking in the microwave oven, as they may contain small metal fragments that could cause sparks and/or fire.
4. Prefer round or oval cookware over square or rectangular ones, as food in the corners tends to overcook.

3.6 Installation

1. Tight seals can be used on the aluminum foil to prevent the release of uncovered parts. But be careful not to use too much foil, and maintain a distance of 1 inch (2.54 cm) between the aluminum foil and the oven walls.

The list below is a guide to help you choose the appropriate cookware.

WARNING: Never insert any objects into the openings of the oven.

1. Unplug the oven and remove the turntable from the contact. 2. Wait for the oven to cool completely. 3. Keep the interior of the oven clean. Wipe with a damp cloth if there are spills or splatters, and clean the walls of the oven. A mild detergent can be used if the oven is very dirty. Avoid using abrasive cleaners or scouring pads.

Abrasive cleaners may cause damage, discoloration, and reduce the transparency of the door surface.

4. The surfaces of the oven should be cleaned with a damp cloth. Do not allow water to accumulate in the ventilation openings, to prevent damage to the oven parts. 5. Clean the two sides of the door, the door seal, and the adjacent parts frequently to prevent the accumulation of dirt and grease. Do not use abrasive cleaners. 6. Do not use a steam cleaner. 7. Do not allow the control panel to get wet. Clean it with a soft, damp cloth. Keep the oven door open to prevent accidental activation during cleaning. Do not spray water on the control panel. 8. If dust accumulates around and on the oven door, wipe it off

with a soft cloth. This may happen when the microwave oven has been used in very humid conditions. This is normal.

1. Before you can clean the appliance, you may need to remove the glass supply. Replace the supply with clean tap water in the washing machine.
2. The oven and the surface of the oven must be cleaned regularly to prevent noise. It is sufficient to wipe the entire surface of the oven with a soft cloth. The oven can be removed with clean tap water in the washing machine. When you remove the oven for cleaning, make sure you install it back in the correct position.
3. To remove limescale from your oven, place a water container and pour lemon juice into a deep bowl, suitable for microwave ovens, and run the oven for 5 minutes in microwave mode. Then wipe it well and dry it with a soft cloth. 12. Contact an authorized service center when the oven lamp needs to be replaced. 13. Do not dispose of the appliance with household waste; old appliances must be disposed of in special municipal collection centers.
4. When the microwave oven is operated in grill mode, there may be a small amount of smoke or odor, which will disappear after some time of use.

5.2 Storage

• If you do not intend to use the appliance for an extended period, store it carefully. Make sure the appliance is unplugged, cooled, and completely dry.
• Store the appliance in a cool and dry place. Keep the appliance away from children.

5.3 Handling and transport

• During work and transport, carry the appliance in its original packaging. The packaging protects the appliance from physical damage. Do not place heavy items on top of the appliance or packaging. The appliance may be damaged.
• Improper handling may cause damage to the appliance.

6 Troubleshooting

5.3 Handling and transport

• During handling and transport, carry the appliance in its original packaging. The packaging protects the appliance from physical damage.

Keep something in it.

Do not place sharp objects, materials for cleaning food in the microwave oven. Do not use them.

• The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised. Keep the appliance and its cord out of reach of children less than 8 years.

Do not immerse the appliance in water. Do not use steam cleaner for cleaning the appliance. Do not use abrasive cleaners or metal scouring pads. Do not touch the hot surfaces. Use oven mitts or potholders when handling hot parts. Do not place food directly on the heating element. Use the provided rack or tray. Do not cover the appliance with metal foil or other materials. Do not place the appliance near flammable materials. Do not use the appliance outdoors. Do not use the appliance for other than intended use.

WARNING: If the surface is cracked, switch off the appliance to avoid the possibility of electric shock.

1 Safety instructions and warnings

WARNING:

It is dangerous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.

WARNING:

Liquids and other foods must not be heated in sealed containers since they are liable to explode.

The microwave oven should be cleaned regularly and any food deposits removed. The oven should have at least 30 cm free space above the top surface. Do not leave food in the oven for too long as it may catch fire. Do not clean the appliance with a steam cleaner. -It is necessary to be very careful when using the appliance near children and persons who have

reduced physical, sensory or mental capabilities. This appliance can be used by children aged from 8 years and above, as well as persons with reduced physical, sensory or mental capabilities if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.

DANGER! Keep all packaging materials away from children.

-Due to the high temperature generated when the microwave oven operates in combination mode, children should only use this mode under

1 Safety instructions and warnings

adult supervision.

The device must not be placed near a heat source. Do not place it directly on a glass surface. Place the food in a suitable kitchen container before putting it in the microwave. It is not allowed to place metal containers for food and drinks in the microwave oven. Otherwise, sparks may occur. The microwave oven must not be placed in a rack if it is not in accordance with the installation instructions. Improper use of the device in poor condition may lead to damage to the surface, which could adversely affect the life of the device and possibly lead to a dangerous situation. The device must not be

installed near a wall. The operation of the device in the microwave oven may cause delayed boiling time, so care must be taken when handling the container.

WARNING: When the device is used in combined mode, children should use it only under adult supervision due to the generated temperatures.

Cleaning: Do not place the device in water or other liquids. Clean the appliance only with a damp cloth and mild detergent in warm water. Do not use abrasive or harsh cleaning agents. See the cleaning and maintenance instructions for details.

1.2 Compliance with the Directive on Waste Electrical and Electronic Equipment (WEEE) and the Directive on Waste Products:

This product is in compliance with the EU Directive on Waste Electrical and Electronic Equipment (2012/19/

1 Important safety and environmental instructions

EU). This product bears the symbol for the classification of waste electrical and electronic equipment.

This symbol indicates that the product must not be disposed of together with other household waste at the end of its life.

The user is obliged to return it to a designated collection point for recycling of electrical and electronic equipment. Check where such collection points exist at local authorities or at the retailer from whom you purchased the product. Every household plays an important role in recycling old appliances. Proper disposal of the used appliance helps prevent potential negative consequences for the environment and human health.

1.3 Compliance with the Directive on the Restriction of Hazardous Substances (RoHS)

The product you purchased is in compliance with the EU Directive on the Restriction of Hazardous Substances (2011/65/EU). It does not contain lead or other prohibited materials listed in the Directive.

1.4 Information on packaging

The materials of the packaging of this product are produced from materials that can be recycled in accordance with

the state regulations for environmental protection.

Dispose of it in accordance with the regulations for disposal of waste electrical and electronic equipment, separately from other waste. Take it to a designated collection point for waste electrical equipment, as determined by the local competent authorities.

2 Microscope

2.1 Introduction

Controls and components

1. Eyepiece
2. Diopter ring
3. Arm
4. Stage
5. Glass slide
6. Microscope objective

2.2 Technical specifications

Hanoн 230-240V~,50Hz
Влес 1100W	(MNKpo6paHOBи)
ИзpeЗ 700W
Фразковциja на мNKpo- браHOВаТa	2450MHz
НИВО на мОКHOCT на МNKpo6paHOВаТa	6
Надворецни димензи (BxLxД) MM	243*446*340 mm
Стakлеса подьЖна ЧИНИJA	245 mm
КаразитET на мNKропeчКаТa	20 L
Нeto Текина 10 kg
Боба БILA / Сprпа /	Сребра经Ha

The right to make technical changes is reserved. Changes are made without prior notice.

The markings on the device or the accompanying documentation provided with the product are subject to change. The device is intended for laboratory use in accordance with the relevant standards. However, performance may vary depending on the way the device is used and the conditions in which it is used.

3.3 How to prepare food in the microwave oven

Power level (WATTS) TIME (MINUTES)*

Mode ENERGY CONSUMPTION (WATT) PERIOD (MINUTES)*

Mode ENERGY CONSUMPTION (WATT)

PERIOD (MINUTES)*

Mode POWER CONSUMPTION (WATT)

TIME (MINUTES)*

Mode ENERGY CONSUMPTION (W)

PERIOD (IN MINUTES)*

Mode of operation ENERGY CONSUMPTION (watts) PERIOD (MINUTES)*

Mode POWER CONSUMPTION (WATTS)

TIME PERIOD (MINUTES)*

Mode ENERGY CONSUMPTION (WATT)

PERIOD (MINUTES)*
