USER MANUAL HG00214 MELINERA

PDF ONLINE www.lidl-service.com

ZIMMERBRUNNEN MIT LED / INDOOR LED WATER FEATURE / FONTAINE D'INTÉRIEUR À LED

DE AT CH

ZIMMERBRUNNEN MIT LED

INDOOR LED WATER FEATURE

Operation and safety notes

NL BE

GB / IE Operation and safety notes Page 12

Medical diagram showing anatomical structures of a brain with numbered labels pointing to different regions.

Intended use....Page 13

Parts description Page 13

Included items Page 13

Technical data......Page 13

Safety information......Page 14

Before first use....Page 15

Start up / Use Page 16

Installation for HG00214A......Page 16

Installation for HG04214C......Page 16

Switching the product on/off......Page 16

Changing the water / maintenance / cleaning / care......Page 16

Disposal Page 17

Warranty Page 17

Warranty claim procedure......Page 17

Service Page 18

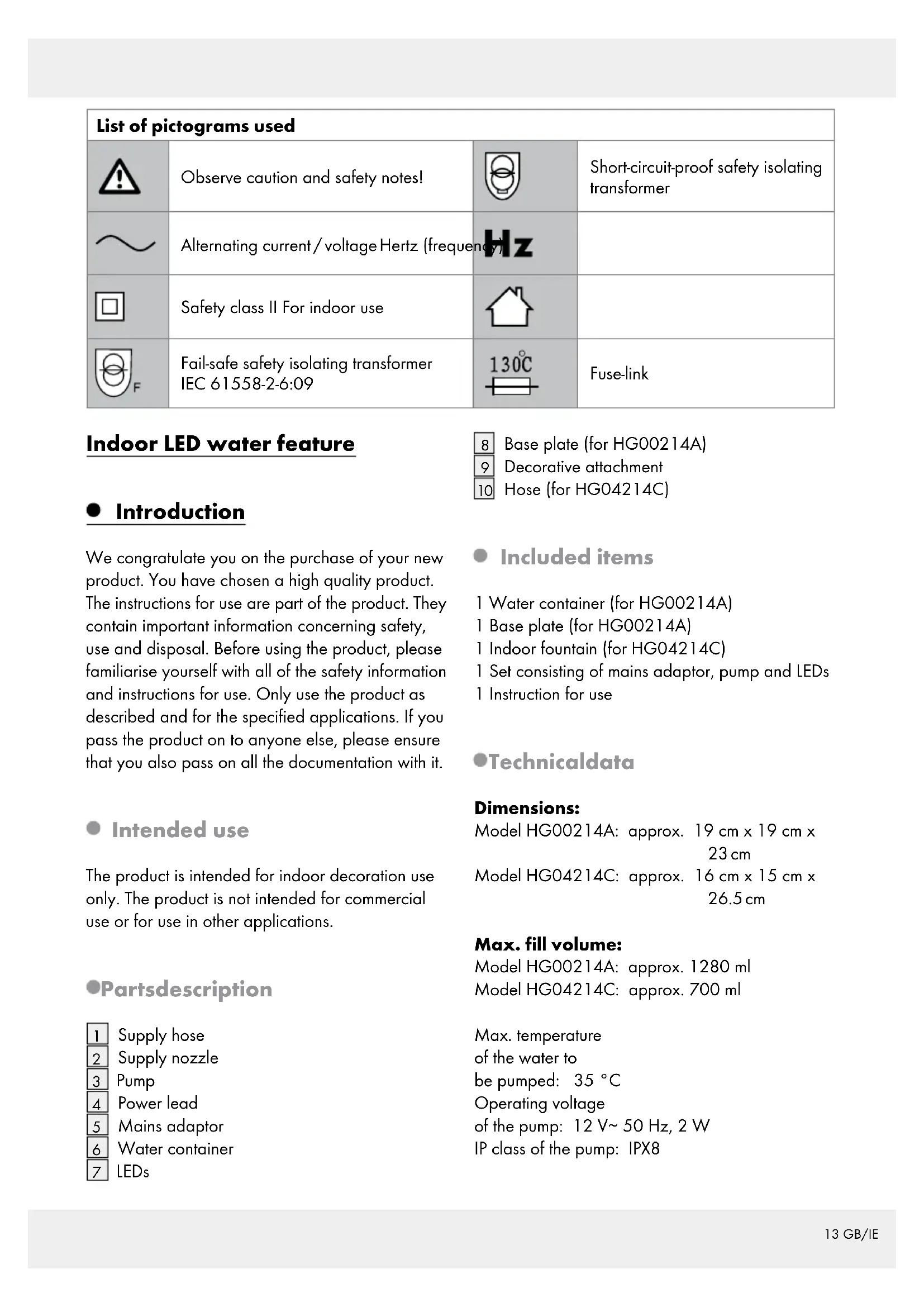

List of pictograms used
	Observe caution and safety notes!		Short-circuit-proof safety isolating transformer
	Alternating current / voltage Hertz (frequen
	Safety class II For indoor use
	Fail-safe safety isolating transformerIEC 61558-2-6:09		Fuse-link

Indoor LED water feature

- Introduction

We congratulate you on the purchase of your new product. You have chosen a high quality product. The instructions for use are part of the product. They contain important information concerning safety, use and disposal. Before using the product, please familiarise yourself with all of the safety information and instructions for use. Only use the product as described and for the specified applications. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.

- Intended use

The product is intended for indoor decoration use only. The product is not intended for commercial use or for use in other applications.

Partsdescription

1 Supply hose
2 Supply nozzle
3 Pump
4 Power lead
5 Mains adaptor
6 Water container
7 LEDs

8 Base plate (for HG00214A)
9 Decorative attachment
10 Hose (for HG04214C)

- Included items

1 Water container (for HG00214A)
1 Base plate (for HG00214A)
1 Indoor fountain (for HG04214C)
1 Set consisting of mains adaptor, pump and LEDs
1 Instruction for use

- Technicaldata

Dimensions:

Model HG00214A: approx. 19 cm x 19 cm x 23 cm

Model HG04214C: approx. 16 cm x 15 cm x 26.5 cm

Max. fill volume:

Model HG00214A: approx. 1280 ml

Model HG04214C: approx. 700 ml

Max. temperature

of the water to

be pumped: 35 °C

Operating voltage

of the pump: 12 V\~50 Hz, 2 W

IP class of the pump: IPX8

Light bulb: 4 x LEDs, 0.06 W,

LEDs cannot be replaced

Input voltage

Mains adapter: 230-240V\~, 50Hz

Output voltage

Mains adapter: 12 V\~ 250 mA

Protection category: II/

IP class of the adapter: IP20

The mains adapter (Model no. MAI-1200250)

is GS certified.

Safety information

PLEASE KEEP THE INSTRUCTIONS IN A SAFE PLACE. WHEN PASSING THIS PRODUCT ON TO OTHERS; PLEASE ALSO INCLUDE ALL OF THE DOCUMENTS!

• Keep children away from the product. This product is not a toy.
  This product may be used by children age 8 years and up, as well as by persons with reduced physical, sensory or mental capacities, or lacking experience and/or knowledge, so long as they are supervised or instructed in the safe use of the product and understand the associated risks. Children should not be allowed to play with the product. Cleaning and user maintenance should not be performed by children without supervision.

⚠️ CAUTION! RISK OF INJURY!

Please ensure that no parts are damaged and that all parts are correctly assembled. Incorrect assembly could lead to injury. Damaged parts could impact safety and function.

Place the product on an flat and smooth surface. The product may otherwise tip over. This may result in injury or damage to the product.
■ Only use the product together with the included accessories.
■ Only use the product indoors.
Only use the pump3 when it is completely covered in water. Otherwise the pump could overheat. This may lead to the product being damaged.
■ Ensure that there are no items in the water that could be sucked into the pump. The product may otherwise be damaged.
Only use the product with distilled water with out any additives such as fragrances or the like. Additives which are mixed in can ignite. This may result in injury and/or damage.

Avoid the danger of death from electric shock!

Before use, ensure the available mains voltage matches the voltage required for mains adapter
5 (The input voltage can be found on the rating plate of the mains adapter 5: 230-240V\~, 50 Hz).
■ Always check the product, the pump 3 and the mains adapter
5 for any damage before connecting it to the mains.
A damaged product represents the danger of death from electric shock.
■ Never open any of the components of the electrical equipment or insert any objects into the same components. This will pose a risk of fatal injury from electric shock.
■ Never touch the mains adapter 5 or main plug with moist or wet hands.
■ Ensure that the mains adapter
5 or main plug never comes into contact with water or other liquids.
- Do not use the power cable for purposes for which it was not intended e.g. for carrying the pump, hanging it up or to pull the

mains adapter 5 out the plug. Keep the lead away from heat, oil, sharp edges or moving equipment parts. Damaged or tangled leads increase the risk of an electric shock.

■ Dispose of the electrical parts of the product if the cable is damaged or if you find any kind of mechanical problems. The electrical parts of the product and all associated items cannot be replaced.

- Only carry out work on the product if the mains plug is disconnected from the mains.

■ Never leave the pump running without water.

The product is only suited for use with the included mains adapter 5 (Model No. MAI-1200250).

To switch the product off completely, unplug the main plug from the socket.

The LEDs are not replaceable.

If the LEDs fail at the end of their lives, the entire product must be replaced.

Before first use

□ Carefully unpack the product and accessories.

Place the water container 6 on an even and level surface near a power socket (230-240V\~, 50Hz).
☐ Ensure that there are no objects near the area which could get damaged by water spray whilst the product is in use.

- Start up / Use

● Installation for HG00214A (Fig. A)

☐ Fill the water container 6 up to the marking MAX (inside wall) with distilled water.
☐ Push the LEDs over the supply hose ☐ to the connection between the supply hose and the decorative attachment. The LEDs must face in the direction of the decorative attachments.
☐ Put the decorative attachment with the base plate 8 and the attached pump into the water container and lead the power lead 4 through the notch on the back of the base plate.
☐ Your product is now ready for use.

● Installation for HG04214C (Fig. B)

☐ Fill the water container 6 up to the marking MAX (inside wall) with distilled water with watering can or bottle.

Note: The LEDs are already pre-installed over the hose 10. You can pull them off the hose 10 for cleaning. When you then attach them again, the LEDs 7 must face in the direction of the decorative attachments 9.

☐ Put the supply hose 1 of the pump 3 in the supply nozzle 2.
☐ Put the attached pump 3 into the water container 6 and lead the power lead 4 through the back.

Your product is now ready for use.

● Switching the product on / off

☐ Plug the mains adaptor 5 into the mains. The LEDs light up and water flows from the product.
☐ Unplug the mains adaptor 5 from the mains to turn off the product.

● Changing the water / maintenance / cleaning / care

DANG RONING! LIFE BY ELECTRIC SHOCK! Pull the mains adaptor 5 out of the socket before carrying out any work on the product.

Always use distilled water to avoid the build up of lime scale!

Note: Water can be evaporated during operating, fill the water up to "MAX" when water level fall to "MIN".

Note: To avoid the build up of algae you should clean regularly change the water and and clean the water container 6 and decorative attachment 9 at regular intervals - at least once a week.

Note: Only use water and few detergent to clean the fountain.

For HG00214A

☐Baseplate 8 and decorative attachment 9 are inseparably connected to each other and form one unit. Take this unit (8 and 9) from the water container 6.
☐ Pull the supply hose 1 out of the supply nozzle 2.
☐ After removing the supply hose 1, then pull off the LEDs 7 from supply hose 1.
☐ Lie the unit of base plate 8 and decorative attachment 9 carefully aside together with the LEDs 7 and pump 3.
□ Carefully pour the water out from water container 6.

For HG04214C

□ Carefully pour the water out.

☐ Pull the supply hose ☐ 1 out of the supply nozzle ☐ 2.
☐ Pull off the LEDs 7 from hose 10.
□ Clean the water container with a soft cloth (or similar) use only water and a small amount of detergent to clean if necessary. Clean the decorative attachment 9 with a soft cloth (or similar) use only water and a small amount of detergent to clean if necessary, alternatively you may use a duster. Duster can also use to clean the grooving of the outer side of the product, supply hose 1 and surface of supply nozzle 2.
☐ Fill the water container up again to the MAX mark (inside wall) with distilled water.
☐ Rebuild the product again (see "Installation").

●Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.

Observe the marking of the packaging materials for waste separation, which are marked with abbreviations (a) and numbers (b) with following meaning: 1–7: plastics / 20–22: paper and fibre-board / 80–98: composite materials.

The product and packaging materials are recyclable, dispose of it separately for better waste treatment. The Triman logo is valid in France only.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.

To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority.

Warranty

The product has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of product defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.

The warranty for this product is 3 years from the date of purchase. The warranty period begins on the date of purchase. Please keep the original sales receipt in a safe location. This document is required as your proof of purchase.

Should this product show any fault in materials or manufacture within 3 years from the date of purchase, we will repair or replace it – at our choice – free of charge to you. This warranty becomes void if the product has been damaged, or used or maintained improperly.

The warranty applies to defects in material or manufacture. This warranty does not cover product parts subject to normal wear, thus possibly considered consumables (e.g. batteries) or for damage to fragile parts, e.g. switches, rechargeable batteries or glass parts.

- Warranty claim procedure

To ensure quick processing of your case, please observe the following instructions:

Please have the till receipt and the item number (e.g. IAN 123456_7890) available as proof of purchase.

You will find the item number on the rating plate, an engraving on the front page of the instructions for use (bottom left), or as a sticker on the rear or bottom of the product.

If functional or other defects occur, please contact the service department listed either by telephone or by e-mail.

You can return a defective product to us free of charge to the service address that will be provided

to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.

Service

GB Service Great Britain

Tel.: [phone]

E-Mail: [e-mail]

IE Service Ireland

Tel.:[phone]

E-Mail: [e-mail]
