USER MANUAL John Deere Ground Force PEG PEREGO

John Deere GROUND FORCE

cod. IGOR0039

USE AND CARE

EN

UTILISATION ET ENTRETIEN

FR

EMPLEO Y MANUTENCION

ES

See separate insert sheet for more information

Line drawing of a toy tractor with visible tires and front wheel (no text or symbols)

Requires 2 AA batteries (not included)
Requerir 2 AA baterías (no inclusa)
Exige 2 batteries AA (non incluses)

• Year 3 +
  • Weight Capacity 85 lbs
  • Année 3+
• Capacité de poids 85 lbs
  • Año 3+
• Capacidad de peso 85 lbs

STOP! VERY IMPORTANT

Do NOT ride vehicle before charging battery for 18 hours. Failure to do this will permanently damage the battery and void your warranty.

ALSO;

Charge the battery immediately after each use, regardless of how long the vehicle was used.

Storing the battery in a discharged state will permanently damage the battery.

When storing, the battery must be recharged every 30 days.

NEED HELP: Call 1-800-728-2108

ONLY USE THE PEG PEREGO BATTERY & CHARGER WITH THIS TOY.

As Peg Perego USA, INC. grows, counterfeits and unauthorized distributors and retailers are making non-Peg Perego products and low quality knockoffs that are mistaken for an authentic one. Please avoid use of outside brand - third party accessories and/or products with the Peg Perego brand, which have resulted in damage to the product.

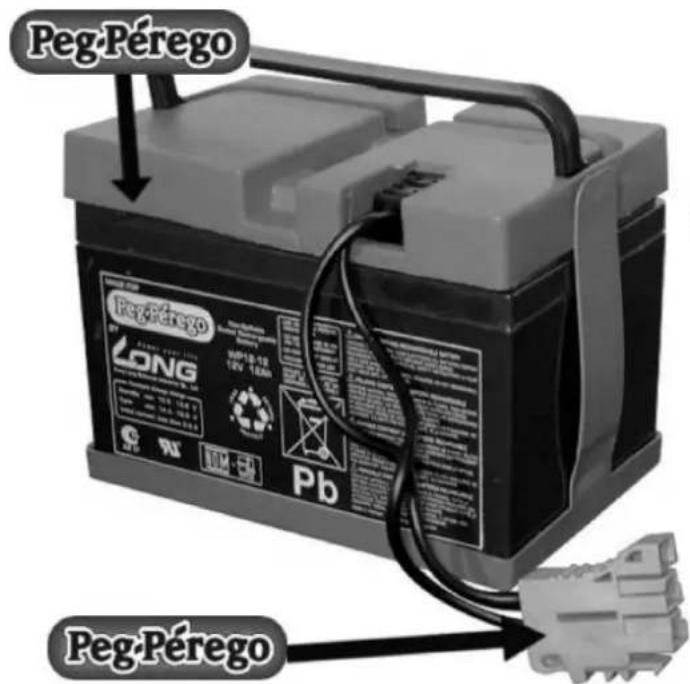

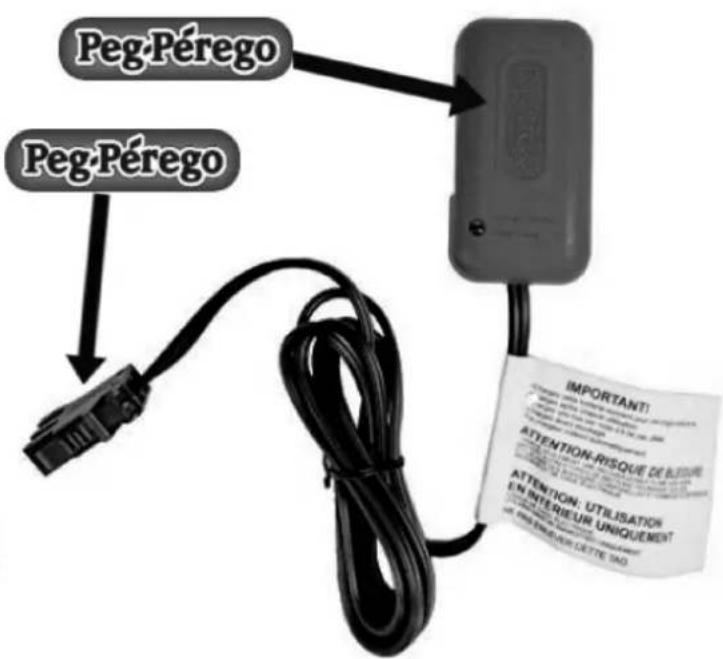

Ways to determine a true Peg Perego battery and/or charger:

I) The Peg Perego logo along the front of the battery itself.
2) The Peg Perego logo along the front of the charger.
3) The Peg Perego logo along the battery and charger connectors.

Peg-Pérego PEG-Pérego LONG Pb Peg-Pérego

Peg-Pérego Peg-Pérego IMPORTANT! ATTENTION-RISQUE DE BLOUER ATTENTION: UTILISATIONS EN INTERIEUR UNIQUERENT LE VILLIEN EN LAURE LETTE TAD

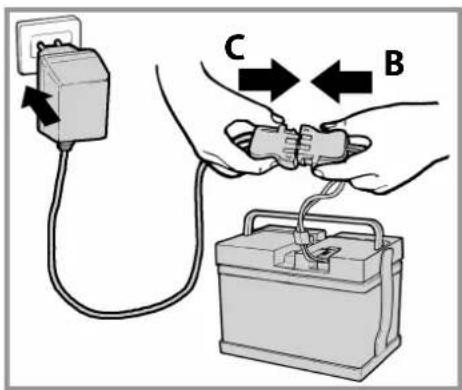

A) Plug the battery charger into a power outlet in compliance with the specifications on the label. This power unit is intended to be correctly oriented in a vertical or floor mount position.
B) Connect the charger the battery for 18 hours.
C) If your battery charger is provided with a LED indicator, it means one of the following:
I) When plugging in the charger, as described in A, and no battery is connected, the green LED light will appear, indicating that the device is working correctly.
2) Connect the battery as described in B. If all connections have been made properly and the battery is sufficiently discharged, the start of charging will be confirmed by the orange LED lighting up or by the flashing green LED light.
3) When the battery is almost fully charged, the LED will return to a solid green light.
D) The green LED does not necessarily mean that the battery is charged.
E) If the battery is already charged, the green LED is already on or turns green soon after B is carried out. If the battery life is reduced the next time you use the battery, please contact Customer Service for assistance in checking the battery and battery charger operation.
F) Once the charge is completed and the LED is on, unplug the battery charger from the main outlet first, then the battery terminal. Connect the battery to the electrical system of your toy, which is now ready to use.

The battery charger is fitted with a safety device. In the event of short circuit or overheating, a protection system prevents current peaks, which could damage your battery charger.

In this case, unplug the battery charger from the power outlet, find and remove the cause of short circuit, and re-connect everything to the power outlet.

IS ESPAÑOL

I • Insert only lead batteries.
2 • Do not use with non-rechargeable batteries. Risk of explosion.
3 • For adult use only. It is not a toy.
4 • Do not use with damaged sheathing, cable or connector.
5 • During recharging operations, make sure the battery charger is in a well-ventilated area.
6 • Should the battery charger be damaged in any way, do not use it until it is fully repaired.

ATTENTION:

Illustration of hands connecting a battery to an electrical outlet using a plug (no text or symbols present)

Illustration of two hands holding a metal bracket with an arrow indicating rotation (no text or symbols)

Illustration of hands using a tool to adjust or install a mechanical component, with a black arrow indicating downward motion (no text or symbols present)

Illustration of hands assembling or adjusting a mechanical component with arrows indicating assembly direction (no text or symbols present)

Illustration showing hands using a tool to clean or wear a car (no text or symbols present)

BATTERY RECHARGE RECHARGE DE LA BATTERIE RECARGA DE LA BATERÍA

Illustration of hands using a device to adjust a car seatbelt (no text or symbols present)

Diagram showing electrical connection with labeled components A, B, and C, indicating power supply or battery charging.

A B

BATTERY REPLACEMENT REMPLACEMENT DE LA BATTERIE SUSTITUCIÓN DE LA BATERÍA

A B

Line drawing of a hand holding a mechanical device with a black arrow pointing to a component (no text or symbols)

Illustration of two hands performing a mechanical assembly or tool operation (no text or symbols present)

ENGLISH FRANC

INITIAL BATTERY CHARGE

Connect battery charger to a 120vac wall recepticle. Connect battery charger to battery.

INSTALLING BATTERY

• If you have bought or own a Peg Perego 12V/12Ah battery, you will have to remove the plastic filler (A) by slipping it off the battery clamp.

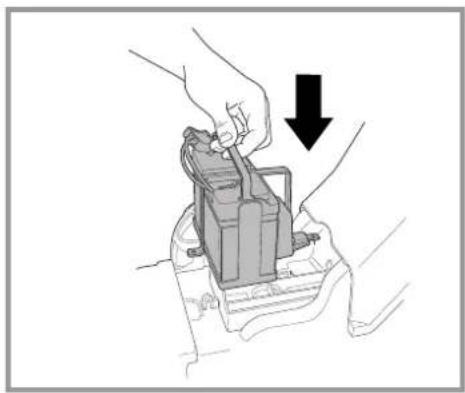

• Reposition the new battery with the battery clamp in its housing. Fasten the clamp with the two screws.

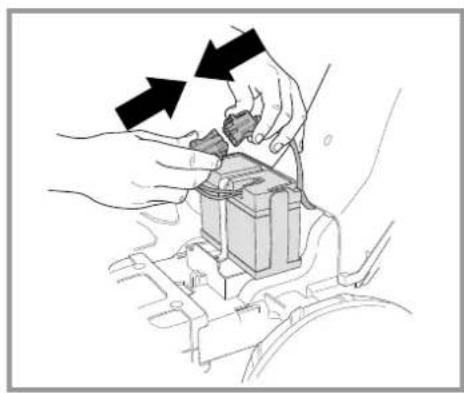

• Connect the battery plug to the electrical system.

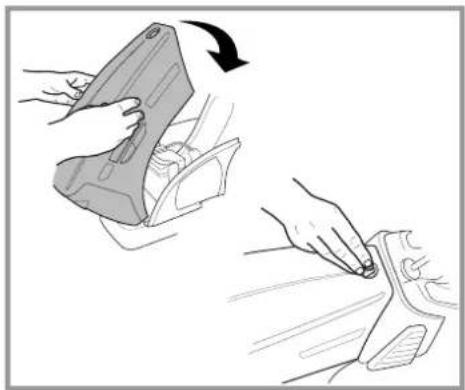

• Close again the cab by repositioning the hook, as done above.

IS ESPAÑOL

PREMIERE CHARGE DE BATTERIE

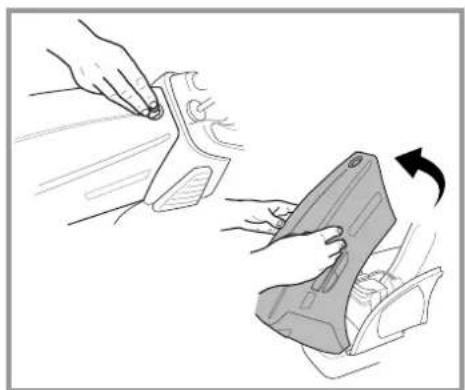

• Install Battery: Open hood by turning black latch with 90 degrees with a coin. Rotate hood forward to open.

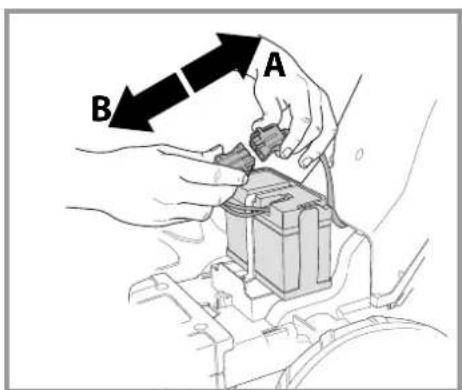

- Insert the battery charger plug into an electrical outlet. Connect point B to point C on the battery charger. When the battery has been completely recharged, disconnect the battery charger from the electrical outlet, and disconnect point C from point B.

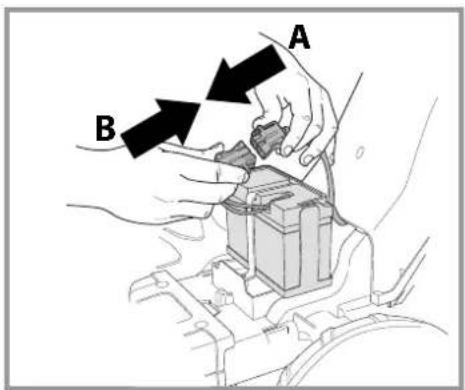

- Insert point B into point A, pressing until it clicks into place. Replace the battery brace. Always remember to close and fasten the hood on the battery compartment when you have finished working on the battery.

RECHARGE DE LA BATTERIE

ATTENTION:

ATTENTION: LE CHARGEMENT DE LA BATTERIE ET TOUTE INTERVENTION SUR LE CIRCUIT ELECTRIQUE DOIVENT ETRE EFFECTUES EXCLUSIVEMENT PAR UN ADULTE. LA BATTERIE PEUT ETRE RECHARGEE SANS DEVOIR LA RETIRER DU JOUET.

• Open the hood, as described above. Disconnect the battery from the electrical system by squeezing the sides of the plugs.

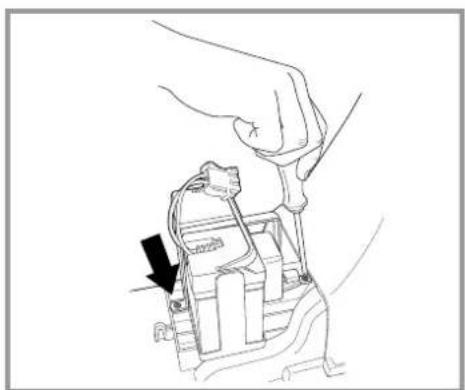

• Loosen the 2 screws on the battery brace, as shown in the figure.

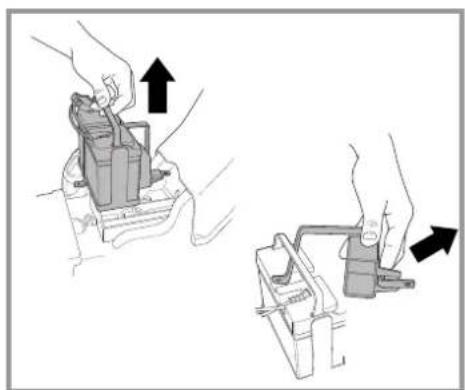

• Remove the battery.
• Remove the battery clamp from the dead battery.

REPLACEMENT DE LA BATTERIE

Diagram illustrating a mechanical assembly process with labeled component A and directional arrow indicating motion

Illustration showing a hand using a hammer to lift a tool, with a magnified view of the tool's tip and base (no text or symbols)

Illustration of hands using a tool to apply a mechanical component, with a downward arrow indicating action (no text or symbols present)

Diagram of a hand using a tool to adjust a two-cylinder tire assembly (no text or symbols present)

Illustration of hands using different tools to handle a mechanical component (no text or symbols present)

Illustration of hands performing a dumbbell lift exercise on a vehicle chassis (no text or symbols)

Line drawing of hands assembling a wheeled cart (no text or symbols)

Illustration of a hand holding a small object on a vehicle chassis with mounting holes (no text or symbols)

Illustration of hands assembling a mechanical component with a black arrow indicating direction (no text or symbols)

Illustration of a hand placing a component into a stacked tray, with a downward arrow indicating motion (no text or symbols)

Illustration of a hand using a tool to lift a mechanical component (no text or symbols visible)

Illustration of a hand using a mechanical clamp to adjust or install a component, with arrows indicating force direction (no text or symbols present)

ASSEMBLY INSTRUCTIONS

CAUTION:

ADULT ASSEMBLY REQUIRED. USE CARE WHEN UNPACKING AS COMPONENTS TO BE ASSEMBLED MAY POSE A SMALL PARTS/SHARP EDGE HAZARD.

IF THE PRODUCT IS DAMAGED WHEN YOU OPEN THE PACKAGING, CONTACT THE SERVICE CENTER AND DO NOT USE THE PRODUCT.

BATTERY IS INCLUDED AND MUST BE CONNECTED.

•Insert washer shaped retainer into retainer installation tool with the finished side facing up. ATTENTION: the tabs on the self-locking washer must be turned towards the interior of the tool (see detail A).

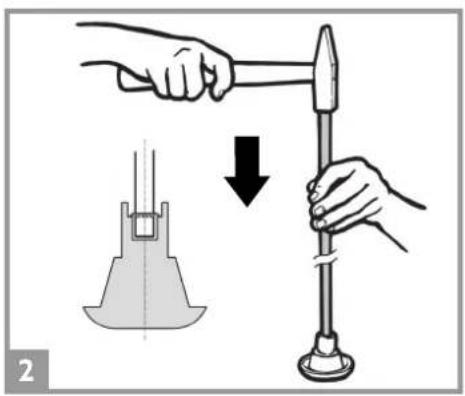

2 • Place one end of trailer axle into retainer installation tool and pound axle into tool (and retainer) until fully seated.

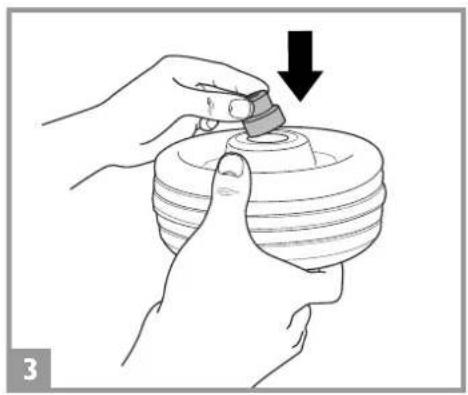

3 • Insert white bushing into the inside of each trailer wheel as shown.

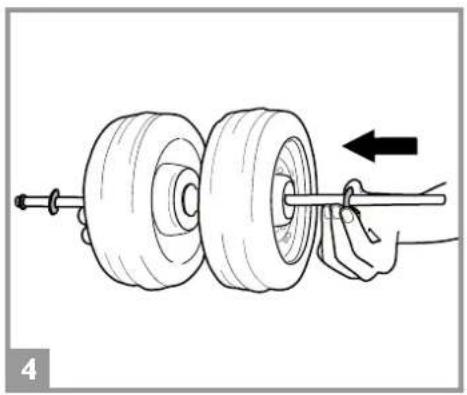

4 • Install the following components onto axle; 1) washer 2) wheel (hubcap facing down) 3) 2nd wheel (hubcap facing up) 4) washer. ATTENTION: Check to make sure that the wheels have been inserted correctly on the axle. The hubcaps must be facing away from the toy.

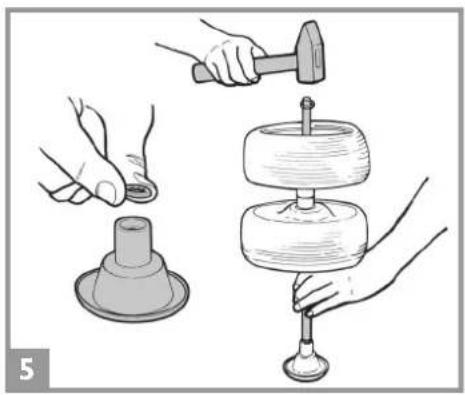

5 • Place retainer into installation tool, place tool onto upper end of axle and pound until seated. Remove tool.

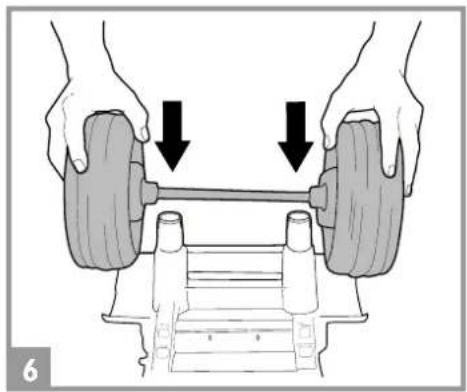

6 • Place wheel & axle assembly onto trailer chassis with washers outside of posts and press down until axle is firmly seated into chassis.

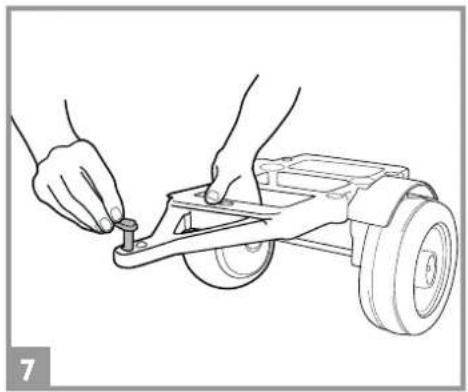

7 • Insert red pin into trailer chassis tongue.

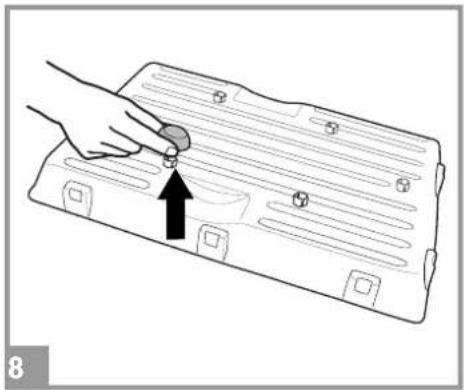

8 • Remove the 5 protective caps from the bottom of the trailer.

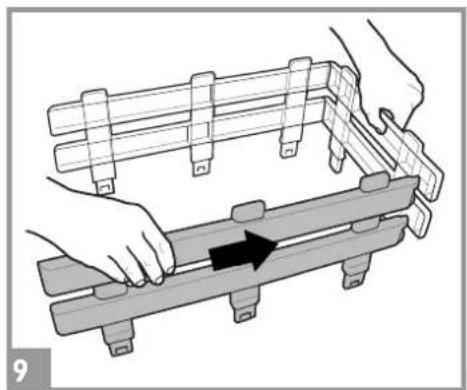

9 • Assemble yellow trailer sides together with finished sides facing out.

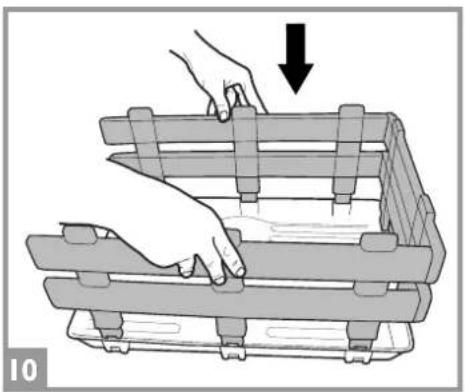

10 • Place trailer sides firmly into stake pockets in trailer bed.

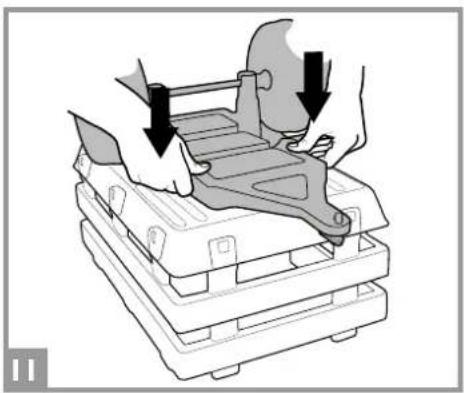

11 •Turn trailer bed upside down, place trailer chassis onto bed, align the 5 pegs in the green bed with the 5 holes in the black chassis and very firmly press or pound pegs into the holes with hammer until firmly seated.

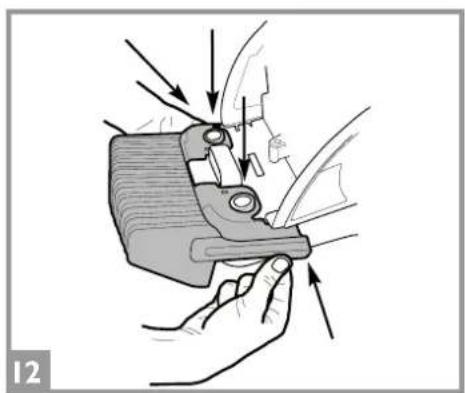

12 • Place green counterweight on the black chassis; chassis pegs will pass through holes in counterweight. Press lower sides of counterweight into chassis to latch.

INSTRUCTIONS D'ASSEMBLAGE

!

ATTENTION:

ASSEMBLAGE PAR UN ADULTE REQUIS. OUVRIR LES EMBALLAGES AVEC PRÉCAUTION CAR LES PIÈCES À ASSEMBLER PEUVENT COMPORTER DES RISQUES DE COUPURES OU DE BLESSURES.

SI LE PRODUIT EST ENDOMMAGÉ LORSQUEVOUS OUVREZ L'EMBALLAGE, CONTACTEZ LE SERVICE APRÈS-VENTE ET N'UTILISEZ PAS LE PRODUIT.

LA BATTERIE EST INCLUSE ET DOIT ETRE CONNECTÉE.

Illustration of a hand using a screwdriver to lift a component into a base (no text or symbols)

1 2 3 14

Line drawing of a hand holding a button on a device (no text or symbols)

Line drawing of a hand holding a cup with circular filters, no text or symbols present

Line drawing of a car interior showing hand holding a tool, with no visible text or symbols

Line drawing of a hand holding a small object with a knob, next to a mechanical component (no text or symbols)

Illustration of a hand holding a car seat with arrows indicating movement or change (no text or symbols)

1 2 1 2 20

Line drawing of hands holding a small object with a tool, no text or symbols present

Illustration of a person using a device in a wheelchair, with an inset showing a close-up of the device (no text or symbols present)

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

chrome decal

2 1 25

26 a b

Line drawing of hands holding a tool or device with a pen-like object (no text or symbols visible)

ENGLISH

13 • Secure with 2 screws.

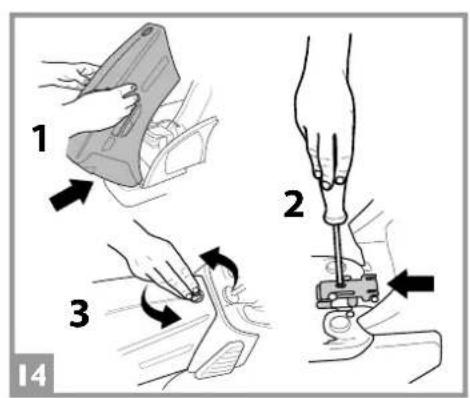

14 • Remove installed screw. Position the hood by inserting the hinge into the hinge receiver slots of the chassis (1). Then secure the hinge with a screw (2). Close the hood and use a coin to lock the safety catch (3).

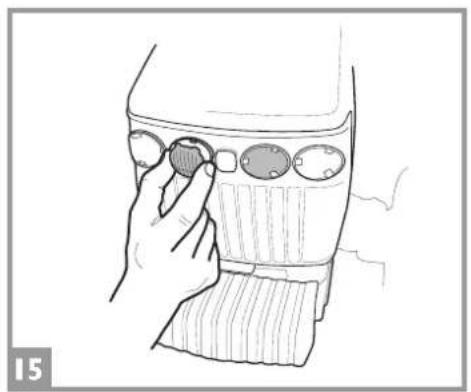

15 • Press the 2 identical central headlights into place paying attention to the 3 respective slots.

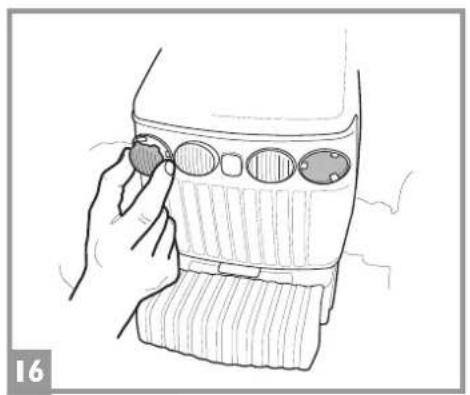

16 • Proceed to mount the remaining 2 side headlights. Caution! The 2 headlights are not identical: check the direction of insertion into the slots.
17 • Press the side inserts into place on the body.
18 • Unscrew the knobs on the bottom of the seat.

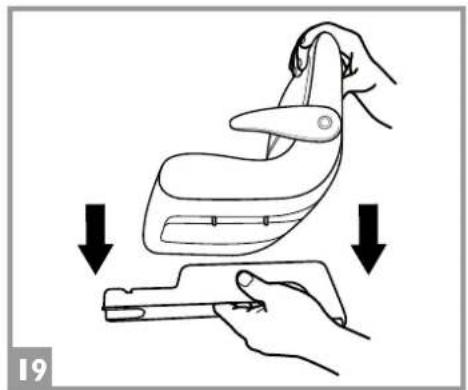

19 • Place seat bolts into green seat support holes.
21 •The seat can be adjusted to 2 positions to suit the height of the child (see figure). 23 •After adjusting the seat, tighten the 2 knobs that hold it in place.

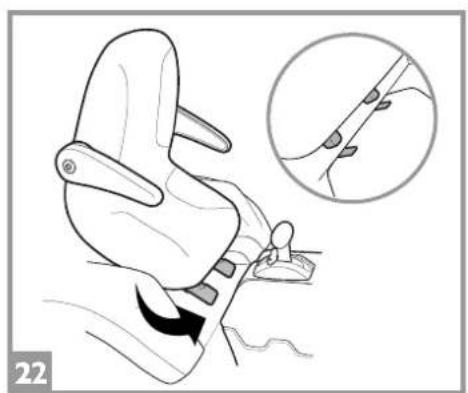

22 • Insert front green seat support fingers into chassis.

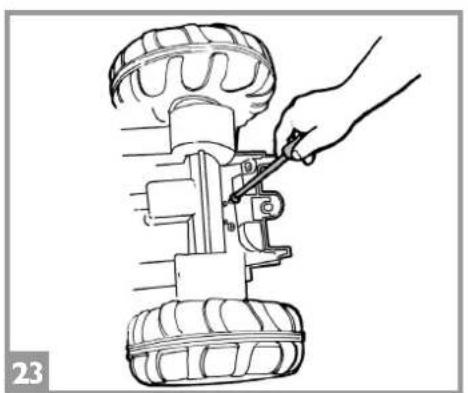

23 • Rotate support (and seat) down onto chassis at the rear. Turn tractor chassis upside down and secure support to chassis with 2 screws.

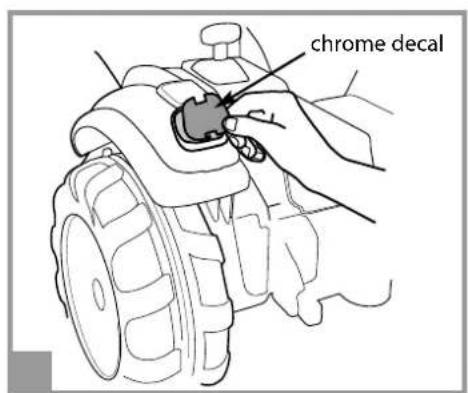

24 • Apply the chrome decals to the taillight positions as shown in the figure.

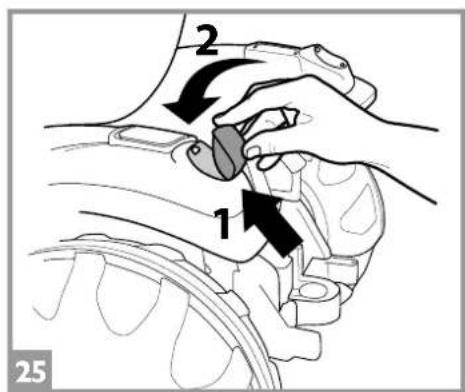

25 • Attach the taillight lenses by pressing from the bottom upwards.

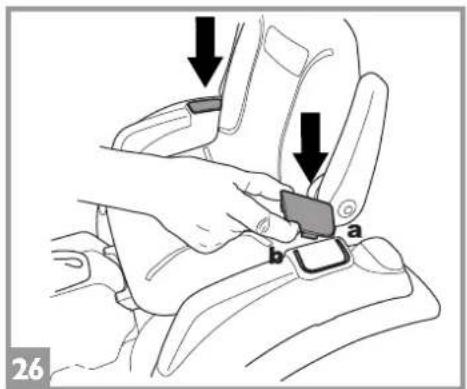

26 • Install left & right black plastic covers into "C" slots on each rear fender.

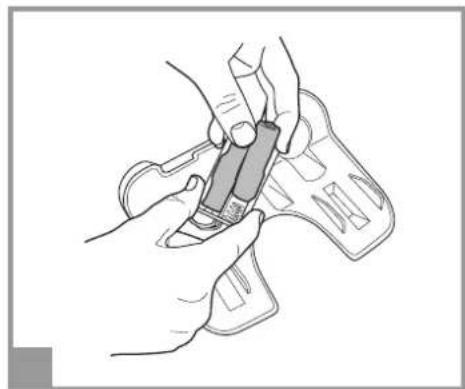

27 • Install 2 AA batteries in FM radio (through door on back side)

FRANÇAIS

Illustration showing a hand using a screwdriver to adjust a car's steering wheel (no text or symbols present)

Illustration of hands assembling a mechanical component with directional arrows (no text or symbols)

Simple line drawing of a steering wheel with a downward arrow indicating clockwise motion (no text or symbols)

ENGLISH FRANC

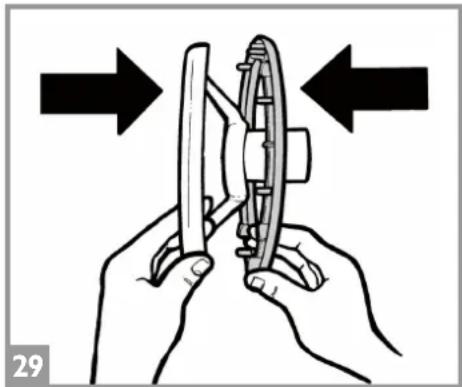

28 • Attach radio to tractor; insert 2 fingers on radio into the slots in the chassis beneath the steering column. Secure with a screw.
29 • Press the trim piece into place under the steering wheel.

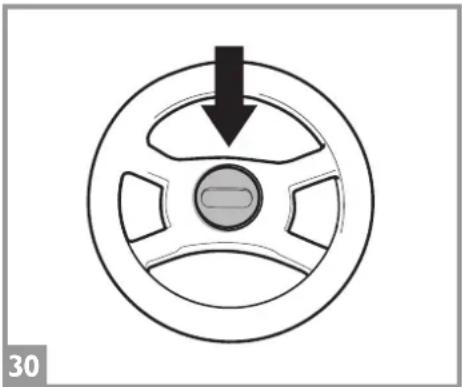

30 • Insert the cap on the steering wheel.

IS ESPAÑOL

Line drawing of hands performing a mechanical or architectural task with a tool, no text or symbols present

Illustration showing a hand holding a mechanical component with arrows indicating motion or force direction (no text or symbols)

Line drawing of hands operating a mechanical device with a handle (no text or symbols)

Illustration of a hand using a coiled tube to lift a valve, with a black arrow indicating the process (no text or symbols present)

Technical line drawing of a mechanical assembly with a hand holding a tool, no visible text or symbols

Mechanical assembly diagram showing a hand turning a component with a black arrow indicating direction (no text or symbols present)

1 2 37

VEHICLE FEATURES AND INSTRUCTIONS FOR USE CARACTERISTIQUES ET EMPLOI DU VEHICULE CARACTERÍSTICAS Y USO DEL VEHÍCULO

2 1 R posterior trasera arrière front delante devant 38

A B 39

Diagram of a mechanical component with a black arrow pointing to a textured internal structure (no text or symbols)

Line drawing of a game controller with labeled component A (no text or symbols beyond label)

ENGLISH FRANC

31•Install steering wheel; reach under tractor to find metal steering column tube. Push it upward as far as possible and hold it.

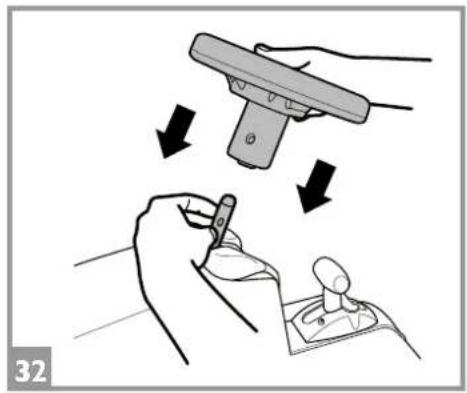

32 • Place steering wheel onto tube, align bolt holes.

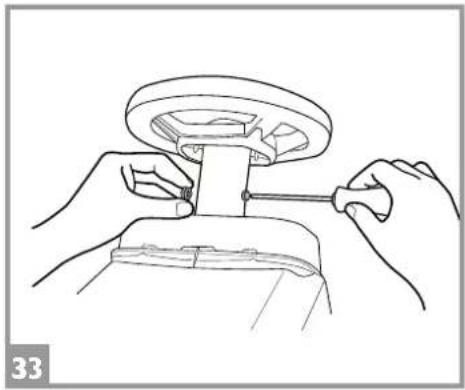

33 • Install bolt and nut. Tighten.

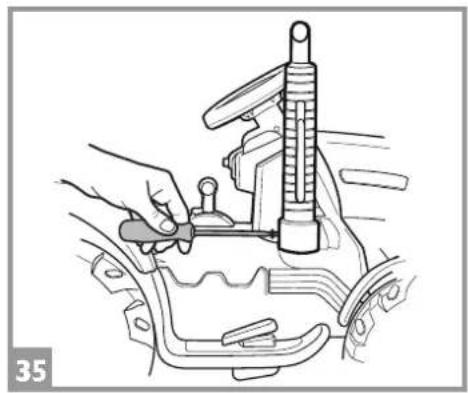

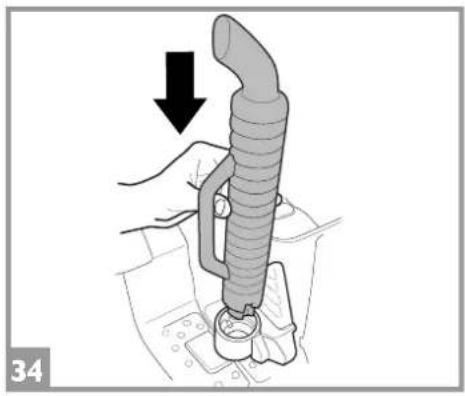

34/5•Place exhaust stack into bracket and secure with long screw.

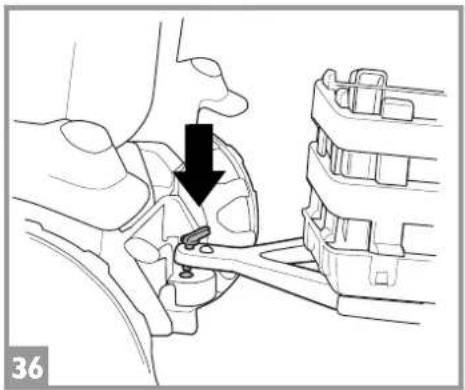

36 • Attach the trailer to the tractor as follows: insert the trailer coupling into the opening on the back of the tractor, and rotate it (see fig. 38).

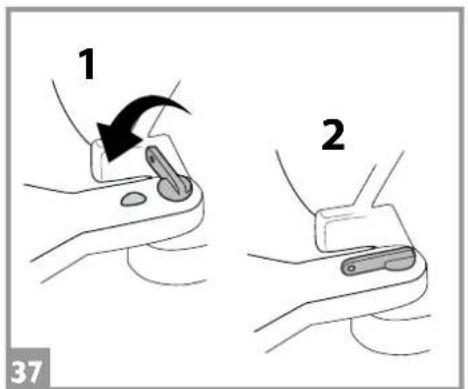

37 • Position 1: the trailer can be removed. Position 2: the trailer is locked into place. WARNING: The trailer will hold a load weighing up to 10 kg/22 lbs.

IS ESPAÑOL

VEHICLE FEATURES AND INSTRUCTIONS FOR USE

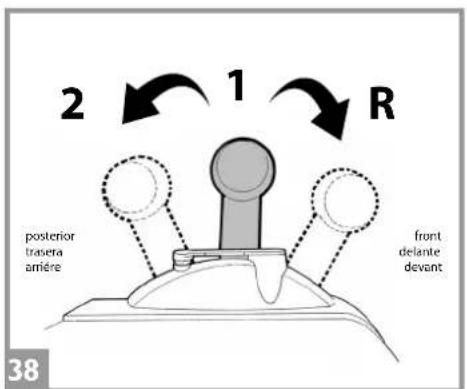

38 •GEAR SHIFT LEVER. This vehicle has 2 speeds + reverse, with PARENTAL CONTROL: When produced, IT IS RESTRICTED TO SLOW SPEED and REVERSE ONLY (For safety, shifter must be held in reverse to back up).

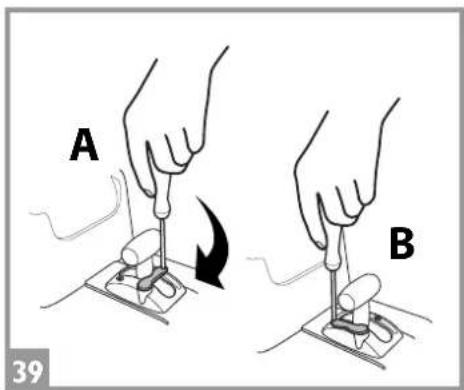

39 • TO ACCESS HIGH SPEED (see red bar beneath shift lever) remove screw, rotate red bar 90 degrees counterclockwise and replace screw.

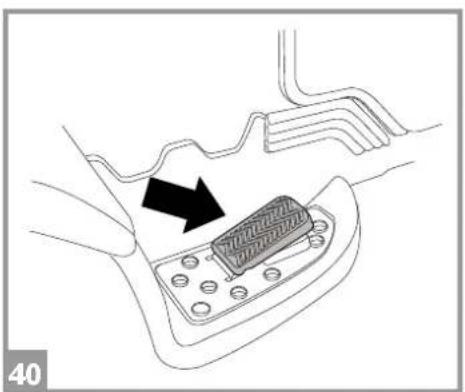

40 •3 position accelerator; 1) up = off/brake 2) 12 down = coast. 3) run

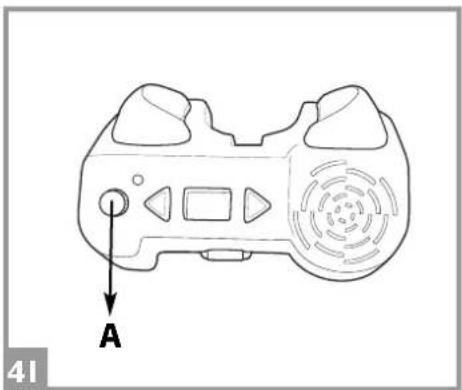

41 • FM RADIO. To switch on, switch off and adjust volume, turn the A button. To select the frequency, press the 2 triangle buttons.

CARACTÉRISTIQUES ET EMPLOI DU VÉHICULE

Requires 2 AA batteries (not included) Require 2 AA batteries (no inclusion) Exize 2 batteries AA (non incluses)

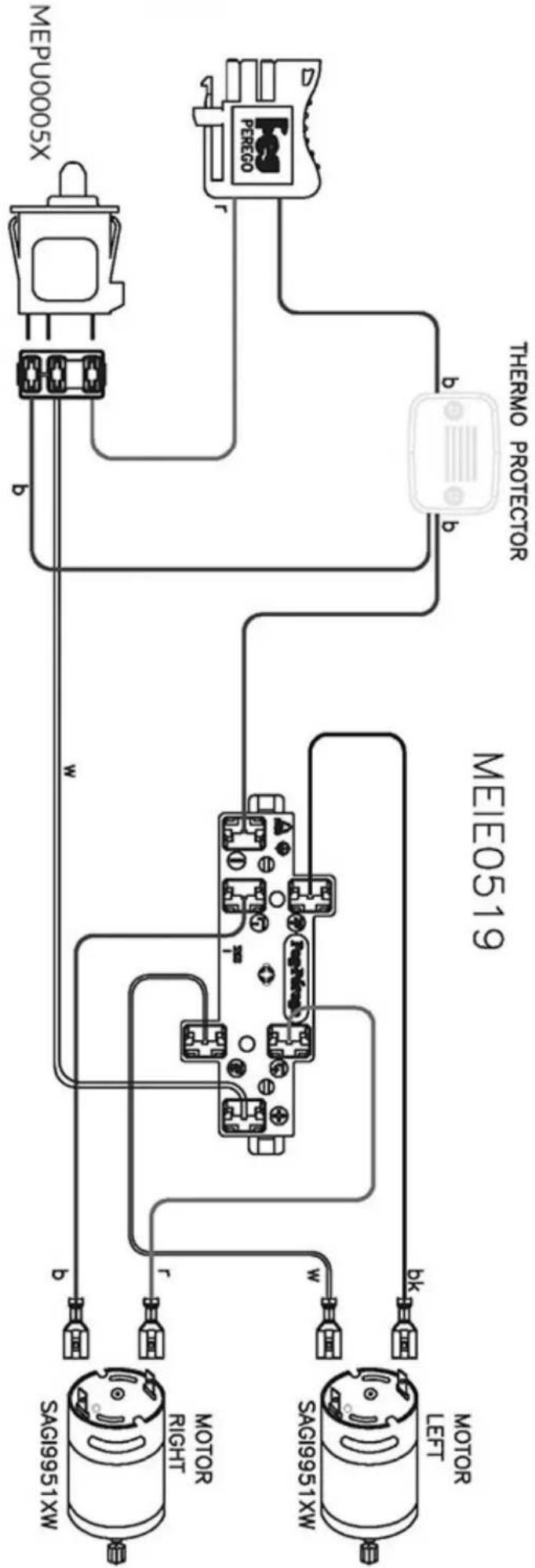

RADIO

W = white

b = blue bk = black

W = blanco

b = azul bk = negro

W = blank

b = b/eu bk = noir


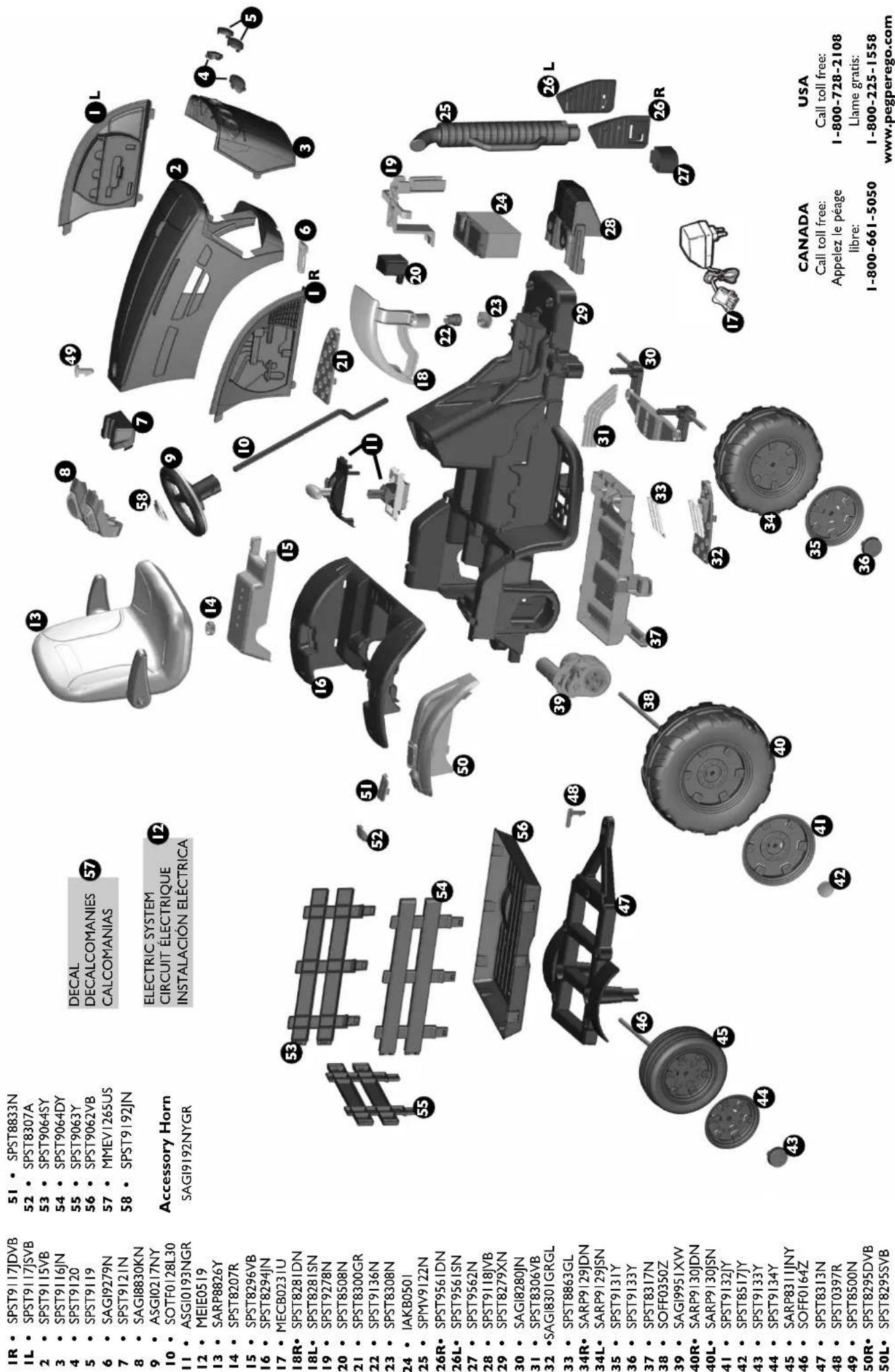

1R • SPST9117JDVB 51 • SPST8833N 1L • SPST9117JSVB 52 • SPST8307A 2 • SPST9115VB 53 • SPST9064SY 3 • SPST9116JN 54 • SPST9064DY 4 • SPST9120 55 • SPST9063Y 5 • SPST9119 56 • SPST9062VB 6 • SAGI9279N 57 • MMEV1265US 7 • SPST9121N 58 • SPST9192JN 8 • SAGI8830KN 9 • ASGI0217NY 10 • SOTF0128L30 11 • ASGI0193NGR 12 • MEIE0519 13 • SARP8826Y 14 • SPST8207R 15 • SPST8296VB 16 • SPST8294JN 17 • MECB0231U 18R• SPST8281DN 18L• SPST8281SN 19 • SPST9278N 20 • SPST8508N 21 • SPST8300GR 22 • SPST9136N 23 • SPST8308N 24 • IAKB050I 25 • SPMV9122N 26R• SPST9561DN 26L• SPST9561SN 27 • SPST9562N 28 • SPST9118JVB 29 • SPST8279XN 30 • SAGI8280JN 31 • SPST8306VB 32 •SAGI8301GRGL 33 • SPST8863GL 34R• SARP9129JDN 34L• SARP9129JSN 35 • SPST9131Y 36 • SPST9133Y 37 • SPST8317N 38 • SOFF0350Z 39 • SAGI9951XW 40R• SARP9130JDN 40L• SARP9130JSN 41 • SPST9132JY 42 • SPST8517JY 43 • SPST9133Y 44 • SPST9134Y 45 • SARP8311JNY 46 • SOFF0164Z 47 • SPST8313N 48 • SPST0397R 49 • SPST8500N 50R• SPST8295DVB 50L• SPST8295SVB Accessory Horn DECAL DECALCOMANIES CALCOMANIAS ELECTRIC SYSTEM CIRCUIT ÉLECTRIQUE INSTALACIÓN ÉLECTRICA CANADA Call toll free: Appelez le pége libre: 1-800-661-5050 USA Call toll free: 1-800-728-2108 Llame gratis: 1-800-225-1558 www.pegperego.com

12 VOLT TROUBLESHOOTING GUIDE

SYMPTOMS: POSSIBLE CAUSE: SOLUTIONS:
Will not run in any speed. High, Low or Reverse when accelerator pedal is depressed.	Battery not properly connected.	Install battery per instructions. Make sure blue battery plug is connected to black vehicle system plug.
	Battery low or dead.	Chargers with indicator light - Plug charger into outlet. Green light should be on. Plug black charger plug into blue battery plug, green light should go out or turn orange (depending on the charger) to indicate charging. Light will turn green gradually as the battery reaches full charge.
	Battery dead.	The battery life is limited. As the battery ages it will begin to loose capacity or runtime. The overall life of the battery is maximized with proper care. Always charge the battery after each use. Do not store the battery in a discharged state.
	Accelerator switch not operating properly.	Check accelerator switch operation - Remove Accelerator plate from toy. Remove the blue wire from switch, remove red wire and place it on the terminal that had the blue wire. If vehicle runs, then accelerator switch needs to be replaced. Order accelerator plate. Check accelerator switch wire locations- See solution for "Accelerator switch not connected properly" below.
	Motor wire disconnected.	Motor wire check - Place vehicle in low speed. Raise rear wheels off the ground and turn one rear wheel. The other rear wheel should turn in the opposite direction. If other wheel does not turn, then you may have a motor wire off. Reconnect motor wire.
	Shifter wires disconnected.	Check wires on shifter connector block.
Short runtime	Vehicle has too much load.	Reduce the load on the vehicle. Too much weight, steep slopes, thick grass, sand, etc or any combination of these conditions can overload the vehicle causing reduced runtime.
	Battery is low or near end of life.	See solution for "Battery low or dead" above.
	Battery is low.	See solution for "Battery low or dead" above.
One wheel turns but not the other.	Vehicle is in low or reverse.	This is normal when in low speed or reverse because the wheels act like an automotive differential. This makes turning easier. If one wheel is stalled or stopped the other wheel gets all the power. Shift to high speed to get full power to both wheels.
	Motor wire is disconnected.	See solution for "Motor wire disconnected" above.
	Shifter wire disconnected.	Check wires on shifter connector block.
	Bad shifter switch.	Replace shifter switch.
Problems in either High, Low or Reverse speeds.	High Speed is in the "lock-out" position.	Remove the High Speed "lock-out".
	Motor wire is disconnected.	See solution for "Motor wire disconnected" on reverse side.
	Shifter wire disconnected.	Check wires on shifter connector block.
	Bad shifter switch.	Replace shifter switch.
Vehicle stops intermittently. Then restarts after several seconds.	Automatic Circuit Breaker has tripped because of over loading.	Reduce the load on the vehicle. Too much weight, steep slopes, thick grass, sand, etc or any combination of these conditions can overload the vehicle.
Circuit breaker trips when the battery is plugged into the black vehicle harness.	Accelerator switch not connected properly.	Check accelerator switch wire locations. Remove foot board by prying with a screw-driver at its base. The wiring sequence is red, white and blue from the front of vehicle to the back of vehicle.
Loud clicking noise heard when toy is being used.	Gears are stripping.	Replace motor/ gearbox assembly.
Battery makes a bubbling or sizzling noise when charging.	Battery is being charged.	It is normal for some batteries to make some noise during charging. No action is needed.
Wheels spin too much.	Not enough weight on rear wheels.	Add more weight to vehicle.
	Motor wire is disconnected.	See solution for "Motor wire disconnected"
Brake not working.	Accelerator switch not connected properly.	Check accelerator switch wire locations. See solution for "Accelerator switch not connected properly" above.
	Bad accelerator switch	Replace accelerator plate.

ENGLISH

PEG PEREGO® thanks you for choosing this product. For more than 60 years, PEG PEREGO have been taking children for an outing: first with its famous baby carriages and strollers, later with its pedal and battery operated toy vehicles.

Discover our complete range of products, news and other information about the Peg Perego world on our web site www.pegperego.com

IMPORTANT INFORMATION

- Read this instruction manual carefully to learn the use of the vehicle and to teach your child safe and enjoyable driving. Please keep this manual (with your original sales receipt) for use as a reference in the future.

•DO NOT RETURN YOUR VEHICLE TO THE STORE. This product cannot be returned for a refund after it has been used. If you have ANY questions, need replacement parts or need assistance, call us toll-free; U.S.A., call 1-800-728-2108 / CANADA, call 1-800-661-5050

- This product meets and/or exceeds all ASTM (American Society for Testing and Materials) TOY SAFETY STANDARDS, including F 963, Consumer Toy Safety Specifications as well as C.R.C, c.931, the Canadian Hazardous Products (Toys) Regulations.

- If you give away the product to third parties, make sure that it is accompanied by the instruction manual.

- Tools needed for assembly: Phillips screwdriver medium, pliers and a hammer (not included)

- Your new vehicle is partially pre-assembled. It will require adult assembly. Please set aside at 45 minutes for assembly.

- Before the vehicle is used for the first time, charge the battery for 18 hours to initiate it. Failure to do this can result in permanent battery damage.

- Use only with the included Peg Perego 12 Volt lead-acid, rechargeable battery and a Peg Perego 12 Volt Charger (both included).

.Year 3+

•Weight capacity 85 lbs

- Do not exceed the maximum total weight capacity of 85 lbs (38,6 kg).

Contents:

• I John Deere Ground Force riding vehicle -- partially assembled
  • I Rechargeable 12V 8Ah sealed lead-acid battery
• I Charger 12V
  •two 165 W motors -- pre installed
• assembly hardware
  •parts to be assembled
  • decals

•Speed in 1st gear 2 ^1/4 MPH
•Speed in 2nd gear 4 ^1/2 MPH
•Speed in reverse gear 2 ^1/4 MPH

•To prevent damaging the motor and gears, teach your child to stop the vehicle before switching directions.
- Use this vehicle ONLY outdoors. Most interior flooring can be damaged by riding this vehicle indoors. Peg Perego will not be responsible for damage to the floor if the vehicle is used indoors.
- Peg Perego reserves the right to modify or change its products. Price, literature, manufacturing processes or locations or any combination of the above mentioned entities may change at any time for any reason without notice with impunity.

CAUTION:

ELECTRIC VEHICLE NOT RECOMMENDED FOR CHILDREN UNDER 3 YEARS OF AGE. AS WITH ALL ELECTRIC PRODUCTS, PRECAUTIONS SHOULD BE OBSERVED DURING HANDLING AND USE TO PREVENT ELECTRIC SHOCK. RECHARGER INCLUDED. 120Vac 60Hz 16W INPUT - 12Vdc 12W OUTPUT

CAUTION:

Only adults should recharge batteries never children.

Never allow children to handle batteries.

Only use the batteries specified by the manufacturer. Only use the charger specified by the manufacturer.

Do not mix old and new batteries.

Do not mix alkaline, standard (carbon-zinc), or rechargeable (nickel-cadmium) batteries.

CHARGING THE BATTERY

• Charge the batteries no longer than 24 hours, following the instructions enclosed with the battery charger.
• Charge the battery, as the vehicle shows low power, in this way you will avoid damage to the battery.
• If you don't use your vehicle for a long period of time unplug the battery from the main wire harness of the vehicle. Remember to charge the battery at least every three months.
• Never charge the battery upside down.
• Do not forget batteries during charging! Check them periodically.
• Never use a replacement recharger or batteries unless they are approved by PEG PEREGO.
• Batteries are sealed and maintenance free.
• Battery polarity must be observed when connecting battery to wiring.

WARNING:

• BATTERIES CONTAIN TOXIC AND CORROSIVE SUBSTANCES. DO NOT TAMPER WITH THEM.
•Batteries contain an acid-based electrolyte.
- Do not make direct contact between battery terminals, as this can cause an explosion or fire.
- Charging produces explosive gases. Charge batteries in a well ventilated area away from sources of heat and flammable materials.
- Exhausted batteries are to be removed from the vehicle.
- Do not place the batteries near clothing to avoid damage.

IF A LEAK DEVELOPS

Shield your eyes. Avoid direct contact with the electrolyte, protect your hands.

Place battery in a plastic bag and follow directions listed below.

IF ELECTROLYTE COMES IN CONTACT WITH SKIN OR CLOTHING

Flush with cool water for at least 15 minutes.

See a physician at once.

IF ELECTROLYTE IS INJECTED

Give tap water, milk of magnesia or egg whites at once.

Do not induce vomiting.

See a physician at once.

DISPOSAL OF BATTERIES; CONTAINS SEALED LEAD ACID BATTERY. BATTERY MUST BE RECYCLED.

Help protect the environment!

Do not throw used batteries in your regular, household trash.

Dispose old batteries at an approved battery dumping station; contact your local Environmental Protection Agency office or call Peg Perego Customer Service for additional information.

⚠️ CAUTION AA BATTERIES

The insertion of batteries must only be carried out or supervised by adults. Do not let children play with the batteries.

•The batteries should be replaced by an adult.
- Use only the type of battery specified by the manufacturer.
•Respect the polarity +/-
- Do not allow the batteries to be in contact with metal parts (risk of fire or explosion).
•Always remove the batteries if the toy is not in use for a long period.
- Never attempt to charge batteries that are not rechargeable.
- Remove dead batteries from the toy.
- Dispose of dead batteries into appropriate containers provided for their recycling.

DON'T STOP THE FUN: purchase a spare battery to have a freshly charged back-up available.

For your child's safety: please read and follow all instructions below before operating.

•ATTENTION:

Check the fastening retainers to be sure they are tight.

- 1st SPEED slow speed (beginner drivers):

With both hands on the steering wheel press down on the accelerator pedal; the vehicle goes forward at 2 ^1/4 mph.

- 2nd SPEED: fast speed (experienced drivers):

With both hands on steering wheel press down on the accelerator pedal; the vehicle goes forward at 4/2 mph.

•REVERSE:

Place the left hand on steering wheel. With the right hand holding the gearshift in reverse, press your foot down on the accelerator; the vehicle reverses at 2/4 mph. (Reverse is spring-loaded for safety).

•BRAKE:

The electric braking system stops the vehicle automatically when your child lifts his foot off the pedal.

Teach your child the proper use of this vehicle for a safe and fun play time.

- Before starting be sure that the way is free from people and objects.

- Drive with both hands on the steering wheel and keep your eyes on the road at all times.

- Stop in time to avoid accidents and immediately release pedal when stuck.

- Use the 2nd speed only after your child has the maturity and the reflexes to operate the vehicle safely.

CAUTION:

- If the vehicle is overloaded, as can happen on soft sand, mud, or very uneven ground, the overload switch will immediately disconnect the power. The power supply will be restored after a few seconds.

VEHICLE MAINTENANCE AND SAFETY

This product meets and/or exceeds all ASTM (American Society for Testing and Materials) TOY SAFETY STANDARDS, including F 963, Consumer Toy Safety Specification.

This vehicle is not intended for use on streets, around traffic or parked cars.

MAINTENANCE AND CARE

- Do not try to repair the vehicle by yourself.

- Regularly check the conditions of the vehicle, particularly the electrical system, the plug connections, the covering caps and the charger. In case of fault, do not try to use the vehicle and the charger. For repair use only original PEG PEREGO's spare parts.

- PEG PEREGO assumes no liability if the electrical system is tampered with.

•Take care with the battery charger cable. For example, do not pull it to remove the plug, do not pull the vehicle along on its wheels using the cable, do not cover the cable because it may overheat, do not leave it on hot surfaces and be careful about where and how you roll it up.

- Do not leave vehicle or batteries near sources of heat such as radiators, stoves, fireplaces, etc.

- Protect vehicle from water, rain, snow, etc.

- When operating in overload conditions, such as soft deep sand, mud or rough uneven terrain, the overload circuit breaker will automatically disconnect the power. After 30 or more seconds, the circuit breaker will automatically reset, however you must eliminate overload conditions to resume normal driving.

- Periodically lubricate (with a light weight oil) moving parts, such as wheel bearings, steering linkages, where they rotate or touch one another.

- The vehicle's surfaces can be cleaned with a damp cloth. Do not use abrasive cleaners. The cleaning must be carried out by adults only.

- Never disassemble the vehicle mechanisms or motor unless authorized by PEG PEREGO.

SAFETY

WARNING:

• To reduce the risk of injury, adult supervision is required. Never use in roadways, near motor vehicles, on or near steep inclines or steps, swimming pools or other bodies of water; always wear shoes, and never allow more than one rider.

- Surfaces that are appropriate for use: grass, dirt or hard surfaces with slopes not to exceed 10%.

- A child must be 3 years of age or older for the necessary coordination and maturation to operate this motorized vehicle safely.

- Never use the vehicle on steep slopes or near steps or stairs. This vehicle is not suitable for use on public highways.

• Children should always wear shoes when riding in or driving a riding vehicle.
• Do not allow children to place their hands, feet or any part of their body, clothing or other articles near the moving parts while vehicle is in operation.
• Do not allow the electrical components, motors, wiring, switches of your motorized vehicle to become wet and never wash it with a hose.
  •The vehicle is designed just for one child: never allow more than one rider.
• NEVER STORE GÄSOLINE OR ANY FLAMMABLE SUBSTANCE WHERE A CHILD CAN ACCESS IT. CHILDREN MAY WANT TO SIMULATE ADULTS BY POURING GASOLINE ON VEHICLE. NEVER ALLOW GASOLINE OR ANY FLAMMABLE SUBSTANCE TO BE NEAR A BATTERY POWERED CHILDREN'S VEHICLE WHEN IT IS BEING RIDDEN.

PROBLEMS?

IF THE VEHICLE DOES NOT OPERATE?

- When operating in overload conditions, such as running the vehicle against a fixed object, through soft deep sand or mud, or over rough or uneven terrain, the overload circuit breaker will automatically disconnect the power. After 10 or more seconds, the circuit breaker will automatically reset, however-you must eliminate overload conditions to resume normal driving.

• Check that all plugs are properly connected.
• Check electrical switches. Replace if necessary.
• Check that the battery is connected to the electrical system.

IF THERE IS NO POWER?

- Fully recharge the battery. If the problem persist, check with an Authorised PEG PEREGO Service Center.

CUSTOMER SERVICE

For your convience, PEG PEREGO offers after-sales service, directly or through a network of authorized service centers for repairs or replacement parts.

If you have any questions about your Peg Perego vehicle, please call our toll-free service lines at;

U.S.A, call I-800-728-2108

CANADA, call 1-800-661-5050

Trained customer service representatives are available to take your call in English or Spanish.

FCC STATEMENT (United States Only)

In reference to the radio:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Consult the dealer or an experienced radio/TV technician for help.

Note: Changes or modifications not expressly approved by the manufacturer responsible for compliance could void the user's authority to operate the equipment.

FRANÇAIS

Extended Warranty (for a 2nd Year) with Online Product Registration at www.pegperegousa.com/product-registration

*We respect your privacy. The personal information collected here is used only by Peg Perego and will not be sold to or used by any other company or organization.

Statement of Limited Warranty

One-year limited warranty for Peg Perego vehicles from date of purchase, and/or six-month limited warranty for battery, charger and wheels from date of purchase.

This limited warranty covers your Peg Perego ride-on vehicle and/or the rechargeable battery (if applicable) to the original, noncommercial purchaser who purchased it from Peg Perego or an authorized Peg Perego dealer, against defects in materials and/or workmanship, however it does not cover the cost of shipping or handling. If the problem is not covered by this warranty, the consumer must pay for all related expenses associated with parts and services rendered.

This warranty covers normal use and does not cover the vehicle or the battery if it has been damaged by unreasonable use, neglect, accident, abuse, misuse, Improper service, modification and/or other causes not arising from defects in materials or workmanship. In no event shall Peg Perego be liable for any other incidental or consequential damages. Except for this limited warranty, Peg Perego makes no other representation or warranty, express or implied, with respect to the products.

Peg Perego specifically disclaims all other express and implied warranties, including any implied warranties of merchantability and fitness for a particular purpose.

For Fast & Friendly Service, call 1-800-728-2108, or visit www.pegperego.com.

EXTENDED WARRANTY 2 YEARS* *CONSUMER PARTICIPATION REQUIRED

PegPérego

Do not return your vehicle to the store!

We're a toll-free phone call away and we can help.

If you are missing parts or need assistance, please see the contact information below.

ARRÊTEZ!

call us toll free 1·800·661·5050

PEG PEREGO S.p.A.

via A. De Gasperi, 50 20862 ARCORE (MB) ITALIA

Peg-Pérego

www.pegperego.com
