USER MANUAL John Deere Gator XUV Camo PEG PEREGO

Do NOT ride vehicle before charging battery for 18 hours. Failure to do this will permanently damage the battery and void your warranty.

ALSO;

Charge the battery immediately after each use, regardless of how long the vehicle was used.

Storing the battery in a discharged state will permanently damage the battery.

When storing, the battery must be recharged every 30 days.

NEED HELP: Call 1-800-728-2108

ONLY USE THE PEG PEREGO BATTERY & CHARGER WITH THIS TOY.

As Peg Perego USA, INC. grows, counterfeits and unauthorized distributors and retailers are making non-Peg Perego products and low quality knockoffs that are mistaken for an authentic one. Please avoid use of outside brand - third party accessories and/or products with the Peg Perego brand, which have resulted in damage to the product.

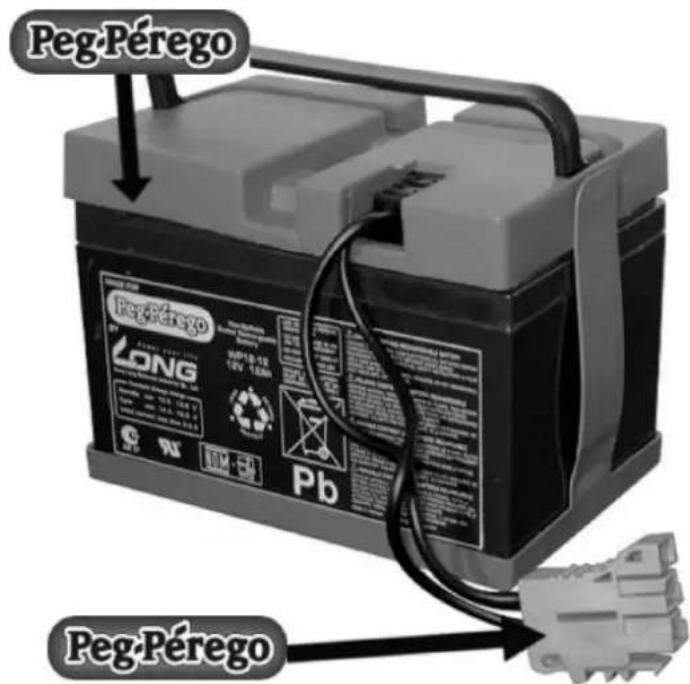

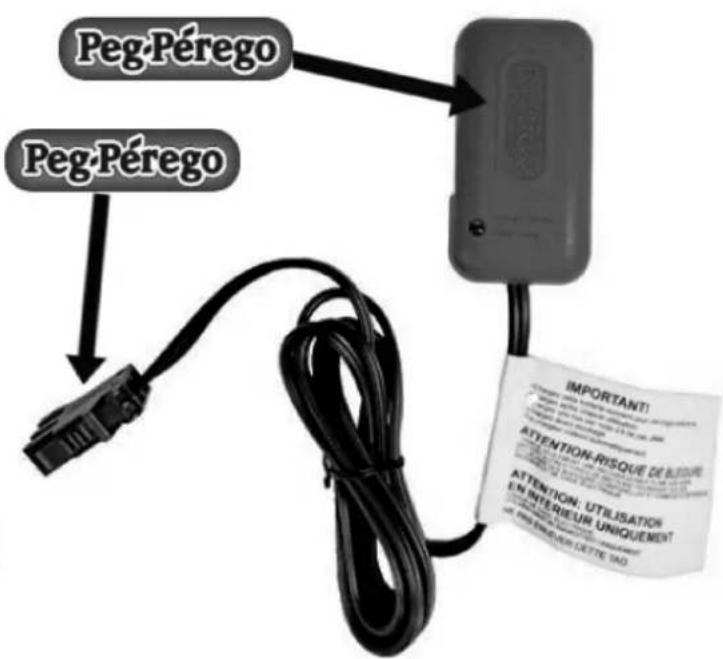

Ways to determine a true Peg Perego battery and/or charger:

I) The Peg Perego logo along the front of the battery itself.
2) The Peg Perego logo along the front of the charger.
3) The Peg Perego logo along the battery and charger connectors.

Peg-Pérego PEG-Pérego LONG Pb Peg-Pérego

Peg-Pérego Peg-Pérego IMPORTANT! ATTENTION-RISQUE DE BLOUER ATTENTION: UTILISATIONS EN INTERIEUR UNIQUERENT LE VILLIEN EN LAURE LETTE TAD

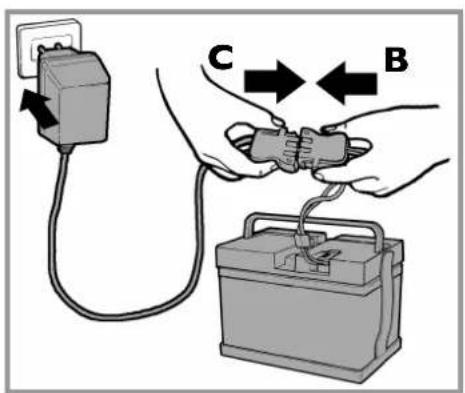

A) Plug the battery charger into a power outlet in compliance with the specifications on the label. This power unit is intended to be correctly oriented in a vertical or floor mount position.
B) Connect the charger the battery for 18 hours.
C) If your battery charger is provided with a LED indicator, it means one of the following:
I) When plugging in the charger, as described in A, and no battery is connected, the green LED light will appear, indicating that the device is working correctly.
2) Connect the battery as described in B. If all connections have been made properly and the battery is sufficiently discharged, the start of charging will be confirmed by the orange LED lighting up or by the flashing green LED light.
3) When the battery is almost fully charged, the LED will return to a solid green light.
D) The green LED does not necessarily mean that the battery is charged.
E) If the battery is already charged, the green LED is already on or turns green soon after B is carried out. If the battery life is reduced the next time you use the battery, please contact Customer Service for assistance in checking the battery and battery charger operation.
F) Once the charge is completed and the LED is on, unplug the battery charger from the main outlet first, then the battery terminal. Connect the battery to the electrical system of your toy, which is now ready to use.

The battery charger is fitted with a safety device. In the event of short circuit or overheating, a protection system prevents current peaks, which could damage your battery charger.

In this case, unplug the battery charger from the power outlet, find and remove the cause of short circuit, and re-connect everything to the power outlet.

IS ESPAÑOL

I • Insert only lead batteries.
2 • Do not use with non-rechargeable batteries. Risk of explosion.
3 • For adult use only. It is not a toy.
4 • Do not use with damaged sheathing, cable or connector.
5 • During recharging operations, make sure the battery charger is in a well-ventilated area.
6 • Should the battery charger be damaged in any way, do not use it until it is fully repaired.

ATTENTION:

Illustration of hands connecting a plug into a battery with wires, no text or symbols present

Line drawing of a hand connecting a cable to a mechanical component (no text or symbols)

Illustration of a hand holding a mechanical component with an arrow indicating rotation (no text or symbols present)

Illustration of hands connecting a cable to an electrical outlet with two arrows indicating direction (no text or symbols present)

BATTERY RECHARGE RECHARGE DE LA BATTERIE RECARGA DE LA BATERÍA

A B

Diagram showing electrical connections with labeled components A, B, and C, indicating power or wiring setup.

Diagram showing electrical connections between a power outlet, battery, and switch labeled C and B

Illustration of hands inserting a plug into an electrical outlet (no text or symbols)

Illustration of two hands installing or adjusting a mechanical component, showing a curved arrow indicating rotation (no text or symbols present)

BATTERY REPLACEMENT REPLACEMENT DE LA BATTERIE SUSTITUCIÓN DE LA BATERÍA

Diagram showing hands connecting a mechanical component to a device with wiring, no text or symbols present

Illustration of hands connecting a cable to a device panel with arrows indicating direction (no text or symbols)

ENGLISH FRANC

INITIAL BATTERY CHARGE

!• Connect battery charger to a 120vac wall recepticle. Connect battery charger to battery.

BATTERY INSTALLATION

WARNING:

WARNING: BATTERY CHARGING AND ANY OTHER OPERATION ON THE ELECTRICAL SYSTEM MUST BE CARRIED OUT BY ADULTS ONLY. THE BATTERY CAN ALSO BE CHARGED WITHOUT REMOVING IT FROM THE VEHICLE.

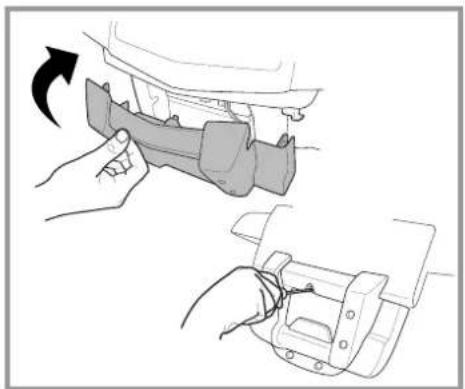

•Unscrew the battery cover.

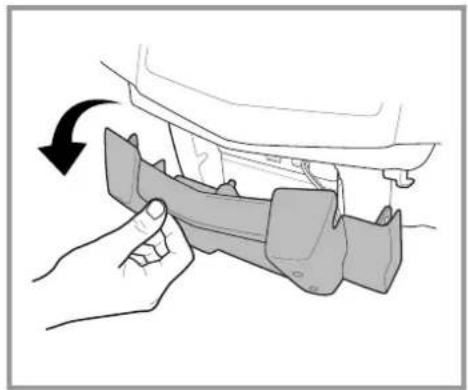

- Unfasten the battery cover and open it. - Connect the battery plug to the electrical system. The vehicle is ready to use.

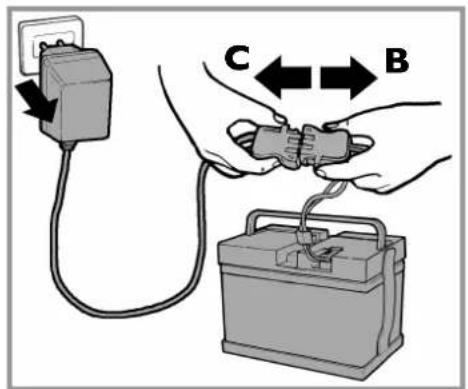

BATTERY RECHARGE

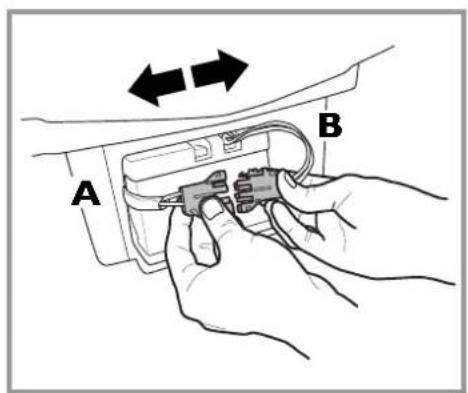

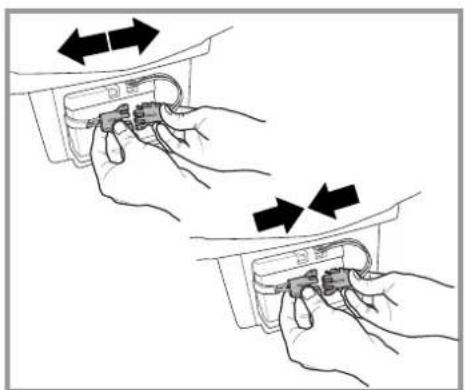

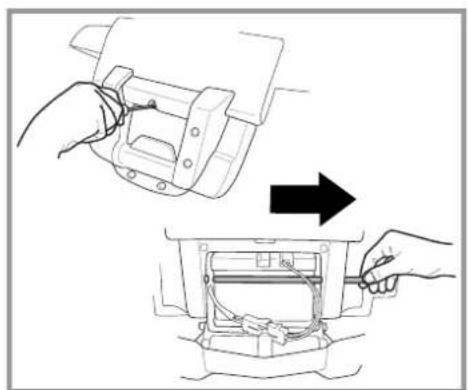

• Unfasten the battery cover and open the battery compartment. Disconnect the electrical system plug (A) from the battery plug (B) by pressing on the sides of the plugs and pulling apart.
• Plug the battery charger into a household electrical outlet. Connect battery plug (B) to charger plug C. NOTE: Press firmly until it snaps into place.
  • After battery has finished charging (full charge takes 18-24 hours), disconnect battery charger from the electrical outlet and then disconnect the battery plug (B) from the charger plug (C).

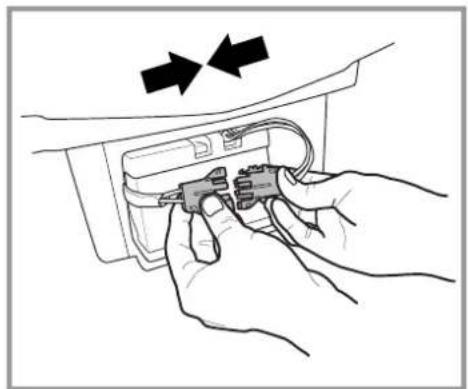

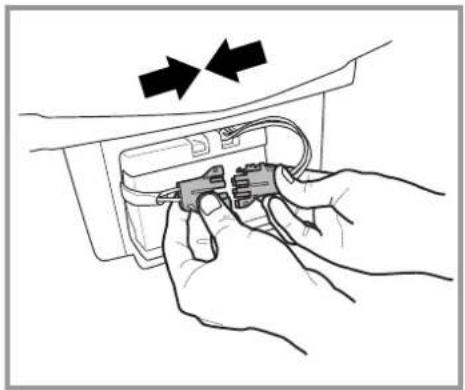

• Reconnect electrical system plug (A) to battery plug (B). NOTE: Press firmly until it snaps into place.
• Close the battery compartment, fastening the battery cover shut. ATTENTION: Always make sure that the battery compartment is closed and locked after carrying out any operations inside it..

BATTERY REPLACEMENT

PLEASE NOTE: THE PICTURES OF THE BATTERIES ARE FOR ILLUSTRATIVE PURPOSES ONLY. YOUR BATTERY MAY BE DIFFERENT FROM THE MODEL SHOWN. THIS DOES NOT AFFECT THE REPLACEMENT AND CHARGING PROCEDURES DESCRIBED.

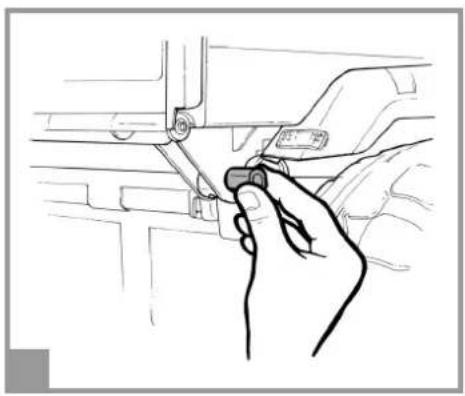

•Unscrew the battery cover.

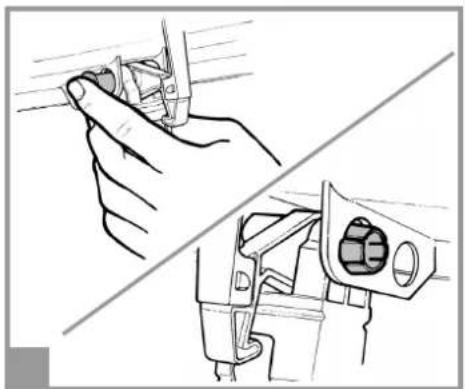

- Unfasten the battery cover and open it. - Release the battery lock
- Disconnect the plugs and remove the discharged battery. Insert a fully charged battery and repeat the procedure in reverse order.

IS ESPAÑOL

PREMIERE CHARGE DE BATTERIE

Line drawing of a hand holding a rectangular tray with arrows indicating movement or force (no text or symbols)

Illustration of hands using a knife to cut a bag, showing a black arrow indicating the motion (no text or symbols present)

Illustration of a hand using a tool to cut a car body, with warning symbol and label (no text or symbols on diagram)

Illustration of hands holding a mechanical component with directional arrows indicating motion (no text or symbols)

OK !

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Illustration of hands installing a car seatbelt component with an arrow indicating direction (no text or symbols)

A B 8

Line drawing of a hand inserting a cable into a mechanical component (no text or symbols)

chrome decal 10

chrome decal

Technical line drawing of a mechanical component with hands adjusting parts (no text or symbols)

Line drawing of a hand adjusting a car tire with a knob (no text or symbols)

Line drawing of a hand using a tool to clean or adjust a small object inside a container (no text or symbols)

CAUTION:

ADULT ASSEMBLY REQUIRED. USE CARE WHEN UNPACKING AS COMPONENTS TO BE ASSEMBLED MAY POSE A SMALL PARTS/SHARP EDGE HAZARD.

IF THE PRODUCT IS DAMAGED WHEN YOU OPEN THE PACKAGING, CONTACT THE SERVICE CENTER AND DO NOT USE THE PRODUCT.

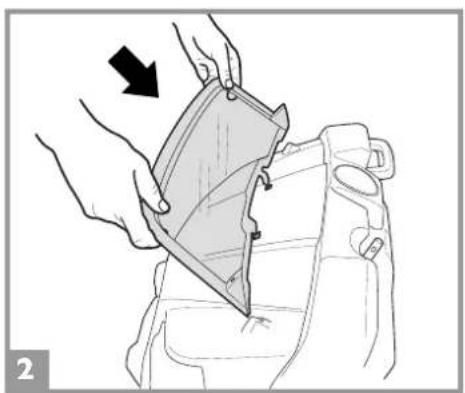

• Insert black windshield frame onto the clear windshield until the clear center pin snaps into the hole.
  2 • Place windshield on the hood as shown.

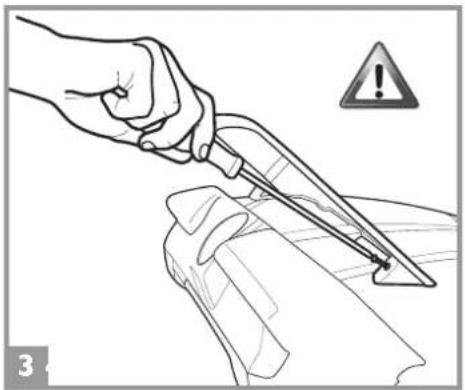

  3 • Attach windshield to hood with 2 screws. (Install dash decals before installing steering wheel).

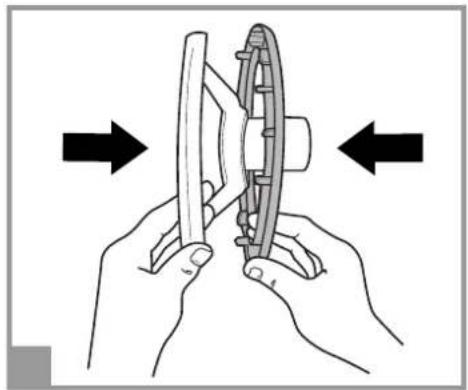

  4 • Assemble the 2 steering wheel components and press firmly together.

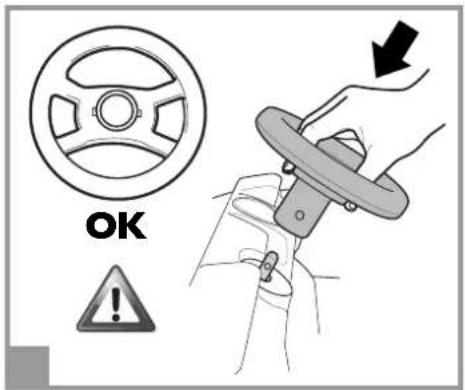

  5 • Place steering wheel onto steering column tube and align bolt holes.

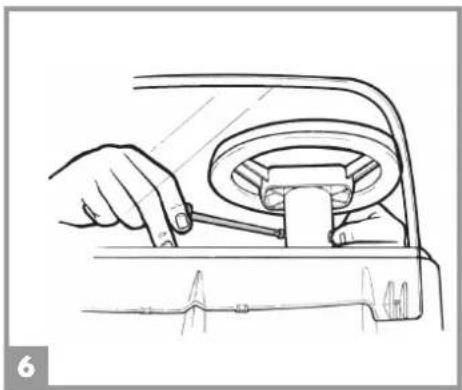

  6 • Insert bolt into round hole and locknut into hexagon shaped hole. Tighten bolt with screwdriver.

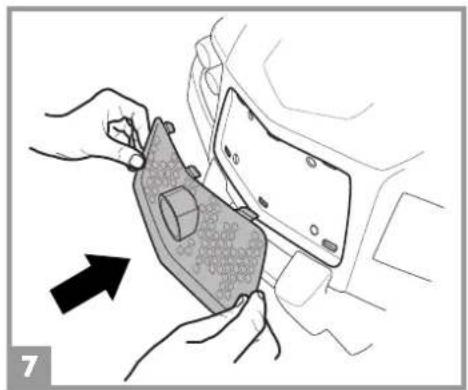

  7 • Install the front grill into hood until it snaps into place.

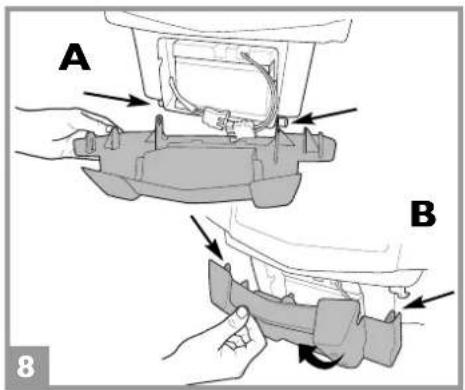

  8 • Attach front bumper - battery cover; (A) place lower bumper holes onto chassis pins and (B) rotate up until it snaps closed.

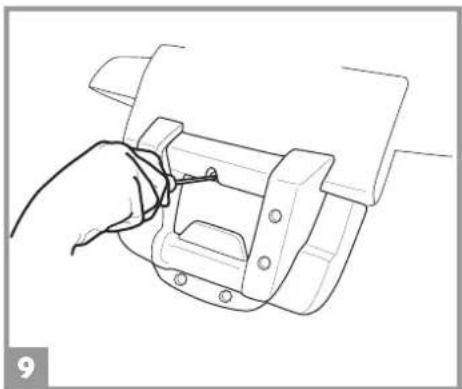

  9 • Secure with screw (after battery is charged) to keep children away from battery.

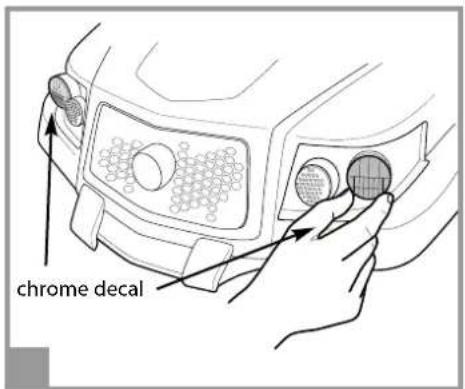

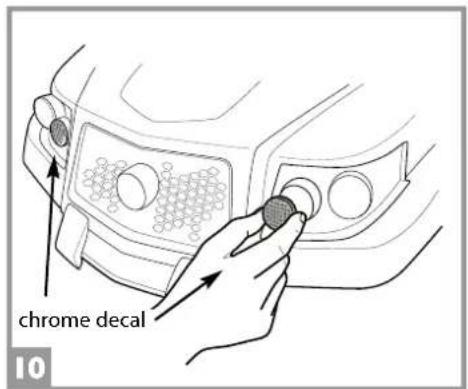

  10 • Headlight lens; apply chrome decals, then press amber lens into sockets.
  II •Headlight lens; apply chrome decals, then press clear lens into sockets.
  12 • Screw the brush guard with the four screws.

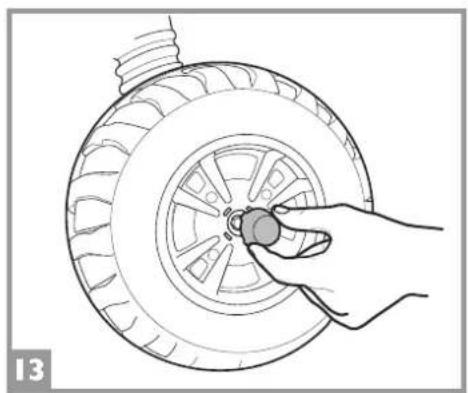

  13 •Press 4 small hubcaps into wheels.

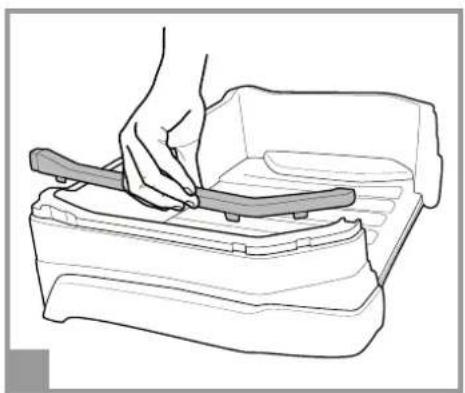

  14 • Install black trim to dump bed (both sides).

ATTENTION:

ASSEMBLAGE PAR UN ADULTE REQUIS. OUVRIR LES EMBALLAGES AVEC PRÉCAUTION CAR LES PIÈCES À ASSEMBLER PEUVENT COMPORTER DES RISQUES DE COUPURES OU DE BLESSURES.

SI LE PRODUIT EST ENDOMMAGÉ LORSQUE VOUS OUVREZ L'EMBALLAGE, CONTACTEZ LE SERVICE APRÈS-VENTE ET N'UTILISEZ PAS LE PRODUIT.

Line drawing of a hand using a tool to cut a meshed rectangular object (no text or symbols)

Illustration of a hand placing a mesh component into a container with an arrow indicating downward motion (no text or symbols)

Line drawing of a hand using a tool to press or install a textured object (no text or symbols present)

A 18

Line drawing of two hands holding a small object, possibly a device or tool, with no visible text or symbols.

Line drawing of a hand holding a small object near a vehicle (no text or symbols)

Line drawing of hands connecting a mechanical component to a bracket (no text or symbols)

Illustration of a hand gripping a device with a downward arrow indicating force or change (no text or symbols present)

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Illustration showing hands using a tool to adjust a mechanical component, with a downward arrow indicating the process (no text or symbols present)

Illustration of hands using a tool to adjust or install a mechanical component, with an arrow indicating the process (no text or symbols present)

Technical line drawing showing a hand holding a small object and a mechanical component with a circular inset (no text or symbols)

Illustration of a hand holding a mechanical component with a downward arrow indicating force or adjustment (no text or symbols present)

Illustration of a medical procedure showing hand positioning and tool insertion (no text or symbols)

1 2 3 2 3 4 1/4 !

ENGLISH

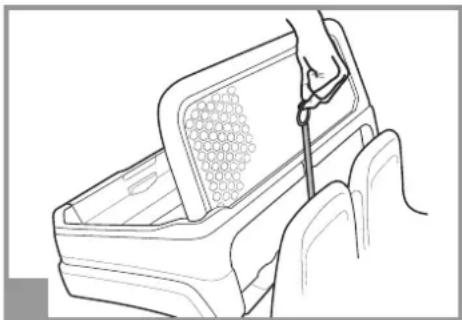

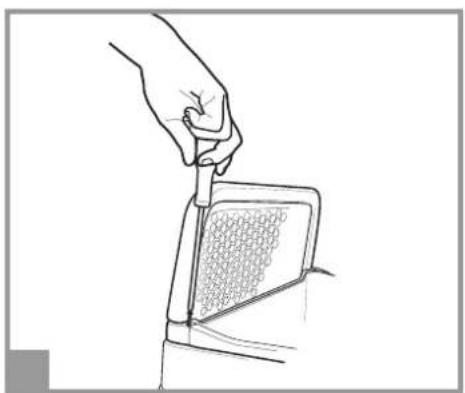

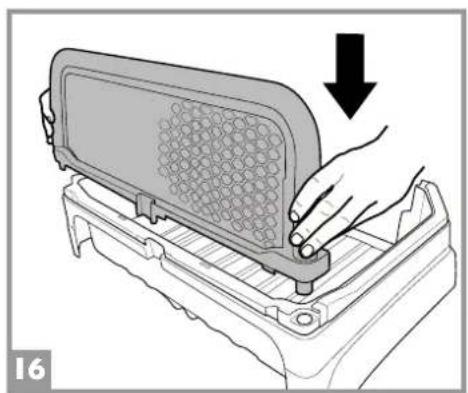

15 • Assemble roll-bar mesh to roll-bar and secure with the small screw provided.
16 • Place roll-bar ends into the holes at the front of the dump bed and push down.
17 • Secure it with the 2 screws provided.

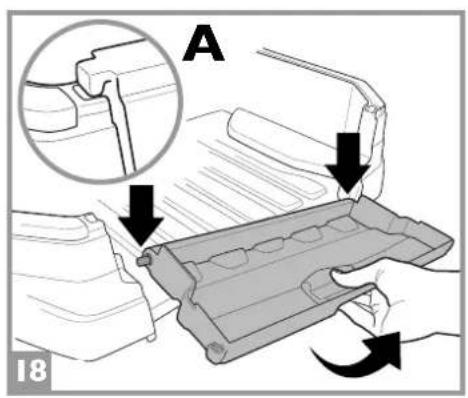

18 • Install tailgate; insert tailgate left pin into left hole in bed; gently but firmly press down on right side until right pin enters right hole.
19 • Install bed: Forcefully remove the 2 oval pins from the 2 black rear dump bed hinge brackets.

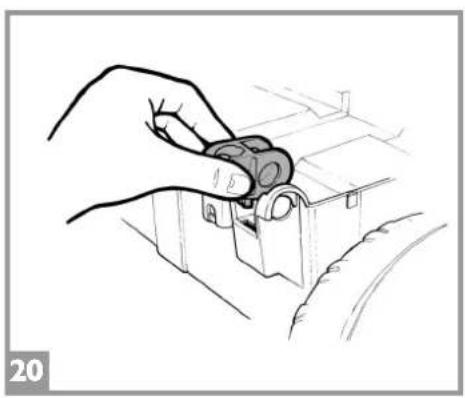

20 • Place the round hole end of the black bracket into the hinge flange on the chassis; the oval hole to the rear and the 14 " flat extrusion pointing down into the chassis slot.

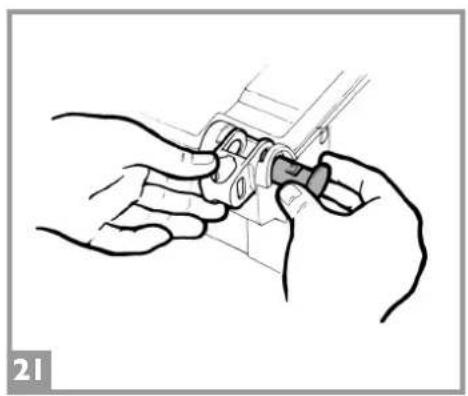

21 • Align the holes and insert the round black plastic pins (both sides).

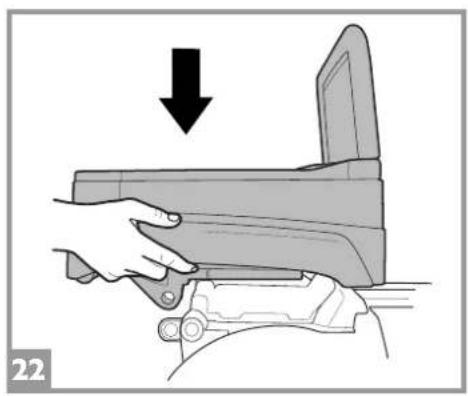

22 • Set the bed on the chassis; align the oval bracket holes with the round bed flange holes (both sides).
23 • Insert oval plastic pins to secure the bed to the chassis (both sides).

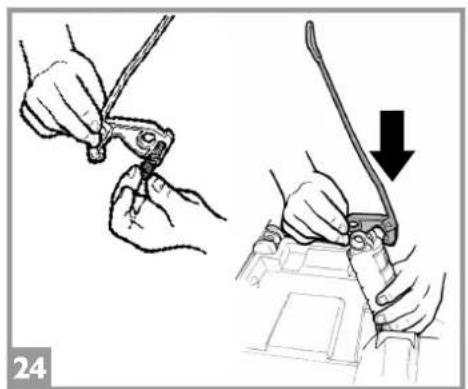

24 • Connect the spring and the red fastener as shown in the figure. Lift up the piston and insert the red fastener into the upper part as shown in the figure.

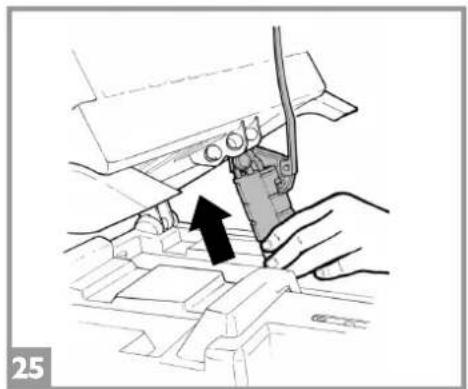

25 • Keep the piston up. Align the piston hole with the FRONT hole of the bed flange (see figure).
26 • Secure it with the red plastic pin.

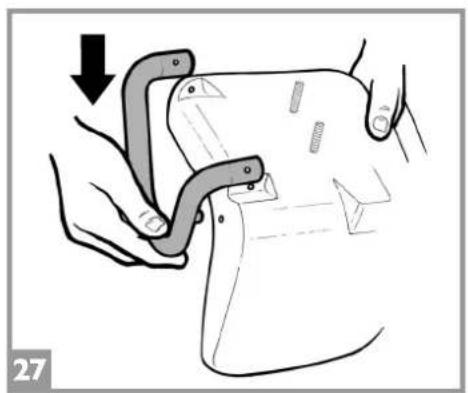

27 • Apply the two armrests to the sides of the double seat.

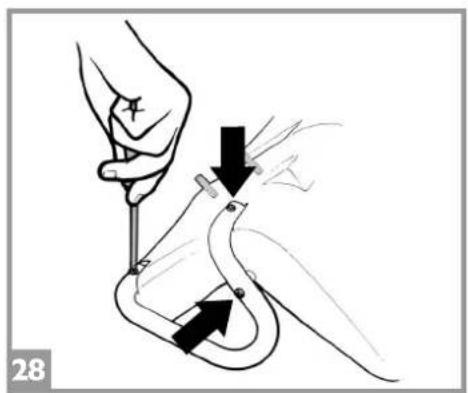

28 • Secure both armrests with the three screws provided.

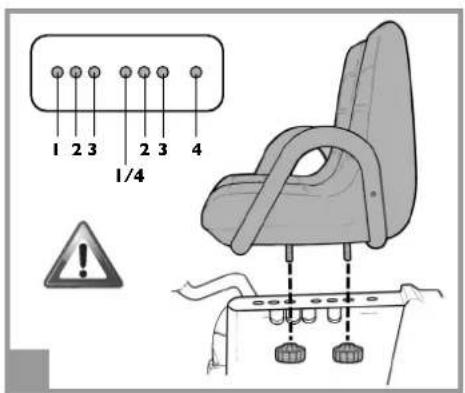

29 • Place the double seat in line with the appropriate holes, depending on the height of the child, and secure it from underneath with the four knobs. The Gator can be set up in 4 positions (see diagram).

FRANÇAIS ESPAÏ

VEHICLE FEATURES AND INSTRUCTIONS FOR USE

CARACTERISTIQUES ET EMPLOI DU VEHICULE

CARACTERÍSTICAS Y USO DEL VEHÍCULO

A B 30

Technical line drawing of a mechanical component with a central slot and mounting bracket (no text or symbols)

Illustration of a hand rolling down a sheet with a roller, showing a curved arrow indicating rotation (no text or symbols)

Line drawing of a hand using a tool to lift a tray with a grid-patterned lid (no text or symbols)

2 I R

I - R 35

2-1-R

ENGLISH FRANC

FEATURES and INSTRUCTIONS FOR USE

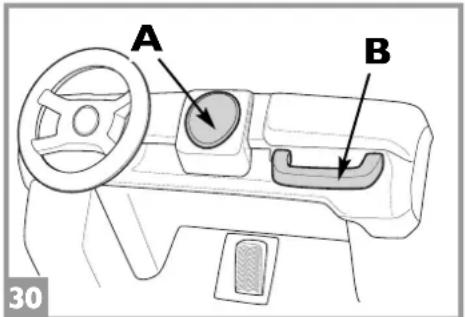

30 •A - DRINK HOLDER: a conveniently placed drink holder is located on the dashboard. B - HAND GRIP: passengers can hold onto the hand grip for maximum safety while using the vehicle.

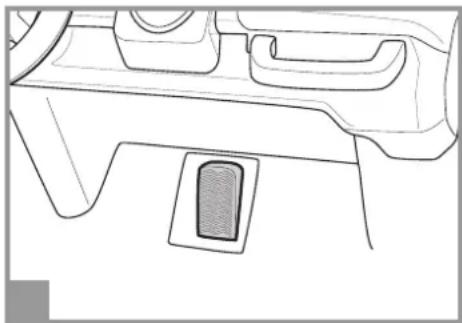

31 •ELECTRIC ACCELERATOR & BRAKE PEDAL: when accelerator is pressed completely down, forward motion is activated. Brake activates automatically when the child takes his foot off the accelerator.

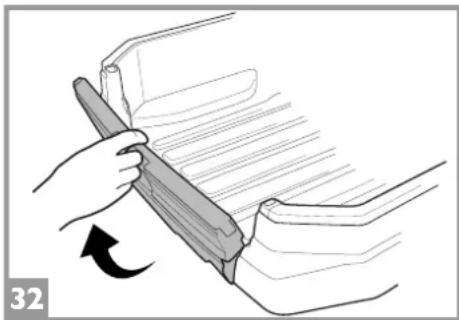

32 •TAILGATE: The load box is supplied with a tailgate with drop-down opening. To lower the tailgate, pull it up and roll it outwards.
33 •DUMP BED: The dump bed can carry objects for a maximum of 22 lbs. To operate the dump bed, pull upward on red latch and unlock it as shown in the figure.

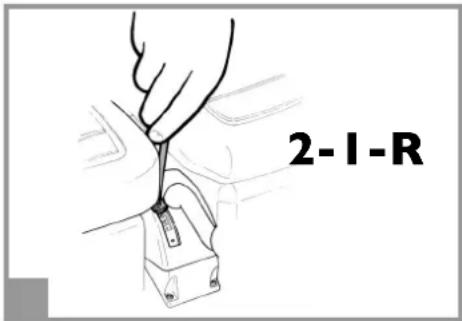

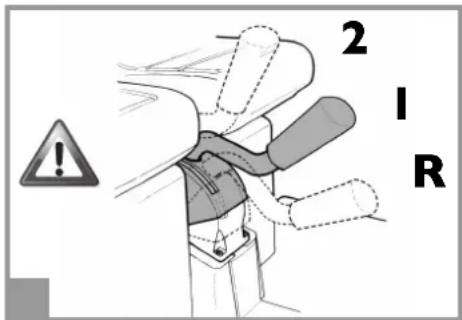

34 •GEARSHIFT POSITIONS: 3 positions; Center; 2¼ mph forward, Up; 4½ mph (NOTE: vehicle is shipped with 4½ mph speed LOCKED-OUT for SAFETY. Parents must follow instructions 35 and 36 to activate high speed. Down; reverse (gearshift must be held in the down position for safety; we never want a child to step on the accelerator and go in reverse when they think they will go forward).

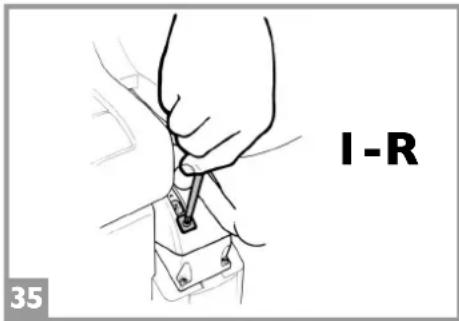

35 •Unscrew safety screw to release the high speed lockout pin.
36 • Secure the high speed lockout pin in the second hole as shown in the figure. The vehicle can now be shifted to 2nd speed. If you do not want your child to use the second speed, secure the high speed lockout pin in the first hole.

IS ESPAÑOL

CARACTERISTIQUES ET MODE D'EMPLOI DU VEHICULE

B = blue B = azul B = bleu BK = black BK = negro BK = noir R = red R = rojo R = rouge W = white W = blanco W = blanc

Model Number IGOD0063 - IGOD0067

USA

Call toll free:

1-800-728-2108

Llame gratis:

1-800-225-1558

www.pegperego.com

CANADA

Call toll free:

Appelez le péage

libre:

1-800-661-5050

• 2017 • 2018

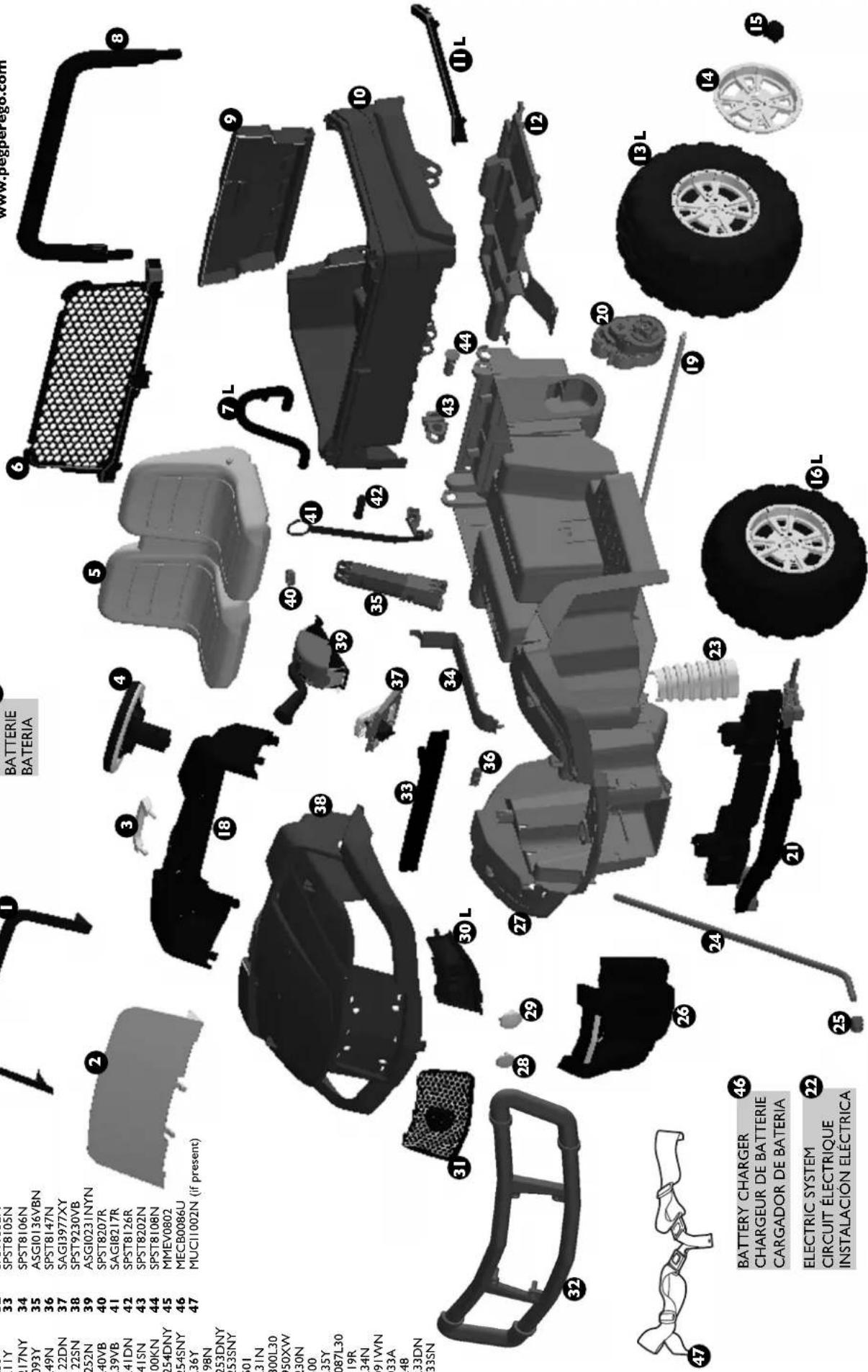

211Y 33 SPST8105N 217NY 34 SPST8106N 093Y 35 ASGI0136VBN 249N 36 SPST8147N 122DN 37 SAGI3977XY 122SN 38 SPST9230VB 252N 39 ASGI0231NYN 240VB 40 SPST8207R 239VB 41 SAGI8217R 241DN 42 SPST8126R 241SN 43 SPST8202N 100KN 44 SPST8108N 254DNY 45 MMEV0802 254SNY 46 MECB0086U 236Y 47 MUCI1002N (if present) 398N 253DNY 253SNY 501 231N 300L30 950XW 230N 500 235Y 3087L30 119R 234N 091WN 033A 248 233DN 233SN 31 38 39 35 40 41 42 37 34 36 35 33 31 30 L 28 29 27 26 24 23 21 19 16 L BATTERY CHARGER 46 CHARGEUR DE BATTERIE CARGADOR DE BATERIA ELECTRIC SYSTEM 22 CIRCUIT ÉLECTRIQUE INSTALACIÓN ÉLECTRICA

1 SPST9251N 2 SPST9250 3 SPST8211Y 4 ASGI0217NY 5 SARP8093Y 6 SPST9249N 7R SAGI8122DN 7L SAGI8122SN 8 SPMV9252N 9 SPST9240VB 10 SPST9239VB 11R SPST9241DN 11L SPST9241SN 12 SPST8100KN 13R SARP9254DNY 13L SARP9254SNY 14 SPST9236Y 15 SPST8398N 16R SARP9253DNY 16L SARP9253SNY 17 IAKB0501 18 SPST9231N 19 SOFF0300L30 20 SAGI9950XW 21 ASGI0230N 22 MEIE0500 23 SPST9235Y 24 SOTF0087L30 25 SPST8119R 26 SPST9234N 27 SPST8091WN 28 SPST9033A 29 SPST9248 30R SPST9233DN 30L SPST9233SN

Peg Perego products are manufactured to the highest standards. As with the nature of all mechanical products, at some point you may experience technical difficulties. This guide is designed to assist you with easy-to-follow instructions for troubleshooting your children's vehicle.

For further assistance, please contact Peg Perego Customer Service by phone or online: Toll Free: 1-800-728-2108 Internet: us.pegperego.com

SYMPTOM:	POSSIBLE CAUSE:	SOLUTIONS:
Will not run in any speed High, Low or Reverse when accelerator pedal is depressed.	Battery not properly connected.	Install battery per instructions. Make sure blue battery plug is connected to black vehicle system plug.See step # 49 in the Use & Care manual.
	Battery is low or dead.	Charge battery for 18-24 hours. Check operation of the charger. 12-volt chargers - Plug charger into outlet. Green LED should be on. Plug black charger plug into blue battery plug, green LED should change colors to indicate charging. Green LED will come back on gradually as the battery reaches full charge.
	Battery is dead.	The battery has a limited lifespan. As the battery ages it will begin to lose capacity or runtime. You can maximized this lifespan with proper care; Always charge the battery after each use. Do not store the battery in a discharged state.If replacement is needed; Order part # IAKB0501.
	Accelerator switch not operating properly.	Check accelerator switch operation - Remove Accelerator plate from vehicle. Remove the blue wire from switch, remove red wire and place it on the terminal that had the blue wire. If vehicle runs, then accelerator switch needs to be replaced.If replacement is needed; Order part # SAGI8862Y.
	Motor wire disconnected.	Motor wire check - Place vehicle in low speed. Raise rear wheels off the ground and turn one rear wheel by hand. The other rear wheel should turn in the opposite direction. If other wheel does not turn, then you may have a motor wire off. To inspect the motor wires, you first need to remove the dump bed. The piston pin and 2 pivot pins need to be removed (see figs.#23 & 25 in Use & Care manual). Next, lift the rear cover to view the motor wires and reconnect motor wires.
	Vehicle has too much load.	Reduce the load on the vehicle. Too much weight, steep slopes, thick grass, sand, etc. or any combination of these conditions can overload the vehicle causing reduced runtime.
Short runtime	Battery is low or near end of life.	See solution for "Battery low or dead" above.
One wheel turns but not the other.	Vehicle is in low or reverse.	This is normal when in low speed or reverse because the wheels act like an automotive differential. This makes turning easier. If one wheel is stalled or stopped the other wheel gets all the power. Shift to high speedto get full power to both wheels
	Bad high/low switch.	See solution for "Motor wire disconnected" above.
	Motor wire is disconnected	Replace high/low switch.If replacement is needed; Order part #ASGI0231NYN.

ENGLISH

PEG PEREGO® thanks you for choosing this product. For more than 60 years, PEG PEREGO have been taking children for an outing: first with its famous baby carriages and strollers, later with its pedal and battery operated toy vehicles.

Discover our complete range of products, news and other information about the Peg Perego world on our web site www.pegperego.com

IMPORTANT INFORMATION

- Read this instruction manual carefully to learn the use of the vehicle and to teach your child safe and enjoyable driving. Please keep this manual (with your original sales receipt) for use as a reference in the future.

STOP! DO NOT RETURN YOUR VEHICLE TO THE STORE!

This product cannot be returned for a refund after it has been used. If you have ANY questions, need replacement parts or need assistance, call us toll-free; U.S.A., call 1-800-728-2108 / CANADA, call 1-800-661-5050

- This product meets and/or exceeds all ASTM (American Society for Testing and Materials) TOY SAFETY STANDARDS, including F 963, Consumer Toy Safety Specifications as well as C.R.C, c.931, the Canadian Hazardous Products (Toys) Regulations.

- If you give away the product to third parties, make sure that it is accompanied by the instruction manual.

- Tools needed for assembly: Phillips screwdriver medium and small (not included).

- Your new vehicle is partially pre-assembled. It will require adult assembly. Please set aside at 60 minutes for assembly.

- Before the vehicle is used for the first time, charge the battery for 18 hours to initiate it. Failure to do this can result in permanent battery damage.

- Use only with the included Peg Perego 12 Volt lead-acid, rechargeable battery and a Peg Perego 12 Volt Charger (both included).

• Year 3+

•Weight capacity 130 lbs

- Do not exceed the maximum total weight capacity of 130 lbs (59 kg).

Contents:

• I GATOR XUV 550 riding vehicle -- partially assembled
• I Rechargeable 12V 12Ah sealed lead-acid battery
- I Charger 12V
•two 170 W motors -- pre installed
- assembly hardware
•parts to be assembled
• decals

•Speed in 1st gear 2,5 MPH
•Speed in 2nd gear 5 MPH
•Speed in reverse gear 2,5 MPH

• For safety, this vehicle has been pre-set so it will only operate in LOW speed. See steps 35 - 36 to remove the HIGH speed lock-out.
  •To prevent damaging the motor and gears, teach your child to stop the vehicle before switching directions.
• Use this vehicle ONLY outdoors. Most interior flooring can be damaged by riding this vehicle indoors. Peg Perego will not be responsible for damage to the floor if the vehicle is used indoors.
• Peg Perego reserves the right to modify or change its products. Price, literature, manufacturing processes or locations or any combination of the above mentioned entities may change at any time for any reason without notice with impunity.

CAUTION:

ELECTRIC VEHICLE NOT RECOMMENDED FOR CHILDREN UNDER 3 YEARS OF AGE. AS WITH ALL ELECTRIC PRODUCTS, PRECAUTIONS SHOULD BE OBSERVED DURING HANDLING AND USE TO PREVENT ELECTRIC SHOCK. RECHARGER INCLUDED. 120Vac 60Hz 16W INPUT - 12Vdc 12W OUTPUT

BATTERY MAINTENANCE AND SAFETY

CAUTION:

Only adults should recharge batteries never children.

Never allow children to handle batteries.

Only use the batteries specified by the manufacturer. Only use the charger specified by the manufacturer.

Do not mix old and new batteries.

Do not mix alkaline, standard (carbon-zinc), or rechargeable (nickel-cadmium) batteries.

CHARGING THE BATTERY

- Charge the batteries no longer than 24 hours, following the instructions enclosed with the battery charger.

- Charge the battery, as the vehicle shows low power, in this way you will avoid damage to the battery.

- If you don't use your vehicle for a long period of time unplug the battery from the main wire harness of the vehicle. Remember to charge the battery at least every three months.

- Never charge the battery upside down.

- Do not forget batteries during charging! Check them periodically.

- Never use a replacement recharger or batteries unless they are approved by PEG PEREGO.

• Batteries are sealed and maintenance free.

- Battery polarity must be observed when connecting battery to wiring.

WARNING:

- BATTERIES CONTAIN TOXIC AND CORROSIVE SUBSTANCES. DO NOT TAMPER WITH THEM.

• Batteries contain an acid-based electrolyte.

- Do not make direct contact between battery terminals, as this can cause an explosion or fire.

- Charging produces explosive gases. Charge batteries in a well ventilated area away from sources of heat and flammable materials.

- Exhausted batteries are to be removed from the vehicle.

- Do not place the batteries near clothing to avoid damage.

IF A LEAK DEVELOPS

Shield your eyes. Avoid direct contact with the electrolyte, protect your hands.

Place battery in a plastic bag and follow directions listed below.

IF ELECTROLYTE COMES IN CONTACT WITH SKIN OR CLOTHING

Flush with cool water for at least 15 minutes.

See a physician at once.

IF ELECTROLYTE IS INJECTED

Give tap water, milk of magnesia or egg whites at once.

Do not induce vomiting.

See a physician at once.

DISPOSAL OF BATTERIES; CONTAINS SEALED LEAD ACID BATTERY. BATTERY MUST BE RECYCLED.

Help protect the environment!

Do not throw used batteries in your regular, household trash.

Dispose old batteries at an approved battery dumping station; contact your local Environmental Protection Agency office or call Peg Perego Customer Service for additional information.

RULES FOR SAFETY DRIVING

DON'T STOP THE FUN: purchase a spare battery to have a freshly charged back-up available.

For your child's safety: please read and follow all instructions below before operating.

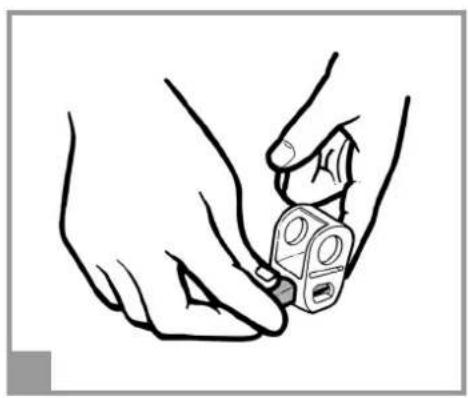

•ATTENTION:

Check the fastening retainers to be sure they are tight.

- 1st SPEED slow speed (beginner drivers):

With both hands on the steering wheel, press down on the accelerator pedal; the vehicle goes forward at 2/4 mph.

•2nd SPEED: fast speed (experienced drivers):

With both hands on steering wheel press down on the accelerator pedal; the vehicle goes forward at 4/2 mph.

•REVERSE:

Place the left hand on steering wheel. With the right hand holding the gearshift in reverse, press your foot down on the accelerator; the vehicle reverses at 2 ^1/4 mph. (Reverse is spring-loaded for safety).

•BRAKE:

The electric braking system stops the vehicle automatically when your child lifts his foot off the pedal.

Teach your child the proper use of this vehicle for a safe and fun play time.

•Before starting be sure that the way is free from people and objects.

- Drive with both hands on the steering wheel and keep your eyes on the road at all times.

- Stop in time to avoid accidents and immediately release pedal when stuck.

- Use the 2nd speed only after your child has the maturity and the reflexes to operate the vehicle safely.

CAUTION:

- In low speed, the vehicle has a differential effect like real cars; on smooth terrain and with one child, the two wheels may turn at different speeds, resulting in possible sliding/deceleration.

- If the vehicle is overloaded, as can happen on soft sand, mud, or very uneven ground, the overload switch will immediately disconnect the power. The power supply will be restored after a few seconds.

VEHICLE MAINTENANCE AND SAFETY

This product meets and/or exceeds all ASTM (American Society for Testing and Materials) TOY SAFETY STANDARDS, including F 963, Consumer Toy Safety Specifications as well as C.R.C, c.931, the Canadian Hazardous Products (Toys) Regulations.

This vehicle is not intended for use on streets, around traffic or parked cars.

MAINTENANCE AND CARE

- Do not try to repair the vehicle by yourself.

- Regularly check the conditions of the vehicle, particularly the electrical system, the plug connections, the covering caps and the charger. In case of fault, do not try to use the vehicle and the charger. For repair use only original PEG PEREGO's spare parts.

- PEG PEREGO assumes no liability if the electrical system is tampered with.

•Take care with the battery charger cable. For example, do not pull it to remove the plug, do not pull the vehicle along on its wheels using the cable, do not cover the cable because it may overheat, do not leave it on hot surfaces and be careful about where and how you roll it up.

- Do not leave vehicle or batteries near sources of heat such as radiators, stoves, fireplaces, etc.

- Protect vehicle from water, rain, snow, etc.

- When operating in overload conditions, such as soft deep sand, mud or rough uneven terrain, the overload circuit breaker will automatically disconnect the power. After 30 or more seconds, the circuit breaker will automatically reset, however you must eliminate overload conditions to resume normal driving.

•Periodically lubricate (with a light weight oil) moving parts, such as wheel bearings, steering linkages, where they rotate or touch one another.

- The vehicle's surfaces can be cleaned with a damp cloth. Do not use abrasive cleaners. The cleaning must be carried out by adults only.

- Never disassemble the vehicle mechanisms or motor unless authorized by PEG PEREGO.

SAFETY

⚠ WARNING:

• To reduce the risk of injury, adult supervision is required. Never use in roadways, near motor vehicles, on or near steep inclines or steps, swimming pools or other bodies of water; always wear shoes, and never allow more than two riders.

• Surfaces that are appropriate for use: grass, dirt or hard surfaces with slopes not to exceed 10% .
• A child must be 3 years of age or older for the necessary coordination and maturation to operate this motorized vehicle safely.
• Never use the vehicle on steep slopes or near steps or stairs. This vehicle is not suitable for use on public highways.
• Children should always wear shoes when riding in or driving a riding vehicle.
• Do not allow children to place their hands, feet or any part of their body, clothing or other articles near the moving parts while vehicle is in operation.
• Do not allow the electrical components, motors, wiring, switches of your motorized vehicle to become wet and never wash it with a hose.
• NEVER STORE GASOLINE OR ANY FLAMMABLE SUBSTANCE WHERE A CHILD CAN ACCESS IT. AND NEVER ALLOW GASOLINE OR ANY FLAMMABLE SUBSTANCE TO BE NEAR A BATTERY POWERED CHILDREN'S VEHICLE WHEN IT IS BEING RIDDEN.

PROBLEMS?

IF THE VEHICLE DOES NOT OPERATE?

- When operating in overload conditions, such as running the vehicle against a fixed object, through soft deep sand or mud, or over rough or uneven terrain, the overload circuit breaker will automatically disconnect the power. After 10 or more seconds, the circuit breaker will automatically reset, however-you must eliminate overload conditions to resume normal driving.

- Check that all plugs are properly connected.

- Check electrical switches. Replace if necessary.

- Check that the battery is connected to the electrical system.

IF THERE IS NO POWER?

- Fully recharge the battery. If the problem persist, check with an Authorised PEG PEREGO Service Center.

CUSTOMER SERVICE

For your convience, PEG PEREGO offers after-sales service, directly or through a network of authorized service centers for repairs or replacement parts.

If you have any questions about your Peg Perego vehicle, please call our toll-free service lines at;

U.S.A, call I-800-728-2108

CANADA, call 1-800-661-5050

Trained customer service representatives are available to take your call in English or Spanish.

FRANÇAIS

Extended Warranty (for a 2nd Year) with Online Product Registration at www.pegperegousa.com/product-registration

*We respect your privacy. The personal information collected here is used only by Peg Perego and will not be sold to or used by any other company or organization.

Statement of Limited Warranty

One-year limited warranty for Peg Perego vehicles from date of purchase, and/or six-month limited warranty for battery, charger and wheels from date of purchase.

This limited warranty covers your Peg Perego ride-on vehicle and/or the rechargeable battery (if applicable) to the original, noncommercial purchaser who purchased it from Peg Perego or an authorized Peg Perego dealer, against defects in materials and/or workmanship, however it does not cover the cost of shipping or handling. If the problem is not covered by this warranty, the consumer must pay for all related expenses associated with parts and services rendered.

This warranty covers normal use and does not cover the vehicle or the battery if it has been damaged by unreasonable use, neglect, accident, abuse, misuse, improper service, modification and/or other causes not arising from defects in materials or workmanship. In no event shall Peg Perego be liable for any other incidental or consequential damages. Except for this limited warranty, Peg Perego makes no other representation or warranty, express or implied, with respect to the products. Peg Perego specifically disclaims all other express and implied warranties, including any implied warranties of merchantability and fitness for a particular purpose.

For Fast & Friendly Service, call |-800-728-2108, or visit www.pegperego.com.

EXTENDED WARRANTY 2 YEARS* *CONSUMER PARTICIPATION REQUIRED

Peg-Pérego

www.pegperegousa.com/product-registration

Do not return your vehicle to the store!

We're a toll-free phone call away and we can help.

If you are missing parts or need assistance, please see the contact information below.

¡ALTO!

call us toll free 1·800·661·5050

PEG PEREGO S.p.A.

via A. De Gasperi, 50 20862 ARCORE (MB) ITALIA

Peg-Pérego

www.pegperego.com
