USER MANUAL Case IH Magnum PEG PEREGO

• Weight Capacity 85 lbs

• Capacidad de peso 85 lbsSTOP! VERY IMPORTANT Do NOT ride vehicle before charging battery for 18 hours. Failure to do this will permanently damage the battery and void your warranty. ALSO; Charge the battery immediately after each use, regardless of how long the vehicle was used. Storing the battery in a discharged state will permanently damage the battery. When storing, the battery must be recharged every 30 days. NEED HELP: Call 1-800-728-2108 ONLY USE THE PEG PEREGO BATTERY & CHARGER WITH THIS TOY. As Peg Perego USA, INC. grows, counterfeits and unauthorized distributors and retailers are making non-Peg Perego products and low quality knockoffs that are mistaken for an authentic one. Please avoid use of outside brand - third party accessories and/or products with the Peg Perego brand, which have resulted in damage to the product. Ways to determine a true Peg Perego battery and/or charger:

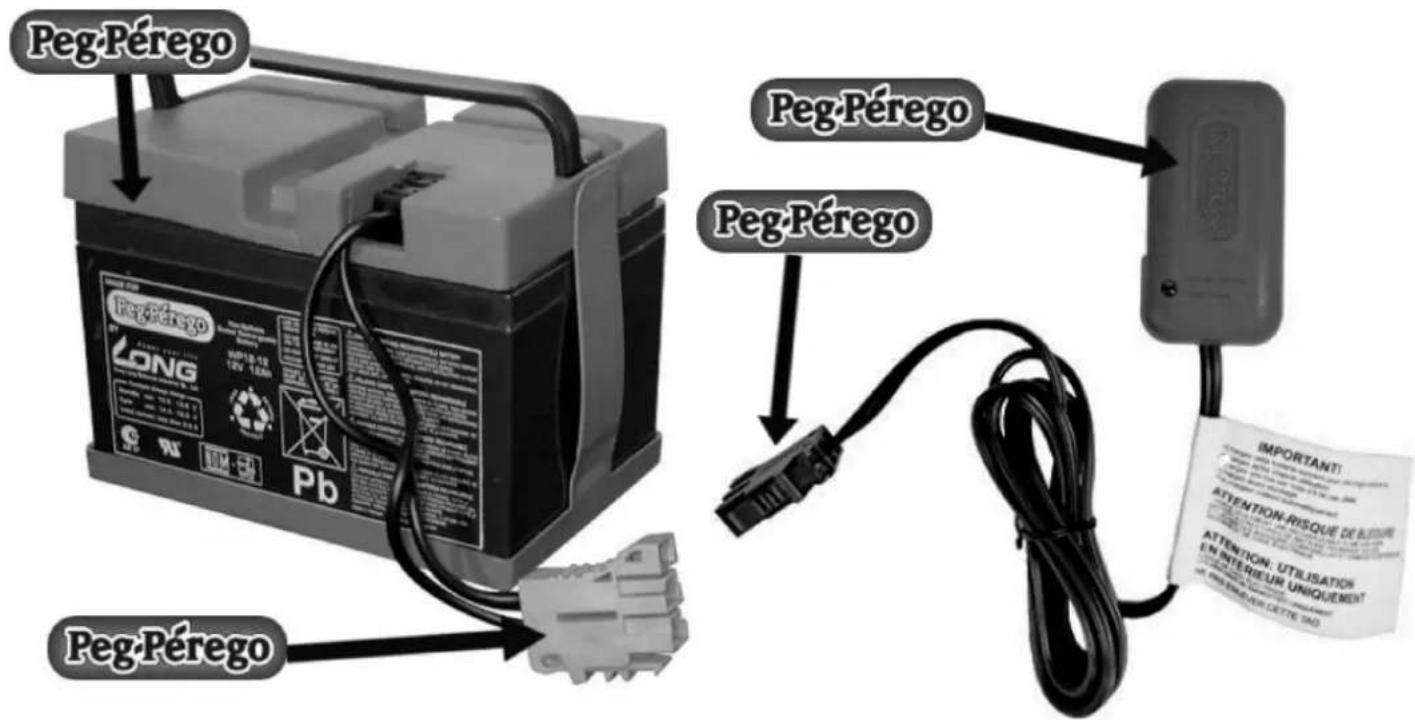

1) The Peg Perego logo along the front of the battery itself.

2) The Peg Perego logo along the front of the charger.

3) The Peg Perego logo along the battery and charger connectors.

A) Plug the battery charger into a power outlet in compliance with the specifications on the label. This power unit is intended to be correctly oriented in a vertical or floor mount position. B) Connect the charger the battery for 18 hours. C) If your battery charger is provided with a LED indicator, it means one of the following:

1) When plugging in the charger, as described in

A, and no battery is connected, the green LED light will appear, indicating that the device is working correctly.

2) Connect the battery as described in B. If all

connections have been made properly and the battery is sufficiently discharged, the start of charging will be confirmed by the orange LED lighting up or by the flashing green LED light.

3) When the battery is almost fully charged, the

!• Connect battery charger to a 120vac wall recepticle. Connect battery charger to battery.

• If you have bought or own a Peg Perego 12V/12Ah battery, you will have to remove the plastic filler (A) by slipping it off the battery clamp.

• Reposition the new battery with the battery clamp in its housing. Fasten the clamp with the two screws.

• Connect the battery plug to the electrical system.

• Close again the cab by repositioning the hook, as done above.

WITHOUT REMOVING IT FROM

• Install Battery: Open hood by turning black latch with 90 degrees with a coin. Rotate hood forward to open.

• Insert the battery charger plug into an electrical outlet. Connect point B to point C on the battery charger. When the battery has been completely recharged, disconnect the battery charger from the electrical outlet, and disconnect point C from point B.

• Insert point B into point A, pressing until it clicks into place. Replace the battery brace. Always remember to close and fasten the hood on the battery compartment when you have finished working on the battery.

• Open the hood, as described above. Disconnect the battery from the electrical system by squeezing the sides of the plugs.

• Loosen the 2 screws on the battery brace, as shown in the figure.

• Remove the battery clamp from the dead battery.

IF THE PRODUCT IS DAMAGED

CONNECTED. 1 •Insert washer shaped retainer into retainer installation tool with the finished side facing up. ATTENTION: the tabs on the self-locking washer must be turned towards the interior of the tool (see detail A). 2 •Place one end of trailer axle into retainer installation tool and pound axle into tool (and retainer) until fully seated. 3 •Insert white bushing into the inside of each trailer wheel as shown. 4 •Install the following components onto axle;

1) washer 2) wheel (hubcap facing down)

3) 2nd wheel (hubcap facing up) 4) washer.

ATTENTION: Check to make sure that the wheels have been inserted correctly on the axle. The hubcaps must be facing away from the toy. 5 •Place retainer into installation tool, place tool onto upper end of axle and pound until seated. Remove tool. 6 •Place wheel & axle assembly onto trailer chassis with washers outside of posts and press down until axle is firmly seated into chassis. INSTRUCTIONS D'ASSEMBLAGE ATTENTION:

7 •Insert red pin into trailer chassis tongue. 8 •Remove the 5 protective caps from the bottom of the trailer. 9 •Assemble yellow trailer sides together with finished sides facing out. 10 •Place trailer sides firmly into stake pockets in trailer bed. 11 •Turn trailer bed upside down, place trailer chassis onto bed, align the 5 pegs in the green bed with the 5 holes in the black chassis and very firmly press or pound pegs into the holes with hammer until firmly seated.

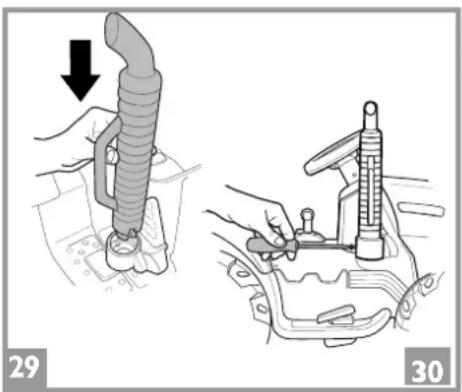

2513 •Place the chrome decals into the headlight section of the front grill. Then attach the clear plastic cover; press the attachments into the 4 slots to form the front headlight. 14 •Press the side inserts into place on the body. 15 •Unscrew the knobs on the bottom of the seat. 16 •Place seat bolts into red seat support holes. 17 •The seat can be adjusted to 2 positions to suit the height of the child (see figure). 18 • After adjusting the seat, tighten the 2 knobs that hold it in place. 19 •Insert front red seat support fingers into chassis. 20 •Rotate support (and seat) down onto chassis at the rear. Turn tractor chassis upside down and secure support to chassis with 2 screws. ENGLISH

VEHICLE FEATURES AND

52SYMPTOMS: POSSIBLE CAUSE: SOLUTIONS: Will not run in any speed. High, Low or Reverse when accelerator pedal is depressed. Battery not properly connected. Install battery per instructions. Make sure blue battery plug is connected to black vehicle system plug. Battery low or dead. Chargers with indicator light - Plug charger into outlet. Green light should be on. Plug black charger plug into blue battery plug, green light should go out or turn orange (depending on the charger) to indicate charging. Light will turn green gradually as the battery reaches full charge. Battery dead. The battery life is limited. As the battery ages it will begin to loose capacity or runtime. The overall life of the battery is maximized with proper care. Always charge the battery after each use. Do not store the battery in a discharged state. Accelerator switch not operating properly. Check accelerator switch operation - Remove Accelerator plate from toy. Remove the blue wire from switch, remove red wire and place it on the terminal that had the blue wire. If vehicle runs, then accelerator switch needs to be replaced. Order accelerator plate. Check accelerator switch wire locations- See solution for "Accelerator switch not connected properly" below. Motor wire disconnected. Motor wire check - Place vehicle in low speed. Raise rear wheels off the ground and turn one rear wheel. The other rear wheel should turn in the opposite direction. If other wheel does not turn, then you may have a motor wire off. Reconnect motor wire. Shifter wires disconnected. Check wires on shifter connector block. Short runtime Vehicle has too much load. Reduce the load on the vehicle. Too much weight, steep slopes, thick grass, sand, etc or any combination of these conditions can overload the vehicle causing reduced runtime. Battery is low or near end of life. See solution for "Battery low or dead" above. Battery is low. See solution for "Battery low or dead" above. One wheel turns but not the other. Vehicle is in low or reverse. This is normal when in low speed or reverse because the wheels act like an automotive differential. This makes turning easier. If one wheel is stalled or stopped the other wheel gets all the power. Shift to high speed to get full power to both wheels. Motor wire is disconnected. See solution for "Motor wire disconnected" above. Shifter wire disconnected. Check wires on shifter connector block. Bad shifter switch. Replace shifter switch. Problems in either High, Low or Reverse speeds. High Speed is in the "lock-out" position. Remove the High Speed "lock-out". Motor wire is disconnected. See solution for "Motor wire disconnected" on reverse side. Shifter wire disconnected. Check wires on shifter connector block. Bad shifter switch. Replace shifter switch. Vehicle stops intermittently. Then restarts after several seconds. Automatic Circuit Breaker has tripped because of over loading. Reduce the load on the vehicle. Too much weight, steep slopes, thick grass, sand, etc or any combination of these conditions can overload the vehicle. Circuit breaker trips when the battery is plugged into the black vehicle harness. Accelerator switch not connected properly. Check accelerator switch wire locations. Remove foot board by prying with a screw-driver at its base. The wiring sequence is red, white and blue from the front of vehicle to the back of vehicle. Loud clicking noise heard when toy is being used. Gears are stripping. Replace motor/ gearbox assembly. Battery makes a bubbling or sizzling noise when charging. Battery is being charged. It is normal for some batteries to make some noise during charging. No action is needed. Wheels spin too much. Not enough weight on rear wheels. Add more weight to vehicle. Motor wire is disconnected. See solution for "Motor wire disconnected" Brake not working. Accelerator switch not connected properly. Check accelerator switch wire locations. See solution for "Accelerator switch not connected properly" above. Bad accelerator switch Replace accelerator plate.

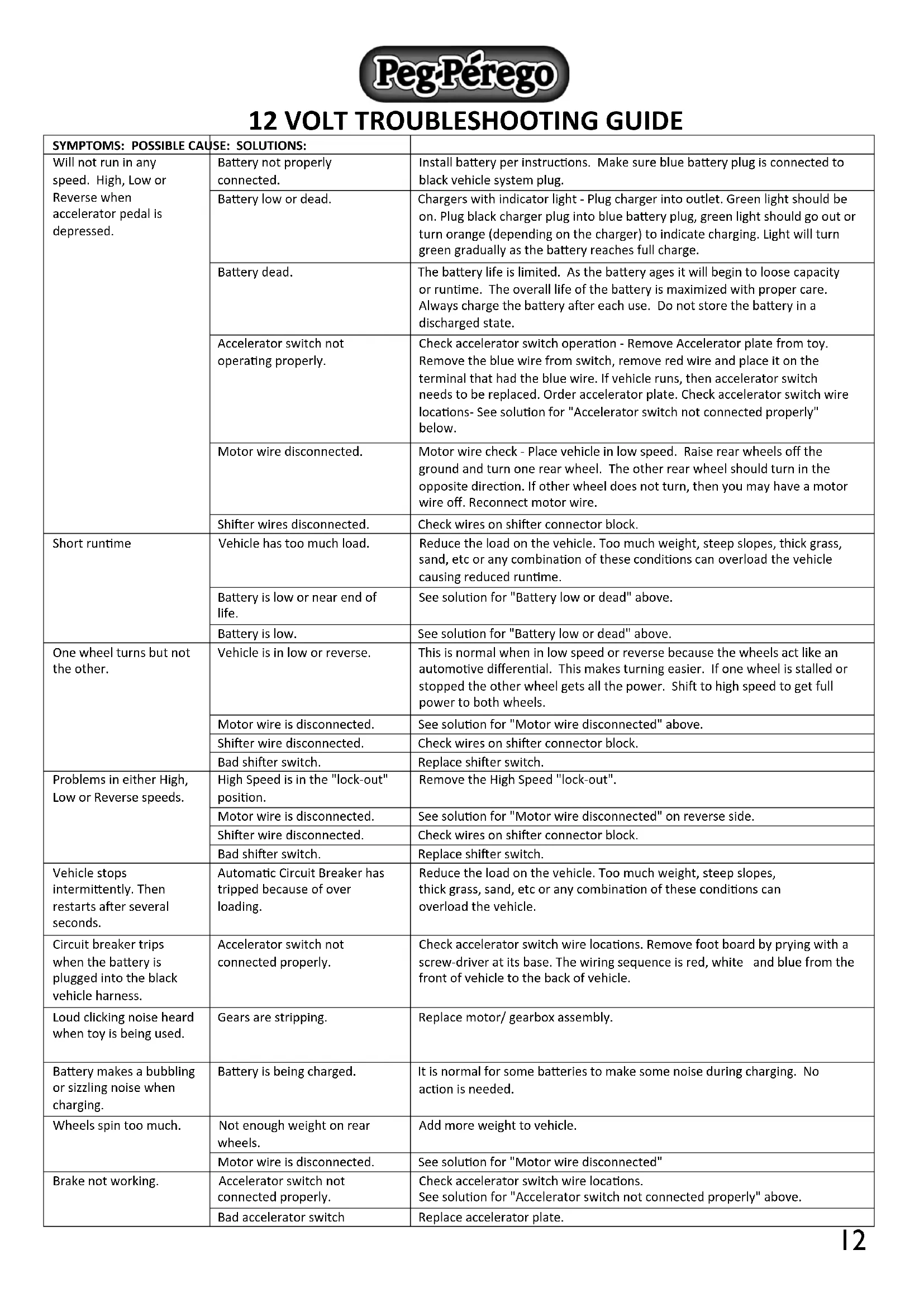

12 VOLT TROUBLESHOOTING GUIDE

12ENGLISH PEG PEREGO

thanks you for choosing this product. For more than 60 years, PEG PEREGO have been taking children for an outing: first with its famous baby carriages and strollers, later with its pedal and battery operated toy vehicles. Discover our complete range of products, news and other information about the Peg Perego world on our web site www.pegperego.com IMPORTANT INFORMATION

• Read this instruction manual carefully to learn the use of the vehicle and to teach your child safe and enjoyable driving. Please keep this manual (with your original sales receipt) for use as a reference in the future.

• DO NOT RETURN YOUR VEHICLE TO THE STORE. This product cannot be returned for a refund after it has been used. If you have ANY questions, need replacement parts or need assistance, call us toll-free; U.S.A. , call 1-800-728-2108 / CANADA, call 1-800-661-5050

• This product meets and/or exceeds all ASTM (American Society for Testing and Materials) T OY SAFETY STANDARDS, including F 963, Consumer Toy Safety Specifications as well as C.R.C, c.931, the Canadian Hazardous Products (Toys) Regulations.

• If you give away the product to third parties, make sure that it is accompanied by the instruction manual.

• Tools needed for assembly: Phillips screwdriver medium, pliers and a hammer (not included)

• Your new vehicle is partially pre-assembled. It will require adult assembly. Please set aside at 45 minutes for assembly.

• Before the vehicle is used for the first time, charge the battery for 18 hours to initiate it. Failure to do this can result in permanent battery damage.

• Use only with the included Peg Perego 12 Volt lead-acid, rechargeable battery and a Peg Perego 12 Volt Charger (both included).

• Weight capacity 85 lbs

• Do not exceed the maximum total weight capacity of 85 lbs (38,6 kg). Contents:

• 1 CASE IH Magnum Tractor riding vehicle -- partially assembled

• 1 Rechargeable 12V 8Ah sealed lead-acid battery

• two 165 W motors -- pre installed

• parts to be assembled

• Speed in reverse gear 2

• To prevent damaging the motor and gears, teach your child to stop the vehicle before switching directions.

• Use this vehicle ONLY outdoors. Most interior flooring can be damaged by riding this vehicle indoors. Peg Perego will not be responsible for damage to the floor if the vehicle is used indoors.

• Peg Perego reserves the right to modify or change its products. Price, literature, manufacturing processes or locations or any combination of the above mentioned entities may change at any time for any reason without notice with impunity. CAUTION: ELECTRIC VEHICLE NOT RECOMMENDED FOR CHILDREN UNDER 3 YEARS OF AGE. AS WITH ALL ELECTRIC PRODUCTS, PRECAUTIONS SHOULD BE OBSERVED DURING HANDLING AND USE TO PREVENT ELECTRIC SHOCK. RECHARGER INCLUDED. 120Vac 60Hz 16W INPUT - 12Vdc 12W OUTPUT 13CAUTION: Only adults should recharge batteries never children. Never allow children to handle batteries. Only use the batteries specified by the manufacturer. Only use the charger specified by the manufacturer. Do not mix old and new batteries. Do not mix alkaline, standard (carbon-zinc), or rechargeable (nickel-cadmium) batteries.

CHARGING THE BATTERY

• Charge the batteries no longer than 24 hours, following the instructions enclosed with the battery charger.

• Charge the battery, as the vehicle shows low power, in this way you will avoid damage to the battery.

• If you don’t use your vehicle for a long period of time unplug the battery from the main wire harness of the vehicle. Remember to charge the battery at least every three months.

• Never charge the battery upside down.

• Do not forget batteries during charging! Check them periodically.

• Never use a replacement recharger or batteries unless they are approved by PEG PEREGO.

• Batteries are sealed and maintenance free.

• Battery polarity must be observed when connecting battery to wiring.

• Batteries contain an acid-based electrolyte.

• Do not make direct contact between battery terminals, as this can cause an explosion or fire.

• Charging produces explosive gases. Charge batteries in a well ventilated area away from sources of heat and flammable materials.

• Exhausted batteries are to be removed from the vehicle.

• Do not place the batteries near clothing to avoid damage.

Shield your eyes. Avoid direct contact with the electrolyte, protect your hands. Place battery in a plastic bag and follow directions listed below. IF ELECTROLYTE COMES IN CONTACT WITH SKIN OR CLOTHING Flush with cool water for at least 15 minutes. See a physician at once.

IF ELECTROLYTE IS INJESTED

Give tap water, milk of magnesia or egg whites at once. Do not induce vomiting. See a physician at once. DISPOSAL OF BATTERIES; CONTAINS SEALED LEAD ACID BATTERY. BATTERY MUST BE RECYCLED. Help protect the environment! Do not throw used batteries in your regular, household trash. Dispose old batteries at an approved battery dumping station; contact your local Environmental Protection Agency office or call Peg Perego Customer Service for additional information.

BATTERY MAINTENANCE AND SAFETY

14DON'T STOP THE FUN: purchase a spare battery to have a freshly charged back-up available. For your child’s safety: please read and follow all instructions below before operating.

• ATTENTION: Check the fastening retainers to be sure they are tight.

• 1st SPEED slow speed (beginner drivers): With both hands on the steering wheel press down on the accelerator pedal; the vehicle goes forward at 2

• 2nd SPEED: fast speed (experienced drivers): With both hands on steering wheel press down on the accelerator pedal; the vehicle goes forward at 4

• REVERSE: Place the left hand on steering wheel. With the right hand holding the gearshift in reverse, press your foot down on the accelerator; the vehicle reverses at 2

/4 mph. (Reverse is spring-loaded for safety).

• BRAKE: The electric braking system stops the vehicle automatically when your child lifts his foot off the pedal. Teach your child the proper use of this vehicle for a safe and fun play time.

• Before starting be sure that the way is free from people and objects.

• Drive with both hands on the steering wheel and keep your eyes on the road at all times.

• Stop in time to avoid accidents and immediately release pedal when stuck.

• Use the 2nd speed only after your child has the maturity and the reflexes to operate the vehicle safely. CAUTION:

• If the vehicle is overloaded, as can happen on soft sand, mud, or very uneven ground, the overload switch will immediately disconnect the power. The power supply will be restored after a few seconds.

RULES FOR SAFETY DRIVING

This product meets and/or exceeds all ASTM (American Society for Testing and Materials) TOY SAFETY STANDARDS, including F 963, Consumer Toy Safety Specification. This vehicle is not intended for use on streets, around traffic or parked cars.

MAINTENANCE AND CARE

• Do not try to repair the vehicle by yourself.

• Regularly check the conditions of the vehicle, particularly the electrical system, the plug connections, the covering caps and the charger. In case of fault, do not try to use the vehicle and the charger. For repair use only original PEG PEREGO’s spare parts.

• PEG PEREGO assumes no liability if the electrical system is tampered with.

• Take care with the battery charger cable. For example, do not pull it to remove the plug, do not pull the vehicle along on its wheels using the cable, do not cover the cable because it may overheat, do not leave it on hot surfaces and be careful about where and how you roll it up.

• Do not leave vehicle or batteries near sources of heat such as radiators, stoves, fireplaces, etc.

• Protect vehicle from water, rain, snow, etc.

• When operating in overload conditions, such as soft deep sand, mud or rough uneven terrain, the overload circuit breaker will automatically disconnect the power. After 30 or more seconds, the circuit breaker will automatically reset, however you must eliminate overload conditions to resume normal driving.

• Periodically lubricate (with a light weight oil) moving parts, such as wheel bearings, steering linkages, where they rotate or touch one another.

• The vehicle’s surfaces can be cleaned with a damp cloth. Do not use abrasive cleaners. The cleaning must be carried out by adults only.

• Never disassemble the vehicle mechanisms or motor unless authorized by PEG PEREGO. SAFETY

• To reduce the risk of injury, adult supervision is required. Never use in roadways, near motor vehicles, on or near steep inclines or steps, swimming pools or other bodies of water; always wear shoes, and never allow more than one rider.

• Surfaces that are appropriate for use: grass, dirt or hard surfaces with slopes not to exceed 10%.

• A child must be 3 years of age or older for the necessary coordination and maturation to operate this motorized vehicle safely.

• Never use the vehicle on steep slopes or near steps or stairs. This vehicle is not suitable for use on public highways.

VEHICLE MAINTENANCE AND SAFETY

15For your convience, PEG PEREGO offers after-sales service, directly or through a network of authorized service centers for repairs or replacement parts. If you have any questions about your Peg Perego vehicle, please call our toll-free service lines at; U.S.A , call 1-800-728-2108 CANADA, call 1-800-661-5050 Trained customer service representatives are available to take your call in English or Spanish. CUSTOMER SERVICE IF THE VEHICLE DOES NOT OPERATE?

• When operating in overload conditions, such as running the vehicle against a fixed object, through soft deep sand or mud, or over rough or uneven terrain, the overload circuit breaker will automatically disconnect the power. After 10 or more seconds, the circuit breaker will automatically reset, however-you must eliminate overload conditions to resume normal driving.

• Check that all plugs are properly connected.

• Check electrical switches. Replace if necessary.

• Check that the battery is connected to the electrical system. IF THERE IS NO POWER?

• Fully recharge the battery. If the problem persist, check with an Authorised PEG PEREGO Service Center. PROBLEMS?

• Children should always wear shoes when riding in or driving a riding vehicle.

• Do not allow children to place their hands, feet or any part of their body, clothing or other articles near the moving parts while vehicle is in operation.

• Do not allow the electrical components, motors, wiring, switches of your motorized vehicle to become wet and never wash it with a hose.

• The vehicle is designed just for one child: never allow more than one rider.
