USER MANUAL John Deere Power Pull PEG PEREGO

John Deere POWER PULL with trailer

model number IGEDI168

FIUS190IG213

USE AND CARE

UTILISATION ET ENTRETIEN

EMPLEO Y MANUTENSION

See separate insert sheet for more information

Do NOT ride vehicle before charging battery for 18 hours. Failure to do this will permanently damage the battery and void your warranty.

ALSO;

Charge the battery immediately after each use, regardless of how long the vehicle was used.

Storing the battery in a discharged state will permanently damage the battery.

When storing, the battery must be recharged every 30 days.

NEED HELP: Call I-800-728-2108

ONLY USE THE PEG PEREGO BATTERY & CHARGER WITH THIS TOY.

As Peg Perego USA, INC. grows, counterfeits and unauthorized distributors and retailers are making non-Peg Perego products and low quality knockoffs that are mistaken for an authentic one. Please avoid use of outside brand - third party accessories and/or products with the Peg Perego brand, which have resulted in damage to the product.

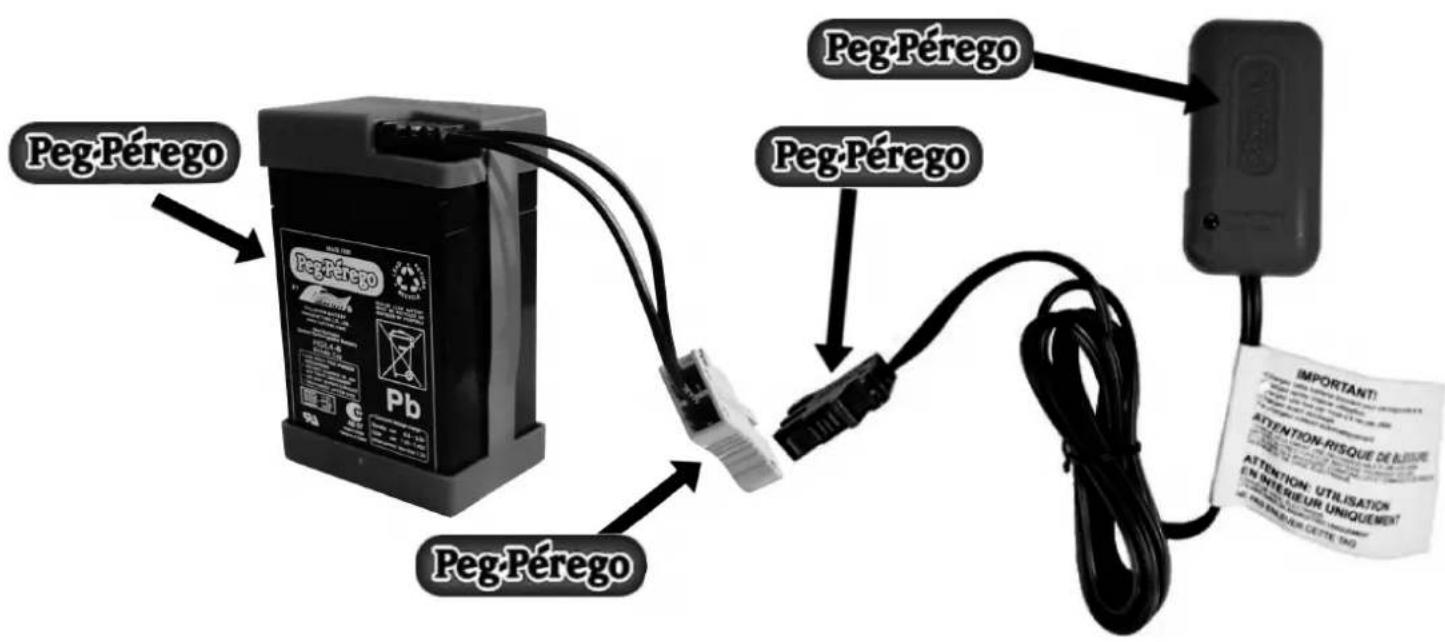

Ways to determine a true Peg Perego battery and/or charger:

1) The Peg Perego logo along the front of the battery itself.
2) The Peg Perego logo along the front of the charger.
3) The Peg Perego logo along the battery and charger connectors.

Peg Pereg 6 volt battery

A) Plug the battery charger into a power outlet in compliance with the specifications on the label. This power unit is intended to be correctly oriented in a vertical or floor mount position.
B) Connect the charger the battery for 18 hours.
C) If your battery charger is provided with a LED indicator, it means that:
i) When plugging in the charger, as described in A, and no battery is connected, the green LED light will appear, indicating that the device is working correctly.
ii) Connect the battery as described in B. If all connections have been made properly and the battery is sufficiently discharged, the start of charging will be confirmed by the orange LED lighting up.
iii) When the battery is almost fully charged, the LED will turn from orange to green.
iv) The green LED does not necessarily mean that the battery is charged.
v) If the battery is already charged, the green LED is already on or turns green soon after B is carried out. If the battery life is reduced the next time you use the battery, please contact Customer Service for assistance in checking the battery and battery charger operation.
D)Once the charge is completed and the LED is on, unplug the battery charger from the main outlet first, then the battery terminal. Connect the battery to the electrical system of your toy, which is now ready to use.

The battery charger is fitted with a safety device. In the event of short circuit or overheating, a protection system prevents current peaks, which could damage your battery charger.

In this case, unplug the battery charger from the power outlet, find and remove the cause of short circuit, and re-connect everything to the power outlet.

WARNING:

I -Insert only lead batteries.
2 Do not use with non-rechargeable batteries. Risk of explosion.
3 •For adult use only. It is not a toy.
4 Do not use with damaged sheathing, cable or connector.
5. During recharging operations, make sure the battery charger is in a well-ventilated area.
6. Should the battery charger be damaged in any way, do not use it until it is fully repaired.

Connect battery charger to a 120vac wall receptacle. Connect battery charger to battery.

BATTERY INSTALLATION

FRANÇAIS ESPAIN

PREMIERE CHARGE DE BATTERIE

• Loosen the two safety screws from the sides of the cab, and remove the two plastic disks (save the disks for putting the cab back on).
  Widen the cab, as shown in the figure, to unlock it.
• Lift the cab off.
• Connect the battery plug B to the electrical system (plug A).
• Reposition the cab by inserting the front hook into the opening on the bottom of the tractor (see detail).
  Slightly widen the cab, and lower it to its original position. Reposition the two plastic discs and tighten the 2 safety screws using a screwdriver.

BATTERY RECHARGE

• Open the hood, as described above. Disconnect the battery from the electrical system by pressing on the side of the plug.
• Insert the battery charger plug into an electrical outlet, following the instructions that come with the charger. Connect point B to point C on the battery charger.
• When the battery has been completely recharged, disconnect the battery charger from the electrical outlet, and disconnect point C from point B.
• Insert point B into point A, pressing until it clicks into place. Replace the battery brace. Always remember to close and fasten the cover on the battery compartment when you have finished working on the battery.

ATTENTION:

L'OPÉRATION DE CHARGE DES BATTERIES ET TOUTES AUTRES INTERVENTIONS SUR L'ÉQUIPEMENT ÉLECTRIQUE DOIVENT ÉTRE EFFECTUEES EXCLUSIVEMENT PAR DES ADULTES. IL EST POSSIBLE DE CHARGER LA BATTERIE SANS LA DEMONTER DU JOUET.

• Unscrew the two safety screws from the cab. Remove the cab. Disconnect the battery from the electrical system and loosen the 2 screws on the battery brace, as shown in the figure.
• Extract the battery.
• Reposition the new battery with the battery clamp in its housing. Fasten the clamp with the two screws. Connect the battery plugs to the electrical system. Reposition the cab. Attention: always screw the two safety screws back onto the sides of the cab.

ASSEMBLY INSTRUCTIONS

CAUTION:

ADULT ASSEMBLY REQUIRED. USE CARE WHEN UNPACKING AS COMPONENTS TO BE ASSEMBLED MAY POSE A SMALL PARTS/SHARP EDGE HAZARD.

IF THE PRODUCT IS DAMAGED WHEN YOU OPEN THE PACKAGING, CONTACT THE SERVICE CENTER AND DO NOT USE THE PRODUCT.

BATTERY IS INCLUDED AND MUST BE CONNECTED.

1-2 -Turn tractor upside down, remove the trailer chassis from underside of the tractor chassis by removing the screw.
3 Insert one of the 4 self-locking washers (2 spares) into the special tool provided. IMPORTANT: the tongues on the self-locking washer must be facing the inside of the tool (see detail A).
4 Remove the axle from its packaging and remove the protective caps. Insert the axle into the special tool and use a hammer to drive it in completely. Then remove the special tool.
5 •Slide the components onto the axle in the following order: spacer washer, rim, wheel, other wheel, rim, spacer washer.
IMPORTANT: check that the wheels are inserted correctly with the hub caps facing outwards.
6. Position a self-locking washer in the special tool, then insert the assembled axle and hammer it in completely.
7. Use pressure to fit the wheel group onto the base of the trailer.
8. Insert the red pin in the end of the trailer.
9 Remove the 3 protection caps from the bottom of the trailer box.
10. Position the gate of the trailer box by inserting the longest peg first.

FRANÇAIS ESPAIN

REPLACEMENT DE LA BATTERIE

ATTENTION: LES DESSINS DES BATTERIES SONT DONNÉS À TITRE PUREMENT INDICATIF. LA BATTERIE EN VOTRE POSSESSION POURRAIT DIFFÉRER DU MODELE REprésentÉ. LES SEQUENCES DE REMPLACEMENT ET DE CHARGE REprésentÉS RESTENT NÉANMOINS VALABLES.

11 Complete insertion of the gate by pressing on the short peg.
12 •Flip the gate up to close the trailer box.
13 Engage the trailer base (prepared earlier) with the trailer box, pressing as shown in the figure.
14 Fit the 2 hub covers on the trailer wheels.
15. Press the 4 hubcaps into place.
16 Attach the plastic drop to the hood, as shown in the figure.
17 Apply the stickers to the special areas on the front headlights.
18. Position the headlight glass by attaching the outer side.
19 Press as shown in the figure to snap the glass into place.
20 Repeat this step for the other front headlight.
21 Fit the upper part of the counterweight.
22-Fit the lower part of the counterweight.
23 Press the side inserts into place on the body.
24 Press the ring nut into place under the steering wheel and the cap.
25. Push the steering column through the bottom of the tractor to the upper part of the body.

IS ESPANOL

1. Hold the column in place and slip the steering wheel onto it.
2. Fasten the steering wheel with its screw and nut, being careful to insert the screw into the circular hole and to screw the nut onto the hexagonal part.
   28 Apply the stickers to the special areas on the rear headlights as shown in the figure.
   29 Attach the headlights by pressing from the bottom upwards.
3. Position the seat in one of the two possible positions on the seat support that will best suit the child's height. Seat position A - low and forward; Seat position B - high and to the rear.
   31 Secure the seat in the desired position using the two screws provided.
   32 •Slide the two front studs of the seat support into the relating holes on the frame.
4. Position the seat support on the body of the tractor and tighten the 2 screws under the body.
   34 •Fasten the rear mudguards using the 2 screws provided.
   35 Install the two caps into the "C" points on the right and left back wheel arches.

VEHICLE FEATURES AND INSTRUCTIONS FOR USE

36·GEAR SHIFT LEVER: the vehicle has one forward and one reverse gear.
I = first gear
R = reverse
37. ACCELERATOR PEDAL/ELECTRIC BRAKE. When the foot is lifted from the accelerator pedal, the electric brake automatically stops the tractor.
38 The trailer is hitched to the tractor as follows: insert the trailer hook into the hole on the back of the tractor and rotate it (see fig. 39).
39. Position 1: the trailer can be released. Position 2: the trailer is locked on. IMPORTANT: the trailer may only carry items up to a maximum weight of 22 lbs (10 kg)

IS

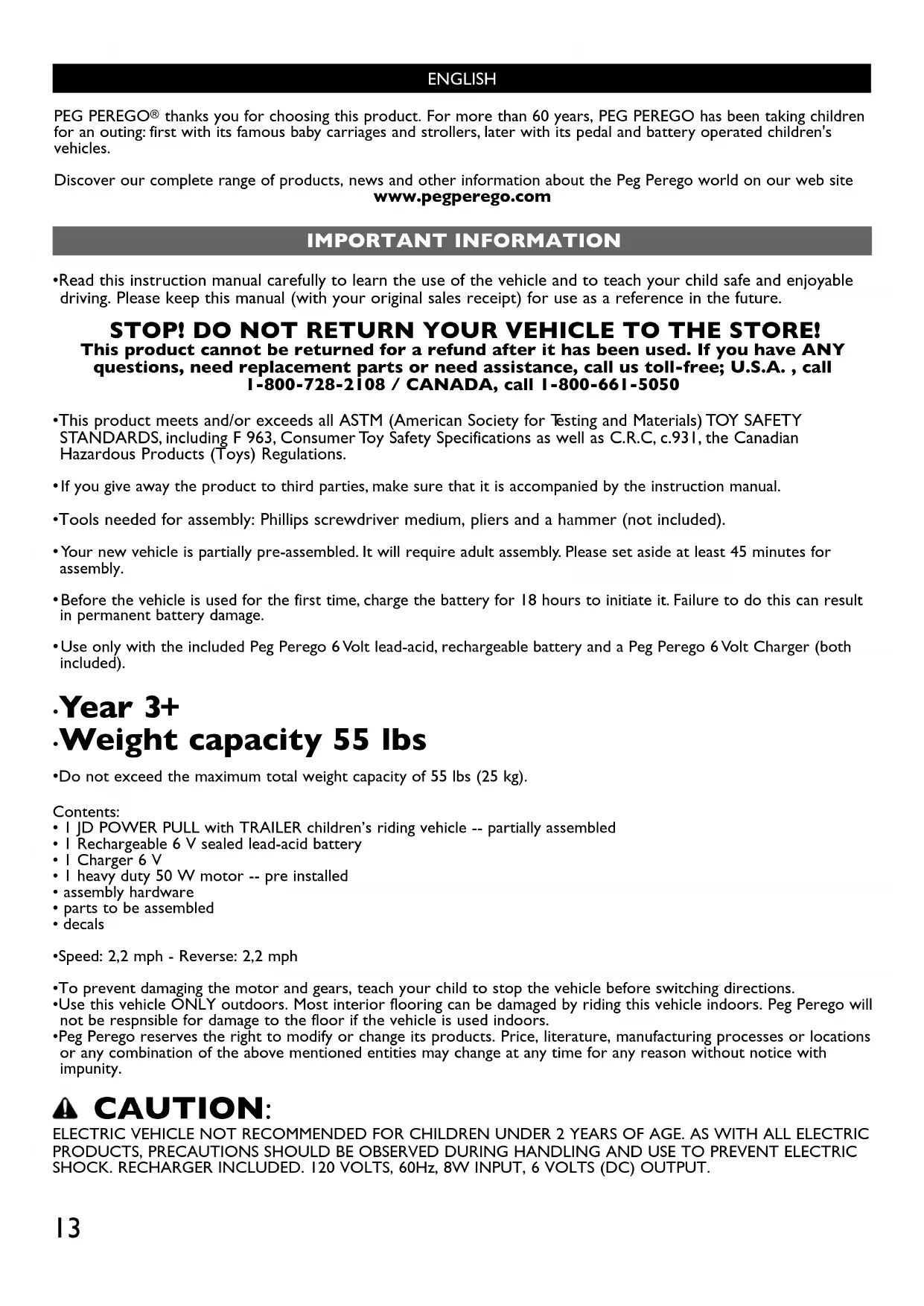

PEG PEREGO® thanks you for choosing this product. For more than 60 years, PEG PEREGO has been taking children for an outing: first with its famous baby carriages and strollers, later with its pedal and battery operated children's vehicles.

Discover our complete range of products, news and other information about the Peg Perego world on our web site www.pegperego.com

IMPORTANT INFORMATION

• Read this instruction manual carefully to learn the use of the vehicle and to teach your child safe and enjoyable driving. Please keep this manual (with your original sales receipt) for use as a reference in the future.

STOP! DO NOT RETURN YOUR VEHICLE TO THE STORE!

This product cannot be returned for a refund after it has been used. If you have ANY questions, need replacement parts or need assistance, call us toll-free; U.S.A., call I-800-728-2108 / CANADA, call I-800-661-5050

• This product meets and/or exceeds all ASTM (American Society for Testing and Materials) TOY SAFETY STANDARDS, including F 963, Consumer Toy Safety Specifications as well as C.R.C, c.931, the Canadian Hazardous Products (Toys) Regulations.
  If you give away the product to third parties, make sure that it is accompanied by the instruction manual.
• Tools needed for assembly: Phillips screwdriver medium, pliers and a hammer (not included).
• Your new vehicle is partially pre-assembled. It will require adult assembly. Please set aside at least 45 minutes for assembly.
• Before the vehicle is used for the first time, charge the battery for 18 hours to initiate it. Failure to do this can result in permanent battery damage.
• Use only with the included Peg Perego 6 Volt lead-acid, rechargeable battery and a Peg Perego 6 Volt Charger (both included).

Year 3+

Weight capacity 55 lbs

• Do not exceed the maximum total weight capacity of 55 lbs (25 kg).

Contents:

• I JD POWER PULL with TRAILER children's riding vehicle -- partially assembled
• I Rechargeable 6 V sealed lead-acid battery
• | Charger 6 V
• I heavy duty 50 W motor -- pre installed
• assembly hardware
  parts to be assembled
  decals

Speed: 2,2 mph - Reverse: 2,2 mph

• To prevent damaging the motor and gears, teach your child to stop the vehicle before switching directions.
• Use this vehicle ONLY outdoors. Most interior flooring can be damaged by riding this vehicle indoors. Peg Perego will not be responsible for damage to the floor if the vehicle is used indoors.
• Peg Perego reserves the right to modify or change its products. Price, literature, manufacturing processes or locations or any combination of the above mentioned entities may change at any time for any reason without notice with impunity.

CAUTION:

ELECTRIC VEHICLE NOT RECOMMENDED FOR CHILDREN UNDER 2 YEARS OF AGE. AS WITH ALL ELECTRIC PRODUCTS, PRECAUTIONS SHOULD BE OBSERVED DURING HANDLING AND USE TO PREVENT ELECTRIC SHOCK. RECHARGER INCLUDED. 120 VOLTS, 60Hz, 8W INPUT, 6 VOLTS (DC) OUTPUT.

CAUTION:

Only adults should recharge batteries never children.

Never allow children to handle batteries.

Only use the batteries specified by the manufacturer. Only use the charger specified by the manufacturer.

Do not mix old and new batteries.

Do not mix alkaline, standard (carbon-zinc), or rechargeable (nickel-cadmium) batteries.

CHARGING THE BATTERY

• Charge the battery no longer than 24 hours, following the instructions enclosed with the battery charger.
• Charge the battery, as the vehicle shows low power, in this way you will avoid damage to the battery.
• If you don't use your vehicle for a long period of time unplug the battery from the main wire harness of the vehicle. Remember to charge the battery at least every three months.
• Never charge the battery upside down.
• Do not forget batteries during charging! Check them periodically.
• Never use a replacement recharger or batteries unless they are approved by PEG PEREGO.
  Batteries are sealed and maintenance free.
• Battery polarity must be observed when connecting battery to wiring.

WARNING:

BATTERIES CONTAIN TOXIC AND CORROSIVE SUBSTANCES. DO NOT TAMPER WITH THEM.
- Batteries contain an acid-based electrolyte.
- Do not make direct contact between battery terminals, as this can cause an explosion or fire.
- Charging produces explosive gases. Charge batteries in a well ventilated area away from sources of heat and flammable materials.
- Exhausted batteries are to be removed from the vehicle.
- Do not place the batteries near clothing to avoid damage.

IF A LEAK DEVELOPS

Shield your eyes. Avoid direct contact with the electrolyte, protect your hands.

Place battery in a plastic bag and follow directions listed below.

IF ELECTROLYTE COMES IN CONTACT WITH SKIN OR CLOTHING

Flush with cool water for at least 15 minutes.

See a physician at once.

IF ELECTROLYTE IS INJECTED

Give tap water, milk of magnesia or egg whites at once.

Do not induce vomiting.

See a physician at once.

DISPOSAL OF BATTERIES; CONTAINS SEATED LEAD ACID BATTERY. BATTERY MUST BE RECYCLED.

Help protect the environment!

Do not throw used batteries in your regular, household trash.

Disse os bater at an aed byry dmping stion; cct your local enminal Protection Agency office or call Peg Perego Customer Service for additional information.

DON'T STOP THE FUN: Purchase a spare battery to have a freshly charged back-up available or purchase a Quick Charge recharger to recharge your battery in 2 hours.

For your child's safety: please read and follow all instructions below before operating.

• With both hands on the steering wheel, press down on the accelerator pedal; the vehicle goes forward at 2,2 mph.
  -REVERSE:

Place the left hand on the steering wheel. With the right hand holding the gearshift in reverse, press down on the accelerator pedal; the vehicle reverses at 2,2 mph. (Reverse is spring-loaded for safety).

• BRAKE: The electric braking system stops the vehicle automatically when your child lifts his foot off the pedal.

ATTENTION!

• Check that all studs/nuts of the wheels are secure.
• When operating in overload conditions, the overload circuit breaker will automatically disconnect the power. After 10 or more seconds, the circuit breaker will automatically reset, however you must eliminate overload conditions to resume normal driving.
  If the circuit breaker opens, the toy becomes free-wheeling. You must remove foot from gas pedal to apply the breaks.

Teach your child the proper use of this vehicle for a safe and fun play time.

• Before starting be sure that the way is free from people and objects.
• Drive with both hands on the steering wheel and keep your eyes on the road at all times.
• Stop in time to avoid accidents and immediately release pedal when stuck.

CAUTION:

• If the toy is overloaded, the overload switch will immediately disconnect the power. The power supply will be restored after a few seconds.

VEHICLE MAINTENANCE AND SAFETY

• This product meets and/or exceeds all ASTM (American Society for Testing and Materials) TOY SAFETY STANDARDS, including F 963, Consumer Toy Safety Specifications as well as C.R.C, c.931, the Canadian Hazardous Products (Toys) Regulations.
  This vehicle is not intended for use on streets, around traffic or parked cars.

MAINTENANCE AND CARE

• Do not try to repair the vehicle by yourself.

• Regularly check the conditions of the vehicle, particularly the electrical system, the plug connections, the covering caps and the charger. In case of fault, do not try to use the vehicle and the charger. For repair use only original PEG PEREGO's spare parts.
  -PEG PEREGO assumes no liability if the electrical system is tampered with.

• Take care with the battery charger cable. For example, do not pull it to remove the plug, do not pull the vehicle along on its wheels using the cable, do not cover the cable because it may overheat, do not leave it on hot surfaces and be careful about where and how you roll it up.
  Do not leave vehicle or batteries near sources of heat such as radiators, stoves, fireplaces, etc.

• Protect vehicle from water, rain, snow, etc.
• When operating in overload conditions, the overload circuit breaker will automatically disconnect the power. After 10 or more seconds, the circuit breaker will automatically reset, however you must eliminate overload conditions to resume normal driving.
• Periodically lubricate (with a light weight oil) moving parts, such as wheel bearings, steering linkages, where they rotate or touch one another.
• The vehicle's surfaces can be cleaned with a dampcloth. Do not use abrasive cleaners. The cleaning must be carried out by adults only.
• Never disassemble the vehicle mechanisms or motor unless authorized by PEG PEREGO.

SAFETY

WARNING:

• To reduce the risk of injury, adult supervision is required. Never use in roadways, near motor vehicles, on or near steep inclines or steps, swimming pools or other bodies of water; always wear shoes, and never allow more than one rider.
• Surface that are appropriate for use: asphalt, cement, tiles and smooth surfaces.
  -Not suitable for children under the age of 2 years.
• Never use the vehicle on steep slopes or near steps or stairs. This vehicle is not suitable for use on public highways.

Children should always wear shoes when riding in or driving a ride-in/ride-on vehicle.
- Do not allow children to place their hands, feet or any part of their body, clothing or other articles near the moving parts while vehicle is in operation.
- Do not allow the electrical components, motors, wiring, switches of your motorized vehicle to become wet and never wash it with a hose.
- NEVER STORE GASOLINE OR ANY FLammable Substance WHERE A CHILD CAN ACCESS IT. CHILDREN MAY WANT TO SIMULATE ADULTS BY POURING GASOLINE ON VEHICLE. NEVER ALLOW GASOLINE OR ANY FLammable Substance TO BE NEAR A BATTERY POWERED CHILDREN'S VEHICLE WHEN IT IS BEING RIDDEN.

PROBLEMS?

IF THE VEHICLE DOES NOT OPERATE?

• When operating in overload conditions, the circuit breaker will automatically disconnect the power. After 10 or more seconds, the circuit breaker will automatically reset, however-you must eliminate overload conditions to resume normal operating.

• Check that all plugs are properly connected.

• Check electrical switches. Replace if necessary.
• Check that the battery is connected to the electrical system.

IF THERE IS NO POWER?

• Fully recharge the battery. If the problem persist, check with an Authorized PEG PEREGO Service Center.

CUSTOMER SERVICE

For your convenience, PEG PEREGO offers after-sales service, directly or through a network of authorized service centers for repairs or replacement parts.

If you have any questions about your Peg Perego vehicle, please call our toll-free service lines at;

U.S.A, call I-800-728-2108

CANADA, call I-800-661-5050

Trained customer service representatives are available to take your call in English or Spanish.

FRANÇAIS

Extended Warranty (for a 2nd Year) with Online Product Registration at www.pegperegousa.com/product-registration

*We respect your privacy. The personal information collected here is used only by Peg Perego and will not be sold to or used by any other company or organization.

Statement of Limited Warranty

One-year limited warranty for Peg Perego vehicles from date of purchase, and/or six-month limited warranty for battery charger and wheels from date of purchase.

This limited warranty covers your Peg Perego ride-on vehicle and/or the rechargeable battery (if applicable) to the original, noncommercial purchaser who purchased it from Peg Perego or an authorized Peg Perego dealer; against defects in materials and/or workmanship, however it does not cover the cost of shipping or handling. If the problem is not covered by this warranty, the consumer must pay for all related expenses associated with parts and services rendered.

This warranty covers normal use and does not cover the vehicle or the battery if it has been damaged by unreasonable use, neglect, accident, abuse, misuse, improper service, modification and/or other causes not arising from defects in materials or workmanship. In no event shall Peg Perego be liable for any other incidental or consequential damages. Except for this

limited warranty, Peg Perego makes no other representation or warranty, express or implied, with respect to the products. Peg Perego specifically disclaims all other express and implied warranties, including any implied warranties of merchantability and fitness for a particular purpose.

For Fast & Friendly Service, call I-800-728-2108, or visit www.pegperegco.com.

RegPerego

Do not return your vehicle to the store!

We're a toll-free phone call away and we can help.

If you are missing parts or need assistance, please see the contact information below.

ARRÉTEZ!
