USER MANUAL ExpandIt RXAHT01 RYOBI

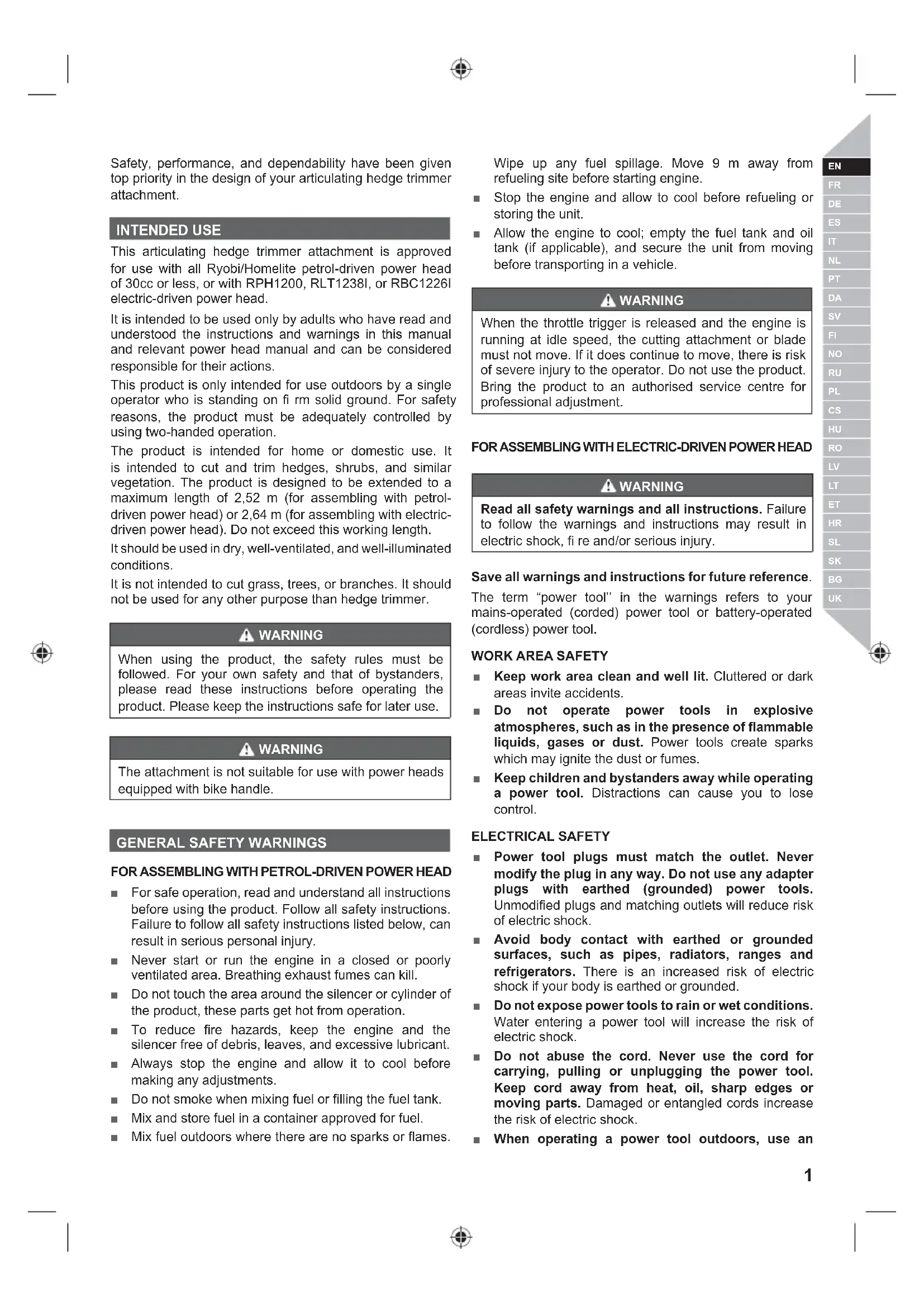

Safety, performance, and dependability have been given top priority in the design of your articulating hedge trimmer attachment. INTENDED USE This articulating hedge trimmer attachment is approved for use with all Ryobi/Homelite petrol-driven power head of 30cc or less, or with RPH1200, RLT1238I, or RBC1226I electric-driven power head. It is intended to be used only by adults who have read and understood the instructions and warnings in this manual and relevant power head manual and can be considered responsible for their actions. This product is only intended for use outdoors by a single operator who is standing on fi rm solid ground. For safety reasons, the product must be adequately controlled by using two-handed operation. The product is intended for home or domestic use. It is intended to cut and trim hedges, shrubs, and similar vegetation. The product is designed to be extended to a maximum length of 2,52 m (for assembling with petrol- driven power head) or 2,64 m (for assembling with electric- driven power head). Do not exceed this working length. It should be used in dry, well-ventilated, and well-illuminated conditions. It is not intended to cut grass, trees, or branches. It should not be used for any other purpose than hedge trimmer. WARNING When using the product, the safety rules must be followed. For your own safety and that of bystanders, please read these instructions before operating the product. Please keep the instructions safe for later use. WARNING The attachment is not suitable for use with power heads equipped with bike handle.

■ For safe operation, read and understand all instructions before using the product. Follow all safety instructions. Failure to follow all safety instructions listed below, can result in serious personal injury. ■ Never start or run the engine in a closed or poorly ventilated area. Breathing exhaust fumes can kill. ■ Do not touch the area around the silencer or cylinder of the product, these parts get hot from operation. ■ To reduce fire hazards, keep the engine and the silencer free of debris, leaves, and excessive lubricant. ■ Always stop the engine and allow it to cool before making any adjustments. ■ Do not smoke when mixing fuel or filling the fuel tank. ■ Mix and store fuel in a container approved for fuel. ■ Mix fuel outdoors where there are no sparks or flames. Wipe up any fuel spillage. Move 9 m away from refueling site before starting engine. ■ Stop the engine and allow to cool before refueling or storing the unit. ■ Allow the engine to cool; empty the fuel tank and oil tank (if applicable), and secure the unit from moving before transporting in a vehicle. WARNING When the throttle trigger is released and the engine is running at idle speed, the cutting attachment or blade must not move. If it does continue to move, there is risk of severe injury to the operator. Do not use the product. Bring the product to an authorised service centre for professional adjustment.

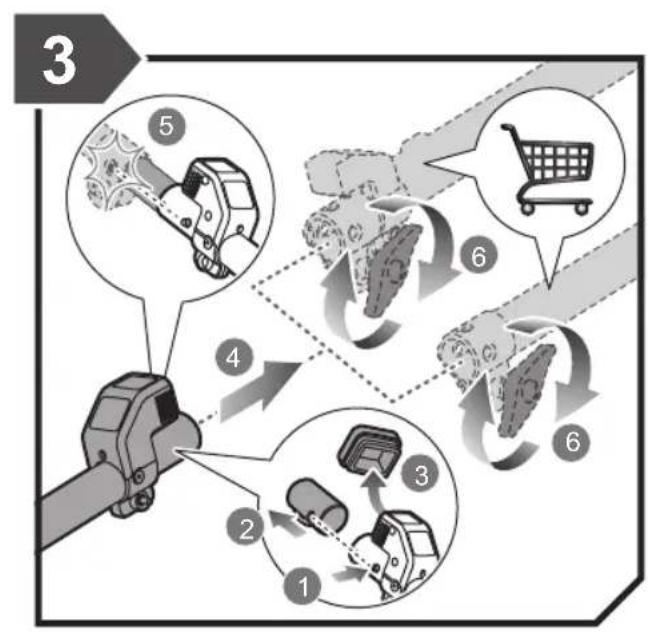

FOR ASSEMBLING WITH ELECTRIC-DRIVEN POWER HEAD

WARNING Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fi re and/or serious injury. Save all warnings and instructions for future reference. The term “power tool’’ in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

■ Keep work area clean and well lit. Cluttered or dark areas invite accidents. ■ Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes. ■ Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control. ELECTRICAL SAFETY ■ Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock. ■ Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded. ■ Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock. ■ Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock. ■ When operating a power tool outdoors, use an2 | English extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock. ■ If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock. PERSONAL SAFETY ■ Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury. ■ Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat or hearing protection used for appropriate conditions will reduce personal injuries. ■ Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents. ■ Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury. ■ Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations. ■ Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts. ■ If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

POWER TOOL CARE AND USE

■ Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed. ■ Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired. ■ Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally. ■ Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users. ■ Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool’s operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools. ■ Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control. ■ Use the power tool, accessories and tool bits etc, in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation. SERVICE ■ Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

HEDGE TRIMMER SAFETY WARNINGS

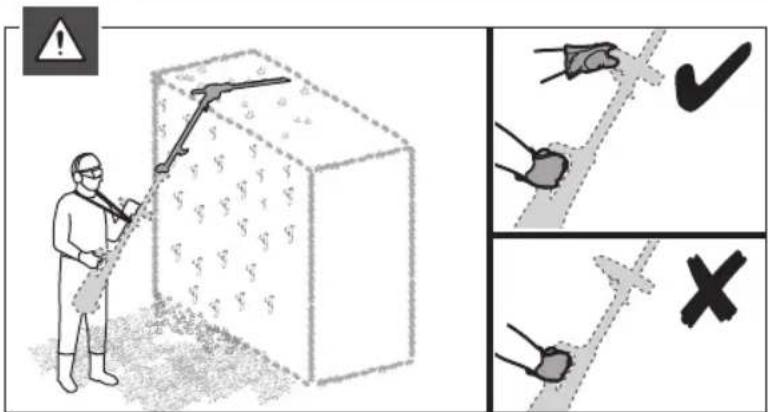

■ Keep all parts of the body away from the cutter blades. A moment of inattention while operating the product may result in serious personal injury. ■ Carry the hedge trimmer by the handle with cutter blade stopped. When transporting or storing the hedge trimmer always fit the cutting device cover. Proper handling of the hedge trimmer will reduce possible personal injury from the cutter blades. ■ Hold the power tool by insulated gripping surface only, because the cutter blade may contact hidden wiring. Cutter Blades contacting a “live” wire may make exposed metal parts of the power tool “live” and could give the operator an electric shock. ■ Keep cable away from cutting area. During operation the cable may be hidden in shrubs and can be accidentally cut by the blade.

ADDITIONAL SAFETY WARNINGS

■ Some regions have regulations that restrict the use of the product to some operations. Check with your local authority for advice. Read all instructions. ■ Clear the work area before each use. Remove all objects such as cords, lights, wire, or string which can be thrown or become entangled in the cutting means. ■ Check the hedge for foreign objects, such as wire fences. ■ Beware of thrown objects; keep all bystanders, children, and pets at least 15 m away from work area. Stop the product if anyone enters the area. ■ Check constantly for persons or animals behind or inside any hedge or bush to be trimmed. ■ Do not operate in poor lighting. The operator requires a clear view of the work area to identify potential hazards. ■ Ensure before each use that all controls and safety devices function correctly. Do not use the product if the “off” switch does not stop the motor/engine.3 English |

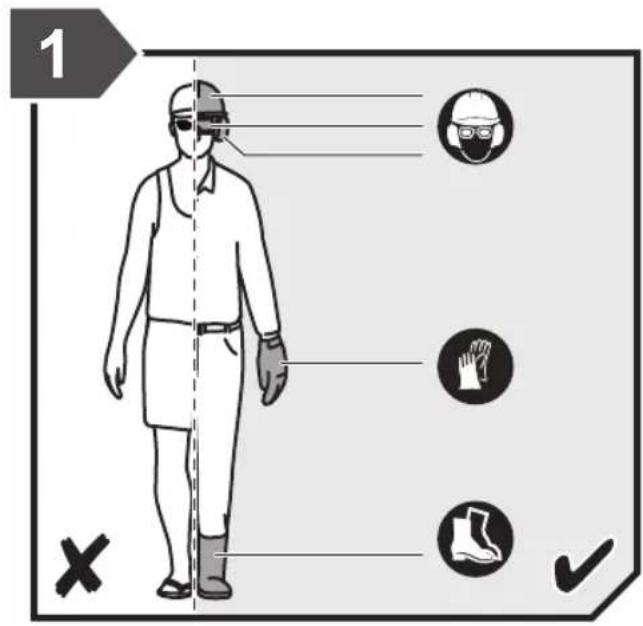

■ Inspect the product before each use. Check for loose fasteners. Make sure all guards and handles are properly and securely attached. Replace any damaged parts before use. ■ Do not modify the product in any way. ■ Do not allow children or untrained individuals to use the product. ■ Wear full eye and hearing protection while operating the product. If working in an area where there is a risk of falling objects, head protection must be worn. ■ Wear heavy long trousers, boots, and gloves. Do not wear loose fitting clothing, short trousers, jewellery of any kind, or use with bare feet. ■ Secure long hair so it is above shoulder level to prevent entanglement in moving parts. ■ Use of hearing protection reduces the ability to hear warnings (shouts or alarms). The operator must pay extra attention to what is going on in the working area. ■ Operating similar tools nearby increases both the risk of hearing injury and the potential for other persons to enter your working area. ■ Do not use this machine when you are tired, ill, or under the influence of alcohol, drugs, or medication. ■ Keep firm footing and balance. Do not overreach. Overreaching can result in loss of balance and can result in serious injury, or exposure to hot surfaces. ■ Keep all parts of your body away from any moving part. ■ Before starting the product, make sure the cutting blades will not come in contact with anything. ■ Never operate the product in an explosive atmosphere. ■ While operating the product, always hold it firmly with both hands by the two handles and ensure that the operating position is safe and secure. The manufacturer does not recommend the use of steps or ladders. ■ Use the harness if it is supplied with your hedge trimmer. It will assist you to support the weight of the product during use and while moving between trimming positions. Carefully adjust the harness to fit comfortably. ■ Identify the quick release mechanism and practice using it before you start using the product. Its correct use may prevent serious injury in the case of an emergency. Never wear additional clothing over the harness or otherwise restrict access to the quick release mechanism. ■ To protect yourself from electrocution, do not operate within 10 m of overhead electrical lines. ■ Never use the product near fencing, posts, buildings, or other immovable objects. ■ Blades are sharp. When handling the blade assembly, wear non-slip, heavy-duty protective gloves. Do not place your hand or fingers between blades or in any position where they could get pinched or cut. ■ Always stop the product, disconnect from the power supply (if applicable), make sure all moving parts have come to stop, and allow the hedge trimmer to cool down before: ● adjusting the working position of the cutting device; ● cleaning or clearing a blockage; ● leaving the product unattended; ● checking, maintaining, or working on the product. ■ Do not force the product through heavy shrubbery. This can cause the blades to bind and slow down. If the blades slow down, reduce the pace. ■ Do not attempt to cut stems or twigs that are larger than 28 mm thick, or those obviously too large to feed into the cutting blade. Use a non-powered hand saw or pruning saw to trim large stems. ■ Do not operate the product with damaged or excessively worn blades. WARNING If the product is dropped, suffers heavy impact, or begins to vibrate abnormally, immediately stop the product and inspect for damage or identify the cause of the vibration. Any damage should be properly repaired or replaced by an authorised service centre. WARNING Check that all the shaft couplings on the extension shaft and tool are securely fastened before each use and at frequent intervals.

ADDITIONAL SAFETY WARNINGS FOR ASSEMBLING

WITH ELECTRIC-DRIVEN POWER HEAD

■ Electrical power should be supplied via a residual current device (RCD) with a tripping current of not more than 30 mA. ■ If you need to use an extension cable, ensure it is suitable for outdoor use and has a current capacity sufficient to supply your product. Check it before every use for damage. Always uncoil it during use because coiled cables can overheat. ■ If the power cable becomes damaged, it must be replaced before using.

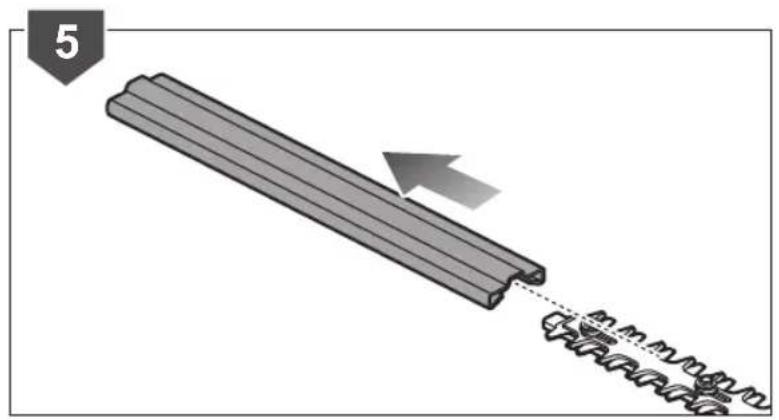

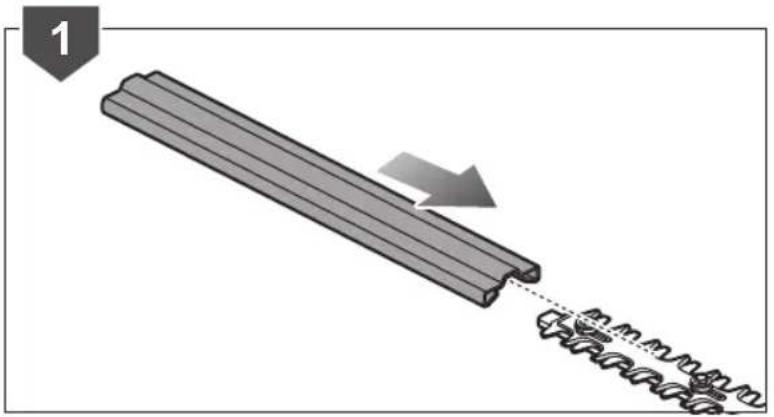

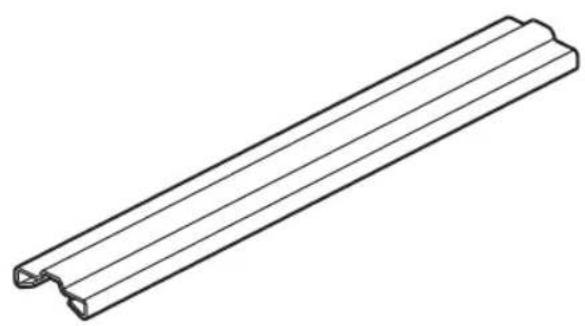

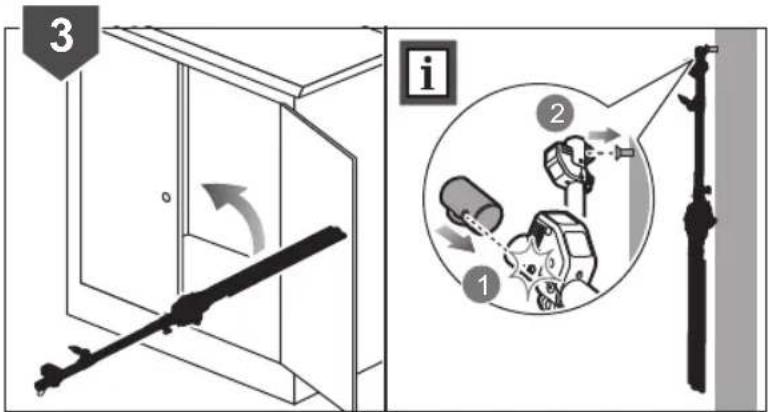

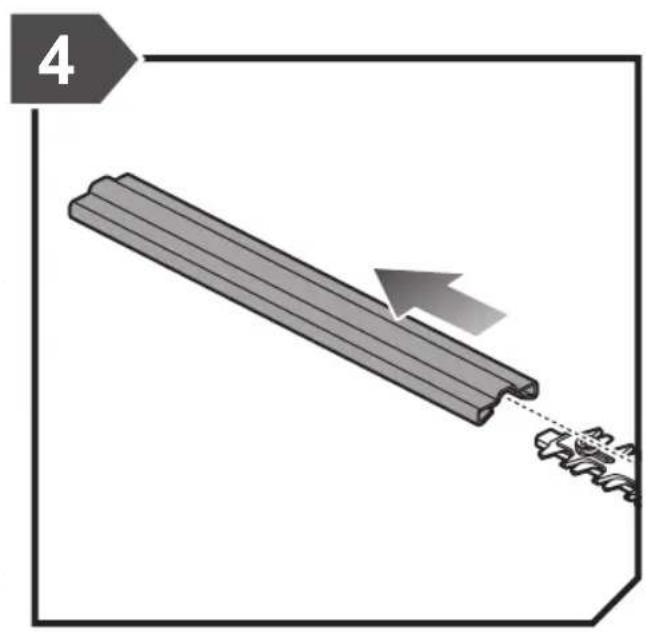

HEAD ■ Stop the engine and allow it to cool before storing or transporting. ■ Clean all foreign material from the product. ■ Cover the blade with the blade protector before storing the product or during transportation. ■ Drain all fuel from the tank into a container approved for petrol. Remember to properly replace and tighten the fuel cap. ■ If applicable, drain all lubricant from tank into a container approved for lubricant. Remember to properly replace the lubricant cap. ■ Run the engine until it stops, this will remove all fuel that could become stale and leave varnish and gum in the fuel system. ■ Store the product in a cool dry and well-ventilated4 | English place that is inaccessible to children. Keep away from corrosive agents, such as garden chemicals and de- icing salts. ■ Do not store outdoors. ■ When transporting the product in a vehicle, secure it against movement or falling to prevent injury to persons or damage to the product. ■ Never carry or transport the product while the engine is running. ■ Abide by all government and local regulations for the safety storage and handling of petrol. Short term (less than 1 month) ■ Stop the engine and allow it to cool before storing. ■ Clean all foreign materials from the product. ■ Cover the blade with the blade protector. ■ Store the product in a cool, dry, and well-ventilated place that is inaccessible to children. ■ Keep away from corrosive agents such as garden chemicals and de-icing salts. ■ Do not store outdoors.

FOR ASSEMBLING WITH ELECTRIC-DRIVEN POWER

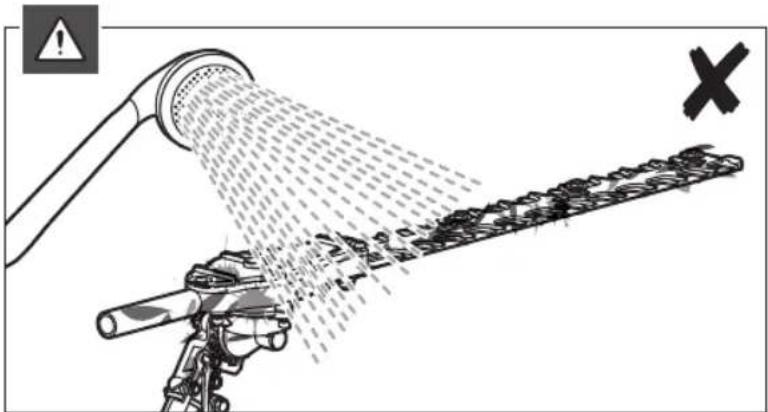

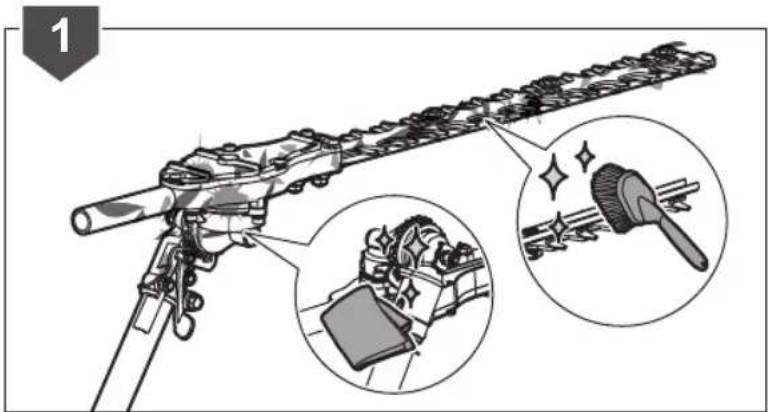

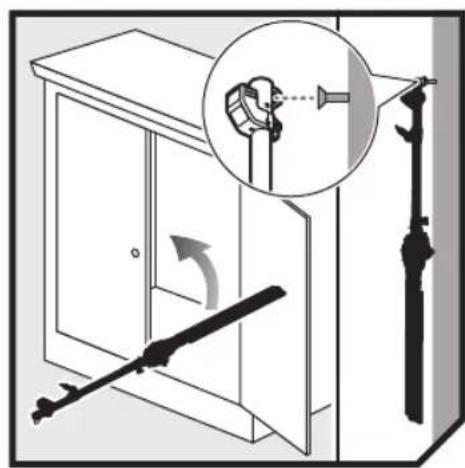

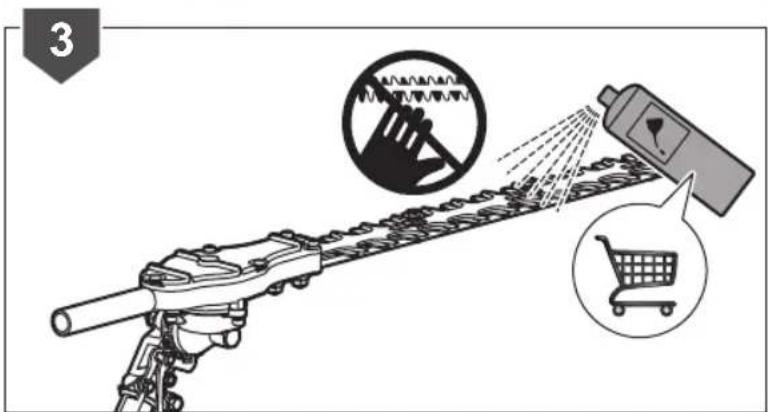

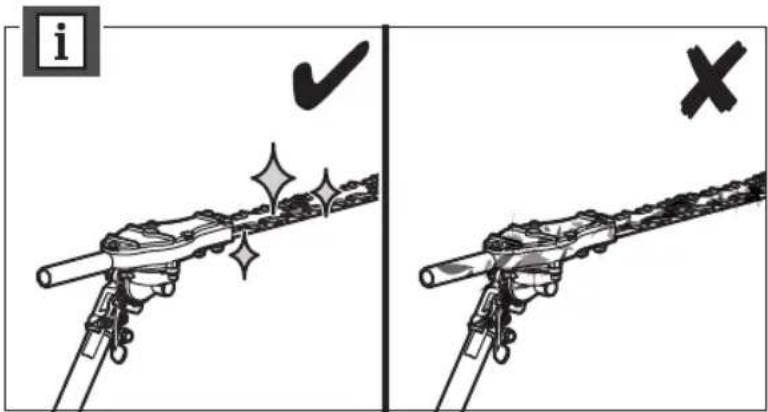

HEAD ■ Stop the product, disconnect from the power supply, and wind the cable. Allow the product to cool before storing or transporting ■ Clean all foreign material from the product. Store it in a cool, dry, and well-ventilated place that is inaccessible to children. Keep it away from corrosive agents, such as garden chemicals and de-icing salts. Do not store outdoors. ■ Cover the blade with the blade protector before storing the product or during transportation. ■ For transportation, secure the product against movement or falling to prevent injury to persons or damage to the product. MAINTENANCE WARNING Use only original manufacturer’s replacement parts, accessories and attachments. Failure to do so can cause possible injury, poor performance, and may void your warranty. WARNING Servicing requires extreme care and knowledge and should be performed only by a qualifi ed service technician. For service, we suggest you bring the product to the nearest authorised service centre. When servicing, use only identical replacement parts. WARNING The blades are sharp. To prevent personal injury, exercise extreme caution when cleaning, lubricating and fi tting, or removing the blade protector. ■ Switch off, disconnect the product from the power supply (if applicable), and make sure all moving parts have come to a complete stop before conducting any maintenance or cleaning work. ■ You may only make adjustments or repairs described in this manual. For other repairs, contact the authorised service centre. ■ After each use, clean the product with a soft, dry cloth. ■ After each use, clean the debris from the blades with a stiff brush, and then carefully apply a rust-preventative lubricant before refitting the blade protector. Use the recommended rust-preventative lubricant spray. Take care to avoid contact with the blade when applying an even distribution of the lubricant. For information about suitable spray product, check with your local authorised service centre. ■ If needed, lubricate the blades lightly before use using the above method. ■ Check all nuts, bolts, and screws at frequent intervals for proper tightness to ensure the product is in safe working condition. Any part that is damaged should be properly repaired or replaced by an authorised service centre. RESIDUAL RISKS Even when the product is used as prescribed, it is still impossible to completely eliminate certain residual risk factors. The following hazards may arise in use and the operator should pay special attention to avoid the following: ■ Injury from the blades. The blades cannot be guarded whilst cutting. Keep the blade away from yourself and others. Cover it with the blade protector whenever you are not cutting. ■ Injury caused by vibration. Always use the right tool for the job. Use designated handles and restrict working time and exposure. ■ Hearing injury caused by exposure to noise. Wear ear protection and limit exposure. RISK REDUCTION It has been reported that vibrations from hand-held tools may contribute to a condition called Raynaud’s Syndrome. Symptoms may include tingling, numbness, and blanching of the fi ngers, usually apparent upon exposure to cold. Hereditary factors, exposure to cold and dampness, diet, smoking, and work practices are all thought to contribute to the development of these symptoms. There are measures that can be taken by the operator to possibly reduce the effects of vibration: ■ Keep your body warm in cold weather. When operating the unit, wear gloves to keep the hands and wrists warm. It is reported that cold weather is a major factor contributing to Raynaud’s Syndrome.5 English |

■ After each period of operation, exercise to increase blood circulation. ■ Take frequent work breaks. Limit the amount of exposure per day. ■ If you experience any of the symptoms of this condition, immediately discontinue use and see your doctor. WARNING Injuries may be caused, or aggravated, by prolonged use of a tool. When using any tool for prolonged periods, ensure to take regular breaks.

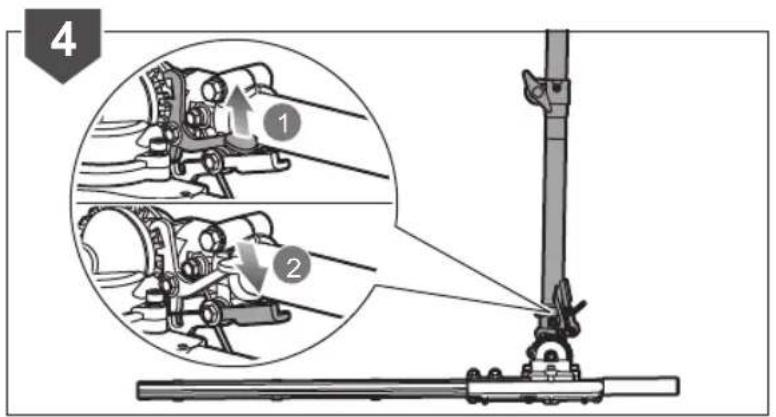

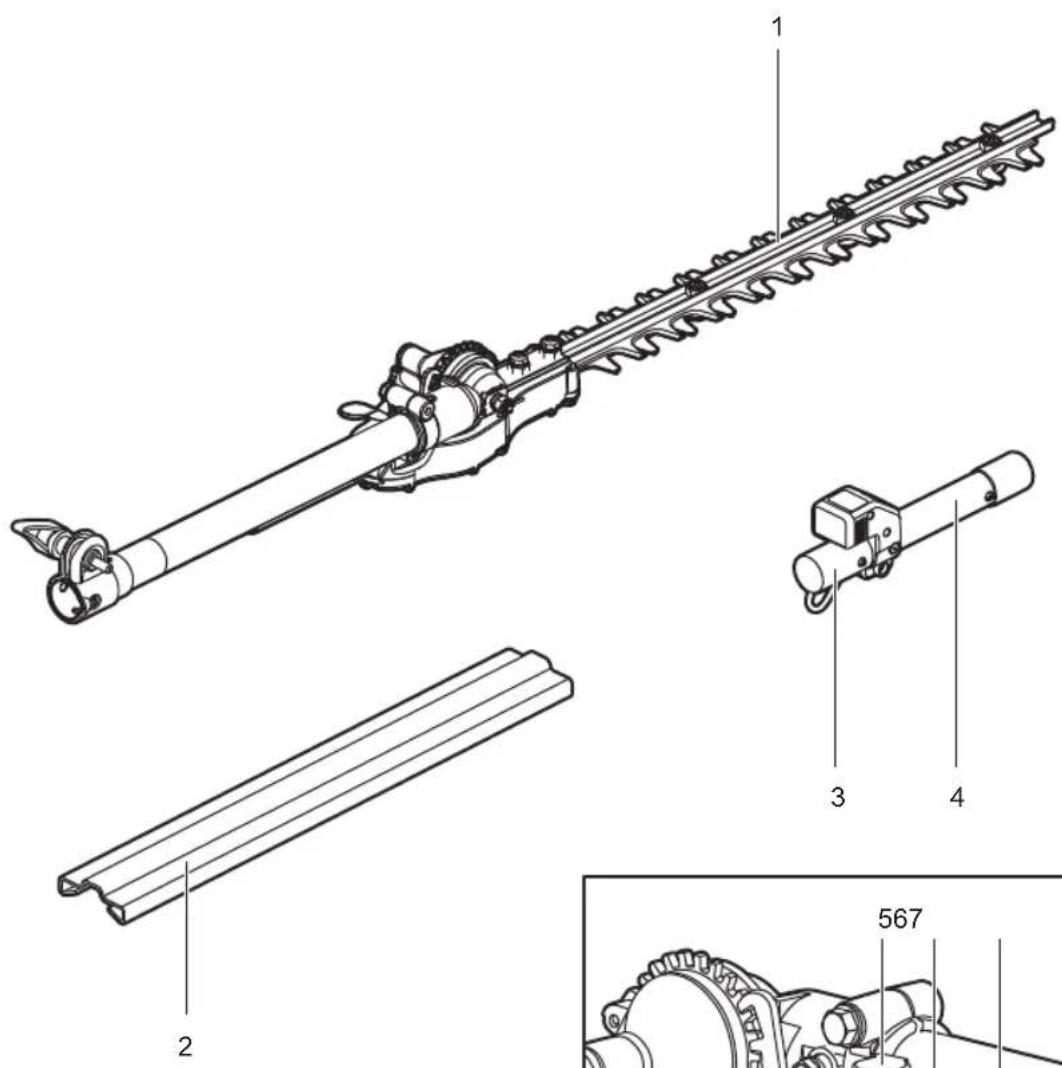

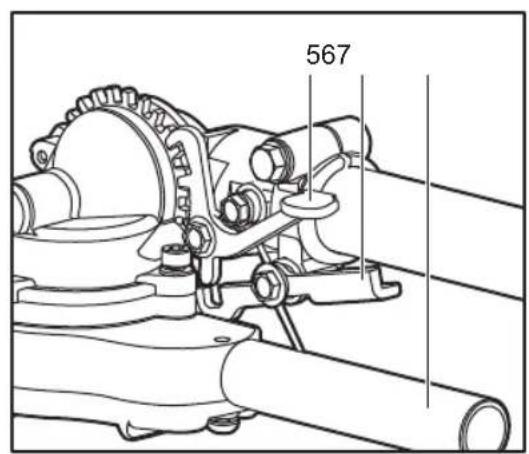

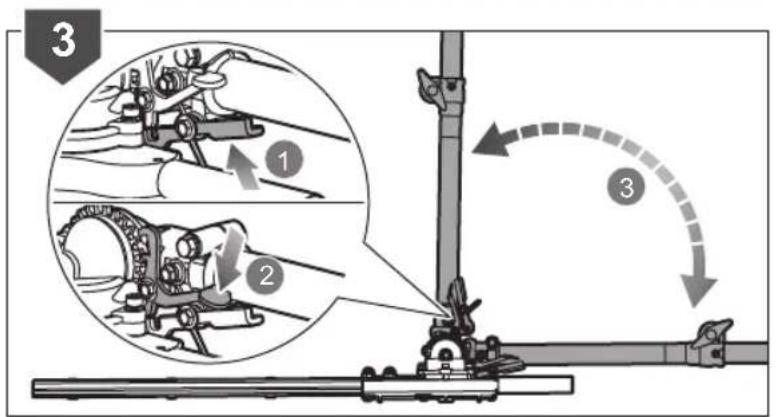

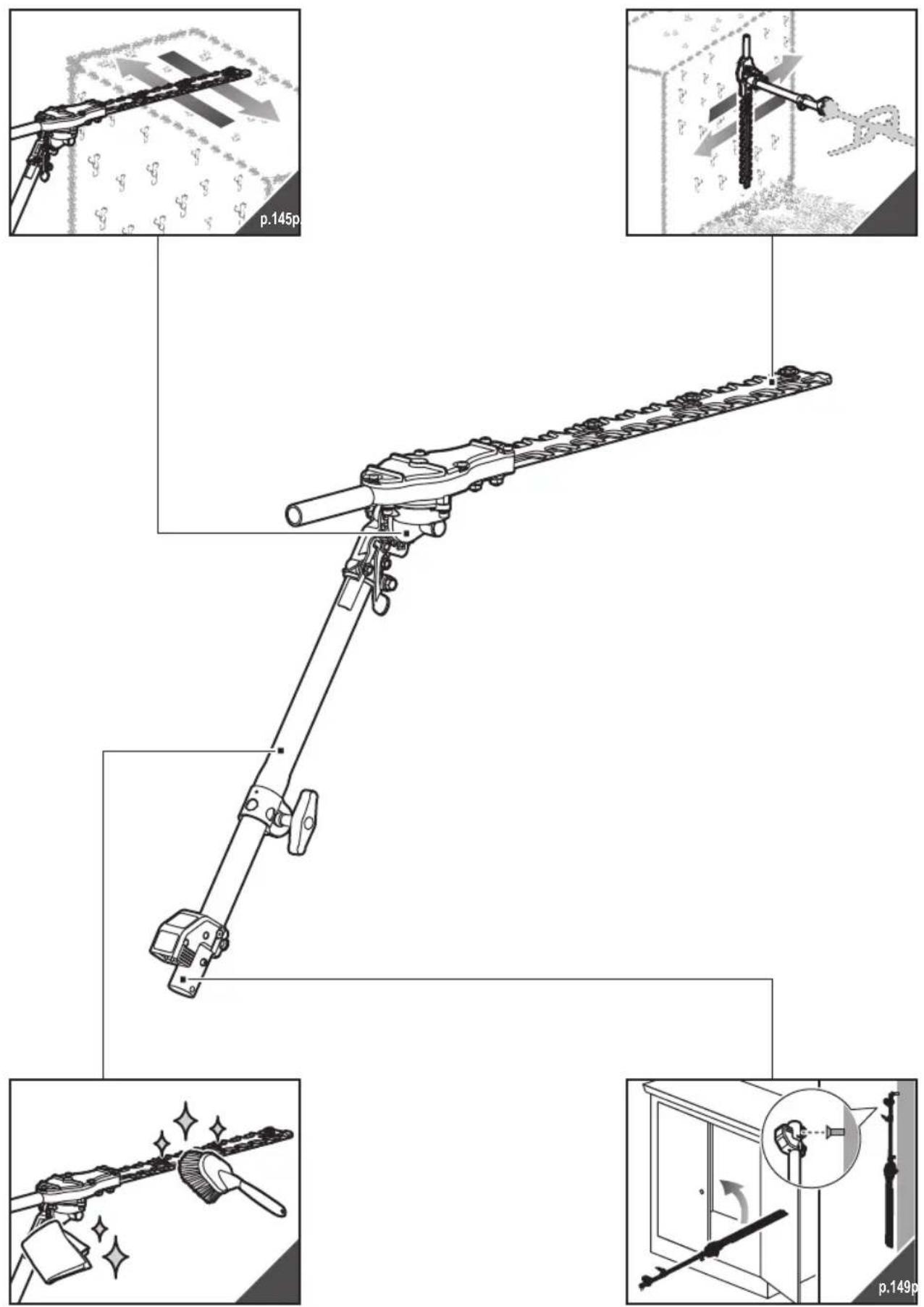

5. Lock ratchet wheel

6. Safety lock lever

7. Adjustment handle

SYMBOLS ON THE PRODUCT

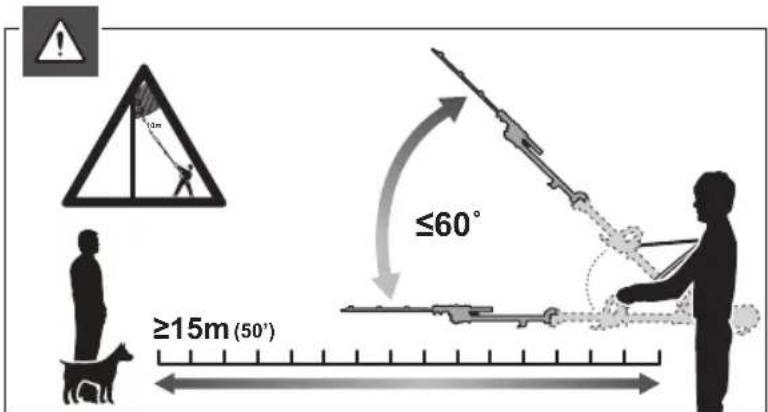

Electrical hazard, at least 10 m away from the overhead electric-power lines Beware of thrown or fl ying objects. Keep all bystanders, especially children and pets, at least 15 m away from the operating area Read and understand all instructions before operating the product, follow all warnings and safety instructions. Wear eye, ear, and head protection. Wear non-slip safety footwear when using the product. Wear non-slip, heavy-duty gloves. Sharp cutting blades. To prevent serious injury, do not touch cutting blades. Do not expose to rain or damp condition. Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your local authority or retailer for recycling advice. Conforms to all regulatory standards in the country in the EU where the product is purchased. EurAsian conformity mark Ukrainian mark of conformity The guaranteed sound power level shown on this label is 110 dB.

SYMBOLS IN THIS MANUAL

Parts or accessories sold separately Note Warning The following signal words and meanings are intended to explain the levels of risk associated with this product. DANGER Indicates an imminently hazardous situation, which, if not avoided, will result in death or serious injury. WARNING Indicates a potentially hazardous situation, which, if not avoided, could result in death or serious injury. CAUTION Indicates a potentially hazardous situation, which, if not avoided, may result in minor or moderate injury. CAUTION Without safety alert symbol Indicates a situation that may result in property damage.6 | Français La plus grande priorité a été donnée à la sécurité, aux performances et à la fi abilité de votre taille-haies articulé lors de sa conception.

SYMBOLES APPLIQUÉS SUR LE PRODUIT

MACHEN SIE SICH MIT IHREM PRODUKT

SYMBOLE AUF DEM PRODUKT

KJENN PRODUKTET DITT

Motor in vrijloop (L’

Motor in vrijloop (L’

96,81 dB(A) Niepewność pomiaru Nejistota měření Mérés bizonytalansága Incertitudine a măsurării. Mērījuma mainīgums Matmenų paklaida Mõõtmismääramatus Neodređenost mjerenja Negotovost meritev Nespoľahlivosť meraní Несигурност на измерването Невизначеність вимірювання 1,78 dBEN Vibration level WARNING The declared vibration value has been measured with a standard test method and may be used to compare one tool with another. The declared vibration value may be used in a preliminary assessment of exposure. The vibration emission during actual use of power tool can differ from the declared total value depending on the ways in which the tool is used. Identify safety measures to protect yourself based on an estimation of exposure in the actual conditions of use, taking account of all parts of the operating cycle such as the times when the tool is switched off and when it is running idle in addition to the trigger time.

1. The guarantee period is 24 months for consumers and commences on the

date when the product was purchased. This date has to be documented by an invoice or other proof of purchase. The product is designed and dedicated to consumer and private use only. So there is no guarantee provided in case of professional or commercial use.

2. There is, in some cases (i.e. promotion, range of tools), a possibility to

extend the warranty period over the period described above using the registration on the www.ryobitools.eu website. The eligibility of the tool is clearly displayed in stores and/or on packaging. The end user needs to register his/her newly-acquired tools online within 8 days from the date of purchase. The end user may register for the extended warranty in his country of residence if listed on the online registration form where this option is valid. Furthermore, end users must give their consent to the storage of the data which are required to enter online and they have to accept the terms and conditions. The registration conrmation receipt, which is sent out by e-mail, and the original invoice showing the date of purchase will serve as proof of the extended warranty. Your statutory rights remain unaffected.

3. The guarantee covers all defects of the product during the warranty period

due to defaults in workmanship or material at the purchase date. The guarantee is limited to repair and/or replacement and does not include any other obligations including but not limited to incidental or consequential damages. The warranty is not valid if the product has been misused, used contrary to the instruction manual, or being incorrectly connected. This guarantee does not apply to – any damage to the product that is the result of improper maintenance – any product that has been altered or modified – any product where original identification (trade mark, serial number) markings have been defaced, altered or removed – any damage caused by non-observance of the instruction manual – any non CE product – any product which has been attempted to be repaired by an non- qualified professional or without prior authorization by Techtronic Industries – any product connected to improper power supply (amps, voltage, frequency) – any product used with inappropriate fuel mixture (fuel, oil, percentage of oil) – any damage caused by external influences (chemical, physical, shocks) or foreign substances – normal wear and tear of spare parts – inappropriate use, overloading of the tool – use of non-approved accessories or parts – carburettor after 6 months, carburettor adjustments after 6 months – components (parts and accessories) subject to natural wear and tear, including but not limited to bump knobs, drive belts, clutch, blades of hedge trimmers or lawn mowers, harness, cable throttle, carbon brushes, power cord, tines, felt washers, hitch pins, blower fans, blower and vacuum tubes, vacuum bag and straps, guide bars, saw chains, hoses, connector fittings, spray nozzles, wheels, spray wands, inner reels, outer spools, cutting lines, spark plugs, air filters, gas filters, mulching blades, etc.

4. For servicing, the product must be sent or presented to a RYOBI authorized

service station listed for each country in the following list of service station addresses. In some countries your local RYOBI dealer undertakes to send the product to the RYOBI service organisation. When sending a product to a RYOBI service station, the product should be safely packed without any dangerous contents such as petrol, marked with sender’s address and accompanied by a short description of the fault.

5. A repair/replacement under this guarantee is free of charge. It does not

constitute an extension or a new start of the guarantee period. Exchanged parts or tools become our property. In some countries delivery charges or postage will have to be paid by the sender.

6. This guarantee is valid in the European Community, Switzerland, Iceland,

Norway, Liechtenstein, Turkey and Russia. Outside these areas, please contact your authorized RYOBI dealer to determine if another warranty applies.

AUTHORISED SERVICE CENTRE

To nd an authorised service centre near you, visit http://uk.ryobitools.eu/ header/service-and-support/service-agents.

EC DECLARATION OF CONFORMITY

Techtronic Industries GmbH Max-Eyth-Straße 10, 71364 Winnenden, Germany Herewith we declare that the product Articulating Hedge Trimmer Attachment Brand: Ryobi Model number: RXAHT01 Serial number range: 44471101000001 - 44471101999999 is in conformity with the following European Directives and harmonised standards For assembling with petrol-driven power head 2006/42/EC, 2004/108/EC (until April 19, 2016), 2014/30/EU (from April 20, 2016), 2000/14/EC, 2005/88/EC, 97/68/EC as last amended 2012/46/EU, EN ISO

10517:2009+A1:2013, EN ISO 14982:2009, EN ISO 3744:2010

For assembling with electric-driven power head 2006/42/EC, 2004/108/EC (until April 19, 2016), 2014/30/EU (from April 20, 2016), 2000/14/EC, 2005/88/EC, 2011/65/EU, EN 60745-1:2009+A11:2010, EN ISO 10517:2009+A1:2013, EN ISO 3744:2010, EN 55014-1:2006+A1:2009+A2:2011, EN 55014-2:1997+A1:2001+A2:2008, EN 61000-3-2:2014, EN 61000-3-3:2013, EN 50581:2012 Measured sound power level: 106,8 dB (A) Guaranteed sound power level: 110 dB (A) Conformity assessment method to Annex V Directive 2000/14/EC amended by 2005/88/EC. The articulating hedge trimmer attachment (RXAHT01) is intended to assemble with all Ryobi/ Homelite petrol-driven power head of 30 cc or less and RLT1238I, RBC1226I, or RPH1200 electric-driven power head. This partly completed machinery must not be put into service until the final machinery into which it is to be incorporated has been declared in conformity with the provisions of the Machinery Directive 2006/42/EC, where appropriate. Andrew John Eyre (BEng, CEng, MIET) Vice President, Regulatory & Safety Winnenden, Feb.05, 2016 Authorised to compile the technical file: Alexander Krug, Managing Director Techtronic Industries GmbH Max-Eyth-Straße 10, 71364 Winnenden, GermanyDA
