USER MANUAL Max Power RY36ELTX33A RYOBI

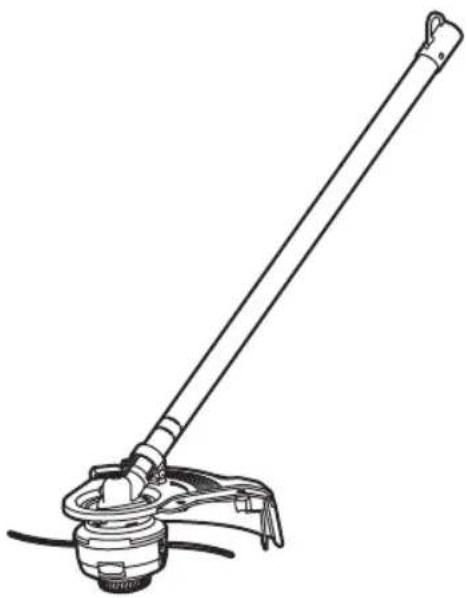

Mechanical tool with a long rod and attached bracket, no visible text or symbols

Important!	It is essential that you read the instructions in this manual before assembling, maintaining and operating the product.
Attention!	Il est essentiel que vous lisiez les instructions contenues dans ce manuel avant d'assembler, d'entretenir et d'utiliser le produit.
Achtung!	Es ist wichtig, dass Sie vor Zusammenbau, Wartung und Benutzung des Produktes die Anweisungen in dieser Anleitung lesen.
¡Atención!	Resulta fundamental que lea este manual de instrucciones antes de realizar el montaje, el mantenimiento y de utilizar este producto
Attenzione!	E' importante leggere le istruzioni contenute nel presente manuale prima di montare il prodotto, svolgere le operazioni di manutenzione sullo stesso e metterlo in funzione.
Let op!	Het is van essentieel belang dat u de instructies in deze gebruiksaanwijzing leest voor u het product monteert, onderhoudt en gebruikt.
Atenção!	É fundamental que leia as instruções deste manual antes da montagem, manutenção e operação do aparelho.
OBS!	Det er vigtigt, at man læser instrukserne i denne brugsanvisning, inden man samler, vedligeholder og betjener produktet.
Observera!	Det är viktigt att du läser instruktionerna i manualen före montering, användning och underhåll av produkten.
Huomio!	On tärkeää, että luet tämän käsikirjan ohjeet ennen tuotteen kokoamista, huoltoa ja käyttöä.
Advarsel!	Det er viktig at du leser instruksjonene i denne manualen før sammensetning, vedlikehold og bruk av produktet
Внимание!	Необходимо прочитать инструкции в данном руководстве перед сборкой, обслуживанием и эксплуатацией этого изделия.
Uwaga!	Koniecznie należy przeczytać instrukcje zawarte w tym podręczniku przed montażem, obsługą oraz konserwacją produktu.
Dûležité upozornění!	Neinstalujte, neprovádějte údržbu ani nepoužívejte tento výrobek dříve, než si přečtete pokyny uvedené v tomto návodu.
Figyelem!	Fontos, hogy a termék összeszerelése, karbantartása és használata előtt elolvassa a kézikönyvben található utasításokat.
Atenție!	Este esențial să citiți instrucțiunile din acest manual înainte de asamblare, efectuarea întreținerii și operarea produsului.
Uzmanību!	Ir svarīgi izlasīt šīs rokasgrāmatas instrukcijas pirms uzstādīšanas, apkopes un preces darbināšanas.
Dèmesio!	Prieš surenkant, prižiūrint ir naudojant gaminį, būtina perskaityti šiame vadove pateiktus nurodymus.
Tähtis!	Enne masina kokkupanekut, hooldamist ja kasutama hakkamist tuleb käesolevas juhendis esitatud juhised kindlasti läbi lugeda.
Upozorenje!	Vrlo je važno da ste prije sklapanja, održavanja i rada s ovim proizvodom pročitali upute u ovom priručniku.
Pomembno!	Pomembno je da pred montažo vzdrževanjem in uporabo tega izdelka preberete navodila v tem priročniku.
Upzornenie!	Je dôležité, aby ste si pred montážou, údržbou a obsluhou produktu prečitali pokyny v tomto návode.
Важно!	Изключително важно е да прочетете инструкциите в настоящото ръководство, преди да преминете към сглобяване, поддръжка или работа с продукта.
Важливо!	Дуже важливо, щоб ви прочитали інструкції в цьому керівництві перед складанням, обслуговуванням та експлуатацією цієї машини.
Önemli!	Ürünü monte etmeden, kullanmadan ve bakımını yapmadan önce bu kılavuzdaki talimatları okumanız önemlidir.

Subject to technical modification | Sous réserve de modifications techniques | Technische Änderungen vorbehalten | Bajo reserva de modificaciones técnicas | Con riserva di eventuali modifiche tecniche | Technische wijzigingen voorbehouden | Com reserva de modificações técnicas | Med forbehold for tekniske ændringer | Med förbehåll för tekniska ändringar | Tekniset muutokset varataan | Med forbehold om tekniske endringer | могут быть внесены технические изменения | Z zastrzeżeniem modyfikacji technicznych | Změny technických údajů vyhrazeny | A můszaki módosítás jogát fenntartjuk | Sub rezerva modificațiilor tehnice | Paturam tiesības mainīt tehniskos raksturlielumus | Pasiliekant teisę daryti techninius pakeitimus | Tehnilised muudatused võimalikud | Podloæno tehniëkim promjenama | Tehnične spremembe dopuščene | Právo na technické zmeny je vyhradené | Подлежи на технически модификации | Є ob'єктом для технічних змін | Teknik değişikliğe tabidir.

Safety, performance, and dependability have been given top priority in the design of your cordless line trimmer.

INTENDED USE

The cordless line trimmer is intended to be used only by adults who have read and understood the instructions and warnings in this manual and can be considered responsible for their actions.

The product is intended only for outdoor use by a standing operator in a well-ventilated area. For safety reasons, the product must be adequately controlled by a two-handed operation.

When fitted with the line trimmer head (and appropriate guard), the product is intended for cutting long grass, pulpy weed, and similar vegetation at or about ground level. The cutting plane should be approximately parallel to the ground surface.

The product should not be used to cut or trim hedges, bushes, or other vegetation where the cutting plane is not parallel to the ground surface.

Do not use the product for any other purpose.

GENERAL SAFETY WARNINGS

WARNING

Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire, and/or serious injury.

WARNING

When using the product, the safety rules must be followed. For your own safety and that of bystanders, please read these instructions before using the product. Please keep the instruction safe for later use.

WARNING

The product is not intended to be used by children or persons with reduced physical, mental, or sensory capabilities. Children should be adequately supervised to ensure that they do not play with the product.

WARNING

Some regions have regulations that restrict the use of the product. Check with your local authority for advice.

TRAINING

• Read the instructions carefully. Be familiar with all the controls and the proper use of the product.
  ■ Never allow children or people who are unfamiliar with these instructions to use the product. Local regulations may restrict the age of the operator.
• Keep bystanders, children, and pets 15 m away from the area of operation. Stop the product if anyone enters the area.
  ■ Never use the product while tired, ill, or under the influence of alcohol, drugs, or under medication.

- Keep in mind that the operator or user is responsible for accidents or hazards occurring to other people or their property.

PREPARATION

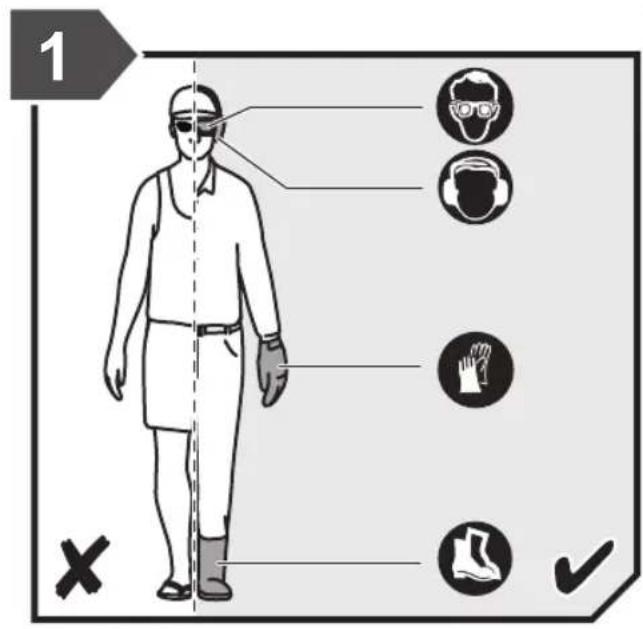

■ Wear full eye and hearing protection while operating the product. If working in an area where there is a risk of falling objects, head protection must be worn.
■ Hearing protection may restrict the operator's ability to hear warning sounds. Pay particular attention to potential hazards around and inside the working area.
■ Wear heavy, long trousers, boots, and gloves. Do not wear loose-fitting clothing, short trousers, or jewellery of any kind, and do not use the product with bare feet.
- Secure long hair so that it is above shoulder level to prevent entanglement in moving parts.
■ Before use and after any impact, check that there are no damaged parts on the product. A defective switch or any part that is damaged or worn should be properly repaired or replaced by an authorised service centre.
■ Make sure that the cutting attachment is properly installed and securely fastened.
■ Never operate the product unless all guards, deflectors, and handles are properly and securely attached.
- Consider the environment in which you are working. Keep the working area free from wires, sticks, stones, and debris, which if struck by the cutter can become thrown objects.

BATTERY TOOL USE AND CARE

■ Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
■ Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
- When the battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws, or other small metal objects that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
■ Under abusive conditions, liquid may be ejected from the battery. Avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.

CORDLESS LINE TRIMMER SAFETY WARNINGS

■ Never allow children, persons with reduced physical, sensory, or mental capabilities or lack of experience and knowledge, or people who are unfamiliar with these instructions to use the product.
■ Use the product in daylight or with good artificial light.
■ Avoid using the product on wet grass.
- Keep proper footing and balance at all times, and be sure of proper footing on slopes.
- Do not walk backwards when using the product. Walk, never run.

• Keep the head attachment below waist level.
  ■ Never operate the product with damaged guards or without guards in place.
  ■ Do not fit a metal replacement line.

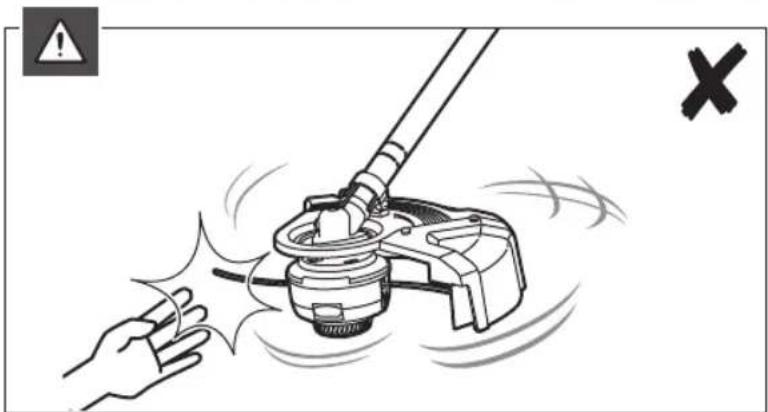

• Keep hands and feet away from the cutting means at all times, especially when turning on the motor.
  ■ Beware, the cutting means continue to rotate after the motor is turned off.
  ■ Beware of objects thrown by the cutting means. Clear debris like small stones, gravel, and other foreign objects from the work area before starting operation. Wires or string may become entangled with the cutting means.
  ■ To reduce the risk of injury associated with contacting moving parts, always turn off the product, remove the battery pack, and allow both to cool down. Make sure that all moving parts have come to a complete stop:
  • before servicing
  • before clearing a blockage
• before checking, cleaning, and working on the product
  • before changing accessories
  • after striking a foreign object
  • whenever leaving the product unattended
  • whenever performing maintenance
  • whenever the product starts to vibrate abnormally
  ■ Wear full eye and hearing protection while operating the product. If working in an area where there is a risk of falling objects, head protection must be worn.
  ■ Hearing protection may restrict the operator's ability to hear warning sounds. Pay particular attention to potential hazards around and inside the working area.
  ■ Wear heavy, long trousers, boots, and gloves. Do not wear loose-fitting clothing, short trousers, or jewellery of any kind, and do not use the product with bare feet.
• Secure long hair so that it is above shoulder level to prevent entanglement in moving parts.
  The small blade fitted to the lawn guard is designed to trim the new extended line to the correct length for safe and optimum performance. The blade is very sharp. Do not touch the blade, particularly when cleaning the product.
  ■ Always ensure that ventilation openings are kept clear of debris.
  ■ Before use and after any impact, check that there are no damaged parts on the product. A defective switch or any part that is damaged should be properly repaired or replaced by an authorised service centre.
  ■ Make sure that the cutting head attachment is properly installed and securely fastened.
  ■ Make sure that all the guards, deflectors, and handles are properly and securely attached.
• Do not modify the product in any way. This may increase the risk of injury to yourself or others.
• Use only the manufacturer's replacement cutting line. Do not use any other cutting attachment.

- Immediately turn off the product and remove the battery pack in the event of accident or breakdown. Do not operate the product again until it has been fully checked by an authorised service centre.

WARNING

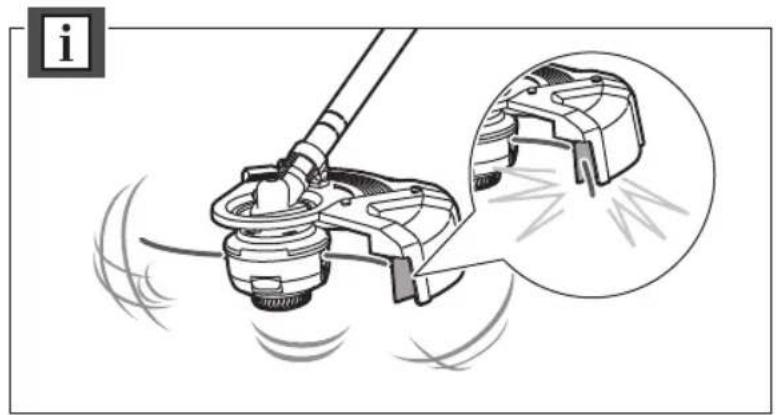

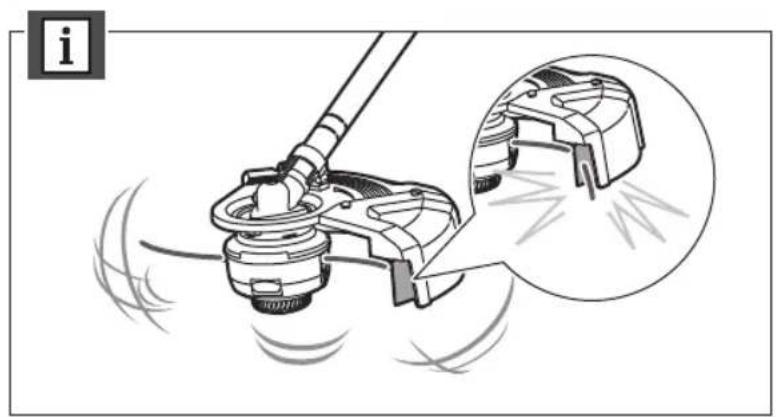

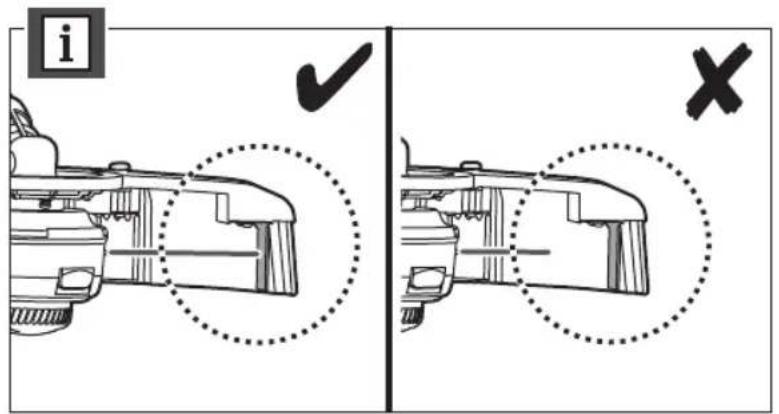

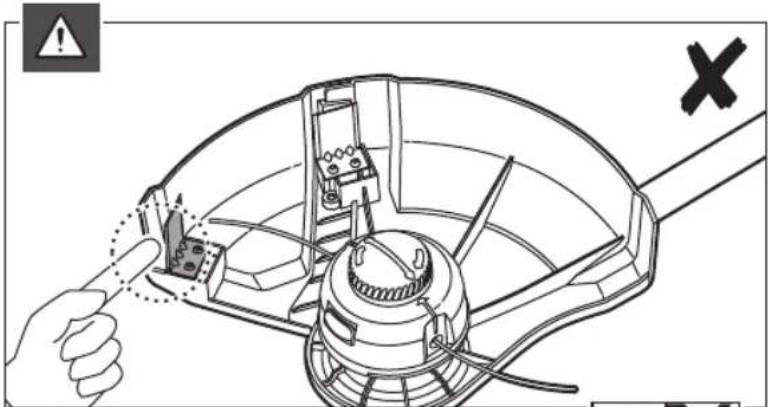

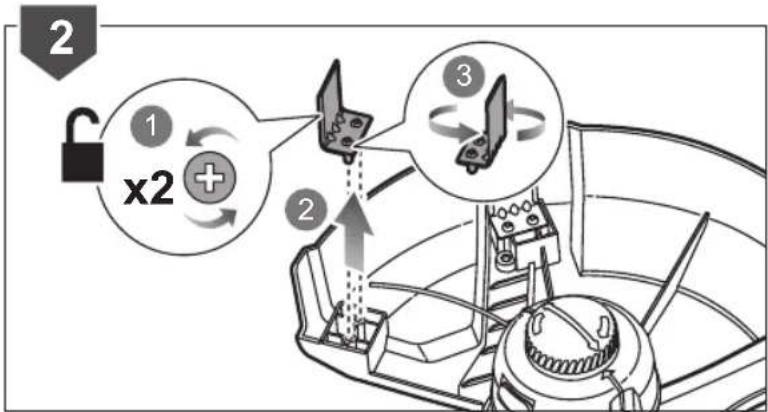

Ensure that the line cut-off blade in the guard is properly positioned and secured before each use.

ADDITIONAL BATTERY SAFETY WARNINGS

WARNING

To reduce the risk of fi re, personal injury, and product damage due to a short circuit, never immerse your tool, battery pack, or charger in fluid or allow a fluid to flow inside them. Corrosive or conductive fluids, such as seawater, certain industrial chemicals, and bleach or bleach-containing products, etc., can cause a short circuit.

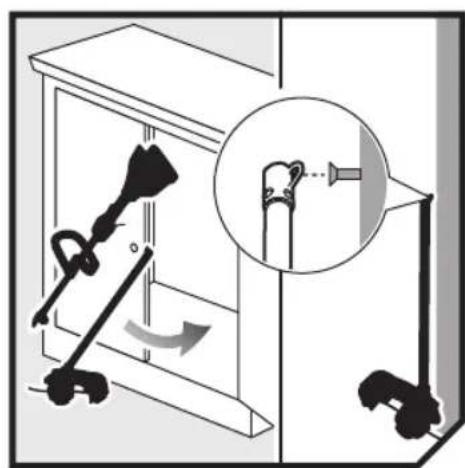

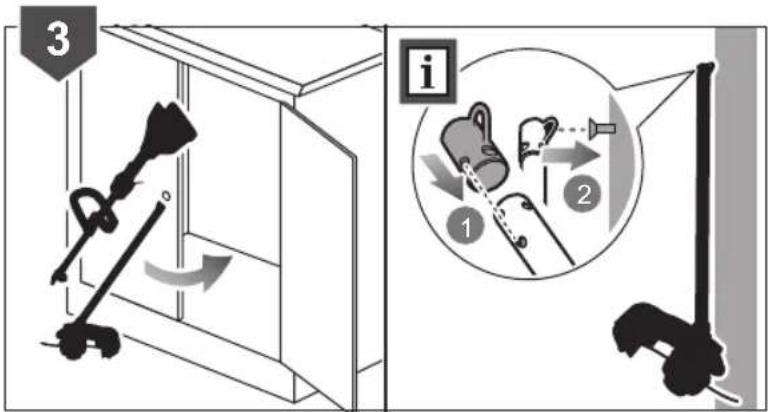

TRANSPORTATION AND STORAGE

■ Turn off the product, remove the battery pack, and allow the product to cool down before storing or transporting.
■ Clean all foreign material from the product.
- Do not store or transport the product with the battery pack fitted. Remove the battery pack, and secure it separately. Store the product in a cool, dry, and well-ventilated place that is inaccessible to children. Keep the product away from corrosive agents, such as garden chemicals and de-icing salts. Do not store the product outdoors.
■ For transportation in vehicles, secure the product against movement or falling to prevent injury to persons or damage to the product.

TRANSPORTING LITHIUM BATTERIES

Transport the battery pack in accordance with local and national provisions and regulations. Follow all special requirements on packaging and labelling when transporting batteries by a third party.

Ensure that no battery packs can come in contact with other batteries or conductive materials while in transport by protecting exposed connectors with insulating, non-conductive caps or tape. Do not transport battery packs that are cracked or leaking. Check with the forwarding company for further advice.

MAINTENANCE

WARNING

Use only original manufacturer's replacement parts, accessories, and attachments. Failure to do so can cause possible injury, can contribute to poor performance, and may void your warranty.

WARNING

Servicing requires extreme care and knowledge and should be performed only by a qualified service technician. Have the product serviced by an authorised service centre only. When servicing, use only original replacement parts.

■ Turn off the product and remove the battery pack before conducting any maintenance or cleaning work.
■ You may make adjustments or repairs described in this manual. For other repairs, contact an authorised service centre.

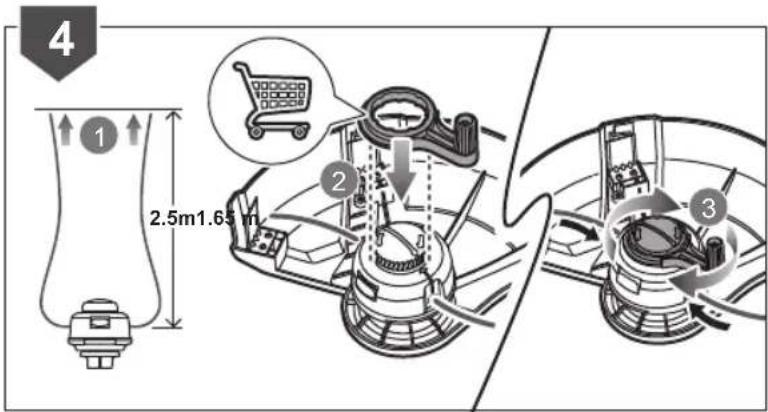

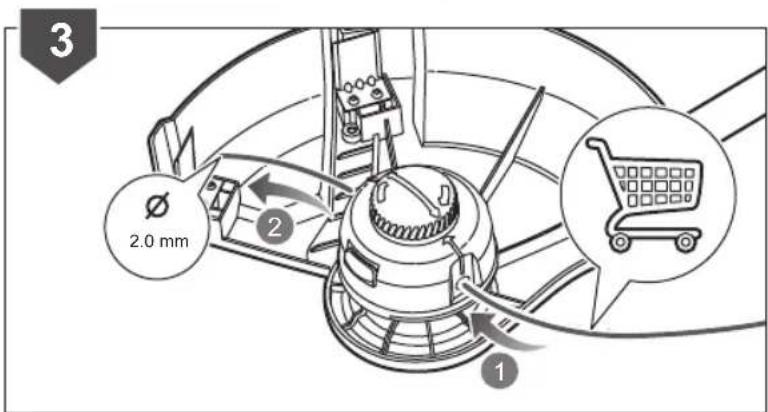

■ For the replacement line, use only a nylon filament line of the diameter described in the specifications table of this manual.
■ After extending the new cutter line, always return the product to its normal operating position before starting.

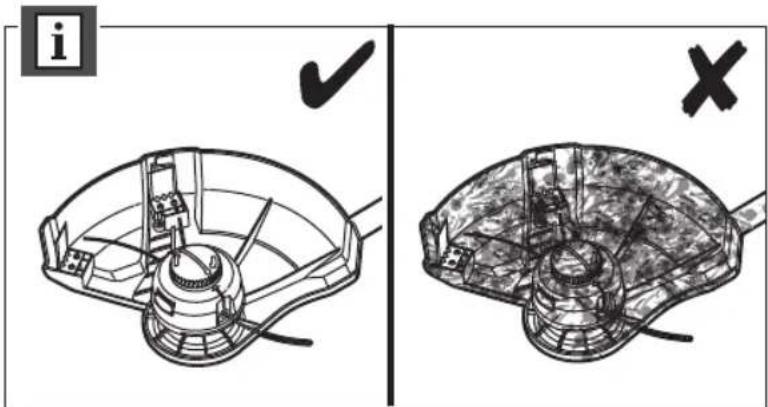

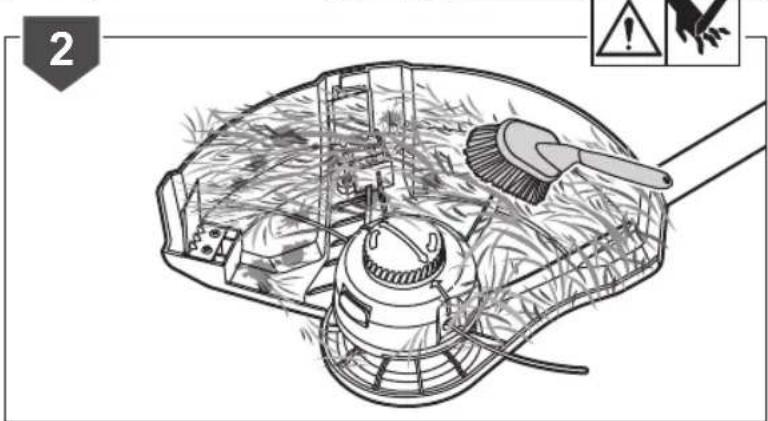

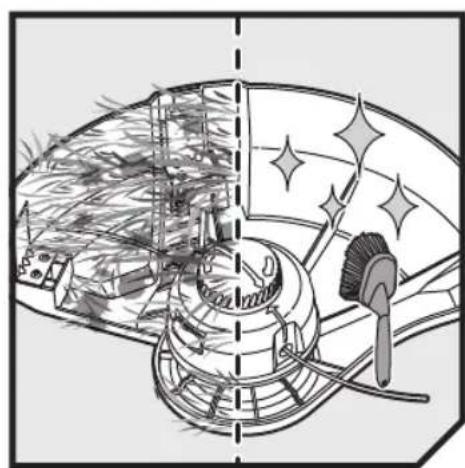

■ After each use, clean the product with a soft, dry cloth. Any part that is damaged should be properly repaired or replaced by an authorised service centre.
- Check all nuts, bolts, and screws before each use and at frequent intervals for proper tightness to ensure that the product is in safe working condition. Any part that is damaged should be properly repaired or replaced by an authorised service centre.
■ Bring the product to an authorised service centre to replace damaged or unreadable labels.

RESIDUAL RISKS

Even when the product is used as prescribed, it is still impossible to completely eliminate certain residual risk factors. The following hazards may arise during use, and the operator should pay special attention to avoid the following:

■ injury caused by vibration
- Hold the product by the designated handles, and restrict working time and exposure.
■ injury caused by exposure to noise
– Wear ear protection, and limit exposure.
■ injury caused by flying debris
– Wear eye protection at all times.

RISK REDUCTION

It has been reported that vibrations from handheld tools may contribute to a condition called Raynaud's Syndrome. Symptoms may include tingling, numbness, and blanching of the fingers, usually apparent upon exposure to cold. Hereditary factors, exposure to cold and dampness, diet, smoking, and work practices are all thought to contribute to the development of these symptoms. There are measures that can be taken by the operator to possibly reduce the effects of vibration:

- Keep your body warm in cold weather. When operating the product, wear gloves to keep the hands and wrists warm. It is reported that cold weather is a major factor contributing to Raynaud's Syndrome.

■ After each period of operation, exercise to increase blood circulation.

■ Take frequent work breaks. Limit the amount of exposure per day.
If you experience any of the symptoms of this condition, immediately discontinue use and see your physician.

WARNING

Injuries may be caused, or aggravated, by prolonged use of a tool. When using any tool for prolonged periods, ensure that you take regular breaks.

KNOW YOUR PRODUCT

See page 105.

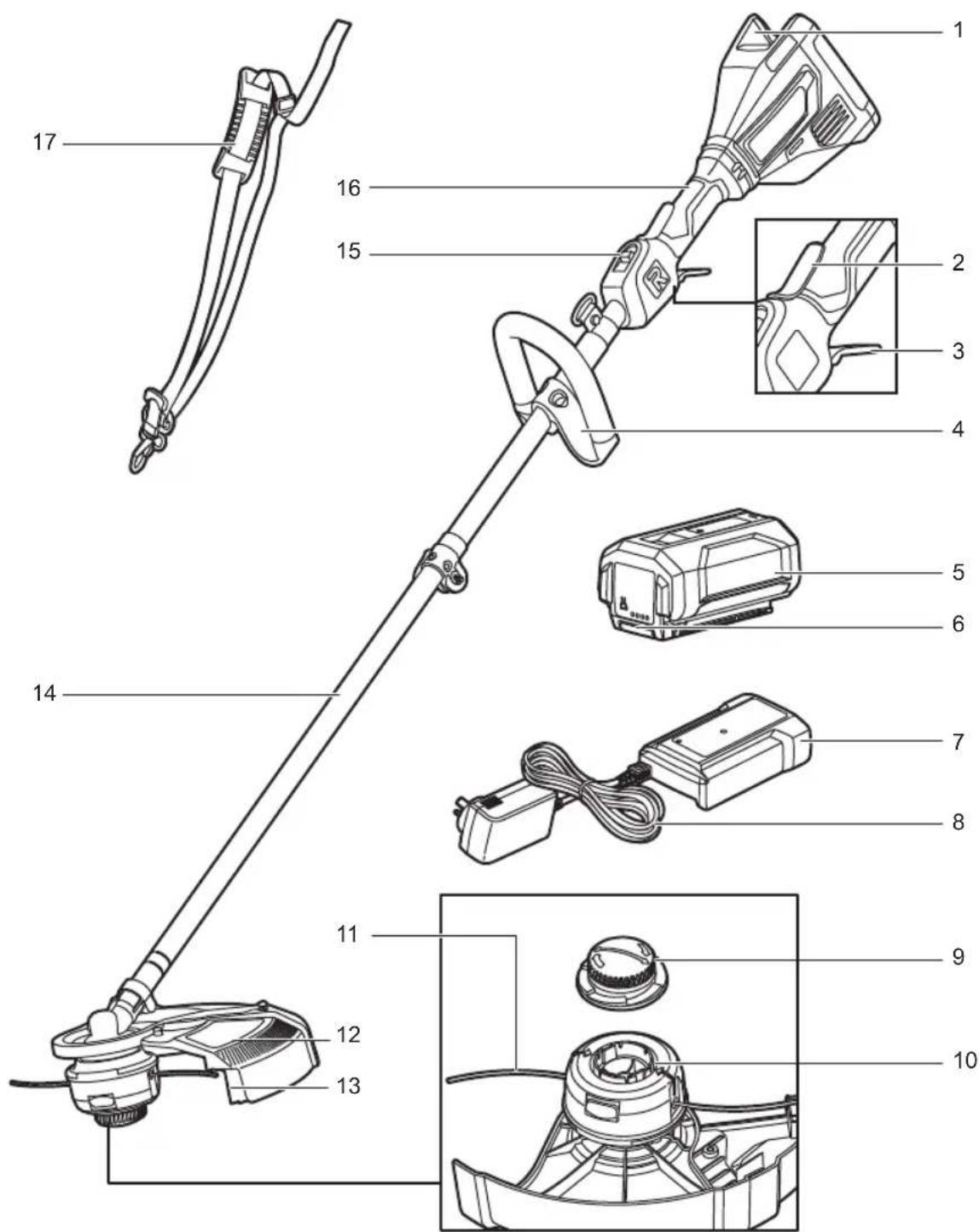

Parts

1. Battery port

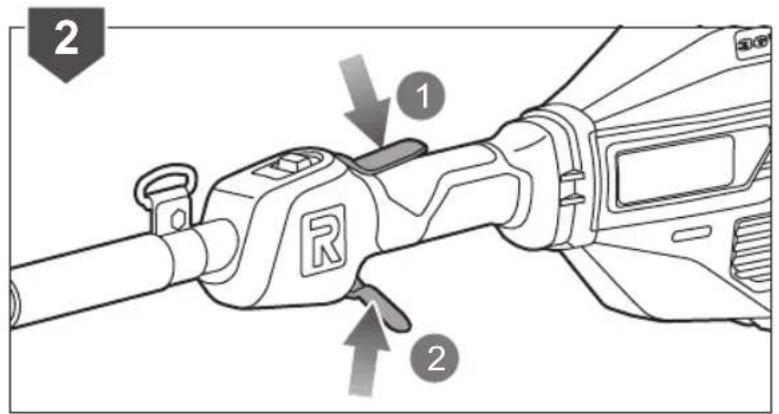

2. Lock-out trigger
3. Variable speed trigger

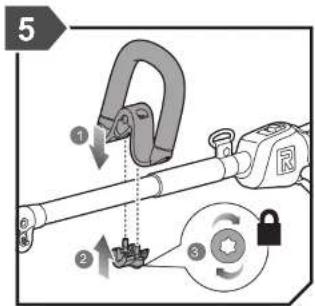

4. Front handle
5. Battery pack
6. Battery latch button
7. Charger
8. Charger cable

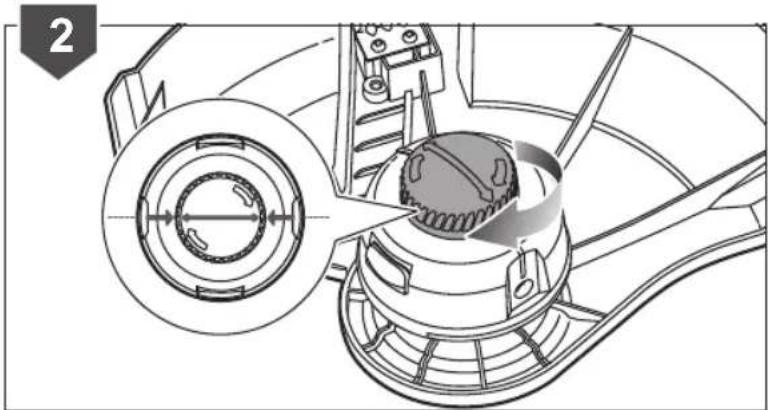

9. Spool cover
10. Spool
11. Cutting line

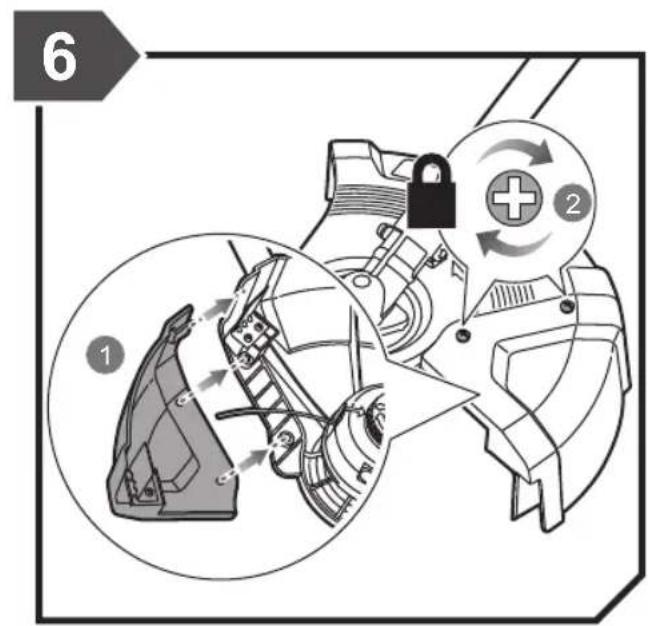

12. Grass deflector
13. Line cut-off blade
14. Lower shaft

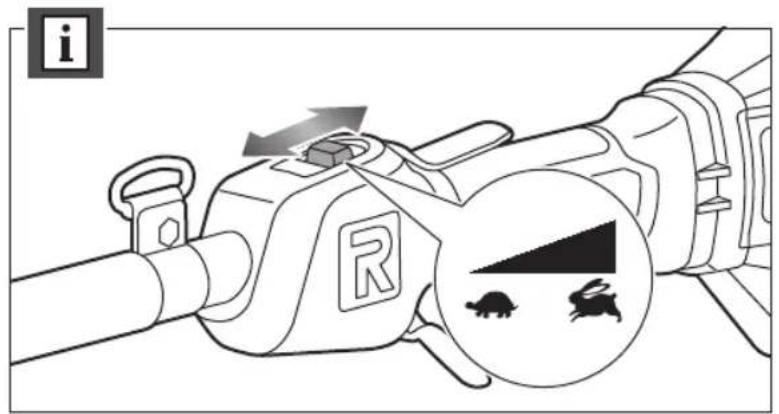

15. Speed selector
16. Rear handle

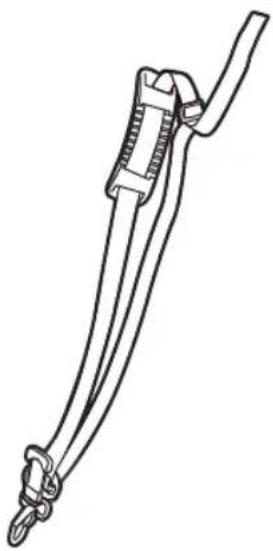

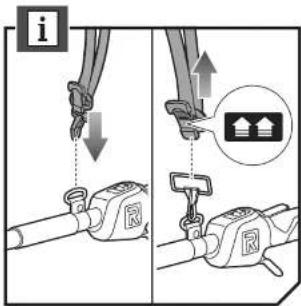

17. Harness

SYMBOLS ON THE PRODUCT

Read and understand all instructions before operating the product. Follow all warnings and safety instructions.

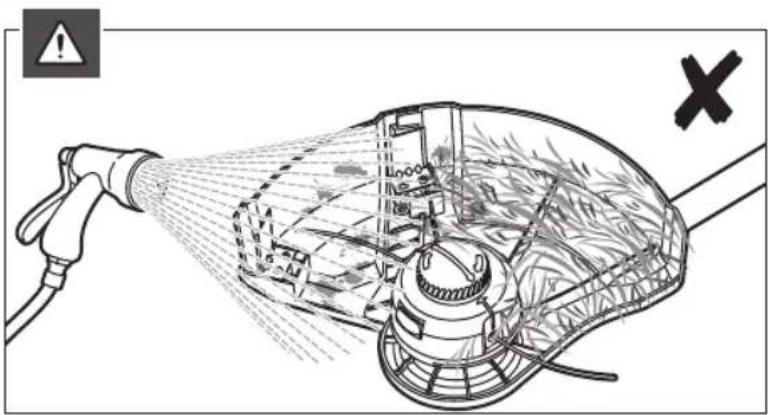

Do not expose the product to rain or damp condition.

Wear eye protection.

Wear ear protection.

Wear non-slip, heavy-duty gloves.

Wear non-slip, safety footwear when using the product.

Keep hands away from cut-off blade.

Remove the battery pack before starting any work on the product.

Beware of thrown or flying objects. Keep all bystanders, especially children and pets, at least 15 m away from the operating area.

Guarantee d sound power level is 96 dB.

EurAsian conformity mark

Ukrainian mark of conformity

CE Conformity

Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your local authority or retailer for recycling advice.

The following signal words and meanings are intended to explain the levels of risk associated with this product:

DANGER

Indicates an imminently hazardous situation, which, if not avoided, will result in death or serious injury.

WARNING

Indicates a potentially hazardous situation, which, if not avoided, could result in death or serious injury.

CAUTION

Indicates a potentially hazardous situation, which, if not avoided, may result in minor or moderate injury.

CAUTION

Without safety alert symbol Indicates a situation that may result in property damage.

SYMBOLS IN THIS MANUAL

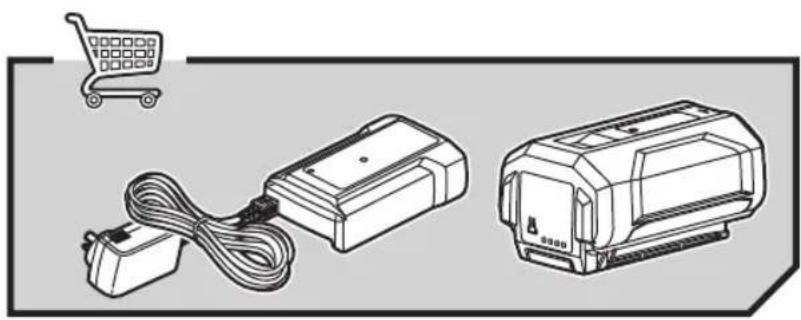

Parts or accessories sold separately

Note

Warning

Lock

Unlock

4 | English

SYMBOLES APPLIQUES SUR LE PRODUIT

MACHEN SIE SICH MIT IHREM PRODUKT VERTRAUT

Siehe Seite 105.

Teile

SYMBOLE AUF DEM PRODUKT

ALGEMENE VEILIGHEIDSWAARSCHUWINGEN

WAARSCHUWING

SYMBOLER PÅ PRODUKTET

TRANSPORT OCH FÖRVARING

SYMBOLER PÅ PRODUKTEN

KJENN PRODUKTET DITT

Se side 105.

Deler

SYMBOLER PÅ PRODUKTET

ETTEVALMISTUSTOIMINGUD

OBOZNÁMTE SA S VAŠÍM PRODUKTOM

Pozrite stranu 105.

Diely

Technical line drawings of three different mechanical tools or devices, including a lever and two multipliers (no text or symbols present)

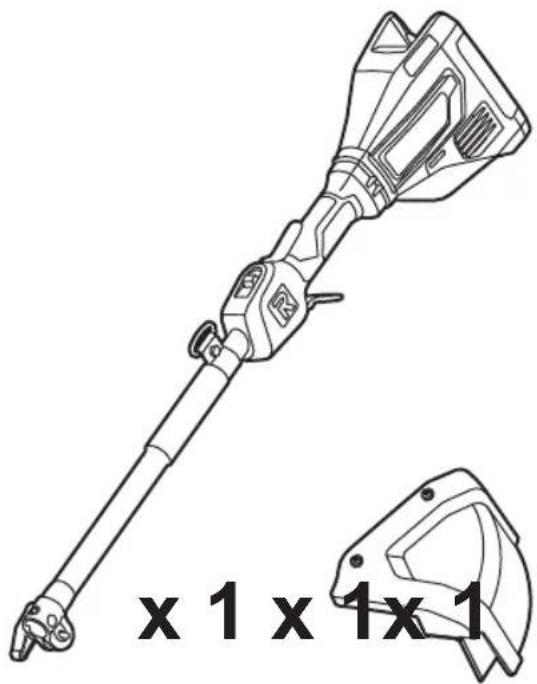

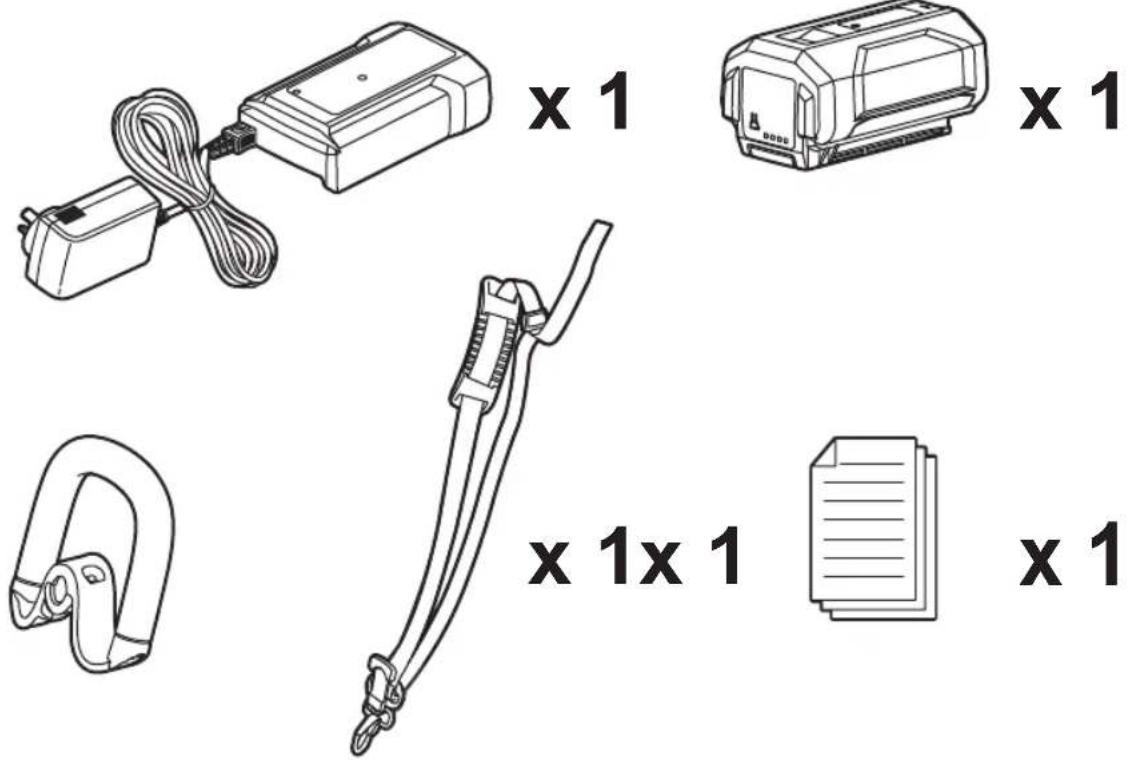

x 1 x 1 x 1x 1 x 1

RY36ELTX33A-0

Line drawing of a mechanical lever assembly (no text or symbols)

Technical line drawing of a mechanical tool with two views (top and side), no text or symbols present.

Line drawing of a mechanical tool or device with a curved handle and looped base (no text or symbols)

x 1x 1

x 1

Illustration of three electronic devices: a shopping cart, a handheld device connected to a cable, and a printer (no text or symbols visible)

Technical diagram of a cleaning tool with numbered parts for identification and assembly reference.

1 × ✓

2 1

6 1 2

7

3 ① ②

4 ① ②

5 ① ② ③

Diagram illustrating cable clamp installation steps with labeled components and directional arrows

8

Illustration of a grassy field with a mechanical lever and spring-like component (no text or symbols)

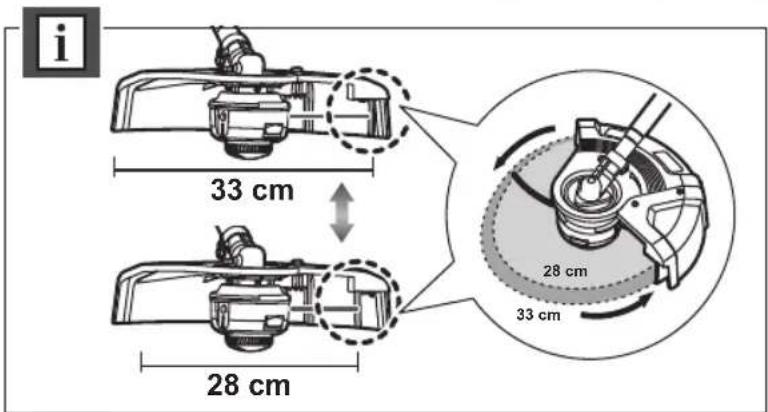

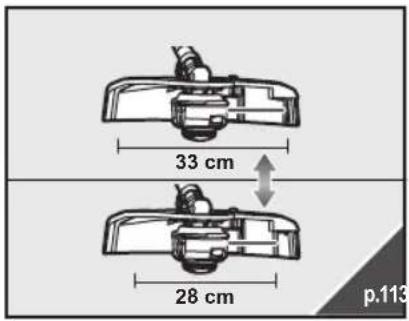

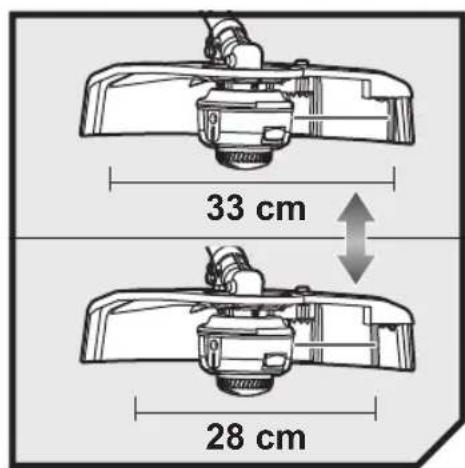

33 cm 28 cm p.113

Diagram of a car interior with a shopping cart icon and directional arrows, no readable text or symbols present.

Technical diagram of a metal detector with labeled components and three supporting views showing tool path, product, and inspection steps.

Illustration of a grass sprayer with a lever and water spray (no text or symbols)

i ✓ ×

Safety warning illustration showing a grass sprayer being tested with checkmark and cross symbols

Illustration of a hand using a manual tool to lift a mechanical component, with no visible text or symbols.

1 μ 000c

Diagram illustrating a camera mechanism with labeled components and symbolic visual elements including a triangle, rabbit, and mouse.

2 1 R 2

3

Technical illustration of a mechanical device with motion lines and a magnified inset showing internal components (no text or symbols)

i ✓ ×

Diagram illustrating a mechanical tool with labeled parts and directional arrows, including checkmark and cross symbols.

i ✓ X

33 cm 28 cm

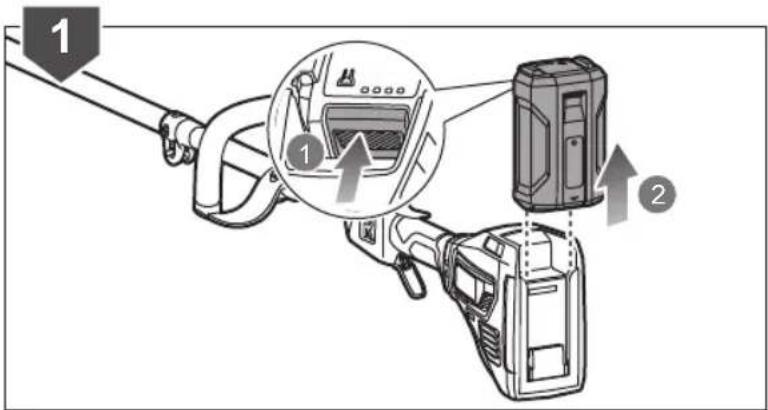

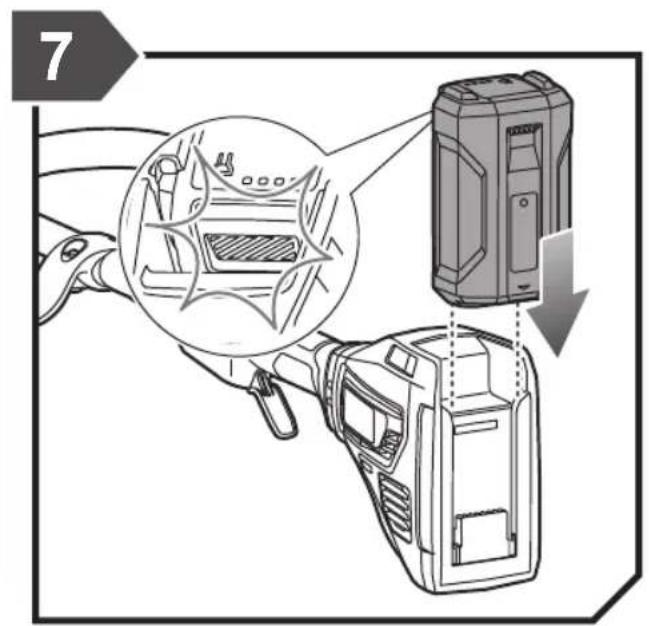

Diagram showing a device being inserted into a charger, with labeled parts and directional arrows indicating insertion or positioning.

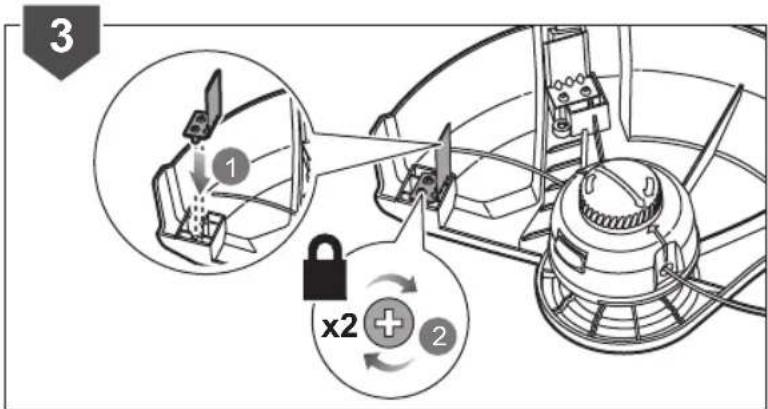


i 33 cm 28 cm 28 cm 33 cm

3 1 x2 + 2

Diagram of a car interior showing steering wheel, battery pack, and shopping cart icon (no text or labels)

Diagram showing a device being inserted into a charger, with labeled parts and directional arrows indicating insertion or positioning.

Technical diagram of a mechanical assembly with a central component and circular components (no text or symbols)

3 2.0 mm 1

4 1 2.5m1.65 m 2 3

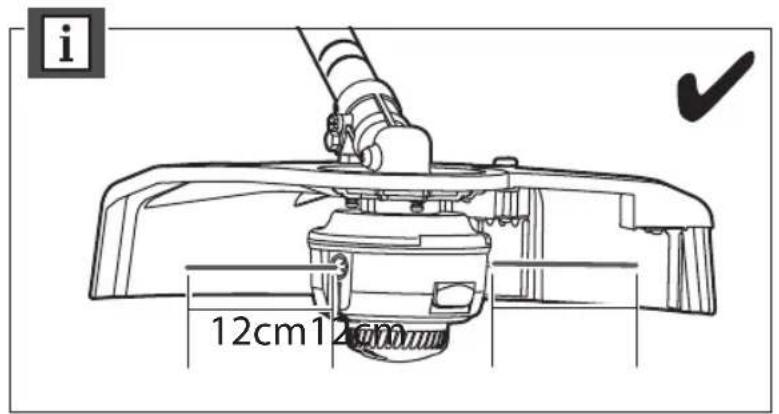

12cm 12cm

5 1 2 3

6

Diagram of a robotic arm with motion lines and a magnified inset showing internal components (no text or symbols)

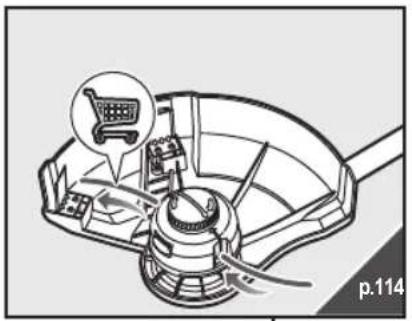

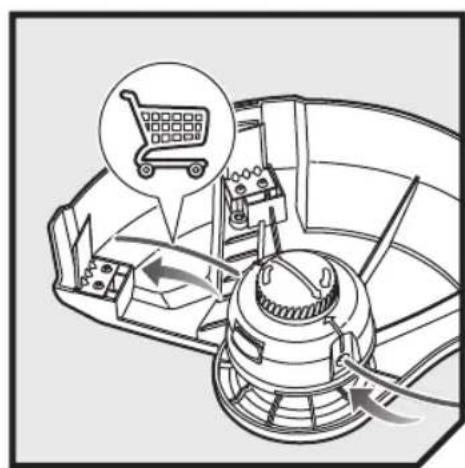

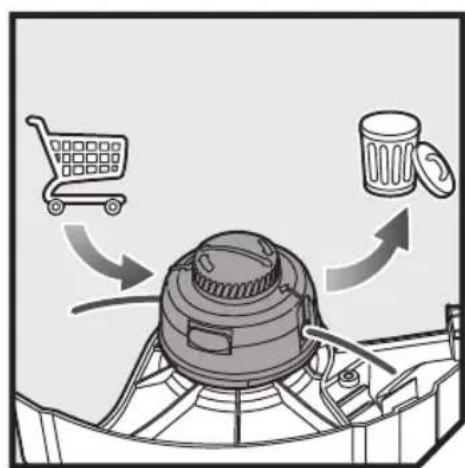


Diagram showing a device being inserted into a device with labeled parts and directional arrows indicating insertion or positioning.

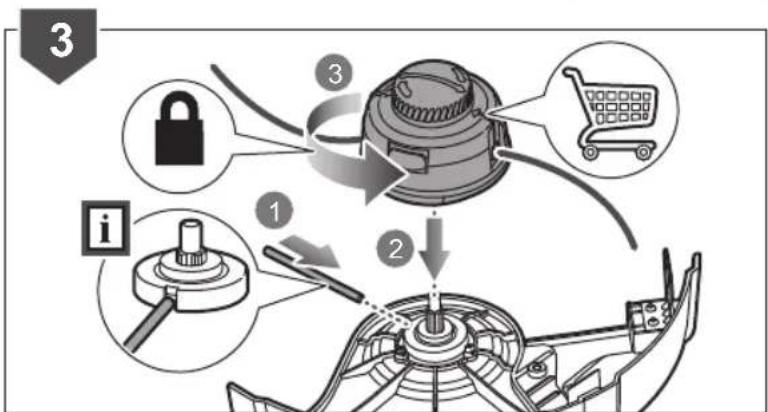

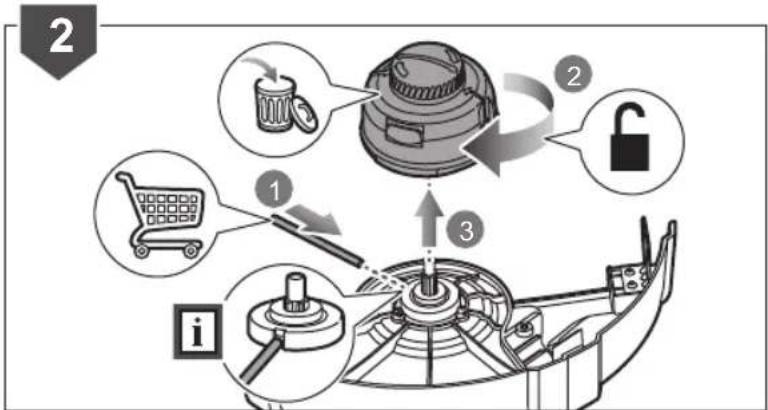


4

Diagram of a cleaning or cleaning device with a brush and fan blade, no text or symbols present

Diagram showing a device being inserted into a charger, with numbered annotations indicating component placement.

Technical diagram showing a hand pressing a component with warning symbol and cross mark indicating failure or failure.

2

Diagram of an electric spray gun with warning symbol and cross mark, showing spray nozzle and internal components

Diagram showing mechanical assembly with a magnified inset of a joint detail (no text or symbols)

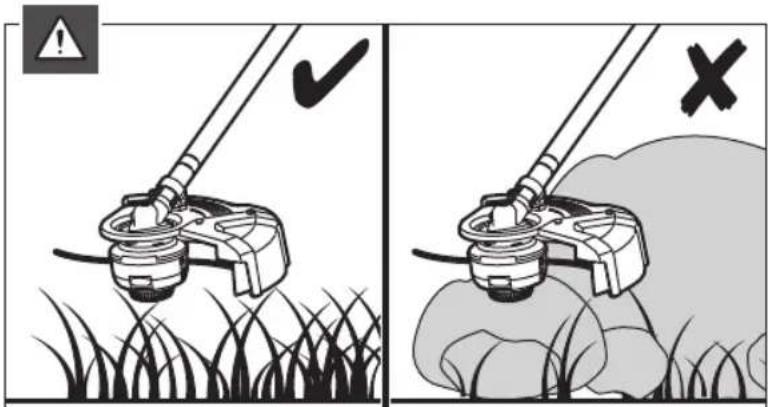

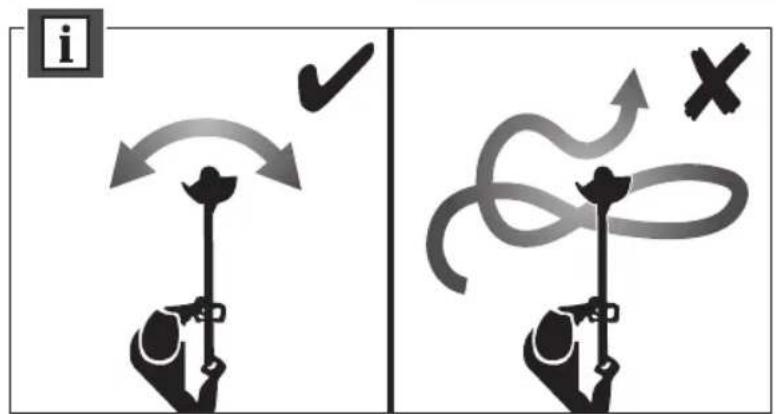

i ✓ X

Diagram showing a device being inserted into a device with labeled parts and directional arrows indicating insertion or positioning.

Diagram illustrating mechanical assembly steps with labeled components and directional arrows

3 i 1 2

English Français Deutsch Español Italiano
Product specifications	Caractéristiques produit	Produkt-Spezifikationen	Características del producto	Caratteristiche del prodotto
Cordless Line Trimmer	Coupe-bordures sans fil	Akku-Rasentrimmer	Cortasetos inalámbrico	Tagliabordi a batterie
Model	Modèle	Modell	Modelo	Modello
Rated voltage	Tension nominale	Nennspannung	Tensión nominal	Voltaggio nominale
No-load speed	Vitesse de rotation	Leerlaufgeschwindigkeit	Velocidad sin carga	Velocità senza carico
High speed	Vitesse rapide	Hohe Geschwindigkeit	Alta velocidad	Alta velocità
Low speed	Vitesse lente	Niedrige Geschwindigkeit	Baja velocidad	Bassa velocità
Cutting line diameter	Diamètre du Fil de Coupe	Schneidfaden-Durchmesser	Cortar el diámetro de la línea	Diametro línea di taglio
Cutting capacity	Capacité de coupe	Schnittbreite Durchmesser	Capacidad de corte	Capacità di taglio
Weight without battery pack	Poids (sans batterie)	Gewicht (ohne Akku)	Peso (sin la batería)	Peso (senza batterie)
Maximum weight with heaviest pack and accessory	Poids maximum avec l'accessoire et le bloc les plus lourds	Maximales Gewicht mit der schwersten Packung und Zubehör	Peso máximo con el paquete más pesado y el accesorio	Peso massimo con l'accessorio più pesante
Noise emission level (in accordance with EN 50636-2-91 Annex CC)	Niveau d'émission sonore (selon l'Annexe CC de EN 50636-2-91)	Geräuschemission (gemäß Anhang CC von EN 50636-2-91)	Nivel de emisión de ruido (de acuerdo con el Anexo CC de EN 50636-2-91)	Livello di emissione rumore (secondo quanto disposto dall'Allegato CC della Direttiva EN 50636-2-91)
A-weighted sound pressure level at the operator's position	Niveau de pression sonore pondéré-A	A-bewerteter Schalldruckpegel an der Position des Anwenders	Nivel de presión acústica ponderado A en la posición del operador	Livello di pressione sonora ponderata A alla posizione dell'operatore
Uncertainty	Incertitude	Unsicherheit	Incertidumbre	Incertezza
A-weighted sound power level	Niveau de puissance sonore pondéré-A	A-bewerteter Schallleistung-spegel	Nivel de potencia acústica ponderada en A	Livello di potenza sonora pesato A
Uncertainty	Incertitude	Unsicherheit	Incertidumbre	Incertezza
Vibration total values determined according to IEC 60335-2-91	Valeurs totales de vibration déterminées selon la norme IEC 60335-2-91	Vibrationswerte gemäß IEC 60335-2-91	Valores totales de vibración determinados de acuerdo con lo establecido en la norma IEC 60335-2-91	Valori totali delle vibrazioni determinati secondo IEC 60335-2-91
Vibration level (280 mm / 330 mm)	Valeur d'émission de vibration Ah	Schwingungsemissionswert ah	Valor de emisión de vibración en	Valore di emissione vibrazioni
Front handle	Poignée avant	Vorderer Haltegriff	Mango delantero	Manico anteriore
Rear handle	Poignée arrière	Hinterer Haltegriff	Mango trasero	Manico posteriore
Uncertainty	Incertitude	Unsicherheit	Incertidumbre	Incertezza

English Français Deutsch Español Italiano
Battery and charger	Batterie et chargeur	Akku und Ladegerät	Batería y cargador	Batteria e caricatore
Model	Modèle	Modell	Modelo	Modello
Battery pack	Bloc de batterie	Akku	Batería	Battería
Weight	Poids	Gewicht	Peso	Peso
Charger	Chargeur	Ladegerät	Cargador	Caricatore
Compatible battery packs	Packs batterie compatibles	Kompatible Akkus	Paquetes de batería compatibles	Gruppo batterie compatibili
Compatible charger	Chargeur compatible	Kompatibles Ladegerät	Cargador compatible	Caricatore compatibile
Replacement part	Pièces de Rechange	Ersatzteile	Piezas de repuesto	Parti di ricambio
Line replacement	Remplacement du fil	Ersetzen des Fadens	Sustitución de la línea	Sostituzione del filo
Complete spool	Bobine complète	Komplette Spule	Bobina completa	Bobina completa

Nederlands Português Dansk Svenska
Productgegevens Caracteristicas do aparelho Produktspecifikationer Produktspecifikationer
Snoerloze gazontrimmer	Recortador de relvado eléctrico recarregável	Tràdløse plænetrimmer	Sladdlösa grästrimmern
Model	Modelo	Model	Modell	RY36ELTX33A / RY36ELTX33A-140
Toegekende spanning	Tensão nominal	Mærkespænding	Spänning	36 V d.c.
Snelheid zonder lading	Velocidade sem carga	Tomgangshastighed	Hastighet utan belastning
Hoge snelheid	Alta velocidade	Høj hastighed	Hög hastighet	5,300 /min
Lage snelheid	Velocidade baixa	Lav hastighed	Låg hastighet	5,100 /min
Maalijndiameter	Cortar o diâmetro da linha	Klippeträdsdiameter	Klippträdens diameter	2,0 mm
Snijcapaciteit	Capacidade de corte	Skærekapacitet	Trimningskapacitet	330 mm / 280 mm
Gewicht (zonder batterij)	Peso (sem a bateria)	Vægt (uden batteri)	Vikt (utan batteri)	3,8 kg
Gewicht bij zwaarste verpakking plus accessoires	Peso máximo com a bateria mais pesada e acessório	Maksimal vægt med tungeste pakke og tilbehør	Maximalt vikt med tyngsta pa-ket och tillbehör	5,9 kg
Geluidsemissieniveau (in over-eenstemming met bijlage CC van EN 50636-2-91)	Nível de emissão de ruído (em conformidade com o Anexo CC de EN 50636-2-91)	Støjemissionsniveau (iht. bilag CC til EN 50636-2-91)	Bullerutsläppsnivå (enligt Annex CC i EN 50636-2-91)
A-gewogen geluidsdrukniveau bij positie van gebruiker	Nível de pressão acústica ponderado A na posição do opera-dor	A-vægtet lydtryksniveau ved op-eratørens position	A-viktad ljudtrycksnivå vid op-eratörens plats	L_pA = 79,4 dB(A)
Onzekerheid	Incerteza	Usikkerhed	Osäkerhet	K_PA = 3,0 dB
A-gewogen geluidsniveau	Nivel de potência sonora pon-derada A	A-vægtet lydeffeklniveau	A-vägd ljudeffektsnivå	L_WA = 92,6 dB(A)
Onzekerheid	Incerteza	Usikkerhed	Osäkerhet	K_WA = 2,9 dB
Totaalwaarden voor vibratie bepaald overeenkomstig IEC 60335-2-91	Valores totais de vibrações obtidos de acordo com a Norma IEC 60335-2-91	Samlede værdier for vibration fastsat i henhold til IEC 60335-2-91	Totala vibrationsvärden fast-ställda enligt IEC 60335-2-91
Trillingsemissiewaarde	Valor de emissão de vibrações	Vibrationsemissionsværdi	Emissionsvärde vibration
Voorste handvat	Pega frontal	Forhåndtag	Främre handtag	a_h = 4,2 / 3,2 m/s^2
Achterste handvat	Pega traseira	Baghåndtag	Bakre handtag	a_h = 3,2 / 3,2 m/s^2
Onzekerheid	Incerteza	Usikkerhed	Osäkerhet	K = 1,5 m/s^2

Nederlands	Português	Dansk	Svenska
Accu en oplader	Bateria e carregador	Batteri og oplader	Batteri och batterilad-dare
Model	Modelo	Model	Modell	RY36ELTX33A-0	RY36ELTX33A-140
Accu	Bateria	Batteri	Batteri	-	BPL3640D2
Gewicht	Peso	Vægt	Vikt	-	1,4 kg
Lader	Carregador Oplader	Batteriladdare		-	RY36C17A
Compatibele accupacks	Baterias Compatíveis	Kompatible batterier	Kompatibla batteripaket	BPL3615, BPL3626, BPL3640, BPL3620D, BPL3626D, BPL3640D, BPL3650D, BPL3626D2, BPL3650D2, BPL3640D2, BPL3660D, RY36B60A, BPL3690D, RY36B90A
Compatibele oplader	Carregador compatível	Kompatibel oplader	Kompatibel laddare	BCL3617S, BCL3620, BCL3620S, BCL3650F, BCL3617U, BCL3660F, RY36C17A
Vervangonderdelen	Peças de substituição	Reservedele	Utbytesdelar
Snoer vervangen	Substituição do fio	Udskiftning af line	Byte av snöre	RAC102, RAC103, RAC133
Volledige rol	Bobina completa	Komplet spole	Komplett spole	RAC159
Suomi Norsk		Русский	Polski Čeština
Tuotteen tekniset tiedot Produktspesifikasjoner Характеристики изделия Parametry techniczne Technické údaje produktu
Akkukäyttöistä ruohotrim-merimme	Trädlose gresstrimmeren	Беспроводного триммер	Bezprzewodowa przycinarka trawnika	Akumulátorové vyžinač trávníku
Malli Modell Модель Model	Model
Nimellisjännite	Nominell spenning	Номинальное напряжение	Napięcie znamionowe	Jmenovité napětí
Nopeus ilman kuormaa	Tomgangshastighet	Холостая скорость	Prędkość obrotowa bez obciążenia	Rychlost naprázdno
Suuri nopeus	Høy hastighet	Высокая скорость	Bieg wysoki	Vysoká rychlost (2)
Matala nopeus	Lav hastighet	Низкая скорость	Bieg niski	Nízká rychlost (1)
Leikkuusiiman halkaisija	Diameter på klippesnoren	Диаметр режущей струны	Średnica żyłki tnącej	Průměr záběru
Leikkauskapasiteetti	Klippekapasitet	Сокращение вместимости	Szerokość cięcia	Řezací kapacita
Paino (ilman akkua)	Vekt (uten batteri)	Масса (без батарей)	Ciężar (bez akumulatora)	Hmotnost (bez baterie)
Enimmäispaino raskaimmalla pakkauksella ja lisävarusteella	Maksimal vekt med tyngste pakke og tilbehør	Максимальная масса с учетом самой тяжелой упаковкой и принадлежности	Maksymalny ciężar z najcięższym opakowaniem i akcesorium	Maximální hmotnost s nejtěžší baterií a doplňky
Melutaso (standardin EN 50636-2-91 liitteen CC mukaisesti)	Støyutslipsnivá (iht. tillegg CC i EN 50636-2-91)	Уровень шума (в соответствии с Приложением CC стандарта EN 50636-2-91)	Poziom emisji hałasu (zgodnie z aneksem CC normy EN 50636-2-91)	Hladina emise hluku (v souladu s přilohou CC normy EN 50636-2-91)
A-painotettu käyttäjään kohdistuva äänenpainetaso	Støynivåvekting ved operatørens posisjon	Амплитудно-взвешенный уровень звукового давления на рабочем месте оператора	Poziom ciśnienia akusytcznego (A) w miejsu operatora	Hladina akustického tlaku vážená funkcí A v poloze obsluhy
Epätarkkuus	Usikkerhet	Погрешность	Niepewność pomiaru	Nejistota
A-painotettu äänenteho A-vektet lydeffektnivá	Уровень А-взвешенной звуковой мощности		A-ważony poziom natężenia hałasu	Hladina akustického výkonu vážená funkcí A
Epätarkkuus	Usikkerhet	Погрешность	Niepewność pomiaru	Nejistota
Standardin IEC 60335-2-91 mukaiset tärinäarvot	Totale vibrasjonsverdier bestemt i henhold til IEC 60335-2-91	Общие значения вибрации получены в соответствии со стандартом IEC 60335-2-91	Łączne poziomy wibracji określone zgodnie z normą IEC 60335-2-91	Hodnoty vibrací celkem určeny podle EN 60745-1
Tärinäpäästöarvo	Verdien på utslippet fra vibreringen	Значение вибрационного воздействия	Poziom emisji wibracji	Úroveň vibrací
Etukädensija	Fremre håndtak	Передняя ручка	Uchwyt przedni	Přední rukojeť
Takakädensija	Bakre håndtak	Задняя ручка	Uchwyt tylny	Zadní rukojeť
Epätarkkuus	Usikkerhet	Погрешность	Niepewność pomiaru	Nejistota

Suomi Norsk		Русский	Polski Čeština
Akku ja laturi	Batteri og lader	Аккумуляторная батарея и зарядное устройство	Akumulator i ładowarka	Nabiječka a baterie
Malli Modell Модель Model	Model
Akku	Batteri	Аккумулятор	Akumulator	Baterie
Vekt	Paino	Вес	Greutate	Waga
Laturi	Lader	Зарядное устройство	Ładowarka	Nabiječka
Yhteensopivat akut	Kompatible batteripakker Совместимая аккумуляторная батарея		Pasujące akumulatory	Kompatibilní akumulátory
Yhteensopiva laturi	Kompatibel lader	Совместимое зарядное устройство	Odpowiednia ładowarka Kompatibilní nabiječka
Varaosat	Erstatningsdeler	Запасные части	Części zamienne	Náhradní dilly
Siiman vaihtaminen	Skifle av trăd	Замена лески	Wymiana żyłki	Výměna struny
Täydellinen kela	Fullstendig spole	Катушка в сборе	Kompletna szpula	Úplná cívka
Magyar Română Latviski Lietuviškai
Termék müszaki adatai Specifi- cațiile produsului Produkta specifikacijas Gaminio techninės savybės
Vezetėk nélküli fūkaszát Motocoasa cu accumulator de tuns gazonul		Bezvadu zāles trimmeris Belaide pievelės žoliapjovė
Típus	Model	Modelis	Modelis	RY36ELTX33A/RY36ELTX33A-140
Névleges feszültsėg	Tensiunea nominală	Nominālais spriegums	Nominali įtampa	36 V d.c.
Üresjáratí fordulatszám	Vitezā fārā sarcinā	Ātrums bez slodzes	Greitis be apkrovimo
Magas fordulatszám	Vitezā mare	Leli apgriezieni	Didelis greitis	5,300 /min
Alacsony fordulatszám	Vitezā redusā	Mazi apgriezieni	Mažas greitis	5,100 /min
Vágószál átmérő	Diametru fir de tāiere	Griezējvada diametrs	Pjovimo linijos diametras	2,0 mm
Vágási teljesítmény	Lungimea de tāiere	Griešanas dzilums	Pjovimo talpa	330 mm / 280 mm
Tömeg (akkumulátor nélkül)	Greutate (fārā accumulator)	Svars (bez baterijas)	Svoris (be baterijos)	3,8 kg
Maximális tömeg a legne-hezebb csomaggal és a tartozékokkal együtt	Greutatea maximā brutā a coletului și accesoriiilor celor mai grele	Maksimālais svars smagākajā komplektācijas un aksesuāru versijā	Maksimalus svoris su sunkiau-siu bloku ir priedu	5,9 kg
Hangkibocsátási szint (az EN 50636-2-91 CC függeléke szerint)	Nivel emisie zgomot (în conformitate cu Anexa CC a EN 50636-2-91)	Trokšņu emisijas līmenis (saskaņā ar direktīvas EN 50636-2-91 CC pielikumu)	Skleidžiamo triukšmo lygis (pagal EN 50636-2-91 standarto CC priedą)
A-súlyozott hangnyomásszint a kezelő helyén	Nivel presiune sunet greutate A la pozitja operatorului	Lietotāja pozīcijā ir ar A novērtēts skaņas spiediena līmenis	A svorinis triukšmo slėgio lygis operatoriaus padėtyje	L_pA = 79,4 dB(A)
Bizonytalanság	Incertitudine	Nenoteiktība	Nepastovumas	K_PA = 3,0 dB
A-súlyozott hangteljesítményszint	Nivel de putere acusticā ponderatā A	A-līmeņa skaņas jaudas līmenis	A-svertinis akustinis lygis	L_WA = 92,6 dB(A)
Bizonytalanság	Incertitudine	Nenoteiktība	Nepastovumas	K_WA = 2,9 dB
A rezgėskibocsátási értékek meghatározása az IEC 60335-2-91 szabvány szerint törtėnt.	Valori ale vibratīllor determinate conform IEC 60335-2-91	Vibrāciju kopējās vērtības, kas noteiktas saskaņā ar IEC 60335-2-91	Vibracijos bendrosios vertės nustatytos pagal IEC 60335-2-91
Rezgės kibocsátási értéke	Vibration emission value	Vibrāciju veidošanās vērtība	Vibracijos emisijos vertė
Elūlsō fogantyú	Māner anterior	Priekšējais rokturis	Priekinė rankena	a_h = 4,2 / 3,2 m/s^2
Hátsó fogantyú	Māner posterior	Aizmugurējais rokturis	Galinė rankena	a_h = 3,2 / 3,2 m/s^2
Bizonytalanság	Incertitudine	Nenoteiktība	Nepastovumas	K = 1,5 m/s^2

Magyar	Română	Latviski	Lietuviškai
Akkumulátor és töltő	Bateria și încărcătorul	Akumulators un lădëtãjs	Akumuliatorius ir jkroviklis
Típus	Model	Modelis Modelis		RY36ELTX33A-0 RY36ELTX33A-140
Akkumulátor	Accumulator	Akumulators	Baterija	- BPL3640D2
Bec Tõmeg	Teža	Težina		- 1,4 kg
Töltő	Încărcător	Lădëtãjs	|kroviklis	- RY36C17A
Kompatibilis akkumulátorok	Accumulatori compatibili	Savietojami akumulatoru komplekti	Suderinami baterijos paketai	BPL3615, BPL3626, BPL3640, BPL3620D, BPL3626D, BPL3640D, BPL3650D, BPL3626D2, BPL3650D2, BPL3640D2, BPL3660D, RY36B60A, BPL3690D, RY36B90A
Kompatibilis töltő	Încărcător compatibil	Saderîgs lădëtãjs	Tinkamas jkroviklis	BCL3617S, BCL3620, BCL3620S, BCL3650F, BCL3617U, BCL3660F, RY36C17A
Cserealkatrészek	Plese de schimb	Rezerves dajas	Atsarglnės detalės
Damilcsere	Înlocuirea firului	Auklas nomaiņa	Vielos keitimas	RAC102, RAC103, RAC133
Teljes orsó	Mosor complet	Spole komplektā	Pilna rité	RAC159

The declared vibration value has been measured with a standard test method and may be used to compare one tool with another.

The declared vibration value may be used in a preliminary assessment of exposure.

The vibration emission during actual use of power tool can differ from the declared total value depending on the ways in which the tool is used.

Identify safety measures to protect yourself based on an estimation of exposure in the actual conditions of use, taking account of all parts of the operating cycle such as the times when the tool is switched off and when it is running idle in addition to the trigger time.

In addition to any statutory rights resulting from the purchase, this product is covered by a warranty as stated below.

1. The warranty period is 24 months for consumers and commences on the date when the product was purchased. This date has to be documented by an invoice or other proof of purchase. The product is designed and dedicated to consumer and private use only. So there is no warranty provided in case of professional or commercial use. This warranty applies only on new products.

2. There is a possibility to extend for a part of the range of power tools (AC/DC) the warranty period over the period described above using the registration on the www.ryobitools.eu website. The eligibility of products for extended warranty is clearly displayed in stores and / or on packaging and is contained within the product documentation. The end user is required to register his/her newly-acquired products online within 30 days from the date of purchase. The end user may register for the extended warranty in his/her country of residence if listed on the online registration form where this option is valid. Furthermore, end users must give their consent to the storage of their personal data that is required to be entered online. They must also accept the terms and conditions. The registration confirmation receipt, which is sent out by e-mail, and the original invoice showing the date of purchase will serve as proof of the extended warranty.

3. The warranty covers all defects of the product during the warranty period due to faults in workmanship or material at the purchase date. The warranty is limited to repair and/or replacement and does not include any other obligations including but not limited to incidental or consequential damages. The warranty is not valid if the product has been misused, used contrary to the instruction manual, or has been incorrectly connected to a power supply. This warranty does not apply to:

– any damage to the product that is the result of improper or lack of maintenance

—any product that has been altered or modified

– any product where original identification (trade mark, serial number) markings have been defaced, altered or removed

–any damage caused by non-observance of the instruction manual

–any product not displaying the CE approval mark on the rating plate

– any product that has been attempted to be repaired by a non-authorised warranty service centre or without prior authorisation by Techtronic Industries

–any product connected to improper power supply (amps, voltage, frequency)

– any product used with inappropriate fuel mixture (fuel, oil, ratio of oil/ fuel mixture)

– any damage caused by external influences (water, chemical, physical, shocks) or foreign substances

-normal wear and tear spare parts

-inappropriate use,overloading of the tool

-use of non-approved accessories or parts

- Accessories provided with the tool or purchased separately including but not limited to blades, saw chains, cutting lines, etc.

—Any periodic adjustments to or maintenance cleaning of carburettors

- Components (parts and accessories) subject to natural wear and tear, including but not limited to bump knobs, drive belts, clutch, blades of hedge trimmers or lawn mowers, harness, cable throttle, carbon brushes, power cord, tines, felt washers, hitch pins, blower fans, blower and vacuum tubes, vacuum bag and straps, guide bars, saw chains, hoses, connector fittings, spray nozzles, wheels, spray wands, inner reels, outer spools, cutting lines, spark plugs, air filters, gas filters, mulching blades, etc.

1. For servicing, the product must be sent or presented to a RYOBI authorised service station listed for each country in the following list of service station addresses. In some countries your local RYOBI dealer undertakes to send the product to the RYOBI service organisation. When sending a product to a RYOBI service station, the product should be safely packed without any dangerous contents such as petrol, marked with sender's address and accompanied by a short description of the fault.

2. A repair / replacement under this warranty is free of charge. It does not constitute an extension or a new start of the warranty period. Exchanged parts or products become our property. In some countries delivery charges or postage will have to be paid by the sender. Your statutory rights arising from the purchase of the product remain unaffected.

3. This warranty is valid in the European Community, Switzerland, Iceland, Norway, Liechtenstein, Turkey and Russia. Outside these areas, please contact your authorised RYOBI dealer to determine if another warranty applies.

AUTHORISED SERVICE CENTRE

To find an authorised service centre near you, visit http://uk.ryobitools.eu/header/service-and-support/service-agents.

FR RYOBI® CONDITIONS D'APPLICATION DE LA GARANTIE

DECLARATION OF CONFORMITY

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Herewith we declare that the product

Cordless Line Trimmer

Brand: RYOBI

Model number: RY36ELTX33A

Serial number range:

RY36ELTX33A: 47519001000001 - 47519001999999

is in conformity with the following European Directives and harmonised standards

2006/42/EC, 2014/30/EU, 2011/65/EU, EN 60335-1:2010+A11:2014+A13:2017,

EN 50636-2-91:2014, EN 55014-1:2017, EN 55014-2:2015, EN IEC 63000:2018

Measured sound power level: 92.6 dB(A)

Guaranteed sound power level: 96 dB(A)

Conformity assessment method to Annex VI Directive 2000/14/EC amended by 2005/88/EC.

Notified body, 0197 TÜV Rheinland LGA Products GmbH; Tillystraße 2 D - 90431

Nürnberg, Germany has carried out EC type approval.

CE

Todd Chipner

Sr. Director, CPT Quality and Asia Regulatory & Safety

Winnenden, Dec. 31, 2019

Authorised to compile the technical file:

Alexander Krug, Managing Director

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Winnenden, Dec. 31, 2019

Max-Eyth-Straße 10, 71364 Winnenden, Germany

DÉCLARATION DE CONFORMITÉ

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Winnenden, Dec. 31, 2019

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Winnenden, Dec. 31, 2019

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Winnenden, Dec. 31, 2019

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Winnenden, Dec. 31, 2019

Max-Eyth-Straße 10, 71364 Winnenden, Germany

NL CONFORMITEITSVERKLARING

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Winnenden, Dec. 31, 2019

Max-Eyth-Straße 10, 71364 Winnenden, Germany

DA OVERENSSTEMMELSESERKLÆRING

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Vi erklærer hermed, at produktet

Winnenden, Dec. 31, 2019

Max-Eyth-Straße 10, 71364 Winnenden, Germany

KONFORMITETSDEKLARATION

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Winnenden, Dec. 31, 2019

Max-Eyth-Straße 10, 71364 Winnenden, Germany

SAMSVARSERKLÆRING

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Winnenden, Dec. 31, 2019

Max-Eyth-Straße 10, 71364 Winnenden, Germany

SÄÄNNÖSTEN NOUDATTAMINEN

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Winnenden, Dec. 31, 2019

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Winnenden, Dec. 31, 2019

Max-Eyth-Straße 10, 71364 Winnenden, Germany

PL DEKLARACJA ZGODNOŚCI

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Winnenden, Dec. 31, 2019

Max-Eyth-Straße 10, 71364 Winnenden, Germany

HU MEGFELELŐSÉGI NYILATKOZAT

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Winnenden, Dec. 31, 2019

Max-Eyth-Straße 10, 71364 Winnenden, Germany

CS PROHLÁŠENÍ O SHODĚ

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Winnenden, Dec. 31, 2019

Max-Eyth-Straße 10, 71364 Winnenden, Germany

RO DECLARATIE DE CONFORMITATE

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Winnenden, Dec. 31, 2019

Alexander Krug, Director General

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

ATBILSTĪBAS DEKLARĀCIJA

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Winnenden, Dec. 31, 2019

Max-Eyth-Straße 10, 71364 Winnenden, Germany

VASTAVUSDEKLARATSIOON

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Kinnitame, et see toode

Juhtmeta murutrimmeri

Mark: RYOBI

Mudeli number: RY36ELTX33A

Winnenden, Dec. 31, 2019

Max-Eyth-Straße 10, 71364 Winnenden, Germany

ATITIKTIES DEKLARACIJA

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Winnenden, Dec. 31, 2019

Max-Eyth-Straße 10, 71364 Winnenden, Germany

IZJAVA O USKLAĐENOSTI

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Winnenden, Dec. 31, 2019

Max-Eyth-Straße 10, 71364 Winnenden, Germany

IZJAVA O SKLADNOSTI

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Winnenden, Dec. 31, 2019

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Winnenden, Dec. 31, 2019

Max-Eyth-Straße 10, 71364 Winnenden, Germany

PREHLÁSENIE O ZHODE

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Winnenden, Dec. 31, 2019

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Winnenden, Dec. 31, 2019

Max-Eyth-Straße 10, 71364 Winnenden, Germany

UYGUNLUK BEYANI

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Winnenden, Dec. 31, 2019

Max-Eyth-Straße 10, 71364 Winnenden, Germany

EN RYOBI is a trademark of Ryobi Limited, and is used under license. © 2019 Techtronic Cordless GP. All rights reserved.

71364 Winnenden, Germany

961008048-01
