USER MANUAL IHP 6.5F C M IX INDESIT

Operating Instructions

COOKER HOOD

Contents

Operating Instructions,1

Warnings,10

Assistance,31

Installation,35

PYRAMID controls,36

Maintenance and care,37

Troubleshooting,38

PT

Portuges

Illustration of two gloves with a warning symbol (no text or labels)

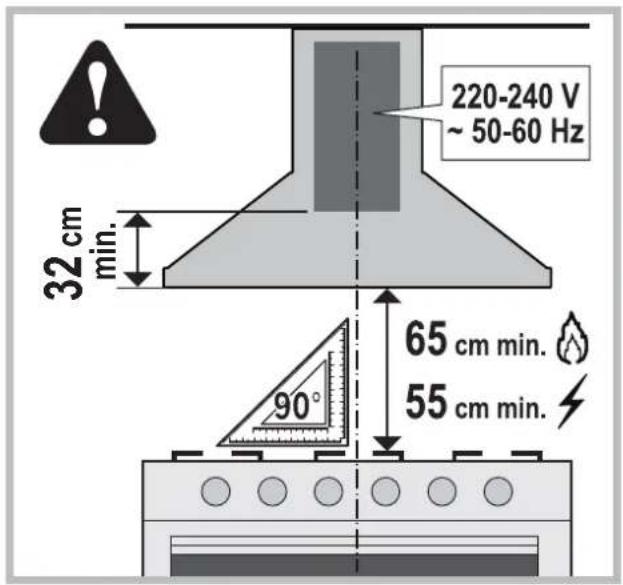

220-240 V ~ 50-60 Hz 32 cm min. 65 cm min. 90° 55 cm min.

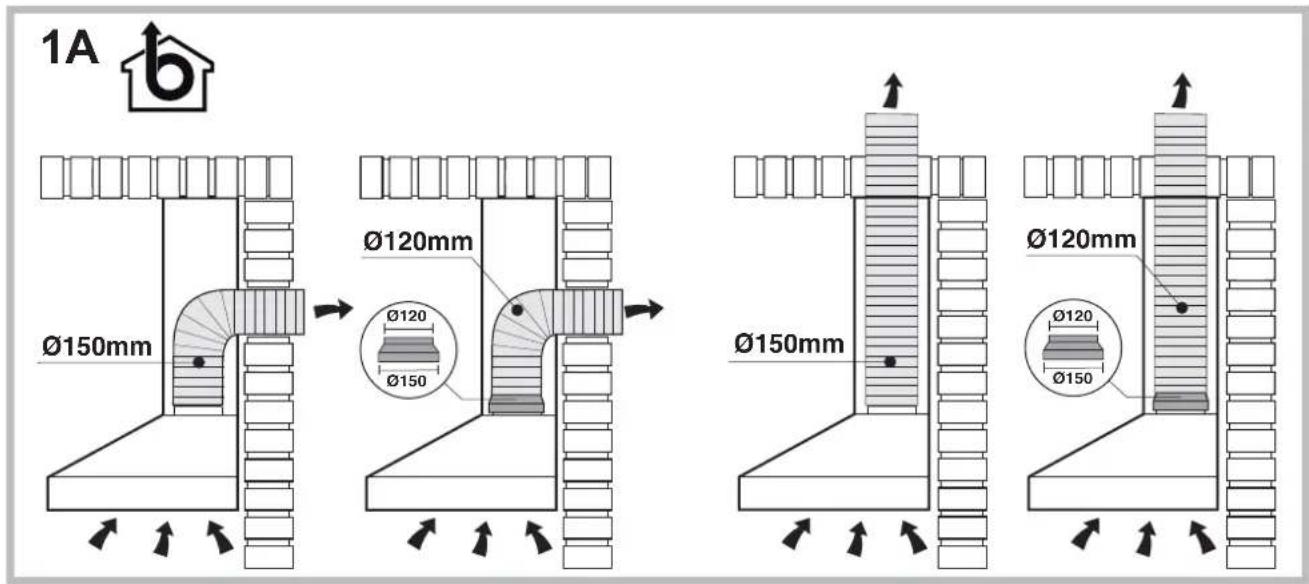

1A Ø150mm Ø120mm Ø120 Ø150 Ø150mm Ø120mm Ø120 Ø150

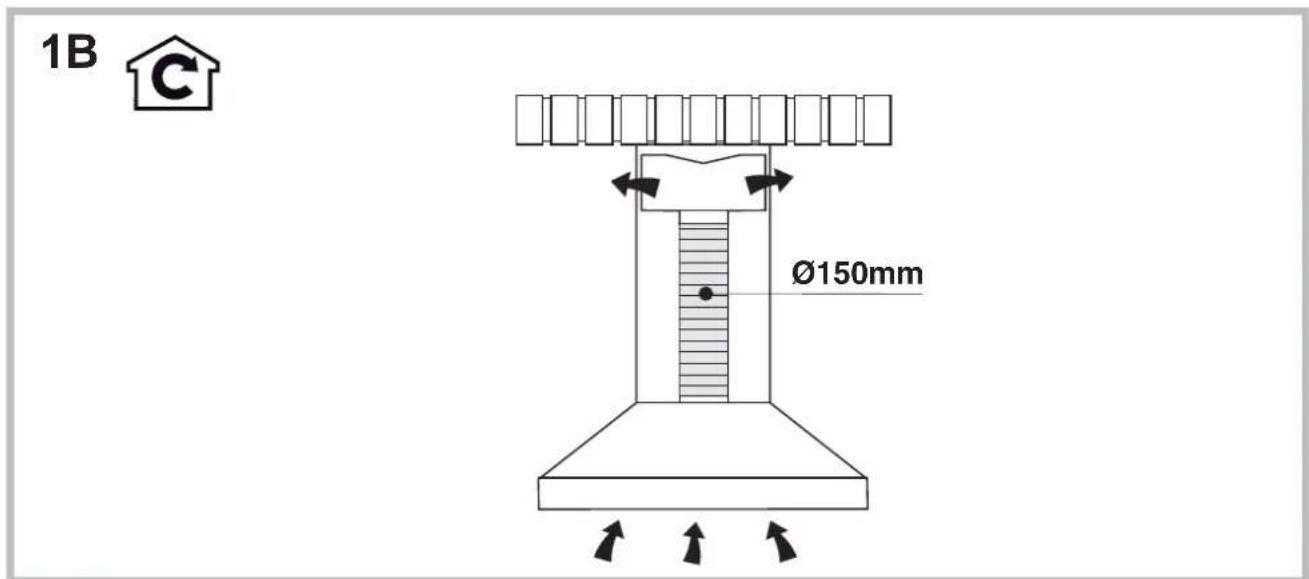

1B Ø150mm

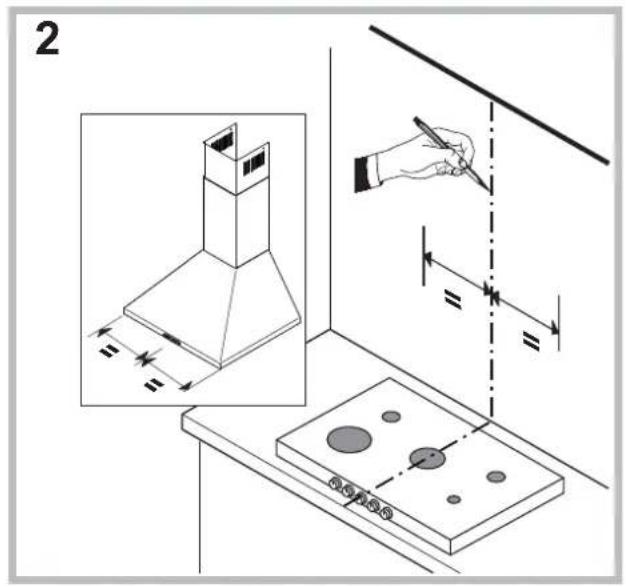

2

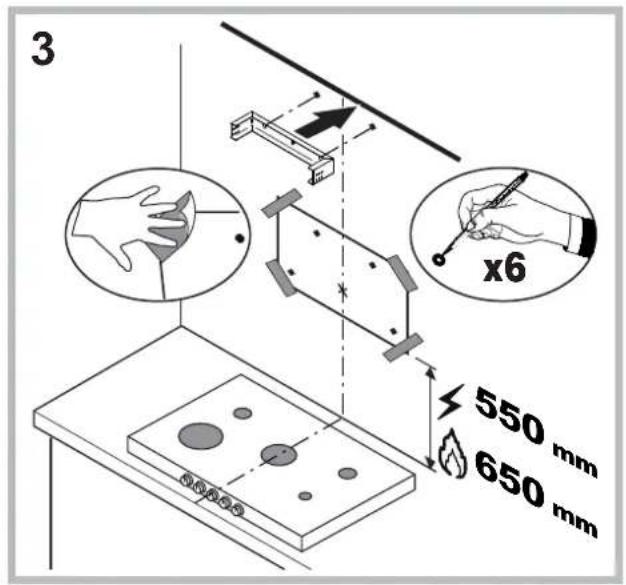

3 x6 550 mm 650 mm

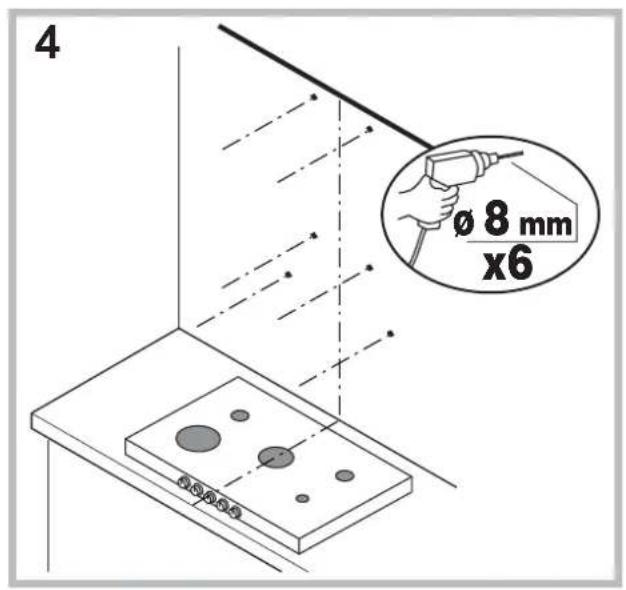

4 Ø 8 mm x6

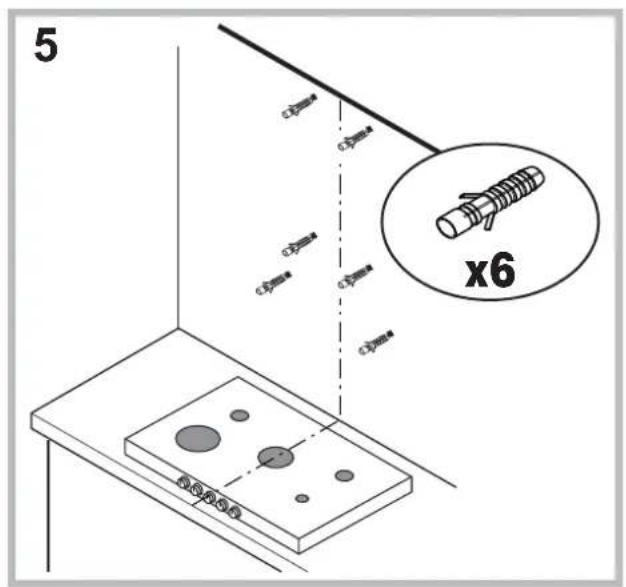

5 x6

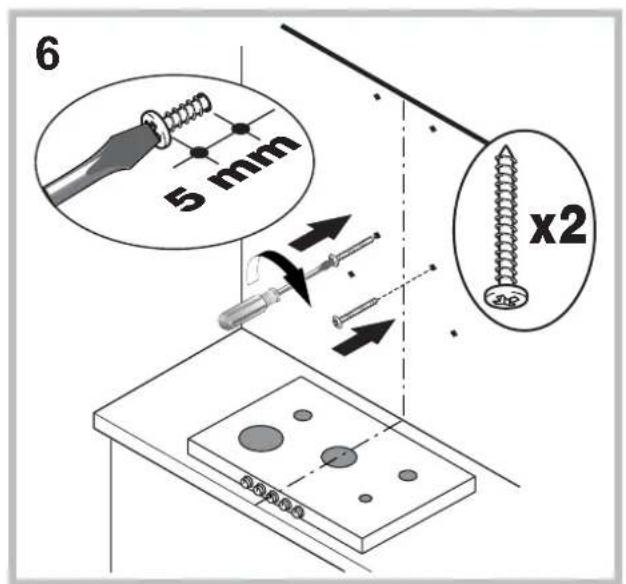

6 5 mm x2

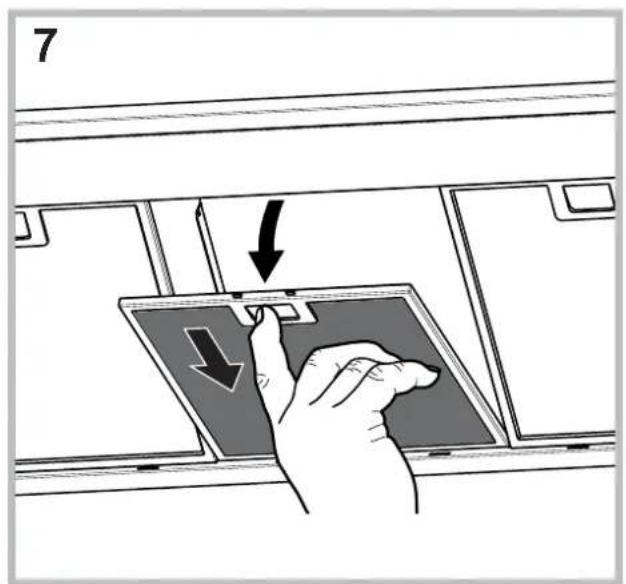

7

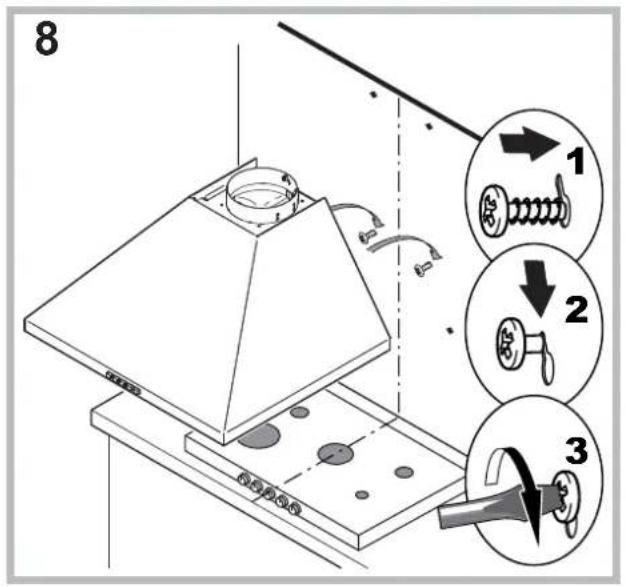

8 1 2 3

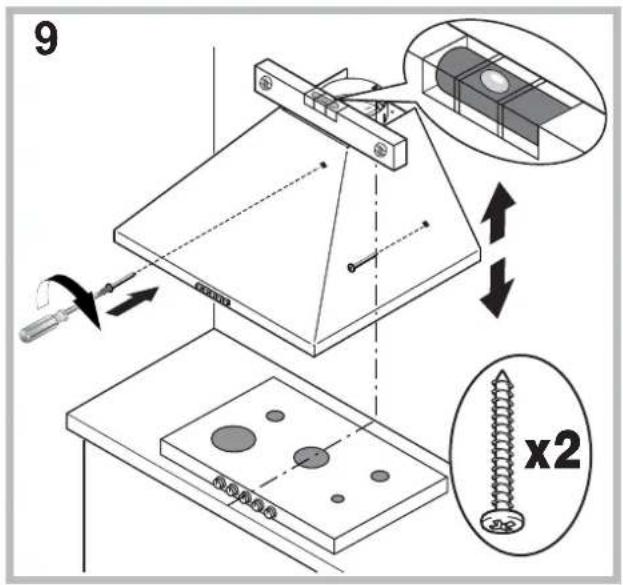

9 x2

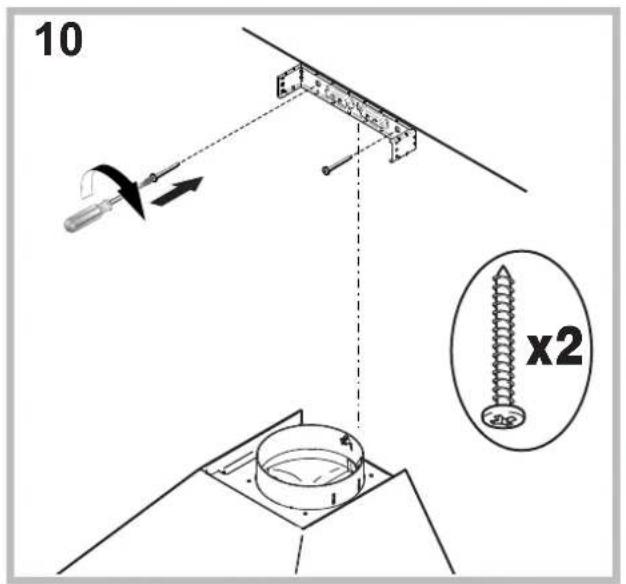

10 x2

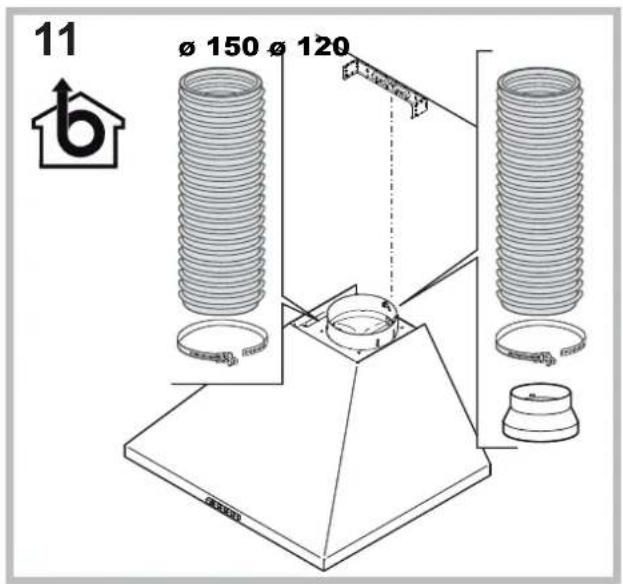

11 ø 150 Ø 120 b

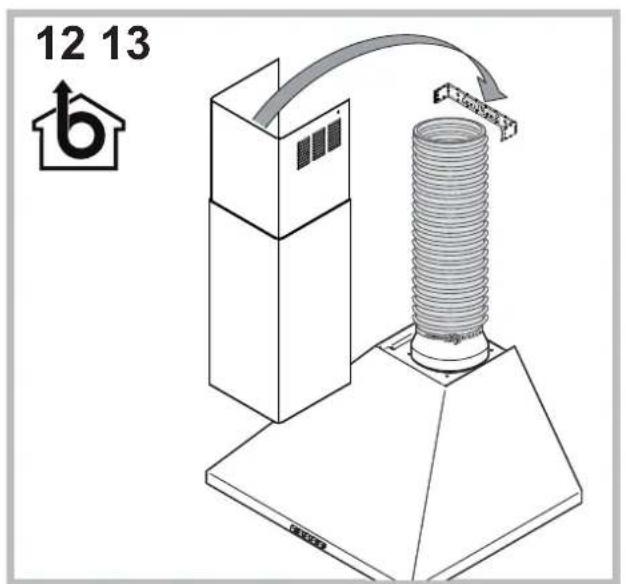

12 13 b

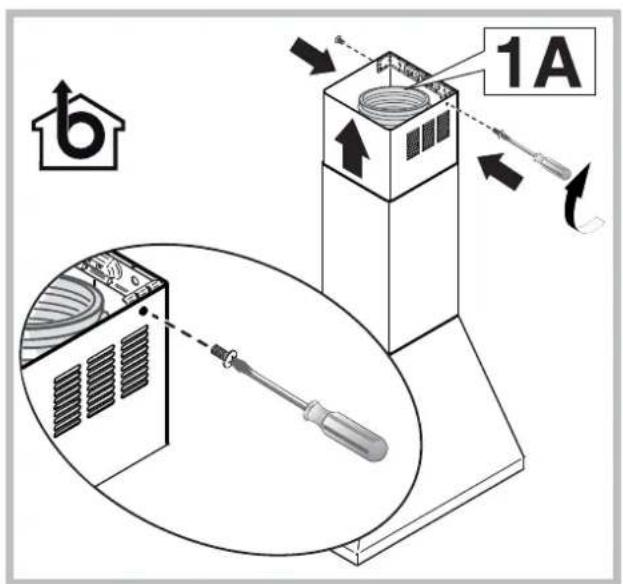

1A b

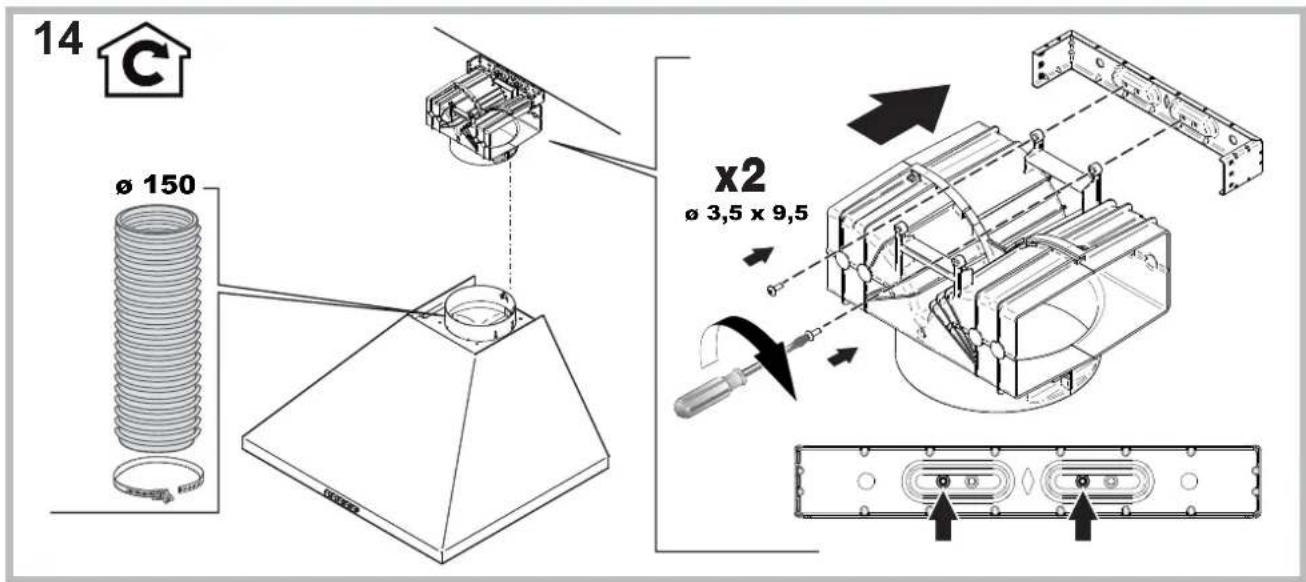

14 ø 150 x2 ø 3,5 x 9,5

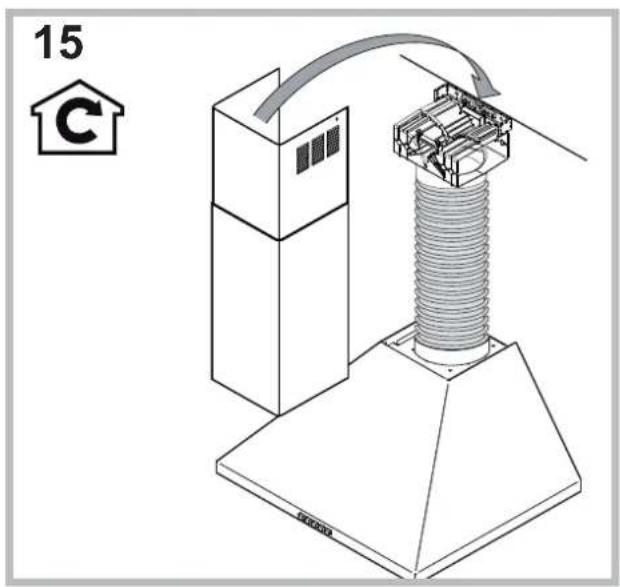

15 C

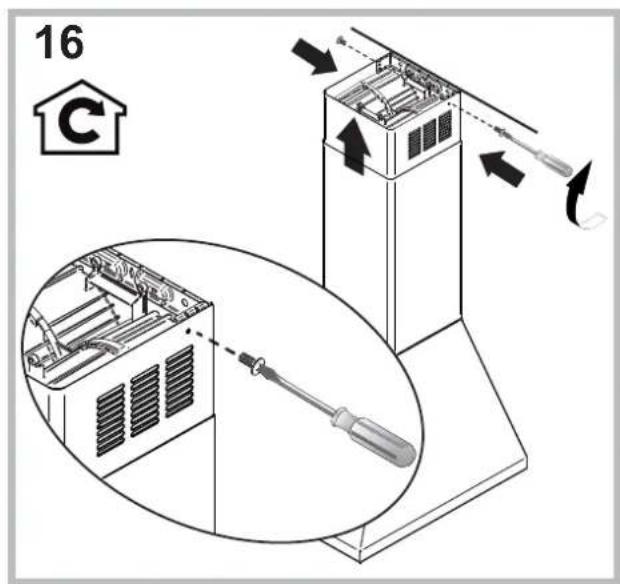

16 C

17 18 C B

C A

IT

Avvertenze

! Keep this manual for reference. If you sell, transfer or move the unit to another location, make sure to keep the manual with the product.
! Read the instructions carefully - they contain important installation, user and safety information.
! Do not tamper with the electrical or mechanical equipment of the product or its exhaust ducts.

General safety information

- The distance between the cookware support surface on top of the cooking appliance and the lowest part of the cooker hood must be at least:

65 cm if the hood is installed over a gas cooktop
55 cm if the hood is installed over an electric cooktop.

If the installation instruction manual for the gas cooking appliance specifi es a greater distance, this measurement should be taken into account.

- The cooker hood comes with anchor plugs which are suitable for use with most walls/ceilings.

However, you must contact a qualified technician to check the suitability of the materials in relation to the type of wall/ceiling, which must be strong enough to support the weight of the unit.

- Caution! Do not hook the unit up to its electrical power supply until the

installation has been completed.

- Before cleaning or servicing the unit, disconnect it from the mains by pulling the power plug or disconnecting the main circuit breaker.

- Always wear work gloves when installing and servicing the unit.

- It is not intended for use by children or persons with sensory or mental disability and lack of experience or familiarity, except under the supervision or instruction of a person responsible for their safety.

- Make sure children do not play with the unit.

- Never operate the unit without its grease filter installed!

- NEVER use the hood as a support, unless expressly instructed to do so.

- The room must be adequately ventilated if the hood is used at the same time with other equipment burning gas or other fuels.

- Extracted air must not be conveyed into a duct used for exhausting combustion fumes from gas or other fuel-fired equipment.

- Observe all regulations in relation to air extraction.

- NEVER cook food with an open flame under the hood; open flames will damage the filters and may cause fires. Never do this.

• Always supervise frying to make sure the heated oil does not catch fire.

- Strictly observe all local regulations

in relation to the technical and safety measures to be employed in fumes extraction.

• Clean the product frequently, inside and out (AT LEAST ONCE A MONTH, and in observance of the maintenance instruction given in this manual).
• Failure to observe the hood cleaning and fi Iter cleaning/replacement instructions can result in fi res.
• Never use the hood without its bulbs properly installed - electrocution hazard.
• The manufacturer is not liable for any inconvenience, damage or fire caused by the unit as a result of failure to observe the instructions given in this manual.
• Caution! The unit's accessible parts can get very hot when used with cooking equipment.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

FR

Avertissements

! Never use the services of an unauthorised technician.

Please have the following information to hand:
• The type of problem encountered.
• The appliance model (Mod.).
• The serial number (S/N).
The latter two pieces of information can be found on the data plate located on the appliance.

FR

Assistance

servis =444 50 10

INDESIT COMPANY BEYAZ EŞYA PAZARLAMA A.Ş. Karahasan Sok. No:11 Balmumcu 34349 Begiktaş/Istanbul TEL: [phone]

FAKS: ([phone]

WEB: www.hotpoint-arls.tpn.com.tr

• "Low voltage" Directive 2006/95/EC (12-12-2006)

- "EMC" Directive 2004/108/EC (15-12-2004)

Diagram showing a hand pressing down an object with labeled arrows and letter A, likely illustrating a mechanical or electrical process.

Technical diagram showing mechanical assembly with labeled component B and directional arrows indicating motion or force

Technical diagram showing a circular component with an arrow pointing to it, mounted on a platform (no text or symbols present)

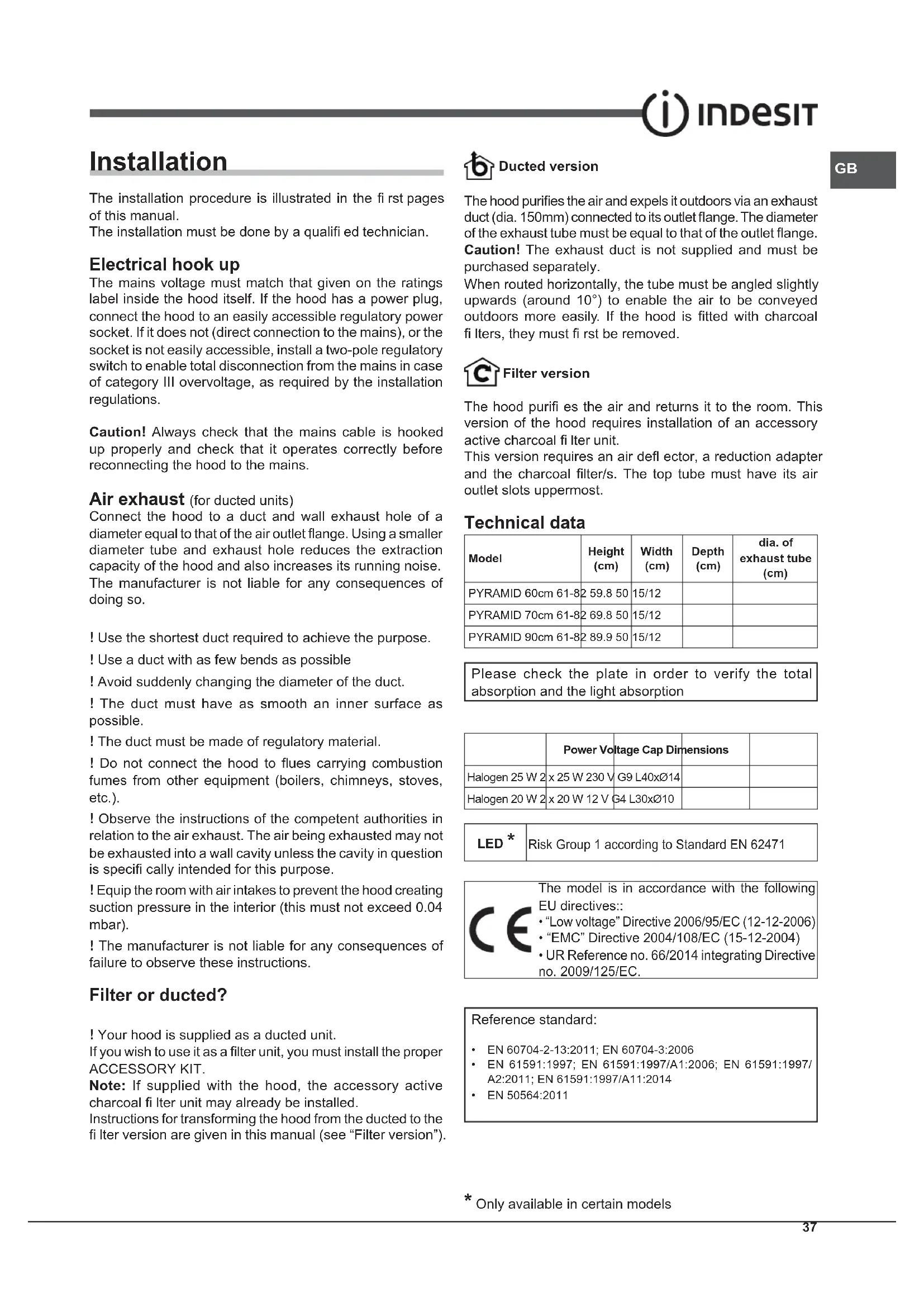

The installation procedure is illustrated in the first pages of this manual.

The installation must be done by a qualified technician.

Electrical hook up

The mains voltage must match that given on the ratings label inside the hood itself. If the hood has a power plug, connect the hood to an easily accessible regulatory power socket. If it does not (direct connection to the mains), or the socket is not easily accessible, install a two-pole regulatory switch to enable total disconnection from the mains in case of category III overvoltage, as required by the installation regulations.

Caution! Always check that the mains cable is hooked up properly and check that it operates correctly before reconnecting the hood to the mains.

Air exhaust (for ducted units)

Connect the hood to a duct and wall exhaust hole of a diameter equal to that of the air outlet flange. Using a smaller diameter tube and exhaust hole reduces the extraction capacity of the hood and also increases its running noise. The manufacturer is not liable for any consequences of doing so.

! Use the shortest duct required to achieve the purpose.

! Use a duct with as few bends as possible

! Avoid suddenly changing the diameter of the duct.

! The duct must have as smooth an inner surface as possible.

! The duct must be made of regulatory material.

! Do not connect the hood to flues carrying combustion fumes from other equipment (boilers, chimneys, stoves, etc.).

! Observe the instructions of the competent authorities in relation to the air exhaust. The air being exhausted may not be exhausted into a wall cavity unless the cavity in question is specifically intended for this purpose.

! Equip the room with air intakes to prevent the hood creating suction pressure in the interior (this must not exceed 0.04 mbar).

! The manufacturer is not liable for any consequences of failure to observe these instructions.

Filter or ducted?

! Your hood is supplied as a ducted unit.

If you wish to use it as a filter unit, you must install the proper ACCESSORY KIT.

Note: If supplied with the hood, the accessory active charcoal filter unit may already be installed.

Instructions for transforming the hood from the ducted to the filter version are given in this manual (see "Filter version").

Ducted version

The hood purifies the air and expels it outdoors via an exhaust duct (dia. 150mm) connected to its outlet flange. The diameter of the exhaust tube must be equal to that of the outlet flange.

Caution! The exhaust duct is not supplied and must be purchased separately.

When routed horizontally, the tube must be angled slightly upwards (around 10^ ) to enable the air to be conveyed outdoors more easily. If the hood is fitted with charcoal fi Iters, they must fi rst be removed.

Filter version

The hood purifi es the air and returns it to the room. This version of the hood requires installation of an accessory active charcoal fi Iter unit.

This version requires an air defl ector, a reduction adapter and the charcoal filter/s. The top tube must have its air outlet slots uppermost.

Technical data

Model	Height (cm)	Width (cm)	Depth (cm)	dia. of exhaust tube (cm)
PYRAMID 60cm 61-82	59.8 50	15/12
PYRAMID 70cm 61-82	69.8 50	15/12
PYRAMID 90cm 61-82	89.9 50	15/12

Please check the plate in order to verify the total absorption and the light absorption

	Power Voltage Cap Dimensions
Halogen 25 W 2	x 25 W 230 V	G9 L40x∅14
Halogen 20 W 2	x 20 W 12 V	G4 L30x∅10

LED*	Risk Group 1 according to Standard EN 62471

CE	The model is in accordance with the following EU directives::"Low voltage" Directive 2006/95/EC (12-12-2006)"EMC" Directive 2004/108/EC (15-12-2004)UR Reference no. 66/2014 integrating Directive no. 2009/125/EC.

Reference standard:

• EN 60704-2-13:2011; EN 60704-3:2006
• EN 61591:1997; EN 61591:1997/A1:2006; EN 61591:1997/A2:2011; EN 61591:1997/A11:2014
• EN 50564:2011

GB

PYRAMID controls

Models with mechanical keypad

IHP6.5CMIX - IHP6.5FCM(K) - IHP6.5FCMIX

IHP9.5CMIX - IHP9.5FCMIX - IHP64.5SCMIX

IHP94.5SCMIX - IHP94.5CMIX - IHP64.5CMBK

IHP64.5CMIX - UHP64.5SFLMIX

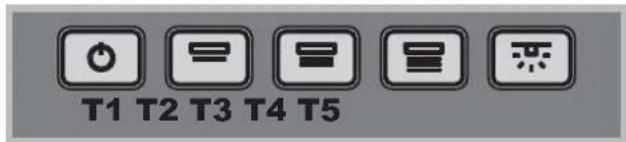

T1 T2 T3 T4 T5

T1 Motor reset

Pressing the button while the hood is in operation turns it OFF.

T2 Speed 1

Pressing the button sets the hood to speed 1.

T3 Speed 2

Pressing the button sets the hood to speed 2.

T4 Speed 3

Pressing the button sets the hood to speed 3.

T5 Lights ON/OFF

Maintenance and care

Caution! Before cleaning or servicing the unit, disconnect it from the mains by pulling the power plug or disconnecting the main circuit breaker.

First cleaning

• Remove the protective fi Im
• Clean with a damp sponge and a little neutral soap
• Rinse off with a damp cloth
• Dry with a soft cloth; if the hood is stainless steel, dry along the metal's grain

Periodic cleaning

The hood must be cleaned frequently (at least as often as you service the grease fi Iter), inside and out. Use a damp cloth and a neutral liquid detergent with lukewarm water.

Do not use abrasive or corrosive products.

Warning: Failure to observe the hood cleaning and filter cleaning/replacement instructions can result in fires. Follow the instructions carefully. The manufacturer is not liable for any damage to the motor or fi res caused by incorrect care or failure to follow the above instructions.

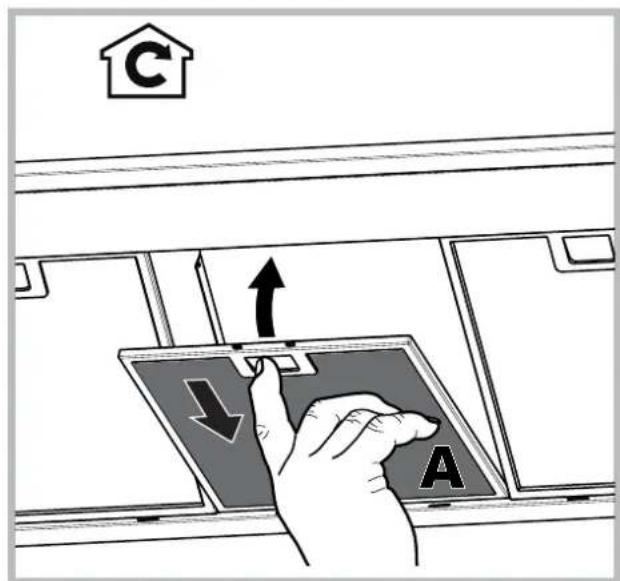

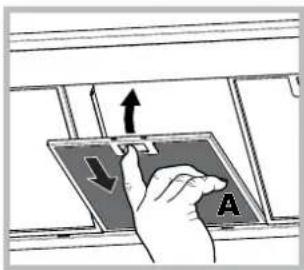

Servicing the grease fi Iter (A)

Diagram showing a hand pressing down an object with directional arrows and labeled point A, likely illustrating a mechanical or electrical concept.

The grease filter retains the particles of grease produced during cooking; it must be cleaned at least once a month with a non-aggressive detergent, either by hand or with a low temperature, short dishwasher cycle.

To extract the grease filter, pull the spring loaded handle.

If washed in a dishwasher, the metal filter may change colour, but this does not affect its performance.

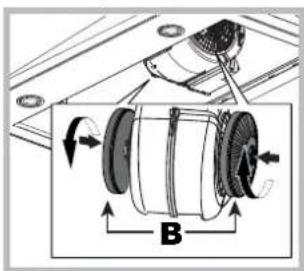

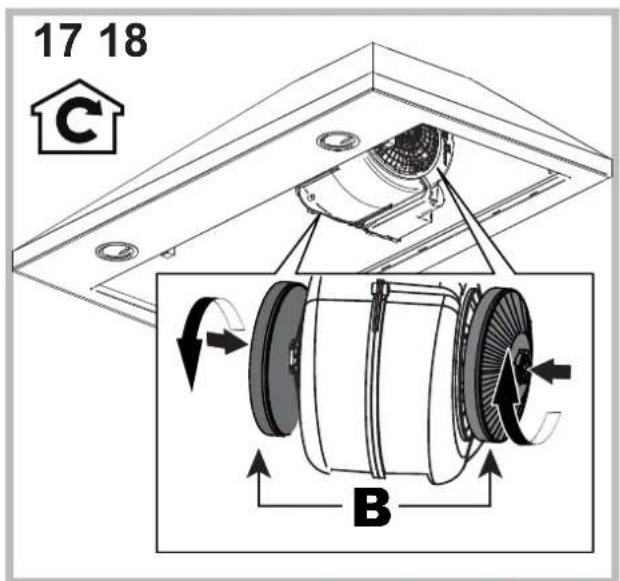

Servicing the charcoal fi Iter (B)

Technical diagram showing mechanical assembly with labeled component B and directional arrows indicating motion or force

The charcoal filter retains unpleasant cooking odours. The filter saturates after a variable time, depending on the type of cooking and how often the grease filter is cleaned. The cartridge must be replaced at least once every twenty months.

This filter can NOT be washed

or regenerated

Disassembly: Rotate the filter 90° to remove it from the suction assembly.

Assembly: Fit the active-carbon filter into the suction assembly and rotate it 90° to secure it in place.

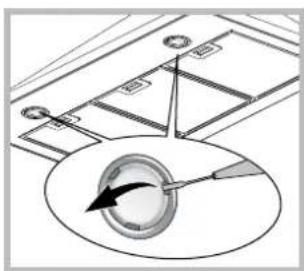

Replacing the bulbs

Disconnect the unit from the mains and remove the grease filter.

Caution! Make sure the bulbs are cool before touching them.

1. Extract the guard by prising it out with a small flat head screwdriver or something similar.

2. Replace the faulty bulb. Use only bulbs of the same type (for details, see the technical data in the following manual).

3. Refi t the guard (push it in).

Diagram showing a mechanical assembly with a central circular component and directional arrows, no text or symbols present.

Replacing the lights LED \*

The hood is fitted with a lighting system based on LED technology. The LEDs ensure optimal lighting, longer life and lower consumption compared with traditional lights. To replace them please contact the assistance service.

Electrical cable

If the power cable is damaged, it can be replaced by the manufacturer or his technical service, to prevent any attendant risks.

* Only available in certain models

SCRAPPING

The unit is marked for conformity with European Directive 2012/19/EC, Waste Electrical and Electronic Equipment (WEEE). By ensuring that the unit is scrapped properly, the user contributes to safeguarding the environment and public health.

The symbol on the product or on its accompanying documents indicates that the product may not be treated as domestic waste but must be handed over to a sorting centre for electrical and electronic waste. Dispose of it in accordance with local waste disposal regulations. For further information on the handling, recovery and recycling of this product, contact the local authority, domestic waste disposal service or the reseller from whom you purchased it

Save energy and respect the environment

• Please use the hood by setting the speed in line with the real extraction need; please limit the use of the "intensive speed" feature, if present. Using the hood in a rational way allows you to limit energy consumption and to avoid an useless waste of clean and air-conditioned air.
• Please don't turn on the hood light unless this is needed to light the cooking area.

Troubleshooting

If something does not work, make the following simple checks before contacting Technical Service:

If the hood does not operate:

Check that:

• the unit is powered up.
• a speed has been set.

If the hood is not working effectively:

Check that:

• the selected motor speed is sufficient to handle the amount of smoke and steam being produced.
• the kitchen is adequately ventilated for the unit to take air in.
  • the charcoal filter is not exhausted (filter version).

If the hood turns off during normal operation:

Check that:

• the unit is powered up.
• the circuit breaker has not tripped.

In case of faulty operation, before contacting Technical service, first disconnect the machine from the mains for at least 5 seconds by pulling its plug, then reconnect it. If the fault persist, contact Technical Service.

FR

Installation

Diagram showing a hand pressing a device with directional arrows and labeled parts A and B, indicating movement or action.

Technical diagram showing mechanical assembly with labeled component B and directional arrows indicating motion or force

Technical diagram showing a circular component with an arrow pointing to it, mounted on a platform (no text or symbols present)

• "Low voltage" Directive 2006/95/EC (12-12-2006)

• "EMC" Directive 2004/108/EC (15-12-2004)

Diagram showing a hand pressing a device labeled 'A' with an upward arrow and downward arrow indicating motion or change.

Technical diagram showing mechanical assembly with labeled component B and directional arrows indicating motion or force

Technical diagram showing a circular component with an arrow pointing to it, mounted on a platform (no text or symbols present)

Diagram showing a hand pressing a component labeled 'A' with an upward arrow, likely illustrating a mechanical or electrical process.

Technical diagram showing mechanical assembly with labeled component B and directional arrows indicating motion or force

Technical diagram showing a circular component with an arrow pointing to it, surrounded by structural beams and circular components (no text or symbols)

Diagram showing a hand pressing down an object with directional arrows and labeled section A

Technical diagram showing mechanical assembly with labeled component B and directional arrows indicating motion or force

Diagram of a mechanical assembly with a central circular component and surrounding components (no text or symbols)

Diagram showing a hand pressing a device labeled 'A' with an upward arrow, likely illustrating a mechanical or electrical component.

Technical diagram showing mechanical assembly with labeled component B and directional arrows indicating motion or force

Diagram of a mechanical assembly with a central rotating component and directional arrows (no text or labels)

NL

Diagram showing a hand pressing down an object with directional arrows and labeled points A and B, likely illustrating a mechanical or electrical concept.

Technical diagram showing mechanical assembly with labeled component B and directional arrows indicating motion or force

Diagram showing a hand pressing a component labeled 'A' with an upward arrow, likely illustrating a mechanical or electrical process.

Technical diagram showing mechanical assembly with labeled component B and directional arrows indicating motion or force

Diagram of a mechanical assembly with an arrow pointing to a circular component (no text or symbols present)

Diagram showing a hand pressing down on a device with directional arrows and labeled points A and B

Technical diagram showing mechanical assembly with labeled component B and directional arrows indicating motion or force

Technical diagram showing a circular component with an arrow pointing to it, surrounded by mechanical components (no text or symbols)

Diagram showing a hand pressing a device labeled 'A' with an upward arrow, indicating action or movement.

Technical diagram showing mechanical assembly with labeled component B and directional arrows indicating motion or force

Technical diagram showing a mechanical assembly with a central circular component and surrounding components (no text or labels)

Diagram showing a hand pressing a device with directional arrows and labeled component A

Technical diagram showing mechanical assembly with labeled component B and directional arrows indicating motion or force

Technical diagram showing a circular component with an arrow pointing to it, surrounded by mechanical components (no text or symbols)

Diagram showing a hand pressing a device with directional arrows and labeled component 'A'

Mechanical diagram showing a rotating component with labeled parts B and directional arrows (no text or symbols beyond labels)

Technical diagram showing a circular component with an arrow and a pointer, mounted on a structural frame (no text or symbols present)

SK

Diagram showing a hand pressing a tablet labeled 'A' with an upward arrow, indicating a movement or action.

Mechanical diagram showing a rotating component with labeled parts B and directional arrows (no text or symbols beyond labels)

Technical diagram showing a mechanical assembly with a central circular component and directional arrows (no text or labels)

Innovation Worldwide: Regions of the World's European Union, 2012/19/EC (WEEE). En opportunity to understand the global scope of the world's international development.

Diagram showing a hand pressing a component labeled 'A' with an upward arrow, indicating motion or force direction.

Technical diagram showing mechanical assembly with labeled component B and directional arrows indicating motion or force

Diagram of a mechanical assembly with a central circular component and directional arrows (no text or symbols)

Five gray square buttons with icons: power button, equals sign, equals sign, list, and refresh symbol (no text or labels)

T1 T2 T3 T4 T5

T1 إعادة ضبط المحرك
