Product Type	Outdoor/Indoor Wireless Security Camera
Brand	Eufy
Model	SoloCam E40 (T8130X / T8131X)
Power Supply	Rechargeable built-in battery, charges via micro USB cable
Connectivity	Wi-Fi 2.4 GHz (2,412 ~ 2,472 MHz)
Main Functions	Motion detection, night vision, two-way audio, live streaming, alarm
LED Indicators	Flashing blue (ready for setup), off (successful pairing), solid red (streaming/recording), flashing red (alarm), alternating blue/red (firmware update)
Compatible App	eufy Security (iOS and Android)
Installation	Wall or ceiling mount, included bracket, recommended height 2-3 m
Operating Temperature	0°C to 40°C
Recommended Charging Temperature	5°C to 25°C
Sensors	Motion sensor, photosensitive sensor, microphone
SYNC Button	Press 2s for setup mode, press 8s for reset
Compliance	CE, FCC, IC (NMB-003), Directive 2014/53/EU
RF Safety	Keep a distance of at least 20 cm from the body
Maintenance and Cleaning	Wipe with a soft, dry cloth; do not use harsh chemicals
Spare Parts and Repairability	Built-in battery not user-replaceable; contact customer service for repairs
General Information	Outdoor and indoor use, comes with micro USB cable and mounting kit

Frequently Asked Questions - SoloCam E40 eufy

How to set up the SoloCam E40 for the first time?

Download the eufy Security app from the App Store or Google Play. Create an account, tap 'Add Device' and follow the on-screen instructions. Make sure the camera is fully charged before setup.

How long does it take to charge the battery?

The charging time is not specified in the manual, but it is recommended to fully charge before first use. Use the provided micro USB cable and plug it into a power adapter (not included). The LED indicator turns off when charging is complete.

What is the Wi-Fi range?

The camera operates on the 2.4 GHz Wi-Fi band. Range depends on your environment, but for optimal performance, place the camera within 10 meters of the router or use a Wi-Fi extender.

Can the camera be used indoors?

Yes, the SoloCam E40 can be used both outdoors and indoors. It is weather-resistant (not specified, but designed for outdoor use) and can be mounted on a wall or ceiling.

How to mount the camera on the wall?

Use the included mounting bracket. Drill holes of 5.99 mm (15/64 in), insert wall anchors if needed, screw the base, then attach the camera by turning the bracket. Adjust the angle via the live view in the app.

What does the flashing red LED indicator mean?

A flashing red LED indicates an alarm has been triggered. Check the eufy Security app for event details.

How to reset the camera to factory settings?

Press and hold the SYNC button for about 8 seconds until the LED flashes blue. The camera will restart and be ready for a new setup.

Does the camera record continuously?

The SoloCam E40 primarily records on motion detection. You can configure detection zones and sensitivity via the app. Continuous recording is not mentioned in the manual.

What is the safe distance for RF exposure?

To comply with standards, maintain a distance of at least 20 cm between the camera and your body during use.

How to clean the camera?

Use a soft, dry cloth to clean the lens and housing. Do not use chemicals or abrasive cleaners that could damage the surface.

USER MANUAL SoloCam E40 eufy

Anker Innovations Limited. All rights reserved.eufy Security and eufy Security Logo are trademarks of Anker Innovations Limited, registered in the United States and other countries. All other trademarks are the property of their respective owners.

51005002337 V04

English

Deutsch

Espanol

Français

Italiano

Nederlandsl

TABLE OF CONTENTS

What's Included

0104

Setting up eufyCam Solo / Solo Pro

Product Overview

02 05

Mounting eufyCam Solo / Solo Pro

Charging your eufyCam

Solo/Solo Pro

03 08

Notice

WHAT'S INCLUDED

For eufyCam Solo / Solo Pro Installation

eufyCam Solo / Solo Pro Model:T8130X/T8131X

USB Cable

Mounting Bracket

Mounting Screw Pack

User Manual

PRODUCT OVERVIEW

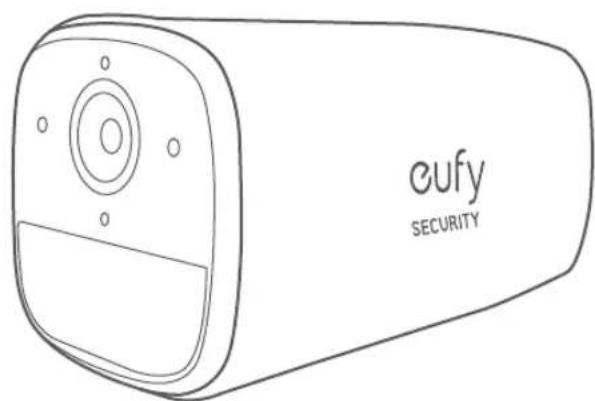

eufyCam Solo / Solo Pro

I. LED Indicator
2. Camera Lens
3. Microphone
4. Motion Sensor
5. Photosensitive Sensor

1. Micro USB Charging Port
2. Mounting Hole
   8.SYNCBullon Press for 2s to enter setup mode
3. Press for 8s to reset

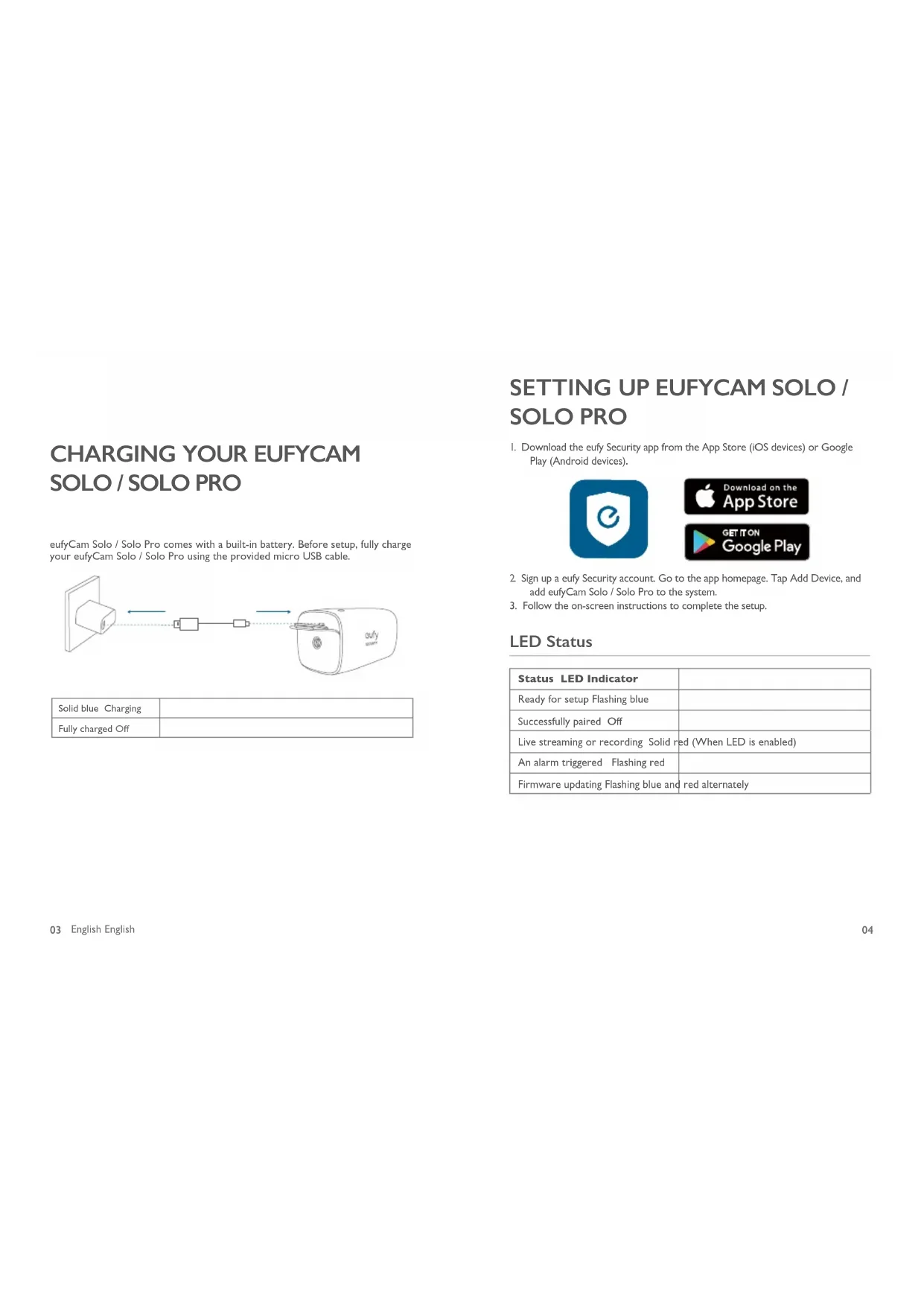

CHARGING YOUR EUFYCAM SOLO/SOLO PRO

eufyCam Solo / Solo Pro comes with a built-in battery. Before setup, fully charge your eufyCam Solo / Solo Pro using the provided micro USB cable.

Solid blue Charging
Fully charged Off

SETTING UP EUFYCAM SOLO / SOLO PRO

1. Download the eufy Security app from the App Store (iOS devices) or Google Play (Android devices).

1. Sign up a eufy Security account. Go to the app homepage. Tap Add Device, and add eufyCam Solo / Solo Pro to the system.
2. Follow the on-screen instructions to complete the setup.

LED Status

Status LED Indicator
Ready for setup Flashing blue
Successfully paired Off
Live streaming or recording Solid red (When LED is enabled)
An alarm triggered Flashing red
Firmware updating Flashing blue and red alternately

MOUNTING EUFYCAM SOLO / SOLO PRO

Select a Location

eufyCam Solo / Solo Pro can be mounted on a wall or ceiling. Select a location where you can get the desired view. We recommend hanging it 7-10 ft (2-3 m) above the ground.

Mount eufyCam Solo / Solo Pro

eufyCam Solo / Solo Pro can be mounted both outdoors and indoors.

1. Turn the knob of the mounting bracket clockwise to loosen and disassemble it.

1. Place the mounting bracket against the wall. Drill holes with a 15/64 inch (5.99 mm) drill bit, then insert the anchors into the holes; anchors are necessary for walls that are made out of hard materials such as concrete, brick, or stucco.

1. Firmly screw the base of the mounting bracket onto the wall. Fasten the ball knob of the bracket to the base of the bracket.

1. Tighten eufyCam Solo / Solo Pro to the mounting bracket. Rotate the eufy Indoor Cam to adjust the view and check it using the live stream which you can access in the eufy Security app.

eufyCam Solo / Solo Pro can be also installed on the ceiling. Follow the steps 1-4 mentioned above to install it.

You are now all set to use your eufyCam Solo / Solo Pro.

For troubleshooting, check Help on the eufy Security app. Refer to the app page for LED indicator status.

NOTICE

FCC Statement

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Warning: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: (1) Reorient or relocate the receiving antenna. (2) Increase the separation between the equipment and receiver. (3) Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. (4) Consult the dealer or an experienced radio/TV technician for help.

FCC Radio Frequency Exposure Statement

The device has been evaluated to meet general RF exposure requirements. The device can be used in fixed/mobile exposure condition. The min separation distance is 20~cm

Notice: Shielded cables

All connections to other computing devices must be made using shielded cables to maintain compliance with FCC regulations.

The following importer is the responsible party.

Company Name: POWER MOBILE LIFE, LLC

Address: 400 108th Ave NE Ste 400, Bellevue, WA 98004-554

Telephone: [phone]

This product complies with the radio interference requirements of the European Community.

Declaration of Conformity

Hereby, Anker Innovations Limited declares that this device is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/

EU. For the declaration of conformity, visit https://uk.eufylife.com/ This product can be used across EU member states.

Due to the used enclosure material, the product shall only be connected to a USB Interface of version 2.0 or higher.

The adapter shall be installed near the equipment and shall be easily accessible. Do not use the Device in the environment at too high or too low temperature, never expose the Device under strong sunshine or too wet environment.

The suitable temperature for T8130X/T8131X and accessories is 0^ - 40^ . When charging, please place the device in an environment that has a normal room temperature and good ventilation.

It is recommended to charge the device in an environment with a temperature that ranges from 5^ 25^ .

RF exposure information: The Maximum Permissible Exposure (MPE) level has been calculated based on a distance of d = 20cm between the device and the human body. To maintain compliance with RF exposure requirement, use product that maintain a 20cm distance between the device and human body.

CAUTION RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS

Wi-Fi Operating Frequency Range: 2412~2472MHz; Wi-Fi Max Output Power:18.70dBm

The following importer is the responsible party (contact for EU matters only) Anker Innovations Deutschland GmbH | Georg-Muche-Srasse 3, 80807 Munich, Germany

This product is designed and manufactured with high quality materials and components, which can be recycled and reused.
This symbol means the product must not be discarded as household waste, and should be delivered to an appropriate collection facility for recycling. Proper disposal and recycling helps protect natural resources, human health and the environment. For more information on disposal and recycling of this product, contact your local municipality, disposal service, or the shop where you bought this product.

IC Statement

This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions:

When using the product, maintain a distance of 20cm from the body to ensure compliance with RF exposure requirements.

This product complies with the radio interference requirements of the United Kingdom.

Declaration of Conformity

Hereby, Anker Innovations Limited declares that the product type T8130X/T8131X is in compliance with Radio Equipment Regulations 2017. The full text of the UK declaration of conformity is available at the following internet address: https://uk.eufylife.com

Anker Technology (UK) Ltd I Suite B, Fairgate House, 205 Kings Road, Tyseley, Birmingham, B11 2AA, United Kingdom

INHALTS-VERZEICHNIS

Im Lieferumfang

12 15

Einrichten Des eufyCam Solo / Solo Pro

Produktübersicht

13 16

Montieren eufyCam Solo / Solo Pro

ios (iOS pblai Jai jil s jxi) App Store eufy Security 1 (Android pblai Jai jil s jxi) Google Play

euy Security 2

1.2x11.5x11.6x11.7x11.8x11.9x11.10

LED

aalalal alalal alalal eufyCam Solo / Solo Pro 1 yds yds yds yds yds yds yds yds yds yds yds yds yds yds yds yds yds yds yds yds yds yds yds yds yds yds yds yds yds yds yds yds yds yds yds yds yds yds yds yds yds yds yds yds yds yds yds yds yds yds y

eufyCam Solo / Solo Pro 1 yds pss

.eufy Security 1 "sclal" joo gao dol, o bly i k. LED 2000

C

1

gssuususususususususususususususususususususususususususususususususususususususususususususususususususususususususususususususus

CUSTOMER SERVICE

Kundenservice | Servicio de atencion al cliente | Service client
Servizio cliente | Klantenservice | Servico de Apolo ao Cliente |

Warranty

12-month limited warranty

Customer Support: [e-mail]

Anker Innovations Limited

Room 1318-19, Hollywood Plaza, 610 Nathan Road, Mongkok, Kowloon, Hong Kong
