USER MANUAL SoloCam S40 eufy

Anker Innovations Limited. All rights reserved, early Security and early Security Logo are trademarks of Anker Innovations Limited, registered in the United States and other countries. All other trademarks are the property of their respective owners.

51005002855 VCI

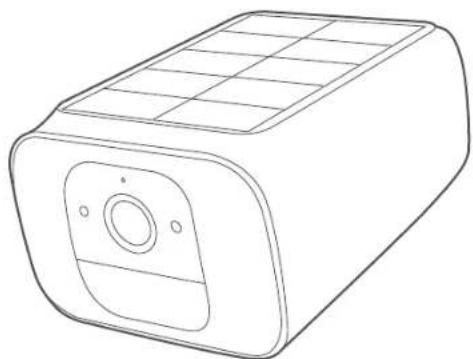

Line drawing of a rectangular electronic device with a grid-patterned top and central button (no text or symbols)

English

Deutsch

Español

Français

Italiano

Nederlands

Portuguese

لعربيya

71

TABLE OF CONTENTS

PRODUCT OVERVIEW

02

05

MOUNTING SOLOCAM

CHARGING SOLOCAM

03

08

NOTICE

SETTING UP SOLOCAM

04

I / PRODUCT OVERVIEW

Diagram of a water heater with labeled parts including front panel, side panels, and top view

1. Solar Panel
2. Camera Lens
3. Motion Sensor
4. Photosensitive Sensor

5. Microphone

6. LED Indicator

7. SYNC Button

8. Type-C Charging Port

9. Mounting Hole

10. Speaker

Charging Solid blue
Fully charged Off

02 EN EN

03

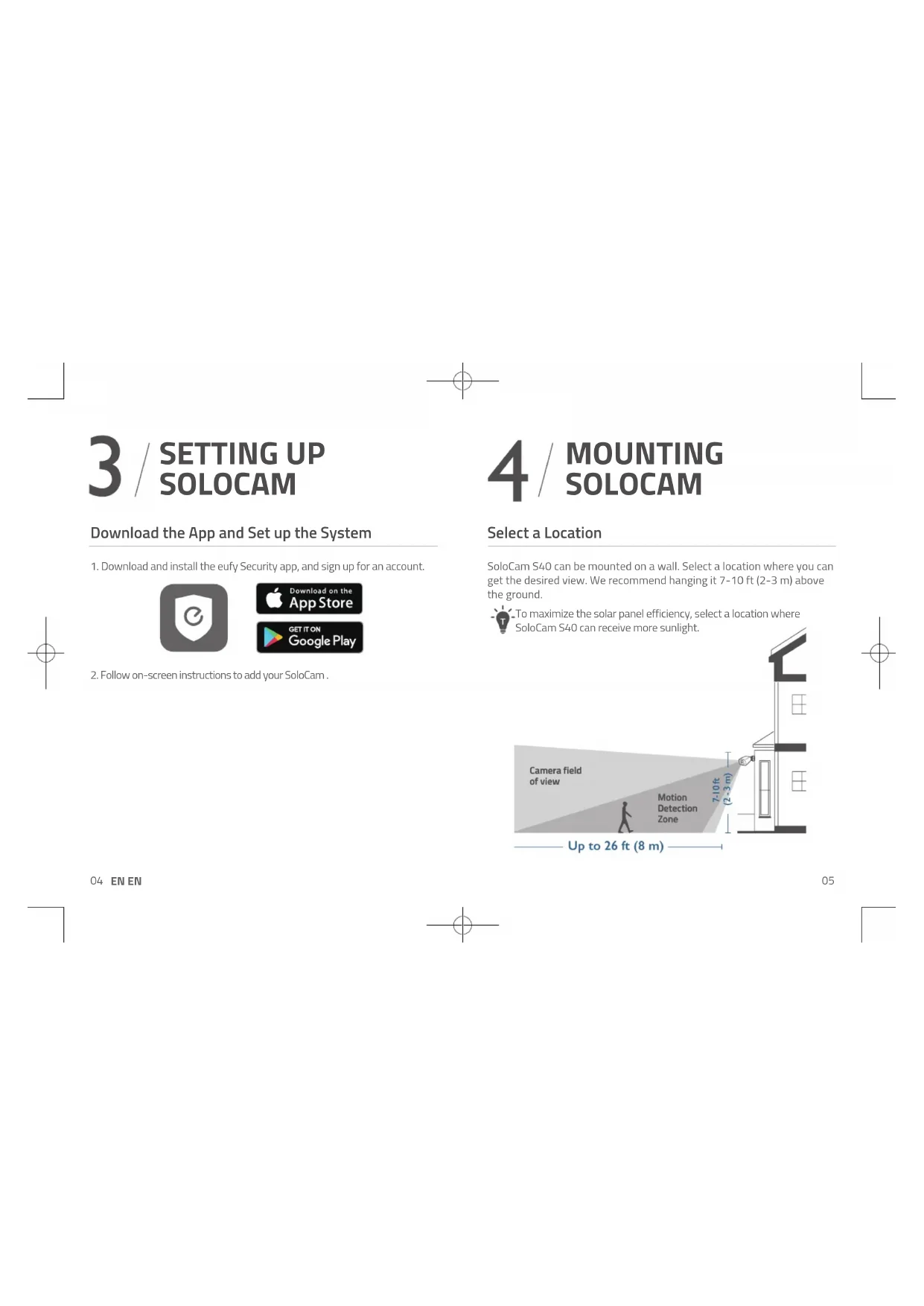

Download the App and Set up the System

1. Download and install the eufy Security app, and sign up for an account.

1. Follow on-screen instructions to add your SoloCam.

4 / MOUNTING SOLOCAM

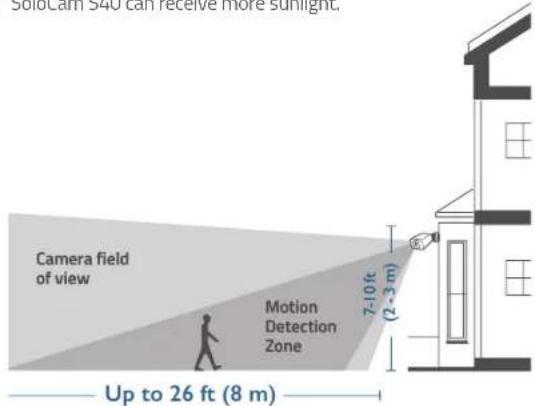

Select a Location

SoloCam S40 can be mounted on a wall. Select a location where you can get the desired view. We recommend hanging it 7-10 ft (2-3 m) above the ground.

To maximize the solar panel efficiency, select a location where SoloCam S40 can receive more sunlight.

Solocam 340 can receive more sunlight. Camera field of view Motion Detection Zone 7-10 ft (2-3 m) Up to 26 ft (8 m)

04 EN EN

05

Mount SoloCam S40

SoloCam S40 can be mounted both outdoors and indoors.

1. Turn the knob of the mounting bracket counterclockwise to loosen and disassemble it.

Diagram showing a mechanical component before and after rotation, with no text or symbols present.

1. Place the mounting bracket against the wall. Drill holes with a 15/64 inch (6 mm) drill bit, then insert the anchors into the holes; anchors are necessary for walls that are made out of hard materials such as concrete, brick, or stucco.

Technical diagram showing a mechanical assembly with labeled components and directional arrows indicating motion or force.

1. Firmly screw the knob of the mounting bracket into the mounting hole of SoloCam.

Line drawing of a device with a screw and plug, no text or symbols present

1. Hold and screw SoloCam to the mounting bracket. Rotate SoloCam to adjust the view and check it using the live stream which you can access in the eufy Security app.

Line drawing of a mechanical component with a cylindrical shaft and flanged end (no text or symbols)

SoloCam S40 can be also installed on the ceiling. Follow the steps 1-4 mentioned above to install it.

Tips: For troubleshooting, check Help on the eufy Security app. Refer to the app page for LED indicator status.

06 EN EN

5 / NOTICE

CE This product complies with the radio interference requirements of the European Community.

Hereby, Anker Innovations Limited declares that this device is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU. For the declaration of conformity, visit the Web site: https://uk.eufylife.com/.

This product can be used across EU member states.

Due to the used enclosure material, the product shall only be connected to a USB Interface of version 2.0 or higher.

The adapter shall be installed near the equipment and shall be easily accessible. Do not use the Device in the environment at too high or too low temperature, never expose the Device under strong sunshine or too wet environment.

The suitable temperature for T8124 and accessories is -20°C-50°C.

When charging, please place the device in an environment that has a normal room temperature and good ventilation.

It is recommended to charge the device in an environment with a temperature that ranges from 5°C\~25°C.

Please make sure to use only the charger provided by the manufacturer. When the manufacturer does not provide the charger, please use a charger that complies with EU regulations, otherwise it may cause danger and violate the authorization of the product and warranty terms.

RF exposure information: The Maximum Permissible Exposure (MPE) level has been calculated based on a distance of d = 20 cm between the device and the human body. To maintain compliance with RF exposure requirement, use product that maintain a 20cm distance between the device and human body,

CAUTION RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS

Wi-Fi Operating Frequency Range: 2412\~2472MHz; Wi-Fi Max Output Power: 19dBm The following importer is the responsible party (contact for EU matters only)

This product is designed and manufactured with high quality materials and components, which can be recycled and reused.

This symbol means the product must not be discarded as household waste, and should be delivered to an appropriate collection facility for recycling. Proper disposal and recycling helps protect natural resources, human health and the environment. For more information on disposal and recycling of this product, contact your local municipality, disposal service, or the shop where you bought this product.

UK CA This product complies with the radio interference requirements of the United Kingdom.

Declaration of Conformity

Hereby, Anker Innovations Limited declares that this product is in compliance with Radio Equipment Regulations 2017. The full text of the UK declaration of conformity is available at the following internet address: https://uk.eufylife.com.

Anker Technology (UK) Ltd I Suite B, Fairgate House, 205 Kings Road, Tyseley, Birmingham, B11 2AA, United Kingdom

Customer Service

Warranty

12-month limited warranty

Call Us

United States

[phone] Mon-Fri 9AM-5PM (PT)

United Kingdom

[phone] Mon-Fri 6AM-11AM (GMT)

Germany

[phone] Mon-Fri 6:00-11:00

Email Us

Customer Support: [e-mail]

Anker Innovations Limited

Room 1318-19, Hollywood Plaza, 610 Nathan Road, Mongkok, Kowloon, Hong Kong

@EufyOfficial

@EufyOfficial

@EufyOfficial

EN

Diagram of a water heater with labeled parts including front, side, and interior views

Camera field of view Motion Detection Zone 7-10 ft (2-3 m) Up to 26 ft (8 m)

15

SoloCam S40 montieren

Diagram showing a mechanical component before and after rotation, with no text or symbols present.

Technical diagram showing a mechanical assembly with labeled components and directional arrows indicating motion or force.

16 DE DE

Line drawing of a device with a screw and plug, no text or symbols present

Line drawing of a mechanical component with a cylindrical shaft and flanged end (no text or symbols)

Kunden-Support: [e-mail]

Anker Innovations Limited

Room 1318-19, Hollywood Plaza, 610 Nathan Road, Mongkok, Kowloon, Hongkong

@EufyOfficial

@EufyOfficial

@EufyOfficial

DE

TABLA DE CONTENIDOS

Diagram of a portable air conditioner with labeled parts including front panel, side panel, and top panel.

Camera field of view Motion Detection Zone 7-10 ft (2 - 3 m) Up to 26 ft (8 m)

24 ES ES

25

Diagram showing a mechanical component before and after rotation, with no text or symbols present.

Technical diagram of a mechanical assembly with two screws and a central shaft, showing alignment arrows (no text or labels)

26 ES ES

Line drawing of a battery with a screw and plug, no text or symbols present

Line drawing of a mechanical component with a cylindrical shaft and flanged end (no text or symbols)

Anker Innovations Limited

Room 1318-19, Hollywood Plaza, 610 Nathan Road, Mongkok, Kowloon, Hong Kong

@EufyOfficial

@EufyOfficial

@EufyOfficial

ES

SOMMAIRE Sommaire

PRÉSENTATION DU PRODUIT 32

CHARGEMENT DE LA SOLOCAM 33

CONFIGURATION DE LA SOLOCAM 34

Diagram of a water heater with labeled parts including front, side, and interior views

Camera field of view Motion Detection Zone 7-10 ft (2-3 m) Up to 26 ft (8 m)

34 FR FR

35

Montage de la SoloCam S40

Diagram showing a mechanical component before and after rotation, with no text or symbols present.

Technical diagram showing a mechanical assembly with labeled components and directional arrows indicating motion or force.

36 FR FR

Line drawing of a battery with a screw and plug inserted (no text or symbols)

Line drawing of a mechanical component with a cylindrical shaft and flanged end (no text or symbols)

Assistance client : [e-mail]

Anker Innovations Limited

Room 1318-19, Hollywood Plaza, 610 Nathan Road, Mongkok, Kowloon, Hong Kong

@EufyOfficial

@EufyOfficial

@EufyOfficial

FR

INDICE Sommario

PANORAMICA DEL PRODOTTO 42

Diagram of a portable air conditioner with labeled parts including front panel, side panel, and top panel.

Diagram showing a mechanical component before and after rotation, with no text or symbols present.

Technical diagram showing mechanical assembly with labeled components and directional arrows indicating motion or force

46 IT IT

Line drawing of a battery with a plug inserted into it, showing internal components (no text or symbols)

Line drawing of a mechanical component with a cylindrical shaft and flanged end (no text or symbols)

Anker Innovations Limited

Room 1318-19, Hollywood Plaza, 610 Nathan Road, Mongkok, Kowloon, Hong Kong

@EufyOfficial

@EufyOfficial

@EufyOfficial

IT

INHOUDS- OPGAVE

PRODUCTOVERZICHT

DE SOLOCAM OPLADEN

Diagram of a device with numbered parts for identification and labeling

Camera field of view Motion Detection Zone 7-10 ft (2-3 m) Up to 26 ft (8 m)

54 NL NL

55

De SoloCam S40 monteren

Diagram showing a mechanical component before and after rotation, with no text or symbols present.

Technical diagram showing screw fasteners entering a mechanical component with labeled parts and directional arrows

56 NL NL

Line drawing of a battery with a screw and plug inserted, no text or symbols present

Line drawing of a mechanical component with a cylindrical shaft and flanged end (no text or symbols)

Anker Innovations Limited

Room 1318-19, Hollywood Plaza, 610 Nathan Road, Mongkok, Kowloon, Hongkong

@EufyOfficial

@EufyOfficial

@EufyOfficial

NL

ÍNDICE CONTEÚDO

Diagram of a portable air conditioner with labeled parts including front panel, side panels, and interior casing

Camera field of view Motion Detection Zone 7-10 ft (2-3 m) Up to 26 ft (8 m)

64 PTPT

65

Instalar a SoloCam S40

Diagram showing a mechanical component before and after rotation, with no text or symbols present.

Technical diagram showing screw fastening assembly with labeled components and directional arrows

66 PTPT

Line drawing of a device with a screw and plug inserted into a housing (no text or symbols)

Line drawing of a mechanical component with a cylindrical shaft and flanged end (no text or symbols)

Anker Innovations Limited

Room 1318-19, Hollywood Plaza, 610 Nathan Road, Mongkok, Kowloon, Hong Kong

@EufyOfficial

@EufyOfficial

@EufyOfficial

PT

Diagram of a portable air conditioner with labeled parts including front panel, side panels, and top panel.
