USER MANUAL SoloCam L20 eufy
Anker Innovations Limited. All rights reserved,ury Security andury Security Logo are trademarks of Anker Innovations Limited, registered in the United States and other countries. All other tradenames are the property of their respective owners.
51005002791V01
English
Deutsch
Espanol
Français
Italiano
Nederlandss
Portugues
jol
TABLE OF CONTENTS
PRODUCT OVERVIEW
02
05
MOUNTING SOLOCAM
CHARGING SOLOCAM
03
08
NOTICE
SETTINGUPSOLOCAM
04

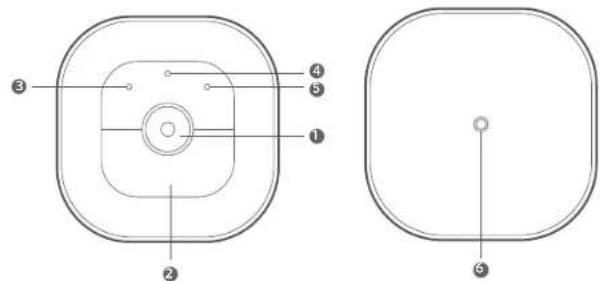

I / PRODUCT OVERVIEW
1. Camera Lens
2. Motion Sensor
3. Photosensitive Sensor
4. LED Indicator
5.Microphone
6. Mounting Hole

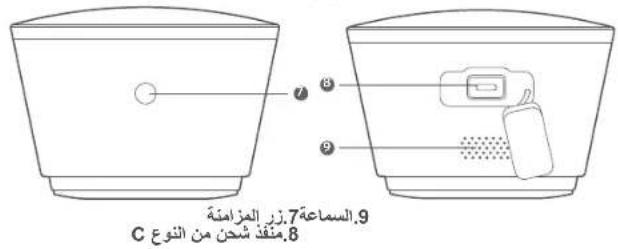

7.SYNC Button
8. Type-C Charging Port
9. Speaker
02 ENEN

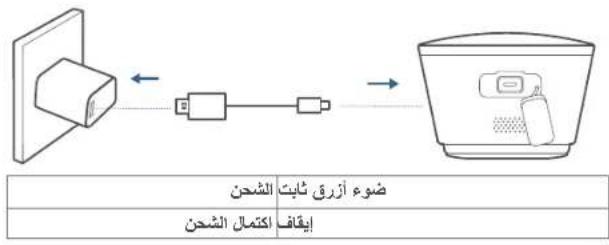

2/CHARGING SOLOCAM
Battery-powered
| Charging Solid blue | |
| Fully charged Off |

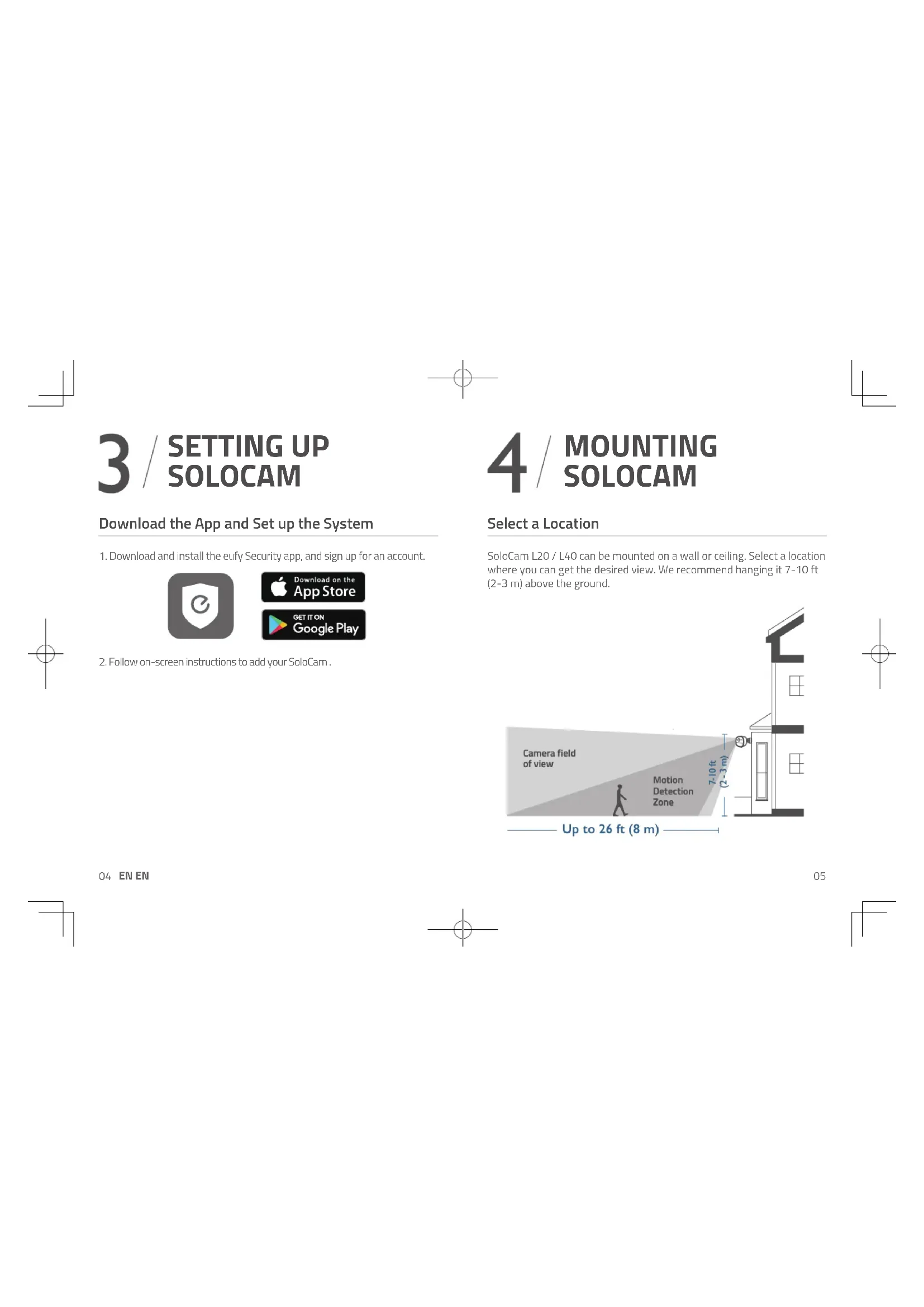

Download the App and Set up the System
- Download and install the eufy Security app, and sign up for an account.
- Follow on-screen instructions to add your SoloCam.
4 / MOUNTING SOLOCAM

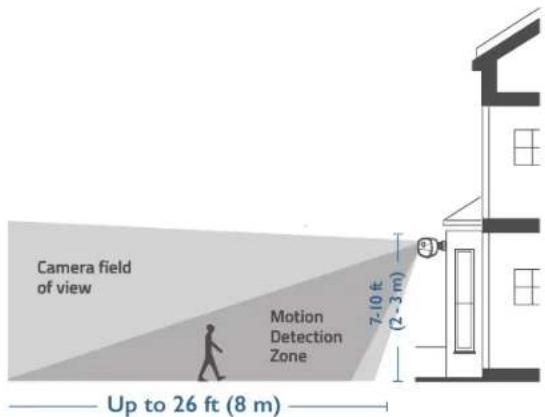

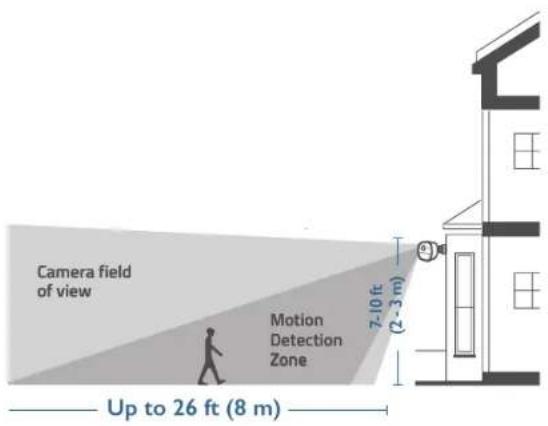

Select a Location
SoloCam L20 / L40 can be mounted on a wall or ceiling. Select a location where you can get the desired view. We recommend hanging it 7-10 ft (2-3 m) above the ground.
04 ENEN
05
Mount SoloCam L20 / L40
SoloCam L20 / L40 can be mounted both outdoors and indoors.

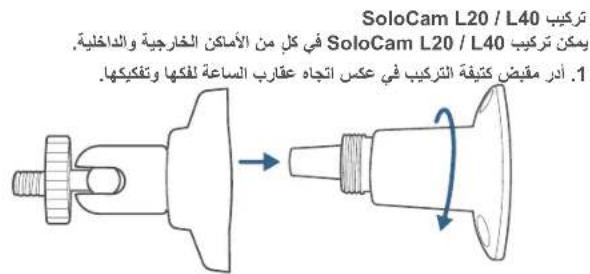

- Turn the knob of the mounting bracket counterclockwise to loosen and disassemble it.
- Place the mounting bracket against the wall. Drill holes with a 15/64 inch (5.99 mm) drill bit, then insert the anchors into the holes; anchors are necessary for walls that are made out of hard materials such as concrete, brick, or stucco.
06 ENEN
- Firmly screw the knob of the mounting bracket into the mounting hole of SoloCam.
- Hold and screw SoloCam to the mounting bracket. Rotate SoloCam to adjust the view and check it using the live stream which you can access in the eufy Security app.
SoloCam L20 / L40 can be also installed on the ceiling. Follow the steps 1-4 mentioned above to install it.
Tips: For troubleshooting, check Help on the eufy Security app. Refer to the app page for LED indicator status.
5/NOTICE
C This product complies with the radio interference requirements of the European Community.
Hereby, Anker Innovations Limited declares that this device is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU. For the declaration of conformity, visit the Web site: https://uk.euFylife.com/.
This product can be used across all member states. Due to the used enclosure material, the product shall only be connected to a USB Interface of version 2.0 or higher.
The adapter shall be installed near the equipment and shall be easily accessible. Do not use the Device in the environment at too high or too low temperature, never expose the Device under strong sunshing or too wet environment.
The suitable temperature for TB122/TB123 and accessories is -20^ - 50^
When charging, please place the device in an environment that has a normal room temperature and good ventilation.
It is recommended to charge the device in an environment with a temperature that ranges from 5^ 25^
Please make sure to use only the charger provided by the manufacturer. When the manufacturer does not provide the charger, please use a charger that complies with EU regulations, otherwise it may cause danger and violate the authorization of the product and warranty terms.
RF exposure information: The Maximum Permissible Exposure (MPE) level has been calculated based on a distance of d = 20cm between the device and the human body. To maintain compliance with RF exposure requirement, use product that maintain a 20cm distance between the device and human body.
CAUTION RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS
Wi-Fi Operating Frequency Range: 2412-2472MHz; Wi-Fi Max Output Power: 19dBm
The following importer is the responsible party (contact for EU matters only)
This product is designed and manufactured with high quality materials and components, which can be recycled and reused.
This symbol means the product must not be discarded as household waste, and should be delivered to an appropriate collection facility for recycling. Proper disposal and recycling helps protect natural resources, human health and the environment. For more information on disposal and recycling of this product, contact your local municipality, disposal service, or the shop where you bought this product.
This product complies with the radio interference requirements of the United Kingdom.
Declaration of Conformity
Hersey, Anker Innovations Limited declares that this product is in compliance with Radio Equipment Regulations 2017. The full text of the UK declaration of conformity is available at the following internet address: https://uk.euflife.com.
Anker Technology UK) Ltd | Suite B, Fangate House, 205 Kings Road, Tysetley, Birmingham: B11 2AA, United Kingdom
Customer Service
Warranty
12-month limited warranty
Call Us
United States
+1 (800) 988 7973 Mon-Fri 9AM-5PM (PT)
United Kingdom
+44 (0) 1604 936 200 Mon-Fri 6AM-11AM (GMT)
Germany
+49(0)6995797960 Mon-Fri 6:00-11:00
Email Us
Customer Support: support@eufylife.com
Anker Innovations Limited
Room 1318-19, Hollywood Plaza, 610 Nathan Road, Mongkok, Kowloon, Hong Kong
@EufyOfficial
@EufyOfficial
@EufyOfficial
EN
